Shader玉石效果

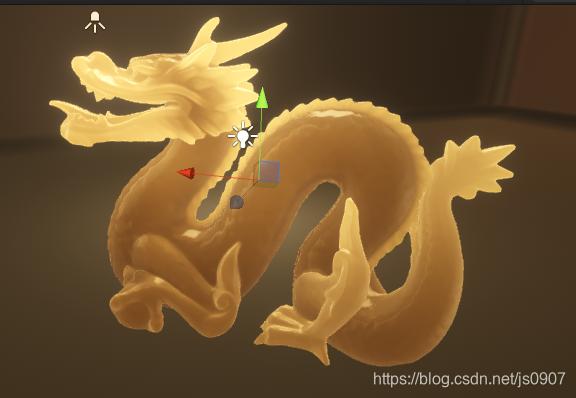

（1）效果图如下：

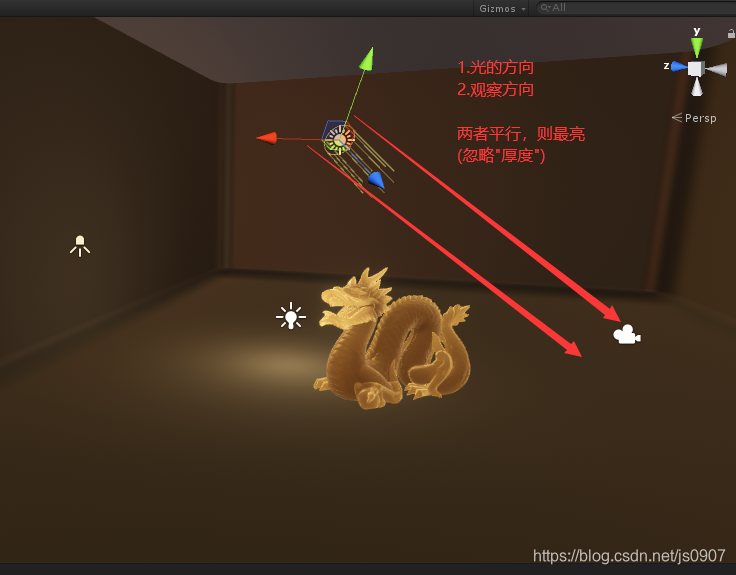

（2）效果分析：
1.边缘 ：”高亮“ "通透"效果 。
2.非边缘的"厚重"效果
3.光滑的反射"环境"信息

看到有的博客里 是使用 “深度差” 来控制效果分析中 1和2 的实现
思路链接
思路如图：

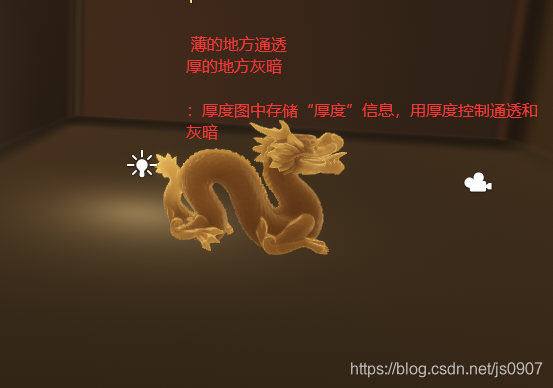

(3)本文的思路和上图不同：

hua 不多说，直接上源码 代码有注释

Shader "Unlit/Dragon_01"
{
	Properties
	{
		_DiffuseColor("Diffuse Color",Color) = (0,0.352,0.219,1)
		_BasePassDistortion("Bass Pass Distortion", Range(0,1)) = 0.2
		_CubeMap("Env Map", Cube) = "white" {}
		_EnvRotate("Env Rotate",Range(0,360)) = 0
		_BasePassPower("_BasePassPower",Range(0,50)) = 5
		_BasePassScale("_BasePassScale",Range(0,50)) = 1
		_ThicknessMap("Thickness Map",2D) = "black"{}
	}
	SubShader
	{
		Tags { "LightMode" = "ForwardBase" }

		Pass
		{
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#pragma multi_compile_fwdbase
			#include "UnityCG.cginc"
			#include "AutoLight.cginc"

			struct appdata
			{
				float4 vertex : POSITION;
				float2 texcoord : TEXCOORD0;
				float3 normal : NORMAL;
			};

			struct v2f
			{
				float2 uv : TEXCOORD0;
				float4 pos : SV_POSITION;
				float4 pos_World : TEXCOORD1;
				float3 normal_world : TEXCOORD2;
			};

			sampler2D _MainTex;
			float4 _MainTex_ST;
			float4 _LightColor0;
			float _BasePassDistortion;
			float4 _DiffuseColor;
			samplerCUBE _CubeMap;
			float4 _CubeMap_HDR;
			sampler2D _ThicknessMap;
			float _EnvRotate;
			float _BasePassPower;
			float _BasePassScale;
			v2f vert (appdata v)
			{
				v2f o;

				o.normal_world = UnityObjectToWorldNormal(v.normal);
				o.pos_World = mul(unity_ObjectToWorld, v.vertex);
				o.uv = v.texcoord;
				o.pos = UnityObjectToClipPos(v.vertex);

			return o;
			}

			fixed4 frag (v2f i) : SV_Target
			{
				float3 normal_dir = normalize(i.normal_world);
				float3 view_dir = normalize(_WorldSpaceCameraPos - i.pos_World.xyz);
				float3 light_dir = normalize(_WorldSpaceLightPos0.xyz);

				/// diffuse
				float diff_term = max(0.0, dot(normal_dir, light_dir));
				float3 diffuseColor = _DiffuseColor * diff_term * _LightColor0.rgb;

				///// 此处模拟 skybox的天光效果：  在Y轴上的强度 影响漫反射的强度
				// float sky_sphere = (dot(normalDir,float3(0,1,0)) + 1.0) * 0.5;
				// float3 sky_light = sky_sphere * diffuse_color;
				// float3 final_diffuse = diffuselight_color + sky_light * _Opacity + _AddColor.xyz;



				///// 透射光
				//  加了参数扰乱一下
				float3 back_dir = normalize(light_dir + normal_dir * _BasePassDistortion);
				// view  和 light 的夹角
				float VdotB = max(0,dot(view_dir,back_dir));
				// 控制一下强度： pow函数使效果更加显著！！！！！

				float backlight_term = max(0.0,pow(VdotB, _BasePassPower)) * _BasePassScale;
				// 对厚度图采样
				float thickness = 1.0 - tex2D(_ThicknessMap, i.uv).r;
				// 透视光的效果
				float3 backlight = backlight_term * thickness *	_LightColor0.xyz;

				///// 环境光的反射
				float3 reflect_dir = reflect(-view_dir,normal_dir);

				//控制反射方向（绕Y轴旋转），将角度 转化为弧度
				float theta = _EnvRotate *  UNITY_PI / 180.0f;
				float2x2 m_rot = float2x2(cos(theta), -sin(theta), sin(theta),cos(theta));
				float2 v_rot = mul(m_rot, reflect_dir.xz);
				reflect_dir = half3(v_rot.x, reflect_dir.y, v_rot.y);






				// 采样环境反射
				float4 hdrColor = texCUBE(_CubeMap,reflect_dir);
				//菲涅尔
				float fresnel = 1 - max(0,dot(normal_dir,view_dir));
				//解码HDR 确保在移动端也能显示正常
				half3 env_color = DecodeHDR(hdrColor, _CubeMap_HDR);
				float3 final_env = env_color * fresnel;


				float3 final_color =diffuseColor + backlight + final_env;

				return float4(final_color,1);
			}
			ENDCG
		}
	}
}
