unity中噪声函数和应用

关于下面的噪声图，一定要自己动手输出每张图的效果，结合代码分析图的效果。
1.白噪声WhiteNoise
主要是用到 frac函数，此函数主要是 返回小数部分
{小注： frac(10x) 和 frac(100x)的区别}

            // 白噪声
            float whiteNoise(float2 uv,int seed)
            {
                float r = frac(sin(dot(uv,float2(seed + 12.9898,seed + 78.233)))*43758.5453);
                return r;
            }

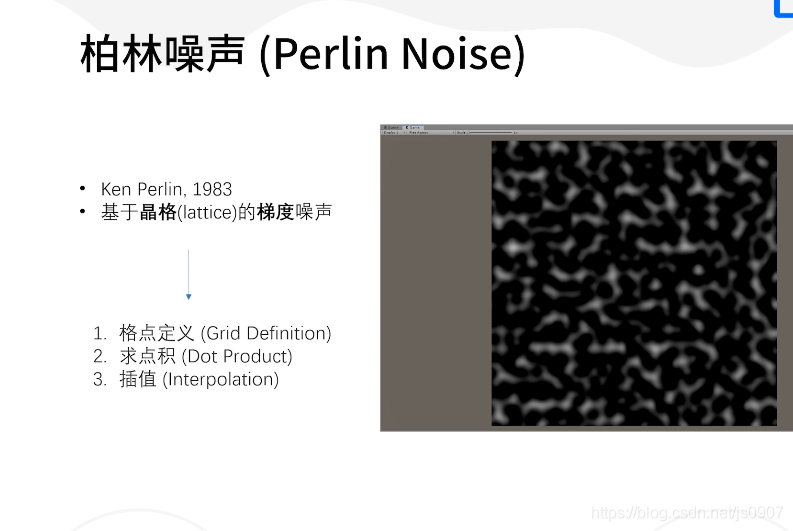

2.柏林噪声perlinNoise

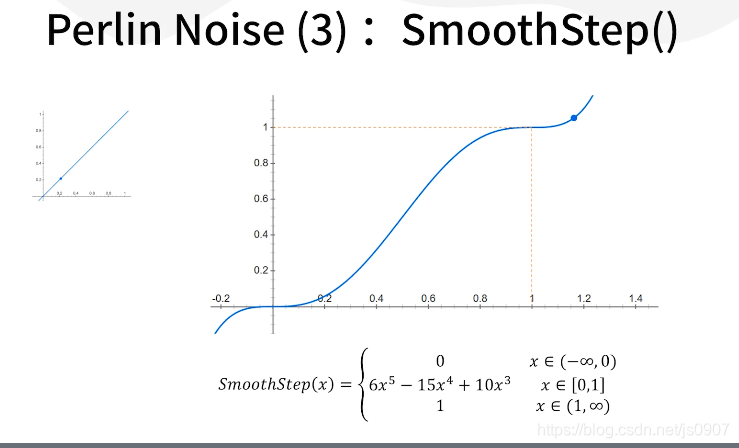

下面是smoothStep的函数用代码来表达的形式：
重点：t = t * t * t * (t * (t * 6.0f - 15.0f) + 10.0f);

            // smooth interpolation for perlin noise
            float SmoothLerp(float min, float max, float t)
            {
                t = t * t * t * (t * (t * 6.0f - 15.0f) + 10.0f);
                return min + t * (max - min);
            }

“双线性插值”：
（1）在水平方向上插值X1
（1）在水平方向上插值X2
（1）在将X1和X2在竖直方向上插值得到结果

// 当w为0时，返回a，当w为1时返回b，否则返回a与b的插值
float lerp(float a, float b, float w) {
   return a + w*(b-a);
}

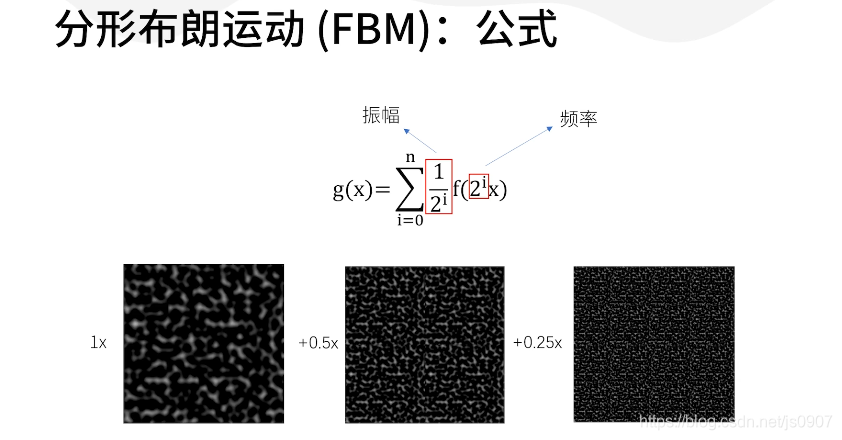

3.分形布朗运动

下面给出代码：包括白噪声，柏林噪声，用分形布朗运动对柏林噪声进行处理：

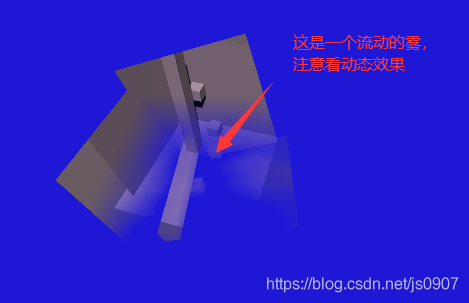

高度雾 + 噪声–>流动的雾:

Shader "custom/fog"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _FogXSpeed("_fogXSpeed",range(0,0.5)) = 0.01
        _FogYSpeed("_fogYSpeed",range(0,0.5)) = 0.03
    }
    SubShader
    {
        // No culling or depth
        Cull Off ZWrite Off ZTest Always

        Pass
        {
            Tags { "RenderType"="Opaque" }
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };


            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                float4 scrProj : TEXCOORD1;
                float2 uv_depth : TEXCOORD2;
                float4 interpolatedRay : TEXCOORD3;
            };

            sampler2D _MainTex;
            half4 _MainTex_TexelSize;
            sampler2D _CameraDepthTexture;
            float4x4 _FrustumCornersRay;

            float4 _FogColor;
            float _FogDensity;
            float _FogStart;
            float _FogEnd;
            float _FogXSpeed;
            float _FogYSpeed;

            // 白噪声
            float whiteNoise(int seed, int i, int j)
            {
                //return  frac(sin(dot(float2(i,cos(j)),float2(seed+12.9898,seed + 78.233)))*43758.5453);
                return frac(
                    sin(dot(float2(i, cos(j)), float2(float(seed) + 12.9898, float(seed) + 78.233))) * 43758.5453);
            }

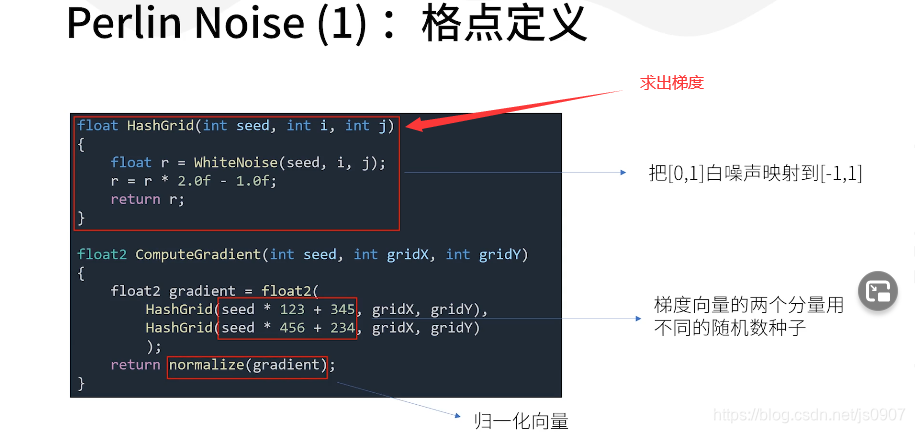

            //求出梯度值
            float HashGrid(int seed, int i, int j)
            {
                // 将得到的白噪声的值（0，1） -》还原为 （-1，-1）
                float r = whiteNoise(seed, i, j);
                r = r * 2 - 1;
                return r;
            }
            // 梯度向量
            float2 ComputeGradient(int seed, int gridX, int gridY)
            {
                float2 gradient = float2(HashGrid(seed * 123 + 456, gridX, gridY),
                                         HashGrid(seed * 456 + 123, gridX, gridY));
                return gradient;
            }

            // 柏林噪声
            float perlinNoise(int seed, float2 p, float gridSize)
            {
                p /= gridSize;
                int gridX = floor(p.x);
                int gridY = floor(p.y);
                float2 gradient00 = ComputeGradient(seed, gridX, gridY);
                float2 gradient01 = ComputeGradient(seed, gridX, gridY + 1);
                float2 gradient10 = ComputeGradient(seed, gridX + 1, gridY);
                float2 gradient11 = ComputeGradient(seed, gridX + 1, gridY + 1);

                float2 v00 = float2(gridX, gridY);
                float2 v01 = float2(gridX, gridY + 1);
                float2 v10 = float2(gridX + 1, gridY);
                float2 v11 = float2(gridX + 1, gridY + 1);

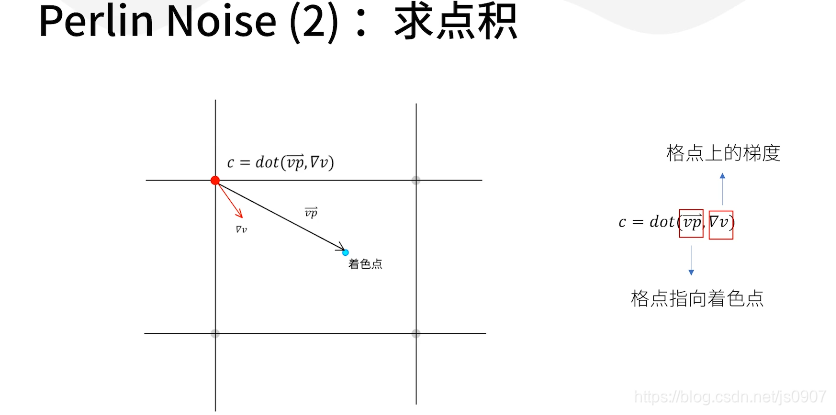

                float dp00 = dot((p - v00), gradient00);
                float dp01 = dot((p - v01), gradient01);
                float dp10 = dot((p - v10), gradient10);
                float dp11 = dot((p - v11), gradient11);
                // blinear interpolation 双线性插值
                float tx = (p.x - v00.x);
                float ty = (p.y - v00.y);
                // 此处将lerp 转换成smoothstep 比较一下效果
                float res = smoothstep(lerp(dp00, dp10, tx), lerp(dp01, dp11, tx), ty);
                float res = lerp(lerp(dp00, dp10, tx), lerp(dp01, dp11, tx), ty);
                return res;
            }

            float PerlinNoiseFBM6(int seed, float2 p, float gridSize)
            {
                // const float aspect = 2.0f;
                // p.x *= aspect;
                // fBM : https://www.iquilezles.org/www/articles/fbm/fbm.htm
                // https://www.shadertoy.com/view/lsl3RH
                // https://www.shadertoy.com/view/XslGRr
                //Vector4 deltaVec = new Vector4(Random.Range(-1.0f, 1.0f), Random.Range(-1.0f, 1.0f), 0.0f, 0.0f); ;// new Vector4(Random.Range(-1.0f, 1.0f), Random.Range(-1.0f, 1.0f), 0.0f, 0.0f);
                float2x2 mat = {
                    //some rotation matrix
                    0.8f, 0.6f,
                    -0.6f, 0.8f
                };
                float f = 0.0f;
                int numFbmSteps = 6;
                float multiplier[6] = {2.02f, 2.03f, 2.01f, 2.04f, 2.01f, 2.02f};
                // float multiplier[6] = { 1.02f, 2.03f, 3.01f, 2.04f, 3.01f, 3.02f };
                float amp = 1.0f;
                for (int i = 0; i < numFbmSteps; ++i)
                {
                    f += amp * perlinNoise(seed, p, gridSize);
                    p = mul(mat, p) * multiplier[i];
                    //(2.0f + Random.Range(0.0f, 0.05f));//brownian motion applied to sample coord
                    // p *= multiplier[i];
                    amp *= 0.5f;
                }
                return f / 0.96875f;
            }
            // 分形布朗运动
            float perLinNoiseFBM(int seed,float2 p,float gridSize)
            {
                float2x2 mat = {
                    0.8f,0.6f,
                    -0.6f,0.8f
                };
                float f = 0.0f;
                int numFbmSteps = 6;
                float multiplier[6] = {2.02f,2.03f,2.01f,2.04f,2.01f,2.02f};
                float amp = 1.0f;
                for (int i = 0;i<numFbmSteps;i++)
                {
                    f += amp * perlinNoise(seed,p,gridSize);
                    p = mul(mat,p) * multiplier[i];
                    amp *= 0.5f;
                }
                return  f / 0.96875f;
            }

            v2f vert(appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = v.uv;
                o.uv_depth = v.uv;
                # if UNITY_UV_STARTS_AT_TOP
                o.uv_depth.y = 1 - o.uv_depth.y;
                #endif
                int index = 0;
                float2 uv = v.uv;
                if (uv.x < 0.5 && uv.y < 0.5)
                {
                    index = 0;
                }
                else if (uv.x > 0.5 && uv.y < 0.5)
                {
                    index = 1;
                }
                else if (uv.x > 0.5 && uv.y > 0.5)
                {
                    index = 2;
                }
                else if (uv.x < 0.5 && uv.y > 0.5)
                {
                    index = 3;
                }
                #if UNITY_UV_STARTS_AT_TOP
                if (_MainTex_TexelSize.y < 0)
                    index = 3 - index;
                #endif
                o.interpolatedRay = _FrustumCornersRay[index];
                return o;
            }

            fixed4 frag(v2f i) : SV_Target
            {
                float speed = _Time.y * float2(_FogXSpeed,_FogYSpeed);
                float gridSize = 0.500;
                float nosie = perLinNoiseFBM(42, i.uv + speed, gridSize);
                // 重建世界坐标系
                float depth = LinearEyeDepth(SAMPLE_DEPTH_TEXTURE(_CameraDepthTexture,i.uv_depth));
                float3 worldPos = _WorldSpaceCameraPos + depth * i.interpolatedRay.xyz;
                 // y值越小， 浓度越高
                 float fogDensity = (_FogEnd - worldPos.y) / (_FogEnd - _FogStart);

                 fogDensity = saturate(fogDensity * _FogDensity * (1+ nosie));

                 fixed4 finalCol = tex2D(_MainTex,i.uv);
                 finalCol.rbg = lerp(finalCol.rgb,_FogColor.rgb,fogDensity);


                return fixed4(finalCol);
            }
            ENDCG
        }
    }
}

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEditor;
using UnityEngine;
[ExecuteInEditMode]
[ImageEffectAllowedInSceneView]
public class fog : MonoBehaviour
{
    #region const data
    private const string m_FrustumCornersRay = "_FrustumCornersRay";
    private const string fogCol = "_FogColor";
    private const string fogDen = "_FogDensity";
    private const string fogSt = "_FogStart";
    private const string fogEn = "_FogEnd";

    #endregion

    private Material m_Material;

    public Camera camera;
    public Shader FogShader;
    [Range(0,3)]
    public float fogDensity;
    public Color fogColor;
    public float fogStart = 0;
    public float fogEnd = 2.0f;

    [Range(0,0.3f)]
    public float _FogXSpeed;
    [Range(0,0.3f)]
    public float _FogYSpeed;
    private void OnRenderImage(RenderTexture src, RenderTexture dest)
    {
        if (!m_Material)
        {
            m_Material= new Material(FogShader);
        }

        Matrix4x4 frustumCorners = Matrix4x4.identity;
        float fov = camera.fieldOfView;
        float near = camera.nearClipPlane;
        float aspect = camera.aspect;

        float halfHeight = near * Mathf.Tan(fov * 0.5f * Mathf.Deg2Rad);
        var cameraTransform = camera.transform;
        Vector3 toRight = cameraTransform.right  * halfHeight * aspect;
        Vector3 toTop = cameraTransform.up * halfHeight;

        //
        Vector3 topLeft = cameraTransform.forward * near +   toTop-toRight;
        // magnitude ,返回向量的长度
        float scale = topLeft.magnitude / near;
        topLeft.Normalize();
        topLeft *= scale;

        //
        Vector3 topRight = cameraTransform.forward * near + toRight + toTop;
        topRight.Normalize();
        topRight *= scale;


        //
        Vector3 bottmLeft = cameraTransform.forward * near - toTop - toRight;
        bottmLeft.Normalize();
        bottmLeft *= scale;
        //
        Vector3 bottmRigh = cameraTransform.forward * near - toTop + toRight;
        bottmRigh.Normalize();
        bottmRigh *= scale;


        frustumCorners.SetRow(0,bottmLeft);
        frustumCorners.SetRow(1,bottmRigh);
        frustumCorners.SetRow(2,topRight);
        frustumCorners.SetRow(3,topLeft);

        m_Material.SetMatrix(m_FrustumCornersRay,frustumCorners);

        m_Material.SetColor(fogCol,fogColor);
        m_Material.SetFloat(fogDen,fogDensity);
        m_Material.SetFloat(fogSt,fogStart);
        m_Material.SetFloat(fogEn,fogEnd);
        m_Material.SetFloat("_FogXSpeed",_FogXSpeed);
        m_Material.SetFloat("_FogYSpeed",_FogYSpeed);
        Graphics.Blit(src,dest,m_Material);
    }
}
