ROS2 机械臂 MoveIt 开发必看！用 MTC 实现抓取任务规划的完整流程（附代码解析）

内容：定义一个机械臂从抓取物体到放置物体，最后返回初始位置的完整任务流程

1. 在规划场景中添加一个圆柱形的碰撞物体，模拟待抓取的目标物体

2. 创建任务：使用 MoveIt2 的任务构造器（MoveIt Task Constructor，MTC）构建一个复杂的任务，该任务包含多个阶段，如打开手爪、移动到抓取位置、抓取物体、移动到放置位置、放置物体和返回初始位置等

依赖 MTC 包，如果没有moveit task constructor，进入src，进行clone

cd ~/ws_moveit2/src
git clone https://github.com/ros-planning/moveit_task_constructor.git -b ros2

同时创建mtc_tutorial的package

ros2 pkg create --build-type ament_cmake --node-name mtc_tutorial mtc_tutorial

修改package.xml如下：

<?xml version="1.0"?>
<?xml-model href="http://download.ros.org/schema/package_format3.xsd" schematypens="http://www.w3.org/2001/XMLSchema"?>
<package format="3">
<name>mtc_tutorial</name>
<version>0.0.0</version>
<description>TODO: Package description</description>
<maintainer email="youremail@domain.com">user</maintainer>
<license>TODO: License declaration</license>

<buildtool_depend>ament_cmake</buildtool_depend>

<depend>moveit_task_constructor_core</depend>
<depend>rclcpp</depend>

<test_depend>ament_lint_auto</test_depend>
<test_depend>ament_lint_common</test_depend>

<export>
    <build_type>ament_cmake</build_type>
</export>
</package>

修改CMakeLists.txt如下：

cmake_minimum_required(VERSION 3.8)
project(mtc_tutorial)

if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
add_compile_options(-Wall -Wextra -Wpedantic)
endif()

# find dependencies
find_package(ament_cmake REQUIRED)
find_package(moveit_task_constructor_core REQUIRED)
find_package(rclcpp REQUIRED)
# uncomment the following section in order to fill in
# further dependencies manually.
# find_package(<dependency> REQUIRED)

add_executable(mtc_tutorial src/mtc_tutorial.cpp)
ament_target_dependencies(mtc_tutorial moveit_task_constructor_core rclcpp)
target_include_directories(mtc_tutorial PUBLIC
$<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/include>
$<INSTALL_INTERFACE:include>)
target_compile_features(mtc_tutorial PUBLIC c_std_99 cxx_std_17)  # Require C99 and C++17

install(TARGETS mtc_tutorial
DESTINATION lib/${PROJECT_NAME})

if(BUILD_TESTING)
find_package(ament_lint_auto REQUIRED)
# the following line skips the linter which checks for copyrights
# uncomment the line when a copyright and license is not present in all source files
#set(ament_cmake_copyright_FOUND TRUE)
# the following line skips cpplint (only works in a git repo)
# uncomment the line when this package is not in a git repo
#set(ament_cmake_cpplint_FOUND TRUE)
ament_lint_auto_find_test_dependencies()
endif()

ament_package()

修改src/mtc_tutorial.cpp

#include <rclcpp/rclcpp.hpp>
#include <moveit/planning_scene/planning_scene.h>
#include <moveit/planning_scene_interface/planning_scene_interface.h>
#include <moveit/task_constructor/task.h>
#include <moveit/task_constructor/solvers.h>
#include <moveit/task_constructor/stages.h>
#if __has_include(<tf2_geometry_msgs/tf2_geometry_msgs.hpp>)
#include <tf2_geometry_msgs/tf2_geometry_msgs.hpp>
#else
#include <tf2_geometry_msgs/tf2_geometry_msgs.h>
#endif
#if __has_include(<tf2_eigen/tf2_eigen.hpp>)
#include <tf2_eigen/tf2_eigen.hpp>
#else
#include <tf2_eigen/tf2_eigen.h>
#endif

static const rclcpp::Logger LOGGER = rclcpp::get_logger("mtc_tutorial");
namespace mtc = moveit::task_constructor;

class MTCTaskNode
{
public:
  MTCTaskNode(const rclcpp::NodeOptions& options);

  rclcpp::node_interfaces::NodeBaseInterface::SharedPtr getNodeBaseInterface();

  void doTask();

  void setupPlanningScene();

private:
  // Compose an MTC task from a series of stages.
  mtc::Task createTask();
  mtc::Task task_;
  rclcpp::Node::SharedPtr node_;
};

rclcpp::node_interfaces::NodeBaseInterface::SharedPtr MTCTaskNode::getNodeBaseInterface()
{
  return node_->get_node_base_interface();
}

MTCTaskNode::MTCTaskNode(const rclcpp::NodeOptions& options)
  : node_{ std::make_shared<rclcpp::Node>("mtc_node", options) }
{
}

void MTCTaskNode::setupPlanningScene()
{
  moveit_msgs::msg::CollisionObject object;
  object.id = "object";
  // 参考坐标系 world
  object.header.frame_id = "world";
  object.primitives.resize(1);
  object.primitives[0].type = shape_msgs::msg::SolidPrimitive::CYLINDER;
  object.primitives[0].dimensions = { 0.1, 0.02 };

  geometry_msgs::msg::Pose pose;
  pose.position.x = 0.5;
  pose.position.y = -0.25;
  pose.orientation.w = 1.0;
  object.pose = pose;

  moveit::planning_interface::PlanningSceneInterface psi;
  psi.applyCollisionObject(object);
}

void MTCTaskNode::doTask()
{
  task_ = createTask();

  try
  {
    task_.init();
  }
  catch (mtc::InitStageException& e)
  {
    RCLCPP_ERROR_STREAM(LOGGER, e);
    return;
  }

  if (!task_.plan(5))
  {
    RCLCPP_ERROR_STREAM(LOGGER, "Task planning failed");
    return;
  }
  task_.introspection().publishSolution(*task_.solutions().front());

  auto result = task_.execute(*task_.solutions().front());
  if (result.val != moveit_msgs::msg::MoveItErrorCodes::SUCCESS)
  {
    RCLCPP_ERROR_STREAM(LOGGER, "Task execution failed");
    return;
  }

  return;
}

mtc::Task MTCTaskNode::createTask()
{
  mtc::Task task;
  // 设置任务名称和加载机器人模型
  task.stages()->setName("demo task");
  task.loadRobotModel(node_);

  const auto& arm_group_name = "panda_arm";
  const auto& hand_group_name = "hand";
  const auto& hand_frame = "panda_hand";

  // 这些属性可以在任务的各个阶段中共享和使用
  // 设置机械臂的关节组名称
  task.setProperty("group", arm_group_name);
  // 设置末端执行器的关节组名称
  task.setProperty("eef", hand_group_name);
  // 会以这个坐标系为参考来求解关节角度
  task.setProperty("ik_frame", hand_frame);

// Disable warnings for this line, as it's a variable that's set but not used in this example
#pragma GCC diagnostic push
#pragma GCC diagnostic ignored "-Wunused-but-set-variable"
  mtc::Stage* current_state_ptr = nullptr;  // Forward current_state on to grasp pose generator
#pragma GCC diagnostic pop
  // 添加一个CurrentState阶段
  auto stage_state_current = std::make_unique<mtc::stages::CurrentState>("current");
  // 获取当前机器人的状态
  current_state_ptr = stage_state_current.get();
  task.add(std::move(stage_state_current));

  // 创建采样规划器、插值规划器和笛卡尔路径规划器
  auto sampling_planner = std::make_shared<mtc::solvers::PipelinePlanner>(node_);
  auto interpolation_planner = std::make_shared<mtc::solvers::JointInterpolationPlanner>();
  auto cartesian_planner = std::make_shared<mtc::solvers::CartesianPath>();
  cartesian_planner->setMaxVelocityScalingFactor(1.0);
  cartesian_planner->setMaxAccelerationScalingFactor(1.0);
  cartesian_planner->setStepSize(.01);

  auto stage_open_hand = std::make_unique<mtc::stages::MoveTo>("open hand", interpolation_planner);
  stage_open_hand->setGroup(hand_group_name);
  stage_open_hand->setGoal("open");
  task.add(std::move(stage_open_hand));

  //添加一个Connect阶段，将机械臂从当前位置移动到抓取位置
  auto stage_move_to_pick = std::make_unique<mtc::stages::Connect>(
      "move to pick",
      mtc::stages::Connect::GroupPlannerVector{ { arm_group_name, sampling_planner } });
  stage_move_to_pick->setTimeout(5.0);
  stage_move_to_pick->properties().configureInitFrom(mtc::Stage::PARENT);
  task.add(std::move(stage_move_to_pick));

  // 使用SerialContainer创建一个抓取物体的子任务，包含接近物体、生成抓取姿态、碰撞、关闭手爪、抓取物体和提升物体等阶段
  mtc::Stage* attach_object_stage = nullptr;  // Forward attach_object_stage to place pose generator
  {
    auto grasp = std::make_unique<mtc::SerialContainer>("pick object");
    task.properties().exposeTo(grasp->properties(), { "eef", "group", "ik_frame" });
    grasp->properties().configureInitFrom(mtc::Stage::PARENT,
                                          { "eef", "group", "ik_frame" });
    {
      auto stage =
          std::make_unique<mtc::stages::MoveRelative>("approach object", cartesian_planner);
      stage->properties().set("marker_ns", "approach_object");
      stage->properties().set("link", hand_frame);
      stage->properties().configureInitFrom(mtc::Stage::PARENT, { "group" });
      stage->setMinMaxDistance(0.1, 0.15);

      // Set hand forward direction
      geometry_msgs::msg::Vector3Stamped vec;
      vec.header.frame_id = hand_frame;
      vec.vector.z = 1.0;
      stage->setDirection(vec);
      grasp->insert(std::move(stage));
    }

    {
      // Sample grasp pose
      auto stage = std::make_unique<mtc::stages::GenerateGraspPose>("generate grasp pose");
      stage->properties().configureInitFrom(mtc::Stage::PARENT);
      stage->properties().set("marker_ns", "grasp_pose");
      stage->setPreGraspPose("open");
      stage->setObject("object");
      stage->setAngleDelta(M_PI / 12);
      stage->setMonitoredStage(current_state_ptr);  // Hook into current state

      Eigen::Isometry3d grasp_frame_transform;
      Eigen::Quaterniond q = Eigen::AngleAxisd(M_PI / 2, Eigen::Vector3d::UnitX()) *
                            Eigen::AngleAxisd(M_PI / 2, Eigen::Vector3d::UnitY()) *
                            Eigen::AngleAxisd(M_PI / 2, Eigen::Vector3d::UnitZ());
      grasp_frame_transform.linear() = q.matrix();
      grasp_frame_transform.translation().z() = 0.1;
        // Compute IK
      auto wrapper =
          std::make_unique<mtc::stages::ComputeIK>("grasp pose IK", std::move(stage));
      wrapper->setMaxIKSolutions(8);
      wrapper->setMinSolutionDistance(1.0);
      wrapper->setIKFrame(grasp_frame_transform, hand_frame);
      wrapper->properties().configureInitFrom(mtc::Stage::PARENT, { "eef", "group" });
      wrapper->properties().configureInitFrom(mtc::Stage::INTERFACE, { "target_pose" });
      grasp->insert(std::move(wrapper));
    }

    {
      auto stage =
          std::make_unique<mtc::stages::ModifyPlanningScene>("allow collision (hand,object)");
      stage->allowCollisions("object",
                            task.getRobotModel()
                                ->getJointModelGroup(hand_group_name)
                                ->getLinkModelNamesWithCollisionGeometry(),
                            true);
      grasp->insert(std::move(stage));
    }

    {
      auto stage = std::make_unique<mtc::stages::MoveTo>("close hand", interpolation_planner);
      stage->setGroup(hand_group_name);
      stage->setGoal("close");
      grasp->insert(std::move(stage));
    }

    {
      auto stage = std::make_unique<mtc::stages::ModifyPlanningScene>("attach object");
      stage->attachObject("object", hand_frame);
      attach_object_stage = stage.get();
      grasp->insert(std::move(stage));
    }

    {
      auto stage =
          std::make_unique<mtc::stages::MoveRelative>("lift object", cartesian_planner);
      stage->properties().configureInitFrom(mtc::Stage::PARENT, { "group" });
      stage->setMinMaxDistance(0.1, 0.3);
      stage->setIKFrame(hand_frame);
      stage->properties().set("marker_ns", "lift_object");

      // Set upward direction
      geometry_msgs::msg::Vector3Stamped vec;
      vec.header.frame_id = "world";
      vec.vector.z = 1.0;
      stage->setDirection(vec);
      grasp->insert(std::move(stage));
    }

    task.add(std::move(grasp));
  }

  // 添加一个Connect阶段，将机械臂从抓取位置移动到放置位置
  {
    auto stage_move_to_place = std::make_unique<mtc::stages::Connect>(
        "move to place",
        mtc::stages::Connect::GroupPlannerVector{ { arm_group_name, sampling_planner },
                                                  { hand_group_name, sampling_planner } });
    stage_move_to_place->setTimeout(5.0);
    stage_move_to_place->properties().configureInitFrom(mtc::Stage::PARENT);
    task.add(std::move(stage_move_to_place));
  }

  // 使用SerialContainer创建一个放置物体的子任务，包含生成放置姿态、打开手爪、碰撞、分离物体和回撤等阶段
  {
    auto place = std::make_unique<mtc::SerialContainer>("place object");
    task.properties().exposeTo(place->properties(), { "eef", "group", "ik_frame" });
    place->properties().configureInitFrom(mtc::Stage::PARENT,
                                          { "eef", "group", "ik_frame" });
    {
      // Sample place pose
      auto stage = std::make_unique<mtc::stages::GeneratePlacePose>("generate place pose");
      stage->properties().configureInitFrom(mtc::Stage::PARENT);
      stage->properties().set("marker_ns", "place_pose");
      stage->setObject("object");

      geometry_msgs::msg::PoseStamped target_pose_msg;
      target_pose_msg.header.frame_id = "object";
      target_pose_msg.pose.position.y = 0.5;
      target_pose_msg.pose.orientation.w = 1.0;
      stage->setPose(target_pose_msg);
      stage->setMonitoredStage(attach_object_stage);  // Hook into attach_object_stage

      // Compute IK
      auto wrapper =
          std::make_unique<mtc::stages::ComputeIK>("place pose IK", std::move(stage));
      wrapper->setMaxIKSolutions(2);
      wrapper->setMinSolutionDistance(1.0);
      wrapper->setIKFrame("object");
      wrapper->properties().configureInitFrom(mtc::Stage::PARENT, { "eef", "group" });
      wrapper->properties().configureInitFrom(mtc::Stage::INTERFACE, { "target_pose" });
      place->insert(std::move(wrapper));
    }

    //添加一个MoveTo阶段，打开夹爪
    {
      auto stage = std::make_unique<mtc::stages::MoveTo>("open hand", interpolation_planner);
      stage->setGroup(hand_group_name);
      stage->setGoal("open");
      place->insert(std::move(stage));
    }

    // 防止碰撞
    {
      auto stage =
          std::make_unique<mtc::stages::ModifyPlanningScene>("forbid collision (hand,object)");
      stage->allowCollisions("object",
                            task.getRobotModel()
                                ->getJointModelGroup(hand_group_name)
                                ->getLinkModelNamesWithCollisionGeometry(),
                            false);
      place->insert(std::move(stage));
    }

    // 分离物体
    {
      auto stage = std::make_unique<mtc::stages::ModifyPlanningScene>("detach object");
      stage->detachObject("object", hand_frame);
      place->insert(std::move(stage));
    }

    // 回撤
    {
      auto stage = std::make_unique<mtc::stages::MoveRelative>("retreat", cartesian_planner);
      stage->properties().configureInitFrom(mtc::Stage::PARENT, { "group" });
      stage->setMinMaxDistance(0.1, 0.3);
      stage->setIKFrame(hand_frame);
      stage->properties().set("marker_ns", "retreat");

      // Set retreat direction
      geometry_msgs::msg::Vector3Stamped vec;
      vec.header.frame_id = "world";
      vec.vector.x = -0.5;
      stage->setDirection(vec);
      place->insert(std::move(stage));
    }

    task.add(std::move(place));
  }

  // 添加一个MoveTo阶段，将机械臂移动到初始位置
  {
    auto stage = std::make_unique<mtc::stages::MoveTo>("return home", interpolation_planner);
    stage->properties().configureInitFrom(mtc::Stage::PARENT, { "group" });
    stage->setGoal("ready");
    task.add(std::move(stage));
  }

  return task;
}

int main(int argc, char** argv)
{
  rclcpp::init(argc, argv);

  rclcpp::NodeOptions options;
  options.automatically_declare_parameters_from_overrides(true);

  // 创建MTCTaskNode对象和多线程执行器
  auto mtc_task_node = std::make_shared<MTCTaskNode>(options);
  rclcpp::executors::MultiThreadedExecutor executor;

  auto spin_thread = std::make_unique<std::thread>([&executor, &mtc_task_node]() {
    executor.add_node(mtc_task_node->getNodeBaseInterface());
    executor.spin();
    executor.remove_node(mtc_task_node->getNodeBaseInterface());
  });

  mtc_task_node->setupPlanningScene();
  while(true){
    mtc_task_node->doTask();
    usleep(1000000);
  }
  // mtc_task_node->doTask();

  spin_thread->join();
  rclcpp::shutdown();
  return 0;
}

新增launch文件

mkdir lanuch && cd launch
mtc_demo.launch.py

import os
from launch import LaunchDescription
from launch.actions import ExecuteProcess
from launch_ros.actions import Node
from ament_index_python.packages import get_package_share_directory
from moveit_configs_utils import MoveItConfigsBuilder


def generate_launch_description():
    # planning_context
    moveit_config = (
        MoveItConfigsBuilder("moveit_resources_panda")
        .robot_description(file_path="config/panda.urdf.xacro")
        .trajectory_execution(file_path="config/gripper_moveit_controllers.yaml")
        .planning_pipelines(
            pipelines=["ompl", "chomp", "pilz_industrial_motion_planner"]
        )
        .to_moveit_configs()
    )

    # Load  ExecuteTaskSolutionCapability so we can execute found solutions in simulation
    move_group_capabilities = {
        "capabilities": "move_group/ExecuteTaskSolutionCapability"
    }

    # Start the actual move_group node/action server
    run_move_group_node = Node(
        package="moveit_ros_move_group",
        executable="move_group",
        output="screen",
        parameters=[
            moveit_config.to_dict(),
            move_group_capabilities,
        ],
    )

    # RViz
    rviz_config_file = (
        get_package_share_directory("moveit2_tutorials") + "/launch/mtc.rviz"
    )
    rviz_node = Node(
        package="rviz2",
        executable="rviz2",
        name="rviz2",
        output="log",
        arguments=["-d", rviz_config_file],
        parameters=[
            moveit_config.robot_description,
            moveit_config.robot_description_semantic,
            moveit_config.robot_description_kinematics,
        ],
    )

    # Static TF
    static_tf = Node(
        package="tf2_ros",
        executable="static_transform_publisher",
        name="static_transform_publisher",
        output="log",
        arguments=["--frame-id", "world", "--child-frame-id", "panda_link0"],
    )

    # Publish TF
    robot_state_publisher = Node(
        package="robot_state_publisher",
        executable="robot_state_publisher",
        name="robot_state_publisher",
        output="both",
        parameters=[
            moveit_config.robot_description,
        ],
    )

    # ros2_control using FakeSystem as hardware
    ros2_controllers_path = os.path.join(
        get_package_share_directory("moveit_resources_panda_moveit_config"),
        "config",
        "ros2_controllers.yaml",
    )
    ros2_control_node = Node(
        package="controller_manager",
        executable="ros2_control_node",
        parameters=[ros2_controllers_path],
        remappings=[
            ("/controller_manager/robot_description", "/robot_description"),
        ],
        output="both",
    )

    # Load controllers
    load_controllers = []
    for controller in [
        "panda_arm_controller",
        "panda_hand_controller",
        "joint_state_broadcaster",
    ]:
        load_controllers += [
            ExecuteProcess(
                cmd=["ros2 run controller_manager spawner {}".format(controller)],
                shell=True,
                output="screen",
            )
        ]

    return LaunchDescription(
        [
            rviz_node,
            static_tf,
            robot_state_publisher,
            run_move_group_node,
            ros2_control_node,
        ]
        + load_controllers
    )

pick_place_demo.launch.py

from launch import LaunchDescription
from launch_ros.actions import Node
from moveit_configs_utils import MoveItConfigsBuilder

def generate_launch_description():
    moveit_config = MoveItConfigsBuilder("moveit_resources_panda").to_dict()

    # MTC Demo node
    pick_place_demo = Node(
        package="mtc_tutorial",
        executable="mtc_tutorial",
        output="screen",
        parameters=[
            moveit_config,
        ],
    )

    return LaunchDescription([pick_place_demo])

编译

colcon build --mixin debug --packages-select mtc_tutorial

运行

source install/setup.bash

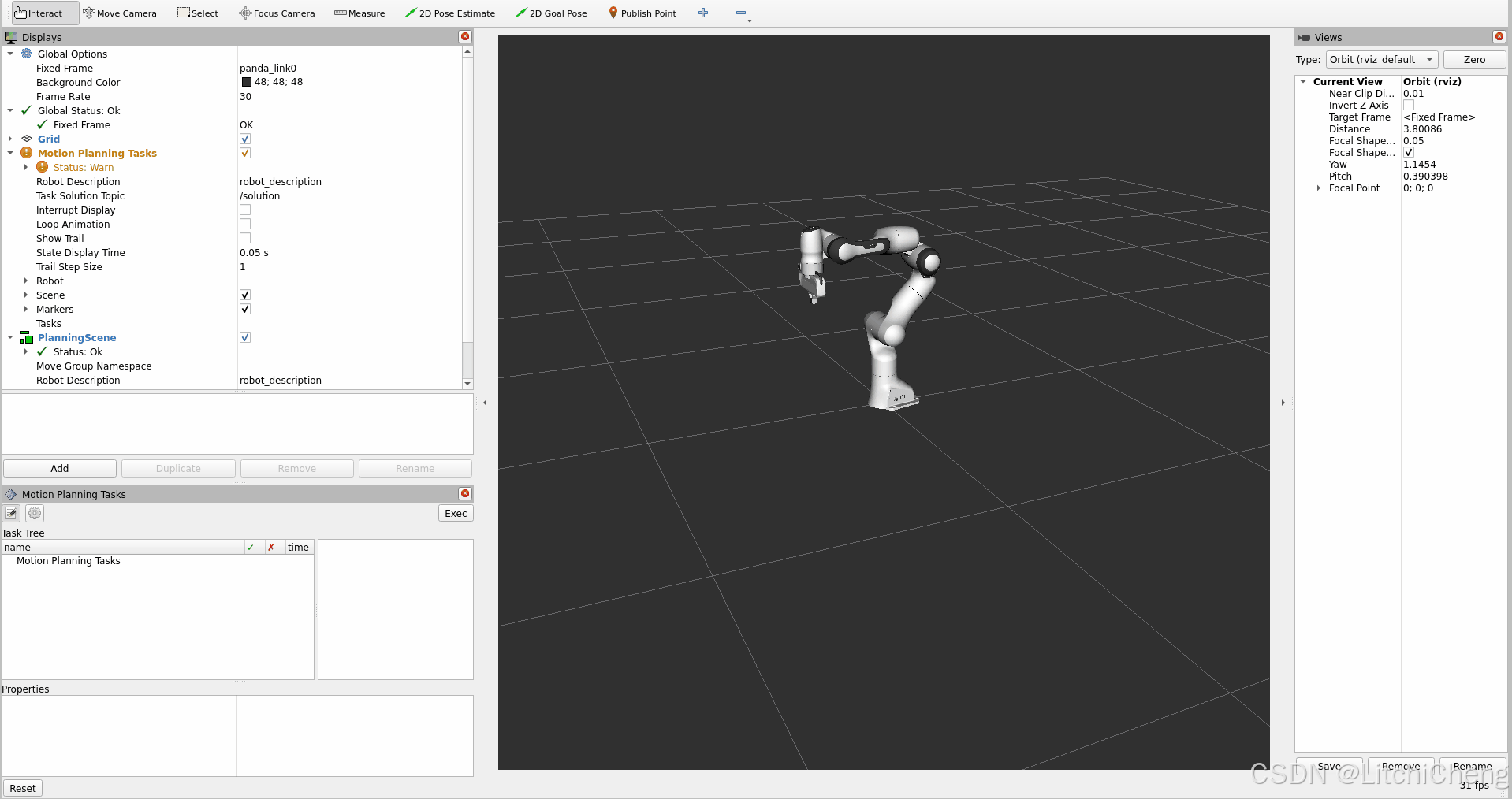

ros2 launch moveit2_tutorials mtc_demo.launch.py
ros2 launch mtc_tutorial pick_place_demo.launch.py
