ROS系列——Ubuntu18.04下ros Melodic安装mavros过程中遇到问题及解决-定期更新版

原创已于 2022-12-27 14:49:07 修改 · 1.1w 阅读

4 ·

CC 4.0 BY-SA版权

文章标签：

#ubuntu

于 2022-12-21 13:57:44 首次发布

ROS 同时被 3 个专栏收录

58 篇文章

订阅专栏

Ubuntu

44 篇文章

订阅专栏

无人机

7 篇文章

订阅专栏

本文详细记录了在Ubuntu18.04系统中安装ROS Melodic的mavros时遇到的问题，包括wstool更新、rosdep安装、rosinstall_generator命令执行以及catkin build过程中的错误，同时提供了针对每个问题的具体解决步骤，帮助读者顺利解决安装过程中遇到的难题。

ROS系列——Ubuntu18.04下ros Melodic安装mavros过程中遇到问题及解决-定期更新版

问题
- 问题四：运行 catkin build时，出错如下：
解决
- 问题一：
- 问题二：
- 问题三：
- 问题四：

问题

问题一：运行 wstool update -t src -j8 时，出错如下：

请添加图片描述

问题二：运行 rosdep install --from-paths src --ignore-src -y 时，出错如下：

请添加图片描述

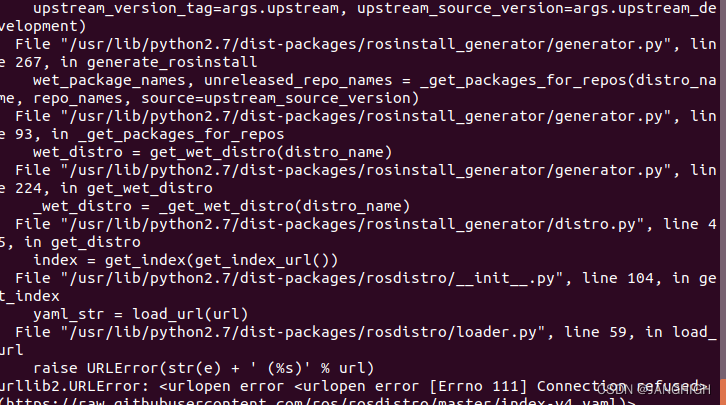

问题三：运行 rosinstall_generator --rosdistro melodic mavlink | tee /tmp/mavros.rosinstall 时，出错如下：

 rosinstall_generator --rosdistro melodic mavlink | tee /tmp/mavros.rosinstall
Traceback (most recent call last):
  File "/usr/bin/rosinstall_generator", line 11, in <module>
    load_entry_point('rosinstall-generator==0.1.22', 'console_scripts', 'rosinstall_generator')()
  File "/usr/lib/python2.7/dist-packages/rosinstall_generator/cli.py", line 163, in main
    upstream_version_tag=args.upstream, upstream_source_version=args.upstream_development)
  File "/usr/lib/python2.7/dist-packages/rosinstall_generator/generator.py", line 267, in generate_rosinstall
    wet_package_names, unreleased_repo_names = _get_packages_for_repos(distro_name, repo_names, source=upstream_source_version)
  File "/usr/lib/python2.7/dist-packages/rosinstall_generator/generator.py", line 93, in _get_packages_for_repos
    wet_distro = get_wet_distro(distro_name)
  File "/usr/lib/python2.7/dist-packages/rosinstall_generator/generator.py", line 224, in get_wet_distro
    _wet_distro = _get_wet_distro(distro_name)
  File "/usr/lib/python2.7/dist-packages/rosinstall_generator/distro.py", line 45, in get_distro
    index = get_index(get_index_url())
  File "/usr/lib/python2.7/dist-packages/rosdistro/__init__.py", line 104, in get_index
    yaml_str = load_url(url)
  File "/usr/lib/python2.7/dist-packages/rosdistro/loader.py", line 59, in load_url
    raise URLError(str(e) + ' (%s)' % url)
urllib2.URLError: <urlopen error <urlopen error [Errno 111] Connection refused> (https://raw.githubusercontent.com/ros/rosdistro/master/index-v4.yaml)>

请添加图片描述

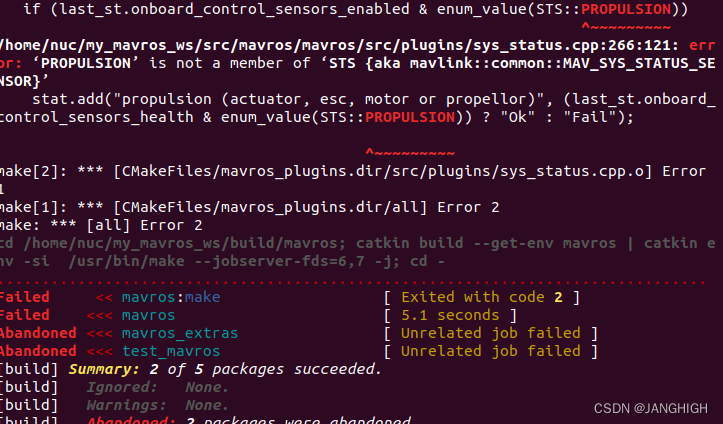

问题四：运行 catkin build时，出错如下：

/my_mavros_ws/src/mavros/mavros/src/plugins/sys_status.cpp:265:65: error: ‘PROPULSION’ is not a member of ‘STS {aka mavlink::common::MAV_SYS_STATUS_SENSOR}’
   if (last_st.onboard_control_sensors_enabled & enum_value(STS::PROPULSION))
                                                                 ^~~~~~~~~~
/home/nuc/my_mavros_ws/src/mavros/mavros/src/plugins/sys_status.cpp:266:121: error: ‘PROPULSION’ is not a member of ‘STS {aka mavlink::common::MAV_SYS_STATUS_SENSOR}’
    stat.add("propulsion (actuator, esc, motor or propellor)", (last_st.onboard_control_sensors_health & enum_value(STS::PROPULSION)) ? "Ok" : "Fail");
                                                                                                                         ^~~~~~~~~~
make[2]: *** [CMakeFiles/mavros_plugins.dir/src/plugins/sys_status.cpp.o] Error 1
make[1]: *** [CMakeFiles/mavros_plugins.dir/all] Error 2
make: *** [all] Error 2
cd /home/my_mavros_ws/build/mavros; catkin build --get-env mavros | catkin env -si  /usr/bin/make --jobserver-fds=6,7 -j; cd -
...............................................................................
Failed     << mavros:make                  [ Exited with code 2 ]
Failed    <<< mavros                       [ 5.1 seconds ]
Abandoned <<< mavros_extras                [ Unrelated job failed ]
Abandoned <<< test_mavros                  [ Unrelated job failed ]
[build] Summary: 2 of 5 packages succeeded.
[build]   Ignored:   None.
[build]   Warnings:  None.
[build]   Abandoned: 2 packages were abandoned.
[build]   Failed:    1 packages failed.
[build] Runtime: 6.3 seconds total.

请添加图片描述

解决

问题一：

手动下载源码包，将其放到 my_mavros_ws/src，源码包下载

问题二：

执行sudo apt-get update 后，再执行步骤一次该命令；
如果还未解决，并且出现类似错误：
E: Unable to locate package ros-melodic-mavlink
则：
终端输入：

sudo sh -c 'echo "deb http://packages.ros.org/ros/ubuntu $(lsb_release -sc) main" > /etc/apt/sources.list.d/ros-latest.list'
sudo apt-key adv --keyserver 'hkp://keyserver.ubuntu.com:80' --recv-key C1CF6E31E6BADE8868B172B4F42ED6FBAB17C654
sudo apt update
备注：出现Unable to locate package ros-melodic-***时，已可以通过以上方式解决

问题三：

原因是：查看File “/usr/lib/python2.7/dist-packages/rosdistro/init.py”, line 104, in get_index
yaml_str = load_url(url) 和 File “/usr/lib/python2.7/dist-packages/rosdistro/loader.py”, line 59, in load_url
raise URLError(str(e) + ’ (%s)’ % url)，里面需要链接到https://raw.githubusercontent.com这个网址，可能是网络问题，链接失败，所以作如下修改：

1）终端输入：

sudo gedit /etc/hosts

2）打开文件后，末尾输入如下内容：

199.232.68.133  raw.githubusercontent.com

3）保存，退出，重新执行出错的命令

rosinstall_generator --rosdistro melodic mavlink | tee /tmp/mavros.rosinstall

问题四：

重新执行了wstool update -t src -j4命令，通过该命令下载下了mavros和mavlink功能包，然后安装就正常了。
通过命令下载的mavros和mavlink功能包链接
