[carla] carla-ros-bridge 修改信号灯行为。

本教程适用于采用编译下载安装方式安装carla-ros-bridge 的用户。

1.修改信号灯

1.1 修改原理

我们要通过API过滤出所有绿灯的actor信息，然后修改他们的状态为常绿。

查阅API网站可知traffic_light具有set_state（self,state）方法
https://carla.readthedocs.io/en/latest/python_api/#carlatrafficlight

官网提供了一段代码，可以参考：

world = client.get_world()
spectator = world.get_spectator()

vehicle_bp = random.choice(world.get_blueprint_library().filter('vehicle.bmw.*'))
transform = random.choice(world.get_map().get_spawn_points())
vehicle = world.try_spawn_actor(vehicle_bp, transform)

# Wait for world to get the vehicle actor
world.tick()

world_snapshot = world.wait_for_tick()
actor_snapshot = world_snapshot.find(vehicle.id)

# Set spectator at given transform (vehicle transform)
spectator.set_transform(actor_snapshot.get_transform())
# ...# ...
if vehicle_actor.is_at_traffic_light():
    traffic_light = vehicle_actor.get_traffic_light()
    if traffic_light.get_state() == carla.TrafficLightState.Red:
       # world.hud.notification("Traffic light changed! Good to go!")
        traffic_light.set_state(carla.TrafficLightState.Green)

需要注意的是，set_state()只能暂时把灯变绿，之后灯还会变回来。所以为了实现信号灯一直是绿色，还需要锁住信号灯，采用.freeze(True).

参考这个方法：

freeze(self, freeze)
	Stops all the traffic lights in the scene at their current state.
		Parameters:
		freeze (bool)

1.2 具体代码

了解了上述原理，之后，下面就介绍如何修改代码。

首先定位到文件位置为：

carla-ros-bridge-0.9.12/catkin_ws/src/ros-bridge/carla_ros_bridge/src/carla_ros_bridge/bridge.py

在444行：

 carla_bridge.initialize_bridge(carla_client.get_world(), parameters)

之后，加入以下代码：

        # lbw add:turn off trafficLight
        carla_world = carla_client.get_world()
        actors=carla_world.get_actors()
        light_actor_list=actors.filter('*traffic_light*')
        carla_bridge.loginfo(">>>>>>>>>>>>>>>>light_actor number:{}".format(len(light_actor_list)))
        for light_actor in light_actor_list:
            light_actor.set_state(carla.TrafficLightState.Green)
            light_actor.freeze(True)
            carla_bridge.loginfo(light_actor)

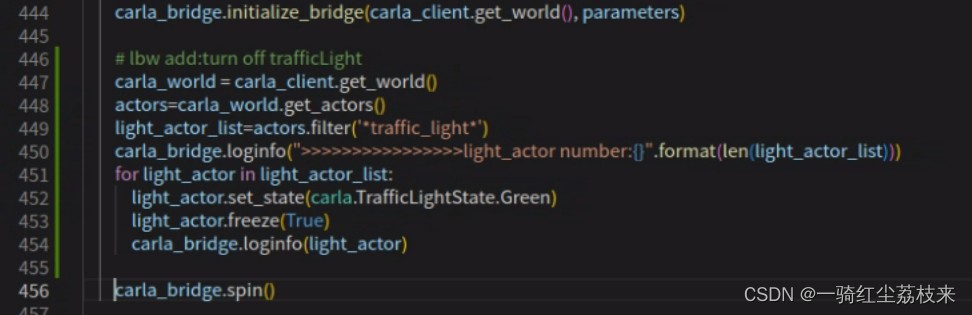

截图：

修改保存后，重新catkin_make后运行

roslaunch carla_ros_bridge carla_ros_bridge_with_example_ego_vehicle.launch  town:="town02"

可以看到24个交通信号灯的打印的信息：

[INFO] [1670599386.103029, 0.000000]: >>>>>>>>>>>>>>>>light_actor number:24
[INFO] [1670599386.104971, 0.000000]: Created TrafficLight(id=531)
[INFO] [1670599386.106751, 0.000000]: Actor(id=551, type=traffic.traffic_light)
[INFO] [1670599386.109619, 0.000000]: Created TrafficLight(id=532)
[INFO] [1670599386.111681, 0.000000]: Actor(id=550, type=traffic.traffic_light)
[INFO] [1670599386.114241, 0.000000]: Created TrafficLight(id=533)
[INFO] [1670599386.116681, 0.000000]: Actor(id=549, type=traffic.traffic_light)
[INFO] [1670599386.121154, 0.000000]: Created TrafficLight(id=534)
略去一部分...

打印信号灯的状态：

rostopic echo /carla/traffic_lights/status

可以看到，所有灯的状态都变成了2。

---
traffic_lights:
   id: 531
    state: 2
  -
    id: 532
    state: 2
  -
    id: 533
    state: 2
  -
    id: 534
    state: 2
  -

...略去一部分

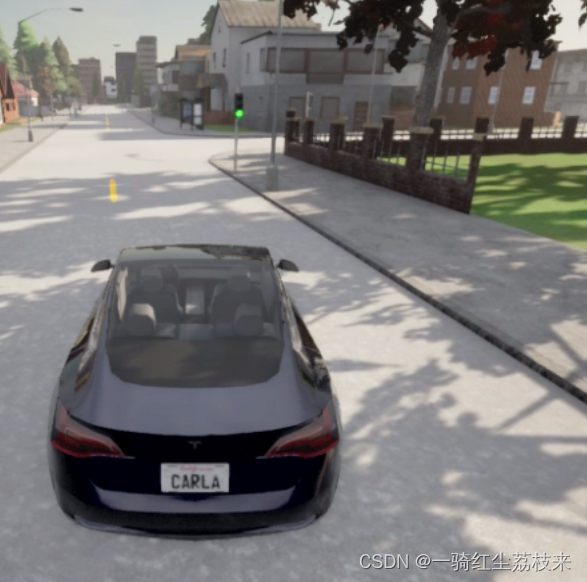

可以看到，信号灯都已经是常绿了~~~
