小车AI视觉识别--16.手指控制

一、介绍

        MediaPipe是⼀款由Google开发并开源的数据流处理机器学习应⽤开发框架。它是⼀个基于图的数据处理管线，⽤于构建使⽤了多种形式的数据源，如视频、⾳频、传感器数据以及任何时间序列数据。

        MediaPipe是跨平台的，可以运⾏在嵌⼊式平台(树莓派等)，移动设备(iOS和Android)，⼯作站和服务器上，并⽀持移动端GPU加速。 MediaPipe为实时和流媒体提供跨平台、可定制的ML解决⽅案。

        MediaPipe 的核⼼框架由 C++ 实现，并提供 Java 以及 Objective C 等语⾔的⽀持。MediaPipe 的主要概念包括数据包（Packet）、数据流（Stream）、计算单元（Calculator）、图（Graph）以及⼦图（Subgraph）。

MediaPipe的特点：

• 端到端加速：内置的快速ML推理和处理即使在普通硬件上也能加速。
• ⼀次构建，随时随地部署：统⼀解决⽅案适⽤于Android、iOS、桌⾯/云、web和物联⽹。
• 即⽤解决⽅案：展⽰框架全部功能的尖端ML解决⽅案。
• 免费开源：Apache2.0下的框架和解决⽅案，完全可扩展和定制。

二、实验源码

#!/usr/bin/env python3
# encoding: utf-8
import math
import time
import cv2 as cv
import numpy as np
import mediapipe as mp

pTime = cTime = volPer = value = index = 0
effect = ["color", "thresh", "blur", "hue", "enhance"]
volBar = 400
class handDetector:
    def __init__(self, mode=False, maxHands=2, detectorCon=0.5, trackCon=0.5):
        self.tipIds = [4, 8, 12, 16, 20]
        self.mpHand = mp.solutions.hands
        self.mpDraw = mp.solutions.drawing_utils
        self.hands = self.mpHand.Hands(
            static_image_mode=mode,
            max_num_hands=maxHands,
            min_detection_confidence=detectorCon,
            min_tracking_confidence=trackCon
        )
        self.lmDrawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 0, 255), thickness=-1, circle_radius=15)
        self.drawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 255, 0), thickness=10, circle_radius=10)

    def get_dist(self, point1, point2):
        x1, y1 = point1
        x2, y2 = point2
        return abs(math.sqrt(math.pow(abs(y1 - y2), 2) + math.pow(abs(x1 - x2), 2)))

    def calc_angle(self, pt1, pt2, pt3):
        point1 = self.lmList[pt1][1], self.lmList[pt1][2]
        point2 = self.lmList[pt2][1], self.lmList[pt2][2]
        point3 = self.lmList[pt3][1], self.lmList[pt3][2]
        a = self.get_dist(point1, point2)
        b = self.get_dist(point2, point3)
        c = self.get_dist(point1, point3)
        try:
            radian = math.acos((math.pow(a, 2) + math.pow(b, 2) - math.pow(c, 2)) / (2 * a * b))
            angle = radian / math.pi * 180
        except:
            angle = 0
        return abs(angle)

    def findHands(self, frame, draw=True):
        img = np.zeros(frame.shape, np.uint8)
        img_RGB = cv.cvtColor(frame, cv.COLOR_BGR2RGB)
        self.results = self.hands.process(img_RGB)
        if self.results.multi_hand_landmarks:
            for handLms in self.results.multi_hand_landmarks:
                if draw: self.mpDraw.draw_landmarks(img, handLms, self.mpHand.HAND_CONNECTIONS)
        return img

    def findPosition(self, frame, draw=True):
        self.lmList = []
        if self.results.multi_hand_landmarks:
            for id, lm in enumerate(self.results.multi_hand_landmarks[0].landmark):
                # print(id,lm)
                h, w, c = frame.shape
                cx, cy = int(lm.x * w), int(lm.y * h)
                # print(id, lm.x, lm.y, lm.z)
                self.lmList.append([id, cx, cy])
                if draw: cv.circle(frame, (cx, cy), 15, (0, 0, 255), cv.FILLED)
        return self.lmList

    def frame_combine(slef,frame, src):
        if len(frame.shape) == 3:
            frameH, frameW = frame.shape[:2]
            srcH, srcW = src.shape[:2]
            dst = np.zeros((max(frameH, srcH), frameW + srcW, 3), np.uint8)
            dst[:, :frameW] = frame[:, :]
            dst[:, frameW:] = src[:, :]
        else:
            src = cv.cvtColor(src, cv.COLOR_BGR2GRAY)
            frameH, frameW = frame.shape[:2]
            imgH, imgW = src.shape[:2]
            dst = np.zeros((frameH, frameW + imgW), np.uint8)
            dst[:, :frameW] = frame[:, :]
            dst[:, frameW:] = src[:, :]
        return dst


if __name__ == '__main__':
    capture = cv.VideoCapture(0)
    capture.set(6, cv.VideoWriter.fourcc('M', 'J', 'P', 'G'))
    capture.set(cv.CAP_PROP_FRAME_WIDTH, 640)
    capture.set(cv.CAP_PROP_FRAME_HEIGHT, 480)
    print("capture get FPS : ", capture.get(cv.CAP_PROP_FPS))
    hand_detector = handDetector()
    while capture.isOpened():
        ret, frame = capture.read()
        action = cv.waitKey(1) & 0xFF
        # frame = cv.flip(frame, 1)
        img = hand_detector.findHands(frame)
        lmList = hand_detector.findPosition(frame, draw=False)
        if len(lmList) != 0:
            angle = hand_detector.calc_angle(4, 0, 8)
            x1, y1 = lmList[4][1], lmList[4][2]
            x2, y2 = lmList[8][1], lmList[8][2]
            cx, cy = (x1 + x2) // 2, (y1 + y2) // 2
            cv.circle(img, (x1, y1), 15, (255, 0, 255), cv.FILLED)
            cv.circle(img, (x2, y2), 15, (255, 0, 255), cv.FILLED)
            cv.line(img, (x1, y1), (x2, y2), (255, 0, 255), 3)
            cv.circle(img, (cx, cy), 15, (255, 0, 255), cv.FILLED)
            if angle <= 10: cv.circle(img, (cx, cy), 15, (0, 255, 0), cv.FILLED)
            volBar = np.interp(angle, [0, 70], [400, 150])
            volPer = np.interp(angle, [0, 70], [0, 100])
            value = np.interp(angle, [0, 70], [0, 255])
            # print("angle: {},value: {}".format(angle, value))
        # 杩涜闃堝€间簩鍊煎寲鎿嶄綔锛屽ぇ浜庨槇鍊紇alue鐨勶紝浣跨敤255琛ㄧず锛屽皬浜庨槇鍊紇alue鐨勶紝浣跨敤0琛ㄧず
        if effect[index]=="thresh":
            gray = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)
            frame = cv.threshold(gray, value, 255, cv.THRESH_BINARY)[1]
        # 杩涜楂樻柉婊ゆ尝,(21, 21)琛ㄧず楂樻柉鐭╅樀鐨勯暱涓庡閮芥槸21锛屾爣鍑嗗樊鍙杤alue
        elif effect[index]=="blur":
            frame = cv.GaussianBlur(frame, (21, 21), np.interp(value, [0, 255], [0, 11]))
        # 鑹插僵绌洪棿鐨勮浆鍖?HSV杞崲涓築GR
        elif effect[index]=="hue":
            frame = cv.cvtColor(frame, cv.COLOR_BGR2HSV)
            frame[:, :, 0] += int(value)
            frame = cv.cvtColor(frame, cv.COLOR_HSV2BGR)
        # 璋冭妭瀵规瘮搴?        elif effect[index]=="enhance":
            enh_val = value / 40
            clahe = cv.createCLAHE(clipLimit=enh_val, tileGridSize=(8, 8))
            lab = cv.cvtColor(frame, cv.COLOR_BGR2LAB)
            lab[:, :, 0] = clahe.apply(lab[:, :, 0])
            frame = cv.cvtColor(lab, cv.COLOR_LAB2BGR)
        if action == ord('q'): break
        if action == ord('f'):
            index += 1
            if index >= len(effect): index = 0
        cTime = time.time()
        fps = 1 / (cTime - pTime)
        pTime = cTime
        text = "FPS : " + str(int(fps))
        cv.rectangle(img, (50, 150), (85, 400), (255, 0, 0), 3)
        cv.rectangle(img, (50, int(volBar)), (85, 400), (0, 255, 0), cv.FILLED)
        cv.putText(img, f'{int(volPer)}%', (40, 450), cv.FONT_HERSHEY_COMPLEX, 1, (0, 255, 0), 3)
        cv.putText(frame, text, (20, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 1)
        dst = hand_detector.frame_combine(frame, img)
        cv.imshow('dst', dst)
        # cv.imshow('frame', frame)
        # cv.imshow('img', img)
    capture.release()
    cv.destroyAllWindows()

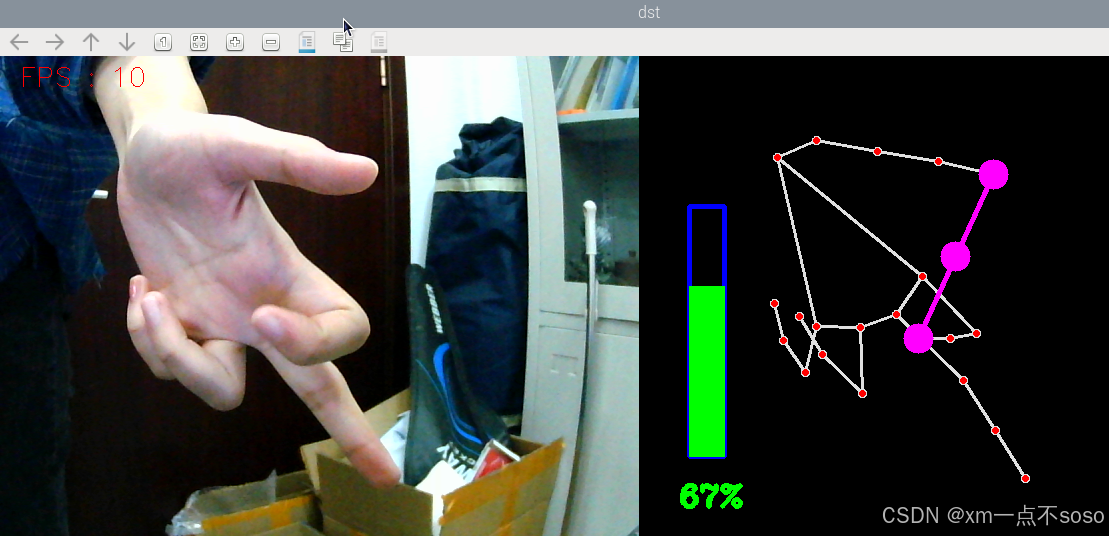

三、实验现象

点击【F键】切换识别效果，通过拇指与食指的距离（张/合），可以控制图像的效果。

若想要退出程序运行，可以在预览窗口按q或者终端按Ctrl+C终止程序！
