UFACTORY Lite 6的运动学和动力学参数

Lite6

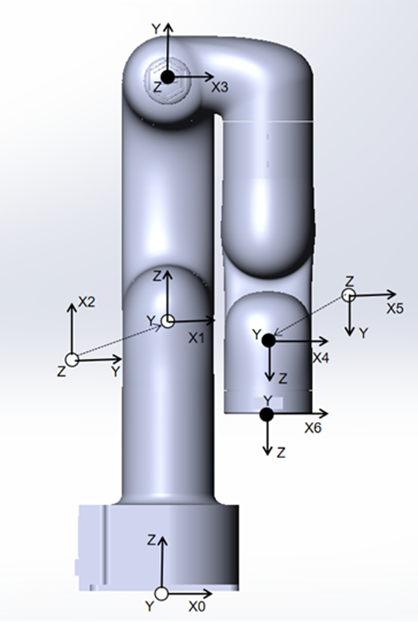

1.改进DH参数

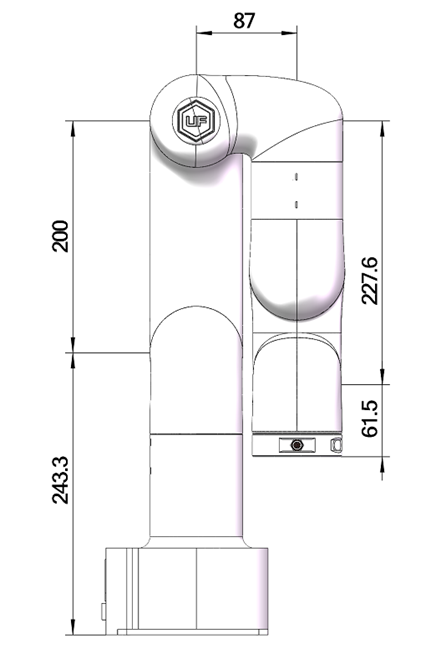

Size Parameters: (unit:mm)	Joint Coordinate Definition

Kinematics	theta offset(deg)	d(mm)	alpha(deg)	a(mm)
Joint1	0	243.3	0	0
Joint2	-90	0	-90	0
Joint3	-90	0	180	200
Joint4	0	227.6	90	87
Joint5	0	0	90	0
Joint6	0	61.5	-90	0

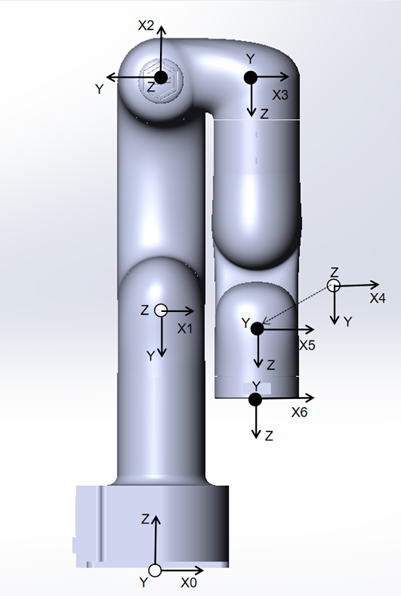

2.标准DH参数

Size Parameters: (unit:mm)	Joint Coordinate Definition

Kinematics	theta offset(deg)	d(mm)	alpha(deg)	a(mm)
Joint1	0	243.3	-90	0
Joint2	-90	0	180	200
Joint3	-90	0	90	87
Joint4	0	227.6	90	0
Joint5	0	0	-90	0
Joint6	0	61.5	0	0

3.质量参数

Size Parameters: (unit:mm)	Joint Coordinate Definition

Dynamics	Mass(kg)	Center of Mass(mm)
Link1	1.411	[-0.36, 41.95, -2.5]
Link2	1.34	[179.0, 0.0, 58.4]
Link3	0.953	[72.0, -35.7, -1.0]
Link4	1.284	[-2.0, -28.5, -81.3]
Link5	0.084	[0.0, 10.0, 1.9]
Link6	0.13	[0.0, -1.94, -10.2]
