断言实战 ---断言详解APB时序

一.断言简介

1.断言的概念

断言（SVA）主要用于验证设计的行为，断言的主要有两个功能：

• 在特定条件或事件序列的故障上生成警告或错误
• 收集功能覆盖率的数据

断言一般出现在那些位置：interface, module,clocking,program

2.断言的类型

（1）立即断言
立即断言执行时如同过程语句，它在程序执行到这个程序块使立即执行。
断言比if语句更加紧凑，且断言里面的逻辑跟if语句是相反的。设计者应该期望括号内的表达式为真，否则输出一个错误。

//使用if语句检查一个信号
bus.cb.request<=1;
repeat(2) @bus.cb;
if(bus.cb.grant!=2'b01)
  $display("Error,grant!=1");
//简单的立即断言
bus.cb.request<=1;
repeat(2) @bus.cb;
al:assert (bus.cb==2'b01);

//定制断言行为
bus.cb.request<=1;
repeat(2) @bus.cb;
al:assert (bus.cb==2'b01)
else $error("Grant not asserted");

（2）并发断言
并发断言可以认为时一个连续运行的模块，他为整个仿真过程检查信号的值，需要在断言内指定一个采样时钟。
例中是一个检查仲裁器request信号的断言，request信号除了在复位期间，其他任何时候都不能是X或Z。

//检查X/Z的并发断言
interface arb_if(input bit clk);
  logic[1:0] grant,request;
  logic rst;

  property request_2state;
    @(posedge clk) disable iff(rst);
    $isunknown(request)==0;         //确保没有z或者x值存在
  endproperty
  assert_request_2state:assert property(requset_2state);
endinterface

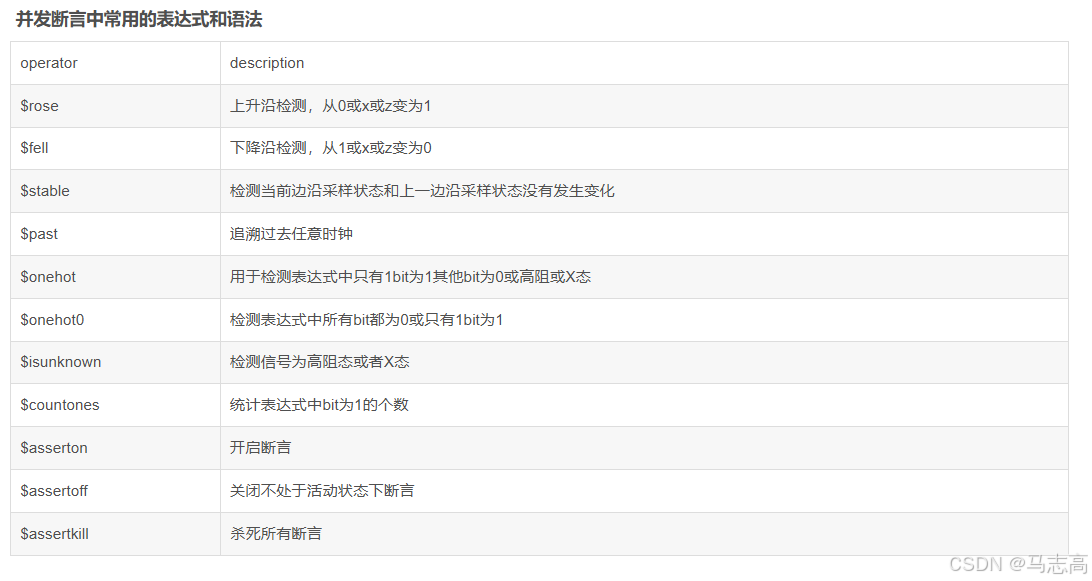

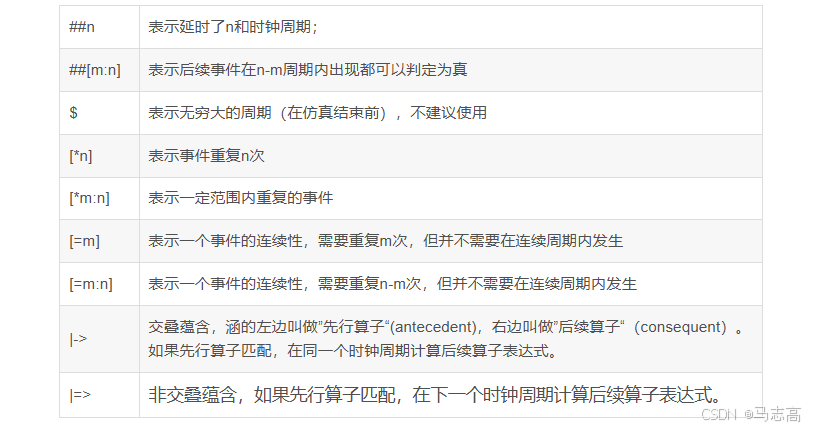

3.断言的符号

概念网上有很多，只做简单介绍，详细可参考：
assertion断言入门

二.APB断言实战

1.apb时序

APB协议这里不做详解，参考文章：
APB详解

2.断言代码

interface apb_if(input pclk,
                input presetn);

logic[31:0] paddr;
logic[31:0] prdata;
logic[31:0] pwdata;
logic[15:0] psel;
logic penable;
logic pwrite;
logic pready;

// psel,presetn is valid
property signal_valid(signal);
    @(posedge pclk)
    !$isunknown(signal);
endproperty:signal_valid

CHK_PSEL:assert property(signal_valid(psel));
CHK_PRESETN:assert property(signal_valid(presetn));

COVER_PSEL:assert property(signal_valid(presetn));
//onehot
property psel_onehot0;
    @(posedge pclk)
    $onehot(psel);
endproperty:psel_onehot0

PSEL_ONLY_ONE:assert property(psel_onehot0);

//penable,pwrite,pready is valid
property control_signal_valid(signal);
    @(posedge pclk)
    $onehot(psel) |-> !$isunknown(signal);
endproperty:control_signal_valid

CHK_PENABLE:assert property(control_signal_valid(penable));
CHK_PWRITE:assert property(control_signal_valid(pwrite));
CHK_PREADY:assert property(control_signal_valid(pready));

//psel --> penable
property psel_penable;
    @(posedge pclk)
    $rose($onehot(psel)) |=> $rose(penable);
endproperty:psel_penable

CHK_PSEL_PENBALE:assert property(psel_penable);

//penable --> penable
property penable_penable;
    @(posedge pclk)
    $rose(penable) |=> $fell(penable);
endperty:penable_penable

CHK_PENABLE_PENABLE:assert property(penable_penable);

//pwdata is valid
property pwdata_valid
    @(posedge pclk)
    ($onehot(psel) && pwrite) |-> !$isunknown(pwdata);
endproperty:pwdata_valid

CHK_PWDATA:assert property(pwdata_valid);

//prdata is valid
property prdata_valid
    @(posedge pclk)
    $rose($onehot(penable) && !pwrite && pready) |-> !$isunknown(prdata) ##1 $fell(penable);
endproperty:prdata_valid

CHK_PRDATD:assert property(prdata_valid);

//stable
property psel_assert_signal_stable(signal);
    @(posedge pclk)
    (!$stable(psel) && $onehot(psel)) |=> $stable(signal)[*1:$] ##1 $fell(penable);
endproperty:psel_assert_signal_stable;

PSEL_STABLE:assert property(psel_assert_signal_stable(psel));
PWRITE_STABLE:assert property(psel_assert_signal_stable(pwrite));
PADDR_STABLE:assert property(psel_assert_signal_stable(paddr));
PWDATA_SIGNAL:assert property(psel_assert_signal_stable(pwdata&&pwrite));


endinterface:apb_if

TB中增加断言控制

initial begin
    fork
        forever begin
            wait(rst==0);
            $assertoff();
            wait(rst==1);
            $asserton();
        end
    join_none
end
