虚幻引擎UE5 GAS开发RPG游戏-02 设置英雄角色-14 设置武器类

本文介绍了在Unreal Engine中创建武器基类的过程。首先建立C++类WarriorWeaponBase继承自AActor，并在构造函数中禁用Tick。然后扩展基类功能，添加静态网格体(WeaponMesh)作为根组件和碰撞盒(WeaponCollisionBox)，设置碰撞盒尺寸为20单位并初始禁用碰撞。最后通过蓝图继承该基类，设置网格体和调整碰撞箱大小完成武器创建。整个实现展示了UE中从C++基类到蓝图子类的武器系统开发流程。

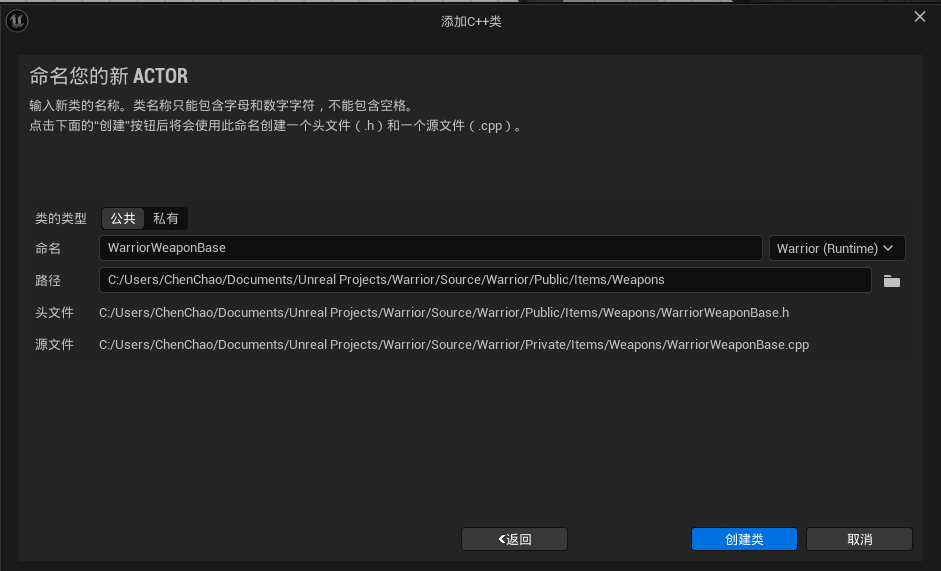

1.创建C++类：

Source/Warrior/Public/Items/Weapons/WarriorWeaponBase.h：

// Copyright @ ChenChao

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "WarriorWeaponBase.generated.h"

UCLASS()
class WARRIOR_API AWarriorWeaponBase : public AActor
{
	GENERATED_BODY()

public:

	AWarriorWeaponBase();


};

Source/Warrior/Private/Items/Weapons/WarriorWeaponBase.cpp：

// Copyright @ ChenChao


#include "Items/Weapons/WarriorWeaponBase.h"


AWarriorWeaponBase::AWarriorWeaponBase()
{

	PrimaryActorTick.bCanEverTick = false;

}

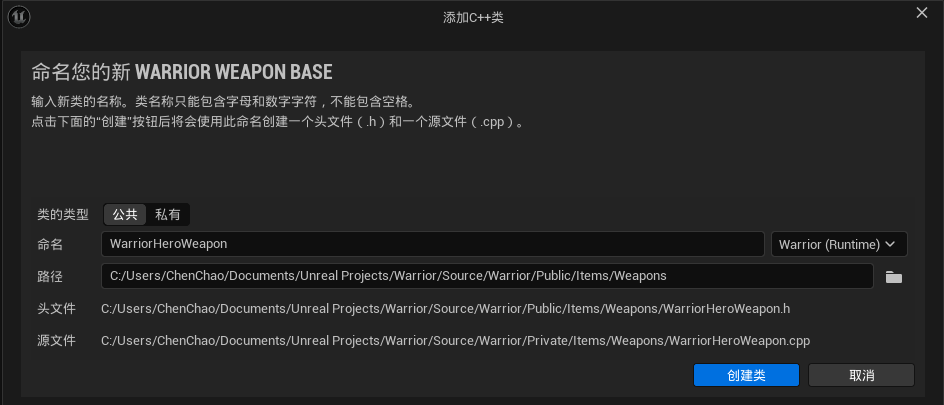

2.创建基类的子类：英雄武器类：

3.在武器基类，创建一个静态网格体、碰撞箱：

Source/Warrior/Public/Items/Weapons/WarriorWeaponBase.h：

// Copyright @ ChenChao

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "WarriorWeaponBase.generated.h"

class UBoxComponent;

UCLASS()
class WARRIOR_API AWarriorWeaponBase : public AActor
{
	GENERATED_BODY()

public:

	AWarriorWeaponBase();

protected:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category= "Weapons")
	UStaticMeshComponent* WeaponMesh;

	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category= "Weapons")
	UBoxComponent* WeaponCollisionBox;

public:
	FORCEINLINE UBoxComponent* GetWeaponCollisionBox() const { return WeaponCollisionBox; }
};

Source/Warrior/Private/Items/Weapons/WarriorWeaponBase.cpp：

// Copyright @ ChenChao


#include "Items/Weapons/WarriorWeaponBase.h"

#include "Components/BoxComponent.h"


AWarriorWeaponBase::AWarriorWeaponBase()
{

	PrimaryActorTick.bCanEverTick = false;

	WeaponMesh = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("WeaponMesh"));
	SetRootComponent(WeaponMesh);

	WeaponCollisionBox = CreateDefaultSubobject<UBoxComponent>(TEXT("WeaponCollisionBox"));
	WeaponCollisionBox -> SetupAttachment(GetRootComponent());
	WeaponCollisionBox->SetBoxExtent(FVector(20.f));	//设置武器碰撞盒(WeaponCollisionBox)的尺寸范围
	WeaponCollisionBox->SetCollisionEnabled(ECollisionEnabled::NoCollision);


}

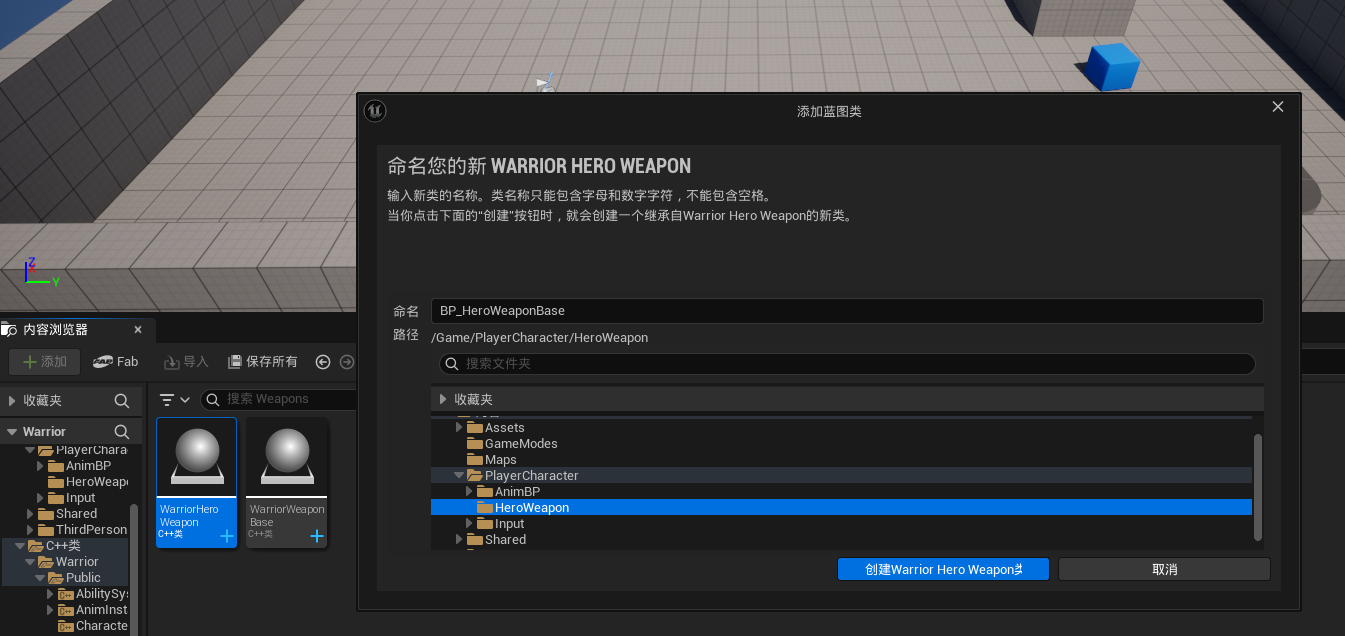

4.编译，创建英雄武器的子蓝图

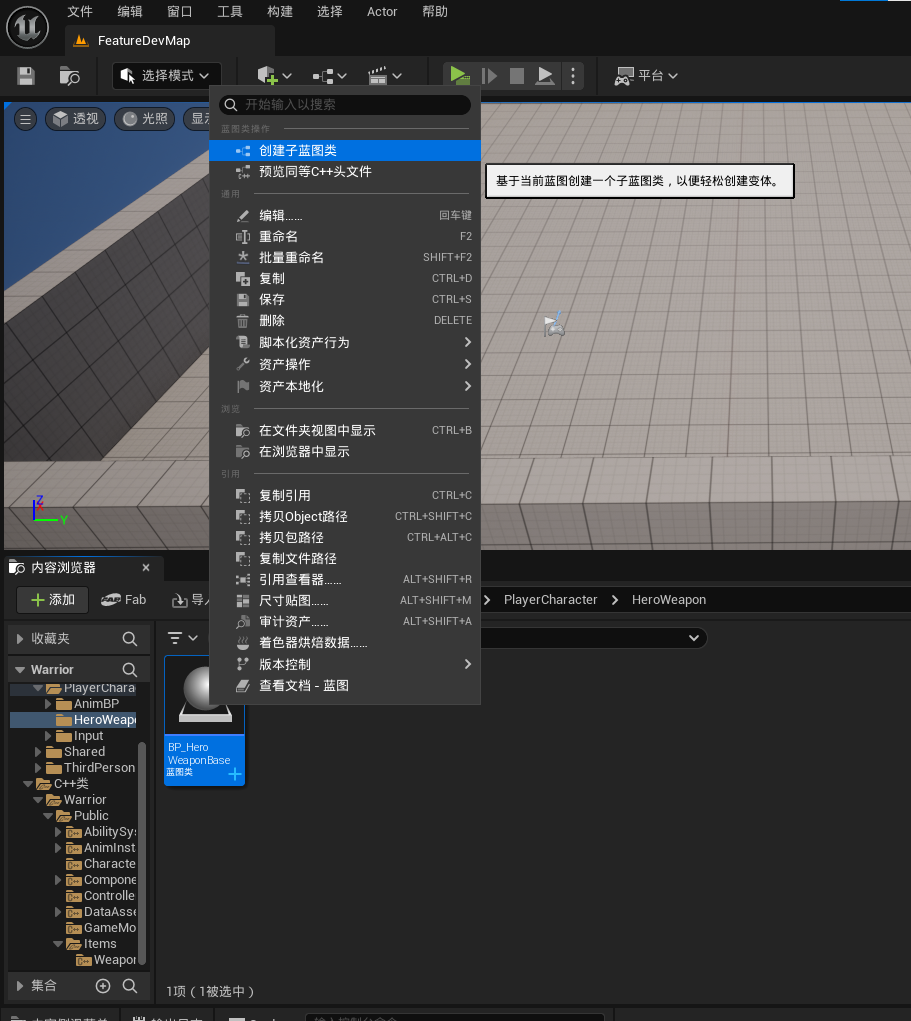

再基于武器蓝图，创建子蓝图类：

设置静态网格体：

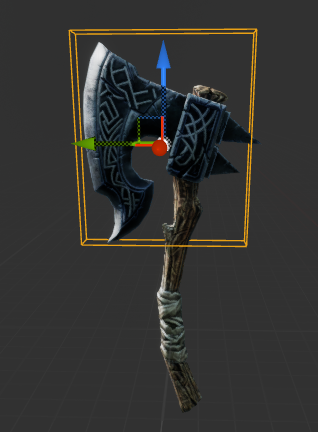

调整碰撞箱大小：

完美！
