test1
当key不是spark_catalog
spark-sql --master local \
--driver-java-options "-agentlib:jdwp=transport=dt_socket,server=y,suspend=y,address=5060" \
--conf spark.sql.extensions=org.apache.iceberg.spark.extensions.IcebergSparkSessionExtensions \
--conf spark.sql.catalog.my_catalog=org.apache.iceberg.spark.SparkCatalog \
--conf spark.sql.catalog.my_catalog.type=hive
create table IF NOT EXISTS employee_partition(
id string,
name string,
age int,
tel string
)
using iceberg
PARTITIONED BY (
city_id string
);

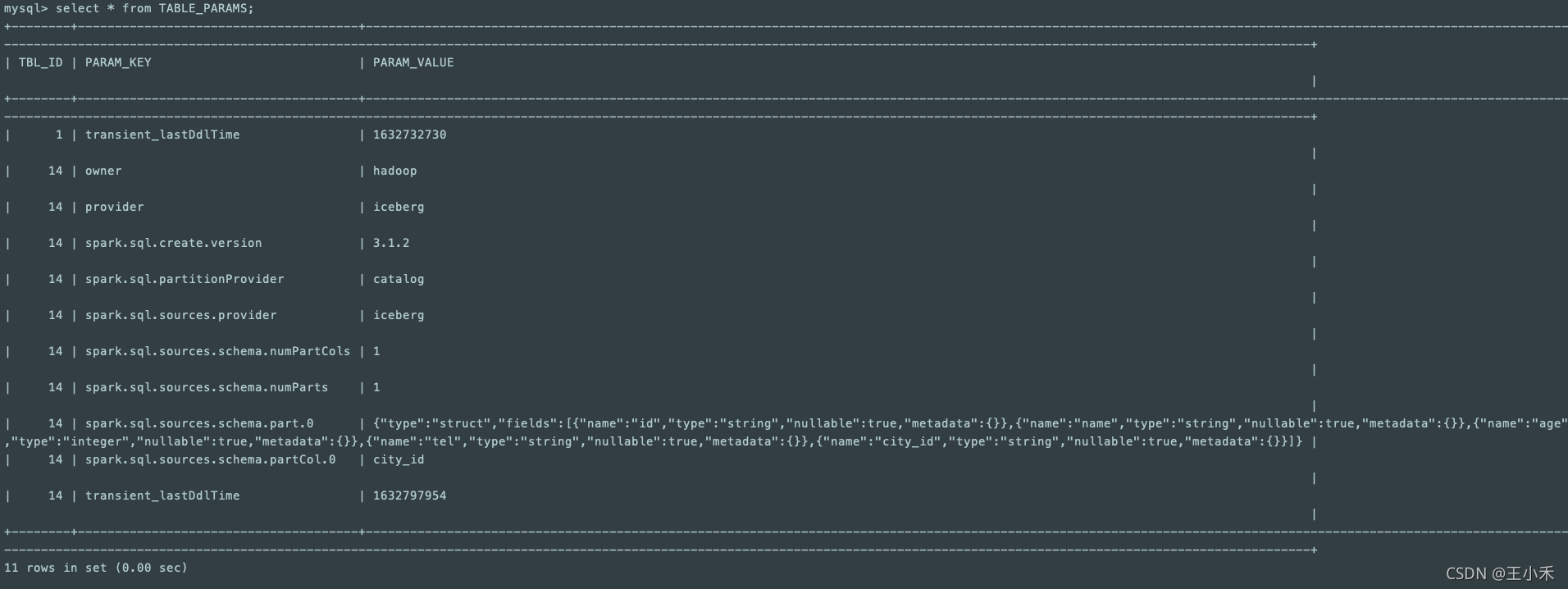

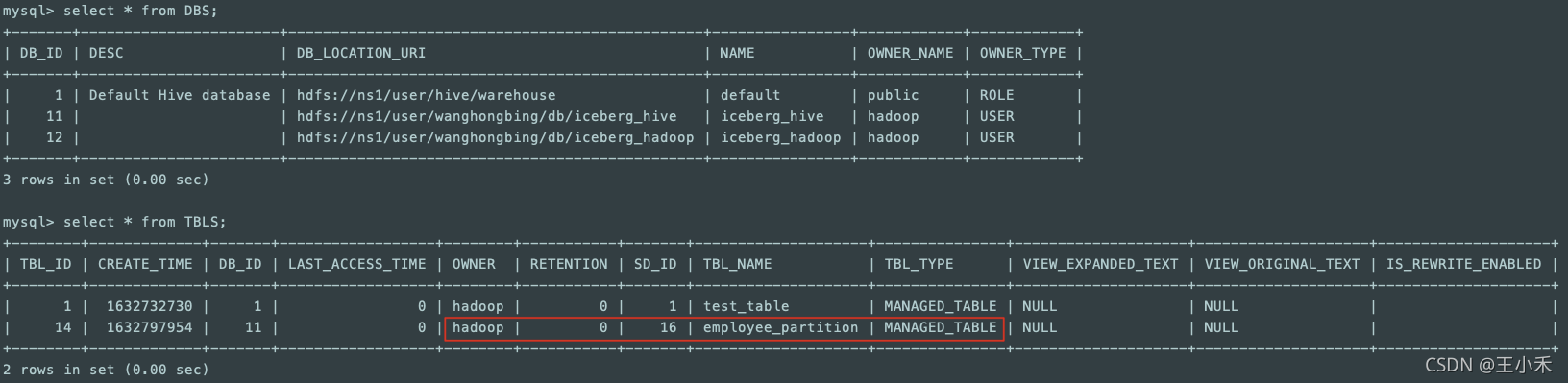

key不是spark_catalog时，insert数据会有些问题。
test2
当key是spark_catalog，这种是标准的
spark-sql --master local \
--conf spark.sql.extensions=org.apache.iceberg.spark.extensions.IcebergSparkSessionExtensions \
--conf spark.sql.catalog.spark_catalog=org.apache.iceberg.spark.SparkSessionCatalog \
--conf spark.sql.catalog.spark_catalog.type=hive

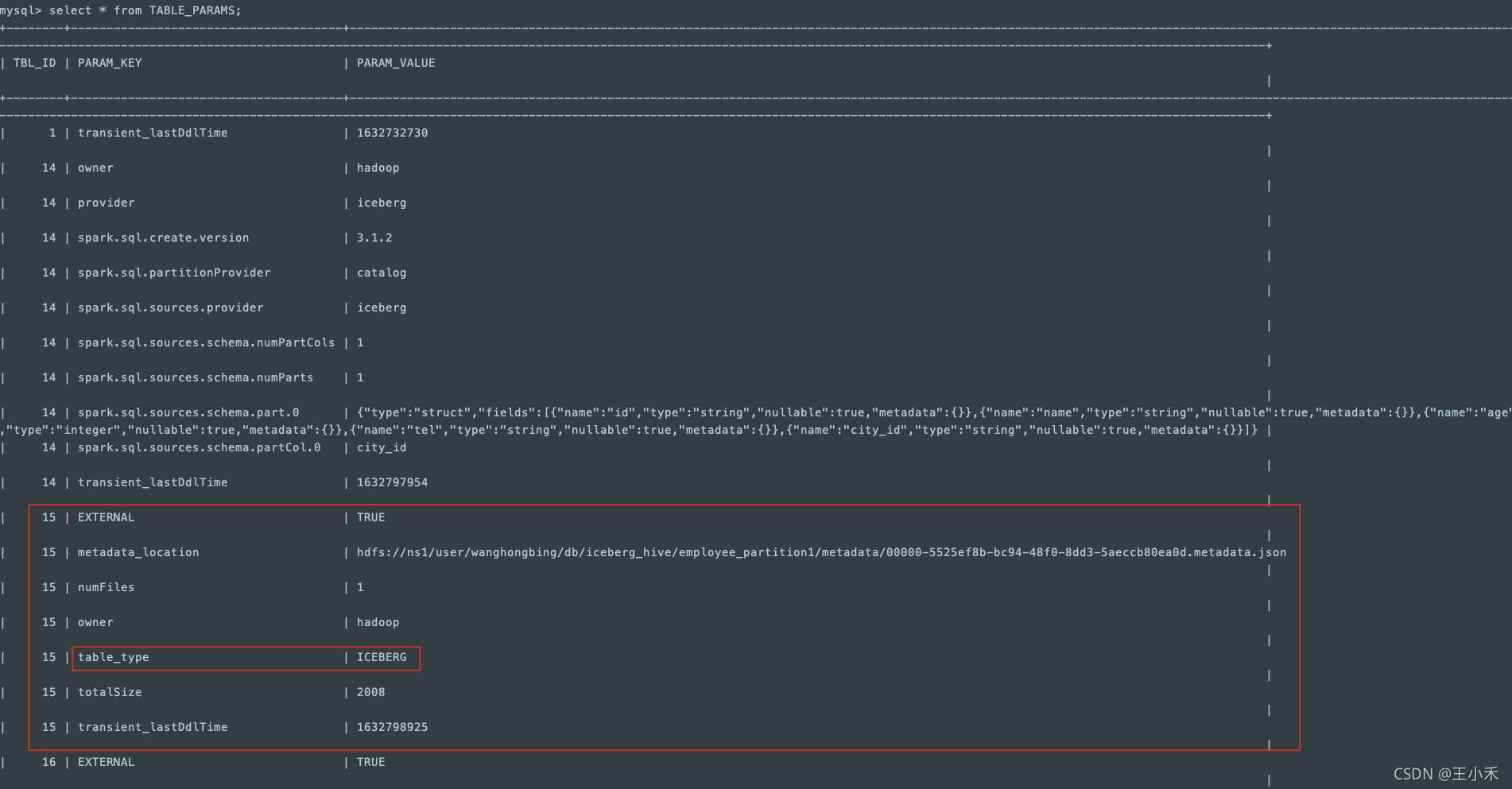

这种为正确情况，新建的空表时，TABLE_PARAMS 表中要有7个字段：
mysql> select * from TABLE_PARAMS;
| 15 | EXTERNAL | TRUE |
| 15 | metadata_location | hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/00000-5525ef8b-bc94-48f0-8dd3-5aeccb80ea0d.metadata.json |
| 15 | numFiles | 1 |
| 15 | owner | hadoop |
| 15 | table_type | ICEBERG |
| 15 | totalSize | 2008 |
| 15 | transient_lastDdlTime | 1632798925
（1）第1次写入数据
spark-sql> INSERT OVERWRITE TABLE iceberg_hive.employee_partition1 PARTITION (city_id="beijing")
> VALUES
> ("1","wang",17,"130"),
> ("2","hong",18,"150"),
> ("3","bing",19,"170");
Time taken: 8.769 seconds
插入分区数据后，分区表PARTITIONS仍然为空。 但是，TABLE_PARAMS 表中字段有所变化（7行-> 9行）。
mysql> select * from PARTITIONS;
Empty set (0.00 sec)
mysql> select * from TABLE_PARAMS;
| 15 | EXTERNAL | TRUE |
| 15 | metadata_location | hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/00001-c02eda34-acc3-48ff-aa9d-d435734dbf6d.metadata.json |
| 15 | numFiles | 1 |
| 15 | numRows | 3 |
| 15 | owner | hadoop |
| 15 | previous_metadata_location | hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/00000-5525ef8b-bc94-48f0-8dd3-5aeccb80ea0d.metadata.json |
| 15 | table_type | ICEBERG |
| 15 | totalSize | 1406
| 15 | transient_lastDdlTime | 1632798925

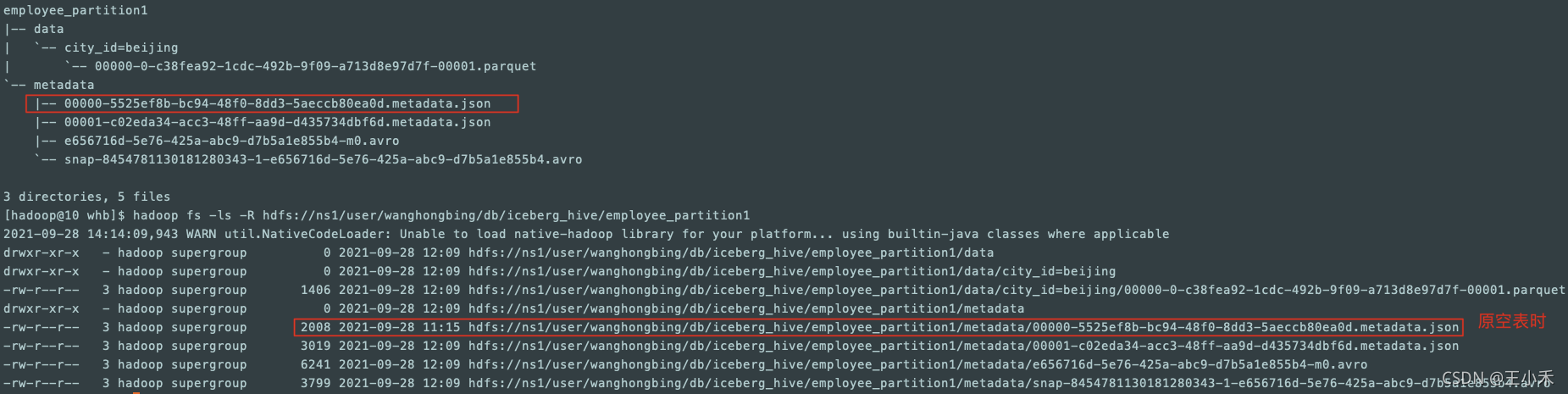

hadoop存储变化
employee_partition1/
|-- data
| `-- city_id=beijing
| `-- 00000-0-c38fea92-1cdc-492b-9f09-a713d8e97d7f-00001.parquet
`-- metadata
|-- 00000-5525ef8b-bc94-48f0-8dd3-5aeccb80ea0d.metadata.json
|-- 00001-c02eda34-acc3-48ff-aa9d-d435734dbf6d.metadata.json
|-- e656716d-5e76-425a-abc9-d7b5a1e855b4-m0.avro
`-- snap-8454781130181280343-1-e656716d-5e76-425a-abc9-d7b5a1e855b4.avro
3 directories, 5 files

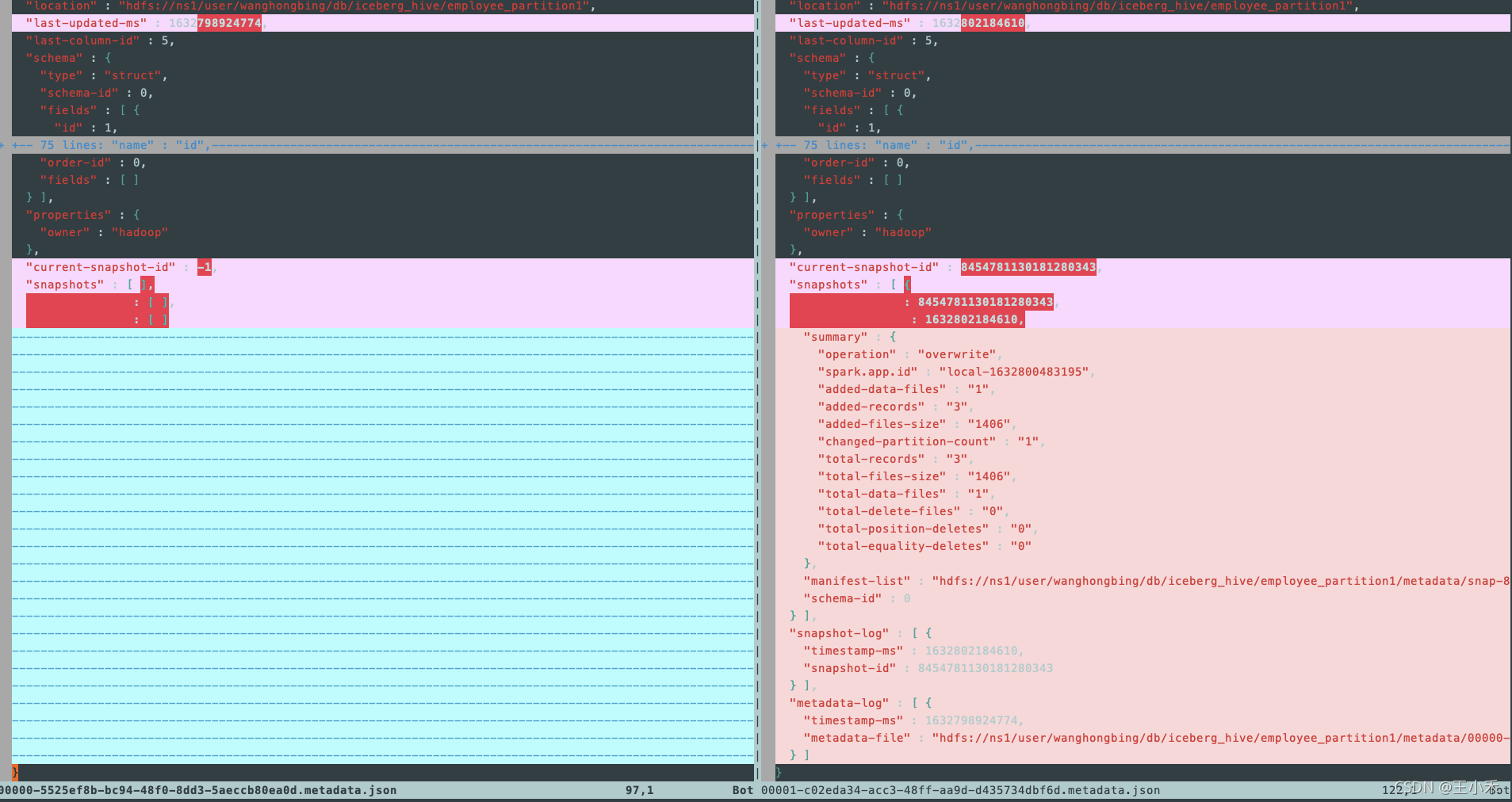

两json文件的diff，可以看到空表时快照id为-1. 快照为空。
查看json文件
{
"format-version" : 1,
"table-uuid" : "22560303-6d75-42b3-b6ae-c71a38147a1e",
"location" : "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1",
"last-updated-ms" : 1632802184610,
"last-column-id" : 5,
"schema" : {
"type" : "struct",
"schema-id" : 0,
"fields" : [ {
"id" : 1,
"name" : "id",
"required" : false,
"type" : "string"
}, {
"id" : 2,
"name" : "name",
"required" : false,
"type" : "string"
}, {
"id" : 3,
"name" : "age",
"required" : false,
"type" : "int"
}, {
"id" : 4,
"name" : "tel",
"required" : false,
"type" : "string"
}, {
"id" : 5,
"name" : "city_id",
"required" : false,
"type" : "string"
} ]
},
"current-schema-id" : 0,
"schemas" : [ {
"type" : "struct",
"schema-id" : 0,
"fields" : [ {
"id" : 1,
"name" : "id",
"required" : false,
"type" : "string"
}, {
"id" : 2,
"name" : "name",
"required" : false,
"type" : "string"
}, {
"id" : 3,
"name" : "age",
"required" : false,
"type" : "int"
}, {
"id" : 4,
"name" : "tel",
"required" : false,
"type" : "string"
}, {
"id" : 5,
"name" : "city_id",
"required" : false,
"type" : "string"
} ]
} ],
"partition-spec" : [ {
"name" : "city_id",
"transform" : "identity",
"source-id" : 5,
"field-id" : 1000
} ],
"default-spec-id" : 0,
"partition-specs" : [ {
"spec-id" : 0,
"fields" : [ {
"name" : "city_id",
"transform" : "identity",
"source-id" : 5,
"field-id" : 1000
} ]
} ],
"last-partition-id" : 1000,
"default-sort-order-id" : 0,
"sort-orders" : [ {
"order-id" : 0,
"fields" : [ ]
} ],
"properties" : {
"owner" : "hadoop"
},
"current-snapshot-id" : 8454781130181280343,
"snapshots" : [ {
"snapshot-id" : 8454781130181280343,
"timestamp-ms" : 1632802184610,
"summary" : {
"operation" : "overwrite",
"spark.app.id" : "local-1632800483195",
"added-data-files" : "1",
"added-records" : "3",
"added-files-size" : "1406",
"changed-partition-count" : "1",
"total-records" : "3",
"total-files-size" : "1406",
"total-data-files" : "1",
"total-delete-files" : "0",
"total-position-deletes" : "0",
"total-equality-deletes" : "0"
},
"manifest-list" : "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/snap-8454781130181280343-1-e656716d-5e76-425a-abc9-d7b5a1e855b4.avro",
"schema-id" : 0
} ],
"snapshot-log" : [ {
"timestamp-ms" : 1632802184610,
"snapshot-id" : 8454781130181280343
} ],
"metadata-log" : [ {
"timestamp-ms" : 1632798924774,
"metadata-file" : "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/00000-5525ef8b-bc94-48f0-8dd3-5aeccb80ea0d.metadata.json"
} ]
}
json文件中存储了
- manifest-list（avro文件）
- metadata-file（就是上一次的json文件）
（2）第2次写入数据
spark-sql>
INSERT OVERWRITE TABLE iceberg_hive.employee_partition1 PARTITION (city_id="wuhan")
VALUES
("4","w",17,"130"),
("5","h",18,"150"),
("6","b",19,"170");
mysql> select * from TABLE_PARAMS;
| 15 | EXTERNAL | TRUE |
| 15 | metadata_location | hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/00002-99d06b27-2ff0-4f22-a40f-5ce5cbe6c6ec.metadata.json |
| 15 | numFiles | 2 |
| 15 | numRows | 6 |
| 15 | owner | hadoop |
| 15 | previous_metadata_location | hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/00001-c02eda34-acc3-48ff-aa9d-d435734dbf6d.metadata.json |
| 15 | table_type | ICEBERG |
| 15 | totalSize | 2779 | 15 | transient_lastDdlTime | 1632798925
TABLE_PARAMS 表中字段有所变化
numFiles： 数据文件的文件个数，从1变为2numRows：所有分区的总行数，数据变化后这里会更新previous_metadata_location：上一个元数据json文件totalSize：总字节数

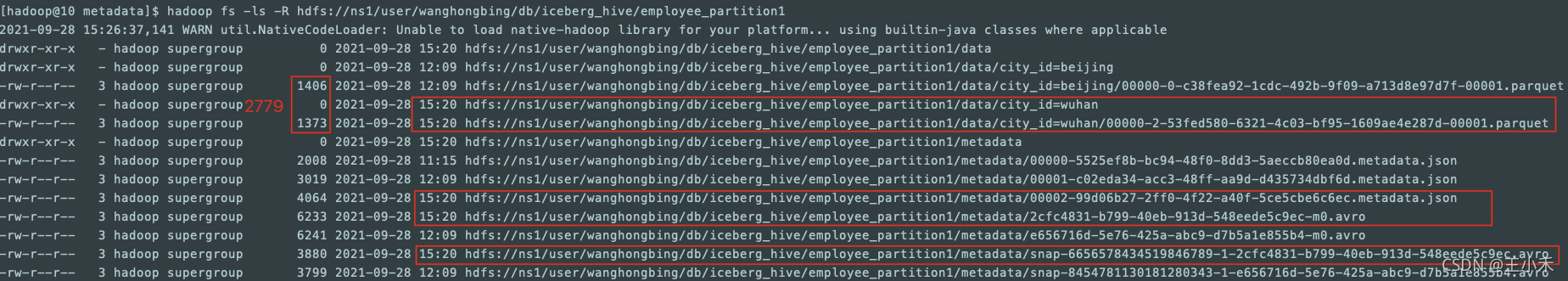

那么，hdfs文件系统上会多数据文件、json文件、两个avro文件
以下分别分析avro文件、json文件
avro：
第2个avro文件 2cfc4831-b799-40eb-913d-548eede5c9ec-m0.avro
{
"status": 1,
"snapshot_id": {
"long": 6656578434519846789
},
"data_file": {
"file_path": "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/data/city_id=wuhan/00000-2-53fed580-6321-4c03-bf95-1609ae4e287d-00001.parquet",
"file_format": "PARQUET",
"partition": {
"city_id": {
"string": "wuhan"
}
},
"record_count": 3,
"file_size_in_bytes": 1373,
"block_size_in_bytes": 67108864,
"column_sizes": {
"array": [{
"key": 1,
"value": 54
}, {
"key": 2,
"value": 54
}, {
"key": 3,
"value": 52
}, {
"key": 4,
"value": 57
}, {
"key": 5,
"value": 93
}]
},
"value_counts": {
"array": [{
"key": 1,
"value": 3
}, {
"key": 2,
"value": 3
}, {
"key": 3,
"value": 3
}, {
"key": 4,
"value": 3
}, {
"key": 5,
"value": 3
}]
},
"null_value_counts": {
"array": [{
"key": 1,
"value": 0
}, {
"key": 2,
"value": 0
}, {
"key": 3,
"value": 0
}, {
"key": 4,
"value": 0
}, {
"key": 5,
"value": 0
}]
},
"nan_value_counts": {
"array": []
},
"lower_bounds": {
"array": [{
"key": 1,
"value": "4"
}, {
"key": 2,
"value": "b"
}, {
"key": 3,
"value": "\u0011\u0000\u0000\u0000"
}, {
"key": 4,
"value": "130"
}, {
"key": 5,
"value": "wuhan"
}]
},
"upper_bounds": {
"array": [{
"key": 1,
"value": "6"
}, {
"key": 2,
"value": "w"
}, {
"key": 3,
"value": "\u0013\u0000\u0000\u0000"
}, {
"key": 4,
"value": "170"
}, {
"key": 5,
"value": "wuhan"
}]
},
"key_metadata": null,
"split_offsets": {
"array": [4]
},
"sort_order_id": {
"int": 0
}
}
}
这里，只包含第二次写入时的信息，如wuhan分区，不包含第一次的分区信息。
对应的第2个snap.avro文件 snap-6656578434519846789-1-2cfc4831-b799-40eb-913d-548eede5c9ec.avro
{
"manifest_path": "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/2cfc4831-b799-40eb-913d-548eede5c9ec-m0.avro",
"manifest_length": 6233,
"partition_spec_id": 0,
"added_snapshot_id": {
"long": 6656578434519846789
},
"added_data_files_count": {
"int": 1
},
"existing_data_files_count": {
"int": 0
},
"deleted_data_files_count": {
"int": 0
},
"partitions": {
"array": [{
"contains_null": false,
"contains_nan": {
"boolean": false
},
"lower_bound": {
"bytes": "wuhan"
},
"upper_bound": {
"bytes": "wuhan"
}
}]
},
"added_rows_count": {
"long": 3
},
"existing_rows_count": {
"long": 0
},
"deleted_rows_count": {
"long": 0
}
} {
"manifest_path": "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/e656716d-5e76-425a-abc9-d7b5a1e855b4-m0.avro",
"manifest_length": 6241,
"partition_spec_id": 0,
"added_snapshot_id": {
"long": 8454781130181280343
},
"added_data_files_count": {
"int": 1
},
"existing_data_files_count": {
"int": 0
},
"deleted_data_files_count": {
"int": 0
},
"partitions": {
"array": [{
"contains_null": false,
"contains_nan": {
"boolean": false
},
"lower_bound": {
"bytes": "beijing"
},
"upper_bound": {
"bytes": "beijing"
}
}]
},
"added_rows_count": {
"long": 3
},
"existing_rows_count": {
"long": 0
},
"deleted_rows_count": {
"long": 0
}
}
这里其实包含了2个分区的信息，第1次和第2次分区信息都有。
（3）第3次写入数据
update iceberg_hive.employee_partition1 set tel='newNum',age=1 where name='b';

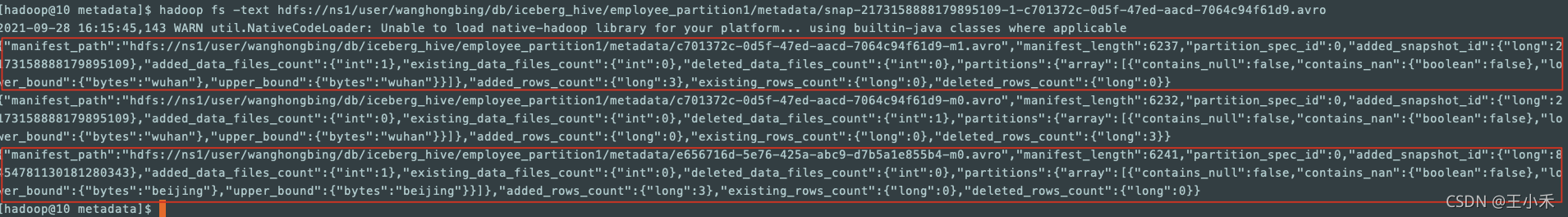

先看快照文件，snap-2173158888179895109-1-c701372c-0d5f-47ed-aacd-7064c94f61d9.avro
有3个json，记录了每个分区快照和最近的变化。
{
"manifest_path": "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/c701372c-0d5f-47ed-aacd-7064c94f61d9-m1.avro",
"manifest_length": 6237,
"partition_spec_id": 0,
"added_snapshot_id": {
"long": 2173158888179895109
},
"added_data_files_count": {
"int": 1
},
"existing_data_files_count": {
"int": 0
},
"deleted_data_files_count": {
"int": 0
},
"partitions": {
"array": [{
"contains_null": false,
"contains_nan": {
"boolean": false
},
"lower_bound": {
"bytes": "wuhan"
},
"upper_bound": {
"bytes": "wuhan"
}
}]
},
"added_rows_count": {
"long": 3
},
"existing_rows_count": {
"long": 0
},
"deleted_rows_count": {
"long": 0
}
} {
"manifest_path": "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/c701372c-0d5f-47ed-aacd-7064c94f61d9-m0.avro",
"manifest_length": 6232,
"partition_spec_id": 0,
"added_snapshot_id": {
"long": 2173158888179895109
},
"added_data_files_count": {
"int": 0
},
"existing_data_files_count": {
"int": 0
},
"deleted_data_files_count": {
"int": 1
},
"partitions": {
"array": [{
"contains_null": false,
"contains_nan": {
"boolean": false
},
"lower_bound": {
"bytes": "wuhan"
},
"upper_bound": {
"bytes": "wuhan"
}
}]
},
"added_rows_count": {
"long": 0
},
"existing_rows_count": {
"long": 0
},
"deleted_rows_count": {
"long": 3
}
} {
"manifest_path": "hdfs://ns1/user/wanghongbing/db/iceberg_hive/employee_partition1/metadata/e656716d-5e76-425a-abc9-d7b5a1e855b4-m0.avro",
"manifest_length": 6241,
"partition_spec_id": 0,
"added_snapshot_id": {
"long": 8454781130181280343
},
"added_data_files_count": {
"int": 1
},
"existing_data_files_count": {
"int": 0
},
"deleted_data_files_count": {
"int": 0
},
"partitions": {
"array": [{
"contains_null": false,
"contains_nan": {
"boolean": false
},
"lower_bound": {
"bytes": "beijing"
},
"upper_bound": {
"bytes": "beijing"
}
}]
},
"added_rows_count": {
"long": 3
},
"existing_rows_count": {
"long": 0
},
"deleted_rows_count": {
"long": 0
}
}

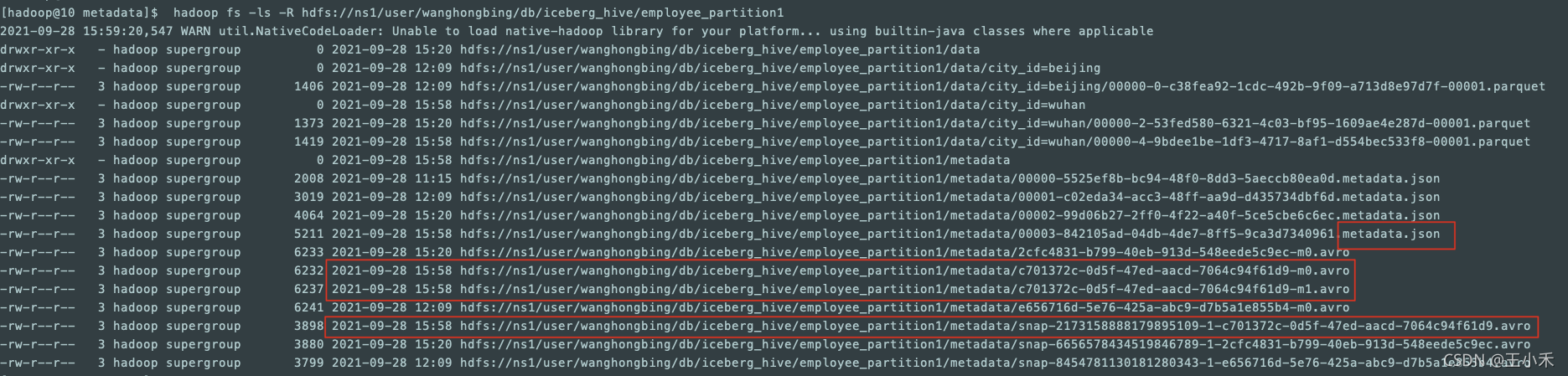

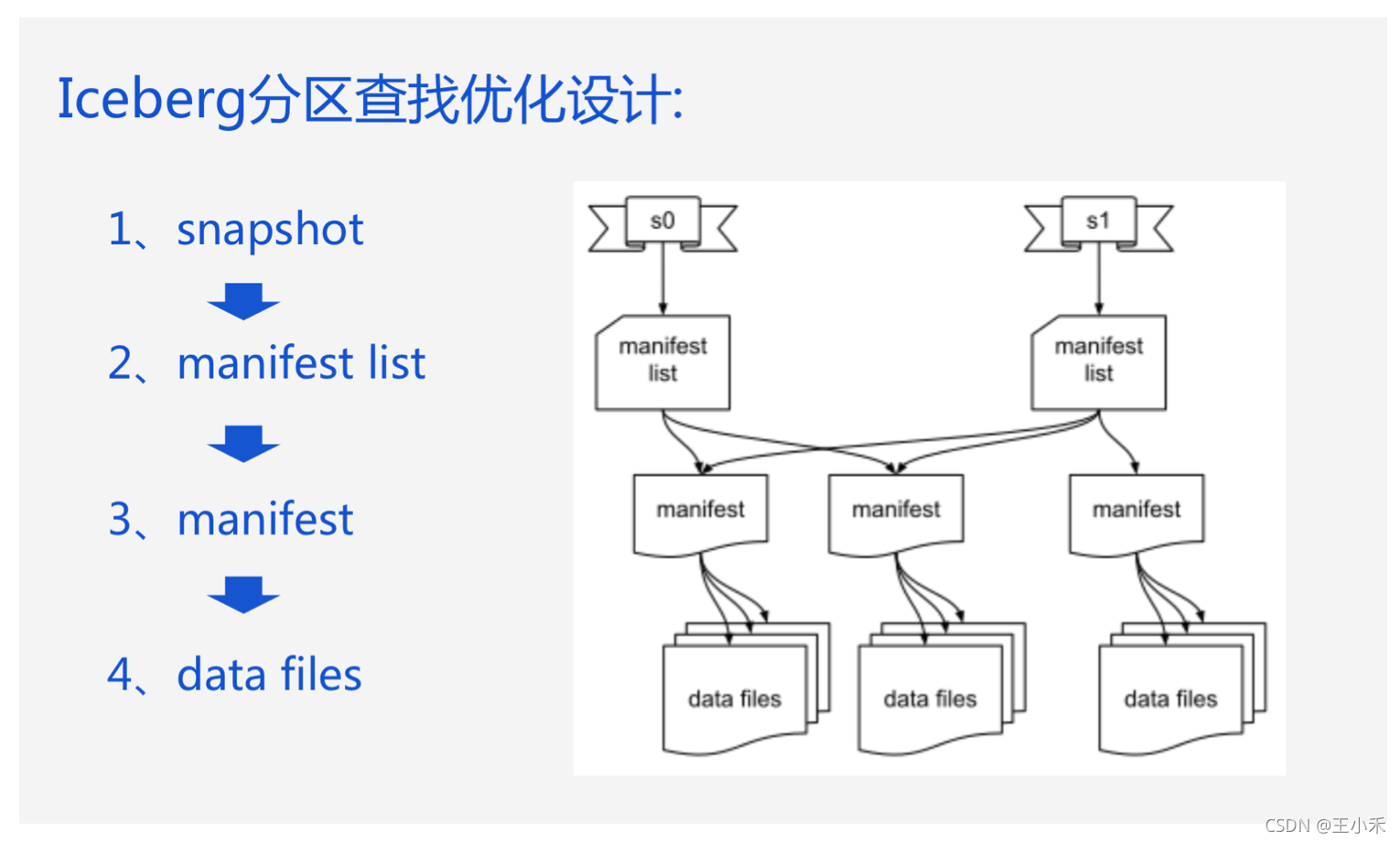

同下截图

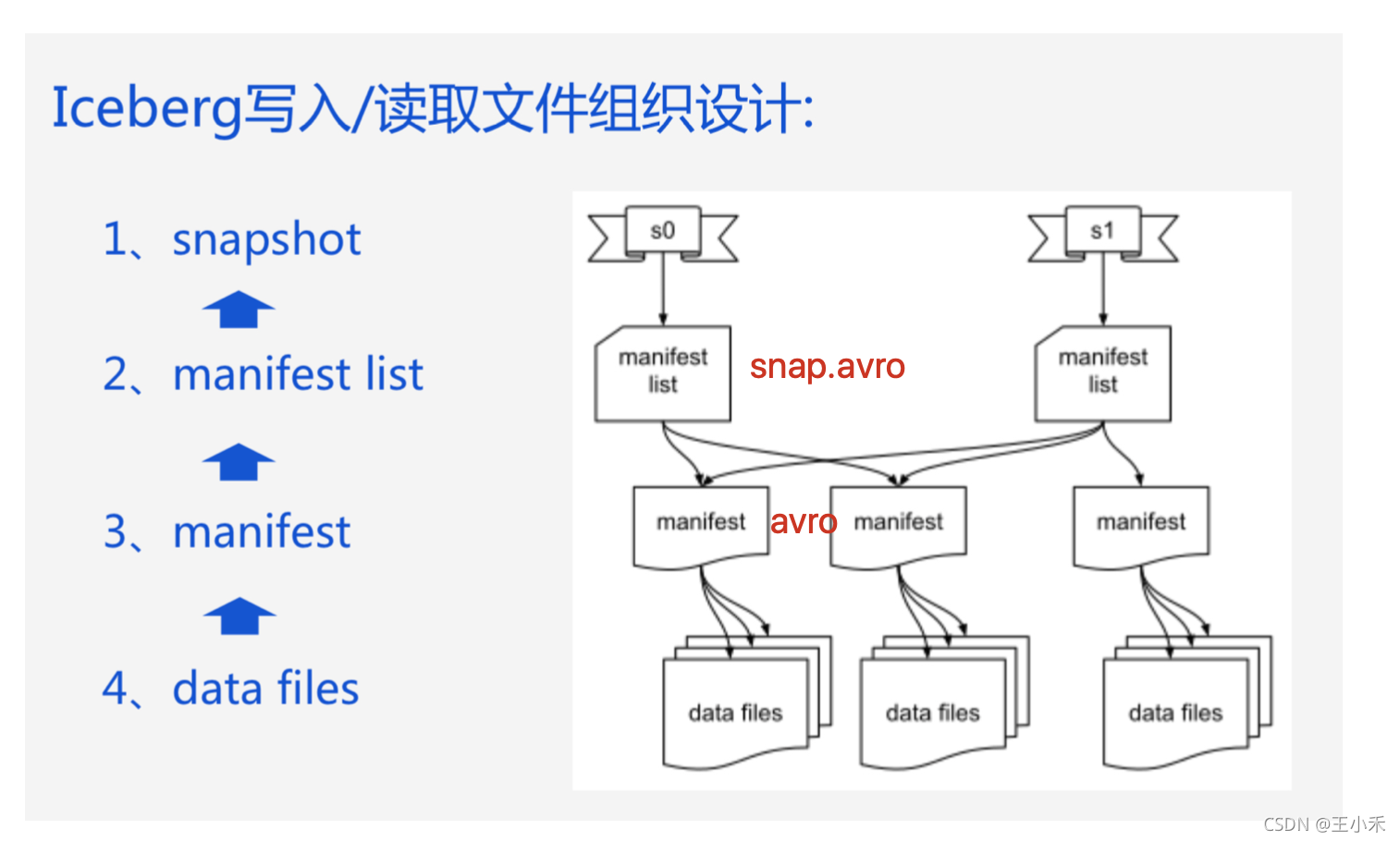

文件结构
1.snapshot
- meta文件夹下的json文件，每个meta
.json文件相当于一个snapshot，其中包含了当前版本的schema信息、产生此版本的任务信息、以及manifest文件地址信息。
2.manifest-list文件
- 即
snap-xxx.avro，包含了所有mainfest的文件的元数据信息，包含了manifest地址，分区范围以及一些统计信息
3.manifest文件
- 即
xxx.avro文件。包含了所有的数据地址细化到具体文件，所以读取时不需list所有的文件，包含了分区信息，所有字段的存储大小、每个字段的行数信息、空值统计信息、每个字段的最大值、最小值信息、分区信息等等，上层引擎可以利用这些做JOIN的Cache优化、做文件级别的下推过滤，精准的分区信息，大大提高了上层引擎查询初始化的速度。
