RTL范围之外的两个最大值

这是本人在实际工作中遇到的设计任务，借此研究状态机设计的优化策略

---

1. 功能描述

串行输入一组无符号数据，要求输出这组数据的最大值及其索引 和 次大值及其索引，并且满足这两个值的索引相差大于某个数字。

例如串行输入 29 31 1 20 4 6 7 2 100 99 38 52 2 91 97 96 21，两个最大值相距≥3，结果应为(100,9)和(97,15)。

注意99和100相邻，不符合题意。

此处直接给出伪代码

if(data > data_max) begin
	if(|data - data_max| > eps) begin
		data_submax = data_max;
		index_submax = index_max;
		data_max = data;
		index_max = index;
	end
	else if(|data - data_min| <= eps) begin
		data_submax = ∞;
		index_submax = ∞;
		data_max = data;
		index_max = index;
	end
	else begin
		data_submax = data_submax;
		index_submax = index_submax;
		data_max = data;
		index_max = index;
	end
end
else if(data > data_submax) begin
	if(|data - data_max| > eps) begin
		data_submax = data;
		index_submax = index;
		data_max = data_max;
		index_max = index_max;
	end
	else begin
		data_submax = data_submax ;
		index_submax = index_submax ;
		data_max = data_max;
		index_max = index_max;
	end
end

2. 参数设计

Signal	Direction	Width(bits)	Description
rstn	input	1	异步复位
clk	input	1	时钟
data	input	32	串行输入数组
data_val	input	1	串行输入数组有效标志
data_max_val	output	1	数组中最大值有效标志，持续一拍
data_max	output	32	数组中最大值
index_max	output	32	最大值对应的索引
data_submax_val	output	1	数组中次大值有效标志，持续一拍
data_submax	output	32	数组中次大值
index_submax	output	32	次大值对应的索引

Parameter	Units	Description
EPOSILON		禁止的索引偏差

3. 逻辑设计

有了伪代码，算法部分就不用费神思考了，所以重点在于时序设计。

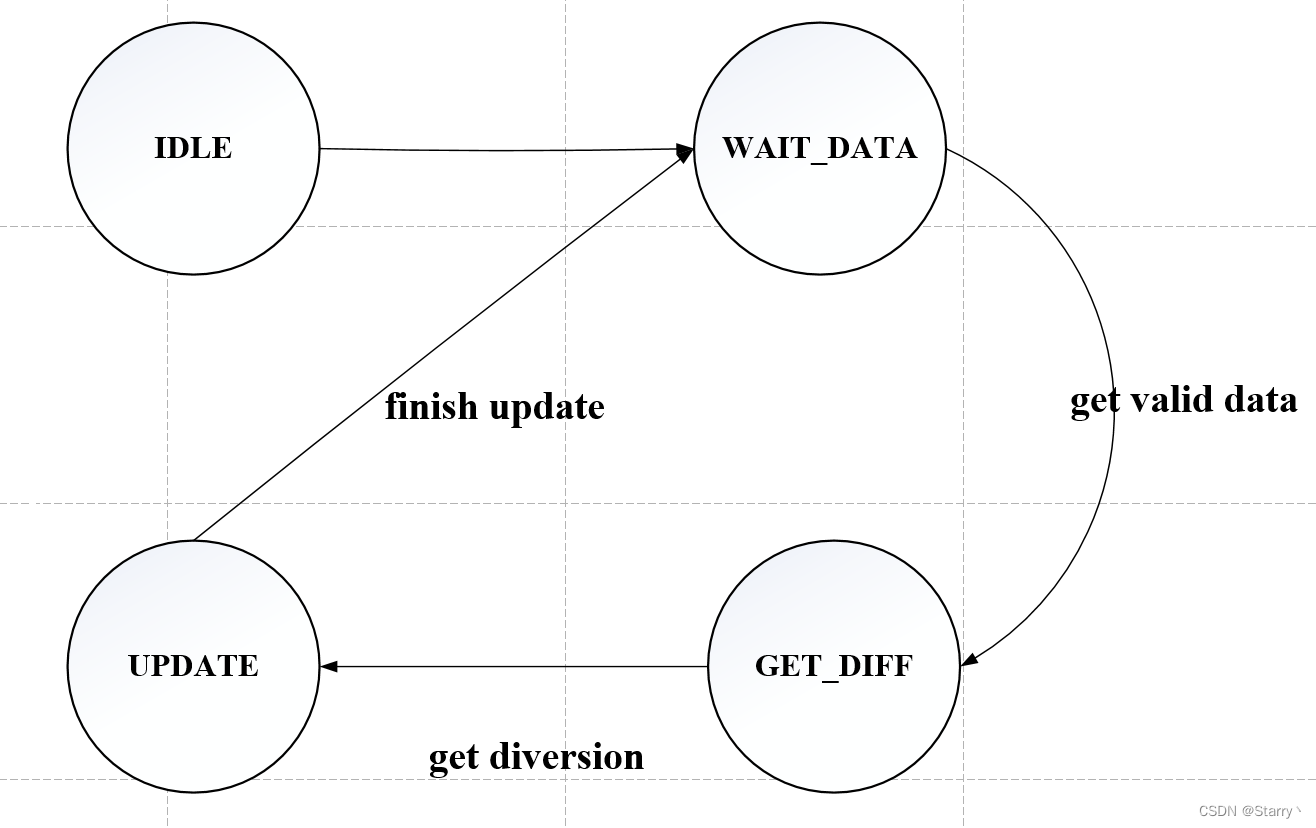

按照状态机的思路，整个状态是获取data、计算data与data_max、data_submax的差、更新data_max和data_submax，不断循环，如下图

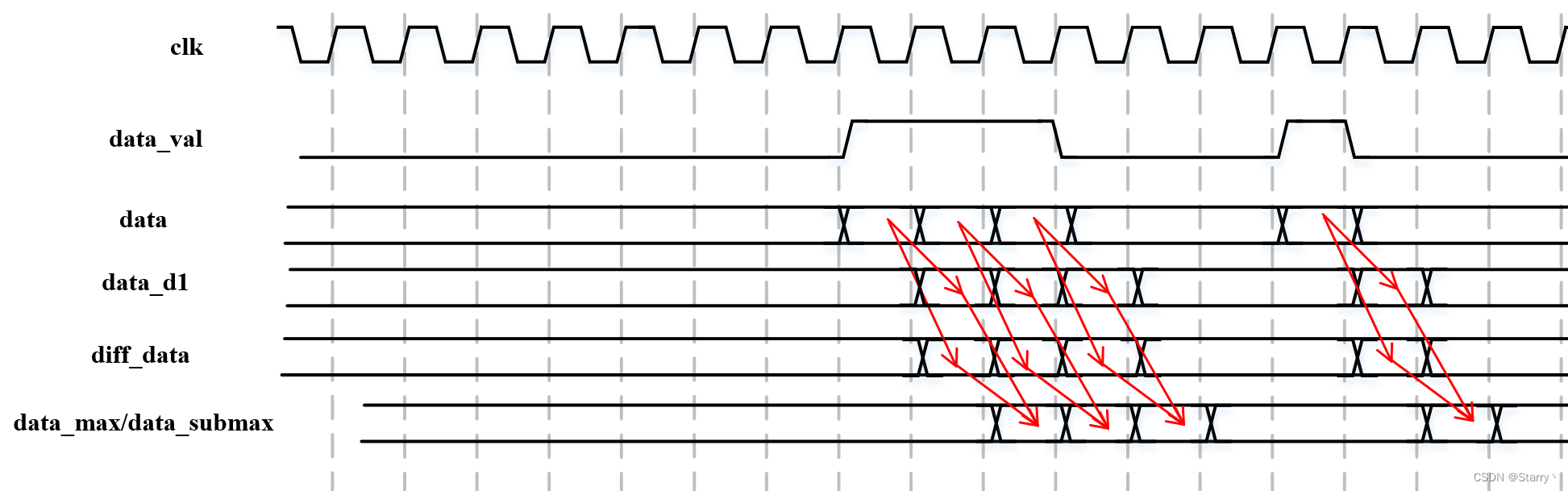

由此可以直接绘制如下时序图，注意下方时序图中data不是连续输入的，可以在该模块输入处连接一个同步FIFO，然从FIFO中读出数据进行计算。

代码忽略！

4. 逻辑优化

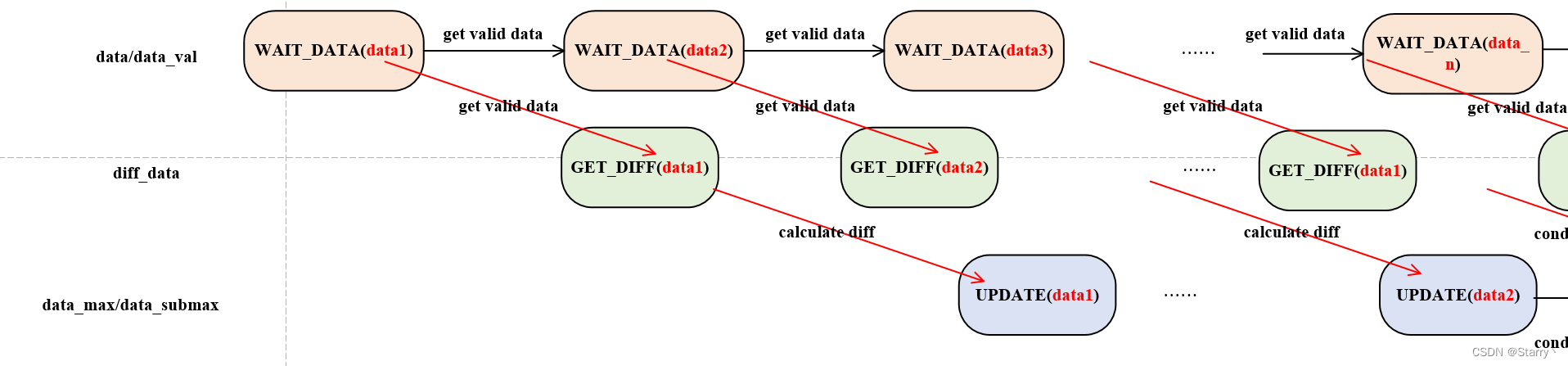

从上述波形图中可以看出WAIT_DATA状态下只有data和data_val动作、GET_DIFF下只有diff_data动作、在UPDATE下只有data_max和data_submax动作，所以可以将状态机优化成流水

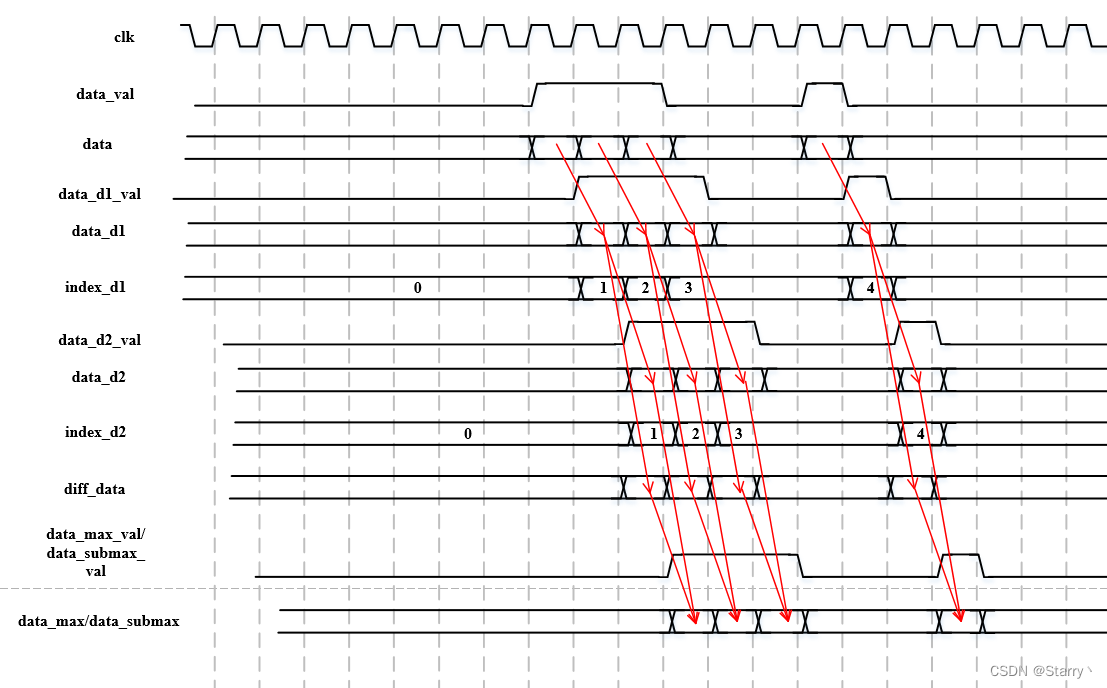

注意更新data_max和data_submax时不仅需要diff_data还需要用于计算diff_data的data，所以要对data打一拍，时序图如下

按照上图可以正常输出data_max和data_submax，但是别忘了如何输出索引呢？由于不知道data_val拉高的时刻，所以可以为data_d1标记索引。

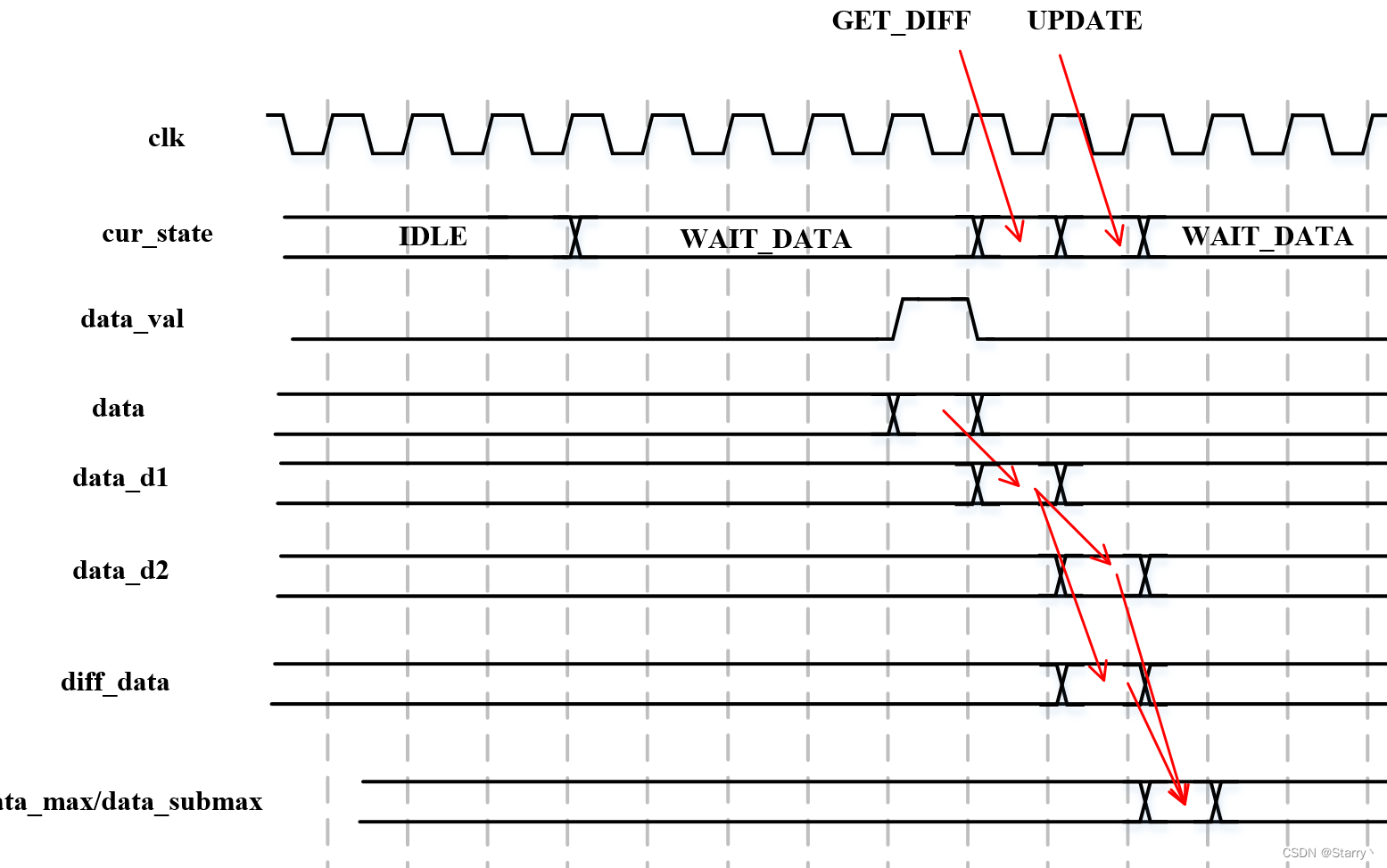

由于计算diff_data是时序逻辑，所以需要将data与diff_data对齐，所以data_d1还要再打一拍成data_d2与diff_data对齐

4.1. 代码

module	find_max_submax#(
	parameter	eps		=	3
	)(
	input			clk,
	input			rstn,

	input	[31:0]	data,
	input			data_val,

	output	[31:0]	data_max,
	output			data_max_val,
	output	[7:0]	index_max,

	output	[31:0]	data_submax,
	output			data_submax_val,
	output	[7:0]	index_submax
	);

reg	[31:0]	data_d1;
reg			data_d1_val;
reg	[7:0]	index_d1;

reg	[31:0]	data_d2;
reg			data_d2_val;
reg	[7:0]	index_d2;

reg [7:0]	diff_index_max;
reg [7:0]	diff_index_submax;

reg	[31:0]	data_max_r;
reg			data_max_submax_val;
reg	[7:0]	index_max_r;

reg	[31:0]	data_submax_r;
reg	[7:0]	index_submax_r;

always@(posedge clk or negedge rstn) begin
	if(!rstn) begin
		data_d1 <= 32'd0;
		data_d1_val <= 1'b0;

		data_d2 <= 32'd0;
		data_d2_val <= 1'b0;
	end
	else begin
		data_d1 <= data;
		data_d1_val <= data_val;

		data_d2 <= data_d1;
		data_d2_val <= data_d1_val;
	end
end

always@(posedge clk or negedge rstn) begin
	if(!rstn)
		data_max_submax_val <= 1'b0;
	else
		data_max_submax_val <= data_d2_val;
end

assign data_max_val = data_max_submax_val;
assign data_submax_val = data_max_submax_val;

always@(posedge clk or negedge rstn) begin
	if(!rstn)
		index_d1 <= 8'd0;
	else if(data_val)
		index_d1 <= index_d1 + 8'd1;
end

always@(posedge clk or negedge rstn) begin
	if(!rstn)
		index_d2 <= 8'd0;
	else
		index_d2 <= index_d1;
end

always@(posedge clk or negedge rstn) begin
	if(!rstn) begin
		diff_index_max <= 8'd0;
		diff_index_submax <= 8'd0;
	end
	else if(data_d1_val) begin
		diff_index_max <=  (index_d1 > index_max)?(index_d1 - index_max):(index_max - index_d1);
		diff_index_submax <=  (index_d1 > index_submax)?(index_d1 - index_submax):(index_submax - index_d1);
	end
end

always@(posedge clk or negedge rstn) begin
	if(!rstn) begin
		data_max_r <= 32'd0;
		index_max_r <= 8'd0;

		data_submax_r <= 32'd0;
		index_submax_r <= 8'd0;
	end
	else if(data_d2_val) begin
		if(data_d2 > data_max) begin
			if(diff_index_max > eps) begin
				data_submax_r <= data_max;
				index_submax_r <= index_max;
				data_max_r <= data_d2;
				index_max_r <= index_d2;
			end
			else if(diff_index_submax <= eps) begin
				data_submax_r <= 32'd0;
				index_submax_r <= 8'd0;
				data_max_r <= data_d2;
				index_max_r <= index_d2;
			end
			else begin
				data_submax_r <= data_submax;
				index_submax_r <= index_submax;
				data_max_r <= data_d2;
				index_max_r <= index_d2;
			end
		end
		else if(data_d2 > data_submax) begin
			if(diff_index_max > eps) begin
				data_submax_r <= data_d2;
				index_submax_r <= index_d2;
				data_max_r <= data_max;
				index_max_r <= index_max;
			end
		end
	end
end

assign data_max = data_max_r;
assign index_max = index_max_r;

assign data_submax = data_submax_r;
assign index_submax = index_submax_r;

endmodule

5. 测试

5.1. testbench

所写的简单tb如下

`timescale 1ns/1ps

module find_max_submax_tb();

logic			clk;
logic			rstn;

logic	[31:0]	data;
logic			data_val;

logic	[31:0]	data_max;
logic			data_max_val;
logic	[7:0]	index_max;

logic	[31:0]	data_submax;
logic			data_submax_val;
logic	[7:0]	index_submax;

initial begin
	clk = 1'b0;
	forever		#2.5	clk = !clk;
end

initial begin
	rstn = 1'b1;
	#50;
	rstn = 1'b0;
	#50;
	rstn = 1'b1;
end

initial begin
	data = 'd0;
	data_val = 'd0;
	#200;
	find_max_submax_test();
end

task find_max_submax_test();

	automatic bit [31:0] nums[17] = {'d29,'d31,'d1,'d20, 'd4, 'd6, 'd7, 'd2, 'd100, 'd99, 'd38, 'd52, 'd2, 'd91, 'd97, 'd96, 'd21};

	foreach(nums[i]) begin
		@(posedge clk);
		#0.1;
		data = nums[i];
		data_val = 1;

		repeat($urandom_range(2,5)) begin
			@(posedge clk);
			#0.1;
			data = 'd10;
			data_val = 0;
		end
	end
endtask



find_max_submax#(
	.eps					(3					)
	)	DUT(
	.clk					(clk				),
	.rstn                  	(rstn				),

	.data                  	(data				),
	.data_val              	(data_val			),

	.data_max              	(data_max			),
	.data_max_val          	(data_max_val		),
	.index_max             	(index_max			),

	.data_submax           	(data_submax		),
	.data_submax_val       	(data_submax_val	),
	.index_submax           (index_submax		)
);

endmodule

5.2. 测试结果

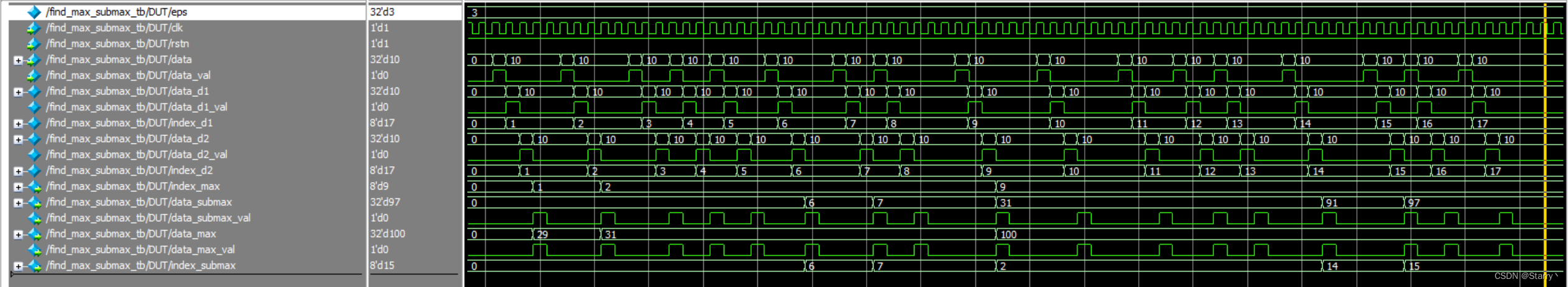

预期输出为(100,9)和(97,15)，波形符合预期
