Unity基于自定义管线实现风格化草

#ifndef GRASSSHADER_COMMON_INCLUDED
#define GRASSSHADER_COMMON_INCLUDED

UNITY_INSTANCING_BUFFER_START(UnityPerMaterial)

UNITY_INSTANCING_BUFFER_END(UnityPerMaterial)

float rand(float3 co)
{
    return frac(sin(dot(co.xyz, float3(12.9898, 78.233, 53.539))) * 43758.5453);
}

float3x3 AngleAxis3x3(float angle, float3 axis)
{
    float c, s;
    sincos(angle, s, c);

    float t = 1 - c;
    float x = axis.x;
    float y = axis.y;
    float z = axis.z;

    return float3x3(
        t * x * x + c, t * x * y - s * z, t * x * z + s * y,
        t * x * y + s * z, t * y * y + c, t * y * z - s * x,
        t * x * z - s * y, t * y * z + s * x, t * z * z + c
        );
}


float4 vert(float4 vertex : POSITION) : SV_POSITION
{
    return TransformObjectToHClip(vertex);
}


float4 frag(float4 vertex : SV_POSITION, float facing : VFACE) : SV_Target
{
    return float4(1, 1, 1, 1);
}

#endif

创建GrassShader.shader 添加如下代码

Shader "Custom/GrassShader"
{
    Properties
    {


    }

    SubShader
    {

        HLSLINCLUDE
        #include "../ShaderLibrary/Common.hlsl"
        #include "../ShaderLibrary/GrassShader.hlsl"
        ENDHLSL

        Pass
        {
            Tags { "LightMode" = "CustomLit" }

            Cull Off

            HLSLPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #pragma target 4.6
            ENDHLSL
        }


    }
    FallBack "Diffuse"
}

创建GrassShader对应的材质，之后创建新物体添加Mesh Renderer 将该材质绑定，添加Plane(Mesh Filter) 网格，过程不演示

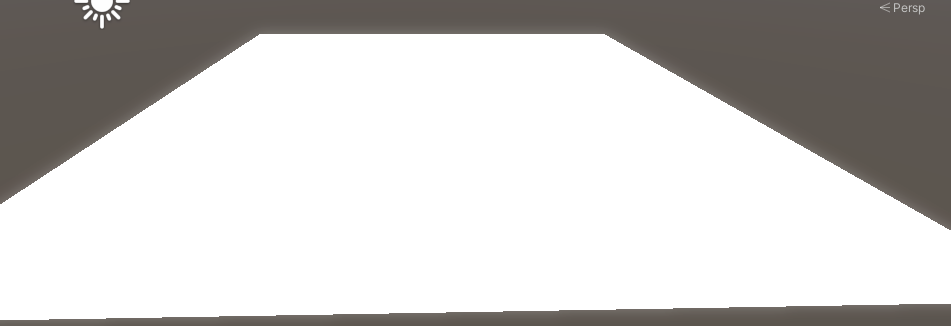

完成后，你应该是这个样子

编辑你的Common.hlsl ，添加如下定义

#define UNITY_PI 3.14159265359f
#define UNITY_TWO_PI 6.28318530718f

2，编辑草地网格

2.1 添加几何着色器，绘制草的基本形状

修改GrassShader.shader，添加如下代码


            #pragma vertex vert
            #pragma geometry geo//新增这行
            #pragma fragment frag

修改GrassShader.hlsl ,添加如下代码

struct geometryOutput
{
    float4 pos : SV_POSITION;
};



[maxvertexcount(3)]
void geo(triangle float4 IN[3] : SV_POSITION, inout TriangleStream<geometryOutput> triStream)
{
    float3 pos = IN[0];

    geometryOutput o;

    o.pos = TransformObjectToHClip(pos + float3(0.5, 0, 0));
    triStream.Append(o);

    o.pos = TransformObjectToHClip(pos + float3(-0.5, 0, 0));
    triStream.Append(o);

    o.pos = TransformObjectToHClip(pos + float3(0, 1, 0));
    triStream.Append(o);
}

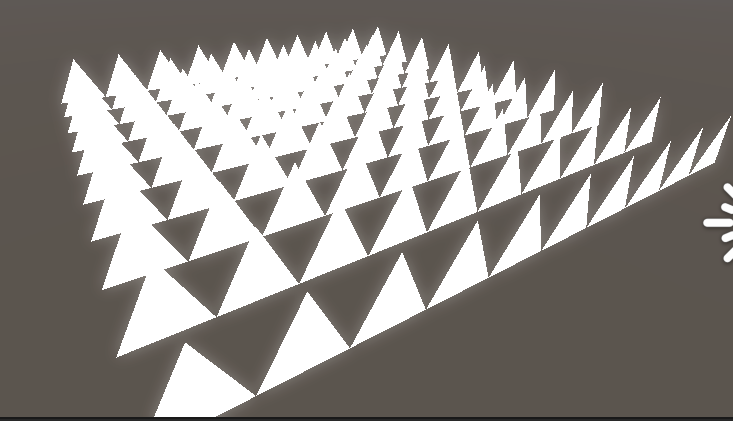

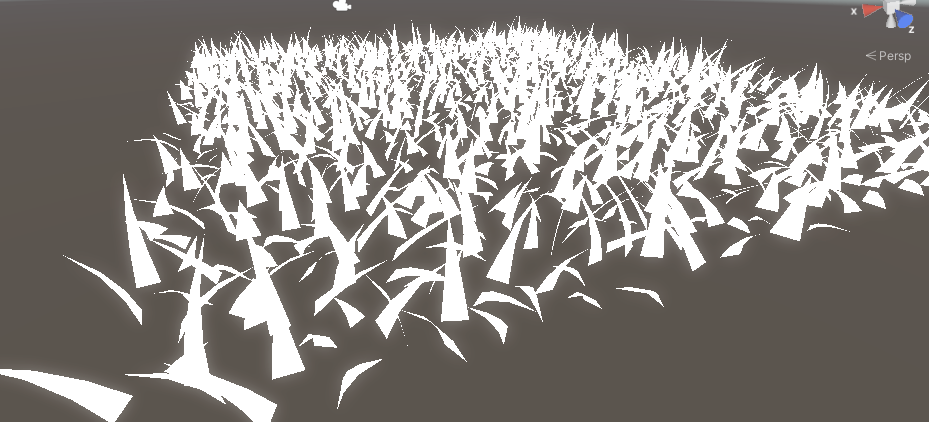

这时，你的效果应该是这样的

几何着色器在每个网格上都输出了一个三角形，并在frag中涂成了白色

2.2 增加细节与随机朝向

修改GrassShader.shader，添加如下代码

    Properties
    {
        _BendRotationRandom("Bend Rotation Random", Range(0, 1)) = 0.2 //转向随机参数
        _BladeWidth("Blade Width", Float) = 0.05 //草的宽
        _BladeWidthRandom("Blade Width Random", Float) = 0.02
        _BladeHeight("Blade Height", Float) = 0.5 //草的高
        _BladeHeightRandom("Blade Height Random", Float) = 0.3
        _BladeForward("Blade Forward Amount", Float) = 0.38 //草尖位置
        _BladeCurve("Blade Curvature Amount", Range(1, 4)) = 2
    }

修改GrassShader.hlsl ，添加并修改如下代码

UNITY_INSTANCING_BUFFER_START(UnityPerMaterial)
.......


UNITY_DEFINE_INSTANCED_PROP(float, _BendRotationRandom)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeHeight)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeHeightRandom)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeWidth)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeWidthRandom)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeForward)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeCurve)

UNITY_INSTANCING_BUFFER_END(UnityPerMaterial)

#define BLADE_SEGMENTS 3


......

struct geometryOutput
{
    float4 pos : SV_POSITION;
    float3 posWS : VAR_POSITION;
    float2 uv : TEXCOORD0;
};

struct vertexInput
{
    float4 vertex : POSITION;
    float3 normal : NORMAL;
    float4 tangent : TANGENT;
};

struct vertexOutput
{
    float4 vertex : SV_POSITION;
    float3 normal : NORMAL;
    float4 tangent : TANGENT;
};


//调整顶点着色器输出，vertexOutput作为中间变量，后续在曲面细分着色器中需要用到，这里提前设置
vertexOutput vert(vertexInput v)
{
    vertexOutput o;
    o.vertex = v.vertex;
    o.normal = v.normal;
    o.tangent = v.tangent;
    return o;
}

geometryOutput GenerateGrassVertex(float3 vertexPosition, float width, float height, float forward, float2 uv, float3x3 transformMatrix)
{
    float3 tangentPoint = float3(width, forward, height);

    float3 localPosition = vertexPosition + mul(transformMatrix, tangentPoint);

    return VertexOutput(localPosition, uv);
}

[maxvertexcount(BLADE_SEGMENTS * 2 + 1)]
void geo(triangle vertexOutput IN[3] : SV_POSITION, inout TriangleStream<geometryOutput> triStream)
{
    float3 pos = IN[0].vertex;

    // Place in the geometry shader, below the line declaring float3 pos.
    float3 vNormal = IN[0].normal;
    float4 vTangent = IN[0].tangent;
    float3 vBinormal = cross(vNormal, vTangent) * vTangent.w;
    float height = (rand(pos.zyx) * 2 - 1) * _BladeHeightRandom + _BladeHeight;
    float width = (rand(pos.xzy) * 2 - 1) * _BladeWidthRandom + _BladeWidth;


    // Add below the lines declaring the three vectors.
    float3x3 tangentToLocal = float3x3(
        vTangent.x, vBinormal.x, vNormal.x,
        vTangent.y, vBinormal.y, vNormal.y,
        vTangent.z, vBinormal.z, vNormal.z
        );

    float3x3 facingRotationMatrix = AngleAxis3x3(rand(pos) * UNITY_TWO_PI, float3(0, 0, 1));

    float3x3 bendRotationMatrix = AngleAxis3x3(rand(pos.zzx) * _BendRotationRandom * UNITY_PI * 0.5, float3(-1, 0, 0));

    float3x3 transformationMatrix = mul(mul(tangentToLocal, facingRotationMatrix), bendRotationMatrix);

    float3x3 transformationMatrixFacing = mul(tangentToLocal, facingRotationMatrix);

    float forward = rand(pos.yyz) * _BladeForward;

    for (int i = 0; i < BLADE_SEGMENTS; i++)
    {
        float t = i / (float)BLADE_SEGMENTS;
        float segmentHeight = height * t;
        float segmentWidth = width * (1 - t);

        float3x3 transformMatrix = i == 0 ? transformationMatrixFacing : transformationMatrix;

        float segmentForward = pow(t, _BladeCurve) * forward;

        triStream.Append(GenerateGrassVertex(pos, segmentWidth, segmentHeight, segmentForward, float2(0, t), transformMatrix));
        triStream.Append(GenerateGrassVertex(pos, -segmentWidth, segmentHeight, segmentForward, float2(1, t), transformMatrix));

    }
    triStream.Append(GenerateGrassVertex(pos, 0, height, forward, float2(0.5, 1), transformationMatrix));

}

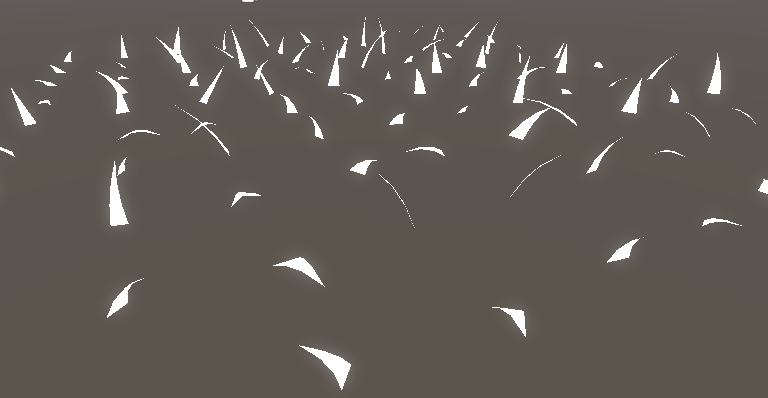

这个时候你的草应该是这样，想要细分形状的话，研究这段代码的作用即可

2.3 增加曲面细分着色器，增加草片数量

修改GrassShader.shader，添加如下代码

    Properties
    {
......

         _TessellationUniform("Tessellation Uniform", Range(1, 64)) = 1
    }

......

            HLSLPROGRAM
            #pragma vertex vert
            #pragma hull hull //这行
            #pragma domain domain //这行
            #pragma geometry geo
            #pragma fragment frag
            #pragma target 4.6
            ENDHLSL
......

修改GrassShader.hlsl，添加如下代码

UNITY_INSTANCING_BUFFER_START(UnityPerMaterial)

........

UNITY_DEFINE_INSTANCED_PROP(float, _TessellationUniform)

UNITY_INSTANCING_BUFFER_END(UnityPerMaterial)


........

........

struct TessellationFactors
{
    float edge[3] : SV_TessFactor;
    float inside : SV_InsideTessFactor;
};

........



TessellationFactors patchConstantFunction(InputPatch<vertexInput, 3> patch)
{
    TessellationFactors f;
    f.edge[0] = _TessellationUniform;
    f.edge[1] = _TessellationUniform;
    f.edge[2] = _TessellationUniform;
    f.inside = _TessellationUniform;
    return f;
}

[domain("tri")]
[outputcontrolpoints(3)]
[outputtopology("triangle_cw")]
[partitioning("integer")]
[patchconstantfunc("patchConstantFunction")]
vertexInput hull(InputPatch<vertexInput, 3> patch, uint id : SV_OutputControlPointID)
{
    return patch[id];
}

vertexOutput tessVert(vertexInput v)
{
    vertexOutput o;
    // Note that the vertex is NOT transformed to clip
    // space here; this is done in the grass geometry shader.
    o.vertex = v.vertex;
    o.normal = v.normal;
    o.tangent = v.tangent;
    return o;
}

[domain("tri")]
vertexOutput domain(TessellationFactors factors, OutputPatch<vertexInput, 3> patch, float3 barycentricCoordinates : SV_DomainLocation)
{
    vertexInput v;

#define MY_DOMAIN_PROGRAM_INTERPOLATE(fieldName) v.fieldName = \
		        patch[0].fieldName * barycentricCoordinates.x + \
		        patch[1].fieldName * barycentricCoordinates.y + \
		        patch[2].fieldName * barycentricCoordinates.z;

    MY_DOMAIN_PROGRAM_INTERPOLATE(vertex)
        MY_DOMAIN_PROGRAM_INTERPOLATE(normal)
        MY_DOMAIN_PROGRAM_INTERPOLATE(tangent)

        return tessVert(v);
}
.......

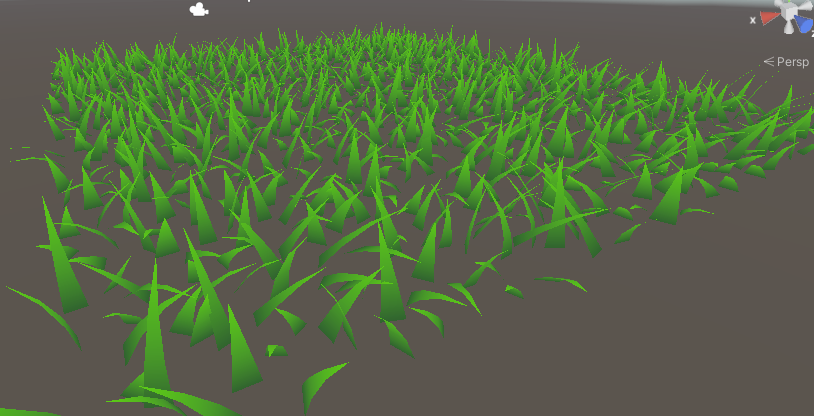

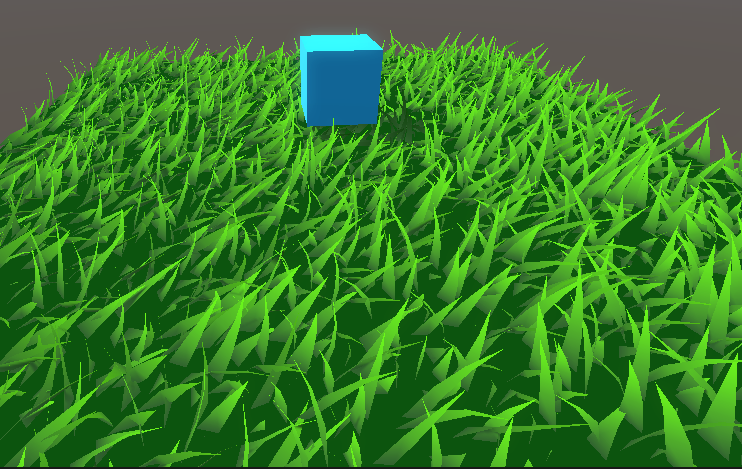

这个时候你的草应该长这样

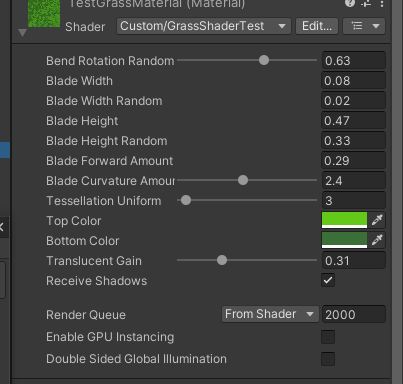

参数参考：

3，编辑草的颜色

3.1 设置基本颜色

修改GrassShader.shader，添加如下代码

    Properties
    {

.......

         _TopColor("Top Color", Color) = (1,1,1,1)
        _BottomColor("Bottom Color", Color) = (1,1,1,1)
    }

修改GrassShader.hlsl，修改frag，颜色只是普通的线性插值

.......

UNITY_INSTANCING_BUFFER_START(UnityPerMaterial)

.......

UNITY_DEFINE_INSTANCED_PROP(float4, _BottomColor)
UNITY_DEFINE_INSTANCED_PROP(float4, _TopColor)

UNITY_INSTANCING_BUFFER_END(UnityPerMaterial)

........



float4 frag(geometryOutput i, float facing : VFACE) : SV_Target
{
    float4 base = lerp(_BottomColor, _TopColor, i.uv.y);
    return base;
}

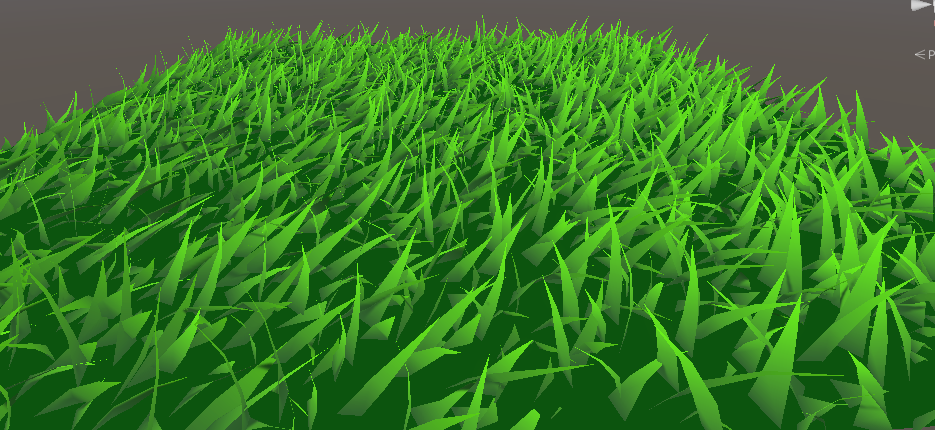

调整好颜色后，这个时候你的草应该是这样

底部空空的不好看，再增加个Plane

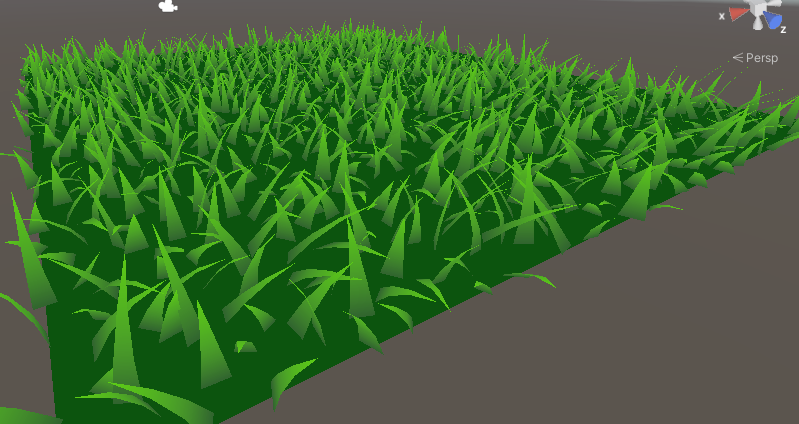

到这一步这个草地已经基本成型了，接下来的步骤基本算是效果上的优化

3.2 添加光影

3.2.1 添加影子

修改GrassShader.shader，添加如下代码

SubShader
{
.........


        Pass
        {
            Tags {
                "LightMode" = "ShadowCaster"
            }

            ColorMask 0

            HLSLPROGRAM
            #pragma vertex vert
            #pragma hull hull
            #pragma domain domain
            #pragma geometry geo
            #pragma fragment fragShadow
            #pragma shader_feature _ _SHADOWS_CLIP _SHADOWS_DITHER
            #pragma multi_compile _ LOD_FADE_CROSSFADE
            #pragma multi_compile_instancing
            #pragma target 4.6


            void fragShadow(geometryOutput i)
            {
                UNITY_SETUP_INSTANCE_ID(i);
                InputConfig config = GetInputConfig(i.pos, i.uv);
                ClipLOD(config.fragment, unity_LODFade.x);

#if defined(_SHADOWS_CLIP)
                clip(base.a - GetCutoff(config));
#elif defined(_SHADOWS_DITHER)
                float dither = InterleavedGradientNoise(input.positionCS_SS.xy, 0);
                clip(base.a - dither);
#endif
            }

            ENDHLSL
        }

}

修改GrassShader.hlsl，添加一些引用

#include "Surface.hlsl"
#include "Shadows.hlsl"
#include "LitInput.hlsl"

如果代码没问题，你应该能看到草片投射到别的物体上的阴影

3.2.2 添加光的影响

这部分自由发挥空间很大，这边给出我自己的实现方案仅作参考

修改GrassShader.shader，添加如下代码

    Properties
    {

........
        _TranslucentGain("Translucent Gain", Range(0,1)) = 0.5
       [Toggle(_RECEIVE_SHADOWS)] _ReceiveShadows("Receive Shadows", Float) = 1
    }

........

        Pass
        {
            Tags { "LightMode" = "CustomLit" }

            Cull Off

            HLSLPROGRAM
            //标记接受阴影，在frag计算颜色的时候会用到
            #pragma shader_feature _RECEIVE_SHADOWS
            #pragma multi_compile _ _OTHER_PCF3 _OTHER_PCF5 _OTHER_PCF7
            #pragma multi_compile _ _SHADOW_MASK_ALWAYS _SHADOW_MASK_DISTANCE
            #pragma multi_compile _ _CASCADE_BLEND_SOFT _CASCADE_BLEND_DITHER
            #pragma multi_compile _ _DIRECTIONAL_PCF3 _DIRECTIONAL_PCF5 _DIRECTIONAL_PCF7
.......
            ENDHLSL
        }

修改GrassShader.hlsl，添加一些引用

.......

#include "Surface.hlsl"
#include "Shadows.hlsl"
#include "Light.hlsl"
#include "BRDF.hlsl"
#include "GI.hlsl"
#include "Lighting.hlsl"
#include "LitInput.hlsl"

.......



UNITY_INSTANCING_BUFFER_START(UnityPerMaterial)

.......

UNITY_DEFINE_INSTANCED_PROP(float, _TranslucentGain)

UNITY_INSTANCING_BUFFER_END(UnityPerMaterial)


.......

struct geometryOutput
{
.......
    float3 normalWS : VAR_NORMAL;
};



//添加法线向量
geometryOutput VertexOutput(float3 pos, float2 uv, float3 normal)
{
.......
    o.normalWS = TransformObjectToWorldNormal(normal);
    return o;
}


geometryOutput GenerateGrassVertex(float3 vertexPosition, float width, float height, float forward, float2 uv, float3x3 transformMatrix)
{
.......

    float3 tangentNormal = normalize(float3(0, -1, forward));
    float3 localNormal = mul(transformMatrix, tangentNormal);

    return VertexOutput(localPosition, uv, localNormal);
}



.......


//计算各个光源的影响，这个部分直接参考的LitPass的代码编写

float3 GetGLighting(Surface surfaceWS, BRDF brdf, GI gi)
{
    ShadowData shadowData = GetShadowData(surfaceWS);
    shadowData.shadowMask = gi.shadowMask;
    float3 color = IndirectBRDF(surfaceWS, brdf, gi.diffuse, gi.specular);

    for (int i = 0; i < GetDirectionalLightCount(); i++) {
        Light light = GetDirectionalLight(i, surfaceWS, shadowData);
        if (RenderingLayersOverlap(surfaceWS, light)) {
            float NdotL = saturate(saturate(dot(surfaceWS.normal, light.direction)) + _TranslucentGain) * light.attenuation;
            color += NdotL * light.color;
        }
    }

#if defined(_LIGHTS_PER_OBJECT)
    for (int j = 0; j < min(unity_LightData.y, 8); j++) {
        int lightIndex = unity_LightIndices[(uint)j / 4][(uint)j % 4];
        Light light = GetOtherLight(lightIndex, surfaceWS, shadowData);
        if (RenderingLayersOverlap(surfaceWS, light)) {
            float NdotL = saturate(saturate(dot(surfaceWS.normal, light.direction)) + _TranslucentGain) * light.attenuation;
            color += NdotL * light.color;
        }
    }
#else
    for (int j = 0; j < GetOtherLightCount(); j++) {
        Light light = GetOtherLight(j, surfaceWS, shadowData);
        if (RenderingLayersOverlap(surfaceWS, light)) {
            float NdotL = saturate(saturate(dot(surfaceWS.normal, light.direction)) + _TranslucentGain) * light.attenuation;
            color += NdotL * light.color;
        }
    }
#endif

    return color;
}


float4 frag(geometryOutput i, float facing : VFACE) : SV_Target
{
    UNITY_SETUP_INSTANCE_ID(i);
    InputConfig config = GetInputConfig(i.pos, i.uv);
    ClipLOD(config.fragment, unity_LODFade.x);

    float4 base = lerp(_BottomColor, _TopColor, i.uv.y);
    float3 normal = facing > 0 ? i.normalWS : -i.normalWS;

    Surface surface;
    surface.position = i.posWS;
    surface.normal = normalize(normal);
    surface.interpolatedNormal = surface.normal;
    surface.viewDirection = normalize(_WorldSpaceCameraPos - i.posWS);
    surface.depth = -TransformWorldToView(i.posWS).z;
    surface.color = base.rgb;
    surface.alpha = base.a;
    surface.metallic = 0;
    surface.occlusion = 1;
    surface.smoothness = 0;
    surface.fresnelStrength = 1;
    surface.dither = 1;
    surface.renderingLayerMask = asuint(unity_RenderingLayer.x);
    BRDF brdf = GetBRDF(surface);
    GI gi = GetGI(GI_FRAGMENT_DATA(i), surface, brdf);


    float4 lightIntensity = float4(GetGLighting(surface, brdf, gi),1);
    float4 col = lerp(_BottomColor, _TopColor * lightIntensity, i.uv.y);
    return col;
}

如果代码没有问题的话，你应该会得到这样一个效果

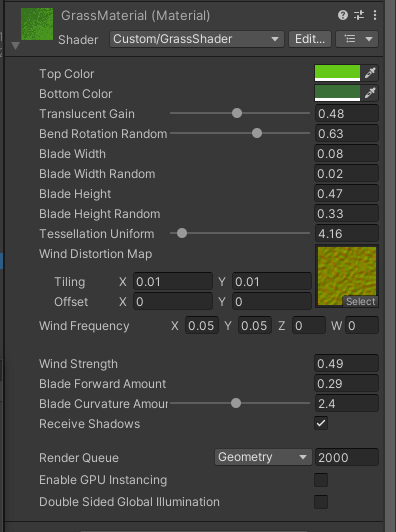

参数参考：

4，来点风

预先准备工作，添加时间变量_TimeDelta

新增SetupBeForeLightPass.cs 文件，添加如下代码

using UnityEngine.Experimental.Rendering.RenderGraphModule;
using UnityEngine.Rendering;
using UnityEngine;
using UnityEngine.Experimental.Rendering;

public class SetupBeForeLightPass
{
	static readonly ProfilingSampler sampler = new("SetupBeForeLight");

	static int
	TimeDelta = Shader.PropertyToID("_TimeDelta");

	void Render(RenderGraphContext context)
	{
		CommandBuffer buffer = context.cmd;
		buffer.SetGlobalFloat(TimeDelta, Time.time);
		context.renderContext.ExecuteCommandBuffer(context.cmd);
		context.cmd.Clear();
	}

	public static void Record(
		RenderGraph renderGraph)
	{

		using RenderGraphBuilder builder =
			renderGraph.AddRenderPass(sampler.name, out SetupBeForeLightPass pass, sampler);

		builder.AllowPassCulling(false);
		builder.SetRenderFunc<SetupBeForeLightPass>(
			static (pass, context) => pass.Render(context));
	}
}

修改CameraRenderer.cs 添加如下代码

.......
public void Render(RenderGraph renderGraph, ScriptableRenderContext context, Camera camera, CameraBufferSettings bufferSettings, bool useLightsPerObject, ShadowSettings shadowSettings, PostFXSettings postFXSettings,int colorLUTResolution)
{

.......
		using (renderGraph.RecordAndExecute(renderGraphParameters))
        {
			// Add passes here.
			using var _ = new RenderGraphProfilingScope(renderGraph, cameraSampler);

			SetupBeForeLightPass.Record(renderGraph);
.......
        }


}

.......

修改 Common.hlsl 添加变量

......

float _TimeDelta;

......

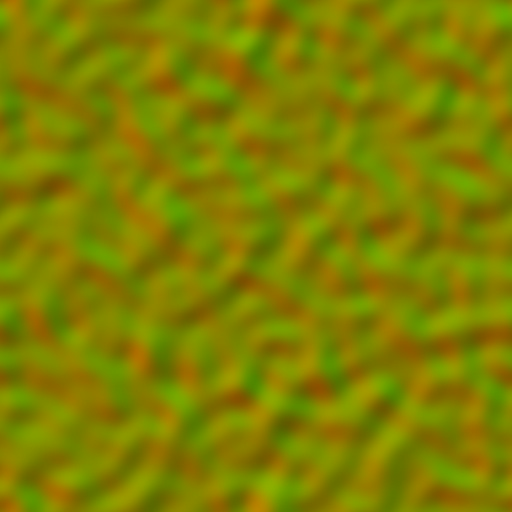

从【Grass Shader】拿取风的贴图

修改GrassShader.shader

    Properties
    {
.......
        _WindDistortionMap("Wind Distortion Map", 2D) = "white" {}
        _WindFrequency("Wind Frequency", Vector) = (0.05, 0.05, 0, 0)
        _WindStrength("Wind Strength", Float) = 1
.......

    }

修改GrassShader.hlsl

.......

UNITY_INSTANCING_BUFFER_START(UnityPerMaterial)

.......
UNITY_DEFINE_INSTANCED_PROP(float2, _WindFrequency)
UNITY_DEFINE_INSTANCED_PROP(float, _WindStrength)

UNITY_INSTANCING_BUFFER_END(UnityPerMaterial)

TEXTURE2D(_WindDistortionMap);
SAMPLER(sampler_WindDistortionMap);
float4 _WindDistortionMap_TexelSize;

#define BLADE_SEGMENTS 3

.......

void geo(triangle vertexOutput IN[3] : SV_POSITION, inout TriangleStream<geometryOutput> triStream)
{
.......

    float2 uv = pos.xz * _WindDistortionMap_TexelSize.xy + _WindDistortionMap_TexelSize.zw + _WindFrequency * _TimeDelta;

    float4 _WindD = SAMPLE_TEXTURE2D_LOD(_WindDistortionMap, sampler_WindDistortionMap, uv, 0);

    float2 windSample = (_WindD.xy * 2 - 1) * _WindStrength;

    float3 wind = normalize(float3(windSample.x, windSample.y, 0));
    float3x3 windRotation = AngleAxis3x3(UNITY_PI * windSample, wind);

.......

    float3x3 transformationMatrix = mul(mul(mul(tangentToLocal, windRotation), facingRotationMatrix), bendRotationMatrix);

.......


}

如果代码没问题的话，效果应该是这样子

运行的时候应该是有运动的

参数参考：

五，参考代码

GrassShader.shader

Shader "Custom/GrassShader"
{
    Properties
    {
        _TopColor("Top Color", Color) = (1,1,1,1)
        _BottomColor("Bottom Color", Color) = (1,1,1,1)
        _TranslucentGain("Translucent Gain", Range(0,1)) = 0.5
        _BendRotationRandom("Bend Rotation Random", Range(0, 1)) = 0.2
        _BladeWidth("Blade Width", Float) = 0.05
        _BladeWidthRandom("Blade Width Random", Float) = 0.02
        _BladeHeight("Blade Height", Float) = 0.5
        _BladeHeightRandom("Blade Height Random", Float) = 0.3
        _TessellationUniform("Tessellation Uniform", Range(1, 64)) = 1
        _WindDistortionMap("Wind Distortion Map", 2D) = "white" {}
        _WindFrequency("Wind Frequency", Vector) = (0.05, 0.05, 0, 0)
        _WindStrength("Wind Strength", Float) = 1
        _BladeForward("Blade Forward Amount", Float) = 0.38
        _BladeCurve("Blade Curvature Amount", Range(1, 4)) = 2
        [Toggle(_RECEIVE_SHADOWS)] _ReceiveShadows("Receive Shadows", Float) = 1
    }

    SubShader
    {

        HLSLINCLUDE
        #include "../ShaderLibrary/Common.hlsl"
        #include "../ShaderLibrary/GrassShader.hlsl"
        ENDHLSL

        Pass
        {
            Tags { "LightMode" = "CustomLit" }

            Cull Off

            HLSLPROGRAM
            #pragma shader_feature _RECEIVE_SHADOWS
            #pragma multi_compile _ _OTHER_PCF3 _OTHER_PCF5 _OTHER_PCF7
            #pragma multi_compile _ _SHADOW_MASK_ALWAYS _SHADOW_MASK_DISTANCE
            #pragma multi_compile _ _CASCADE_BLEND_SOFT _CASCADE_BLEND_DITHER
            #pragma multi_compile _ _DIRECTIONAL_PCF3 _DIRECTIONAL_PCF5 _DIRECTIONAL_PCF7
            #pragma vertex vert
            #pragma hull hull
            #pragma domain domain
            #pragma geometry geo
            #pragma fragment frag
            #pragma target 4.6
            ENDHLSL
        }

        Pass
        {
            Tags {
                "LightMode" = "ShadowCaster"
            }

            ColorMask 0

            HLSLPROGRAM
            #pragma vertex vert
            #pragma hull hull
            #pragma domain domain
            #pragma geometry geo
            #pragma fragment fragShadow
            #pragma shader_feature _ _SHADOWS_CLIP _SHADOWS_DITHER
            #pragma multi_compile _ LOD_FADE_CROSSFADE
            #pragma multi_compile_instancing
            #pragma target 4.6


            void fragShadow(geometryOutput i)
            {
                UNITY_SETUP_INSTANCE_ID(i);
                InputConfig config = GetInputConfig(i.pos, i.uv);
                ClipLOD(config.fragment, unity_LODFade.x);

#if defined(_SHADOWS_CLIP)
                clip(base.a - GetCutoff(config));
#elif defined(_SHADOWS_DITHER)
                float dither = InterleavedGradientNoise(input.positionCS_SS.xy, 0);
                clip(base.a - dither);
#endif
            }

            ENDHLSL
        }


    }
    FallBack "Diffuse"
}

GrassShader.hlsl

#ifndef GRASSSHADER_COMMON_INCLUDED
#define GRASSSHADER_COMMON_INCLUDED

#include "Surface.hlsl"
#include "Shadows.hlsl"
#include "Light.hlsl"
#include "BRDF.hlsl"
#include "GI.hlsl"
#include "Lighting.hlsl"
#include "LitInput.hlsl"

UNITY_INSTANCING_BUFFER_START(UnityPerMaterial)
UNITY_DEFINE_INSTANCED_PROP(float4, _BottomColor)
UNITY_DEFINE_INSTANCED_PROP(float4, _TopColor)
UNITY_DEFINE_INSTANCED_PROP(float, _BendRotationRandom)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeHeight)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeHeightRandom)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeWidth)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeWidthRandom)
UNITY_DEFINE_INSTANCED_PROP(float, _TessellationUniform)
UNITY_DEFINE_INSTANCED_PROP(float2, _WindFrequency)
UNITY_DEFINE_INSTANCED_PROP(float, _WindStrength)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeForward)
UNITY_DEFINE_INSTANCED_PROP(float, _BladeCurve)
UNITY_DEFINE_INSTANCED_PROP(float, _TranslucentGain)

UNITY_INSTANCING_BUFFER_END(UnityPerMaterial)

#define BLADE_SEGMENTS 3

TEXTURE2D(_WindDistortionMap);
SAMPLER(sampler_WindDistortionMap);
float4 _WindDistortionMap_TexelSize;

float rand(float3 co)
{
    return frac(sin(dot(co.xyz, float3(12.9898, 78.233, 53.539))) * 43758.5453);
}

float3x3 AngleAxis3x3(float angle, float3 axis)
{
    float c, s;
    sincos(angle, s, c);

    float t = 1 - c;
    float x = axis.x;
    float y = axis.y;
    float z = axis.z;

    return float3x3(
        t * x * x + c, t * x * y - s * z, t * x * z + s * y,
        t * x * y + s * z, t * y * y + c, t * y * z - s * x,
        t * x * z - s * y, t * y * z + s * x, t * z * z + c
        );
}

struct vertexInput
{
    float4 vertex : POSITION;
    float3 normal : NORMAL;
    float4 tangent : TANGENT;
};

struct vertexOutput
{
    float4 vertex : SV_POSITION;
    float3 normal : NORMAL;
    float4 tangent : TANGENT;
};

struct geometryOutput
{
    float4 pos : SV_POSITION;
    float3 posWS : VAR_POSITION;
    float2 uv : TEXCOORD0;
    float3 normalWS : VAR_NORMAL;
};

struct TessellationFactors
{
    float edge[3] : SV_TessFactor;
    float inside : SV_InsideTessFactor;
};

vertexInput vert(vertexInput v)
{
    return v;
}

TessellationFactors patchConstantFunction(InputPatch<vertexInput, 3> patch)
{
    TessellationFactors f;
    f.edge[0] = _TessellationUniform;
    f.edge[1] = _TessellationUniform;
    f.edge[2] = _TessellationUniform;
    f.inside = _TessellationUniform;
    return f;
}

[domain("tri")]
[outputcontrolpoints(3)]
[outputtopology("triangle_cw")]
[partitioning("integer")]
[patchconstantfunc("patchConstantFunction")]
vertexInput hull(InputPatch<vertexInput, 3> patch, uint id : SV_OutputControlPointID)
{
    return patch[id];
}

vertexOutput tessVert(vertexInput v)
{
    vertexOutput o;
    // Note that the vertex is NOT transformed to clip
    // space here; this is done in the grass geometry shader.
    o.vertex = v.vertex;
    o.normal = v.normal;
    o.tangent = v.tangent;
    return o;
}

[domain("tri")]
vertexOutput domain(TessellationFactors factors, OutputPatch<vertexInput, 3> patch, float3 barycentricCoordinates : SV_DomainLocation)
{
    vertexInput v;

#define MY_DOMAIN_PROGRAM_INTERPOLATE(fieldName) v.fieldName = \
		        patch[0].fieldName * barycentricCoordinates.x + \
		        patch[1].fieldName * barycentricCoordinates.y + \
		        patch[2].fieldName * barycentricCoordinates.z;

    MY_DOMAIN_PROGRAM_INTERPOLATE(vertex)
        MY_DOMAIN_PROGRAM_INTERPOLATE(normal)
        MY_DOMAIN_PROGRAM_INTERPOLATE(tangent)

        return tessVert(v);
}

geometryOutput VertexOutput(float3 pos, float2 uv,float3 normal)
{
    geometryOutput o;
    o.pos = TransformObjectToHClip(pos);
    o.posWS = TransformObjectToWorld(pos);
    o.uv = uv;
    o.normalWS = TransformObjectToWorldNormal(normal);
    return o;
}

geometryOutput GenerateGrassVertex(float3 vertexPosition, float width, float height, float forward, float2 uv, float3x3 transformMatrix)
{
    float3 tangentPoint = float3(width, forward, height);

    float3 localPosition = vertexPosition + mul(transformMatrix, tangentPoint);

    float3 tangentNormal = normalize(float3(0, -1, forward));
    float3 localNormal = mul(transformMatrix, tangentNormal);

    return VertexOutput(localPosition, uv, localNormal);
}

[maxvertexcount(BLADE_SEGMENTS * 2 + 1)]
void geo(triangle vertexOutput IN[3], inout TriangleStream<geometryOutput> triStream)
{

    float3 pos = IN[0].vertex;

    // Place in the geometry shader, below the line declaring float3 pos.
    float3 vNormal = IN[0].normal;
    float4 vTangent = IN[0].tangent;
    float3 vBinormal = cross(vNormal, vTangent) * vTangent.w;
    float height = (rand(pos.zyx) * 2 - 1) * _BladeHeightRandom + _BladeHeight;
    float width = (rand(pos.xzy) * 2 - 1) * _BladeWidthRandom + _BladeWidth;

    float2 uv = pos.xz * _WindDistortionMap_TexelSize.xy + _WindDistortionMap_TexelSize.zw + _WindFrequency * _TimeDelta;

    float4 _WindD = SAMPLE_TEXTURE2D_LOD(_WindDistortionMap, sampler_WindDistortionMap, uv, 0);

    float2 windSample = (_WindD.xy * 2 - 1) * _WindStrength;

    float3 wind = normalize(float3(windSample.x, windSample.y, 0));
    float3x3 windRotation = AngleAxis3x3(UNITY_PI * windSample, wind);

    // Add below the lines declaring the three vectors.
    float3x3 tangentToLocal = float3x3(
        vTangent.x, vBinormal.x, vNormal.x,
        vTangent.y, vBinormal.y, vNormal.y,
        vTangent.z, vBinormal.z, vNormal.z
        );

    float3x3 facingRotationMatrix = AngleAxis3x3(rand(pos) * UNITY_TWO_PI, float3(0, 0, 1));

    float3x3 bendRotationMatrix = AngleAxis3x3(rand(pos.zzx) * _BendRotationRandom * UNITY_PI * 0.5, float3(-1, 0, 0));

    float3x3 transformationMatrix = mul(mul(mul(tangentToLocal, windRotation), facingRotationMatrix), bendRotationMatrix);

    float3x3 transformationMatrixFacing = mul(tangentToLocal, facingRotationMatrix);

    float forward = rand(pos.yyz) * _BladeForward;

    for (int i = 0; i < BLADE_SEGMENTS; i++)
    {
        float t = i / (float)BLADE_SEGMENTS;
        float segmentHeight = height * t;
        float segmentWidth = width * (1 - t);

        float3x3 transformMatrix = i == 0 ? transformationMatrixFacing : transformationMatrix;

        float segmentForward = pow(t, _BladeCurve) * forward;

        triStream.Append(GenerateGrassVertex(pos, segmentWidth, segmentHeight, segmentForward, float2(0, t), transformMatrix));
        triStream.Append(GenerateGrassVertex(pos, -segmentWidth, segmentHeight, segmentForward, float2(1, t), transformMatrix));

    }
    triStream.Append(GenerateGrassVertex(pos, 0, height, forward, float2(0.5, 1), transformationMatrix));

}


float3 GetGLighting(Surface surfaceWS, BRDF brdf, GI gi)
{
    ShadowData shadowData = GetShadowData(surfaceWS);
    shadowData.shadowMask = gi.shadowMask;
    float3 color = IndirectBRDF(surfaceWS, brdf, gi.diffuse, gi.specular);

    for (int i = 0; i < GetDirectionalLightCount(); i++) {
        Light light = GetDirectionalLight(i, surfaceWS, shadowData);
        if (RenderingLayersOverlap(surfaceWS, light)) {
            float NdotL = saturate(saturate(dot(surfaceWS.normal, light.direction)) + _TranslucentGain) * light.attenuation;
            color += NdotL * light.color;
        }
    }

#if defined(_LIGHTS_PER_OBJECT)
    for (int j = 0; j < min(unity_LightData.y, 8); j++) {
        int lightIndex = unity_LightIndices[(uint)j / 4][(uint)j % 4];
        Light light = GetOtherLight(lightIndex, surfaceWS, shadowData);
        if (RenderingLayersOverlap(surfaceWS, light)) {
            float NdotL = saturate(saturate(dot(surfaceWS.normal, light.direction)) + _TranslucentGain) * light.attenuation;
            color += NdotL * light.color;
        }
    }
#else
    for (int j = 0; j < GetOtherLightCount(); j++) {
        Light light = GetOtherLight(j, surfaceWS, shadowData);
        if (RenderingLayersOverlap(surfaceWS, light)) {
            float NdotL = saturate(saturate(dot(surfaceWS.normal, light.direction)) + _TranslucentGain) * light.attenuation;
            color += NdotL * light.color;
        }
    }
#endif

    return color;
}

float4 frag(geometryOutput i, float facing : VFACE) : SV_Target
{
    UNITY_SETUP_INSTANCE_ID(i);
    InputConfig config = GetInputConfig(i.pos, i.uv);
    ClipLOD(config.fragment, unity_LODFade.x);

    float4 base = lerp(_BottomColor, _TopColor, i.uv.y);
    float3 normal = facing > 0 ? i.normalWS : -i.normalWS;

    Surface surface;
    surface.position = i.posWS;
    surface.normal = normalize(normal);
    surface.interpolatedNormal = surface.normal;
    surface.viewDirection = normalize(_WorldSpaceCameraPos - i.posWS);
    surface.depth = -TransformWorldToView(i.posWS).z;
    surface.color = base.rgb;
    surface.alpha = base.a;
    surface.metallic = 0;
    surface.occlusion = 1;
    surface.smoothness = 0;
    surface.fresnelStrength =1;
    surface.dither = 1;
    surface.renderingLayerMask = asuint(unity_RenderingLayer.x);
    BRDF brdf = GetBRDF(surface);
    GI gi = GetGI(GI_FRAGMENT_DATA(i), surface, brdf);


    float4 lightIntensity = float4(GetGLighting(surface, brdf, gi),1);
    float4 col = lerp(_BottomColor, _TopColor * lightIntensity, i.uv.y);
    return col;
}


#endif

您可能感兴趣的与本文相关的镜像
