How to Integrate a 3rd party SDK into Plugin-X

How to Integrate a 3rd party SDK into Plugin-X

Introduction to Plugin-x framework

The core code of plugin-x is in directory protocols.
There are four protocols : ProtocolAds, ProtocolAnalytics, ProtocolIAP, ProtocolSocial.
It will be easy if your SDK fits into one of them.

You don't need to write any C++ code. We have done it for you in the plugin-x core module. What you need to do is :

• New a android/iOS project.
• Write Java/Obj-C code to implement the interface/protocol we defined.

Plugin Folder Structure

The folder structure of a plugin looks like this:

• proj.android : The android project directory of the plugin.

• proj.ios : The iOS project directory of the plugin.

  Note : The publish tools depends on this directory structure to work.

Implementing the Plugin

Here is the guide to implementing the plugin on android and iOS

Android

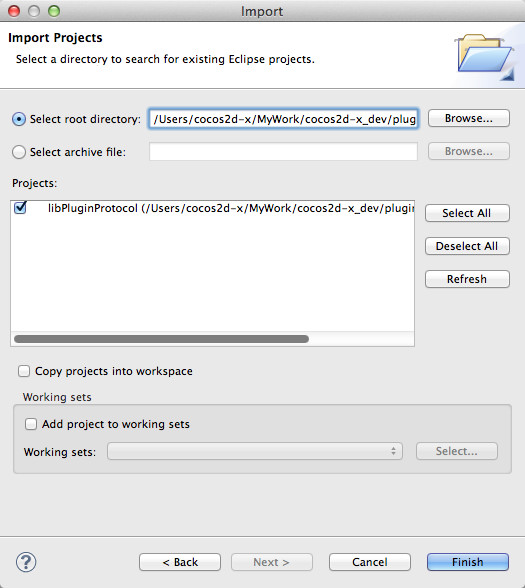

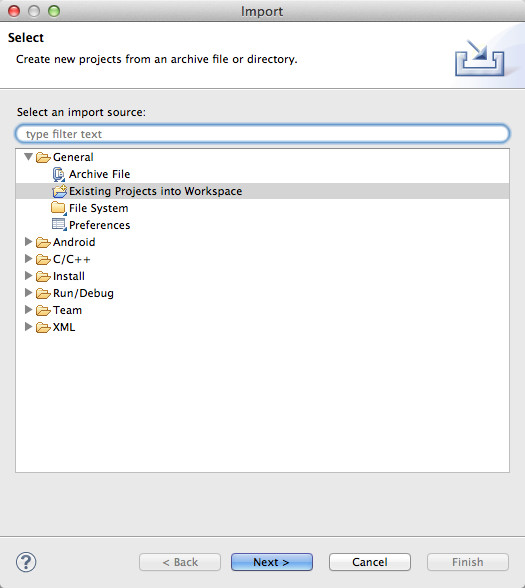

Import libPluginProtocols form protocols/proj.android.

Create a new android library project

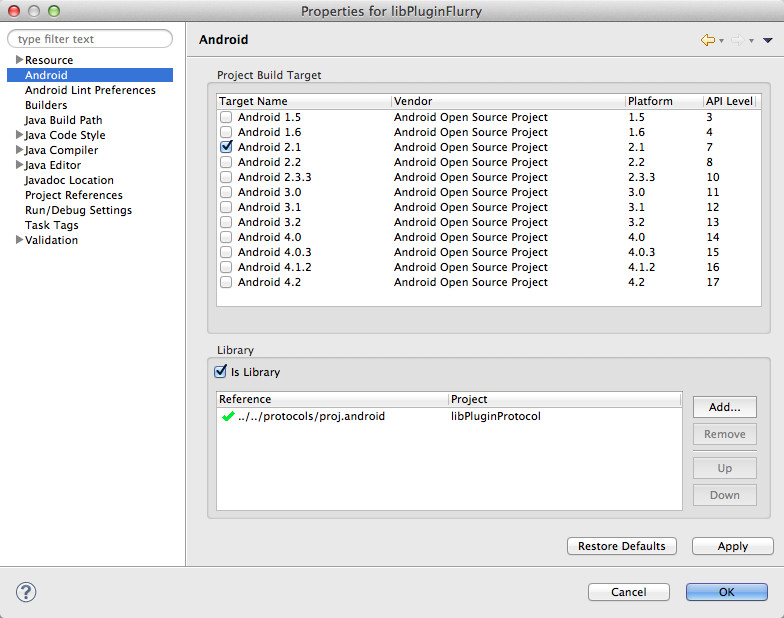

And make it depends on project libPluginProtocol.

The project directory looks like this :

• build.xml : Used by publish tools. Can copy from other plugins, and modify the project name. For example:






<?xml version="1.0" encoding="UTF-8"?>
<project name="libPluginFlurry" default="plugin-publish">
    ...
</project>

• ForManifest.xml : Used by tools/gameDevGuide.sh. If your plugin need activity declaration or user permission in AndroidManifest.xml. Add them to this file.
• sdk : Place .jar files of the third party SDK here.
• src : Place the java code here. You must write a class implement the relevant interface. It must be in package org.cocos2dx.plugin.

Note: an implementation class must not implement more than one interface.

Implementing the plugin class

The implementation class need a constructor with Context parameter. For example:









package org.cocos2dx.plugin;
public class AnalyticsFlurry implements InterfaceAnalytics {
        ...
        public AnalyticsFlurry(Context context) {
        mContext = context;
    }
}

Custom method

You can write your custom methods if you want.

We have implement simple reflection in C++ code. Game developers can invoke the custom methods by name.
There are some rules to follow in order to keep it working correctly:

The custom methods can have 0 or 1 parameter. Wrap the parameters into a JSONObject if you want to pass more than one parameters.
And the parameters will be passed with key "Param1", "Param2" ... You should make game developers know how to pass parameters. For example:






// C++ code in game, developer invoke method like this:
PluginParam event1("book");
PluginParam dura1(12000);
g_pAnalytics->callFuncWithParam("logEventWithDuration", &event1, &dura1, NULL);














// Java code in plugin, the method of plugin implement like this:
protected void logEventWithDuration(JSONObject eventInfo) {
        LogD("logEventWithDuration invoked! event : " + eventInfo.toString());
        if (!isValid()) return;
        try{
            String eventId = eventInfo.getString("Param1");  // get param eventID by key "Param1"
            int duration = eventInfo.getInt("Param2");          // get param duration by key "Param2"
            MobclickAgent.onEventDuration(mContext, eventId, duration);
        } catch(Exception e){
            LogE("Exception in logEventWithDuration", e);
        }
}

Note: parameter types and return value types are limited

Supported parameter types: int, float, boolean, String, JSONObject.

Supported Return types: int, float, boolean, String.

---

iOS

1. New a library project. Modify the header search path : protocols/platform/ios

2. Write a class implements the relevant protocol. For example:

@interface AnalyticsFlurry : NSObject
{

}

1. You can write your custom methods if you want. Also there are some rules to keep it work all right:
2. The custom methods can have 0 or 1 parameter. If the method need more than one parameter, you should use parameter with NSMutableDictionary* type.And the parameters will be passed with key “Param1”, “Param2” … You should make game developers know how to pass parameters. For example:
















    // C++ code in game, developer invoke method like this:
    PluginParam event1("book");
    PluginParam dura1(12000);
    g_pAnalytics->callFuncWithParam("logEventWithDuration", &event1, &dura1, NULL);

    // Objective-C code in plugin. The method implement like this:
    - (void) logEventWithDuration: (NSMutableDictionary*) params
    {
        OUTPUT_LOG(@"Umeng logEventWithDuration invoked(%@)", [params debugDescription]);
        NSString* eventId = (NSString*) [params objectForKey:@"Param1"];         // get param eventID by key "Param1"
        NSNumber* duration = (NSNumber*) [params objectForKey:@"Param2"]; // get param duration by key "Param2"
        long numDur = [duration longValue];
        [MobClick event:eventId durations:numDur];
    }

• Because of the reflection limited of Objective-C. Parameters of methods must be id type.
  So the custom methods can only get parameters with type id. The conversion list:

  Developer Pass Type	Custom Method get Type
  int	NSNumber
  float	NSNumber
  bool	NSNumber
  const char*	NSString*
  std::map<std::string, std::string>	NSMutableDictionary

• You can make your custom methods return some basic type value. Now support return value with type int, float, BOOL, NSString**.
  Also limited by the reflection of Objective-C. The custom methods must return value with type**id**. The conversion list:

  Developer get Type	Plugin return Type
  int	NSNumber
  float	NSNumber
  bool	NSNumber
  const char*	NSString

Compile the Plugin

1. Modify the file tools/config.sh. Add plugin directory name into the variable $ALL_PLUGINS.



export ALL_PLUGINS=(“protocols” “flurry” “umeng” “alipay” “nd91”)

1. Run the tools/publish.sh script. Then the plugin will be compiled.
