YOLO系列——基于Ultralytics YOLOv11模型在C++ OpenCV4.8.0/OpenCV4.10.0两个版本DNN模块进行模型加载与推理（附源码）（十）

原创 已于 2025-10-16 17:15:52 修改 · 904 阅读 · 6 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#YOLO #c++ #opencv

于 2025-10-13 15:35:46 首次发布

基于Ultralytics YOLOv11模型在C++ OpenCV4.8.0/OpenCV4.10.0两个版本 DNN模块进行模型加载与推理（附源码）

yolo导出模型

test_export.py

from ultralytics import YOLO

# Load a model
model = YOLO("yolo11n.pt")  # load an official model

# Export the model
model.export(format="onnx")

opencv 4.8.0版本

opencv dnn

inference.h

#ifndef INFERENCE_H
#define INFERENCE_H

#include <fstream>
#include <vector>
#include <string>
#include <random>
#include <opencv2/opencv.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/dnn.hpp>

// 检测结果结构体
struct Detection
{
    int class_id{0};           // 类别ID
    std::string className{};   // 类别名称
    float confidence{0.0};     // 置信度
    cv::Scalar color{};        // 显示颜色
    cv::Rect box{};            // 边界框坐标
};

class Inference
{
public:
    // 构造函数：初始化模型路径、输入尺寸、是否使用CUDA、类别文件
    Inference(const std::string &onnxModelPath, const cv::Size &modelInputShape = {640, 640}, const bool &runWithCuda = true, const std::string &classesTxtFile = "");

    // 核心推理函数：输入图像，返回检测结果向量
    std::vector<Detection> runInference(const cv::Mat &input);

private:
    // 从文件加载类别名称
    void loadClassesFromFile();

    // 加载ONNX模型并配置计算后端（CUDA/CPU）
    void loadOnnxNetwork();

    // 图像预处理：保持宽高比的方形填充
    cv::Mat formatToSquare(const cv::Mat &source, int *pad_x, int *pad_y, float *scale);

    std::string modelPath{};        // ONNX模型文件路径
    std::string classesPath{};      // 类别文件路径
    bool cudaEnabled{};             // 是否启用CUDA加速

    // COCO数据集80个类别的默认名称
    std::vector<std::string> classes{"person", "bicycle", "car", "motorcycle", "airplane", "bus", "train", "truck", "boat", "traffic light", "fire hydrant", "stop sign", "parking meter", "bench", "bird", "cat", "dog", "horse", "sheep", "cow", "elephant", "bear", "zebra", "giraffe", "backpack", "umbrella", "handbag", "tie", "suitcase", "frisbee", "skis", "snowboard", "sports ball", "kite", "baseball bat", "baseball glove", "skateboard", "surfboard", "tennis racket", "bottle", "wine glass", "cup", "fork", "knife", "spoon", "bowl", "banana", "apple", "sandwich", "orange", "broccoli", "carrot", "hot dog", "pizza", "donut", "cake", "chair", "couch", "potted plant", "bed", "dining table", "toilet", "tv", "laptop", "mouse", "remote", "keyboard", "cell phone", "microwave", "oven", "toaster", "sink", "refrigerator", "book", "clock", "vase", "scissors", "teddy bear", "hair drier", "toothbrush"};
    cv::Size2f modelShape{};                // 模型输入尺寸
    float modelConfidenceThreshold {0.25};  // 物体存在置信度阈值
    float modelScoreThreshold      {0.45};  // 类别得分阈值
    float modelNMSThreshold        {0.50};  // 非极大值抑制阈值
    bool letterBoxForSquare = true;         // 是否使用letter box预处理

    cv::dnn::Net net;                       // OpenCV DNN网络对象
};

#endif // INFERENCE_H

inference.cpp

#include "inference.h"

// 构造
Inference::Inference(const std::string &onnxModelPath, const cv::Size &modelInputShape, const bool &runWithCuda, const std::string &classesTxtFile)
{
    modelPath = onnxModelPath;
    modelShape = modelInputShape;
    cudaEnabled = runWithCuda;
    classesPath = classesTxtFile;

    loadOnnxNetwork();
    // loadClassesFromFile();
}

// 推理
std::vector<Detection> Inference::runInference(const cv::Mat &input)
{
    cv::Mat modelInput = input;
    int pad_x, pad_y;  // 填充尺寸
    float scale;       // 缩放比例

    // 如果启用letter box且输入为正方形，进行预处理
    if (letterBoxForSquare && modelShape.width == modelShape.height)
        modelInput = formatToSquare(modelInput, &pad_x, &pad_y, &scale);

    // 将图像转换为模型输入blob格式
    cv::Mat blob;
    cv::dnn::blobFromImage(modelInput, blob, 1.0/255.0, modelShape, cv::Scalar(), true, false);
    net.setInput(blob);

    // 前向传播，获取模型输出
    std::vector<cv::Mat> outputs;
    net.forward(outputs, net.getUnconnectedOutLayersNames());

    // 解析输出维度
    int rows = outputs[0].size[1];      // 检测框数量
    int dimensions = outputs[0].size[2]; // 每个检测框的维度数

    bool yolov8 = false;
    // YOLOv5: (batchSize, 25200, 85)  85 = 4坐标 + 1置信度 + 80类别
    // YOLOv8/v11: (batchSize, 84, 8400)  84 = 4坐标 + 80类别

    if (dimensions > rows) // 判断是否为YOLOv8格式
    {
        // 交换维度
        yolov8 = true;
        rows = outputs[0].size[2];
        dimensions = outputs[0].size[1];

        outputs[0] = outputs[0].reshape(1, dimensions);
        cv::transpose(outputs[0], outputs[0]);
    }
    float *data = (float *)outputs[0].data;

     // 存储原始检测结果的容器
    std::vector<int> class_ids;
    std::vector<float> confidences;
    std::vector<cv::Rect> boxes;

    // 遍历所有检测框
    for (int i = 0; i < rows; ++i)
    {
        if (yolov8)
        {
            float *classes_scores = data+4;

            cv::Mat scores(1, classes.size(), CV_32FC1, classes_scores);
            cv::Point class_id;
            double maxClassScore;

            minMaxLoc(scores, 0, &maxClassScore, 0, &class_id);

            if (maxClassScore > modelScoreThreshold)
            {
                confidences.push_back(maxClassScore);
                class_ids.push_back(class_id.x);

                float x = data[0];
                float y = data[1];
                float w = data[2];
                float h = data[3];

                int left = int((x - 0.5 * w - pad_x) / scale);
                int top = int((y - 0.5 * h - pad_y) / scale);

                int width = int(w / scale);
                int height = int(h / scale);

                boxes.push_back(cv::Rect(left, top, width, height));
            }
        }
        else // yolov5
        {
            float confidence = data[4];

            if (confidence >= modelConfidenceThreshold)
            {
                float *classes_scores = data+5;

                cv::Mat scores(1, classes.size(), CV_32FC1, classes_scores);
                cv::Point class_id;
                double max_class_score;

                minMaxLoc(scores, 0, &max_class_score, 0, &class_id);

                if (max_class_score > modelScoreThreshold)
                {
                    confidences.push_back(confidence);
                    class_ids.push_back(class_id.x);

                    float x = data[0];
                    float y = data[1];
                    float w = data[2];
                    float h = data[3];

                    int left = int((x - 0.5 * w - pad_x) / scale);
                    int top = int((y - 0.5 * h - pad_y) / scale);

                    int width = int(w / scale);
                    int height = int(h / scale);

                    boxes.push_back(cv::Rect(left, top, width, height));
                }
            }
        }

        data += dimensions;
    }

    // 应用非极大值抑制(NMS)去除重叠框
    std::vector<int> nms_result;
    cv::dnn::NMSBoxes(boxes, confidences, modelScoreThreshold, modelNMSThreshold, nms_result);

    // 构建最终检测结果
    std::vector<Detection> detections{};
    for (unsigned long i = 0; i < nms_result.size(); ++i)
    {
        int idx = nms_result[i];// NMS筛选后的索引

        Detection result;
        result.class_id = class_ids[idx];
        result.confidence = confidences[idx];

        std::random_device rd;
        std::mt19937 gen(rd());
        std::uniform_int_distribution<int> dis(100, 255);
        result.color = cv::Scalar(dis(gen), dis(gen), dis(gen));

        result.className = classes[result.class_id];
        result.box = boxes[idx];

        detections.push_back(result);
    }

    return detections;
}

void Inference::loadClassesFromFile()
{
    std::ifstream inputFile(classesPath);
    if (inputFile.is_open())
    {
        std::string classLine;
        while (std::getline(inputFile, classLine))
            classes.push_back(classLine);
        inputFile.close();
    }
}

void Inference::loadOnnxNetwork()
{
    net = cv::dnn::readNetFromONNX(modelPath);
    if (cudaEnabled)
    {
        std::cout << "\nRunning on CUDA" << std::endl;
        net.setPreferableBackend(cv::dnn::DNN_BACKEND_CUDA);
        net.setPreferableTarget(cv::dnn::DNN_TARGET_CUDA);
    }
    else
    {
        std::cout << "\nRunning on CPU" << std::endl;
        net.setPreferableBackend(cv::dnn::DNN_BACKEND_OPENCV);
        net.setPreferableTarget(cv::dnn::DNN_TARGET_CPU);
    }
}

// 图像预处理：保持宽高比的方形填充（letter box）
cv::Mat Inference::formatToSquare(const cv::Mat &source, int *pad_x, int *pad_y, float *scale)
{
    int col = source.cols;
    int row = source.rows;
    int m_inputWidth = modelShape.width;
    int m_inputHeight = modelShape.height;

    // 计算缩放比例，保持宽高比
    *scale = std::min(m_inputWidth / (float)col, m_inputHeight / (float)row);
    int resized_w = col * *scale;
    int resized_h = row * *scale;

    // 计算填充尺寸，使图像居中
    *pad_x = (m_inputWidth - resized_w) / 2;
    *pad_y = (m_inputHeight - resized_h) / 2;

    // 缩放图像并填充到目标尺寸
    cv::Mat resized;
    cv::resize(source, resized, cv::Size(resized_w, resized_h));
    // 创建目标尺寸的黑色背景
    cv::Mat result = cv::Mat::zeros(m_inputHeight, m_inputWidth, source.type());
    // 将缩放后的图像复制到中央
    resized.copyTo(result(cv::Rect(*pad_x, *pad_y, resized_w, resized_h)));
    resized.release();
    return result;
}

main.cpp

#include <iostream>
#include <vector>
#include <getopt.h>
#include <opencv2/opencv.hpp>
#include "inference.h"

int main(int argc, char **argv)
{
    std::string onnxModelPath = "../data/yolo11n.onnx";
    bool runOnGPU = true;
    cv::Size sizeTmp(640,640);
    Inference inf(onnxModelPath, sizeTmp, runOnGPU);

    std::vector<std::string> imageNames;
    imageNames.push_back("../data/bus.jpg");
    imageNames.push_back("../data/zidane.jpg");
    imageNames.push_back("../data/traffic.jpg");

    for (int i = 0; i < imageNames.size(); ++i) //遍历每一幅图像
    {
        cv::Mat frame = cv::imread(imageNames[i]);
        auto start = std::chrono::system_clock::now();
        std::vector<Detection> output = inf.runInference(frame);
        auto end = std::chrono::system_clock::now();
        std::chrono::duration<double> elapsed = end - start;
        std::cout << "------Images[" << i << "]------" << std::endl;
        std::cout << "\tInference time: " << elapsed.count() * 1000 << " ms" << std::endl;

        int detections = output.size();
        std::cout << "\tdetect " << detections << " of detections" << std::endl;

        for (int j = 0; j < detections; ++j)
        {
            Detection detection = output[j];

            cv::Rect box = detection.box;
            cv::Scalar color = detection.color;

            // 打印结果
            std::cout<<"\t\tdetections["<<j<<"]"<<std::endl;
            std::cout<< "\t\t\tclass_id:"<<detection.class_id<<std::endl;
            std::cout<< "\t\t\tclassName:"<<detection.className<<std::endl;
            std::cout<< "\t\t\tconfidence:"<<detection.confidence<<std::endl;
            std::cout<< "\t\t\tbox:"<<detection.box<<std::endl;

            // 绘制
            cv::rectangle(frame, box, color, 2);
            std::string classString = detection.className + ' ' + std::to_string(detection.confidence).substr(0, 4);
            cv::Size textSize = cv::getTextSize(classString, cv::FONT_HERSHEY_DUPLEX, 1, 2, 0);
            cv::Rect textBox(box.x, box.y - 40, textSize.width + 10, textSize.height + 20);

            cv::rectangle(frame, textBox, color, cv::FILLED);
            cv::putText(frame, classString, cv::Point(box.x + 5, box.y - 10), cv::FONT_HERSHEY_DUPLEX, 1, cv::Scalar(0, 0, 0), 2, 0);
        }

        //保存
        cv::imwrite(std::to_string(i)+".jpg",frame);

        //显示
        float scale = 1.0;
        cv::resize(frame, frame, cv::Size(frame.cols*scale, frame.rows*scale));
        cv::imshow("Inference", frame);

        cv::waitKey(-1);
    }
}

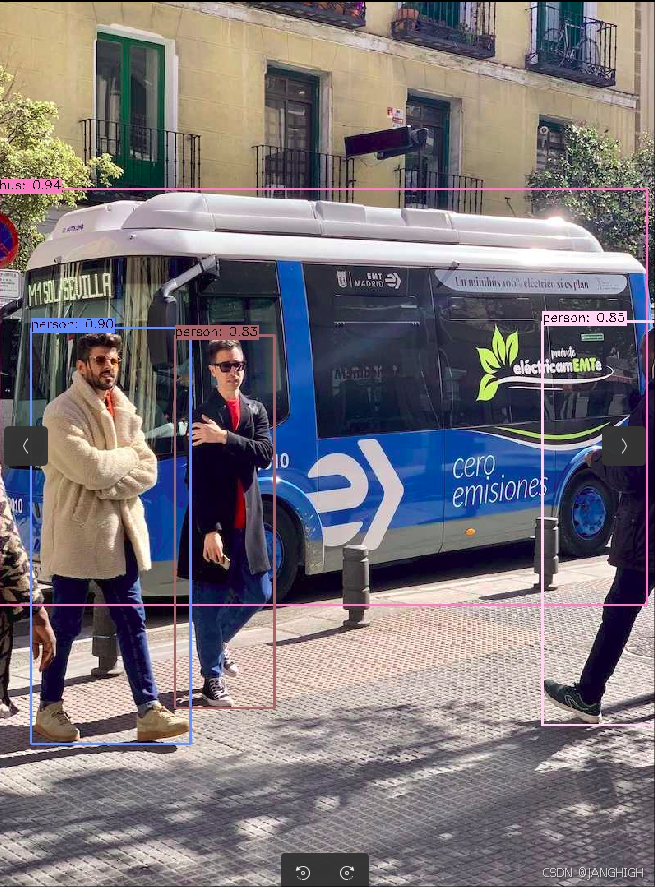

结果

------Images[0]------
        Inference time: 154.151 ms
        detect 4 of detections
                detections[0]
                        class_id:5
                        className:bus
                        confidence:0.940209
                        box:[785 x 506 from (12, 228)]
                detections[1]
                        class_id:0
                        className:person
                        confidence:0.901381
                        box:[194 x 506 from (48, 398)]
                detections[2]
                        class_id:0
                        className:person
                        confidence:0.844137
                        box:[139 x 492 from (670, 387)]
                detections[3]
                        class_id:0
                        className:person
                        confidence:0.831744
                        box:[122 x 454 from (223, 405)]
------Images[1]------
        Inference time: 125.669 ms
        detect 3 of detections
                detections[0]
                        class_id:0
                        className:person
                        confidence:0.852391
                        box:[399 x 669 from (749, 41)]
                detections[1]
                        class_id:0
                        className:person
                        confidence:0.793089
                        box:[993 x 513 from (143, 200)]
                detections[2]
                        class_id:27
                        className:tie
                        confidence:0.481717
                        box:[165 x 281 from (359, 437)]
------Images[2]------
        Inference time: 131.012 ms
        detect 11 of detections
                detections[0]
                        class_id:2
                        className:car
                        confidence:0.771447
                        box:[48 x 48 from (454, 433)]
                detections[1]
                        class_id:2
                        className:car
                        confidence:0.749929
                        box:[37 x 34 from (224, 398)]
                detections[2]
                        class_id:2
                        className:car
                        confidence:0.745018
                        box:[82 x 72 from (514, 523)]
                detections[3]
                        class_id:2
                        className:car
                        confidence:0.674062
                        box:[35 x 32 from (281, 391)]
                detections[4]
                        class_id:2
                        className:car
                        confidence:0.640642
                        box:[28 x 25 from (248, 372)]
                detections[5]
                        class_id:7
                        className:truck
                        confidence:0.547953
                        box:[136 x 128 from (448, 670)]
                detections[6]
                        class_id:7
                        className:truck
                        confidence:0.53021
                        box:[154 x 161 from (43, 752)]
                detections[7]
                        class_id:2
                        className:car
                        confidence:0.524246
                        box:[93 x 110 from (53, 554)]
                detections[8]
                        class_id:2
                        className:car
                        confidence:0.522188
                        box:[36 x 32 from (370, 400)]
                detections[9]
                        class_id:2
                        className:car
                        confidence:0.503465
                        box:[28 x 19 from (411, 368)]
                detections[10]
                        class_id:2
                        className:car
                        confidence:0.465773
                        box:[38 x 36 from (430, 399)]

在这里插入图片描述
在这里插入图片描述

opencv 4.10版本

opencv dnn

inference_test.h

#ifndef INFERENCE_TEST_H
#define INFERENCE_TEST_H

#include <fstream>
#include <vector>
#include <string>
#include <random>
#include <opencv2/opencv.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/dnn.hpp>
#include <opencv2/core.hpp>

// 检测结果结构体
struct Detection
{
    int class_id{0};           // 类别ID
    std::string className{};   // 类别名称
    float confidence{0.0};     // 置信度
    cv::Scalar color{};        // 显示颜色
    cv::Rect box{};            // 边界框坐标
};

class Inference
{
public:
    // 构造函数：初始化模型路径、输入尺寸、是否使用CUDA、类别文件
    Inference(const std::string &onnxModelPath, const cv::Size &modelInputShape = {640, 640}, const bool &runWithCuda = true, const std::string &classesTxtFile = "");

    // 核心推理函数：输入图像，返回检测结果
    std::vector<cv::Mat> runInference(const cv::Mat &input);

    // yolo后处理
    void yoloPostProcessing(std::vector<cv::Mat>& outs,std::vector<int>& keep_classIds,std::vector<float>& keep_confidences,std::vector<cv::Rect2d>& keep_boxes,
                            const std::string& model_name,const int nc);

    // 绘制预测
    void drawPrediction(int classId, float conf, int left, int top, int right, int bottom, cv::Mat& frame);

    // 从文件加载类别名称
    void loadClassesFromFile();

    // 加载ONNX模型并配置计算后端（CUDA/CPU）
    void loadOnnxNetwork();

    // 清空结果数据
    void clearData();

    // 图像预处理：保持宽高比的方形填充
    cv::Mat formatToSquare(const cv::Mat &source, int *pad_x, int *pad_y, float *scale);

private:
    std::string modelPath{};        // ONNX模型文件路径
    cv::Size2f modelShape{};        // 模型输入尺寸
    bool cudaEnabled{};             // 是否启用CUDA加速
    std::string classesPath{};      // 类别文件路径

    // COCO数据集80个类别的默认名称
    std::vector<std::string> classes{"person", "bicycle", "car", "motorcycle", "airplane", "bus", "train", "truck", "boat", "traffic light", "fire hydrant", "stop sign", "parking meter", "bench", "bird", "cat", "dog", "horse", "sheep", "cow", "elephant", "bear", "zebra", "giraffe", "backpack", "umbrella", "handbag", "tie", "suitcase", "frisbee", "skis", "snowboard", "sports ball", "kite", "baseball bat", "baseball glove", "skateboard", "surfboard", "tennis racket", "bottle", "wine glass", "cup", "fork", "knife", "spoon", "bowl", "banana", "apple", "sandwich", "orange", "broccoli", "carrot", "hot dog", "pizza", "donut", "cake", "chair", "couch", "potted plant", "bed", "dining table", "toilet", "tv", "laptop", "mouse", "remote", "keyboard", "cell phone", "microwave", "oven", "toaster", "sink", "refrigerator", "book", "clock", "vase", "scissors", "teddy bear", "hair drier", "toothbrush"};
    float modelConfidenceThreshold {0.25};  // 物体存在置信度阈值
    float modelScoreThreshold      {0.45};  // 类别得分阈值
    float modelNMSThreshold        {0.50};  // 非极大值抑制阈值
    bool letterBoxForSquare = true;         // 是否使用letter box预处理
    cv::dnn::Net net;                       // OpenCV DNN网络对象
public:
    std::vector<int> keepClassIds;
    std::vector<float> keepConfidences;
    std::vector<cv::Rect2d> keepBoxes;
    std::vector<cv::Rect> boxes;
    const std::string modelName{"yolov11"};
    const int nc{80};
};

#endif // INFERENCE_TEST_H

inference_test.cpp

#include "inference_test.h"

/// 构造
Inference::Inference(const std::string &onnxModelPath, const cv::Size &modelInputShape, const bool &runWithCuda, const std::string &classesTxtFile)
{
    modelPath = onnxModelPath;
    modelShape = modelInputShape;
    cudaEnabled = runWithCuda;
    classesPath = classesTxtFile;

    loadOnnxNetwork();
    // loadClassesFromFile();
}

// 加载ONNX模型并配置计算后端（CUDA/CPU）
void Inference::loadOnnxNetwork()
{
    net = cv::dnn::readNetFromONNX(modelPath);
    if (cudaEnabled){
        std::cout << "\nRunning on CUDA" << std::endl;
        net.setPreferableBackend(cv::dnn::DNN_BACKEND_CUDA);
        net.setPreferableTarget(cv::dnn::DNN_TARGET_CUDA);
    }
    else{
        std::cout << "\nRunning on CPU" << std::endl;
        net.setPreferableBackend(cv::dnn::DNN_BACKEND_OPENCV);
        net.setPreferableTarget(cv::dnn::DNN_TARGET_CPU);
    }
}

// 从文件加载类别名称
void Inference::loadClassesFromFile()
{
    std::ifstream inputFile(classesPath);
    if (inputFile.is_open()){
        std::string classLine;
        while (std::getline(inputFile, classLine))
            classes.push_back(classLine);
        inputFile.close();
    }
}

/// 推理
std::vector<cv::Mat> Inference::runInference(const cv::Mat &input)
{
    cv::Mat modelInput = input;
    float paddingValue = 114;
    bool swapRB = true;
    int inpWidth = 640;
    int inpHeight = 640;
    cv::Scalar scale = cv::Scalar(1.0/255.0, 1.0/255.0, 1.0/255.0);
    cv::Scalar mean = cv::Scalar(0, 0, 0);
    cv::dnn::ImagePaddingMode paddingMode = cv::dnn::DNN_PMODE_LETTERBOX;
    cv::Size size(inpWidth, inpHeight);
    cv::dnn::Image2BlobParams imgParams(scale,size,mean,swapRB,CV_32F,cv::dnn::DNN_LAYOUT_NCHW,paddingMode,paddingValue);

    cv::Mat inp = cv::dnn::blobFromImageWithParams(modelInput, imgParams);
    net.setInput(inp);

    // 前向传播，获取模型输出
    std::vector<cv::Mat> outs;
    net.forward(outs, net.getUnconnectedOutLayersNames());

    yoloPostProcessing(outs, keepClassIds, keepConfidences, keepBoxes, modelName, nc);

    for (auto box : keepBoxes){
        boxes.push_back(cv::Rect(cvFloor(box.x), cvFloor(box.y), cvFloor(box.width - box.x), cvFloor(box.height - box.y)));
    }
    imgParams.blobRectsToImageRects(boxes, boxes, modelInput.size());

    return outs;
}

void Inference::yoloPostProcessing(std::vector<cv::Mat>& outs,std::vector<int>& keep_classIds,std::vector<float>& keep_confidences,std::vector<cv::Rect2d>& keep_boxes,
                                const std::string& model_name,const int nc)
{
    // Retrieve
    std::vector<int> classIds;
    std::vector<float> confidences;
    std::vector<cv::Rect2d> boxes;

    if (model_name == "yolov8" || model_name == "yolov10" ||
        model_name == "yolov9" || model_name == "yolov11"){
        cv::transposeND(outs[0], {0, 2, 1}, outs[0]);
    }

    if (model_name == "yolonas"){
        // outs contains 2 elements of shape [1, 8400, nc] and [1, 8400, 4]. Concat them to get [1, 8400, nc+4]
        cv::Mat concat_out;
        // squeeze the first dimension
        outs[0] = outs[0].reshape(1, outs[0].size[1]);
        outs[1] = outs[1].reshape(1, outs[1].size[1]);
        cv::hconcat(outs[1], outs[0], concat_out);
        outs[0] = concat_out;
        // remove the second element
        outs.pop_back();
        // unsqueeze the first dimension
        outs[0] = outs[0].reshape(0, std::vector<int>{1, outs[0].size[0], outs[0].size[1]});
    }

    // assert if last dim is nc+5 or nc+4
    CV_CheckEQ(outs[0].dims, 3, "Invalid output shape. The shape should be [1, #anchors, nc+5 or nc+4]");
    CV_CheckEQ((outs[0].size[2] == nc + 5 || outs[0].size[2] == nc + 4), true, "Invalid output shape: ");

    for (auto preds : outs){
        preds = preds.reshape(1, preds.size[1]); // [1, 8400, 85] -> [8400, 85]
        for (int i = 0; i < preds.rows; ++i){
            // filter out non object
            float obj_conf = (model_name == "yolov8" || model_name == "yolonas" ||
                            model_name == "yolov9" || model_name == "yolov10" ||
                            model_name == "yolov11") ? 1.0f : preds.at<float>(i, 4) ;
            if (obj_conf < modelConfidenceThreshold)
                continue;

            cv::Mat scores = preds.row(i).colRange((model_name == "yolov8" || model_name == "yolonas" || model_name == "yolov9" || model_name == "yolov10" || model_name == "yolov11") ? 4 : 5, preds.cols);
            double conf;
            cv::Point maxLoc;
            minMaxLoc(scores, 0, &conf, 0, &maxLoc);

            conf = (model_name == "yolov8" || model_name == "yolonas" || model_name == "yolov9" || model_name == "yolov10" || model_name == "yolov11") ? conf : conf * obj_conf;
            if (conf < modelConfidenceThreshold)
                continue;

            // get bbox coords
            float* det = preds.ptr<float>(i);
            double cx = det[0];
            double cy = det[1];
            double w = det[2];
            double h = det[3];

            // [x1, y1, x2, y2]
            if (model_name == "yolonas" || model_name == "yolov10"){
                boxes.push_back(cv::Rect2d(cx, cy, w, h));
            } else {
                boxes.push_back(cv::Rect2d(cx - 0.5 * w, cy - 0.5 * h,
                                        cx + 0.5 * w, cy + 0.5 * h));
            }
            classIds.push_back(maxLoc.x);
            confidences.push_back(static_cast<float>(conf));
        }
    }

    // NMS
    std::vector<int> keep_idx;
    cv::dnn::NMSBoxes(boxes, confidences, modelConfidenceThreshold, modelNMSThreshold, keep_idx);

    for (auto i : keep_idx){
        keep_classIds.push_back(classIds[i]);
        keep_confidences.push_back(confidences[i]);
        keep_boxes.push_back(boxes[i]);
    }
}

void Inference::drawPrediction(int classId, float conf, int left, int top, int right, int bottom, cv::Mat& frame)
{
    std::random_device rd;
    std::mt19937 gen(rd());
    std::uniform_int_distribution<int> dis(100, 255);
    cv::Scalar colorTmp = cv::Scalar(dis(gen), dis(gen), dis(gen));

    cv::rectangle(frame, cv::Point(left, top), cv::Point(right, bottom), colorTmp, 2);

    std::string label = cv::format("%.2f", conf);
    if (!classes.empty())
    {
        CV_Assert(classId < (int)classes.size());
        label = classes[classId] + ": " + label;
    }

    int baseLine;
    cv::Size labelSize = cv::getTextSize(label, cv::FONT_HERSHEY_SIMPLEX, 0.5, 1, &baseLine);

    top = cv::max(top, labelSize.height);
    cv::rectangle(frame, cv::Point(left, top - labelSize.height),
            cv::Point(left + labelSize.width, top + baseLine), colorTmp, cv::FILLED);
    cv::putText(frame, label, cv::Point(left, top), cv::FONT_HERSHEY_SIMPLEX, 0.5, cv::Scalar());
}

// 清空结果数据
void Inference::clearData(){
    keepClassIds.clear();
    keepConfidences.clear();
    keepBoxes.clear();
    boxes.clear();
}

// 图像预处理：保持宽高比的方形填充（letter box）
cv::Mat Inference::formatToSquare(const cv::Mat &source, int *pad_x, int *pad_y, float *scale)
{
    int col = source.cols;
    int row = source.rows;
    int inputWidth = modelShape.width;
    int inputHeight = modelShape.height;

    // 计算缩放比例，保持宽高比
    *scale = std::min(inputWidth / (float)col, inputHeight / (float)row);
    int resized_w = col * *scale;
    int resized_h = row * *scale;

    // 计算填充尺寸，使图像居中
    *pad_x = (inputWidth - resized_w) / 2;
    *pad_y = (inputHeight - resized_h) / 2;

    // 缩放图像并填充到目标尺寸
    cv::Mat resized;
    cv::resize(source, resized, cv::Size(resized_w, resized_h));
    // 创建目标尺寸的黑色背景
    cv::Mat result = cv::Mat::zeros(inputHeight, inputWidth, source.type());
    // 将缩放后的图像复制到中央
    resized.copyTo(result(cv::Rect(*pad_x, *pad_y, resized_w, resized_h)));
    resized.release();
    return result;
}

test.cpp

#include <iostream>
#include <vector>
#include <getopt.h>
#include <opencv2/opencv.hpp>
#include "inference_test.h"

int main(int argc, char **argv)
{
    std::string onnxModelPath = "../data/yolo11n.onnx";
    bool runOnGPU = true;
    cv::Size sizeTmp(640,640);
    Inference inf(onnxModelPath, sizeTmp, runOnGPU);

    std::vector<std::string> imageNames;
    imageNames.push_back("../data/bus.jpg");
    imageNames.push_back("../data/zidane.jpg");
    imageNames.push_back("../data/traffic.jpg");

    for (int i = 0; i < imageNames.size(); ++i) //遍历每一幅图像
    {
        cv::Mat imgTmp = cv::imread(imageNames[i]);
        auto start = std::chrono::system_clock::now();
        std::vector<cv::Mat> outputs = inf.runInference(imgTmp);
        auto end = std::chrono::system_clock::now();
        std::chrono::duration<double> elapsed = end - start;
        std::cout << "------Images[" << i << "]------" << std::endl;
        std::cout << "\tInference time: " << elapsed.count() * 1000 << " ms" << std::endl;

        for (size_t idx = 0; idx < inf.boxes.size(); ++idx){
            cv::Rect box = inf.boxes[idx];
            inf.drawPrediction(inf.keepClassIds[idx], inf.keepConfidences[idx], box.x, box.y,
                    box.width + box.x, box.height + box.y, imgTmp);
        }
        inf.clearData();
        cv::imwrite("opencv410_"+std::to_string(i)+".jpg", imgTmp);
        const std::string kWinName = "Yolo Object Detector";
        cv::namedWindow(kWinName, cv::WINDOW_NORMAL);
        cv::imshow(kWinName, imgTmp);
        cv::waitKey(-1);
    }
}

结果

------Images[0]------
        Inference time: 160.619 ms
------Images[1]------
        Inference time: 116.271 ms
------Images[2]------
        Inference time: 135.319 ms

在这里插入图片描述

【UltralyticsYolo11图像分类完整项目-03】Onnx版Cpu预测C++实现
深耕CV
05-08 552
本文介绍了如何在仅使用CPU的电脑上，使用C++部署图像分类模型。首先，通过Visual Studio新建一个控制台应用程序，并配置OpenCV和ONNX Runtime环境。接着，详细说明了如何在项目中设置包含目录、库目录以及附加依赖项。然后，编写了C++代码，包括加载标签、初始化ONNX Runtime、创建会话、验证模型文件等步骤，并提供了日志记录功能以便调试。最终，实现了在CPU上预测单张图像的分类结果。
YOLOv8/YOLOv11 C++ OpenCV DNN推理
最新发布
qq_44992785的博客
08-01 526
本文介绍了使用C++和OpenCV部署YOLOv8目标检测模型的方法。首先需将YOLOv8的.pt模型转换为ONNX格式。代码实现了一个YOLO类，包含预处理、推理和后处理功能，支持多种输出格式解析，并实现了非极大值抑制(NMS)和结果可视化。主要步骤包括：加载ONNX模型、图像预处理、执行推理、解析输出张量、应用NMS过滤冗余框，最后绘制检测结果。该方案使用OpenCV DNN模块，支持CPU推理，适用于台球检测等场景，可输出带类别标签和置信度的检测框。
cv算法之pc端部署：yolov11推理代码搭建c++环境（opencv+libtorch+openvino）
ddym66的博客
11-08 5028
opencv下载链接：https://opencv.org/releases/pytorch下载链接：https://pytorch.org/openvino下载链接vs2022（默认你下载好了略）
yolov11-cpp-opencv-dnn推理onnx模型
HanWenKing的博客
11-06 2118
随着深度学习技术的不断发展，目标检测算法在计算机视觉领域扮演着越来越重要的角色。YOLO（You Only Look Once）系列算法因其高效、实时的特点，在目标检测领域取得了显著成果。YOLOv11作为该系列的新成员，继承了前代算法的优势，并在性能上有了进一步的提升。本文将介绍YOLOv11-cpp-opencv-dnn推理的实现方法，通过YOLOv11算法与OpenCV库相结合，我们可以在保持算法高效性的同时，提高代码的可读性和可维护性。
[C++]使用纯opencv部署yolov11目标检测onnx模型
FL1623863129的博客
10-03 8126
此外，由于OpenCV的DNN模块对ONNX的支持可能有限，某些YOLOv11的特性（如自定义层、特定的激活函数等）可能无法在OpenCV中直接实现。总之，在C++中使用纯OpenCV部署YOLOv11是一项具有挑战性的任务，需要深入理解YOLOv11的模型架构、OpenCV的DNN模块以及ONNX格式。需要注意的是，由于YOLOv11是一个复杂的模型，其输出可能包含多个层的信息（如特征图、置信度、边界框坐标等），因此你需要仔细解析模型输出，并根据YOLOv11的具体实现进行后处理。
yolov11的onnx模型C++ 调用
阁楼
10-26 4712
yolov11的调用
opencv dnn模块 示例(27) 目标检测 object_detection 之 yolov11
热爱生活，忠于自己
10-17 2758
YOLO11是Ultralytics实时目标探测器系列中最新的迭代版本，重新定义尖端的精度、速度和效率。在以往具有令人印象深刻进步的yolo版本基础上，YOLO11对架构和训练方法进行了重大改进，使其成为各种计算机视觉任务的多功能选择。
【模型部署】使用opencv C++ 加速YOLO V5
qq_43456016的博客
04-03 4937
在ultralytics/YOLO V5中官方给出了利用opencv c++ cuda 进行YOLO V5加速的实例代码，但是代码中并没有给出相关注释，今天花了些时间，把示例源码仔细看了看，并把每一部分都进行了详细注释。内容在下方，欢迎大家交流学习。
使用纯opencv部署yolov11目标检测onnx模型演示源码+模型.zip
10-03
在深度学习模型的使用上，演示源码展示了如何将训练好的YOLOv11模型转换为ONNX格式，然后再利用OpenCV的相关模块加载和运行这个模型，进行目标检测。这个过程展示了从模型部署到实际应用的完整流程，对于初学者来说...
OpenCV 4.8.0
12-17
3. **深度学习模块DNN**：OpenCV的DNN模块允许用户加载和执行预先训练好的深度学习模型，如CNN（卷积神经网络）和YOLO（You Only Look Once）等目标检测模型。它支持TensorFlow、Caffe、ONNX等多种框架的模型。 4. ...
C++使用纯opencv部署yolov11-cls图像分类onnx模型源码.7z
10-07
【测试环境】 vs2019 cmake==3.24.3 opencv==4.8.0 【运行步骤】 通过cmake编译出exe后，执行 yolov11-cls.exe 【图片路径】即可 更多实现细节参考博文：https://blog.csdn.net/FL1623863129/article/details/142734819
C++使用纯opencv部署yolov11旋转框目标检测源码.zip
10-05
【测试环境】 vs2019 cmake==3.24.3 opencv==4.8.0 视频演示：https://www.bilibili.com/video/BV1LG1QYdE7x/ 博文地址：https://blog.csdn.net/FL1623863129/article/details/142712173
opencv4.8.0-opencv4.9.0-opencv-contrib4.8.0-opencv-contrib4.9.0
05-15
在本文中，我们将深入探讨OpenCV 4.8.0和4.9.0版本，以及对应的opencv_contrib模块，这两个版本代表了OpenCV在图像处理领域的最新进展。 首先，OpenCV 4.8.0是该库的一个稳定版本，它包含了大量的优化和新功能。此...
基于YOLOv8的OpenCV部署（C++）
qq_53545309的博客
07-21 431
导出onnx格式模型的时候，注意，如果你是自己训练的模型，只需要把以下代码中yolov8s.pt修改为自己的模型即可，如best.pt。如果是下面代码中默认的模型，并且你没有下载到本地，系统会自动下载，我这里在文章末尾提供了下载链接。和windows都可以，下面以windows为例子。注：运行代码需要onnx模型 + 一张图，，classes.txt不需要。输出如下图信息，表明onnx格式的模型被成功导出，保存在my_export.py同一级目录。将以下代码创建、拷贝到yolov8根目录下。
YOLO11n动态库部署实战：Windows11 + C++ + OpenCV + DDL完整封装流程详解（保姆级教程）
zhizhimei的博客
03-26 2459
本文详细记录了博主在Windows 平台下将 YOLO11n 模型封装为动态库DDL的完整流程与踩坑经历，内容涵盖：在 Windows 上搭建算法环境（基于 CPU）、编译 OpenCV 为静态库、使用 OpenCV 加载并推理 YOLO 模型文件、最终完成动态库的封装与调用验证。如果你也有类似的部署需求，或者在封装过程中遇到过各种问题，相信这篇“保姆级教程”能为你提供实用的参考和帮助！至此，YOLO11n 的动态库封装与部署流程圆满完成！生成的动态库已可在目标平台上直接调用，助力模型快速集成与部署。
ultralytics导出engine之后，用tensorrt c++ api加载报Serialization failed
02-25 1077
用ultralytics导出engine文件，然后给c++项目调tensorrt api反序列化engine文件，报错如下： [error]1: [runtime.cpp::parsePlan::314] Error Code 1: Serialization (Serialization assertion plan->header.magicTag == rt::kPLAN_MAGIC_TAG failed.)
【UltralyticsYolo11图像分类完整项目-05】重构前的代码输出每一个类别的概率+代码详细解析
深耕CV
05-12 510
这篇文章详细解析了使用C++和ONNX Runtime部署YOLOv11图像分类模型的完整流程，包括模型加载、图像预处理、推理执行和结果可视化。重点讲解了如何获取并展示所有类别的预测概率，而不仅仅是最高概率类别。通过代码解析和性能优化建议，帮助开发者理解C++实现与Python的区别，并提供了完整的错误处理和日志记录方案。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
