在2023年，在Ubuntu 18中安装tensorflow 1.14.0+cuda 10.0/10.2 + 对应版本的cudnn 7.6.5 +GTX 960/2080ti/QuadroP600

Eloudy

已于 2023-08-11 01:59:34 修改

阅读量983

点赞数 1

文章标签： linux tensorflow

于 2023-08-07 13:34:24 首次发布

本文链接：https://blog.youkuaiyun.com/eloudy/article/details/132144441

版权

也是为了复现最原始的 Attention is all you need 实验过程；

1. cuda10.0

一，安装cuda10.0 和对应的 cudnn7.6.5

下载cuda 10.0 for ubuntu18.04

CUDA Toolkit 10.0 Download | NVIDIA Developer

安装cuda：

预备工作

创建blacklist***.conf具体如下，加入两行内容



sudo vim /etc/modprobe.d/blacklist-nouveau.conf
内容：
blacklist nouveau
options nouveau modeset=0

sudo update-initramfs -u

安装cuda 10.0：

1. 手动下载 cuda 10.0 for ubuntu18.04，并安装：


sudo apt-get install linux-headers-$(uname -r)   \
&& sudo apt-key del 7fa2af80  \
&& sudo dpkg -i cuda-repo-ubuntu1804-10-0-local-10.0.130-410.48_1.0-1_amd64.deb \
&& sudo apt-key add /var/cuda-repo-10-0-local-10.0.130-410.48/7fa2af80.pub \
&& sudo apt-get update \
&& sudo apt-get -y install cuda

注册nvidia开发者，并下载对应 ***cudnn***.deb,安装命令：

#注意安装顺序：


sudo dpkg -i libcudnn7_7.6.5.32-1+cuda10.0_amd64.deb && \
sudo dpkg -i libcudnn7-dev_7.6.5.32-1+cuda10.0_amd64.deb && \
sudo dpkg -i libcudnn7-doc_7.6.5.32-1+cuda10.0_amd64.deb

二，安装python3 环境

预先安装合适版本的python3 module：

sudo apt install python3.7*

sudo rm /usr/bin/python3

sudo ln /usr/bin/python3.7 /usr/bin/python3

sudo apt install python3-pip

sudo pip3 install ipython

sudo pip3 install Cython

sudo apt-get install -y glibc-doc manpages-posix-dev

sudo pip3 install numpy==1.15.0 -i https://pypi.tuna.tsinghua.edu.cn/simple/

sudo pip3 install pkgconfig==1.4.0

cd /usr/lib/python3/dist-packages
sudo ln -s apt_pkg.cpython-36m-x86_64-linux-gnu.so apt_pkg.so

# install HDF5:具体方法在文末

sudo pip3 install h5py==2.10.0 -i https://pypi.tuna.tsinghua.edu.cn/simple/

sudo pip3 install setuptools==57.5.0 -i https://pypi.tuna.tsinghua.edu.cn/simple/

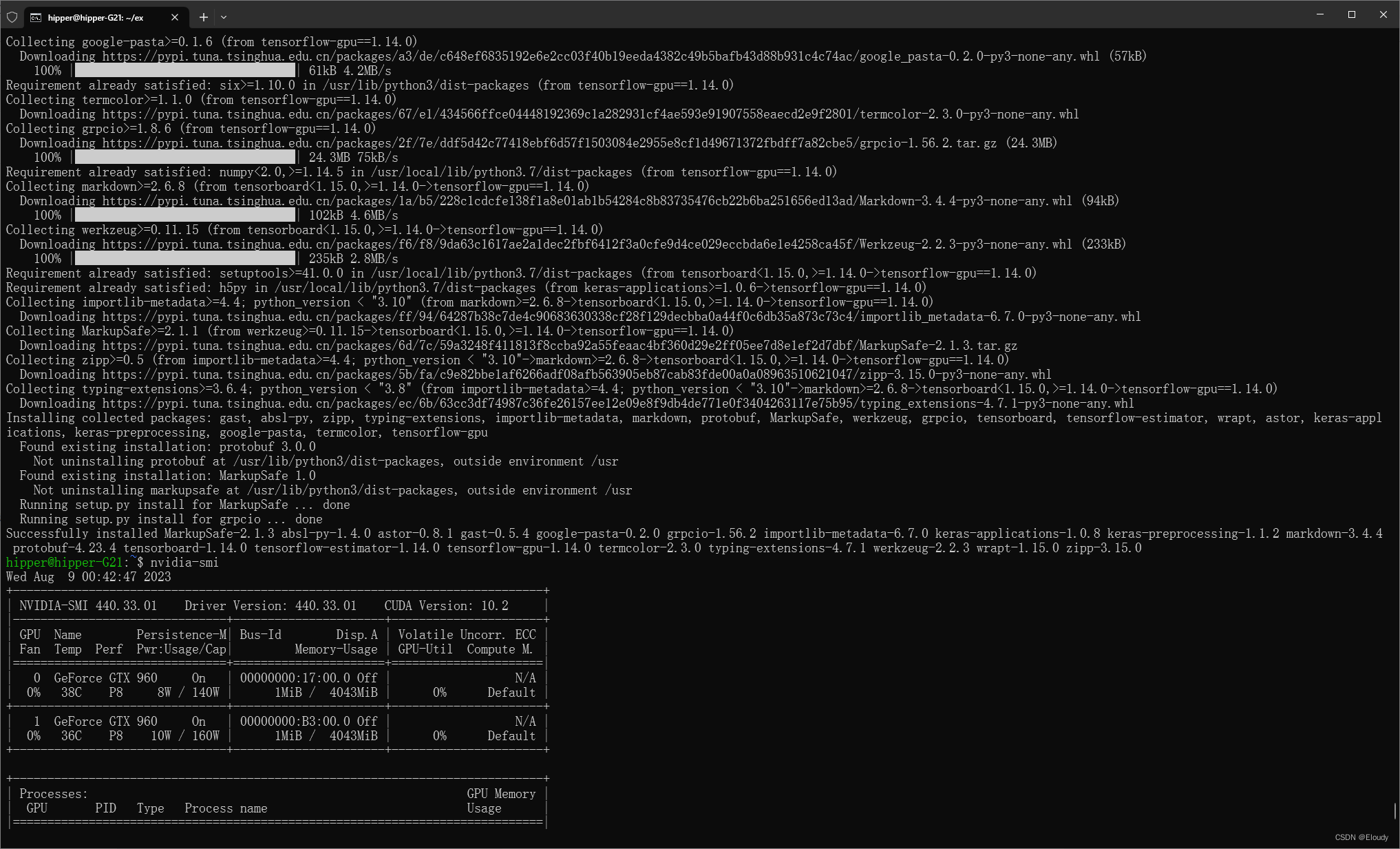

三，安装tensorflow 1.14.0

 sudo pip3 install tensorflow-gpu==1.14.0 -i https://pypi.tuna.tsinghua.edu.cn/simple/

四，下载，编译，安装hdf5

HDF5 1.10.10



sudo apt-get update
sudo apt-get install build-essential
sudo apt-get build-dep hdf5

mkdir ~/Software
cd ~/Software
wget https://support.hdfgroup.org/ftp/HDF5/releases/hdf5-1.10/hdf5-1.10.10/src/hdf5-1.10.10.tar.gz

tar -xf hdf5-1.8.10.tar.gz
cd hdf5-1.8.10/
./configure
make -j9
sudo make install

五，测试tensorflow的安装效果

demo 测试源码 hello_tf114.py

import os
os.environ['TF_CPP_MIN_LOG_LEVEL']='2'

def tf114_demo():
        a = 3
        b = 4
        c = a + b
        print("a + b in py =",c)

        a_t = tf.constant(3)
        b_t = tf.constant(4)
        c_t = a_t + b_t
        print("TensorFlow add a_t + b_t =", c_t)

        with tf.Session() as sess:
                c_t_value = sess.run(c_t)
                print("c_t_value= ", c_t_value)

        return None

if __name__ == "__main__":
        tf114_demo()

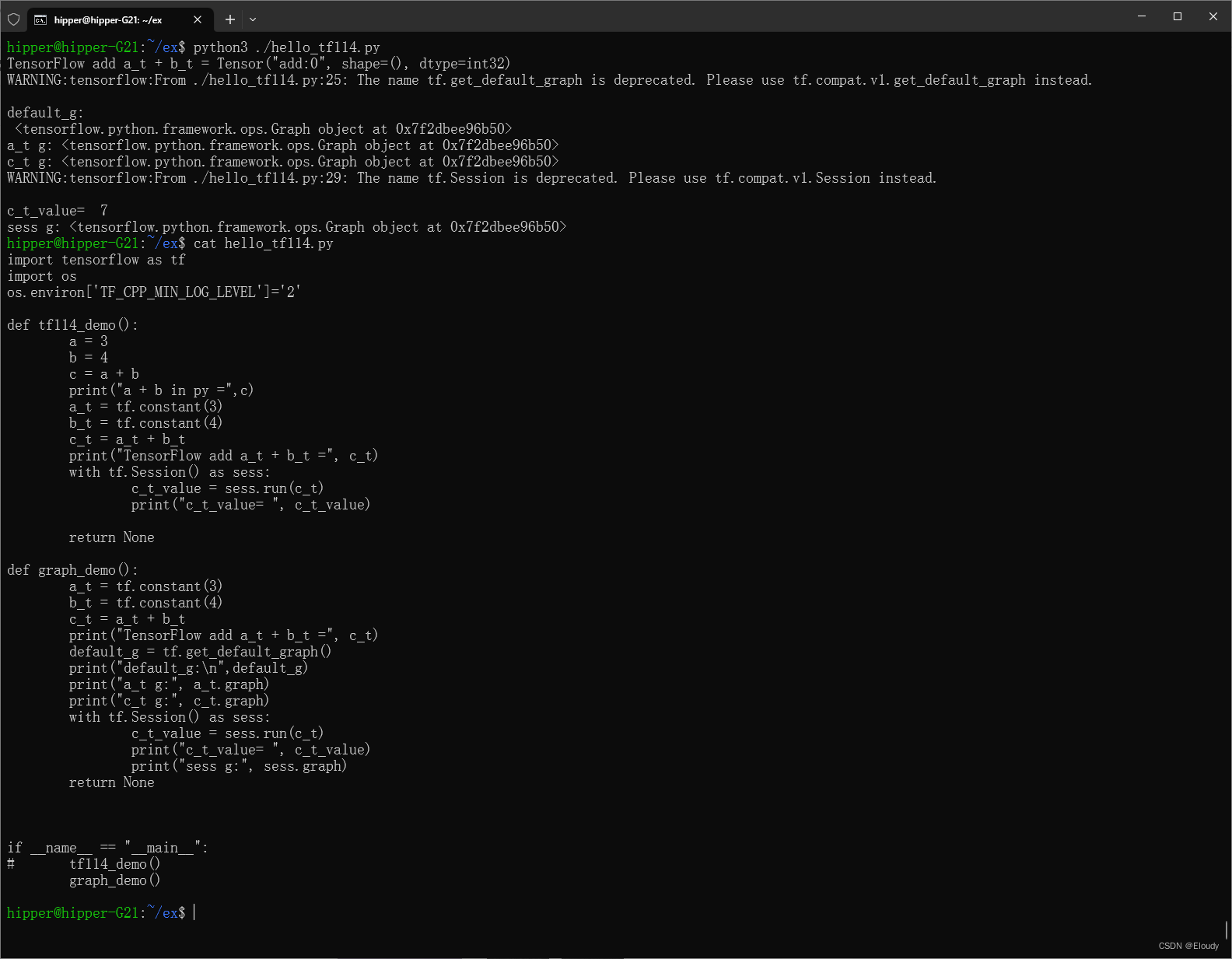

运行结果：

2. cuda10.2 + rtx2080ti

一，尝试使用cuda10.2来支持tensorflow1.14.0

rtx 2080ti 是2018年5月发布，cuda 10.2 首版是2019年发布的，故可以推断，cuda 10.2也支持2080ti，并可以在 2080ti上运行 tensorflow 1.14.0；待更深入的网络训练的测试

+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

实测发现，在ubuntu18.04中，使用cuda10.2并不能直接支持tensorflow 1.14.0，因为tensorflow 1.14.0会默认 load cuda相关lib的10.0版本，例如 libcudart.so.10.0 libcublas.so.10.0 等；

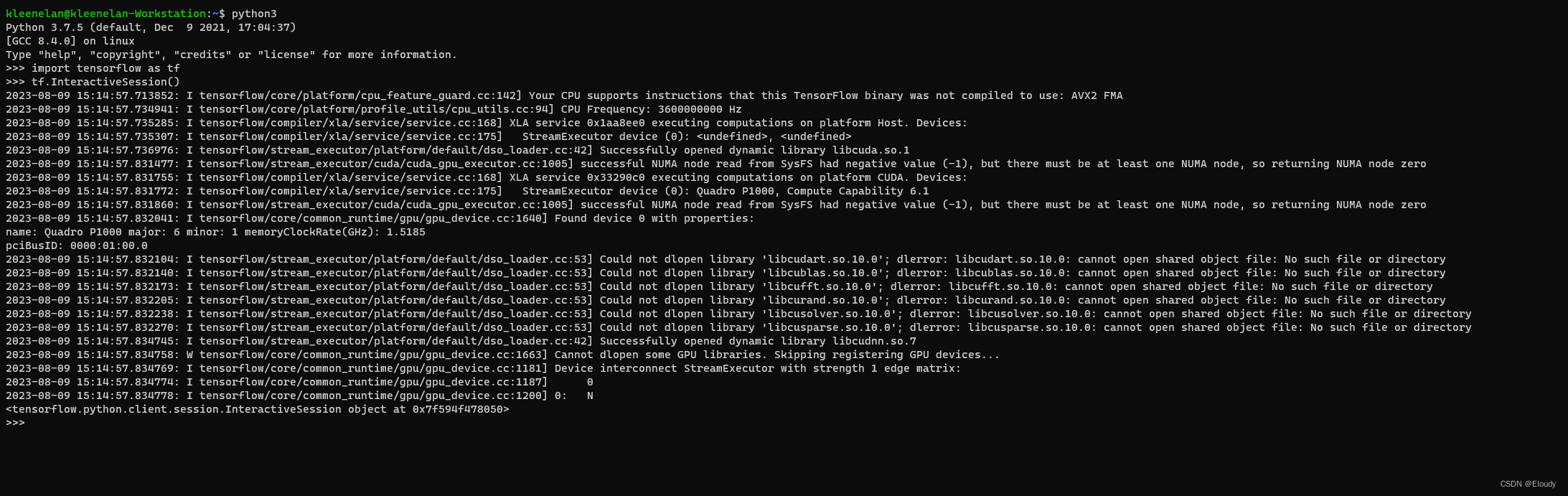

如果安装cuda10.2后不做任何改动，将出现如下错误：

所以，要尝试用10.2的so充当 10.0 的 so文件：

cd /usr/lib/x86_64-linux-gnu \
&& sudo ln -s libcublas.so.10.2.2.89 libcublas.so.10.0 \
&& sudo ln -s libcublasLt.so.10.2.2.89 libcublasLt.so.10.0

export  LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/cuda-10.2/targets/x86_64-linux/lib/

cd  /usr/local/cuda-10.2/targets/x86_64-linux/lib/ \
&& sudo ln -s   libcufft.so.10.1.2.89         libcufft.so.10.0            \
&& sudo ln -s   libcufftw.so.10.1.2.89        libcufftw.so.10.0        \
&& sudo ln -s   libcurand.so.10.1.2.89        libcurand.so.10.0        \
&& sudo ln -s   libcusolverMg.so.10.3.0.89    libcusolverMg.so.10.0    \
&& sudo ln -s   libcusolver.so.10.3.0.89      libcusolver.so.10.0      \
&& sudo ln -s   libcusparse.so.10.3.1.89      libcusparse.so.10.0      \
&& sudo ln -s   libnppc.so.10.2.1.89          libnppc.so.10.0          \
&& sudo ln -s   libnppial.so.10.2.1.89        libnppial.so.10.0        \
&& sudo ln -s   libnppicc.so.10.2.1.89        libnppicc.so.10.0        \
&& sudo ln -s   libnppicom.so.10.2.1.89       libnppicom.so.10.0       \
&& sudo ln -s   libnppidei.so.10.2.1.89       libnppidei.so.10.0       \
&& sudo ln -s   libnppif.so.10.2.1.89         libnppif.so.10.0         \
&& sudo ln -s   libnppig.so.10.2.1.89         libnppig.so.10.0         \
&& sudo ln -s   libnppim.so.10.2.1.89         libnppim.so.10.0         \
&& sudo ln -s   libnppist.so.10.2.1.89        libnppist.so.10.0        \
&& sudo ln -s   libnppisu.so.10.2.1.89        libnppisu.so.10.0        \
&& sudo ln -s   libnppitc.so.10.2.1.89        libnppitc.so.10.0        \
&& sudo ln -s   libnpps.so.10.2.1.89          libnpps.so.10.0          \
&& sudo ln -s   libnvgraph.so.10.2.89         libnvgraph.so.10.0       \
&& sudo ln -s   libnvjpeg.so.10.3.1.89        libnvjpeg.so.10.0        \
&& sudo ln -s  libcudart.so.10.2.89           libcudart.so.10.0            \
&& sudo ln -s  libaccinj64.so.10.2.89         libaccinj64.so.10.0          \
&& sudo ln -s  libcuinj64.so.10.2.89          libcuinj64.so.10.0           \
&& sudo ln -s  libcupti.so.10.2.75            libcupti.so.10.0             \
&& sudo ln -s  libnvrtc-builtins.so.10.2.89   libnvrtc-builtins.so.10.0    \
&& sudo ln -s  libnvrtc.so.10.2.89            libnvrtc.so.10.0



#别忘了这个：
export  LD_LIBRARY_PATH=/usr/local/cuda-10.2/targets/x86_64-linux/lib/

export LD_LIBRARY_PATH=/usr/local/cuda-10.2/targets/x86_64-linux/lib/

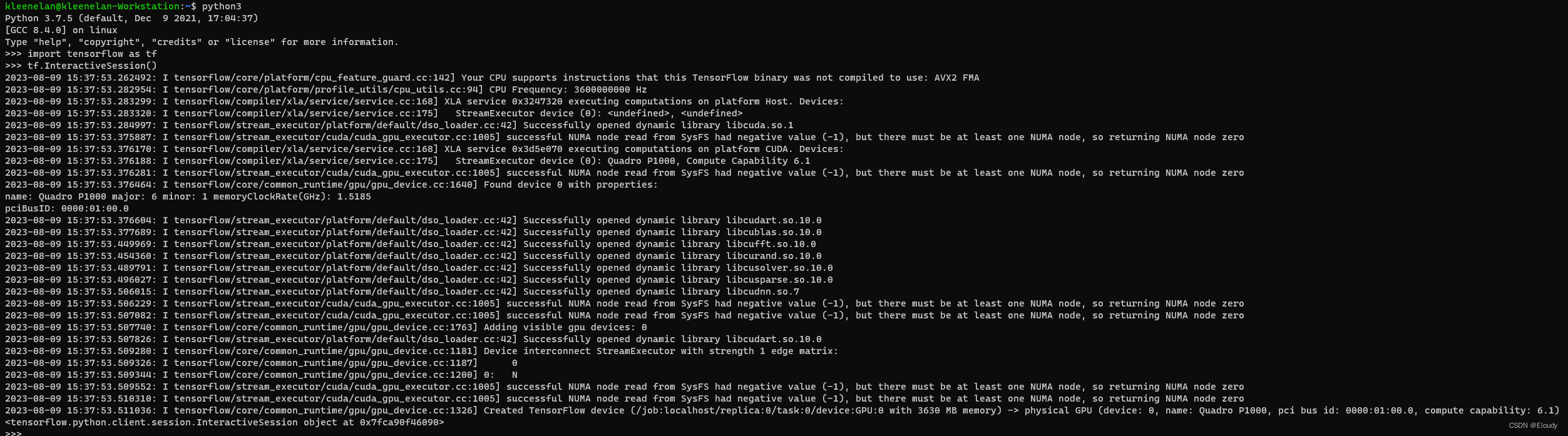

浅测可以：

cuda10.0 应该是调用不动2080TI卡，因为发布时间的先后；而 cuda10.2发布的时间晚于2080ti的发布时间，所以是可以支持到的；

二，深入的测试 demo_01

bidirectional_rnn.py

""" Bi-directional Recurrent Neural Network.

A Bi-directional Recurrent Neural Network (LSTM) implementation example using
TensorFlow library. This example is using the MNIST database of handwritten
digits (http://yann.lecun.com/exdb/mnist/)

Links:
    [Long Short Term Memory](http://deeplearning.cs.cmu.edu/pdfs/Hochreiter97_lstm.pdf)
    [MNIST Dataset](http://yann.lecun.com/exdb/mnist/).

Author: Aymeric Damien
Project: https://github.com/aymericdamien/TensorFlow-Examples/
"""

from __future__ import print_function

import tensorflow as tf
from tensorflow.contrib import rnn
import numpy as np

# Import MNIST data
from tensorflow.examples.tutorials.mnist import input_data
mnist = input_data.read_data_sets("/tmp/data/", one_hot=True)

'''
To classify images using a bidirectional recurrent neural network, we consider
every image row as a sequence of pixels. Because MNIST image shape is 28*28px,
we will then handle 28 sequences of 28 steps for every sample.
'''

# Training Parameters
learning_rate = 0.001
training_steps = 10000
batch_size = 128
display_step = 200

# Network Parameters
num_input = 28 # MNIST data input (img shape: 28*28)
timesteps = 28 # timesteps
num_hidden = 128 # hidden layer num of features
num_classes = 10 # MNIST total classes (0-9 digits)

# tf Graph input
X = tf.placeholder("float", [None, timesteps, num_input])
Y = tf.placeholder("float", [None, num_classes])

# Define weights
weights = {
    # Hidden layer weights => 2*n_hidden because of forward + backward cells
    'out': tf.Variable(tf.random_normal([2*num_hidden, num_classes]))
}
biases = {
    'out': tf.Variable(tf.random_normal([num_classes]))
}


def BiRNN(x, weights, biases):

    # Prepare data shape to match `rnn` function requirements
    # Current data input shape: (batch_size, timesteps, n_input)
    # Required shape: 'timesteps' tensors list of shape (batch_size, num_input)

    # Unstack to get a list of 'timesteps' tensors of shape (batch_size, num_input)
    x = tf.unstack(x, timesteps, 1)

    # Define lstm cells with tensorflow
    # Forward direction cell
    lstm_fw_cell = rnn.BasicLSTMCell(num_hidden, forget_bias=1.0)
    # Backward direction cell
    lstm_bw_cell = rnn.BasicLSTMCell(num_hidden, forget_bias=1.0)

    # Get lstm cell output
    try:
        outputs, _, _ = rnn.static_bidirectional_rnn(lstm_fw_cell, lstm_bw_cell, x,
                                              dtype=tf.float32)
    except Exception: # Old TensorFlow version only returns outputs not states
        outputs = rnn.static_bidirectional_rnn(lstm_fw_cell, lstm_bw_cell, x,
                                        dtype=tf.float32)

    # Linear activation, using rnn inner loop last output
    return tf.matmul(outputs[-1], weights['out']) + biases['out']

logits = BiRNN(X, weights, biases)
prediction = tf.nn.softmax(logits)

# Define loss and optimizer
loss_op = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(
    logits=logits, labels=Y))
optimizer = tf.train.GradientDescentOptimizer(learning_rate=learning_rate)
train_op = optimizer.minimize(loss_op)

# Evaluate model (with test logits, for dropout to be disabled)
correct_pred = tf.equal(tf.argmax(prediction, 1), tf.argmax(Y, 1))
accuracy = tf.reduce_mean(tf.cast(correct_pred, tf.float32))

# Initialize the variables (i.e. assign their default value)
init = tf.global_variables_initializer()

# Start training
with tf.Session() as sess:

    # Run the initializer
    sess.run(init)

    for step in range(1, training_steps+1):
        batch_x, batch_y = mnist.train.next_batch(batch_size)
        # Reshape data to get 28 seq of 28 elements
        batch_x = batch_x.reshape((batch_size, timesteps, num_input))
        # Run optimization op (backprop)
        sess.run(train_op, feed_dict={X: batch_x, Y: batch_y})
        if step % display_step == 0 or step == 1:
            # Calculate batch loss and accuracy
            loss, acc = sess.run([loss_op, accuracy], feed_dict={X: batch_x,
                                                                 Y: batch_y})
            print("Step " + str(step) + ", Minibatch Loss= " + \
                  "{:.4f}".format(loss) + ", Training Accuracy= " + \
                  "{:.3f}".format(acc))

    print("Optimization Finished!")

    # Calculate accuracy for 128 mnist test images
    test_len = 128
    test_data = mnist.test.images[:test_len].reshape((-1, timesteps, num_input))
    test_label = mnist.test.labels[:test_len]
    print("Testing Accuracy:", \
        sess.run(accuracy, feed_dict={X: test_data, Y: test_label}))

$ python3 bidirectional_rnn.py

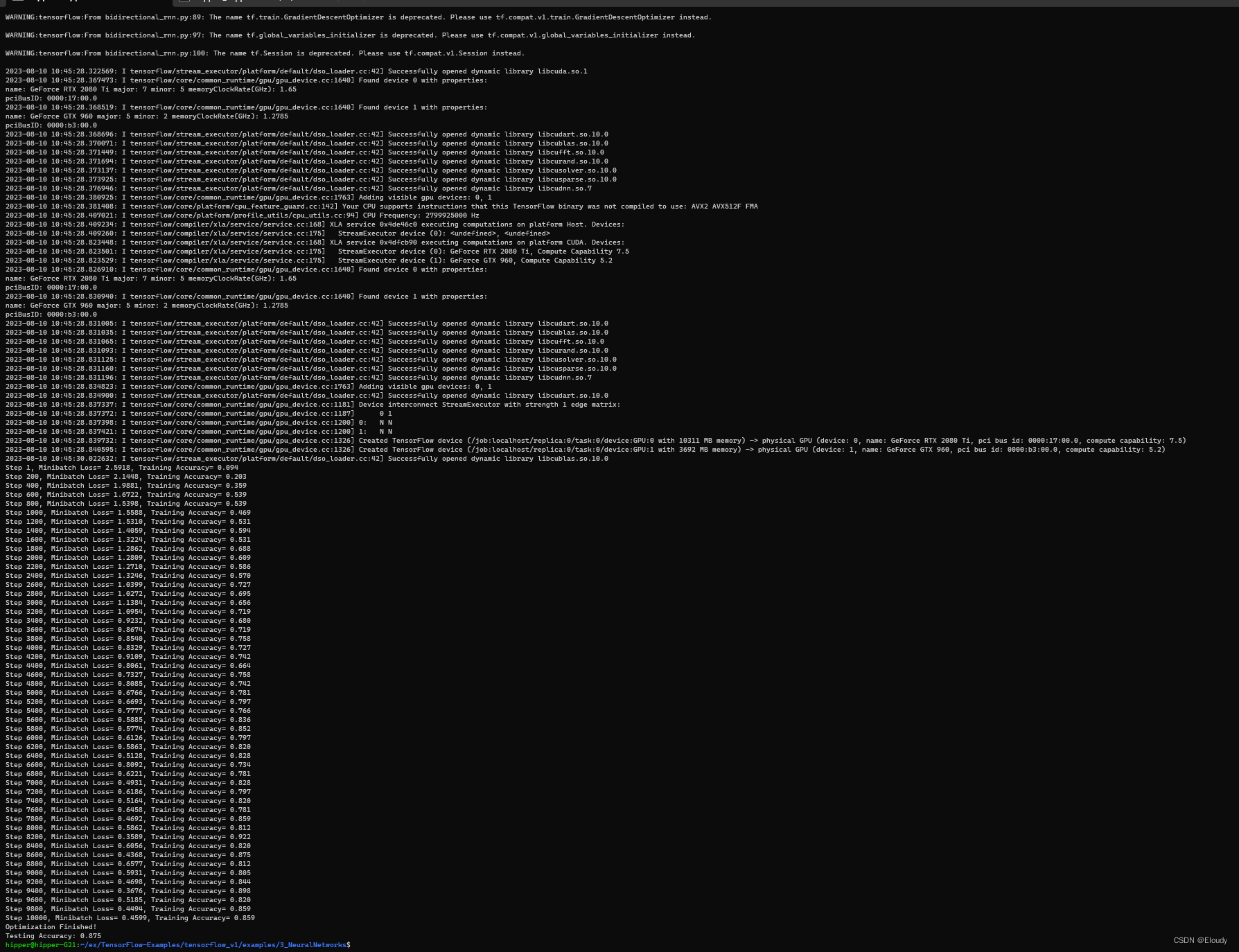

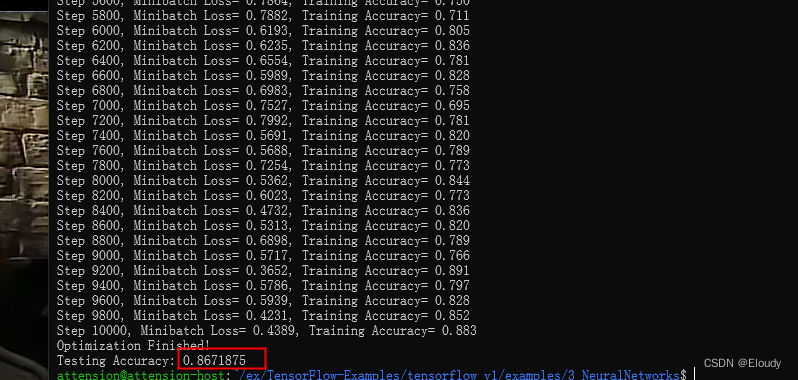

训练效果：

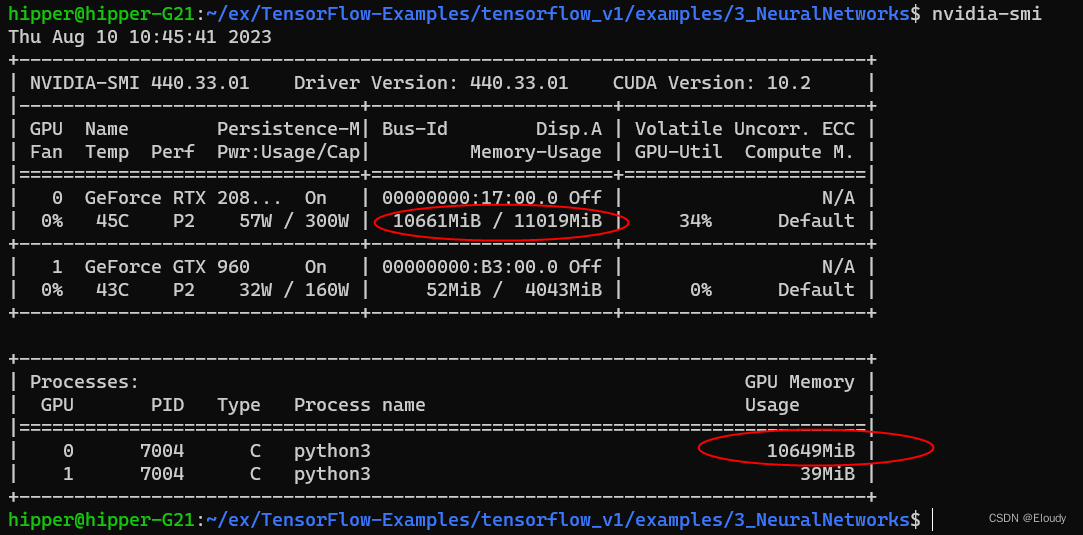

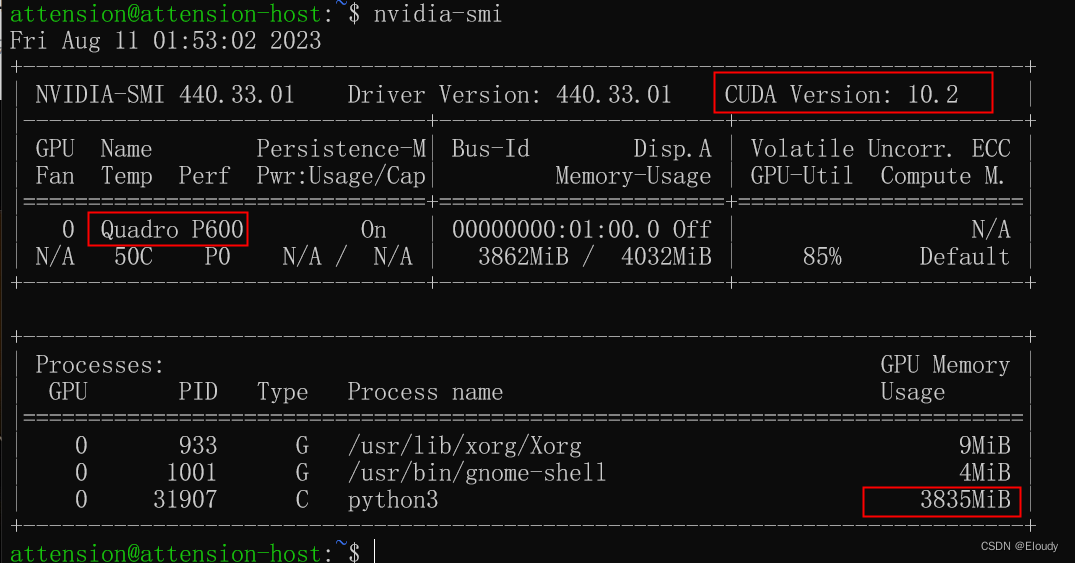

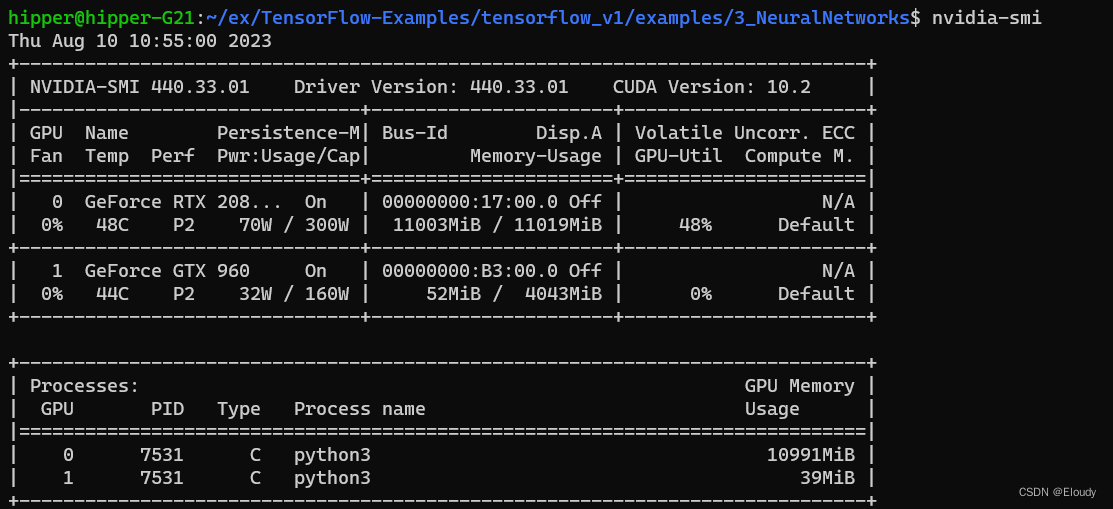

nvidia-smi gpu 使用效果：

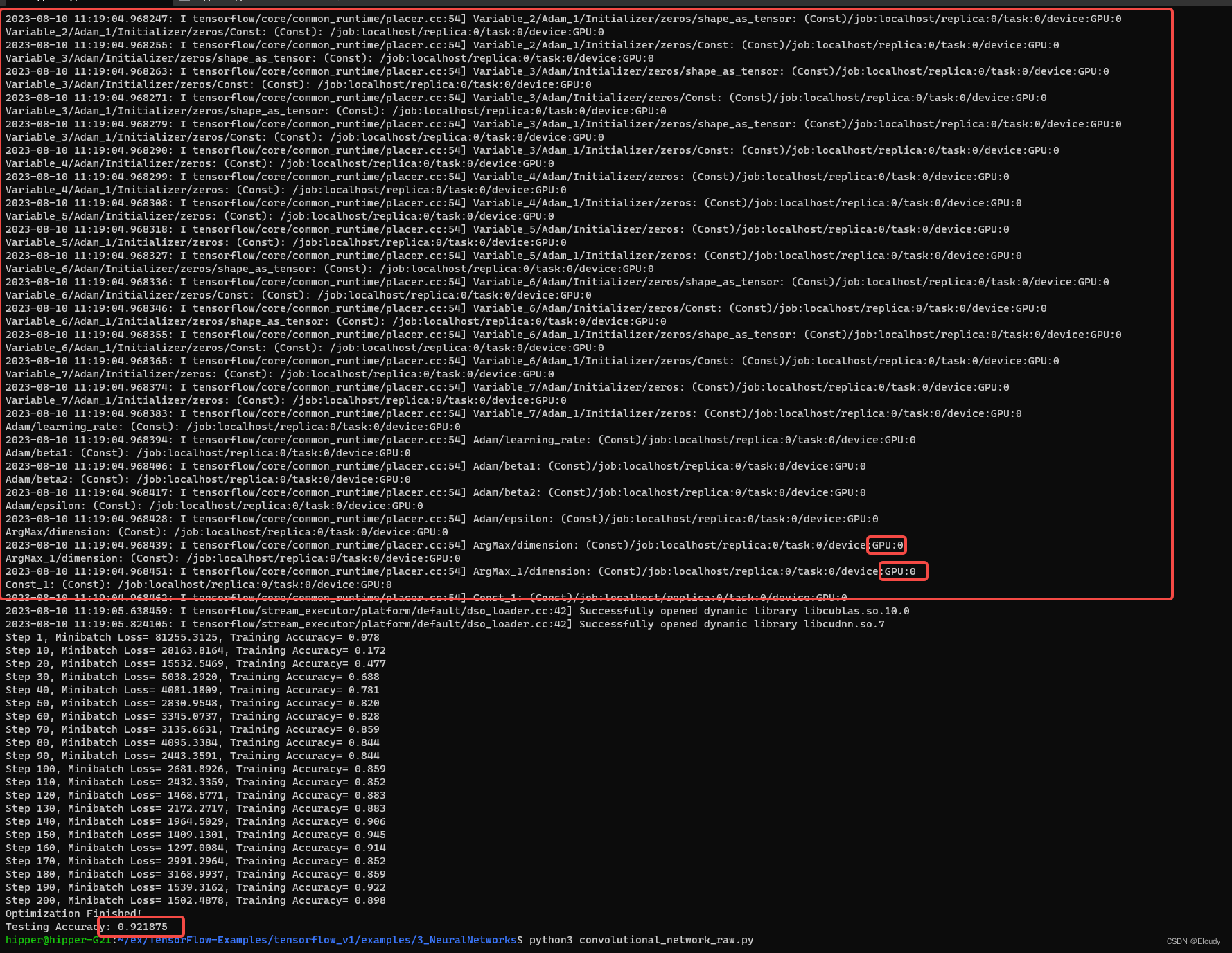

三，深入的测试 demo_02

convolutional_network_raw_deviceInfo.py

""" Convolutional Neural Network.

Build and train a convolutional neural network with TensorFlow.
This example is using the MNIST database of handwritten digits
(http://yann.lecun.com/exdb/mnist/)

Author: Aymeric Damien
Project: https://github.com/aymericdamien/TensorFlow-Examples/
"""

from __future__ import division, print_function, absolute_import

import tensorflow as tf

# Import MNIST data
from tensorflow.examples.tutorials.mnist import input_data
mnist = input_data.read_data_sets("/tmp/data/", one_hot=True)

# Training Parameters
learning_rate = 0.001
num_steps = 200
batch_size = 128
display_step = 10

# Network Parameters
num_input = 784 # MNIST data input (img shape: 28*28)
num_classes = 10 # MNIST total classes (0-9 digits)
dropout = 0.75 # Dropout, probability to keep units

# tf Graph input
X = tf.placeholder(tf.float32, [None, num_input])
Y = tf.placeholder(tf.float32, [None, num_classes])
keep_prob = tf.placeholder(tf.float32) # dropout (keep probability)


# Create some wrappers for simplicity
def conv2d(x, W, b, strides=1):
    # Conv2D wrapper, with bias and relu activation
    x = tf.nn.conv2d(x, W, strides=[1, strides, strides, 1], padding='SAME')
    x = tf.nn.bias_add(x, b)
    return tf.nn.relu(x)


def maxpool2d(x, k=2):
    # MaxPool2D wrapper
    return tf.nn.max_pool(x, ksize=[1, k, k, 1], strides=[1, k, k, 1],
                          padding='SAME')


# Create model
def conv_net(x, weights, biases, dropout):
    # MNIST data input is a 1-D vector of 784 features (28*28 pixels)
    # Reshape to match picture format [Height x Width x Channel]
    # Tensor input become 4-D: [Batch Size, Height, Width, Channel]
    x = tf.reshape(x, shape=[-1, 28, 28, 1])

    # Convolution Layer
    conv1 = conv2d(x, weights['wc1'], biases['bc1'])
    # Max Pooling (down-sampling)
    conv1 = maxpool2d(conv1, k=2)

    # Convolution Layer
    conv2 = conv2d(conv1, weights['wc2'], biases['bc2'])
    # Max Pooling (down-sampling)
    conv2 = maxpool2d(conv2, k=2)

    # Fully connected layer
    # Reshape conv2 output to fit fully connected layer input
    fc1 = tf.reshape(conv2, [-1, weights['wd1'].get_shape().as_list()[0]])
    fc1 = tf.add(tf.matmul(fc1, weights['wd1']), biases['bd1'])
    fc1 = tf.nn.relu(fc1)
    # Apply Dropout
    fc1 = tf.nn.dropout(fc1, dropout)

    # Output, class prediction
    out = tf.add(tf.matmul(fc1, weights['out']), biases['out'])
    return out

# Store layers weight & bias
weights = {
    # 5x5 conv, 1 input, 32 outputs
    'wc1': tf.Variable(tf.random_normal([5, 5, 1, 32])),
    # 5x5 conv, 32 inputs, 64 outputs
    'wc2': tf.Variable(tf.random_normal([5, 5, 32, 64])),
    # fully connected, 7*7*64 inputs, 1024 outputs
    'wd1': tf.Variable(tf.random_normal([7*7*64, 1024])),
    # 1024 inputs, 10 outputs (class prediction)
    'out': tf.Variable(tf.random_normal([1024, num_classes]))
}

biases = {
    'bc1': tf.Variable(tf.random_normal([32])),
    'bc2': tf.Variable(tf.random_normal([64])),
    'bd1': tf.Variable(tf.random_normal([1024])),
    'out': tf.Variable(tf.random_normal([num_classes]))
}

# Construct model
logits = conv_net(X, weights, biases, keep_prob)
prediction = tf.nn.softmax(logits)

# Define loss and optimizer
loss_op = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(
    logits=logits, labels=Y))
optimizer = tf.train.AdamOptimizer(learning_rate=learning_rate)
train_op = optimizer.minimize(loss_op)


# Evaluate model
correct_pred = tf.equal(tf.argmax(prediction, 1), tf.argmax(Y, 1))
accuracy = tf.reduce_mean(tf.cast(correct_pred, tf.float32))

# Initialize the variables (i.e. assign their default value)
init = tf.global_variables_initializer()

# Start training
with tf.Session(config=tf.ConfigProto(allow_soft_placement=True, log_device_placement=True)) as sess:

    # Run the initializer
    sess.run(init)

    for step in range(1, num_steps+1):
        batch_x, batch_y = mnist.train.next_batch(batch_size)
        # Run optimization op (backprop)
        sess.run(train_op, feed_dict={X: batch_x, Y: batch_y, keep_prob: 0.8})
        if step % display_step == 0 or step == 1:
            # Calculate batch loss and accuracy
            loss, acc = sess.run([loss_op, accuracy], feed_dict={X: batch_x,
                                                                 Y: batch_y,
                                                                 keep_prob: 1.0})
            print("Step " + str(step) + ", Minibatch Loss= " + \
                  "{:.4f}".format(loss) + ", Training Accuracy= " + \
                  "{:.3f}".format(acc))

    print("Optimization Finished!")

    # Calculate accuracy for 256 MNIST test images
    print("Testing Accuracy:", \
        sess.run(accuracy, feed_dict={X: mnist.test.images[:256],
                                      Y: mnist.test.labels[:256],
                                      keep_prob: 1.0}))

$ python3 convolutional_network_raw_deviceInfo.py

训练效果：

$nvidia-smi

————————————————————————————————————————

sudo apt install python3-pip \
&& sudo pip3 install Cython \
&& sudo pip3 install ipython \
&& sudo apt-get install -y glibc-doc manpages-posix-dev \
&& sudo pip3 install numpy==1.15.0 -i https://pypi.tuna.tsinghua.edu.cn/simple/ \
&& sudo pip3 install pkgconfig==1.4.0 \
&& cd /usr/lib/python3/dist-packages \
&& sudo ln -s apt_pkg.cpython-36m-x86_64-linux-gnu.so apt_pkg.so




sudo apt-get update \
&& sudo apt-get install build-essential \
&& sudo apt-get build-dep hdf5 \
&& mkdir ~/Software \
&& cd ~/Software \
&& wget https://support.hdfgroup.org/ftp/HDF5/releases/hdf5-1.10/hdf5-1.10.10/src/hdf5-1.10.10.tar.gz \
&& tar -xf hdf5-1.10.10.tar.gz \
&& cd hdf5-1.10.10/ \
&& ./configure \
&& make -j9 \
&& sudo make install



sudo pip3 install h5py==2.10.0 -i https://pypi.tuna.tsinghua.edu.cn/simple/ \
&& sudo pip3 install setuptools==57.5.0 -i https://pypi.tuna.tsinghua.edu.cn/simple/

cd /usr/lib/x86_64-linux-gnu \
&& sudo ln -s libcublas.so.10.2.2.89 libcublas.so.10.0 \
&& sudo ln -s libcublasLt.so.10.2.2.89 libcublasLt.so.10.0











cd  /usr/local/cuda-10.2/targets/x86_64-linux/lib/ \
&& sudo ln -s   libcufft.so.10.1.2.89         libcufft.so.10.0            \
&& sudo ln -s   libcufftw.so.10.1.2.89        libcufftw.so.10.0        \
&& sudo ln -s   libcurand.so.10.1.2.89        libcurand.so.10.0        \
&& sudo ln -s   libcusolverMg.so.10.3.0.89    libcusolverMg.so.10.0    \
&& sudo ln -s   libcusolver.so.10.3.0.89      libcusolver.so.10.0      \
&& sudo ln -s   libcusparse.so.10.3.1.89      libcusparse.so.10.0      \
&& sudo ln -s   libnppc.so.10.2.1.89          libnppc.so.10.0          \
&& sudo ln -s   libnppial.so.10.2.1.89        libnppial.so.10.0        \
&& sudo ln -s   libnppicc.so.10.2.1.89        libnppicc.so.10.0        \
&& sudo ln -s   libnppicom.so.10.2.1.89       libnppicom.so.10.0       \
&& sudo ln -s   libnppidei.so.10.2.1.89       libnppidei.so.10.0       \
&& sudo ln -s   libnppif.so.10.2.1.89         libnppif.so.10.0         \
&& sudo ln -s   libnppig.so.10.2.1.89         libnppig.so.10.0         \
&& sudo ln -s   libnppim.so.10.2.1.89         libnppim.so.10.0         \
&& sudo ln -s   libnppist.so.10.2.1.89        libnppist.so.10.0        \
&& sudo ln -s   libnppisu.so.10.2.1.89        libnppisu.so.10.0        \
&& sudo ln -s   libnppitc.so.10.2.1.89        libnppitc.so.10.0        \
&& sudo ln -s   libnpps.so.10.2.1.89          libnpps.so.10.0          \
&& sudo ln -s   libnvgraph.so.10.2.89         libnvgraph.so.10.0       \
&& sudo ln -s   libnvjpeg.so.10.3.1.89        libnvjpeg.so.10.0        \
&& sudo ln -s  libcudart.so.10.2.89           libcudart.so.10.0            \
&& sudo ln -s  libaccinj64.so.10.2.89         libaccinj64.so.10.0          \
&& sudo ln -s  libcuinj64.so.10.2.89          libcuinj64.so.10.0           \
&& sudo ln -s  libcupti.so.10.2.75            libcupti.so.10.0             \
&& sudo ln -s  libnvrtc-builtins.so.10.2.89   libnvrtc-builtins.so.10.0    \
&& sudo ln -s  libnvrtc.so.10.2.89            libnvrtc.so.10.0



export  LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/cuda-10.2/targets/x86_64-linux/lib/

测试Quadro P600 4GB显卡也可以， cuda 10.2 + cudnn 7.6.5 + tensorflow 1.14.0
