该博客详细介绍了基于ROS2的机器人系统配置和实验步骤，包括使用foxy和galactic版本的ROS2，涉及到的实验内容涵盖robot_state_publisher、joint_state_publisher、rviz2、gazebo模拟以及导航堆栈等。提供了相应的launch文件示例，用于启动机器人描述、状态发布、rviz配置、地图构建和定位等。建议观看直播回放并按照文档自行实践以掌握ROS2基础操作。

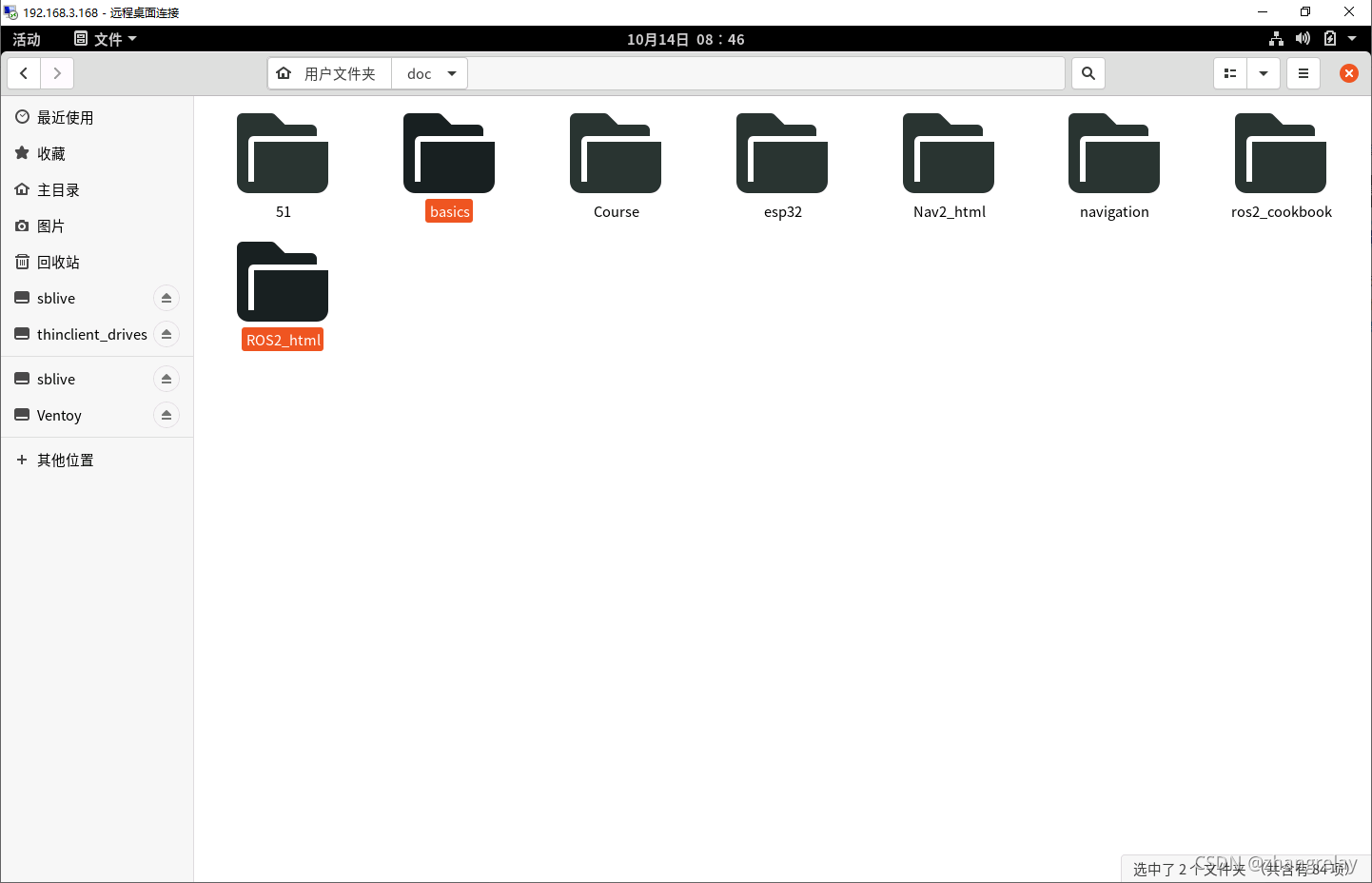

ROS2基础部分实验内容详细描述分别在前3次提示中。涉及文档如下所示：

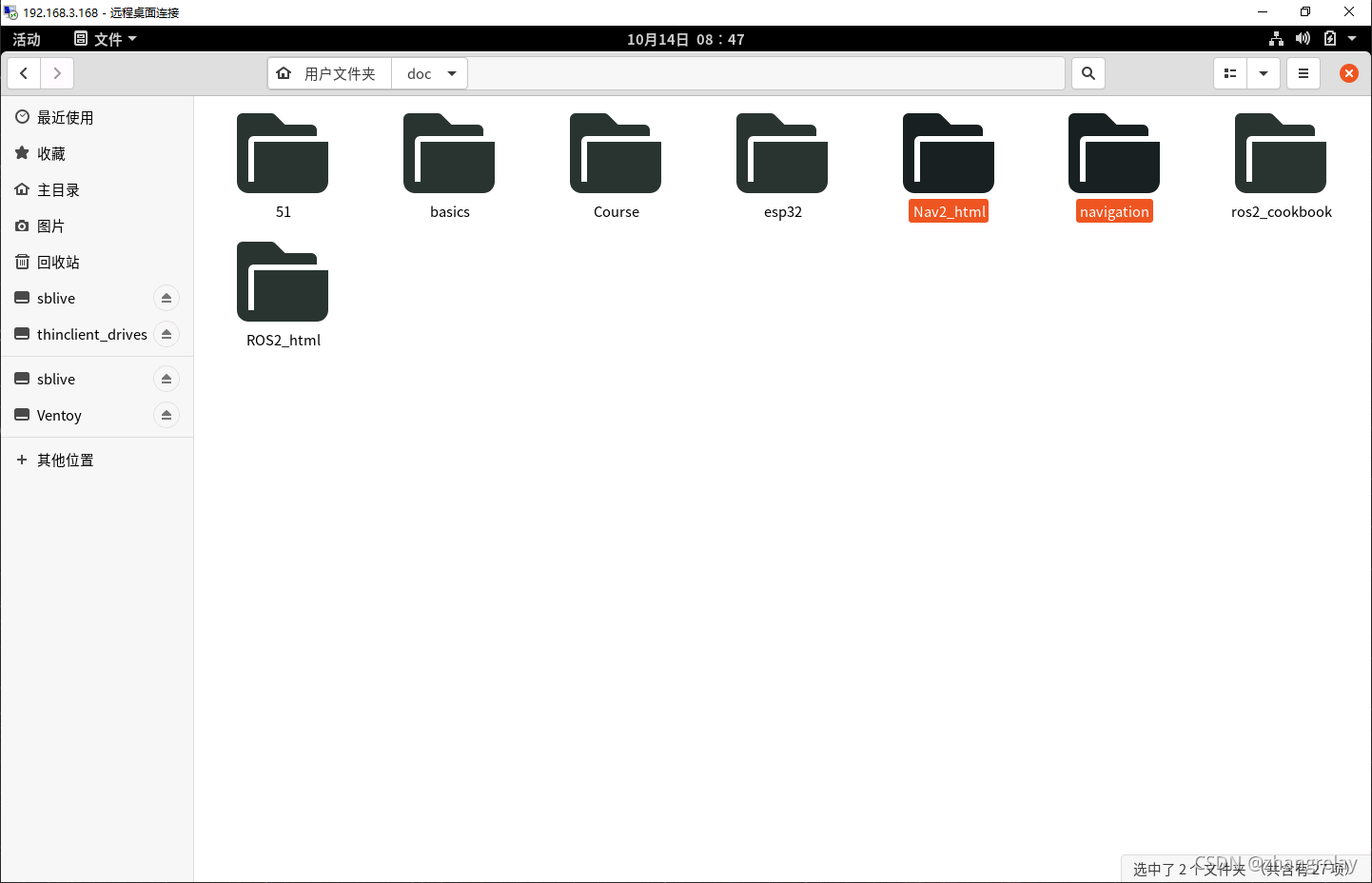

本节开始，主要涉及文档如下图所示：

如果不熟悉，请看直播回放，并且依据回放中的方法进行练习，注意直播时ROS2版本为foxy，镜像中是 galactic。

本节涉及代码在如下文件夹：

参考：

所有代码都已调试通过，但最好按文档自学一遍，这样才能掌握。

测试案例：

. install/setup.bash

ros2 launch sam_bot_description display.launch.py

ros2 launch slam_toolbox online_async_launch.py

ros2 run tf2_tools view_frames.py

ros2 launch nav2_bringup navigation_launch.py

ros2 run nav2_costmap_2d nav2_costmap_2d_markers voxel_grid:=/local_costmap/voxel_grid visualization_marker:=/my_marker

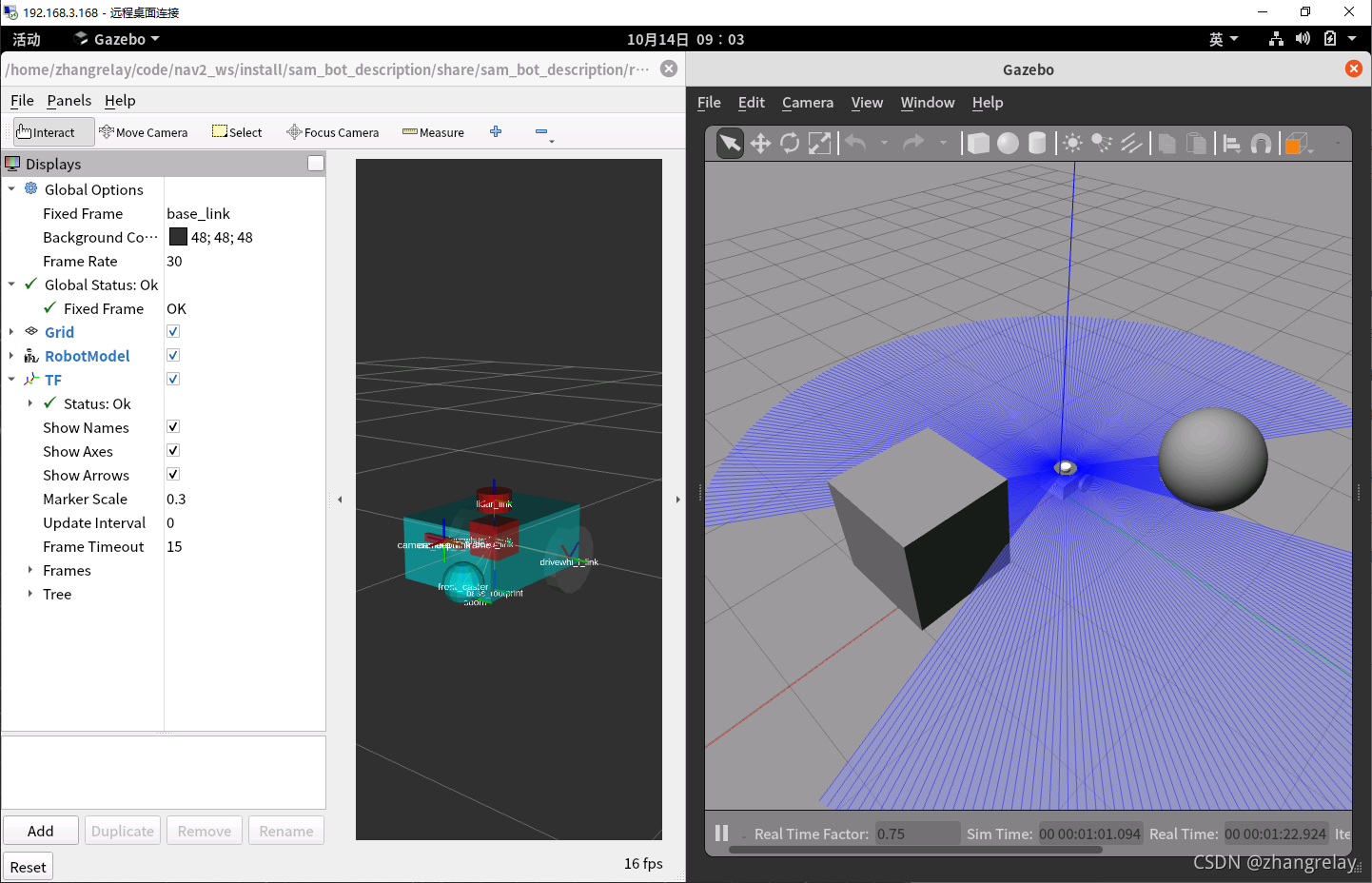

本部分详细介绍参考钉钉直播回放和

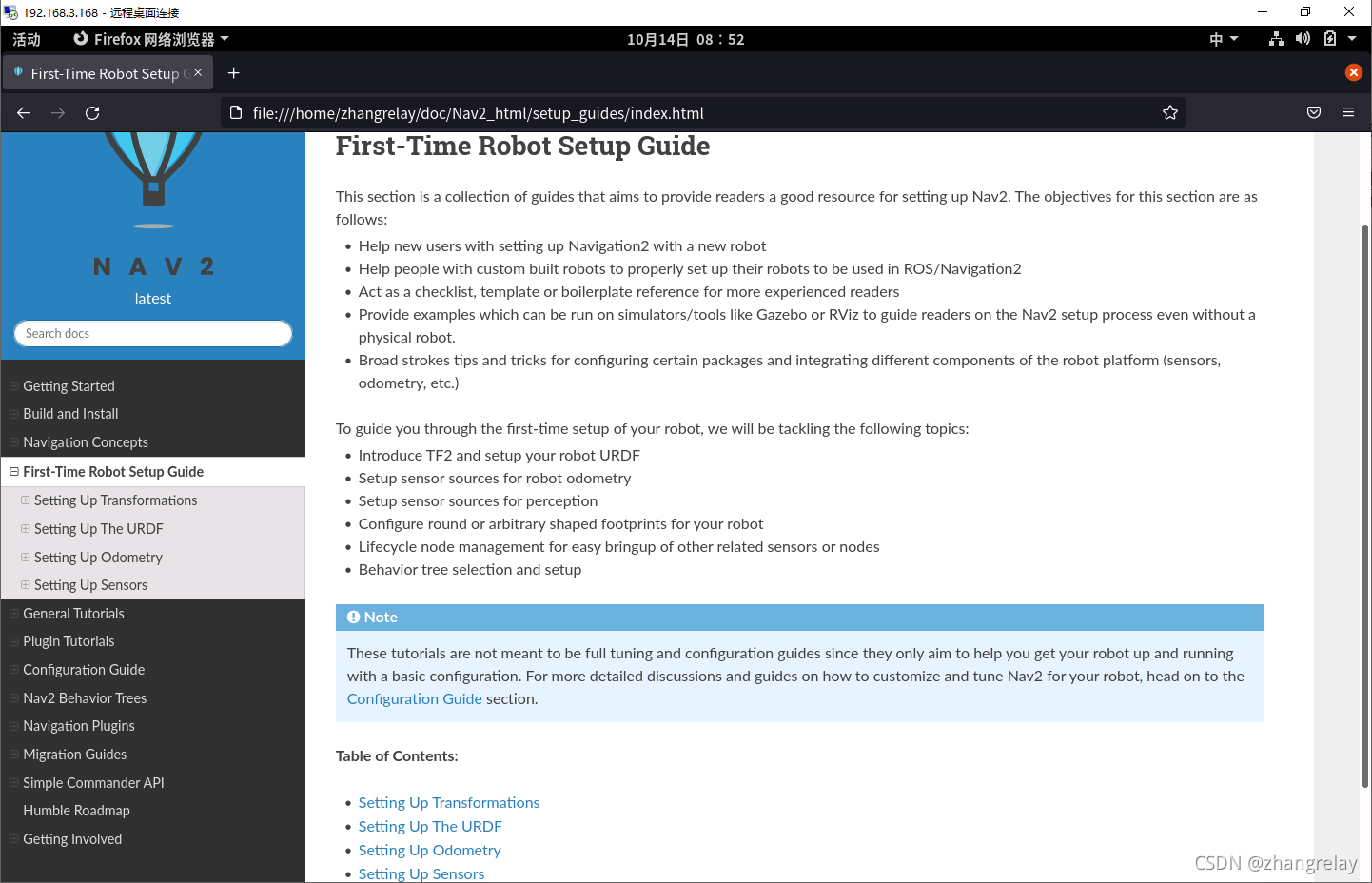

Nav2官方教程➡First-Time Robot Setup Guide⬅搞不定

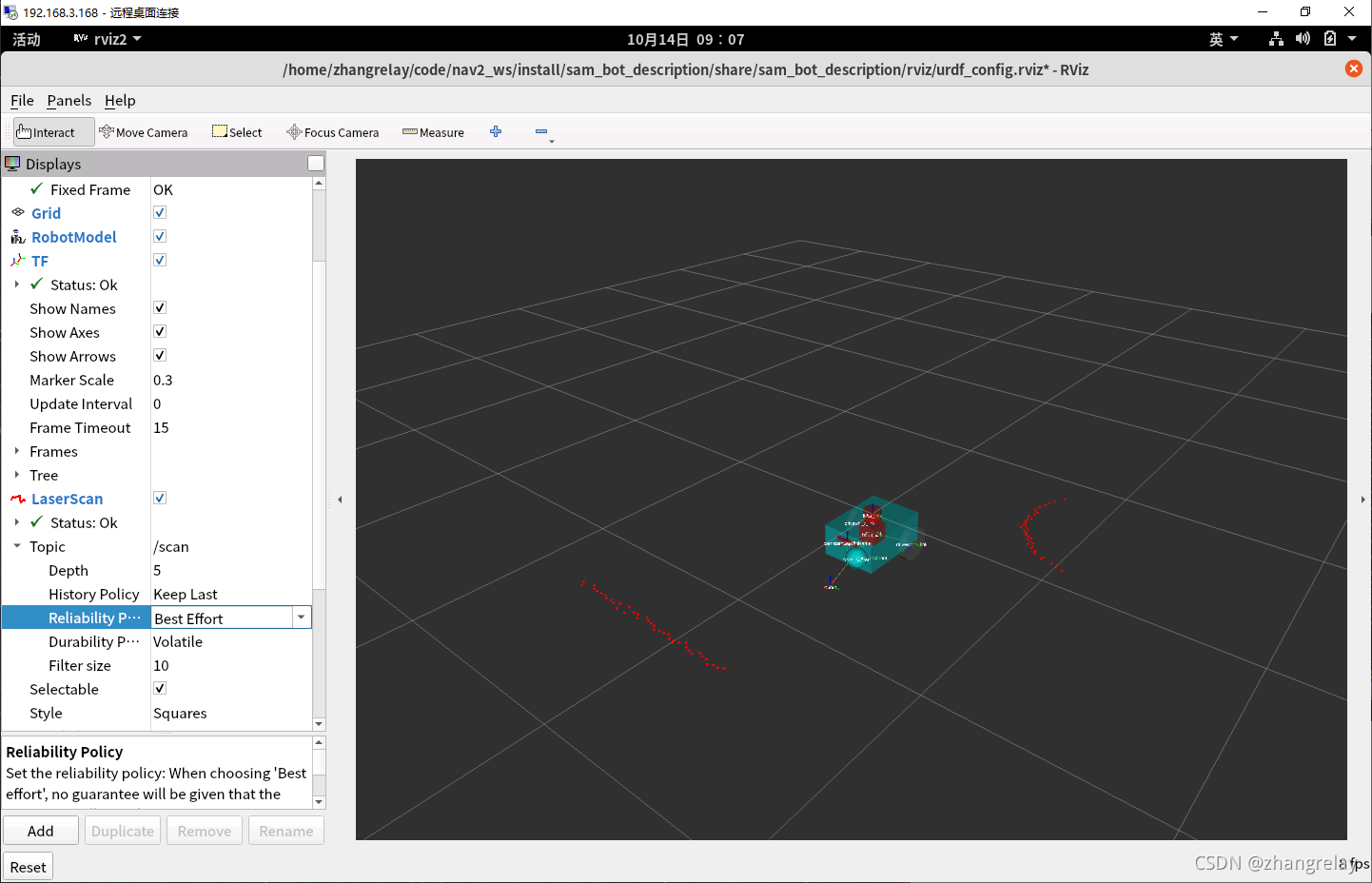

添加激光主题查看效果。

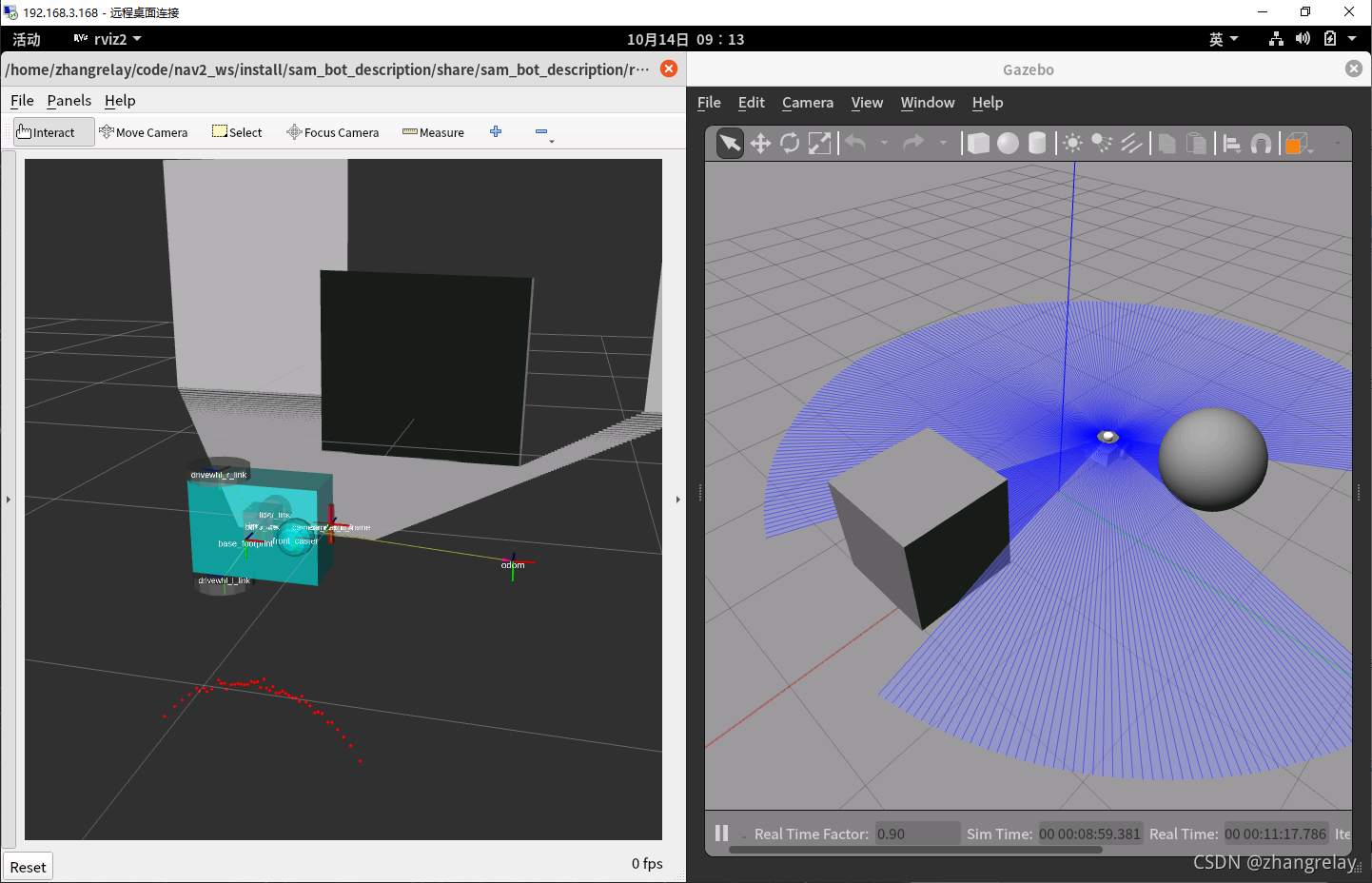

修改一下：

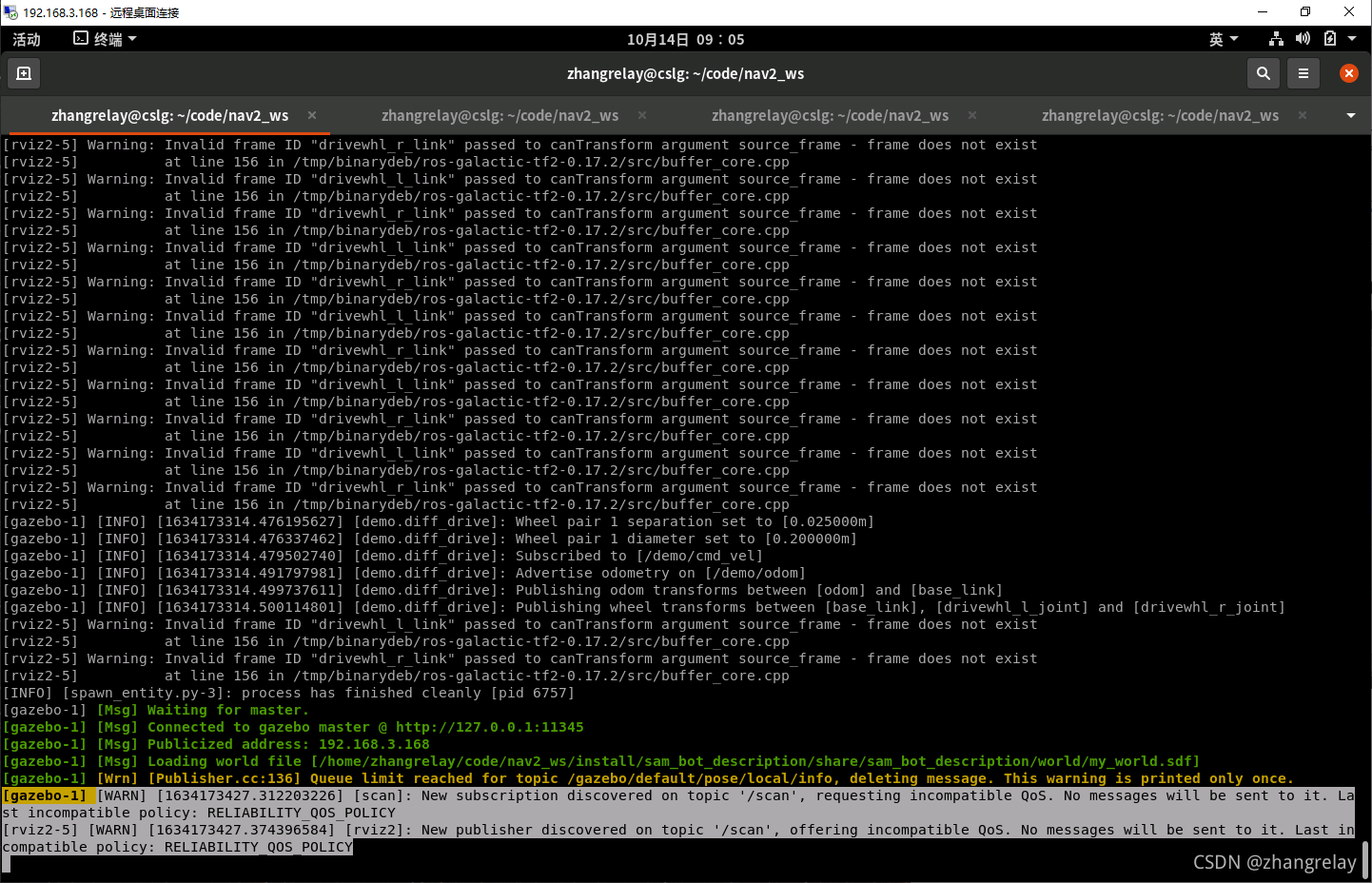

如遇到问题独立思考。

自主完成实验。

import launch
from launch.substitutions import Command, LaunchConfiguration
import launch_ros
import os

def generate_launch_description():
    pkg_share = launch_ros.substitutions.FindPackageShare(package='sam_bot_description').find('sam_bot_description')
    default_model_path = os.path.join(pkg_share, 'src/description/sam_bot_description.urdf')
    default_rviz_config_path = os.path.join(pkg_share, 'rviz/urdf_config.rviz')
    world_path=os.path.join(pkg_share, 'world/my_world.sdf')

    robot_state_publisher_node = launch_ros.actions.Node(
        package='robot_state_publisher',
        executable='robot_state_publisher',
        parameters=[{'robot_description': Command(['xacro ', LaunchConfiguration('model')])}]
    )
    joint_state_publisher_node = launch_ros.actions.Node(
        package='joint_state_publisher',
        executable='joint_state_publisher',
        name='joint_state_publisher',
        condition=launch.conditions.UnlessCondition(LaunchConfiguration('gui'))
    )
    rviz_node = launch_ros.actions.Node(
        package='rviz2',
        executable='rviz2',
        name='rviz2',
        output='screen',
        arguments=['-d', LaunchConfiguration('rvizconfig')],
    )
    spawn_entity = launch_ros.actions.Node(
    	package='gazebo_ros',
    	executable='spawn_entity.py',
        arguments=['-entity', 'sam_bot', '-topic', 'robot_description'],
        output='screen'
    )
    robot_localization_node = launch_ros.actions.Node(
         package='robot_localization',
         executable='ekf_node',
         name='ekf_filter_node',
         output='screen',
         parameters=[os.path.join(pkg_share, 'config/ekf.yaml'), {'use_sim_time': LaunchConfiguration('use_sim_time')}]
    )

    return launch.LaunchDescription([
        launch.actions.DeclareLaunchArgument(name='gui', default_value='True',
                                            description='Flag to enable joint_state_publisher_gui'),
        launch.actions.DeclareLaunchArgument(name='model', default_value=default_model_path,
                                            description='Absolute path to robot urdf file'),
        launch.actions.DeclareLaunchArgument(name='rvizconfig', default_value=default_rviz_config_path,
                                            description='Absolute path to rviz config file'),
        launch.actions.DeclareLaunchArgument(name='use_sim_time', default_value='True',
                                            description='Flag to enable use_sim_time'),
        launch.actions.ExecuteProcess(cmd=['gazebo', '--verbose', '-s', 'libgazebo_ros_factory.so', world_path], output='screen'),

        joint_state_publisher_node,
        robot_state_publisher_node,
        spawn_entity,
        robot_localization_node,
        rviz_node
    ])
