深蓝学院自主泊车第6次作业-基于地图的定位

1 题目

对于本次作业，你需要完成自动代客泊车（AVP）系统的定位算法。作业提供了一个从仿真中获取的分割逆透视映射（IPM）图像数据集。你需要完成定位算法的处理过程，并显示AVP定位的最终结果。请完善src/avp_localization.cpp文件中的imageRegistration()函数。

2 解答

该任务的关键步骤为，
(1)使用pcl库中自带的最近邻函数nearestKSearch()完成数据关联。
(2)求两个点云的质心。
(3)求去质心点云。
(4)求矩阵H，
$$H=\sum _i{p}_{src}^i(p_{dst}^i{)}^T\text{\hspace{1em}(1)}$$
(5)对矩阵H进行奇异值分解，
$$H=U\Sigma V^T\text{\hspace{1em}(2)}$$
(6)计算旋转矩阵$R$，
$$R=V\left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& det(V{U}^T)\end{array}\right]U^T\text{\hspace{1em}(3)}$$
(7)计算平移向量$t$，
$$t={\bar{p}}_{dst}-R\cdot {\bar{p}}_{src}\text{\hspace{1em}(4)}$$

代码如下，

// Registration frame to map
//返回T_world_vehicle表示vehicle系到world系的变换
Eigen::Affine3d AvpLocalization::imageRegistration() {
  auto slot_num = curr_frame_.getSemanticElement(SemanticLabel::kSlot).size();
  auto dash_num = slot_num + curr_frame_.getSemanticElement(SemanticLabel::kDashLine).size();
  auto total_num = dash_num + curr_frame_.getSemanticElement(SemanticLabel::kArrowLine).size();
  //total_num表示slot,dashline,arrowline的总点数

  std::vector<char> correspondences; // 1 indicate relative point is correspondent
  pcl::PointCloud<pcl::PointXYZ> cloud_in;  // points in map
  //cloud_in表示地图中的点云数据

  pcl::PointCloud<pcl::PointXYZ> cloud_out, cloud_est; // points in frame
  //cloud_out表示当前帧的点云数据

  // get points in frame
  cloud_out.reserve(total_num);
  for (const auto &grid :
         curr_frame_.getSemanticElement(SemanticLabel::kSlot)) {
    cloud_out.emplace_back(grid.x(), grid.y(), 0);
  }
  for (const auto &grid :
         curr_frame_.getSemanticElement(SemanticLabel::kDashLine)) {
    cloud_out.emplace_back(grid.x(), grid.y(), 0);
  }
  for (const auto &grid :
         curr_frame_.getSemanticElement(SemanticLabel::kArrowLine)) {
    cloud_out.emplace_back(grid.x(), grid.y(), 0);
  }
  cloud_in.resize(cloud_out.size());

  Eigen::Matrix3f R = Eigen::Matrix3f::Identity();
  Eigen::Vector3f t = Eigen::Vector3f(0, 0, 0);
  const int max_iter = 10;
  for (int n = 0; n < max_iter; n++) {
    Eigen::Affine3f T_est = Eigen::Translation3f(t) * R;
    pcl::transformPointCloud(cloud_out, cloud_est, T_est);
    //cloud_out为输入点云,表示待变换的点云数据
    //cloud_est为输出点云,表示变换后的点云数据

    /  TODO:  finding correspondences by kd-tree nearest neighbor search
    correspondences.resize(total_num, 0);
    //使用kd-树做最近邻搜索

    //填充cloud_in
    //从地图中avp_map_找到最近的点,将其放入cloud_in中
    for (int i = 0; i < cloud_est.size(); ++i) {
      pcl::PointXYZ pt = cloud_est[i];

      int k = 1;
      std::vector<int> pointIdxNKNSearch(k);
      std::vector<float> pointNKNSquaredDistance(k);

      if (kdtree_all_.nearestKSearch(pt, k, pointIdxNKNSearch, pointNKNSquaredDistance) > 0) {
        int nearestIdx = pointIdxNKNSearch[0];
        float nearestDistance = pointNKNSquaredDistance[0];
        pcl::PointXYZ nearestPoint = all_cloud_in_->points[nearestIdx];

        //是否需要判断一下最近点之间的距离呢？？？

        cloud_in[i] = nearestPoint;
        correspondences[i] = 1;
      }


    }
    //cloud_in为地图中的点

    /

    // size_t num_pts = 0;
    // Eigen::Vector3f sum_point_in = Eigen::Vector3f::Zero();
    // Eigen::Vector3f sum_point_out = Eigen::Vector3f::Zero();
    // for (size_t i = 0; i < total_num; ++i) {
    //   if (correspondences[i]) {
    //     ++num_pts;
    //     sum_point_in += Eigen::Vector3f(cloud_in[i].x, cloud_in[i].y, cloud_in[i].z);
    //     sum_point_out += Eigen::Vector3f(cloud_out[i].x, cloud_out[i].y, cloud_out[i].z);
    //   }
    // }
    // Eigen::Vector3f u_point_in = sum_point_in / (num_pts + 1e-10);
    // Eigen::Vector3f u_point_out = sum_point_out / (num_pts + 1e-10);

    // std::cout << "\ricp itr " << n + 1 << " / 10, pts: " << num_pts
    //       << ", dYaw: " << GetYaw(Eigen::Quaternionf(R)) * kToDeg
    //       << ", trans: " << t.transpose() * float(kPixelScale);
    // std::cout.flush();

      TODO: calculate close-form R t //
    //初始点云cloud_est,表示当前帧的点
    //目标点云cloud_in,表示地图中的点
    //求cloud_est到cloud_in的变换,也即当前帧到地图的变换

    //(1)求质心坐标
    Eigen::Vector3f average_pt_1 = Eigen::Vector3f::Zero();
    Eigen::Vector3f average_pt_2 = Eigen::Vector3f::Zero();
    int num_pts = 0;
    for (int i = 0; i < cloud_in.size(); ++i) {
      if (correspondences[i]) {
        ++num_pts;
        average_pt_1 += Eigen::Vector3f(cloud_est[i].x, cloud_est[i].y, cloud_est[i].z);
        average_pt_2 += Eigen::Vector3f(cloud_in[i].x, cloud_in[i].y, cloud_in[i].z);
      }
    }
    average_pt_1 /= (num_pts + 1e-10);
    average_pt_2 /= (num_pts + 1e-10);

    //(2)求去质心坐标
    std::vector<Eigen::Vector3f> cloud1, cloud2;
    for (int i = 0; i < cloud_in.size(); ++i) {
      if (correspondences[i]) {
        Eigen::Vector3f pt1 = Eigen::Vector3f(cloud_est[i].x, cloud_est[i].y, cloud_est[i].z);
        pt1 -= average_pt_1;
        cloud1.emplace_back(pt1);

        Eigen::Vector3f pt2 = Eigen::Vector3f(cloud_in[i].x, cloud_in[i].y, cloud_in[i].z);
        pt2 -= average_pt_2;
        cloud2.emplace_back(pt2);
      }
    }

    //(3)求3*3矩阵H
    //src * dst^T
    Eigen::Matrix3f H = Eigen::Matrix3f::Zero();
    for (int i = 0; i < cloud1.size(); ++i) {
      H += cloud1[i] * cloud2[i].transpose();
    }

    //对矩阵H做正交分解
    Eigen::JacobiSVD<Eigen::Matrix3f> svd(H, Eigen::ComputeFullU | Eigen::ComputeFullV);
    //获取U矩阵(左奇异向量)
    Eigen::Matrix3f U = svd.matrixU();
    //获取V矩阵(右奇异向量)
    Eigen::Matrix3f V = svd.matrixV();
    float dev1 = (V * U.transpose()).determinant();
    Eigen::Vector3f diag_elements(1.0, 1.0, dev1);
    Eigen::Matrix3f diag_matrix = diag_elements.asDiagonal();

    //(4)得到R1,t1
    Eigen::Matrix3f R1 = V * diag_matrix * U.transpose();
    Eigen::Vector3f t1 = average_pt_2 - R1 * average_pt_1;

    //更新最终的R和t
    R = R1 * R;
    t = R1 * t + t1;
  //
  }
  std::cout << std::endl;
  t *= float(kPixelScale); // grid scale to world scale

  Eigen::Affine3d dT =
      Eigen::Translation3d(t.cast<double>()) * R.cast<double>();
  Eigen::Affine3d T_world_vehicle =
      dT * curr_frame_.T_world_ipm_ * T_vehicle_ipm_.inverse();
  return T_world_vehicle;
}

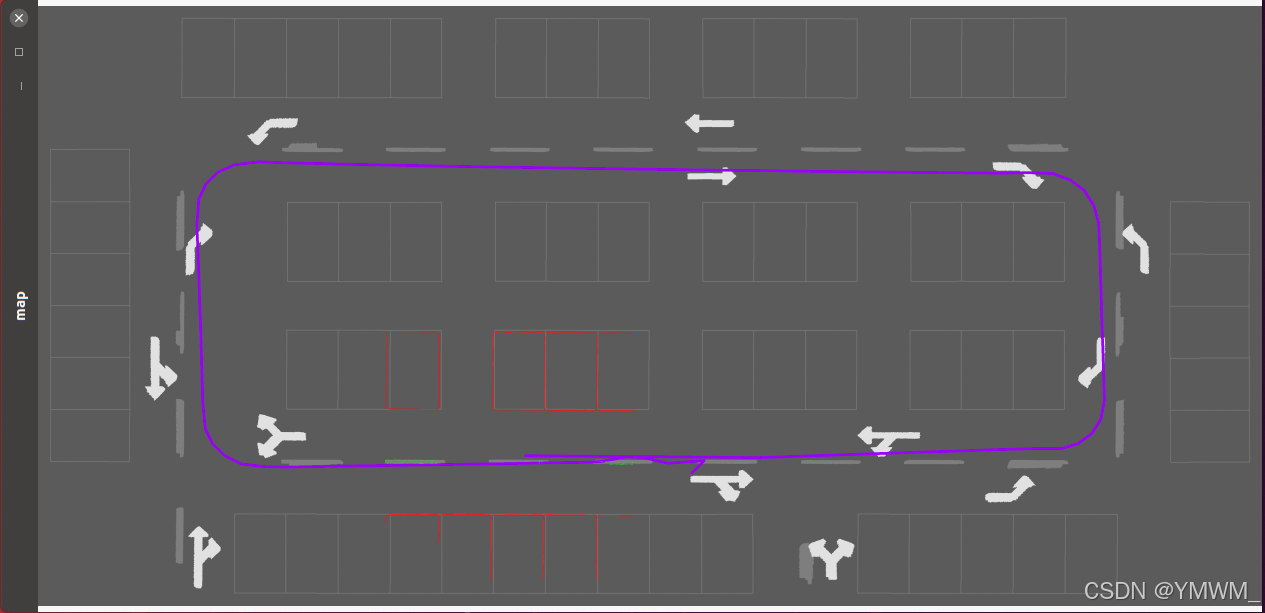

定位结果展示图如下，
