【元胞自动机】基于元胞自动机模拟生态养殖matlab源码

最新推荐文章于 2025-12-19 16:12:26 发布

原创最新推荐文章于 2025-12-19 16:12:26 发布 · 83 阅读

CC 4.0 BY-SA版权

文章标签：

【元胞自动机】基于元胞自动机模拟生态养殖matlab源码_matlab
2 模型的参数
考虑到三维的元胞自动机太复杂，为了简单起见，本文采用维度为D=2。考虑到水体之间极强的流动性和分子扩散性，采用????????????????????型邻居会更合理。

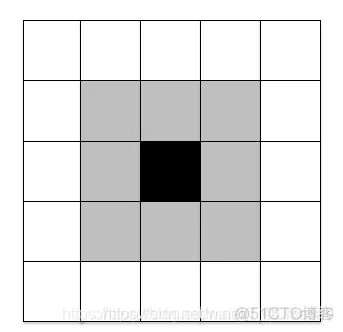

2.1 Moore型邻居【元胞自动机】基于元胞自动机模拟生态养殖matlab源码_matlab_02

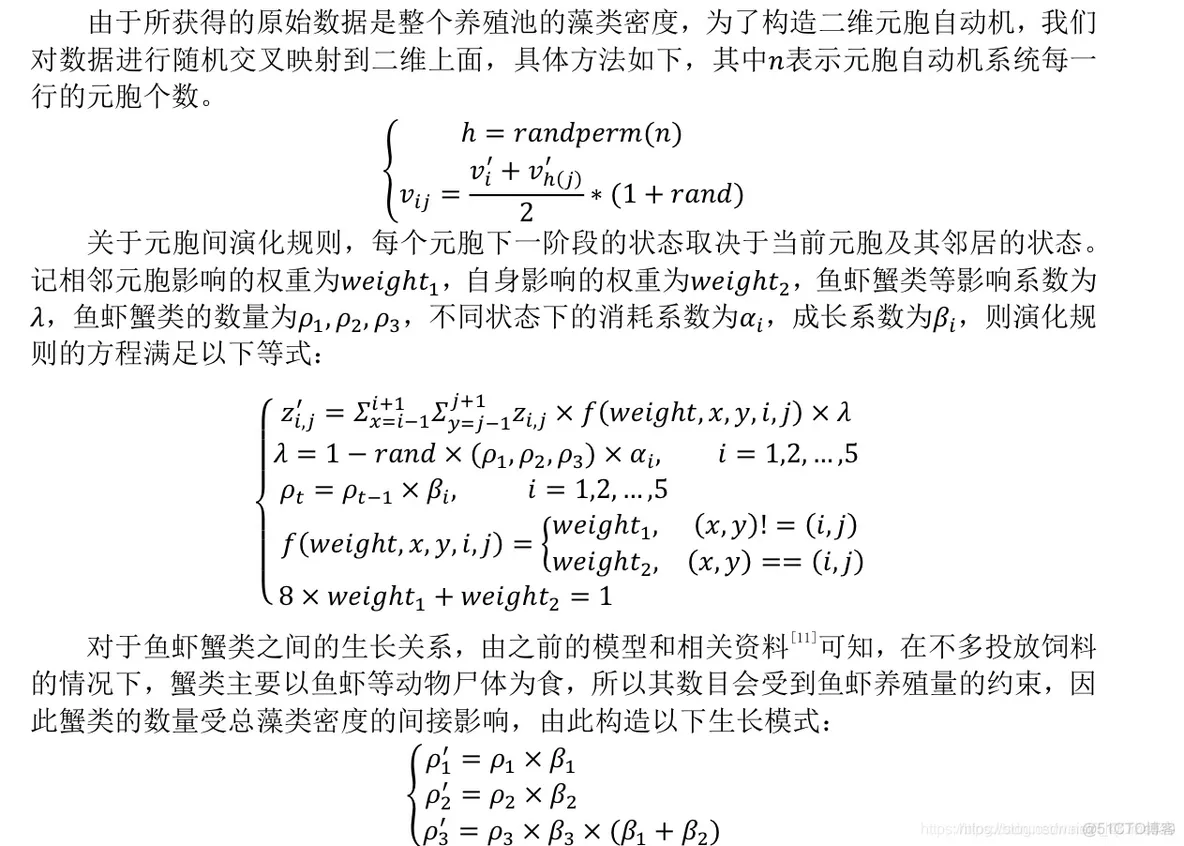

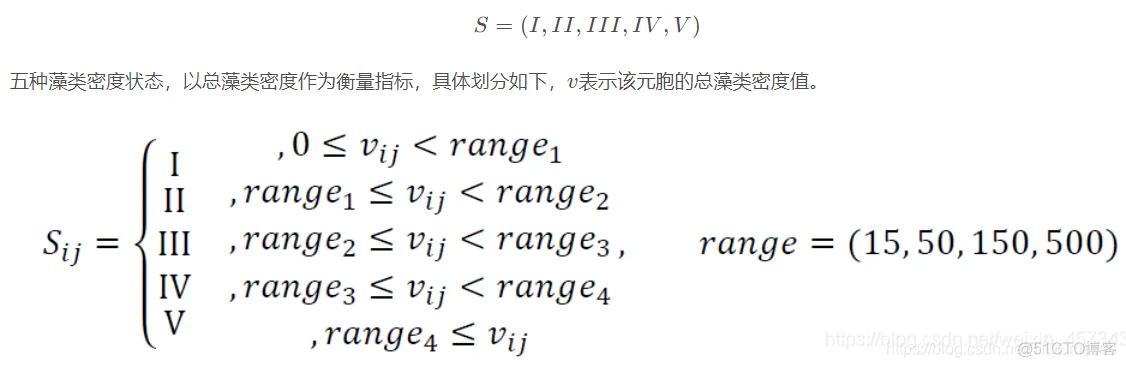

2.2 具体参数设定

二、源代码

clear;
clc;
rho=50;length=50;
fish=[500 300 500];%300kg鱼、500kg虾、500kg蟹
lambda=0.8;
T=10;%10周
alpha=[0.00001,0.00015,0.00035,0.00025,0.0002];%不同状态下的鱼儿们消耗系数
range=[15,50,150,500];

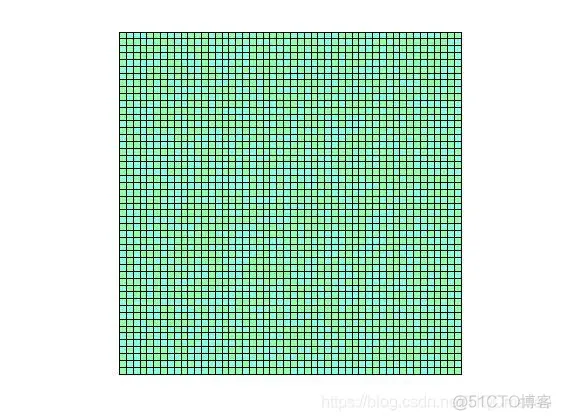

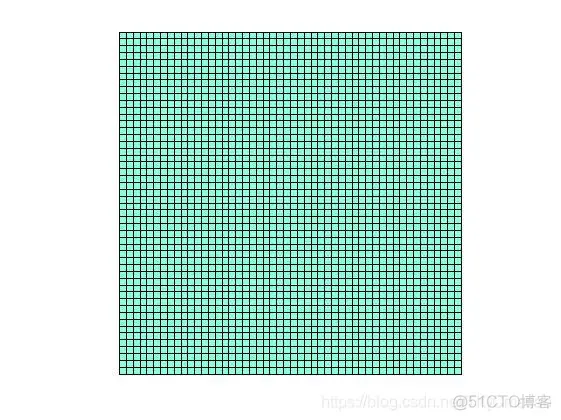

%==========画方块图
area=MyCreate(length,rho,lambda);
DrawArea(area,range);
n=length;%n=50
plot([(0:n)',(0:n)']+0.5,[0,n]+0.5,'k');%k代表黑色
plot([0,n]+0.5,[(0:n)',(0:n)']+0.5,'k');
axis image;
set(gca,'xtick',[]);
set(gca,'ytick',[]);%消除x,y轴
figure;
%=========
data=zeros(T,3);%10行3列的零
for i=1:T
    [area,fish]=MyChange(area,fish,range,alpha);
    DrawArea(area,range);
    drawnow;
    data(i,:)=fish;
end
function [area,fish]=MyChange(area,fish,range,alpha)
n=length(area);
for i =1:n
    for j=1:n
    %周围9个方块共同impact
        if MyRound(area,i,j)<range(1)%15
            area(i,j)=MyRound(area,j,j)*(1-rand*mean(fish)*alpha(1));
            %(1-rand*mean(fish)*alpha(1))鱼虾蟹等影响系数
        elseif MyRound(area,i,j)<range(2)%50
            area(i,j)=MyRound(area,j,j)*(1-rand*mean(fish)*alpha(2));
        elseif MyRound(area,i,j)<range(3)%150
            area(i,j)=MyRound(area,j,j)*(1-rand*mean(fish)*alpha(3));
        elseif MyRound(area,i,j)<range(4)%500
            area(i,j)=MyRound(area,j,j)*(1-rand*mean(fish)*alpha(4));
        else
            area(i,j)=MyRound(area,j,j)*(1-rand*mean(fish)*alpha(5));
        end
    end
end
avg=mean(mean(area));
%成长系数设置的很迷惑
%蟹类主要以鱼虾等动物尸体为食物，所以其数目会受到鱼虾的影响
function DrawArea(area,range)
temp=area;
n=length(temp);
Area(:,:,1)=temp;
Area(:,:,2)=temp;
Area(:,:,3)=temp;
%给每个方格块上色，水藻密度越大，颜色越绿
for i=1:n
    for j=1:n
        if temp(i,j)<range(1)
            Area(i,j,:)=[0 230 214];
        elseif temp(i,j)<=range(2)
            Area(i,j,:)=[139 255 223];
        elseif temp(i,j)<=range(3)
            Area(i,j,:)=[147 255 170];
        elseif temp(i,j)<=range(4)
            Area(i,j,:)=[91  240 91];
        else
            Area(i,j,:)=[4 176 58];
        end
    end
end
