一、什么是换装系统
换装是将头、身子、腿等多个零部件模型整合成一个人物模型的过程，而模型是由网格组成的，所以换装系统的本质就是找到合适的网格进行合并，而合并的这个过程会将不同的零部件模型上的顶点组合再一次，并一次性的绘制出整个模型，这个过程叫做合批
二、换装系统具体操作
2.1 实现模型合批

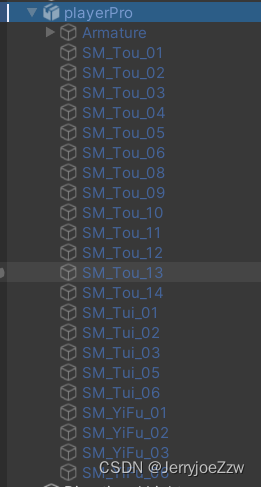

首先我们要实现最基本的合批，第一步就是在场景中拖入对应需要生成的子模型，也就是零部件模型，如下图所示，我这个是已经将所有零部件集合的总预制体，拖入想要生成子模型也可以。
之后创建一个带有mesh渲染的模型，比如Cube或者sphere，这里我们运用到骨骼做动画处理，所以直接使用一个骨骼的预制体

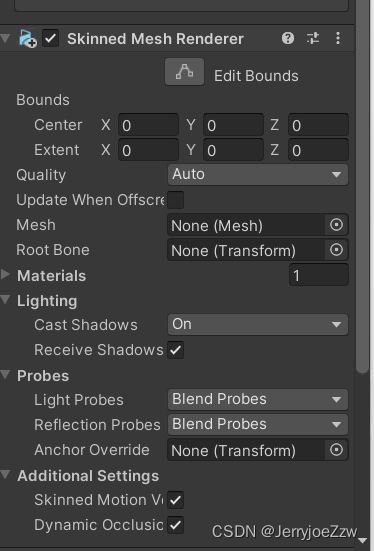

下一步就得要在骨骼上加入SkinnedMeshRender

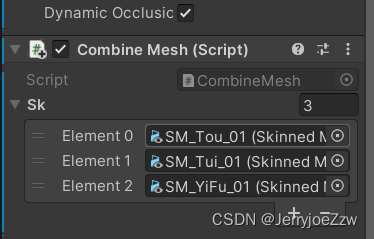

添加我们合批的代码：
准备开始写代码：
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UIElements;
public class CombineMesh : MonoBehaviour
{
public SkinnedMeshRenderer[] sk;
// Start is called before the first frame update
void Start()
{
//新建一个mesh
Mesh mesh = new Mesh();
//合批的资源集合
List<CombineInstance> combines= new List<CombineInstance>();
//2D贴图集合
List<Texture2D> textures = new List<Texture2D>();
for (int i = 0; i < sk.Length; i++)
{
//CombineInstance是一个用来合批的方法
CombineInstance instance =new CombineInstance();
//将SkinnedMeshRenderer上的mesh赋给instance
instance.mesh = sk[i].sharedMesh;
instance.transform = sk[i].transform.localToWorldMatrix;
combines.Add(instance);
//取得材质
textures.Add(sk[i].sharedMaterial.GetTexture("_BackTex") as Texture2D);
}
mesh.CombineMeshes(combines.ToArray(),true,false);
//合并纹理
Texture2D texture=new Texture2D(0,0);
Rect[]rects=texture.PackTextures(textures.ToArray(), 0);
//通过矩形数据rects重新计算uv坐标
List<Vector2> uv=new List<Vector2>();
for (int i = 0; i < sk.Length; i++)
{
Vector2[] olduv = sk[i].sharedMesh.uv;
for (int j = 0; j < olduv.Length; j++)
{
float uvx = rects[i].x + rects[i].width * olduv[j].x;
float uvy = rects[i].y + rects[i].height * olduv[j].y;
uv.Add(new Vector2(uvx, uvy));
}
}
mesh.uv=uv.ToArray();
GetComponent<SkinnedMeshRenderer>().sharedMesh = mesh;
//此处是用来设置贴图的
Texture2D face = sk[0].sharedMaterial.GetTexture("_MainTex") as Texture2D;
Material material = new Material(Shader.Find("Custom/Face"));
material.SetTexture("_BackTex", texture);
material.SetTexture("_MainTex",face);
material.SetFloat("_PosX", texture.width / face.width);
material.SetFloat("_PosY", texture.height / face.height);
GetComponent<SkinnedMeshRenderer>().material = material;
//把骨骼放到SkinnedMeshRenderer
List<Transform> bones= new List<Transform>();
//获取该模型下的所有节点
Transform[] myBones=gameObject.GetComponentsInChildren<Transform>();
//将所有骨骼存入字典方便查找
Dictionary<string,Transform> dic_bones=new Dictionary<string,Transform>();
foreach (var item in myBones)
{
dic_bones.Add(item.name, item);
}
for (int i = 0; i < sk.Length; i++)
{
for (int j = 0; j < sk[i].bones.Length; j++)
{
//如果挂载脚本的骨骼中存在这一部份骨骼，那么使用自己的骨骼
if (dic_bones.ContainsKey(sk[i].bones[j].name))
{
bones.Add(dic_bones[sk[i].bones[j].name]);
}
}
}
GetComponent<SkinnedMeshRenderer>().bones=bones.ToArray();
}
// Update is called once per frame
void Update()
{
}
}
贴图 需要注意的点：

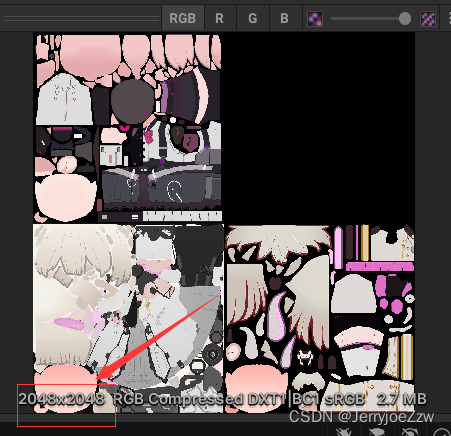

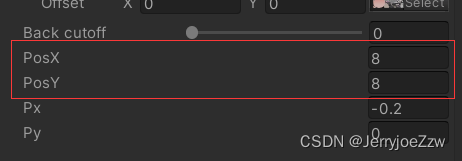

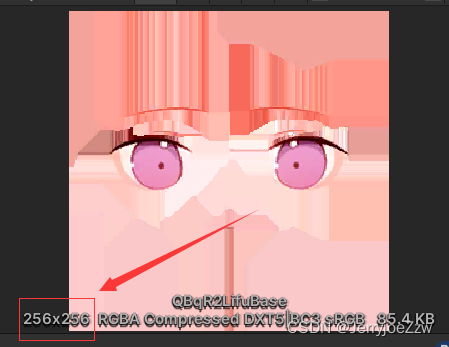

合批之后的贴图是2048*2048， 但是脸部贴图是256*256，所有我们需要修改posx,posy确保二者的一致性
material.SetFloat("_PosX", texture.width / face.width);
material.SetFloat("_PosY", texture.height / face.height);
这两句代码就是在计算所需要改变的值

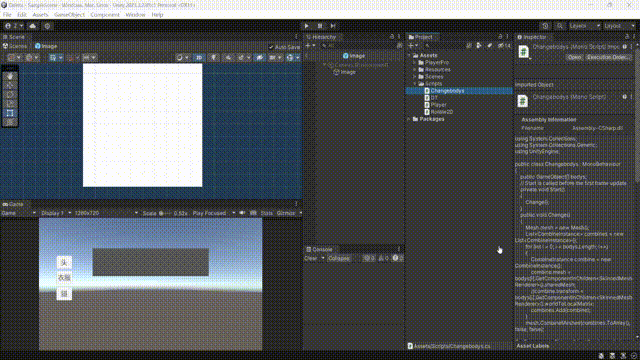

2.2 制作换装系统
接下来需要实现的就是如何制作换装系统，首先我们需要制作2D轮转图

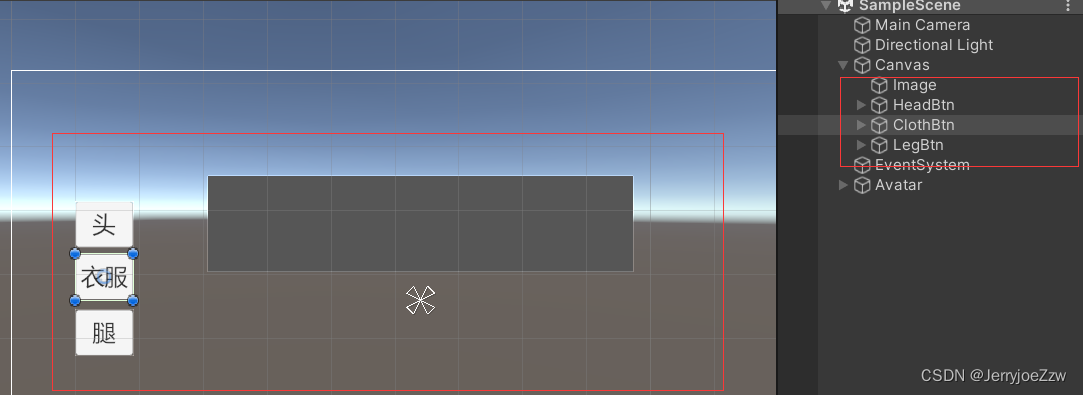

创建对应的组件

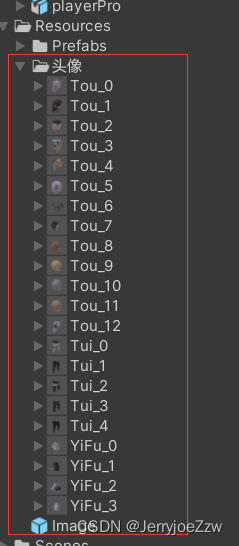

制作图片预制体和具体的零部件头像

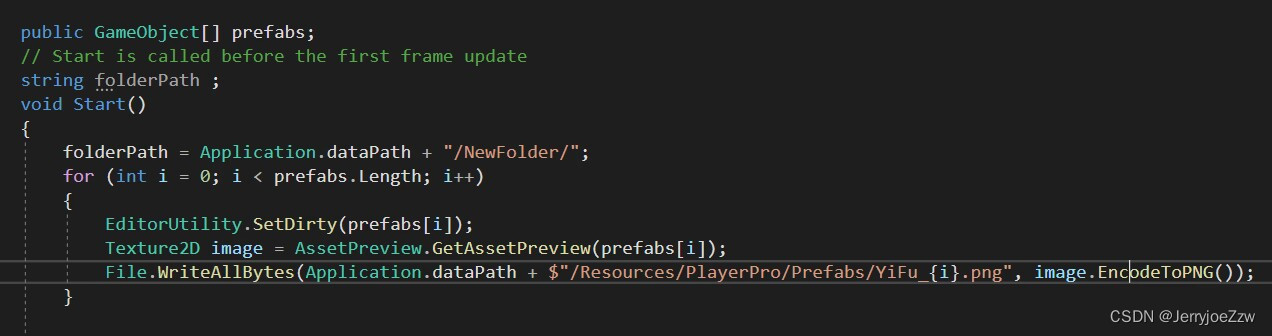

图片可以截图，也可以使用下方代码从模型中生成图片
制作2d轮转图
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.EventSystems;
using UnityEngine.UI;
public class Rotate2D : MonoBehaviour,IDragHandler,IEndDragHandler
{
//图片预制体
public Image prefab;
//更改零部件的组件
public Changebodys player;
//通过Index确认点击的是头、身子、还是腿
int index = 0;
//轮转图中子物体间的间隔
public float space=100;
//l是轮转图的周长，r是半径，ang是角度，moveang是移动的角度，max,min是图片scale的最大最小值，cut是减速度
float l, r, ang, moveAng, max = 1, min = 0.5f, cut = 100;
//图片的集合
List<Image> list = new List<Image>();
//用来对比图片scale大小的集合
List<Transform> sortlist = new List<Transform>();
public Button head, body, leg;
List<string> info = new List<string>();
// Start is called before the first frame update
void Start()
{
head.onClick.AddListener(() =>
{
index = 0;
info.Clear();
for (int i = 0; i < list.Count; i++)
{
Destroy(list[i].gameObject);
}
list.Clear();
sortlist.Clear();
for (int i = 0; i < 11; i++)
{
info.Add("Tou_" + i);
}
Move();
});
body.onClick.AddListener(() =>
{
index = 1;
info.Clear();
for (int i = 0; i < list.Count; i++)
{
Destroy(list[i].gameObject);
}
list.Clear();
sortlist.Clear();
for (int i = 0; i < 4; i++)
{
info.Add("YiFu_" + i);
}
Move();
});
leg.onClick.AddListener(() =>
{
index = 2;
info.Clear();
for (int i = 0; i < list.Count; i++)
{
Destroy(list[i].gameObject);
}
list.Clear();
sortlist.Clear();
for (int i = 0; i < 4; i++)
{
info.Add("Tui_" + i);
}
Move();
});
}
private void Move()
{
l = (prefab.rectTransform.rect.width + space) * info.Count;
r = l / (2 * Mathf.PI);
ang = 2 * Mathf.PI / info.Count;
for (int i = 0; i < info.Count; i++)
{
if (list.Count<=i)
{
list.Add(Instantiate(prefab, transform));
list[i].sprite = Resources.Load<Sprite>("头像/"+info[i]);
sortlist.Add(list[i].transform);
}
float x = Mathf.Sin(i * ang + moveAng) * r;
float z = Mathf.Cos(i * ang + moveAng) * r;
float p = (z + r) / (2 * r);
float scale = (max - min) * p + min;
list[i].rectTransform.anchoredPosition = new Vector2(x, 0);
list[i].transform.localScale = Vector3.one * scale;
}
sortlist.Sort((a, b) =>
{
if (a.lossyScale.x<b.lossyScale.x)
{
return -1;
}
else if (a.lossyScale.x > b.lossyScale.x)
{
return 1;
}
else
{
return 0;
}
});
for (int i = 0; i < sortlist.Count; i++)
{
sortlist[i].SetSiblingIndex(i);
}
}
public void OnDrag(PointerEventData eventData)
{
float x = eventData.delta.x;
float drag = x / r;
moveAng += drag;
Move();
}
public void OnEndDrag(PointerEventData eventData)
{
float speed= eventData.delta.x;
float time = Mathf.Abs(speed) / cut;
DT.To((a) =>
{
float dis = a / r;
moveAng += dis;
Move();
}, speed, 0, time).OnComplete(() =>
{
Align();
});
}
private void Align()
{
float alignang = Mathf.Asin(sortlist[info.Count - 1].GetComponent<RectTransform>().anchoredPosition.x / r);
float aligndis = alignang * r;
float time = Mathf.Abs(aligndis) / cut;
DT.To((a) =>
{
moveAng = a;
Move();
}, moveAng, moveAng - alignang, time).OnComplete(() =>
{
player.bodys[index] = Resources.Load<GameObject>("Prefabs/"+sortlist[info.Count - 1].GetComponent<Image>().sprite.name);
print(sortlist[info.Count - 1].GetComponent<Image>().sprite.name);
player.Change();
});
}
}
手写Dotween：
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class DT : MonoBehaviour
{
public Action<float> action;
public float begin;
public float end;
public float time;
public GameObject dt;
float nowtime;
public Action complete;
public static DT To(Action<float> action, float begin, float end, float time)
{
//创建一个名为DT的空物体，将创过来的值接住
GameObject dt = new GameObject("DT");
DT dowteen = dt.AddComponent<DT>();
dowteen.action = action;
dowteen.begin = begin;
dowteen.end = end;
dowteen.time = time;
dowteen.nowtime = Time.time;
dowteen.dt = dt;
return dowteen;
}
// Update is called once per frame
void Update()
{
//在Update每帧调用，用起点和终点的差值确认item的位置
if (Time.time - nowtime < time)
{
//Time.time时从游戏开发到现在的时间，nowTime是游戏开发到调用To方法的时间
//t是调用到To方法到最新的时间
float t = Time.time - nowtime;
//p是t和传过来时间的比，也就是每帧所需花费的时间
float p = t / time;
//a是起点和终点的差值
//start-------*---end
//如果整条虚线是1，平分成10分，那起点就是（1-p）=0.7,终点就是p=0.3，---
float a = begin * (1 - p) + end * p;
action(a);
}
else
{
action(end);
//如果有后续的Complete函数，则继续执行
if (complete != null)
{
complete();
}
Destroy(gameObject);//删除空物体
}
}
public DT OnComplete(Action complete)
{
this.complete = complete;
return this.GetComponent<DT>();
}
}
改变服装的代码：
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Changebodys : MonoBehaviour
{
public GameObject[] bodys;
// Start is called before the first frame update
private void Start()
{
Change();
}
public void Change()
{
Mesh mesh = new Mesh();
List<CombineInstance> combines = new List<CombineInstance>();
for (int i = 0; i < bodys.Length; i++)
{
CombineInstance combine = new CombineInstance();
combine.mesh = bodys[i].GetComponentInChildren<SkinnedMeshRenderer>().sharedMesh;
//combine.transform = bodys[i].GetComponentInChildren<SkinnedMeshRenderer>().worldToLocalMatrix;
combines.Add(combine);
}
mesh.CombineMeshes(combines.ToArray(), false, false);
GetComponent<SkinnedMeshRenderer>().sharedMesh = mesh;
List<Material> materials = new List<Material>();
for (int i = 0; i < bodys.Length; i++)
{
materials.Add(bodys[i].GetComponentInChildren<SkinnedMeshRenderer>().sharedMaterial);
}
GetComponent<SkinnedMeshRenderer>().materials = materials.ToArray();
Transform[] allbones = GetComponentsInChildren<Transform>();
Dictionary<string, Transform> dic = new Dictionary<string, Transform>();
foreach (var item in allbones)
{
dic.Add(item.name, item);
}
List<Transform> mybones = new List<Transform>();
for (int i = 0; i < bodys.Length; i++)
{
Transform[] bones = bodys[i].GetComponentInChildren<SkinnedMeshRenderer>().bones;
for (int j = 0; j < bones.Length; j++)
{
if (dic.ContainsKey(bones[j].name))
{
mybones.Add(dic[bones[j].name]);
}
}
}
GetComponent<SkinnedMeshRenderer>().bones = mybones.ToArray();
}
// Update is called once per frame
void Update()
{
}
}
