USB HOST DWC3 初始化

https://www.cnblogs.com/newjiang/p/15675746.html

如果dr_mode为device，则初始化gadget。

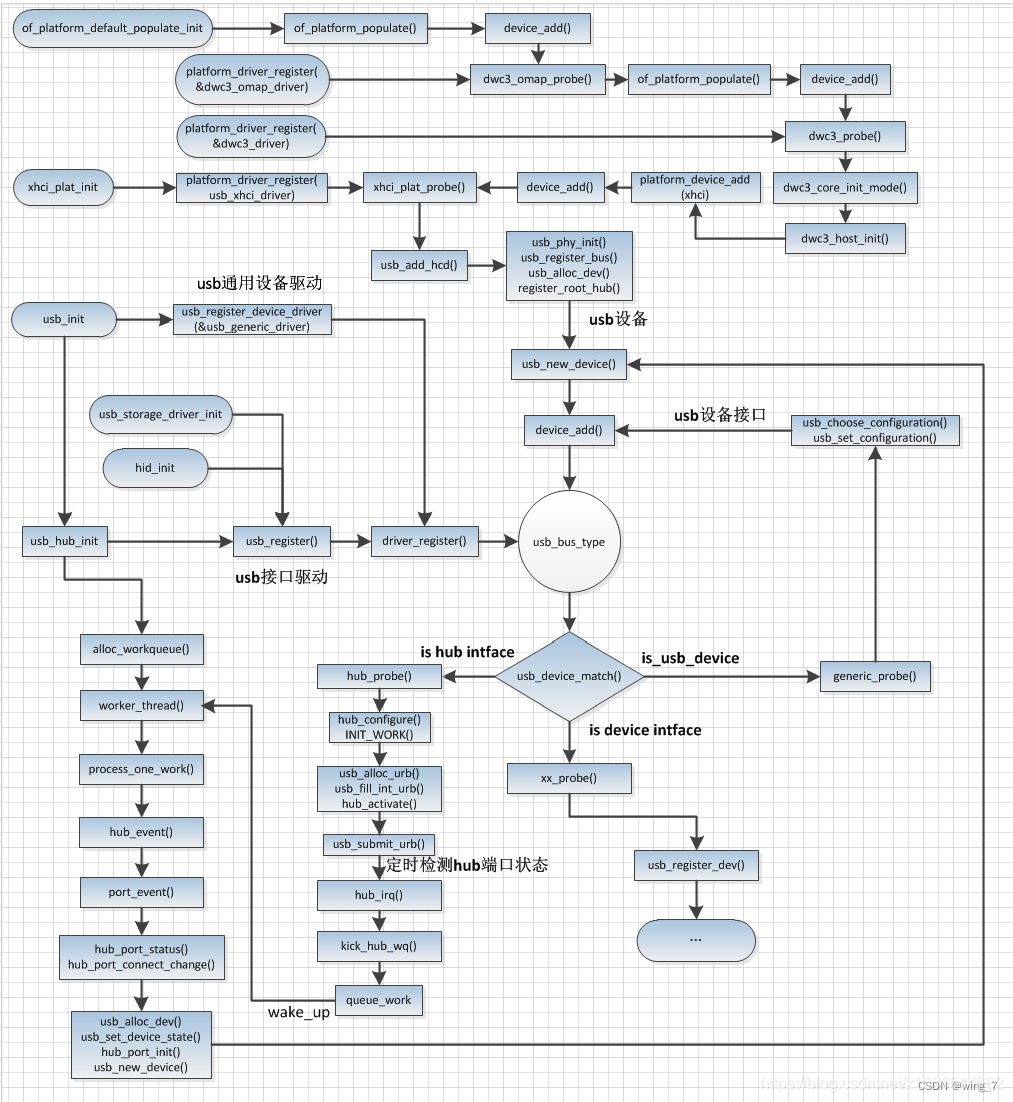

如果dr_mode为host，需要初始化xHCI驱动。在dwc3_host_init函数的最后调用platform_device_add(xhci)添加platform device（xhci-hcd），用于匹配xHCI driver（xHCI driver为platform driver），参照第3节。

如果dr_mode为otg，需要根据extcon来选定一个角色（host或者device）进行初始化，所以还需要extcon驱动的支持，参照第2节

https://blog.youkuaiyun.com/z1026544682/article/details/101023041?utm_medium=distribute.pc_relevant.none-task-blog-2~default~baidujs_utm_term~default-8-101023041-blog-124888836.235^v43^pc_blog_bottom_relevance_base6&spm=1001.2101.3001.4242.5&utm_relevant_index=11

对于设备树节点中的reg属性（地址），通过type=IORESOURCE_MEM来获得；

对于设备树节点中的interrupts属性（中断），通过type=IORESOURCE_IRQ来获得；

怎么获取转换为platform_device的设备树节点中的非标准属性，比如pin（pin=xxx）？

对于根节点"/ { };"，会保存在一个全局变量of_root里面（ device_node类型）。可以通过访问该全局变量（代表根节点），得到任意一个节点，得到节点后可以读出属性。

于是，可以使用内核提供的函数，直接访问device_node，从而读出这些属性。

这些函数可以分为3来：找到节点，找到属性，获取属性的值。这些函数位于内核源码include/linux/of.h。

       /* Tertiary USB port related controller */
        usb2: ssusb@a400000 {
                compatible = "qcom,dwc-usb3-msm";
                reg = <0xa400000 0x100000>;
                reg-names = "core_base";

                iommus = <&apps_smmu 0x0800 0x0>;
                qcom,iommu-dma = "bypass";

                #address-cells = <1>;
                #size-cells = <1>;
                ranges;
                dma-ranges;

                interrupts-extended = <&pdc 127 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 126 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 129 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 128 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 131 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 130 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 133 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 132 IRQ_TYPE_EDGE_RISING>,
                                <&pdc 16 IRQ_TYPE_LEVEL_HIGH>,
                                <&pdc 17 IRQ_TYPE_LEVEL_HIGH>;
                interrupt-names = "dp_hs_phy_irq", "dm_hs_phy_irq",
                                "dp_hs_phy_irq1", "dm_hs_phy_irq1",
                                "dp_hs_phy_irq2", "dm_hs_phy_irq2",
                                "dp_hs_phy_irq3", "dm_hs_phy_irq3",
                                "ss_phy_irq", "ss_phy_irq1";
                qcom,use-pdc-interrupts;

                USB3_GDSC-supply = <&gcc_usb30_mp_gdsc>;
                clocks = <&gcc GCC_USB30_MP_MASTER_CLK>,
                        <&gcc GCC_CFG_NOC_USB3_MP_AXI_CLK>,
                        <&gcc GCC_AGGRE_USB3_MP_AXI_CLK>,
                        <&gcc GCC_USB30_MP_MOCK_UTMI_CLK>,
                        <&gcc GCC_USB30_MP_SLEEP_CLK>,
                        <&gcc GCC_AGGRE_USB_NOC_AXI_CLK>,
                        <&gcc GCC_AGGRE_USB_NOC_NORTH_AXI_CLK>,
                        <&gcc GCC_AGGRE_USB_NOC_SOUTH_AXI_CLK>,
                        <&gcc GCC_SYS_NOC_USB_AXI_CLK>;
                clock-names = "core_clk", "iface_clk", "bus_aggr_clk",
                                "utmi_clk", "sleep_clk", "noc_aggr_clk",
                                "noc_aggr_north_clk", "noc_aggr_south_clk",
                                "noc_sys_clk";

                resets = <&gcc GCC_USB30_MP_BCR>;
                reset-names = "core_reset";

                qcom,core-clk-rate = <200000000>;
                qcom,ignore-wakeup-src-in-hostmode;

                status = "disabled";

                dwc3@a400000 {
                        compatible = "snps,dwc3";
                        reg = <0xa400000 0xd93c>;
                        interrupts = <GIC_SPI 133 IRQ_TYPE_LEVEL_HIGH>;
                        usb-phy = <&usb2_phy2>, <&usb_qmp_phy0>,
                                <&usb2_phy3>, <&usb_qmp_phy1>,
                                <&usb2_phy4>, <&usb_nop_phy>,
                                <&usb2_phy5>, <&usb_nop_phy>;
                        linux,sysdev_is_parent;
                        snps,disable-clk-gating;
                        snps,has-lpm-erratum;
                        snps,hird-threshold = /bits/ 8 <0x0>;
                        snps,ssp-u3-u0-quirk;
                        snps,is-utmi-l1-suspend;
                        snps,dis_u3_susphy_quirk;
                        maximum-speed = "super-speed-plus";
                        dr_mode = "host";
                };

dwc3_probe 匹配compatible = "snps,dwc3";

static int dwc3_probe(struct platform_device *pdev)
{
        struct device           *dev = &pdev->dev;
        struct resource         *res, dwc_res;
        struct dwc3             *dwc;

        int                     ret;

        void __iomem            *regs;
        int                     irq;
        char                    dma_ipc_log_ctx_name[40];

        if (count >= DWC_CTRL_COUNT) {
                dev_err(dev, "Err dwc instance %d >= %d available\n",
                                        count, DWC_CTRL_COUNT);
                ret = -EINVAL;
                return ret;
        }

        dwc = devm_kzalloc(dev, sizeof(*dwc), GFP_KERNEL);
        if (!dwc)
                return -ENOMEM;

        dwc->dev = dev;
        //解析res reg = <0xa400000 0xd93c>;
        res = platform_get_resource(pdev, IORESOURCE_MEM, 0);
        if (!res) {
                dev_err(dev, "missing memory resource\n");
                return -ENODEV;
        }

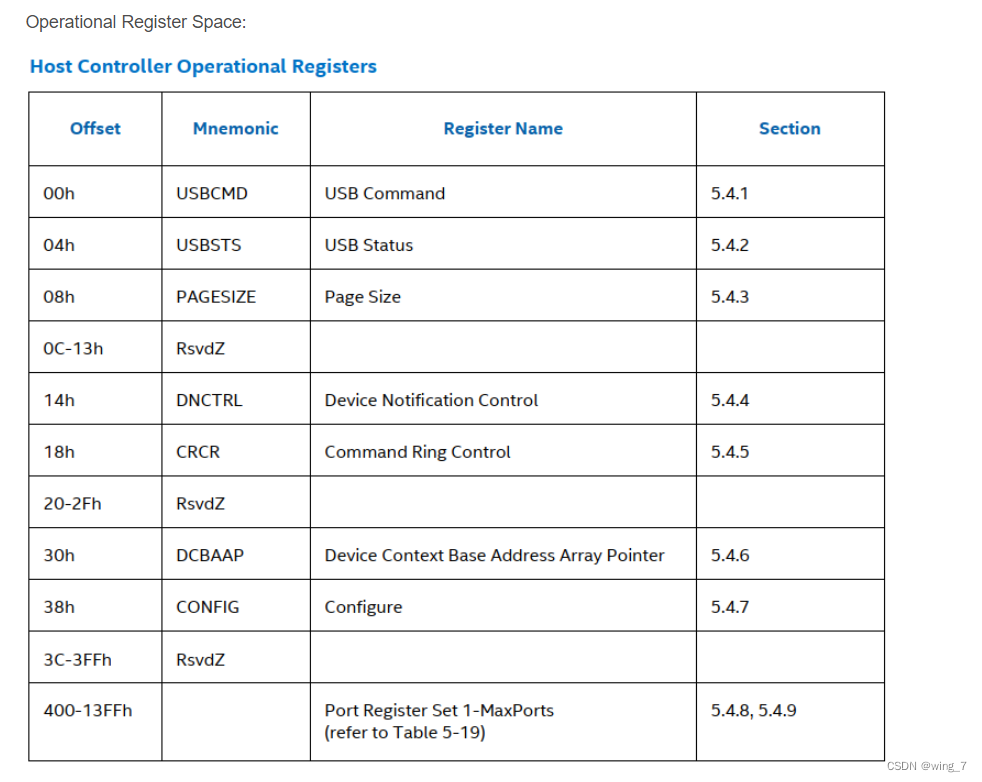

        dwc->reg_phys = res->start;//0xa400000
        dwc->xhci_resources[0].start = res->start;//0xa400000
        dwc->xhci_resources[0].end = dwc->xhci_resources[0].start +
                                        DWC3_XHCI_REGS_END;
        dwc->xhci_resources[0].flags = res->flags;
        dwc->xhci_resources[0].name = res->name;
        //irq = 133
        irq = platform_get_irq(to_platform_device(dwc->dev), 0);

        ret = devm_request_irq(dev, irq, dwc3_interrupt, IRQF_SHARED, "dwc3",
                        dwc);
        if (ret) {
                dev_err(dwc->dev, "failed to request irq #%d --> %d\n",
                                irq, ret);
                return -ENODEV;
        }

        if (notify_event)
                /* will be enabled in dwc3_msm_resume() */
                disable_irq(irq);

        dwc->irq = irq;
        /*
         * Request memory region but exclude xHCI regs,
         * since it will be requested by the xhci-plat driver.
         */
        dwc_res = *res;
        dwc_res.start += DWC3_GLOBALS_REGS_START;
        //获取reg 虚拟地址
        regs = devm_ioremap_resource(dev, &dwc_res);
        if (IS_ERR(regs))
                return PTR_ERR(regs);

        dwc->dwc_wq = alloc_ordered_workqueue("dwc_wq", WQ_HIGHPRI);
        if (!dwc->dwc_wq) {
                dev_err(dev,
                        "%s: Unable to create workqueue dwc_wq\n", __func__);
                goto err0;
        }

        INIT_WORK(&dwc->bh_work, dwc3_bh_work);
        dwc->regs       = regs;
        dwc->regs_size  = resource_size(&dwc_res);

        dwc3_get_properties(dwc);

        dwc->reset = devm_reset_control_array_get(dev, true, true);
        if (IS_ERR(dwc->reset))
                return PTR_ERR(dwc->reset);

        if (dev->of_node) {
                ret = devm_clk_bulk_get_all(dev, &dwc->clks);
                if (ret == -EPROBE_DEFER)
                        goto err0;
                /*
                 * Clocks are optional, but new DT platforms should support all
                 * clocks as required by the DT-binding.
                 */
                if (ret < 0)
                        dwc->num_clks = 0;
                else
                        dwc->num_clks = ret;

        }

        ret = dwc3_extract_num_phys(dwc);
        if (ret) {
                dev_err(dwc->dev, "Unable to extract number of PHYs\n");
                goto err0;
        }

        dwc->usb2_phy = devm_kzalloc(dwc->dev,
                sizeof(*dwc->usb2_phy) * dwc->num_hsphy, GFP_KERNEL);

        dwc->usb3_phy = devm_kzalloc(dwc->dev,
                sizeof(*dwc->usb3_phy) * dwc->num_ssphy, GFP_KERNEL);

        ret = reset_control_deassert(dwc->reset);
        if (ret)
                goto err0;

        ret = clk_bulk_prepare_enable(dwc->num_clks, dwc->clks);
        if (ret)
                goto assert_reset;

        platform_set_drvdata(pdev, dwc);

        init_waitqueue_head(&dwc->wait_linkstate);
        spin_lock_init(&dwc->lock);

        pm_runtime_no_callbacks(dev);
        pm_runtime_set_active(dev);
        if (dwc->enable_bus_suspend) {
                pm_runtime_set_autosuspend_delay(dev,
                        DWC3_DEFAULT_AUTOSUSPEND_DELAY);
                pm_runtime_use_autosuspend(dev);
        }
        pm_runtime_enable(dev);
        pm_runtime_forbid(dev);

        ret = dwc3_alloc_event_buffers(dwc, DWC3_EVENT_BUFFERS_SIZE);
        if (ret) {
                dev_err(dwc->dev, "failed to allocate event buffers\n");
                ret = -ENOMEM;
                goto err1;
        }

        ret = dwc3_alloc_scratch_buffers(dwc);
        if (ret)
                goto err2;

        dwc3_debugfs_init(dwc);
        if (!notify_event) {
                ret = dwc3_core_init(dwc);
                if (ret) {
                        if (ret != -EPROBE_DEFER)
                                dev_err(dev, "failed to initialize core: %d\n",
                                                ret);
                        goto err3;
                }

                ret = dwc3_event_buffers_setup(dwc);
                if (ret) {
                        dev_err(dwc->dev, "failed to setup event buffers\n");
                        goto err3;
                }

                ret = dwc3_core_init_mode(dwc);
                if (ret) {
                        dwc3_event_buffers_cleanup(dwc);
                        goto err3;
                }
        } else if (dwc->dr_mode == USB_DR_MODE_OTG ||
                dwc->dr_mode == USB_DR_MODE_PERIPHERAL) {
                ret = dwc3_gadget_init(dwc);
                if (ret) {
                        dev_err(dwc->dev, "gadget init failed %d\n", ret);
                        goto err3;
                }
        }

        dwc->dwc_ipc_log_ctxt = ipc_log_context_create(NUM_LOG_PAGES,
                                        dev_name(dwc->dev), 0);
        if (!dwc->dwc_ipc_log_ctxt)
                dev_dbg(dwc->dev, "ipc_log_ctxt is not available\n");
        snprintf(dma_ipc_log_ctx_name, sizeof(dma_ipc_log_ctx_name),
                                        "%s.ep_events", dev_name(dwc->dev));
        dwc->dwc_dma_ipc_log_ctxt = ipc_log_context_create(2 * NUM_LOG_PAGES,
                                                dma_ipc_log_ctx_name, 0);
        if (!dwc->dwc_dma_ipc_log_ctxt)
                dev_dbg(dwc->dev, "ipc_log_ctxt for ep_events is not available\n");

        dwc3_instance[count] = dwc;
        dwc->index = count;
        count++;

        pm_runtime_allow(dev);
        return 0;

err3:
        dwc3_debugfs_exit(dwc);
        dwc3_free_scratch_buffers(dwc);
err2:
        dwc3_free_event_buffers(dwc);
err1:
        pm_runtime_allow(&pdev->dev);
        pm_runtime_disable(&pdev->dev);

        clk_bulk_disable_unprepare(dwc->num_clks, dwc->clks);
assert_reset:
        reset_control_assert(dwc->reset);
        destroy_workqueue(dwc->dwc_wq);
err0:
        return ret;
}

dwc3_core_init_mode

static int __maybe_unused dwc3_core_init_mode(struct dwc3 *dwc)
{
        struct device *dev = dwc->dev;
        int ret;

        switch (dwc->dr_mode) {
        case USB_DR_MODE_PERIPHERAL:
                dwc3_set_prtcap(dwc, DWC3_GCTL_PRTCAP_DEVICE);

                if (dwc->usb2_phy[0])
                        otg_set_vbus(dwc->usb2_phy[0]->otg, false);
                phy_set_mode(dwc->usb2_generic_phy, PHY_MODE_USB_DEVICE);
                phy_set_mode(dwc->usb3_generic_phy, PHY_MODE_USB_DEVICE);

                ret = dwc3_gadget_init(dwc);
                if (ret) {
                        if (ret != -EPROBE_DEFER)
                                dev_err(dev, "failed to initialize gadget\n");
                        return ret;
                }

                dwc->vbus_active = true;
                break;
        case USB_DR_MODE_HOST:
                dwc3_set_prtcap(dwc, DWC3_GCTL_PRTCAP_HOST);

                if (dwc->usb2_phy[0])
                        otg_set_vbus(dwc->usb2_phy[0]->otg, true);
                phy_set_mode(dwc->usb2_generic_phy, PHY_MODE_USB_HOST);
                phy_set_mode(dwc->usb3_generic_phy, PHY_MODE_USB_HOST);

                ret = dwc3_host_init(dwc);
                if (ret) {
                        if (ret != -EPROBE_DEFER)
                                dev_err(dev, "failed to initialize host\n");
                        return ret;
                }
                break;
        case USB_DR_MODE_OTG:
                INIT_WORK(&dwc->drd_work, __dwc3_set_mode);
                ret = dwc3_drd_init(dwc);
                if (ret) {
                        if (ret != -EPROBE_DEFER)
                                dev_err(dev, "failed to initialize dual-role\n");
                        return ret;
                }
                break;
        default:
                dev_err(dev, "Unsupported mode of operation %d\n", dwc->dr_mode);
                return -EINVAL;
        }

        return 0;
}

dwc3_host_init

int dwc3_host_init(struct dwc3 *dwc)
{
        struct property_entry   props[6];
        struct platform_device  *xhci;
        int                     ret, irq;
        struct resource         *res;
        struct platform_device  *dwc3_pdev = to_platform_device(dwc->dev);
        int                     prop_idx = 0;
        struct property_entry   imod_prop;
        //获取中断号133
        irq = dwc3_host_get_irq(dwc);
        if (irq < 0)
                return irq;

        res = platform_get_resource_byname(dwc3_pdev, IORESOURCE_IRQ, "host");
        if (!res)
                res = platform_get_resource_byname(dwc3_pdev, IORESOURCE_IRQ,
                                "dwc_usb3");
        if (!res)
                // //获取中断寄存器地址interrupts
                res = platform_get_resource(dwc3_pdev, IORESOURCE_IRQ, 0);
        if (!res)
                return -ENOMEM;

        dwc->xhci_resources[1].start = irq;
        dwc->xhci_resources[1].end = irq;
        dwc->xhci_resources[1].flags = res->flags;
        dwc->xhci_resources[1].name = res->name;
       //分配一个name=xhci-hcd platform_device结构提初始化
        xhci = platform_device_alloc("xhc
