代数律动组合导航固件升级指导

AlgoTech Update FireWare Guide

Suitable for machine:AlgoT1-3、AlgoT1-Mono、AlgoT1-Bino、ATmini

1.Ubuntu

1)Ensure Net Connected

Command:

ping 192.168.1.168

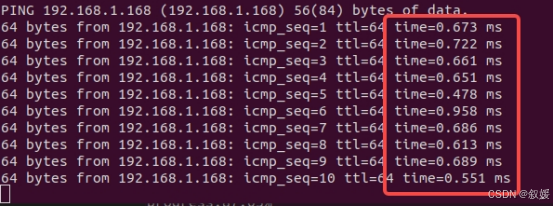

ping success means the machine is connected to the computer

2)Ensure Machine Can Response

Command:

echo "config" | nc 192.168.1.168 9008

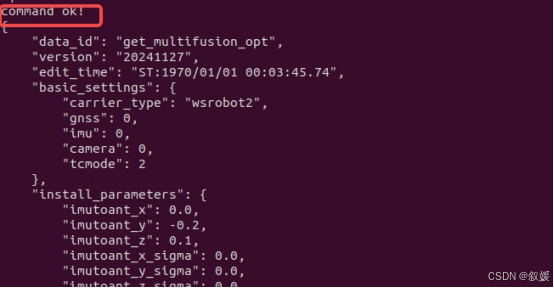

The machine returns “command ok” indicates that it is normal:

3)Enter upgrade mode

Command:

echo "config updatemode algofireware" | nc 192.168.1.168 9008

The machine returns “command ok” and “UpdateAlgoFireWareReady!” indicates that it is normal:

4)Start upgrade

Command:

nc 192.168.1.168 9008 < ./AlgoT1-Mono_V1.0.2.20241219142454.bin

Notice:

this terminal must open at folder of "AlgoT1-Mono_V1.0.2.20241219142454.bin",because "./AlgoT1-Mono_V1.0.2.20241219142454.bin" means this file under current folder.

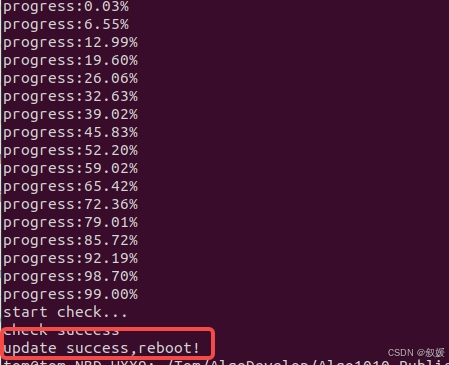

The machine returns progress and “update success,reboot!” indicates upgrade success:
