XILINX原语之——xpm_fifo_sync(灵活设置位宽、深度)

调用xpm_fifo_sync原语和使用FIFO IP盒基本一致。使用xpm_fifo_sync优势:可以在代码中更改数据位宽和深度,不用再重新生成FIFO IP核。

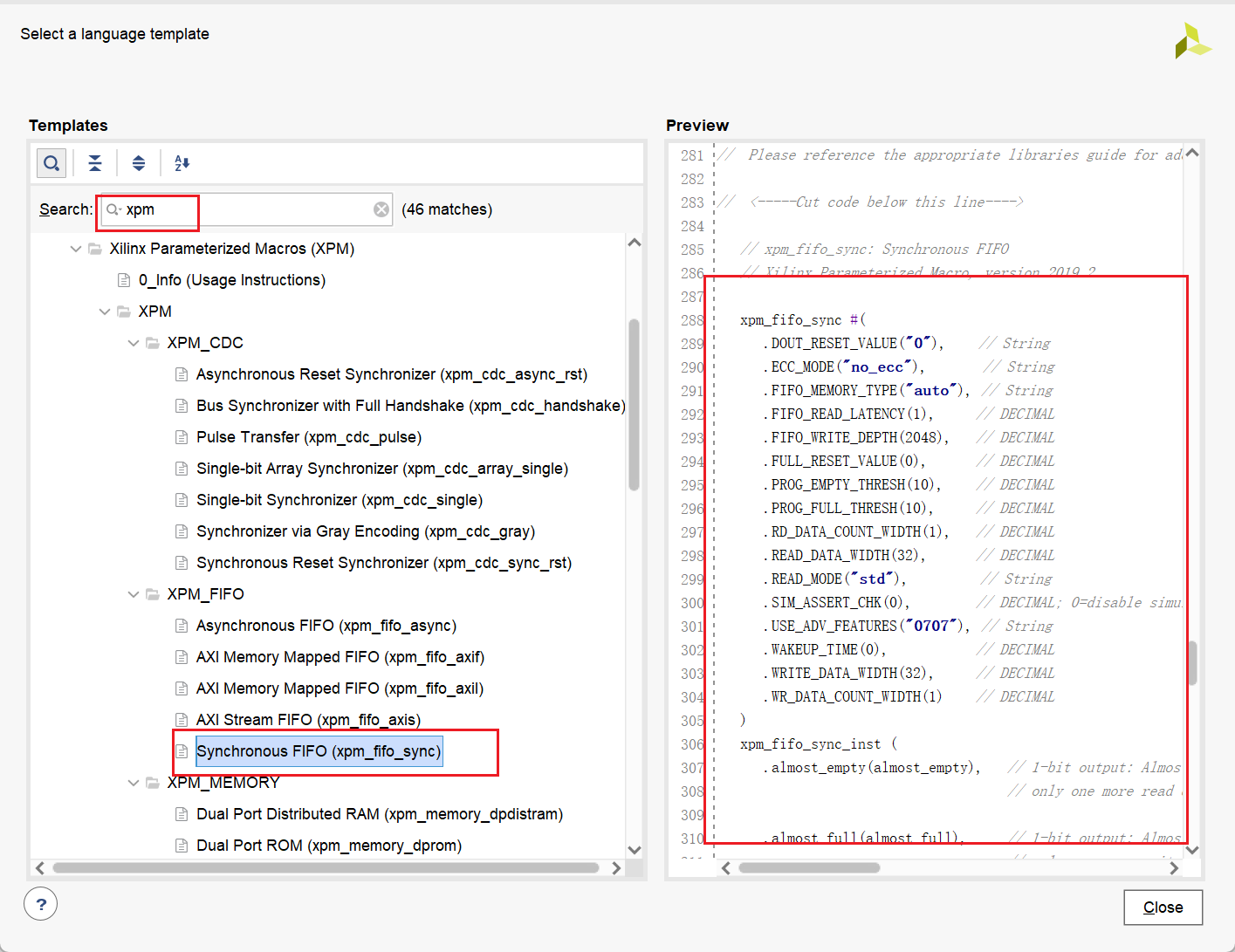

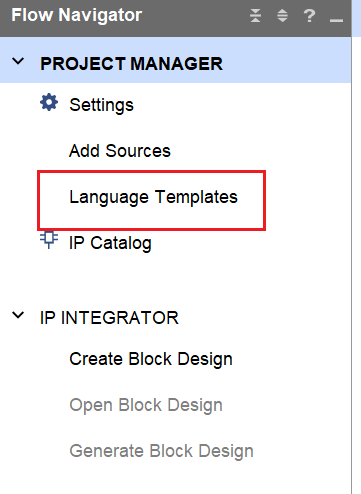

原语打开方法:

将引脚设置成和调用FIFO IP一致,例化后:

module 	SYNC_FIFO#(
	parameter 				READ_MODE	= 	"fwft",	//"std"- standard read mode;"fwft"- First-Word-Fall-Through read mode
	parameter 	integer 	DATA_WIDTH	= 	32,		//1 to 4096
	parameter 	integer 	DATA_DEPTH	= 	2048,	//16 to 4194304
	parameter 	integer 	READ_LATENCY= 	0		//0 to 100  "fwft":0; "std":1
)(
	input 	wire 								clk,
	input 	wire 								rst,
	input 	wire [DATA_WIDTH-1 : 0] 			din,
	input 	wire 								wr_en,
	input 	wire	 							rd_en,
	output 	wire [DATA_WIDTH-1 : 0] 			dout,
	output 	wire 								full,
	output 	wire 								empty,
	output 	wire [$clog2(DATA_DEPTH) : 0] 		data_count
);

	wire	[$clog2(DATA_DEPTH) : 0] 		rd_data_count;
	wire	[$clog2(DATA_DEPTH) : 0] 		wr_data_count;
	assign									data_count=	wr_data_count;


	wire		sync_rst;
	xpm_cdc_sync_rst #(
		.DEST_SYNC_FF	(3			),
		.INIT			(1			),
		.INIT_SYNC_FF	(0			),
		.SIM_ASSERT_CHK	(0			)
	)
	u_sync_rst(
		.dest_rst		(sync_rst	),
		.dest_clk		(clk		),
		.src_rst		(rst		)
	);

	xpm_fifo_sync #(
		.DOUT_RESET_VALUE("0"),    // String
		.ECC_MODE("no_ecc"),       // String
		.FIFO_MEMORY_TYPE("block"), // String"auto", "block", "distributed", or "ultra";
		.FIFO_READ_LATENCY(READ_LATENCY),// DECIMAL 0 to 100
		.FIFO_WRITE_DEPTH(DATA_DEPTH),   // DECIMAL 16 to 4194304
		.FULL_RESET_VALUE(0),      // DECIMAL
		.PROG_EMPTY_THRESH(10),    // DECIMAL
		.PROG_FULL_THRESH(10),     // DECIMAL
		.RD_DATA_COUNT_WIDTH($clog2(DATA_DEPTH)+1),   // DECIMAL 1 to 23
		.READ_DATA_WIDTH(DATA_WIDTH),      // DECIMAL
		.READ_MODE(READ_MODE),         // String//"std"- standard read mode;"fwft"- First-Word-Fall-Through read mode
		.SIM_ASSERT_CHK(0),        // DECIMAL; 0=disable simulation messages, 1=enable simulation messages
		.USE_ADV_FEATURES("0707"), // String
		.WAKEUP_TIME(0),           // DECIMAL
		.WRITE_DATA_WIDTH(DATA_WIDTH),     // DECIMAL
		.WR_DATA_COUNT_WIDTH($clog2(DATA_DEPTH)+1)    // DECIMAL 1 to 23
   )
   u_xpm_fifo_sync(
////OUTPUT
		.almost_empty		(),
		.almost_full		(),
		.data_valid			(),
		.dbiterr			(),
		.dout				(dout		),
		.empty				(empty		),
		.full				(full		),
		.overflow			(),
		.prog_empty			(),
		.prog_full			(),
		.rd_data_count		(rd_data_count),
		.rd_rst_busy		(),
		.sbiterr			(),
		.underflow			(),
		.wr_ack				(),
		.wr_data_count		(wr_data_count),
		.wr_rst_busy		(),
//INPUT
		.din				(din		),
		.injectdbiterr		(0			),
		.injectsbiterr		(0			),
		.rd_en				(rd_en		),
		.rst				(sync_rst	),
		.sleep				(0			),
		.wr_clk				(clk		),
		.wr_en				(wr_en		)
   );
endmodule

同时使用IP生成一个FIFO进行仿真对比。

一、"fwft"模式(First-Word-Fall-Through read mode)

生成的FIFO IP同样设置为fwft模式,仿真代码如下:

`timescale 1ns / 1ps

module tb_syncfifo();
	parameter 				READ_MODE	= 	"fwft";//"std"- standard read mode;"fwft"- First-Word-Fall-Through read mode
	parameter 	integer 	DATA_WIDTH	= 	32;
	parameter 	integer 	DATA_DEPTH	= 	2048;

	reg 								clk;
	reg 								rst;
	reg [DATA_WIDTH-1 : 0] 				din;
	reg 								wr_en;
	reg	 								rd_en;
	wire [DATA_WIDTH-1 : 0] 			dout;
	wire 								full;
	wire 								empty;
	wire [$clog2(DATA_DEPTH) : 0] 		data_count;


	wire [31 : 0] 						dout_IP;
	wire 								full_IP;
	wire 								empty_IP;
	wire [11 : 0] 						data_count_IP;
	SYNC_FIFO#(
		.READ_MODE				(READ_MODE),
		.DATA_WIDTH				(DATA_WIDTH),
		.DATA_DEPTH				(DATA_DEPTH),
		.READ_LATENCY			(0			)
	)u_scfifo(
		.clk					(clk		),
		.rst					(rst		),
		.din					(din		),
		.wr_en					(wr_en		),
		.rd_en					(rd_en		),
		.dout					(dout		),
		.full					(full		),
		.empty					(empty		),
		.data_count    			(data_count)
	);


	wire		sync_rst;
	xpm_cdc_sync_rst #(
		.DEST_SYNC_FF	(3			),
		.INIT			(1			),
		.INIT_SYNC_FF	(0			),
		.SIM_ASSERT_CHK	(0			)
	)
	u_sync_rst(
		.dest_rst		(sync_rst	),
		.dest_clk		(clk		),
		.src_rst		(rst		)
	);

	SCFIFO_32W_2048D		u_IP_fifo(
		.clk					(clk		),
		.srst					(sync_rst	),
		.din					(din		),
		.wr_en					(wr_en		),
		.rd_en					(rd_en		),
		.dout					(dout_IP	),
		.full					(full_IP	),
		.empty					(empty_IP	),
		.data_count    			(data_count_IP)
	);

initial begin
	clk<=0;
	rst<=1;
#2000
	rst<=0;
end


	always #5 clk<=!clk;

	reg		[31:0]		cnt;
	always @(posedge clk or posedge rst)
	begin
		if (rst) begin
			cnt		<= 0;
		end else begin
			if(cnt>=6000)
				cnt<=0;
			else
				cnt<=cnt+1;
		end
	end
	always @(*)
	begin
		if (rst) begin
			wr_en		<= 0;
		end else begin
			if(cnt>200&&cnt<3000 && full==0)begin
				wr_en		<= 1;
			end else
				wr_en		<= 0;
		end
	end


	always @(posedge clk or posedge rst)
	begin
		if (rst) begin
			din<=0;
		end else begin
			if(cnt>200&&cnt<3000 && full==0)begin
				din			<=din+1;
			end
		end
	end

	always @(*)
	begin
		if (rst) begin
			rd_en		<= 0;
		end else begin
			if(cnt>3000 && empty==0)begin
				rd_en		<= 1;
			end else
				rd_en		<= 0;
		end
	end

endmodule

仿真波形如下:

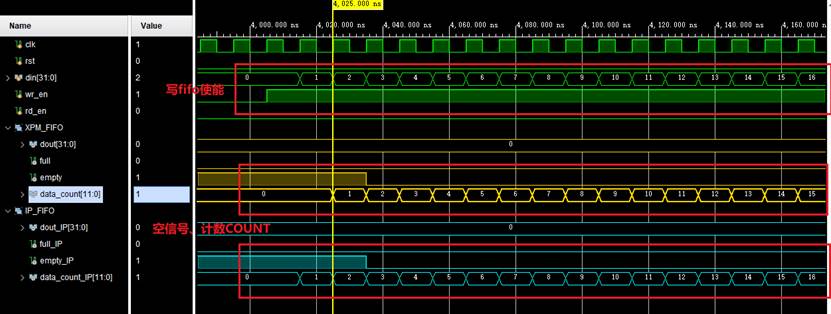

1、写FIFO

FIFO空信号(empty):调用XPM原语和使用IP核一致,都在写入数据后延迟3个周期拉低;

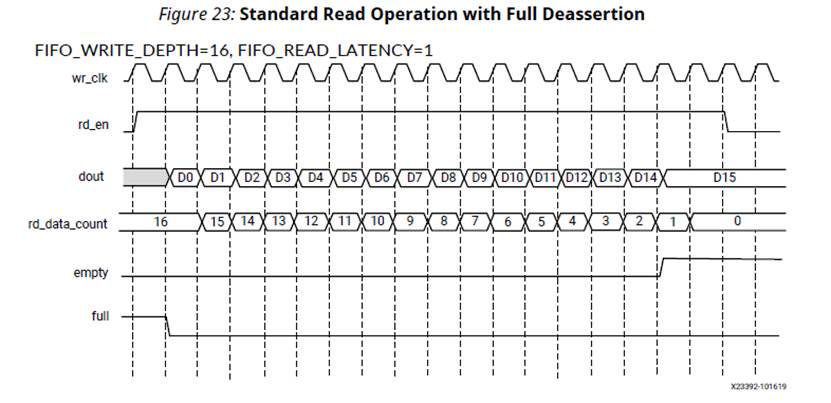

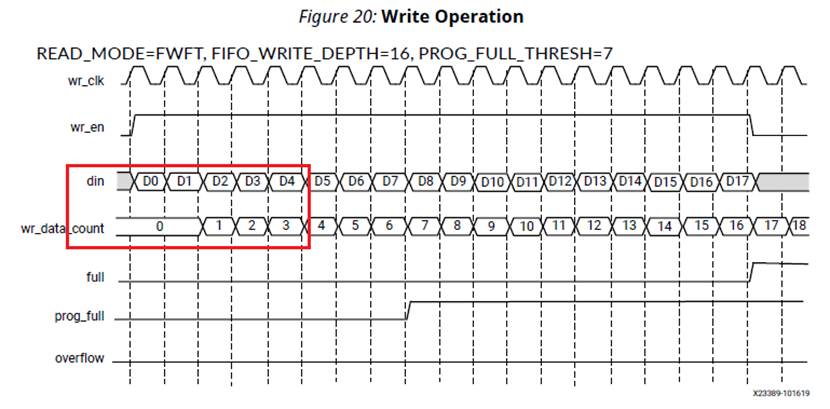

FIFO计数信号(count):调用XPM原语计数延迟2个周期(与手册一致),调用IP核计数延迟1个周期。

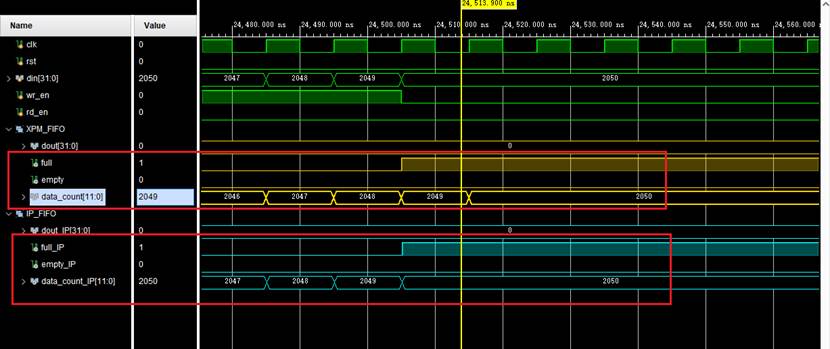

FIFO满信号(full):调用XPM原语和使用IP核一致,都在写入2048+2个数据后拉高;

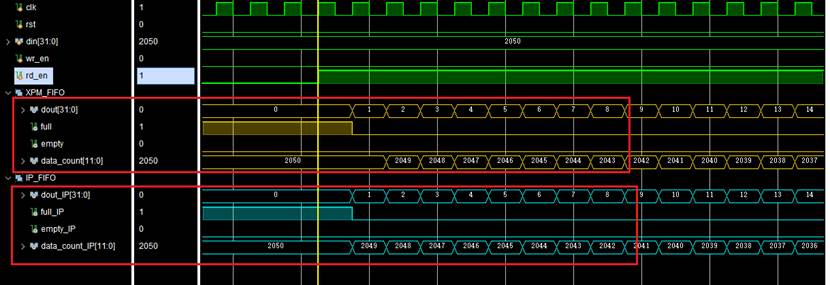

2、读FIFO

FIFO满信号(full):调用XPM原语和使用IP核一致,都在读取数据后1个时钟周期后拉低;

FIFO计数信号(count):调用XPM原语计数延迟2个周期,调用IP核计数延迟1个周期。

FIFO输出信号(dout): 调用XPM原语和使用IP核一致,rd_en使能时输出数据,无时钟延迟。

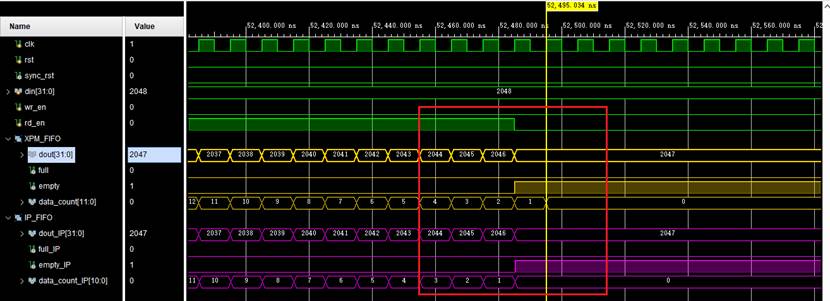

FIFO空信号(empty):调用XPM原语和使用IP核一致,都在读完数据后1个周期拉高;

二、"std"模式(standard read mode)

生成的FIFO IP同样设置为STD模式,仿真代码如下:

`timescale 1ns / 1ps

module tb_syncfifo_std();
	parameter 				READ_MODE	= 	"std";//"std"- standard read mode;"fwft"- First-Word-Fall-Through read mode
	parameter 	integer 	DATA_WIDTH	= 	32;
	parameter 	integer 	DATA_DEPTH	= 	2048;

	reg 								clk;
	reg 								rst;
	reg [DATA_WIDTH-1 : 0] 				din;
	reg 								wr_en;
	reg	 								rd_en;
	wire [DATA_WIDTH-1 : 0] 			dout;
	wire 								full;
	wire 								empty;
	wire [$clog2(DATA_DEPTH) : 0] 		data_count;


	wire [31 : 0] 						dout_IP;
	wire 								full_IP;
	wire 								empty_IP;
	wire [10 : 0] 						data_count_IP;
	SYNC_FIFO#(
		.READ_MODE				(READ_MODE),
		.DATA_WIDTH				(DATA_WIDTH),
		.DATA_DEPTH				(DATA_DEPTH),
		.READ_LATENCY			(1			)
	)u_scfifo(
		.clk					(clk		),
		.rst					(rst		),
		.din					(din		),
		.wr_en					(wr_en		),
		.rd_en					(rd_en		),
		.dout					(dout		),
		.full					(full		),
		.empty					(empty		),
		.data_count    			(data_count)
	);

	wire		sync_rst;
	xpm_cdc_sync_rst #(
		.DEST_SYNC_FF	(3			),
		.INIT			(1			),
		.INIT_SYNC_FF	(0			),
		.SIM_ASSERT_CHK	(0			)
	)
	u_sync_rst(
		.dest_rst		(sync_rst	),
		.dest_clk		(clk		),
		.src_rst		(rst		)
	);

	SCFIFO_32W_2048D_STD		u_IP_fifo(
		.clk					(clk		),
		.srst					(sync_rst	),
		.din					(din		),
		.wr_en					(wr_en		),
		.rd_en					(rd_en		),
		.dout					(dout_IP	),
		.full					(full_IP	),
		.empty					(empty_IP	),
		.data_count    			(data_count_IP)
	);


initial begin
	clk<=0;
	rst<=1;
#2000
	rst<=0;
end

	always #5 clk<=!clk;

	reg		[31:0]		cnt;
	always @(posedge clk or posedge rst)
	begin
		if (rst) begin
			cnt		<= 0;
		end else begin
			if(cnt>=6000)
				cnt<=0;
			else
				cnt<=cnt+1;
		end
	end
	always @(*)
	begin
		if (rst) begin
			wr_en		<= 0;
		end else begin
			if(cnt>200&&cnt<3000 && full==0)begin
				wr_en		<= 1;
			end else
				wr_en		<= 0;
		end
	end


	always @(posedge clk or posedge rst)
	begin
		if (rst) begin
			din<=0;
		end else begin
			if(cnt>200&&cnt<3000 && full==0)begin
				din			<=din+1;
			end
		end
	end

	always @(*)
	begin
		if (rst) begin
			rd_en		<= 0;
		end else begin
			if(cnt>3000 && empty==0)begin
				rd_en		<= 1;
			end else
				rd_en		<= 0;
		end
	end

endmodule

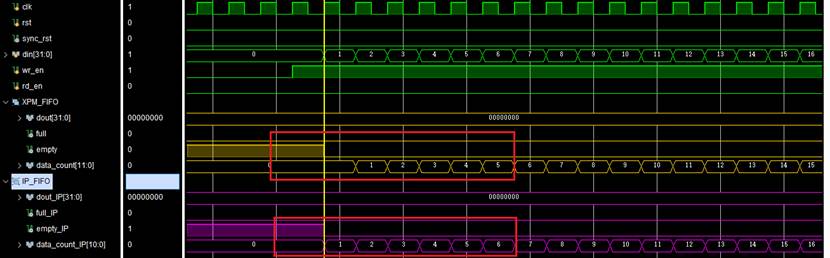

1、写FIFO

FIFO空信号(empty):调用XPM原语和使用IP核一致,都在写入数据后1个周期拉低;

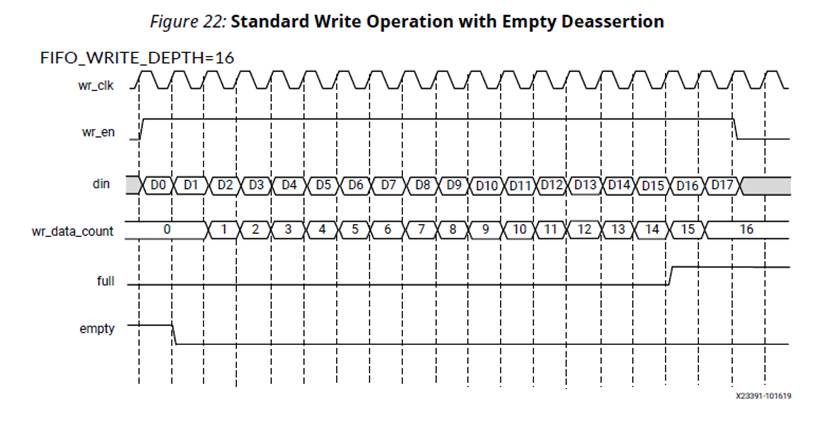

FIFO计数信号(count):调用XPM原语计数延迟2个周期(与手册一致),调用IP核计数延迟1个周期。

FIFO满信号(full):调用XPM原语和使用IP核一致,都在写入2048个数据后拉高;

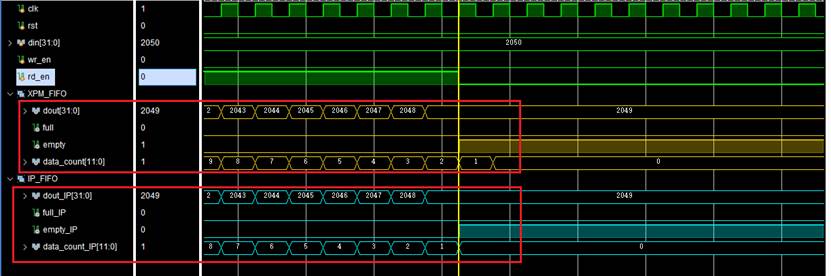

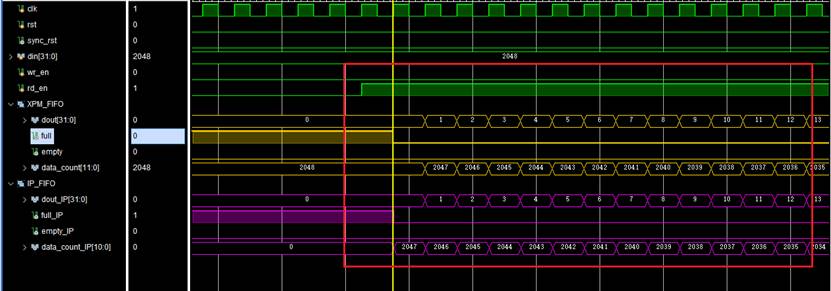

2、读FIFO

FIFO满信号(full):调用XPM原语和使用IP核一致,都在读取数据后1个时钟周期后拉低;

FIFO计数信号(count):调用XPM原语计数延迟2个周期,调用IP核计数延迟1个周期。

FIFO输出信号(dout): 调用XPM原语和使用IP核一致,rd_en使能后下一个时钟周期输出数据,1个时钟周期延迟。

FIFO空信号(empty):调用XPM原语和使用IP核一致,都在读完2048个数据后1个周期拉高;
