SBC-T113S产品特性：
- 采用Allwinner公司Cortex-A7双核T113-S3/S4处理器，运行最高速度为1.2GHZ；
- 内置64-bit XuanTie C906 RISC-V协处理器(仅T113-S4支持)；
- 支持JPEG/MJPEG视频编码，最大分辨率1080p@60fps；支持多格式1080P@60fps视频解码 (H.265,H.264, MPEG-1/2/4)；
- 支持RGB666/LVDS/MIPI-DSI，分辨率最高1920x1080；
- 支持128-256M Bytes DDR3 SDRAM,其中T113-S3内置128MB;T113-S4内置256MB；
- 支持SPI NAND存储和启动(默认：256MB)或者EMMC启动(默认：4GB,最大32GB)；
- 支持一路USB2.0 OTG(设计为TYPE-A接口)；支持二路USB2.0 HOST;
- 支持七路RS232通信或者6路RS232和1路RS485(非隔离)；
- 支持一路CAN BUS通信（非隔离）；
- 支持一路10/100M以太网；
- 稳定的操作系统的支持，可预装LINUX 5.4（Preempt）或者OpenWRT；
- 经典尺寸主板，尺寸为120*100MM；

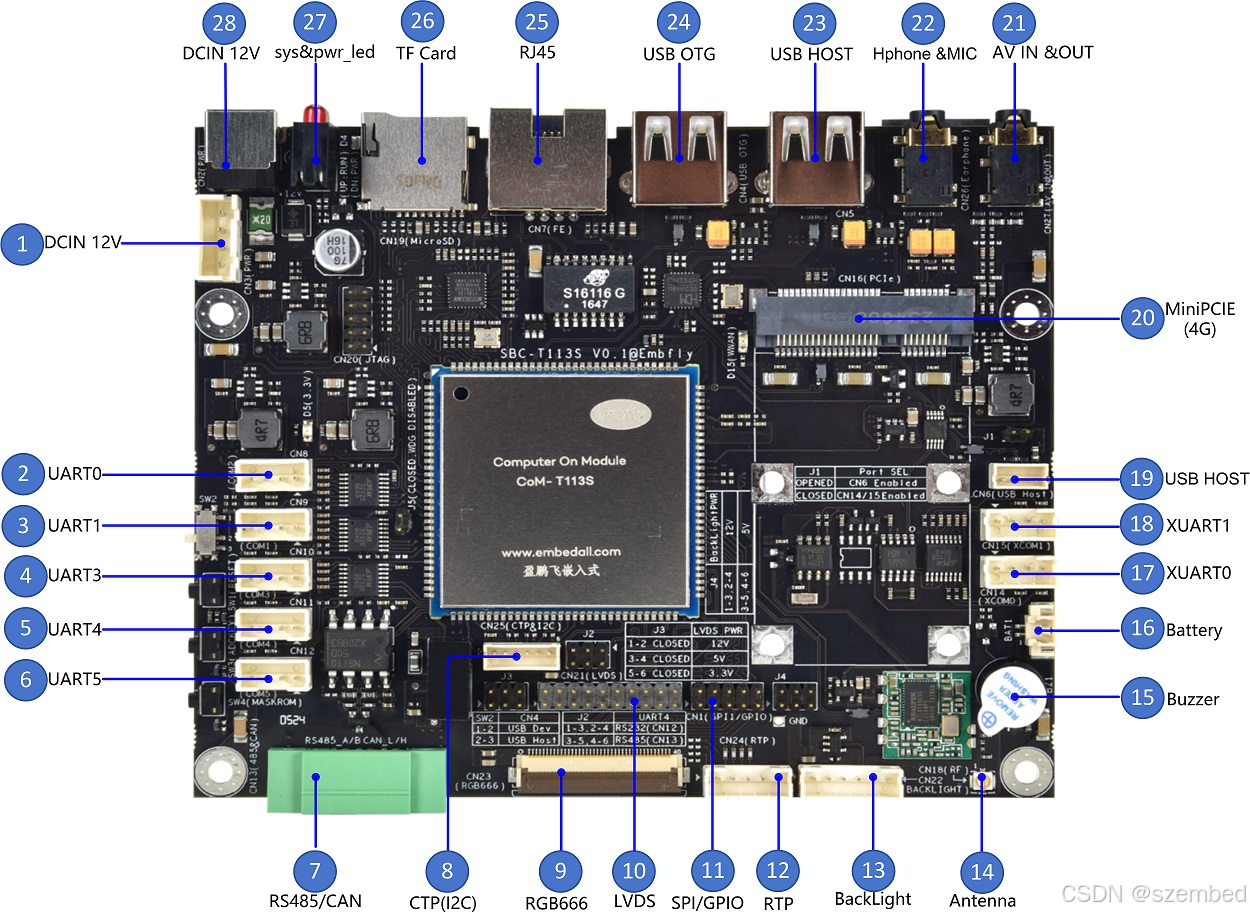

SBC-T113S产品功能评估图：
蓝牙测试：
SBC-T113S主板使用的是RTL8723DU Wi-Fi & BT模块，该模块支持BT的版本为BT4.2。该模块通过USB信号与SBC-T113S主板通讯。
判断蓝牙是否正常工作：
首先确认bt模块的驱动是否已经正常工作，通过lsmod来判断，如下信息中表示8723du的bt已经正常工作。
root@T113-Embfly:/userdata# lsmod
root@T113-Embfly:~# lsmod
Module Size Used by Not tainted
8723du 2162688 0
rtk_btusb 65536 0
sunxi_ce 57344 0
ch343 24576 0
cdc_acm 24576 0
hid_multitouch 20480 0
如果通过lsmod指令未发现可用的bt驱动（rtk_btusb），则可以通过insmod指令进行驱动插入，bt的驱动在/lib/modules/5.4.61/目录。另外，bt的驱动还需要两个配置文件，当bt驱动加载时，务必保证rtl8723du_config 和rtl8723du_fw两个文件在/lib/firmware/的目录下，否则bt驱动加载不成功。驱动加载正确的信息如下：
root@T113-Embfly:# insmod rtk_btusb.ko
[ 7964.303169] rtk_btusb: Realtek Bluetooth USB driver ver 3.1.32e1d0b.20210819-170430
[ 7964.311850] rtk_btcoex: rtk_btcoex_init: version: 1.2
[ 7964.317513] rtk_btcoex: create workqueue
[ 7964.322343] rtk_btcoex: alloc buffers 1408, 2240 for ev and l2
[ 7964.329075] rtk_btusb: btusb_probe intf->cur_altsetting->desc.bInterfaceNumber 0
[ 7964.337365] rtk_btusb: btusb_probe can_wakeup 1, may wakeup 0
[ 7964.343827] rtk_btusb: patch_add
[ 7964.347451] rtk_btusb: auto suspend is disabled
[ 7964.352568] rtk_btusb: pid = 0xd723
[ 7964.356478] rtk_btusb: patch_add: Reset gEVersion to 0xff
[ 7964.362590] rtk_btusb: set_bit(HCI_QUIRK_RESET_ON_CLOSE, &hdev->quirks);
[ 7964.370965] rtk_btusb: btusb_probe: done
[ 7964.375679] usbcore: registered new interface driver rtk_btusb
[ 7964.377514] rtk_btusb: btusb_open start
[ 7964.386578] rtk_btusb: btusb_open hdev->promisc ==0
[ 7964.392129] rtk_btusb: download_patch start
root@ok113i:/home/forlinx# [ 7964.396839] rtk_btusb: chip type value: 0x71
[ 7964.403997] rtk_btusb: HCI reset.
[ 7964.416814] rtk_btusb: read_ver_rsp->lmp_subver = 0x8723
[ 7964.423054] rtk_btusb: read_ver_rsp->hci_rev = 0xd
[ 7964.428449] rtk_btusb: patch_entry->lmp_sub = 0x8723
[ 7964.434017] rtk_btusb: load_firmware start
[ 7964.438638] rtk_btusb: lmp_version = 0x8723
[ 7964.443325] rtk_btusb: config filename rtl8723du_config
[ 7964.449952] rtk_btusb: no bdaddr file /opt/bdaddr
[ 7964.455252] rtk_btusb: Origin cfg len 22
[ 7964.459688] rtk_btusb: 55 ab 23 87 10 00 d9 00 01 0f e4 00 01 08 8d 00
[ 7964.467005] rtk_btusb: 01 fa 8f 00 01 bf
[ 7964.471497] rtk_btusb: New cfg len 22
[ 7964.475600] rtk_btusb: 55 ab 23 87 10 00 d9 00 01 0f e4 00 01 08 8d 00
[ 7964.482969] rtk_btusb: 01 fa 8f 00 01 bf
[ 7964.487399] rtk_btusb: fw name is rtl8723du_fw
[ 7964.492801] rtk_btusb: This is not 8723a, use new patch style!
[ 7964.499374] rtk_btusb: rtk_get_eversion: gEVersion 255
[ 7964.505815] rtk_btusb: eversion->status = 0x0, eversion->version = 0x2
[ 7964.513566] rtk_btusb: load_firmware: New gEVersion 2
[ 7964.519331] rtk_btusb: rtk_get_fw_project_id: opcode 0, len 1, data 9
[ 7964.526565] rtk_btusb: lmp_version is 8723, project_id is 8723, match!
[ 7964.533909] rtk_btusb: fw_version = 0x82a8a133
[ 7964.538921] rtk_btusb: number_of_total_patch = 3
[ 7964.544092] rtk_btusb: chipID 3
[ 7964.547606] rtk_btusb: patch_length 0x889c
[ 7964.552220] rtk_btusb: start_offset 0x00004940
[ 7964.557198] rtk_btusb: Svn version: -1433992835
[ 7964.562301] rtk_btusb: Coexistence: BTCOEX_20210106-3b3b
[ 7964.568274] rtk_btusb: buf_len = 0x88b2
[ 7964.572647] rtk_btusb: fw: exists, config file: exists
[ 7964.578430] rtk_btusb: load_firmware done
[ 7964.582960] rtk_btusb: download_data start
[ 7964.855824] rtk_btusb: download_data done
[ 7964.860346] rtk_btusb: HCI reset.
[ 7964.873812] rtk_btusb: read_ver_rsp->lmp_subver = 0xa133
[ 7964.880054] rtk_btusb: read_ver_rsp->hci_rev = 0x82a8
[ 7964.885730] rtk_btusb: patch_entry->lmp_sub = 0x8723
[ 7964.891337] rtk_btusb: Rtk patch end 0
[ 7964.895538] rtk_btusb: btusb_open set HCI_RUNNING
[ 7964.900945] rtk_btcoex: Open BTCOEX
[ 7964.904856] rtk_btusb: btusb_open end
[ 7964.911832] rtk_btcoex: BTCOEX hci_rev 0x82a8
[ 7964.916883] rtk_btcoex: BTCOEX lmp_subver 0xa133
[ 7964.943829] rtk_btusb: btusb_notify: hci0 evt 3
[ 7967.007992] rtk_btusb: btusb_flush add delay
[ 7967.022915] rtk_btusb: btusb_close
[ 7967.045574] rtk_btcoex: Close BTCOEX
[ 7967.049615] rtk_btcoex: -x
此时，再一次查看系统的蓝牙设备信息会打印如下：
root@T113-Embfly:# hciconfig -a
hci0: Type: Primary Bus: USB
BD Address: 2C:C3:E6:67:4D:3C ACL MTU: 1021:8 SCO MTU: 255:12
DOWN
RX bytes:584 acl:0 sco:0 events:30 errors:0
TX bytes:369 acl:0 sco:0 commands:30 errors:0
Features: 0xff 0xff 0xff 0xfa 0xdb 0xbd 0x7b 0x87
Packet type: DM1 DM3 DM5 DH1 DH3 DH5 HV1 HV2 HV3
Link policy: RSWITCH HOLD SNIFF PARK
Link mode: SLAVE ACCEPT
检查完成后，我们要开始使能hci设备了，并运行bluetoothd服务，如果不提前运行他们，后续的指令不能正常执行，特别是后续的bluetoothctl控制程序。
Target# hciconfig hci0 up
Target# bluetoothd -C -n &
root@T113-Embfly:~# hciconfig hci0 up
[11881.757207] rtk_btusb: btusb_open start
[11881.761522] rtk_btusb: btusb_open hdev->promisc ==0
[11881.767123] rtk_btusb: download_patch start
[11881.771819] rtk_btusb: chip type value: 0x71
[11881.777958] rtk_btusb: chip_type->status = 0x0, chip_type->chip = 0xbeef
[11881.785530] rtk_btusb: HCI reset.
[11881.798954] rtk_btusb: read_ver_rsp->lmp_subver = 0x6f71
[11881.804936] rtk_btusb: read_ver_rsp->hci_rev = 0x92b7
[11881.810600] rtk_btusb: patch_entry->lmp_sub = 0x8723
[11881.816194] rtk_btusb: Firmware already exists
[11881.821193] rtk_btusb: Rtk patch end 1
[11881.825443] rtk_btusb: chip type value: 0x71
[11881.830233] rtk_btusb: btusb_open set HCI UP RUNNING
[11881.835958] rtk_btcoex: Open BTCOEX
[11881.839876] rtk_btusb: btusb_open end
[11881.852407] rtk_btcoex: rtk_vendor_cmd_to_fw: opcode 0xfc1b
[11881.855022] rtk_btcoex: BTCOEX hci_rev 0x92b7
[11881.863750] rtk_btcoex: BTCOEX lmp_subver 0x6f71
[11881.918043] debugfs: File 'le_min_key_size' in directory 'hci0' already present!
[11881.926394] debugfs: File 'le_max_key_size' in directory 'hci0' already present!
[11881.934759] debugfs: File 'force_bredr_smp' in directory 'hci0' already present!
root@T113-Embfly:~# bluetoothctl
root@T113-Embfly:~# bluetoothd -C -n &
[1] 1805
root@T113-Embfly:~# bluetoothd[1805]: Bluetooth daemon 5.50
bluetoothd[1805]: Starting SDP server
bluetoothd[1805]: kernel lacks bnep-protocol support
bluetoothd[1805]: System does not support network plugin
bluetoothd[1805]: Bluetooth management interface 1.14 initialized
bluetoothd[1805]: Sap driver initialization failed.
bluetoothd[1805]: sap-server: Operation not permitted (1)
bluetoothd[1805]: Failed to set privacy: Rejected (0x0b)
蓝牙工具软件bluetoothctl的介绍和使用
bluetoothctl 是一个交互式且易于使用的工具，用于控制蓝牙设备。它是在基于 Linux 的操作系统上管理蓝牙的主要实用程序。本指南将向您展示如何使用 bluetoothctl 在主板上设置蓝牙设备和连接。
- 扫描附近的设备
要主动搜索可以连接的蓝牙设备，请使用扫描命令，如下所示：
Target#bluetoothctl scan on
当您运行上述命令时，您的电脑将查找并列出系统范围内的所有蓝牙设备。
root@T113-Embfly:# bluetoothctl scan on
root@T113-Embfly:# [ 838.048556] rtk_btcoex: hci (periodic)inq start
Discovery started
[CHG] Controller 40:80:E1:F1:BE:0C Discovering: yes
[CHG] Device 90:CE:B8:0D:E2:1E RSSI: -84
[CHG] Device 78:2B:46:43:EE:31 RSSI: -20
[CHG] Device 78:2B:46:43:EE:31 TxPower: 12
[NEW] Device 34:29:EF:38:D9:1B 34-29-EF-38-D9-1B
[NEW] Device F4:4E:FD:3B:95:A6 EDIFIER M350
[CHG] Device 20:23:06:4C:2B:9D RSSI: -74
[CHG] Device 34:29:EF:2C:E3:55 RSSI: -70
[NEW] Device 4E:3C:D4:78:B4:2D K3_2db478
[CHG] Device 45:8B:13:BD:35:11 RSSI: -82
[CHG] Device 45:8B:13:BD:35:11 TxPower: 12
[CHG] Device 20:23:06:3C:9D:68 RSSI: -68
[CHG] Device D8:CC:81:37:40:FC RSSI: -76
[CHG] Device D8:CC:81:37:40:FC UUIDs: 0000ab00-0000-1000-8000-00805f9b34fb
[NEW] Device 02:68:EB:0E:98:4F 02-68-EB-0E-98-4F
[CHG] Device 5A:B1:27:82:D2:BA RSSI: -66
[CHG] Device 5A:B1:27:82:D2:BA TxPower: 7
所有蓝牙设备都标记为设备，后跟各自的媒体访问控制 (MAC) 地址，这是网络上设备的唯一标识符。 MAC 地址遵循格式 XX : XX : XX : XX : XX : XX。 Bluetoothctl 还显示设备的名称，例如上面输出中的 EDIFIER M350（我们测试使用的蓝牙音箱）。
注意：如果您找不到所需的蓝牙设备，请确保您的系统蓝牙可被发现。
要使其他设备可以发现您的蓝牙适配器，请使用以下命令：
bluetoothctl discoverable on
- 连接到您的设备
现在您已经有了可以连接的蓝牙设备列表，可以使用 MAC 地址连接到特定设备。
连接蓝牙设备的最简单方法是使用配对命令将其与您设备配对。
bluetoothctl pair F4:4E:FD:3B:95:A6
注意：请记住将本手册使用的MAC地址 F4:4E:FD:3B:95:A6 替换为您设备的相应 MAC 地址。
如果您要连接的设备具有 GUI 界面，例如智能手机，设备将显示提示，要求您接受连接。系统还会要求您确认PC上的配对。您可以通过在命令行中键入yes来执行此操作。
对于已与主板配对的设备，以后只需使用connect命令即可连接到它们即可，如下所示：
bluetoothctl connect F4:4E:FD:3B:95:A6
- 使用bluetoothctl列出配对设备
您可以通过运行以下命令来查看当前与系统配对的设备：
bluetoothctl paired-devices
您还可以使用以下命令列出计算机蓝牙范围内的设备：
bluetoothctl devices
- 信任配对设备
除了与蓝牙设备配对外，您还可以选择信任某些设备，以便将来轻松连接到它们。
要信任蓝牙设备：
bluetoothctl trust F4:4E:FD:3B:95:A6
您可以通过发出以下命令来取消信任设备：
bluetoothctl untrust F4:4E:FD:3B:95:A6
- 断开蓝牙设备
要取消配对蓝牙设备，请使用删除命令，如下所示：
bluetoothctl remove F4:4E:FD:3B:95:A6
您还可以使用bluetoothctl将设备与系统断开连接：
bluetoothctl disconnect F4:4E:FD:3B:95:A6
如果您希望阻止特定设备连接到您的系统，可以使用阻止命令，后跟该设备的 MAC 地址。
bluetoothctl block F4:4E:FD:3B:95:A6
要取消阻止设备，只需将上述命令中的单词阻止替换为取消阻止即可。
- 使用bluetoothctl的交互模式
bluetoothctl是一个交互式实用程序。我们建议使用交互模式，因为它更快、更容易使用。要进入交互模式，只需运行不带参数的bluetoothctl命令，如下所示：
bluetoothctl
root@T113-Embfly:/embfly_test# bluetoothctl
Agent registered
切换到交互模式后，您可以发出命令，先看看它有什么指令，如下所示:
[bluetooth]# help
Menu main:
Available commands:
-------------------
advertise Advertise Options Submenu
scan Scan Options Submenu
gatt Generic Attribute Submenu
list List available controllers
show [ctrl] Controller information
select <ctrl> Select default controller
devices List available devices
paired-devices List paired devices
system-alias <name> Set controller alias
reset-alias Reset controller alias
power <on/off> Set controller power
pairable <on/off> Set controller pairable mode
discoverable <on/off> Set controller discoverable mode
agent <on/off/capability> Enable/disable agent with given capability
default-agent Set agent as the default one
advertise <on/off/type> Enable/disable advertising with given type
set-alias <alias> Set device alias
scan <on/off> Scan for devices
info [dev] Device information
pair [dev] Pair with device
trust [dev] Trust device
untrust [dev] Untrust device
block [dev] Block device
unblock [dev] Unblock device
remove <dev> Remove device
connect <dev> Connect device
disconnect [dev] Disconnect device
menu <name> Select submenu
version Display version
quit Quit program
exit Quit program
help Display help about this program
export Print evironment variables
[bluetooth]#
这些指令和非交互模式的时候是一样的。
要退出 bluetoothctl 交互模式，只需在提示符中键入 exit 即可。
使用主板连接蓝牙音箱播放音乐
对蓝牙设备进行配对连接后，还要判断是否正常连接。通常使用l2ping指令来判断，指令执行如下：
root@T113-Embfly:~# l2ping -f -s 512 -c 10 -t 1 F4:4E:FD:3B:95:A6
Ping: F4:4E:FD:3B:95:A6 from 40:80:E1:F1:BE:0C (data size 512) ...
[ 3279.159111] rtk_btcoex: update_hid_active_state: handle 0x0003, interval 0
[ 3279.166985] rtk_btcoex: HID not connected, nothing to be down
512 bytes from F4:4E:FD:3B:95:A6[ 3279.173466] rtk_btcoex: update_hid_active_state: handle 0x0003, interval 0
id 0 time 528.15ms
[ 3279.184013] rtk_btcoex: HID not connected, nothing to be down
512 bytes from F4:4E:FD:3B:95:A6 id 1 time 49.30ms
512 bytes from F4:4E:FD:3B:95:A6 id 2 time 32.41ms
512 bytes from F4:4E:FD:3B:95:A6 id 3 time 32.44ms
512 bytes from F4:4E:FD:3B:95:A6 id 4 time 32.44ms
512 bytes from F4:4E:FD:3B:95:A6 id 5 time 32.45ms
512 bytes from F4:4E:FD:3B:95:A6 id 6 time 32.46ms
512 bytes from F4:4E:FD:3B:95:A6 id 7 time 32.45ms
512 bytes from F4:4E:FD:3B:95:A6 id 8 time 32.46ms
512 bytes from F4:4E:FD:3B:95:A6 id 9 time 32.46ms
10 sent, 10 received, 0% loss
root@T113-Embfly:~#
l2ping的指令这里不做详细介绍，需要了解的可以baidu.com。
为了方便演示音乐的播放，在/embfly_test目录下提供了一个播放音乐脚本bt_play_source.sh，脚本内容如下：
#!/bin/sh
############################################################
# file bt_play_source.sh
# version 0.0.1
# date 2018-05-06
#
############################################################
#insmod /lib/modules/4.9.170/xradio_btlpm.ko
bt_clear()
{
killall -9 hciattach
killall -9 bluetoothd
killall -9 bluetoothctl
hciconfig hci0 down
# echo 0 > /sys/class/rfkill/rfkill0/state
}
echo $#
if [ $# -lt 1 ]; then
echo "less arams"
echo "example: bt_init.sh Mi10S"
exit
fi
BT_NAME=$1
# reset bt
#echo "reset bt"
#echo 0 > /sys/class/rfkill/rfkill0/state
#sleep 1
#echo 1 > /sys/class/rfkill/rfkill0/state
#sleep 1
# bt bind uart
#echo "bt bind uart"
#hciattach -n ttyS1 xradio > /dev/null 2>&1 &
#sleep 8
# bt power on
echo "bt power on"
hciconfig hci0 up
hciconfig hci0 piscan
# bt scan
echo "bt scan"
i=0
while [ $i -le 5 ]
do
echo "scan $i times"
str=`hcitool scan | grep $BT_NAME`
echo $str
if [ "x$str" != "x" ]; then
echo "find $BT_NAME"
break;
fi
let i++
done
if [ $i -ge 5 ]; then
echo "no find $BT_NAME"
bt_clear
exit
fi
array=(${str// / })
i=0
BT_MAC=""
for var in ${array[@]}
do
echo $i $var
if [ $i -eq 0 ]; then
BT_MAC=$var
fi
let i++
done
echo "BT_MAC: $BT_MAC"
# bluetoothd service
bluetoothd -n &
bluealsa -p a2dp-source &
#str=`bluetoothctl scan on | grep Mi10S`
echo "scan on"
bluetoothctl scan on &
sleep 8
bluetoothctl scan off
killall -9 bluetoothctl
if [ ! -e /tmp/.bt ]; then
bluetoothctl trust $BT_MAC
bluetoothctl pair $BT_MAC
touch /tmp/.bt
fi
bluetoothctl connect $BT_MAC
sleep 5
aplay -D bluealsa:DEV=$BT_MAC /embfly_test/wfxy.wav
#aplay -D bluealsa:HCI=hci0,DEV=$BT_MAC,PROFILE=A2DP /embfly_test/wfxy.wav
测试BT音频的音箱是EDIFIER M350，它支持BT4.2，而SBC-T113S主板配置的WIFI模块(RTL8723DU)也是支持BT4.2，两者可以正常通信，播放音乐的指令如下：
root@T113-Embfly:/embfly_test# ./bt_play_source.sh EDIFIER M350
2
bt power on
[12258.705313] rtk_btusb: btusb_open start
[12258.709667] rtk_btusb: btusb_open hdev->promisc ==0
[12258.715185] rtk_btusb: download_patch start
[12258.719956] rtk_btusb: chip type value: 0x71
[12258.725961] rtk_btusb: chip_type->status = 0x0, chip_type->chip = 0xbeef
[12258.733620] rtk_btusb: HCI reset.
[12258.747951] rtk_btusb: read_ver_rsp->lmp_subver = 0x6f71
[12258.754011] rtk_btusb: read_ver_rsp->hci_rev = 0x92b7
[12258.759741] rtk_btusb: patch_entry->lmp_sub = 0x8723
[12258.765333] rtk_btusb: Firmware already exists
[12258.770355] rtk_btusb: Rtk patch end 1
[12258.774559] rtk_btusb: chip type value: 0x71
[12258.779381] rtk_btusb: btusb_open set HCI UP RUNNING
[12258.785081] rtk_btcoex: Open BTCOEX
[12258.789042] rtk_btusb: btusb_open end
[12258.803978] rtk_btcoex: BTCOEX hci_rev 0x92b7
[12258.808971] rtk_btcoex: BTCOEX lmp_subver 0x6f71
[12258.814251] rtk_btcoex: rtk_vendor_cmd_to_fw: opcode 0xfc1b
[12258.870038] debugfs: File 'le_min_key_size' in directory 'hci0' already present!
[12258.878383] debugfs: File 'le_max_key_size' in directory 'hci0' already present!
[12258.886735] debugfs: File 'force_bredr_smp' in directory 'hci0' already present!
bt scan
scan 0 times
[12258.922073] rtk_btcoex: hci (periodic)inq start
[12275.580027] rtk_btcoex: inquiry complete
F4:4E:FD:3B:95:A6 EDIFIER M350
find EDIFIER
0 F4:4E:FD:3B:95:A6
1 EDIFIER
2 M350
BT_MAC: F4:4E:FD:3B:95:A6
scan on
bluetoothd[1817]: Bluetooth daemon 5.50
bluetoothd[1817]: Starting SDP server
bluetoothd[1817]: kernel lacks bnep-protocol support
bluetoothd[1817]: System does not support network plugin
bluetoothd[1817]: Bluetooth management interface 1.14 initialized
bluetoothd[1817]: Sap driver initialization failed.
bluetoothd[1817]: sap-server: Operation not permitted (1)
bluetoothd[1817]: Failed to set privacy: Rejected (0x0b)
[CHG] Controller 40:80:E1:F1:BE:0C Discoverable: no
bluetoothd[1817]: Endpoint registered: sender=:1.15 path=/A2DP/MPEG24/Source/1
[CHG] Controller 40:80:E1:F1:BE:0C Class: 0x00080000
bluetoothd[1817]: Endpoint registered: sender=:1.15 path=/A2DP/SBC/Source/1
[CHG] Controller 40:80:E1:F1:BE:0C UUIDs: 0000110a-0000-1000-8000-00805f9b34fb
[CHG] Controller 40:80:E1:F1:BE:0C UUIDs: 00001801-0000-1000-8000-00805f9b34fb
[CHG] Controller 40:80:E1:F1:BE:0C UUIDs: 0000110e-0000-1000-8000-00805f9b34fb
[CHG] Controller 40:80:E1:F1:BE:0C UUIDs: 00001200-0000-1000-8000-00805f9b34fb
[CHG] Controller 40:80:E1:F1:BE:0C UUIDs: 0000110c-0000-1000-8000-00805f9b34fb
[CHG] Controller 40:80:E1:F1:BE:0C UUIDs: 00001800-0000-1000-8000-00805f9b34fb
[12277.080992] rtk_btcoex: hci (periodic)inq start
Discovery started
[CHG] Controller 40:80:E1:F1:BE:0C Discovering: yes
[NEW] Device 34:29:EF:2C:E3:55 34-29-EF-2C-E3-55
[NEW] Device 34:29:EF:38:D9:1B 34-29-EF-38-D9-1B
[CHG] Device F4:4E:FD:3B:95:A6 RSSI: -36
[NEW] Device 4E:3C:D4:78:B4:2D K3_2db478
[NEW] Device 7D:3A:EA:81:4E:FC lck1_7D3AEA814EFC
[NEW] Device 20:23:06:4C:2B:9D UAF028
[NEW] Device 20:23:06:3C:9D:68 UAF028
[NEW] Device 2C:58:B9:7A:9A:41 2C-58-B9-7A-9A-41
[NEW] Device 02:68:EB:0E:98:4F 02-68-EB-0E-98-4F
[NEW] Device 86:2A:FD:9A:9C:9B 86-2A-FD-9A-9C-9B
[CHG] Device 20:23:06:4C:2B:9D UUIDs: 0000ffb0-0000-1000-8000-00805f9b34fb
[CHG] Device 20:23:06:4C:2B:9D ManufacturerData Key: 0x0aa5
[CHG] Device 20:23:06:4C:2B:9D ManufacturerData Value:
c7 a5 d4 fa 20 23 06 4c 2b 9d 02 00 .... #.L+...
[NEW] Device B4:A8:28:37:51:6A B4-A8-28-37-51-6A
[NEW] Device 4A:9E:BD:60:98:E7 4A-9E-BD-60-98-E7
[NEW] Device 78:2B:46:43:EE:31 LAPTOP-A8M5JMVI
[NEW] Device 5E:FE:AA:31:7B:D2 5E-FE-AA-31-7B-D2
[CHG] Device 2C:58:B9:7A:9A:41 UUIDs: 0000fe78-0000-1000-8000-00805f9b34fb
[CHG] Device 2C:58:B9:7A:9A:41 ManufacturerData Key: 0x0065
[CHG] Device 2C:58:B9:7A:9A:41 ManufacturerData Value:
01 c9 05 ...
[NEW] Device 75:A1:79:AF:E3:A2 75-A1-79-AF-E3-A2
[CHG] Device 20:23:06:3C:9D:68 RSSI: -66
Failed to stop discovery: org.bluez.Error.Failed
./bt_play_source.sh: line 99: 1819 Killed blue[12284.659328] rtk_btcoex: hci (periodic)inq cancel/exit
toothctl scan on
Changing F4:4E:FD:3B:95:A6 trust succeeded
Attempting to pair with F4:4E:FD:3B:95:A6
Failed to pair: org.bluez.Error.AlreadyExists
Attempting to connect to F4:4E:F[12288.864074] rtk_btusb: btusb_notify: hci0 evt 1
D:3B:95:A6
[12288.873009] rtk_btcoex: hci create connection, start paging
[12289.149014] rtk_btcoex: connected, handle 0003, status 0x00
[12289.155495] rtk_btcoex: Page success
[CHG] Device F4:4E:FD:3B:95:A6 Connected: yes
[12289.429127] rtk_btcoex: l2cap op 2, len 16, out 1
[12289.434453] rtk_btcoex: TX l2cap conn req, hndl 0x0003, PSM 0x0019, scid 0x0040
[12289.442703] rtk_btcoex: list_allocate_add: Add a2dp signal channel
[12289.481698] rtk_btcoex: l2cap op 3, len 20, out 0
[12289.487238] rtk_btcoex: RX l2cap conn rsp, hndl 0x0003, dcid 0x0043, scid 0x0040, result 0x0000
[12289.497064] rtk_btcoex: l2cap connection success, update connection
[12289.504106] rtk_btcoex: update_profile_connection: is_add 1, profile_index 2
[12289.512069] rtk_btcoex: update_profile_connection: phci_conn->profile_bitmap 0x04
[12289.520588] rtk_btcoex: rtk_notify_profileinfo_to_fw: BufferSize 5
[12289.527688] rtk_btcoex: rtk_notify_profileinfo_to_fw: NumberOfHandles 1
[12289.535192] rtk_btcoex: rtk_notify_profileinfo_to_fw: handle 0x0003
[12289.542269] rtk_btcoex: rtk_notify_profileinfo_to_fw: profile_bitmap 0x0004
[12289.550158] rtk_btcoex: rtk_vendor_cmd_to_fw: opcode 0xfc19
bluetoothd[1817]: Endpoint registered: sender=:1.15 path=/A2DP/SBC/Source/2
[12289.736933] rtk_btcoex: l2cap op 2, len 16, out 1
[12289.742278] rtk_btcoex: TX l2cap conn req, hndl 0x0003, PSM 0x0019, scid 0x0041
[12289.750539] rtk_btcoex: list_allocate_add: Add a2dp media channel
[12289.789200] rtk_btcoex: l2cap op 3, len 20, out 0
[12289.794732] rtk_btcoex: RX l2cap conn rsp, hndl 0x0003, dcid 0x0044, scid 0x0041, result 0x0000
[12289.804548] rtk_btcoex: l2cap connection success, update connection
[12289.811622] rtk_btcoex: update_profile_connection: is_add 1, profile_index 2
[12289.819566] rtk_btcoex: update_profile_connection: phci_conn->profile_bitmap 0x04
[12289.848242] rtk_btcoex: l2cap op 2, len 16, out 1
[12289.853576] rtk_btcoex: l2cap op 2, len 16, out 1
[12289.859020] rtk_btcoex: TX l2cap conn req, hndl 0x0003, PSM 0x0001, scid 0x0042
[12289.867302] rtk_btcoex: PSM(0x0001) do not need parse
Connection successful
[12289.873025] rtk_btcoex: TX l2cap conn req, hndl 0x0003, PSM 0x0017, scid 0x0043
[12289.883375] rtk_btcoex: l2cap op 2, len 16, out 0
[12289.889163] rtk_btcoex: l2cap op 3, len 20, out 1
bluetoothd[1817]: Control: Refus[12289.895167] rtk_btcoex: l2cap op 3, len 20, out 1
ing unexpected connect
[12289.903610] rtk_btcoex: PSM(0x0017) do not need parse
[12289.910998] rtk_btcoex: l2cap op 3, len 20, out 0
[12289.916390] rtk_btcoex: l2cap op 3, len 20, out 0
[12289.921835] rtk_btcoex: RX l2cap conn req, hndl 0x0003, PSM 0x0017, scid 0x0045
[12289.930131] rtk_btcoex: PSM(0x0017) do not need parse
[12289.935809] rtk_btcoex: TX l2cap conn rsp, hndl 0x0003, dcid 0x0044, scid 0x0045, result 0x0001
[12289.945697] rtk_btcoex: TX l2cap conn rsp, hndl 0x0003, dcid 0x0044, scid 0x0045, result 0x0003
[12289.955522] rtk_btcoex: RX l2cap conn rsp, hndl 0x0003, dcid 0x0046, scid 0x0042, result 0x0000
[12289.965325] rtk_btcoex: RX l2cap conn rsp, hndl 0x0003, dcid 0x0047, scid 0x0043, result 0x0004
[12291.078635] rtk_btcoex: l2cap op 2, len 16, out 1
[12291.083994] rtk_btcoex: TX l2cap conn req, hndl 0x0003, PSM 0x0017, scid 0x0043
[12291.092250] rtk_btcoex: PSM(0x0017) do not need parse
[12291.130453] rtk_btcoex: l2cap op 3, len 20, out 0
[12291.136012] rtk_btcoex: RX l2cap conn rsp, hndl 0x0003, dcid 0x0048, scid 0x0043, result 0x0000
bluetoothd[1817]: Can't open inp[12291.185041] rtk_btcoex: l2cap op 2, len 16, out 1
ut device: No such file or direc[12291.192907] rtk_btcoex: TX l2cap conn req, hndl 0x0003, PSM 0x001b, scid 0x0044
tory (2)
bluetoothd[1817]: AVRCP: failed to init uinput for F4:4E:FD:3B:95:A6
[12291.212948] rtk_btcoex: l2cap op 3, len 20, out 0
[12291.218445] rtk_btcoex: RX l2cap conn rsp, hndl 0x0003, dcid 0x0049, scid 0x0044, result 0x0000
[12291.228350] rtk_btcoex: l2cap connection success, update connection
[12291.235495] rtk_btcoex: update_profile_connection: is_add 1, profile_index 3
[12291.243542] rtk_btcoex: update_profile_connection: phci_conn->profile_bitmap 0x0c
[12291.252051] rtk_btcoex: rtk_notify_profileinfo_to_fw: BufferSize 5
[12291.259119] rtk_btcoex: rtk_notify_profileinfo_to_fw: NumberOfHandles 1
[12291.266665] rtk_btcoex: rtk_notify_profileinfo_to_fw: handle 0x0003
[12291.273713] rtk_btcoex: rtk_notify_profileinfo_to_fw: profile_bitmap 0x000c
[12291.281560] rtk_btcoex: rtk_vendor_cmd_to_fw: opcode 0xfc19
[12292.078397] rtk_btcoex: l2cap op 6, len 16, out 1
[12292.083736] rtk_btcoex: TX l2cap disconn req, hndl 0x0003, dcid 0x0046, scid 0x0042
[12292.092414] rtk_btcoex: handle_l2cap_discon_req: handle 0x0003, dcid 0x0046, scid 0x0042, dir 1
Playing WAVE '/embfly_test/wfxy.wav' : Signed 16 bit Little Endian, Rate 44100 Hz, Stereo
bluetoothd[1817]: /org/bluez/hci0/dev_F4_4E_FD_3B_95_A6/fd0: fd(21) ready
[12295.004864] rtk_btcoex: update_profile_state: is_busy 1, profile_index 2
[12295.012583] rtk_btcoex: update_profile_state: phci_conn->profile_status 0x04
[12295.020539] rtk_btcoex: rtk_notify_profileinfo_to_fw: BufferSize 5
[12295.027562] rtk_btcoex: rtk_notify_profileinfo_to_fw: NumberOfHandles 1
[12295.034984] rtk_btcoex: rtk_notify_profileinfo_to_fw: handle 0x0003
[12295.042054] rtk_btcoex: rtk_notify_profileinfo_to_fw: profile_bitmap 0x000c
[12295.049942] rtk_btcoex: rtk_vendor_cmd_to_fw: opcode 0xfc19
[12295.056210] rtk_btcoex: rtl_process_media_data: Length 637
[12295.062408] rtk_btcoex: rtp: v 2, cc 0, pt 96
[12295.067327] rtk_btcoex: syncword: 9c
[12295.071335] rtk_btcoex: freq 48kHz
[12295.075183] rtk_btcoex: blocks 16
[12295.078928] rtk_btcoex: channel mode JOINT_STEREO
[12295.084206] rtk_btcoex: allocation method LOUDNESS
[12295.089600] rtk_btcoex: subbands 8
[12295.093417] rtk_btcoex: rtl_process_media_data: bitpool 32
[12295.099625] rtk_btcoex: rtk_vendor_cmd_to_fw: opcode 0xfc51
[12295.746707] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 42
[12296.786712] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 60
[12297.826743] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 62
[12298.866741] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 61
[12298.986698] rtk_btcoex: l2cap op 2, len 16, out 0
[12298.992133] rtk_btcoex: RX l2cap conn req, hndl 0x0003, PSM 0x0001, scid 0x004a
[12298.992138] rtk_btcoex: l2cap op 3, len 20, out 1
[12299.005810] rtk_btcoex: PSM(0x0001) do not need parse
[12299.011588] rtk_btcoex: TX l2cap conn rsp, hndl 0x0003, dcid 0x0042, scid 0x004a, result 0x0000
[12299.906751] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 60
[12300.946768] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 60
[12301.417951] rtk_btcoex: l2cap op 6, len 16, out 0
[12301.423487] rtk_btcoex: RX l2cap disconn req, hndl 0x0003, dcid 0x0042, scid 0x004a
[12301.432256] rtk_btcoex: handle_l2cap_discon_req: handle 0x0003, dcid 0x0042, scid 0x004a, dir 0
[12301.986775] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 60
[12303.026785] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 62
[12304.066798] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 60
[12305.106802] rtk_btcoex: count_a2dp_packet_timeout: a2dp_packet_count 60
Aborted by signal Interrupt...
[12305.781101] rtk_btcoex: HCI OP Disconnect, handle 0003, reason 0x15
aplay: pcm_write:2053: write error: Interrupted system call
bluetoothd[1817]: Terminating
root@T113-Embfly:/embfly_test# [12305.871038] rtk_btcoex: disconn cmpl evt: status 00, handle 0003, reason 15
bluetoothd[1817]: No reply to Su[12305.878928] rtk_btcoex: process disconn complete event.
spend request
[12305.887616] rtk_btcoex: hci disconn, hndl 3, psm 19, dcid 43, scid 40, profile 2
[12305.897388] rtk_btcoex: disconn_profile: profile_ref[2] 2
bluetoothd[1817]: Endpoint unreg[12305.903492] rtk_btcoex: Delete profile: hndl 0x0003, psm 0x0019, dcid 0x0043, scid 0x0040
istered: sender=:1.15 path=/A2DP[12305.915503] rtk_btcoex: hci disconn, hndl 3, psm 19, dcid 44, scid 41, profile 2
/MPEG24/Source/1
bluetoothd[181[12305.926571] rtk_btcoex: disconn_profile: profile_ref[2] 1
7]: Endpoint unregistered: sende[12305.935424] rtk_btcoex: rtk_check_del_timer: handle 0x0003
r=:1.15 path=/A2DP/SBC/Source/1[12305.944381] rtk_btcoex: Delete profile: hndl 0x0003, psm 0x0019, dcid 0x0044, scid 0x0041
[12305.956260] rtk_btcoex: hci disconn, hndl 3, psm 1b, dcid 49, scid 44, profile 3
bluetoothd[1817]: Endpoint unreg[12305.964791] rtk_btcoex: disconn_profile: profile_ref[3] 1
istered: sender=:1.15 path=/A2DP[12305.973627] rtk_btcoex: rtk_check_del_timer: handle 0x0003
/SBC/Source/2
[12305.982567] rtk_btcoex: Delete profile: hndl 0x0003, psm 0x001b, dcid 0x0049, scid 0x0044
[12305.993063] rtk_btcoex: rtk_notify_profileinfo_to_fw: BufferSize 2
[12306.000011] rtk_btcoex: rtk_notify_profileinfo_to_fw: NumberOfHandles 0
[12306.007460] rtk_btcoex: rtk_vendor_cmd_to_fw: opcode 0xfc19
[12306.066821] rtk_btusb: btusb_notify: hci0 evt 2
[12306.081254] rtk_btusb: btusb_flush add delay
bluetoothd[1817]: Stopping SDP server
bluetoothd[1817]: Exit
[12306.096182] rtk_btusb: btusb_close
[12306.119973] rtk_btcoex: Close BTCOEX
[12306.123994] rtk_btcoex: -x
使用主板作为蓝牙音箱播放音乐
- 蓝牙测试命令
bt_test
- 蓝牙sink
将SBC-T113S主板作为蓝牙小音箱，通过蓝牙在开发板上播放音频
root@TinaLinux:/# bt_test -i -p a2dp-sink
1324
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
