unity Symbolicate Android crash

参考链接：https://support.unity.com/hc/en-us/articles/115000292166-Symbolicate-Android-crash

https://docs.unity3d.com/Packages/com.unity.mobile.android-logcat@1.2/manual/StacktraceUtility.html

https://docs.unity3d.com/Packages/com.unity.mobile.android-logcat@1.2/manual/MemoryWindow.html
摘抄几个要点：
When you build in release mode, the symbols are not packed with the APK. If your app crashes, the call stack will only show the memory address.

You can find the Android symbols here:
Il2cpp.so: this file is generated when you build your project and is located in the symbols.zip file that is created next to the APK, abb, or Gradle project.

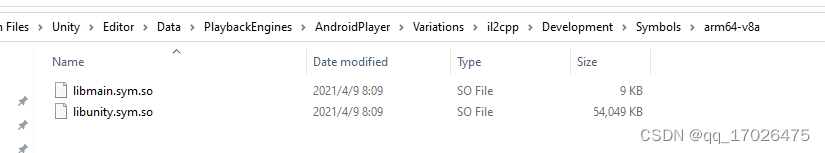

libunity.so: this file is located in the Unity installation folder:
/PlaybackEngines/AndroidPlayer/Variations/il2cpp/Development/Symbols

When you build using IL2CPP, if the Strip Engine Code option is enabled, Unity creates a new libunity.so that it is different from the installation folder, so you need to use this for the symbolization.

You can find the addr2line tool in your Android NDK at the following address:
/android-ndk_auto-r10e/toolchains/arm-linux-androideabi-4.9/prebuilt/darwin-x86_64/bin/arm-linux-androideabi-addr2line

Android Logcat Settings

Configure Symbol Paths
Before using the tool, you need to setup symbol paths in the Project Settings->Analysis->Android Logcat Settings, so symbols for libraries like libunity.so, libmain.so, libil2cpp.so can be found. Click + button and pick a symbol path from Unity installation or a custom location.

Note: Symbol Paths settings are saved in project user settings.

libmain.so - native library containing Unity loader code.
libunity.so - native library containing Unity engine code.
libil2cpp.so - native library containing user code, C# from Unity project ends up here.
Symbol path varies dependening on:

Scripting backend mono or il2cpp
Build configuration - development (pick Development folder) or non development (pick Release folder)
CPU architecture
Strip Engine Code setting in Player Settings (only applies for il2cpp)
Symbols for libil2cpp.so:

Are located in *.symbols.zip file, assuming you selected Create symbols.zip in Build Settings window.
Symbols for libunity.so:

If Strip Engine Code is enabled (only applies for il2cpp), libunity.so symbols will be located in *.symbols.zip file.
If Strip Engine Code is disabled, libunity.so symbols will be located in Unity installation folder, use + button to navigate to correct scripting backend/build configuration/CPU architecture folder.
Symbols for libmain.so:

Are always located in Unity installation folder, use + button to navigate to correct scripting backend/build configuration/CPU architecture folder.
When resolving stacktrace, the tool will go through symbol path list and use the first located symbol file, if you use more than one symbol path, be wary if symbol with same file name exists in both folder, as only the first one found will be used.

Note: You can specify the symbol path without CPU architecture …AndroidPlayer\Variations\il2cpp\Development\Symbols (instead of …AndroidPlayer\Variations\il2cpp\Development\Symbols\arm64-v8a), in that case the utility will try to guess the CPU architecture and will append the missing subfolder. This is only possible if crash line has information about ABI, for ex.,

2020/10/30 16:38:32.985 19060 19081 Error AndroidRuntime #3 pc 000000000019a6f8 /data/app/~~Ctx1WDf6mhlw6jvONDIlaQ==/com.DefaultCompany.ForceCrash-2XwBC-UrBxWJCR2aVVdY1A==/lib/arm64/libil2cpp.so
As you see the crash line has path which contains …/lib/arm64/libil2cpp.so, thus it’s possible to guess that this is arm64-v8a cpu architecture.

Note: If you provide an invalid symbol path, the function names will still be resolved, but they will not be correct. Android tools don’t validate if a specific address belongs to a specific symbol file.

Configure Regex
Can be found in Preferences->Analysis->Android Logcat Settings

This list contains the default regexes how to parse address and library name from entry line. You can add your own custom regex to resolve address and library name, just be sure capture groups - libName and address exist.

Note: Regex settings are saved per user.

Quick steps
Copy paste the log contain the crash to Original text area
Click Resolve Stacktraces
The resolved log will be present in Resolved text area
