interface笔记二，SV中使用interface

1.首先interface模块没有变化

interface cnt_if (input bit clk);

	logic rstn;
	logic load_en;
	logic [3:0] load;
	logic [3:0] count;

endinterface

2.设计模块中使用interface的例化的接口而非端口

​
module counter_ud (cnt_if cnt_if0);

	always @ (posedge cnt_if0.clk or negedge cnt_if0.rstn) begin

		if (!cnt_if0.rstn)
			cnt_if0.count <= 0;
		else begin
			if (cnt_if0.load_en)
				cnt_if0.count <= cnt_if0.load;
			else
				cnt_if0.count <= cnt_if0.count + 1;
	    end
	end
endmodule

​

3.testbench模块也引用interface例化接口

module test (cnt_if cnt_if0);
	initial begin

		$monitor("[%0t] load_en = %0d;load = %0d; count = %0d",$time,cnt_if0.load_en,cnt_if0.load,cnt_if0.count);

		cnt_if0.rstn <= 0;
		cnt_if0.load_en <= 1;
		cnt_if0.load <= 0;

		repeat (5) @(posedge cnt_if0.clk);
		cnt_if0.rstn <= 1;


			#(10);cnt_if0.load_en <=1;cnt_if0.load<=6;
			#(10); cnt_if0.load_en <=1;cnt_if0.load<=8;
			#(10); cnt_if0.load_en <=1;cnt_if0.load<=10;
			#(10); cnt_if0.load_en <=0;cnt_if0.load<=10;
			#(10); cnt_if0.load_en <=0;cnt_if0.load<=10;

		repeat (2) @(posedge cnt_if0.clk);
		$finish;
	end

endmodule

4.顶层模块

module top;

	bit clk;

	always #5 clk = ~clk;   //时钟输入

	cnt_if cnt_if0 (clk);   //interface模块

	counter_ud u0 (cnt_if0); //设计模块

	test t1 (cnt_if0);       //testbench模块

endmodule

 这就是使用接口的好处，简洁不易出错，便于修改。

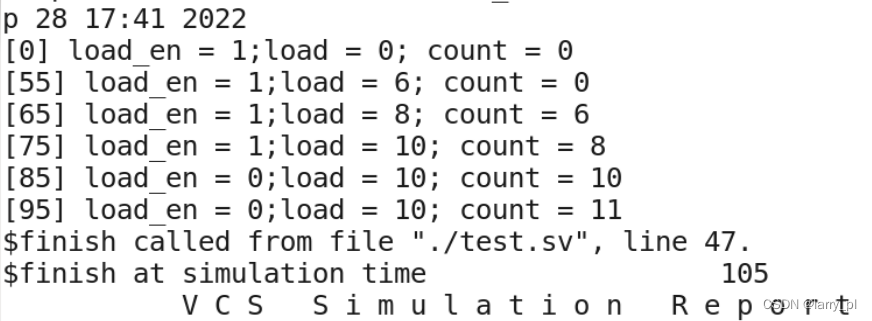

5.SimLog
