多组热图绘制教程

原文链接：多组热图绘制教程

---

1. 加载R包

library(tidyverse)
library(scales)
library(RColorBrewer)

2. 加载数据

dat <- read.csv("data_input.csv",header = T)
head(dat)
list <- unique(dat$Metabolism)
list <- as.data.frame(list)
list$color <- brewer.pal(length(unique(list$list)), "Dark2")

##'@创建一个空的储存
plot_list <- list()

d <- list$list[6]

3. 绘图

for (d in list$list) {
#d = "CO-Oxidation"
  dat_lol <- dat %>%
    filter(Metabolism == !!d)

## 设置颜色
  list_temp <- list %>%
    filter(list == !!d)

  (
    p1 <-
      ggplot(dat_lol , aes(Gene_name, Class)) +
      geom_tile(aes(fill = mean_tax), colour = "black") +
      scale_fill_gradient(
        low = "white",
        high = list_temp$color,
        limits = c(0, 100)
      ) +
#scale_x_discrete(guide = guide_axis(n.dodge = 2))+
      theme_minimal() +
      coord_fixed(ratio = 1) +
      labs(x = NULL, y = NULL, fill = "Propotion of MAGs (%)") +
      theme(
        text = element_text(size = 12, colour = "black"),
        axis.text.x = element_text(angle = 45, hjust = 1)
      )
  )
  name = d
  name <- gsub(" ", "_", name)
  name <- gsub("/", "_", name)
  name <- paste("Figures/Fig_3a_", name, ".pdf", sep = "")
  ggsave(name, p1)

  plot_list[[d]] = p1
}

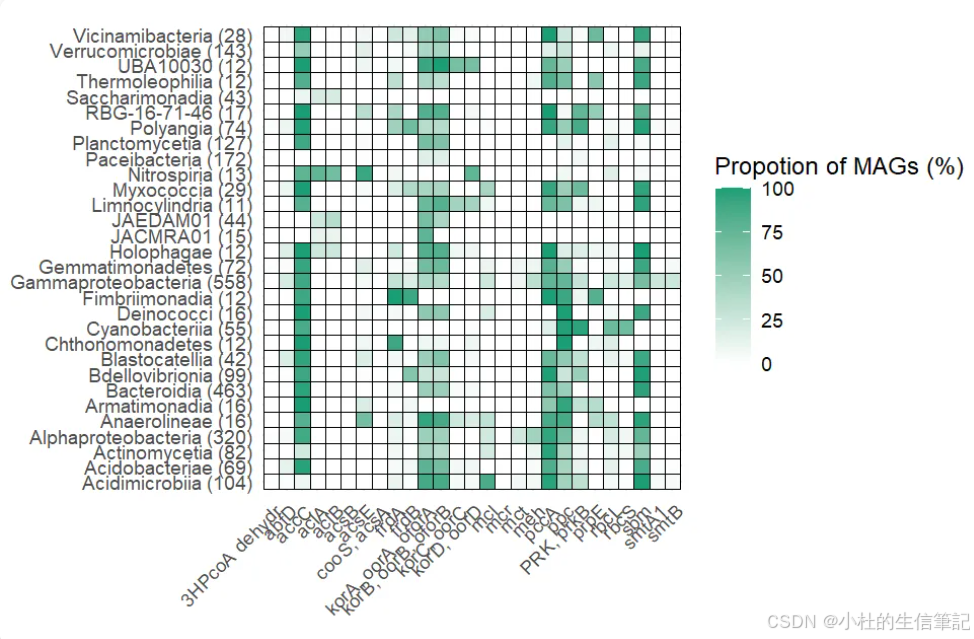

4. 查看图形

plot_list$`Carbon metabolism`

小杜的生信筆記 ，主要发表或收录生物信息学教程，以及基于R分析和可视化（包括数据分析，图形绘制等）；分享感兴趣的文献和学习资料!!
