R语言绘图 | 两组或多组GO/KEGG富集结果气泡图绘制

最新推荐文章于 2025-03-28 21:01:37 发布

小杜的生信筆記

最新推荐文章于 2025-03-28 21:01:37 发布

阅读量685

点赞数 13

分类专栏： R语言精美图形绘制教程文章标签： r语言开发语言生物信息学 R语言绘图 SCI绘图

本文链接：https://blog.youkuaiyun.com/kanghua_du/article/details/145135170

版权

R语言精美图形绘制教程专栏收录该内容

129 篇文章

订阅专栏

原文链接：两组或多组GO/KEGG富集结果气泡图绘制(点击链接)

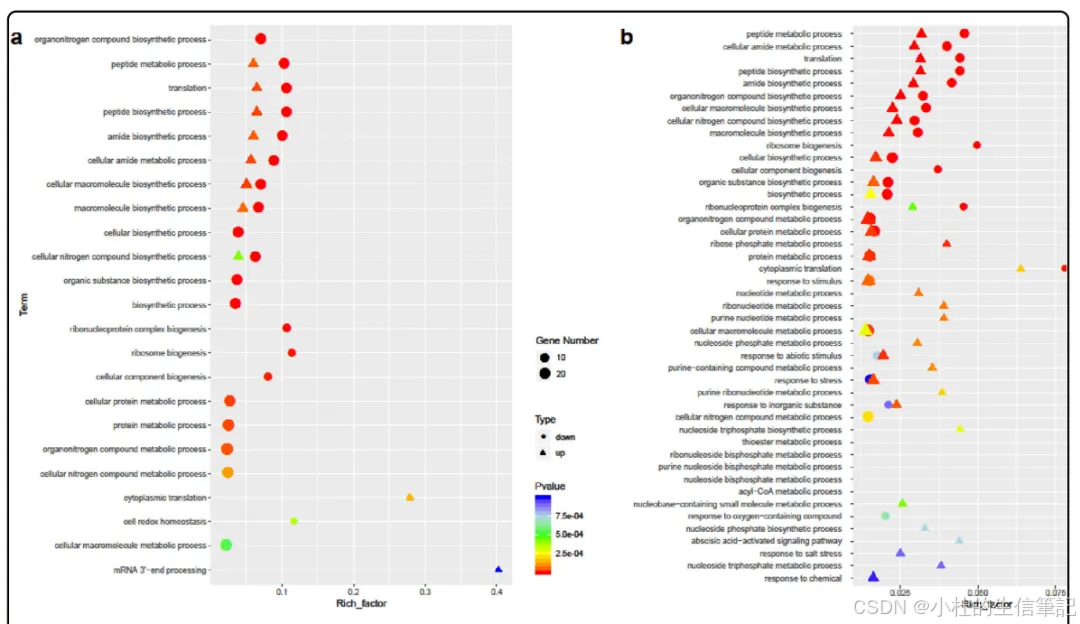

在这里插入图片描述

Code

> head(KEGG_dat_long)
# A tibble: 6 × 5
  Descrption              Rich count  logP Comparison
  <chr>                  <dbl> <int> <dbl> <chr>
1 photosystem I         0.183     15  2.89 Drought
2 chloroplast thylakoid 0.188      7  1.16 CK
3 organelles            0.0608     4  2.03 Drought
4 photosynthesis        0.167      5  1.78 CK
5 biosynthesis          0.130     14  2.81 Drought
6 response to ethylene  0.106     20  1.89 Drought

绘图

ggplot(KEGG_dat_long, aes(x = Rich, y = Descrption, size = count, color = logP, shape = Comparison)) +
  geom_point(alpha = 1) +  # 绘制气泡图
  scale_shape_manual(values = c(16, 17)) +  # 16 是圆形，17 是三角形
  scale_size_continuous(range = c(3, 5)) +  # 调整气泡大小的范围
  scale_color_gradient2(low = "#3793FE", mid = "#b3cde3", high = "red",
                        midpoint = median(KEGG_dat_long$logP)) +  # Color gradient for log10P
  labs(x = "Rich Factor", y = NULL, size = "Gene Number", shape = "Type", color = "-log10(Pvalue)") +
  theme_test() +
  theme(text = element_text(size = 8),
        axis.text.x = element_text(size = 8, color = "black"),
        axis.text.y = element_text(size = 8, colour = "black"),
        strip.text = element_text(size = 8),
        axis.title = element_text(size = 10),
        legend.position = "right",
        panel.grid.major.x = element_line(size = 0.5, linetype = "dashed", color = "gray"),
        panel.spacing = unit(0.1, "lines"))

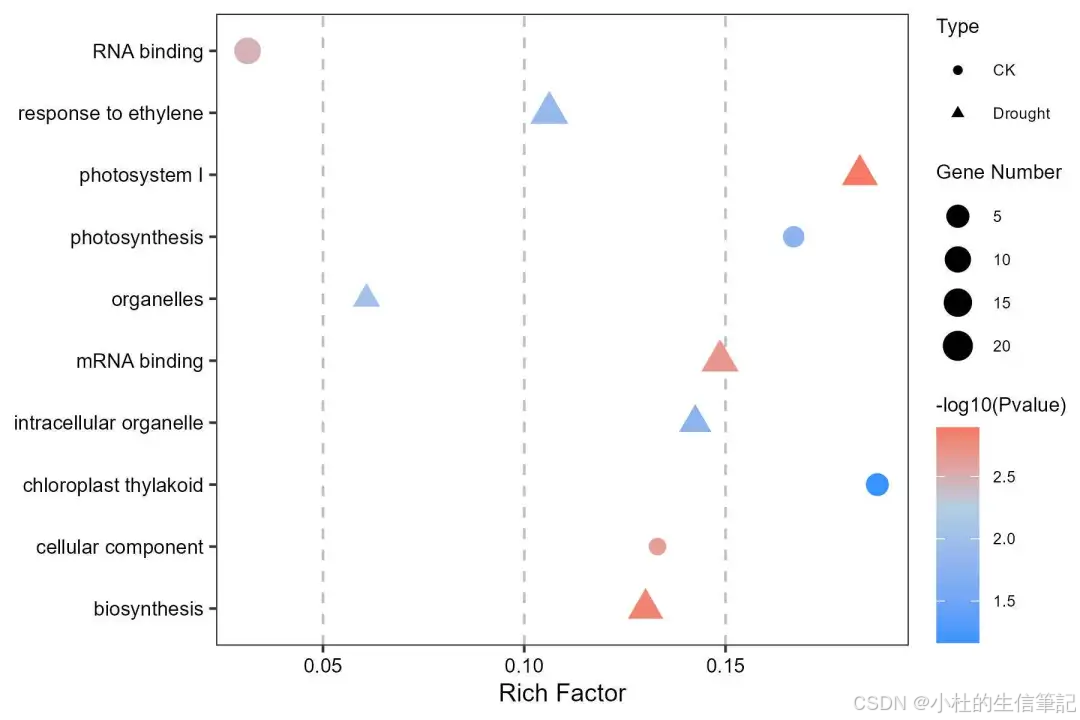

在这里插入图片描述
