FPGA学习日记（14）--状态机（投三个币出可乐）

本文通过实例分析了Moore和Mealy状态机在一款模拟饮料贩卖机中的应用，展示了两种状态机的不同输出特性。Moore型仅依赖当前状态决定输出，而Mealy型则同时考虑当前状态和输入。着重讲解了状态转换和输出逻辑，适合理解状态机基本概念。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

module simple_fsm
(
    input wire sys_clk      ,
    input wire sys_rst_n    ,
    input wire pi_money     ,

    output reg po_cola
);

parameter   IDLE = 3'b001;
parameter   ONE  = 3'b010;
parameter   TWO  = 3'b100;

reg [2:0] state;

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        state <= IDLE;
    else case(state)
        IDLE:if(pi_money == 1'b1)
                state <= ONE;
             else
                state <= IDLE;
        ONE:if(pi_money == 1'b1)
                state <= TWO;
             else
                state <= ONE;
        TWO:if(pi_money == 1'b1)
                state <= IDLE;
             else
                state <= TWO;
        default: state <= IDLE;
    endcase
always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        po_cola <= 1'b0;
    else if((state == TWO)&&(pi_money == 1'b1))
        po_cola <= 1'b1;
    else
        po_cola <= 1'b0;

endmodule

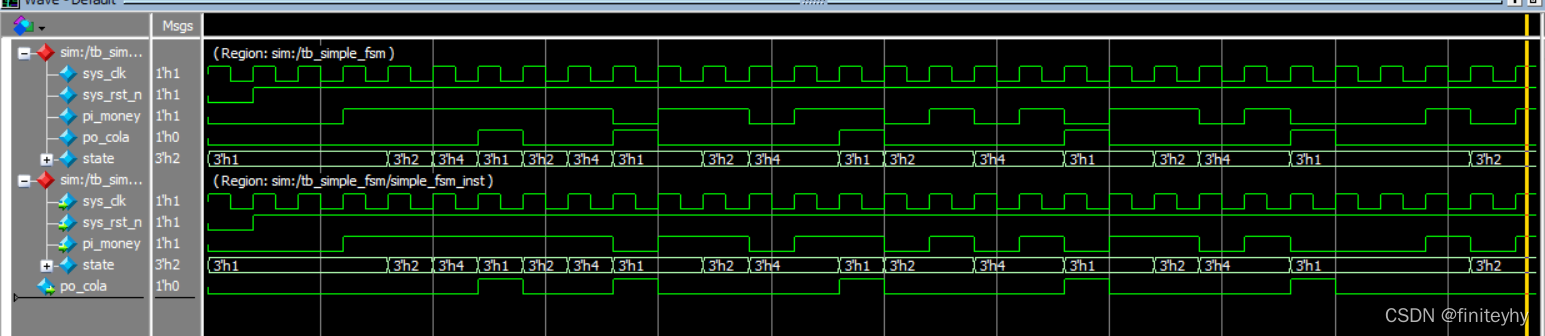

`timescale 1ns/1ns
module tb_simple_fsm();

reg sys_clk;
reg sys_rst_n;
reg pi_money;

wire po_cola;


initial
    begin
        sys_clk <=1'b1;
        sys_rst_n <= 1'b0;
        #20
        sys_rst_n <= 1'b1;
    end

always #10 sys_clk = ~sys_clk;
always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        pi_money <= 1'b0;
    else
        pi_money <= {$random}%2;

wire [2:0] state = simple_fsm_inst.state;
initial
    begin
        $timeformat(-9,0,"ns",6);
        $monitor("@time %t:pi_money = %b,state = %b,po_cola = %b",$time,pi_money,state,po_cola);
    end

simple_fsm simple_fsm_inst
 (
    .sys_clk     (sys_clk),
    .sys_rst_n   (sys_rst_n),
    .pi_money    (pi_money ),

    .po_cola     (po_cola )
);
endmodule

Moore状态机：输出只和当前状态有关和输入无关

Mealy状态机：输出和当前状态和输入有关

module state
(
    input   wire   sys_clk,
    input   wire   sys_rst_n,
    input   wire   pi_money,
    output  reg   po_cola
);

parameter IDLE=4'b0001;
parameter ONE=4'b0010;
parameter TWO=4'b0100;
parameter THREE =4'b1000;
reg [3:0] state;

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        state <= IDLE;
    else case(state)
        IDLE:if(pi_money == 1'b1)
                state <= ONE;
            else
                state <= IDLE;
        ONE:if(pi_money == 1'b1)
                state <= TWO;
            else
                state <= ONE;
        TWO:if(pi_money == 1'b1)
                //po_cola <= 1'b1;
                state <= THREE;
            else
                state <= TWO;
        THREE:if(pi_money == 1'b1)
                state <= ONE;
              else if(pi_money == 1'b0)
                state <= IDLE;
              else
                state <= IDLE;
        default:state <= state;
    endcase

always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        po_cola <= 1'b0;
    else if (state == THREE)
        po_cola <= 1'b1;
    else
        po_cola <= 1'b0;

endmodule

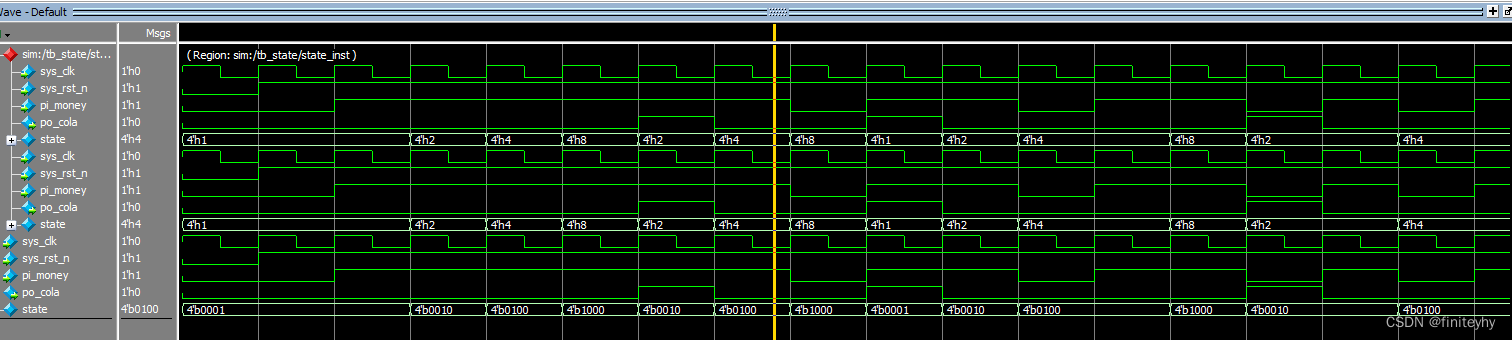

`timescale 1ns/1ns
module tb_state();

reg sys_clk;
reg sys_rst_n;
reg pi_money;
wire po_cola;

initial
    begin
        sys_clk <= 1'b1;
        sys_rst_n <= 1'b0;
        #20
        sys_rst_n <= 1'b1;
    end

always #10 sys_clk <= ~sys_clk;


always@(posedge sys_clk or negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        pi_money <= 1'b0;
    else
        pi_money <= {$random}%2;



wire [3:0] state = state_inst.state;

initial
    begin
        $timeformat(-9,0,"ns",6);
        $monitor("@time %t: pi_money=%b state=%b po_cola =%b",$time,pi_money,state,po_cola);
    end

state state_inst
(
    .sys_clk  (sys_clk  ),
    .sys_rst_n(sys_rst_n),
    .pi_money (pi_money ),
    .po_cola  (po_cola  )
);

endmodule
