《服务治理》服务监控与可观测性详解与实践

1. 可观测性概述

1.1 从监控到可观测性

监控（Monitoring） 与 可观测性（Observability） 有着本质区别：

维度	传统监控	可观测性
关注点	已知问题、预设指标	未知问题、探索性分析
数据维度	指标为主	指标+日志+追踪三位一体
方法论	reactive（被动响应）	proactive（主动探索）
复杂度	相对简单	处理复杂系统不确定性

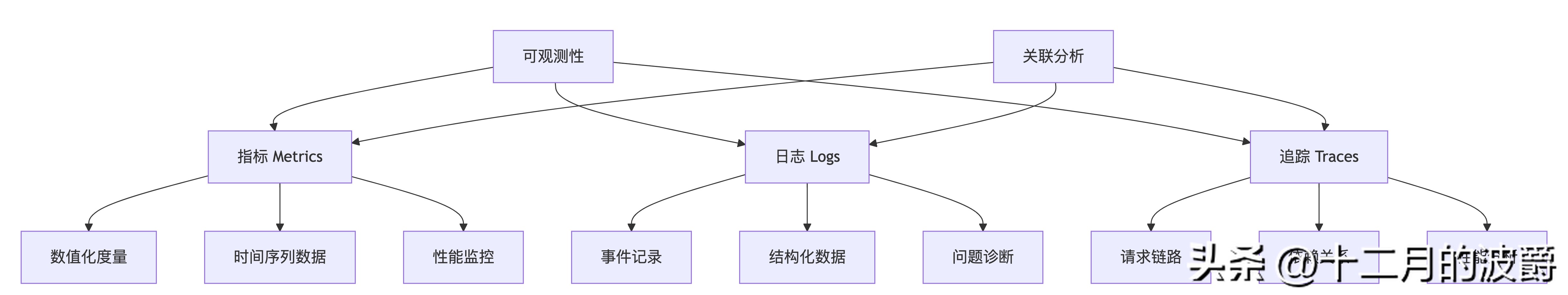

1.2 可观测性的三大支柱

2. 指标(Metrics)体系构建

2.1 Micrometer 指标收集

环境配置

<dependencies>
    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-core</artifactId>
        <version>1.10.0</version>
    </dependency>
    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-registry-prometheus</artifactId>
        <version>1.10.0</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
</dependencies>

应用配置

management:
  endpoints:
    web:
      exposure:
        include: health,info,metrics,prometheus
  endpoint:
    health:
      show-details: always
    metrics:
      enabled: true
    prometheus:
      enabled: true
  metrics:
    export:
      prometheus:
        enabled: true
    distribution:
      percentiles-histogram:
        http.server.requests: true
      percentiles:
        http.server.requests: 0.5, 0.95, 0.99
    tags:
      application: ${spring.application.name}
      environment: ${spring.profiles.active:default}

2.2 自定义业务指标

@Component
public class BusinessMetrics {

    private final MeterRegistry meterRegistry;

    // 计数器 - 业务操作计数
    private final Counter orderCreatedCounter;
    private final Counter paymentSuccessCounter;
    private final Counter paymentFailedCounter;

    // 计时器 - 业务操作耗时
    private final Timer orderProcessingTimer;
    private final Timer paymentProcessingTimer;

    // 计量器 - 业务数值度量
    private final DistributionSummary orderAmountSummary;

    // 仪表 - 当前值
    private final Gauge activeUsersGauge;
    private final AtomicInteger activeUsersCount = new AtomicInteger(0);

    public BusinessMetrics(MeterRegistry meterRegistry) {
        this.meterRegistry = meterRegistry;

        // 初始化计数器
        this.orderCreatedCounter = Counter.builder("business.order.created")
                .description("订单创建总数")
                .tag("application", "order-service")
                .register(meterRegistry);

        this.paymentSuccessCounter = Counter.builder("business.payment.result")
                .description("支付结果统计")
                .tag("result", "success")
                .register(meterRegistry);

        this.paymentFailedCounter = Counter.builder("business.payment.result")
                .description("支付结果统计")
                .tag("result", "failed")
                .register(meterRegistry);

        // 初始化计时器
        this.orderProcessingTimer = Timer.builder("business.order.processing.time")
                .description("订单处理耗时")
                .publishPercentiles(0.5, 0.95, 0.99)
                .register(meterRegistry);

        this.paymentProcessingTimer = Timer.builder("business.payment.processing.time")
                .description("支付处理耗时")
                .publishPercentiles(0.5, 0.95, 0.99)
                .register(meterRegistry);

        // 初始化计量器
        this.orderAmountSummary = DistributionSummary.builder("business.order.amount")
                .description("订单金额分布")
                .baseUnit("CNY")
                .register(meterRegistry);

        // 初始化仪表
        this.activeUsersGauge = Gauge.builder("business.users.active")
                .description("活跃用户数")
                .register(meterRegistry, activeUsersCount);
    }

    /**
     * 记录订单创建指标
     */
    public void recordOrderCreated(Order order) {
        orderCreatedCounter.increment();
        orderAmountSummary.record(order.getAmount().doubleValue());

        // 记录业务标签
        Counter.builder("business.order.created.by.type")
                .tag("orderType", order.getType().name())
                .tag("channel", order.getChannel())
                .register(meterRegistry)
                .increment();
    }

    /**
     * 记录订单处理耗时
     */
    public Timer.Sample startOrderProcessingTimer() {
        return Timer.start(meterRegistry);
    }

    public void stopOrderProcessingTimer(Timer.Sample sample, String status) {
        sample.stop(orderProcessingTimer.tag("status", status));
    }

    /**
     * 记录支付结果
     */
    public void recordPaymentResult(PaymentResult result) {
        if (result.isSuccess()) {
            paymentSuccessCounter.increment();
        } else {
            paymentFailedCounter.increment();

            // 记录失败原因
            Counter.builder("business.payment.failed.reason")
                    .tag("reason", result.getErrorCode())
                    .register(meterRegistry)
                    .increment();
        }
    }

    /**
     * 更新活跃用户数
     */
    public void updateActiveUsers(int count) {
        activeUsersCount.set(count);
    }

    /**
     * 记录自定义业务事件
     */
    public void recordBusinessEvent(String eventType, Map<String, String> tags) {
        Counter counter = Counter.builder("business.event")
                .tags(tags)
                .tag("eventType", eventType)
                .register(meterRegistry);
        counter.increment();
    }
}

2.3 指标切面监控

@Aspect
@Component
@Slf4j
public class MetricsAspect {

    @Autowired
    private BusinessMetrics businessMetrics;

    private final MeterRegistry meterRegistry;

    public MetricsAspect(MeterRegistry meterRegistry) {
        this.meterRegistry = meterRegistry;
    }

    /**
     * 监控Service层方法执行
     */
    @Around("execution(* com.example.service.*.*(..))")
    public Object monitorServiceMethod(ProceedingJoinPoint joinPoint) throws Throwable {
        String className = joinPoint.getTarget().getClass().getSimpleName();
        String methodName = joinPoint.getSignature().getName();
        String metricName = "service.method.execution";

        Timer.Sample sample = Timer.start(meterRegistry);
        String status = "success";

        try {
            Object result = joinPoint.proceed();
            return result;
        } catch (Exception e) {
            status = "error";
            throw e;
        } finally {
            sample.stop(Timer.builder(metricName)
                    .tag("class", className)
                    .tag("method", methodName)
                    .tag("status", status)
                    .register(meterRegistry));
        }
    }

    /**
     * 监控Controller层HTTP请求
     */
    @Around("@annotation(org.springframework.web.bind.annotation.GetMapping) || " +
            "@annotation(org.springframework.web.bind.annotation.PostMapping) || " +
            "@annotation(org.springframework.web.bind.annotation.PutMapping) || " +
            "@annotation(org.springframework.web.bind.annotation.DeleteMapping)")
    public Object monitorHttpRequest(ProceedingJoinPoint joinPoint) throws Throwable {
        ServletRequestAttributes attributes =
            (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        HttpServletRequest request = attributes.getRequest();

        String path = request.getRequestURI();
        String method = request.getMethod();
        String metricName = "http.request.details";

        Timer.Sample sample = Timer.start(meterRegistry);
        String status = "200";

        try {
            Object result = joinPoint.proceed();
            return result;
        } catch (Exception e) {
            status = getHttpStatusFromException(e);
            throw e;
        } finally {
            sample.stop(Timer.builder(metricName)
                    .tag("path", path)
                    .tag("method", method)
                    .tag("status", status)
                    .register(meterRegistry));
        }
    }

    private String getHttpStatusFromException(Exception e) {
        if (e instanceof NotFoundException) {
            return "404";
        } else if (e instanceof BadRequestException) {
            return "400";
        } else if (e instanceof UnauthorizedException) {
            return "401";
        } else {
            return "500";
        }
    }
}

3. 日志(Logs)体系优化

3.1 结构化日志配置

Logback 配置

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <include resource="org/springframework/boot/logging/logback/defaults.xml"/>

    <!-- JSON 布局 -->
    <appender name="JSON" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
            <providers>
                <timestamp>
                    <timeZone>UTC</timeZone>
                </timestamp>
                <logLevel/>
                <loggerName/>
                <message/>
                <mdc/>
                <stackTrace>
                    <throwableConverter class="net.logstash.logback.stacktrace.ShortenedThrowableConverter">
                        <maxDepthPerThrowable>30</maxDepthPerThrowable>
                        <maxLength>2048</maxLength>
                        <shortenedClassNameLength>20</shortenedClassNameLength>
                        <rootCauseFirst>true</rootCauseFirst>
                    </throwableConverter>
                </stackTrace>
                <pattern>
                    <pattern>
                        {
                            "service": "order-service",
                            "version": "1.0.0",
                            "env": "${SPRING_PROFILES_ACTIVE:-default}"
                        }
                    </pattern>
                </pattern>
            </providers>
        </encoder>
    </appender>
    <!-- 异步文件输出 -->
    <appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>logs/order-service.log</file>
        <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
            <providers>
                <timestamp/>
                <logLevel/>
                <loggerName/>
                <message/>
                <mdc/>
                <stackTrace/>
            </providers>
        </encoder>
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>logs/order-service.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <maxFileSize>100MB</maxFileSize>
            <maxHistory>30</maxHistory>
            <totalSizeCap>3GB</totalSizeCap>
        </rollingPolicy>
    </appender>
    <!-- 异步Appender -->
    <appender name="ASYNC" class="ch.qos.logback.classic.AsyncAppender">
        <queueSize>10000</queueSize>
        <discardingThreshold>0</discardingThreshold>
        <includeCallerData>true</includeCallerData>
        <appender-ref ref="JSON"/>
    </appender>
    <root level="INFO">
        <appender-ref ref="ASYNC"/>
        <appender-ref ref="FILE"/>
    </root>
    <!-- 业务日志单独配置 -->
    <logger name="com.example.service" level="DEBUG" additivity="false">
        <appender-ref ref="ASYNC"/>
    </logger>

    <!-- 第三方库日志级别控制 -->
    <logger name="org.apache.kafka" level="WARN"/>
    <logger name="org.springframework" level="INFO"/>
    <logger name="com.zaxxer.hikari" level="INFO"/>
</configuration>

3.2 结构化日志实践

@Slf4j
@Component
public class StructuredLogger {

    private static final String TRACE_ID = "traceId";
    private static final String SPAN_ID = "spanId";
    private static final String USER_ID = "userId";
    private static final String ORDER_ID = "orderId";

    /**
     * 记录业务操作日志
     */
    public void logBusinessOperation(String operation, String orderId, String userId,
                                   Map<String, Object> additionalFields) {
        MDC.put(TRACE_ID, getCurrentTraceId());
        MDC.put(SPAN_ID, getCurrentSpanId());
        MDC.put(ORDER_ID, orderId);
        MDC.put(USER_ID, userId);

        try {
            Map<String, Object> logData = new HashMap<>();
            logData.put("operation", operation);
            logData.put("timestamp", Instant.now().toString());
            logData.put("orderId", orderId);
            logData.put("userId", userId);
            logData.put("additionalInfo", additionalFields);

            log.info(JSON.toJSONString(logData));

        } finally {
            MDC.clear();
        }
    }

    /**
     * 记录性能日志
     */
    public void logPerformance(String operation, long duration, String status,
                             Map<String, String> tags) {
        MDC.put(TRACE_ID, getCurrentTraceId());

        try {
            Map<String, Object> perfData = new HashMap<>();
            perfData.put("type", "performance");
            perfData.put("operation", operation);
            perfData.put("durationMs", duration);
            perfData.put("status", status);
            perfData.put("tags", tags);
            perfData.put("timestamp", Instant.now().toString());

            if (duration > 1000) { // 超过1秒记录为警告
                log.warn(JSON.toJSONString(perfData));
            } else {
                log.info(JSON.toJSONString(perfData));
            }

        } finally {
            MDC.clear();
        }
    }

    /**
     * 记录错误日志
     */
    public void logError(String operation, Exception error, Map<String, Object> context) {
        MDC.put(TRACE_ID, getCurrentTraceId());
        MDC.put(ORDER_ID, context.get("orderId").toString());

        try {
            Map<String, Object> errorData = new HashMap<>();
            errorData.put("type", "error");
            errorData.put("operation", operation);
            errorData.put("errorType", error.getClass().getSimpleName());
            errorData.put("errorMessage", error.getMessage());
            errorData.put("stackTrace", getStackTrace(error));
            errorData.put("context", context);
            errorData.put("timestamp", Instant.now().toString());

            log.error(JSON.toJSONString(errorData));

        } finally {
            MDC.clear();
        }
    }

    private String getCurrentTraceId() {
        // 从当前线程上下文获取Trace ID
        return Optional.ofNullable(MDC.get(TRACE_ID))
                      .orElse(UUID.randomUUID().toString().substring(0, 8));
    }

    private String getCurrentSpanId() {
        return Optional.ofNullable(MDC.get(SPAN_ID))
                      .orElse(UUID.randomUUID().toString().substring(0, 8));
    }

    private String getStackTrace(Exception e) {
        StringWriter sw = new StringWriter();
        e.printStackTrace(new PrintWriter(sw));
        return sw.toString();
    }
}

3.3 日志增强工具】

@Component
public class LogEnhancer {

    /**
     * 为方法调用添加日志增强
     */
    @Around("execution(* com.example.service..*(..))")
    public Object enhanceWithLogging(ProceedingJoinPoint joinPoint) throws Throwable {
        String className = joinPoint.getTarget().getClass().getSimpleName();
        String methodName = joinPoint.getSignature().getName();
        Object[] args = joinPoint.getArgs();

        // 记录方法开始
        log.info("Method started: {}.{} with args: {}",
                 className, methodName, Arrays.toString(args));

        long startTime = System.currentTimeMillis();
        String status = "success";

        try {
            Object result = joinPoint.proceed();

            // 记录方法成功结束
            long duration = System.currentTimeMillis() - startTime;
            log.info("Method completed: {}.{} took {}ms with result: {}",
                     className, methodName, duration,
                     truncateResult(result));

            return result;

        } catch (Exception e) {
            status = "error";
            long duration = System.currentTimeMillis() - startTime;

            // 记录方法异常
            log.error("Method failed: {}.{} took {}ms with error: {}",
                      className, methodName, duration, e.getMessage(), e);

            throw e;
        } finally {
            // 记录指标
            recordMethodMetrics(className, methodName, status,
                              System.currentTimeMillis() - startTime);
        }
    }

    private String truncateResult(Object result) {
        if (result == null) return "null";

        String resultStr = result.toString();
        return resultStr.length() > 200 ?
               resultStr.substring(0, 200) + "..." : resultStr;
    }

    private void recordMethodMetrics(String className, String methodName,
                                   String status, long duration) {
        // 记录到指标系统
        Metrics.counter("method_execution_total",
                "class", className,
                "method", methodName,
                "status", status)
                .increment();

        Metrics.timer("method_execution_duration",
                "class", className,
                "method", methodName)
                .record(Duration.ofMillis(duration));
    }
}

4. 分布式追踪(Tracing)

4.1 OpenTelemetry 配置

依赖配置

<dependencies>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-api</artifactId>
        <version>1.25.0</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-sdk</artifactId>
        <version>1.25.0</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-exporter-jaeger</artifactId>
        <version>1.25.0</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-semconv</artifactId>
        <version>1.25.0</version>
    </dependency>
</dependencies>

追踪配置

@Configuration
public class TracingConfig {

    @Bean
    public OpenTelemetry openTelemetry() {
        String applicationName = "order-service";

        // 设置资源属性
        Resource resource = Resource.getDefault()
                .merge(Resource.builder()
                        .put(SERVICE_NAME, applicationName)
                        .put(SERVICE_VERSION, "1.0.0")
                        .put(DEPLOYMENT_ENVIRONMENT,
                            System.getenv().getOrDefault("ENVIRONMENT", "dev"))
                        .build());

        // 配置Span处理器
        SpanProcessor spanProcessor = BatchSpanProcessor.builder(
                JaegerGrpcSpanExporter.builder()
                        .setEndpoint("http://jaeger:14250")
                        .build())
                .build();

        // 配置采样率
        Sampler sampler = Sampler.traceIdRatioBased(0.1); // 10%采样率

        // 构建SdkTracerProvider
        SdkTracerProvider tracerProvider = SdkTracerProvider.builder()
                .setResource(resource)
                .addSpanProcessor(spanProcessor)
                .setSampler(sampler)
                .build();

        // 构建OpenTelemetry实例
        OpenTelemetrySdk openTelemetry = OpenTelemetrySdk.builder()
                .setTracerProvider(tracerProvider)
                .setPropagators(ContextPropagators.create(W3CTraceContextPropagator.getInstance()))
                .build();

        return openTelemetry;
    }

    @Bean
    public Tracer tracer(OpenTelemetry openTelemetry) {
        return openTelemetry.getTracer("order-service");
    }
}

4.2 分布式追踪实践

@Service
@Slf4j
public class OrderServiceWithTracing {

    @Autowired
    private Tracer tracer;

    @Autowired
    private PaymentServiceClient paymentService;

    @Autowired
    private InventoryServiceClient inventoryService;

    /**
     * 创建订单 - 带分布式追踪
     */
    public Order createOrderWithTracing(CreateOrderRequest request) {
        // 创建Span
        Span span = tracer.spanBuilder("OrderService.createOrder")
                .setAttribute("order.id", request.getOrderId())
                .setAttribute("user.id", request.getUserId())
                .setAttribute("order.amount", request.getAmount().doubleValue())
                .startSpan();

        try (Scope scope = span.makeCurrent()) {
            log.info("开始创建订单: {}", request.getOrderId());

            // 1. 检查库存
            Span inventorySpan = tracer.spanBuilder("InventoryService.checkInventory")
                    .setParent(Context.current().with(span))
                    .startSpan();

            try (Scope inventoryScope = inventorySpan.makeCurrent()) {
                InventoryCheckResult result = inventoryService.checkInventory(
                    request.getProductId(), request.getQuantity());
                inventorySpan.setAttribute("inventory.available", result.isAvailable());
            } catch (Exception e) {
                inventorySpan.recordException(e);
                inventorySpan.setStatus(StatusCode.ERROR);
                throw e;
            } finally {
                inventorySpan.end();
            }

            // 2. 处理支付
            Span paymentSpan = tracer.spanBuilder("PaymentService.processPayment")
                    .setParent(Context.current().with(span))
                    .startSpan();

            try (Scope paymentScope = paymentSpan.makeCurrent()) {
                PaymentResult paymentResult = paymentService.processPayment(
                    buildPaymentRequest(request));
                paymentSpan.setAttribute("payment.status", paymentResult.getStatus());
                paymentSpan.setAttribute("payment.amount",
                    paymentResult.getAmount().doubleValue());
            } catch (Exception e) {
                paymentSpan.recordException(e);
                paymentSpan.setStatus(StatusCode.ERROR);
                throw e;
            } finally {
                paymentSpan.end();
            }

            // 3. 创建订单记录
            Order order = saveOrder(request);
            span.setAttribute("order.status", order.getStatus().name());

            log.info("订单创建成功: {}", order.getOrderId());
            return order;

        } catch (Exception e) {
            span.recordException(e);
            span.setStatus(StatusCode.ERROR, e.getMessage());
            throw e;
        } finally {
            span.end();
        }
    }

    /**
     * 异步操作的追踪
     */
    @Async
    public CompletableFuture<Void> processOrderAsync(String orderId) {
        Span span = tracer.spanBuilder("OrderService.processOrderAsync")
                .setAttribute("order.id", orderId)
                .startSpan();

        // 将Span上下文传递到异步线程
        Context context = Context.current().with(span);

        return CompletableFuture.supplyAsync(() -> {
            try (Scope scope = context.makeCurrent()) {
                // 异步处理逻辑
                processOrderBackground(orderId);
                return null;
            } catch (Exception e) {
                span.recordException(e);
                span.setStatus(StatusCode.ERROR);
                throw e;
            } finally {
                span.end();
            }
        });
    }

    /**
     * 数据库操作的追踪
     */
    public Order findOrderWithTracing(String orderId) {
        Span span = tracer.spanBuilder("Database.findOrder")
                .setAttribute("db.operation", "SELECT")
                .setAttribute("db.table", "orders")
                .setAttribute("db.order.id", orderId)
                .startSpan();

        try (Scope scope = span.makeCurrent()) {
            // 执行数据库查询
            Order order = orderRepository.findById(orderId)
                    .orElseThrow(() -> new OrderNotFoundException("订单不存在"));

            span.setAttribute("db.result.found", true);
            return order;

        } catch (Exception e) {
            span.recordException(e);
            span.setStatus(StatusCode.ERROR);
            throw e;
        } finally {
            span.end();
        }
    }
}

4.3 HTTP请求追踪

@Component
public class TracingFilter implements Filter {

    private final Tracer tracer;
    private final TextMapPropagator propagator;

    public TracingFilter(Tracer tracer) {
        this.tracer = tracer;
        this.propagator = W3CTraceContextPropagator.getInstance();
    }

    @Override
    public void doFilter(ServletRequest request, ServletResponse response,
                        FilterChain chain) throws IOException, ServletException {

        HttpServletRequest httpRequest = (HttpServletRequest) request;
        HttpServletResponse httpResponse = (HttpServletResponse) response;

        // 从HTTP头中提取追踪上下文
        Context extractedContext = propagator.extract(
            Context.current(), httpRequest, this::getHeaders);

        // 创建Span
        Span span = tracer.spanBuilder(httpRequest.getMethod() + " " + httpRequest.getRequestURI())
                .setParent(extractedContext)
                .setSpanKind(SpanKind.SERVER)
                .startSpan();

        try (Scope scope = span.makeCurrent()) {
            // 设置Span属性
            span.setAttribute("http.method", httpRequest.getMethod());
            span.setAttribute("http.route", httpRequest.getRequestURI());
            span.setAttribute("http.url", httpRequest.getRequestURL().toString());
            span.setAttribute("http.client_ip", getClientIp(httpRequest));
            span.setAttribute("http.user_agent", httpRequest.getHeader("User-Agent"));

            // 继续处理请求
            chain.doFilter(request, response);

            // 记录响应状态
            span.setAttribute("http.status_code", httpResponse.getStatus());
            span.setStatus(getSpanStatus(httpResponse.getStatus()));

        } catch (Exception e) {
            span.recordException(e);
            span.setStatus(StatusCode.ERROR, e.getMessage());
            throw e;
        } finally {
            span.end();
        }
    }

    private TextMapGetter<HttpServletRequest> getHeaders() {
        return new TextMapGetter<HttpServletRequest>() {
            @Override
            public Iterable<String> keys(HttpServletRequest carrier) {
                List<String> keys = new ArrayList<>();
                Enumeration<String> headerNames = carrier.getHeaderNames();
                while (headerNames.hasMoreElements()) {
                    keys.add(headerNames.nextElement());
                }
                return keys;
            }

            @Override
            public String get(HttpServletRequest carrier, String key) {
                return carrier.getHeader(key);
            }
        };
    }

    private String getClientIp(HttpServletRequest request) {
        String xForwardedFor = request.getHeader("X-Forwarded-For");
        if (xForwardedFor != null && !xForwardedFor.isEmpty()) {
            return xForwardedFor.split(",")[0];
        }
        return request.getRemoteAddr();
    }

    private StatusCode getSpanStatus(int statusCode) {
        if (statusCode >= 200 && statusCode < 400) {
            return StatusCode.OK;
        } else {
            return StatusCode.ERROR;
        }
    }
}

5. 可观测性数据关联

5.1 三大支柱关联实践

@Component
@Slf4j
public class ObservabilityCorrelation {

    @Autowired
    private Tracer tracer;

    @Autowired
    private BusinessMetrics businessMetrics;

    private static final String TRACE_ID = "traceId";
    private static final String SPAN_ID = "spanId";

    /**
     * 执行可观测的操作
     */
    public <T> T executeWithObservability(String operationName,
                                         Map<String, Object> attributes,
                                         Supplier<T> operation) {
        // 1. 创建追踪Span
        Span.Builder spanBuilder = tracer.spanBuilder(operationName);
        attributes.forEach((key, value) ->
            spanBuilder.setAttribute(key, value.toString()));

        Span span = spanBuilder.startSpan();
        String traceId = span.getSpanContext().getTraceId();
        String spanId = span.getSpanContext().getSpanId();

        // 2. 设置日志上下文
        MDC.put(TRACE_ID, traceId);
        MDC.put(SPAN_ID, spanId);

        // 3. 开始指标计时
        Timer.Sample metricSample = Timer.start();

        try (Scope scope = span.makeCurrent()) {
            log.info("开始执行操作: {}, traceId: {}", operationName, traceId);

            // 执行实际操作
            T result = operation.get();

            // 记录成功指标
            businessMetrics.recordBusinessEvent(operationName + ".success",
                Map.of("traceId", traceId));

            log.info("操作执行成功: {}, traceId: {}", operationName, traceId);
            return result;

        } catch (Exception e) {
            // 记录错误
            span.recordException(e);
            span.setStatus(StatusCode.ERROR);

            // 记录错误指标
            businessMetrics.recordBusinessEvent(operationName + ".error",
                Map.of("traceId", traceId, "error", e.getClass().getSimpleName()));

            // 记录错误日志
            log.error("操作执行失败: {}, traceId: {}, error: {}",
                     operationName, traceId, e.getMessage(), e);

            throw e;

        } finally {
            // 结束指标计时
            metricSample.stop(Timer.builder("operation.duration")
                    .tag("operation", operationName)
                    .tag("traceId", traceId)
                    .register(Metrics.globalRegistry));

            // 结束Span
            span.end();

            // 清理MDC
            MDC.clear();
        }
    }

    /**
     * 关联分析数据生成
     */
    public void generateCorrelationData(String businessKey, String operation) {
        Span currentSpan = Span.current();
        String traceId = currentSpan.getSpanContext().getTraceId();

        // 生成关联数据
        Map<String, Object> correlationData = new HashMap<>();
        correlationData.put("timestamp", Instant.now().toString());
        correlationData.put("businessKey", businessKey);
        correlationData.put("operation", operation);
        correlationData.put("traceId", traceId);
        correlationData.put("spanId", currentSpan.getSpanContext().getSpanId());
        correlationData.put("service", "order-service");

        // 记录到日志
        log.info(JSON.toJSONString(correlationData));

        // 记录指标
        Metrics.counter("business.correlation",
                "operation", operation,
                "businessKey", businessKey,
                "traceId", traceId)
                .increment();
    }
}

5.2 可观测性数据查询

@RestController
@RequestMapping("/observability")
@Slf4j
public class ObservabilityQueryController {

    @Autowired
    private MeterRegistry meterRegistry;

    @Autowired
    private TracingQueryService tracingQueryService;

    @Autowired
    private LogQueryService logQueryService;

    /**
     * 获取服务健康状态
     */
    @GetMapping("/health")
    public ServiceHealth getServiceHealth() {
        return ServiceHealth.builder()
                .status(HealthStatus.HEALTHY)
                .timestamp(Instant.now())
                .metrics(getCurrentMetrics())
                .build();
    }

    /**
     * 查询追踪数据
     */
    @GetMapping("/traces")
    public List<TraceSummary> queryTraces(
            @RequestParam(required = false) String serviceName,
            @RequestParam(required = false) String operation,
            @RequestParam(required = false) Long startTime,
            @RequestParam(required = false) Long endTime,
            @RequestParam(defaultValue = "50") int limit) {

        return tracingQueryService.queryTraces(
            serviceName, operation, startTime, endTime, limit);
    }

    /**
     * 查询指标数据
     */
    @GetMapping("/metrics/{metricName}")
    public MetricData getMetricData(
            @PathVariable String metricName,
            @RequestParam(required = false) Map<String, String> tags,
            @RequestParam(defaultValue = "1h") String duration) {

        return meterRegistry.find(metricName)
                .tags(tags)
                .meter()
                .map(meter -> buildMetricData(meter, duration))
                .orElseThrow(() -> new MetricNotFoundException("指标不存在: " + metricName));
    }

    /**
     * 关联查询 - 根据Trace ID查询相关数据
     */
    @GetMapping("/correlation/{traceId}")
    public CorrelationData getCorrelationData(@PathVariable String traceId) {
        CorrelationData data = new CorrelationData();

        // 查询追踪数据
        data.setTrace(tracingQueryService.getTraceDetail(traceId));

        // 查询相关日志
        data.setLogs(logQueryService.queryLogsByTraceId(traceId));

        // 查询相关指标
        data.setMetrics(getMetricsByTraceId(traceId));

        return data;
    }

    /**
     * 性能分析
     */
    @GetMapping("/performance/analysis")
    public PerformanceAnalysis analyzePerformance(
            @RequestParam String operation,
            @RequestParam Long startTime,
            @RequestParam Long endTime) {

        PerformanceAnalysis analysis = new PerformanceAnalysis();

        // 分析指标趋势
        analysis.setMetricTrends(analyzeMetricTrends(operation, startTime, endTime));

        // 分析慢追踪
        analysis.setSlowTraces(analyzeSlowTraces(operation, startTime, endTime));

        // 分析错误模式
        analysis.setErrorPatterns(analyzeErrorPatterns(operation, startTime, endTime));

        return analysis;
    }

    private Map<String, Object> getCurrentMetrics() {
        Map<String, Object> metrics = new HashMap<>();

        // 系统指标
        metrics.put("system.cpu.usage", getCpuUsage());
        metrics.put("system.memory.usage", getMemoryUsage());
        metrics.put("system.disk.usage", getDiskUsage());

        // 应用指标
        metrics.put("app.requests.active", getActiveRequests());
        metrics.put("app.threads.active", getActiveThreads());
        metrics.put("app.db.connections.active", getActiveDbConnections());

        return metrics;
    }
}

6. 监控告警与可视化

6.1 告警规则配置

# alert-rules.yml
groups:
  - name: order-service
    rules:
      # 错误率告警
      - alert: HighErrorRate
        expr: rate(http_requests_total{status=~"5.."}[5m]) / rate(http_requests_total[5m]) > 0.05
        for: 2m
        labels:
          severity: warning
          service: order-service
        annotations:
          summary: "高错误率告警"
          description: "订单服务错误率超过5%，当前值: {{ $value }}"

      # 响应时间告警
      - alert: HighResponseTime
        expr: histogram_quantile(0.95, rate(http_request_duration_seconds_bucket[5m])) > 2
        for: 3m
        labels:
          severity: warning
          service: order-service
        annotations:
          summary: "高响应时间告警"
          description: "订单服务95分位响应时间超过2秒，当前值: {{ $value }}s"

      # 业务指标告警
      - alert: PaymentFailureRateHigh
        expr: rate(business_payment_result{result="failed"}[10m]) / rate(business_payment_result[10m]) > 0.1
        for: 5m
        labels:
          severity: critical
          service: order-service
        annotations:
          summary: "支付失败率过高"
          description: "支付失败率超过10%，当前值: {{ $value }}"

      # 系统资源告警
      - alert: HighMemoryUsage
        expr: system_memory_usage > 0.8
        for: 2m
        labels:
          severity: warning
          service: order-service
        annotations:
          summary: "内存使用率过高"
          description: "内存使用率超过80%，当前值: {{ $value }}"

6.2 告警管理器

@Component
@Slf4j
public class AlertManager {

    @Autowired
    private NotificationService notificationService;

    @Autowired
    private MetricsService metricsService;

    /**
     * 处理监控告警
     */
    @EventListener
    public void handleAlert(AlertEvent event) {
        log.warn("接收到告警事件: {}", event);

        // 记录告警指标
        metricsService.recordAlertEvent(event);

        // 根据严重程度发送通知
        switch (event.getSeverity()) {
            case CRITICAL:
                handleCriticalAlert(event);
                break;
            case WARNING:
                handleWarningAlert(event);
                break;
            case INFO:
                handleInfoAlert(event);
                break;
        }
    }

    /**
     * 处理严重告警
     */
    private void handleCriticalAlert(AlertEvent event) {
        // 发送即时通知
        notificationService.sendCriticalAlert(
            buildAlertMessage(event),
            getOnCallEngineers()
        );

        // 创建应急工单
        incidentService.createIncident(event);

        // 触发自动恢复流程
        if (event.canAutoRecover()) {
            autoRecoveryService.attemptRecovery(event);
        }
    }

    /**
     * 处理警告告警
     */
    private void handleWarningAlert(AlertEvent event) {
        // 发送常规通知
        notificationService.sendWarningAlert(buildAlertMessage(event));

        // 记录到告警面板
        alertDashboard.recordAlert(event);
    }

    /**
     * 构建告警消息
     */
    private AlertMessage buildAlertMessage(AlertEvent event) {
        return AlertMessage.builder()
                .title(event.getSummary())
                .description(event.getDescription())
                .severity(event.getSeverity())
                .timestamp(event.getTimestamp())
                .service(event.getService())
                .relatedMetrics(getRelatedMetrics(event))
                .suggestedActions(getSuggestedActions(event))
                .build();
    }

    /**
     * 智能告警去重
     */
    public boolean shouldTriggerAlert(AlertEvent event) {
        // 检查是否在静默期
        if (isInSilencePeriod(event)) {
            log.info("告警处于静默期，不触发: {}", event.getAlertName());
            return false;
        }

        // 检查是否已经存在相同告警
        if (isDuplicateAlert(event)) {
            log.info("重复告警，不触发: {}", event.getAlertName());
            return false;
        }

        // 检查告警频率
        if (isAlertFlapping(event)) {
            log.warn("告警抖动，标记为不稳定: {}", event.getAlertName());
            return false;
        }

        return true;
    }
}

7. 生产环境最佳实践

7.1 可观测性检查清单

@Component
@Slf4j
public class ObservabilityChecklist {

    /**
     * 应用启动时可观测性检查
     */
    @EventListener(ApplicationReadyEvent.class)
    public void performObservabilityCheck() {
        log.info("开始可观测性检查...");

        List<CheckItem> checks = Arrays.asList(
            checkMetricsEndpoint(),
            checkTracingConfiguration(),
            checkLoggingConfiguration(),
            checkAlertRules(),
            checkDashboardConfiguration()
        );

        boolean allPassed = checks.stream().allMatch(CheckItem::isPassed);

        if (allPassed) {
            log.info("可观测性检查通过");
        } else {
            log.error("可观测性检查发现问题:");
            checks.stream()
                  .filter(item -> !item.isPassed())
                  .forEach(item -> log.error(" - {}: {}", item.getName(), item.getMessage()));
        }
    }

    /**
     * 定期健康检查
     */
    @Scheduled(fixedRate = 300000) // 5分钟
    public void performHealthCheck() {
        ObservabilityHealth health = checkObservabilityHealth();

        if (health.getStatus() == HealthStatus.DEGRADED) {
            log.warn("可观测性系统健康度下降: {}", health.getMessage());
            alertService.sendObservabilityDegradedAlert(health);
        }
    }

    private CheckItem checkMetricsEndpoint() {
        try {
            RestTemplate restTemplate = new RestTemplate();
            ResponseEntity<String> response = restTemplate.getForEntity(
                "http://localhost:8080/actuator/prometheus", String.class);

            if (response.getStatusCode().is2xxSuccessful()) {
                return CheckItem.passed("Metrics端点检查");
            } else {
                return CheckItem.failed("Metrics端点检查",
                    "端点返回状态: " + response.getStatusCode());
            }
        } catch (Exception e) {
            return CheckItem.failed("Metrics端点检查", e.getMessage());
        }
    }

    private CheckItem checkTracingConfiguration() {
        try {
            // 检查追踪配置
            Tracer tracer = applicationContext.getBean(Tracer.class);
            if (tracer != null) {
                return CheckItem.passed("追踪配置检查");
            } else {
                return CheckItem.failed("追踪配置检查", "Tracer bean未找到");
            }
        } catch (Exception e) {
            return CheckItem.failed("追踪配置检查", e.getMessage());
        }
    }
}

7.2 性能优化建议

# 可观测性性能配置
observability:
  metrics:
    # 指标采集间隔
    collection-interval: 30s
    # 指标保留时间
    retention: 30d
    # 采样率
    sampling-rate: 1.0

  tracing:
    # 追踪采样率
    sampling-rate: 0.1
    # 最大属性数量
    max-attributes: 128
    # 最大事件数量
    max-events: 128

  logging:
    # 异步日志队列大小
    async-queue-size: 10000
    # 日志文件大小限制
    max-file-size: 100MB
    # 日志保留天数
    retention-days: 30

  alerts:
    # 告警分组间隔
    group-interval: 2m
    # 告警重复间隔
    repeat-interval: 1h
    # 告警超时时间
    timeout: 1m

8. 总结

8.1 可观测性价值体现

通过本文的深入实践，你应该理解可观测性在现代分布式系统中的核心价值：

1. 快速问题定位：通过关联分析快速定位问题根因
2. 性能优化依据：基于数据驱动的性能优化决策
3. 容量规划支撑：为系统扩容和资源分配提供数据支持
4. 用户体验保障：实时监控业务指标，保障用户体验

8.2 关键成功要素

✅ 三位一体：指标、日志、追踪的完整覆盖
✅ 关联分析：跨数据源的关联查询和分析
✅ 智能告警：基于机器学习的智能告警和预测
✅ 自动化运维：自动化的监控配置和故障恢复
✅ 持续优化：基于反馈的持续监控体系优化

8.3 演进路线图

初级阶段：

• 基础指标收集和告警
• 结构化日志输出
• 简单的仪表板

中级阶段：

• 分布式追踪集成
• 智能告警和预测
• 自动化故障检测

高级阶段：

• AIOps智能运维
• 全链路可观测性
• 自动化根因分析

可观测性不是一次性项目，而是需要持续投入和改进的工程实践。通过建立完善的可观测性体系，能够显著提升系统的可靠性和运维效率。
