1. RPC框架概述
1.1 现代RPC框架的核心价值

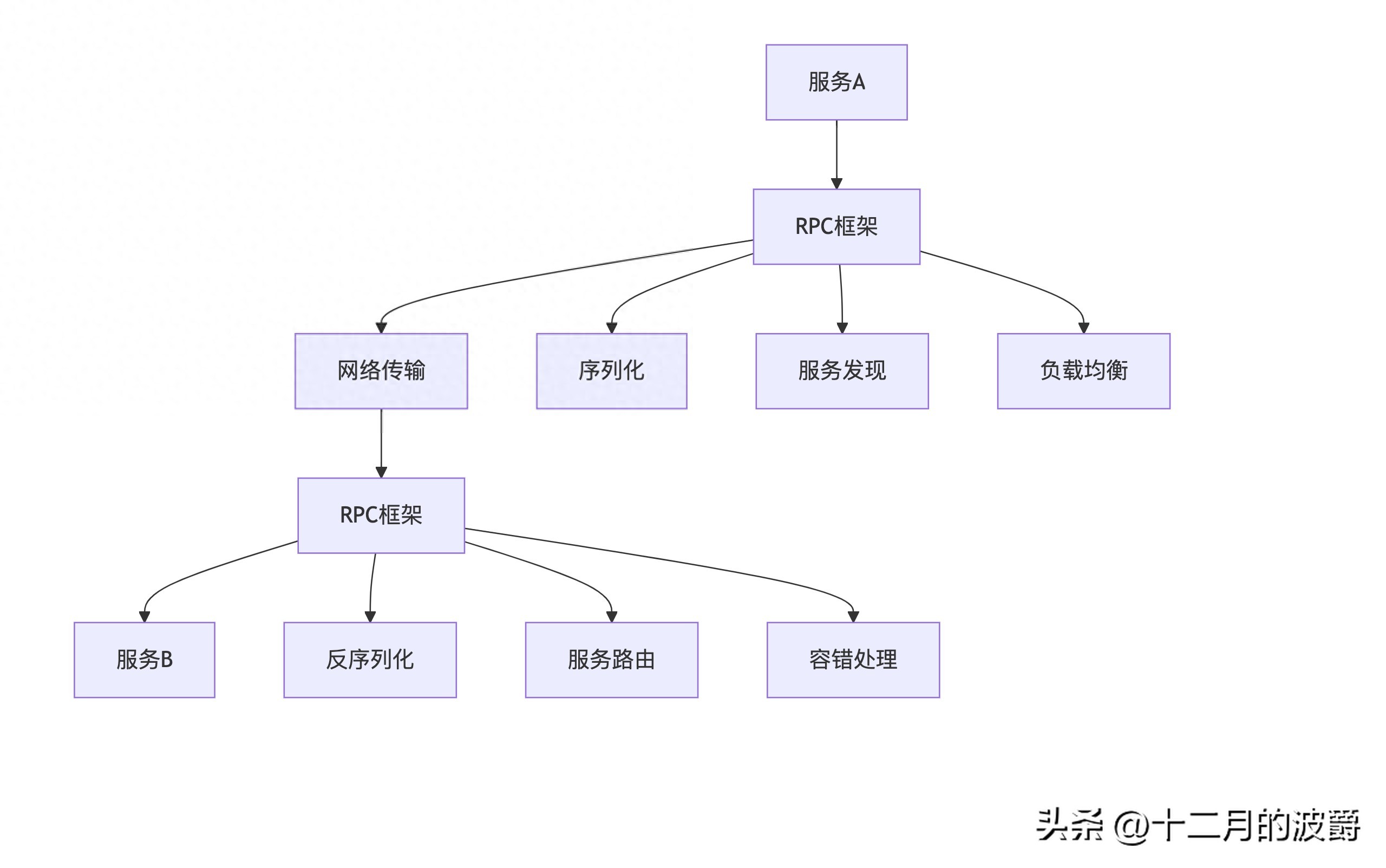

在微服务架构中，服务间通信是系统设计的核心环节。RPC（Remote Procedure Call）框架通过抽象网络通信细节，让开发者能够像调用本地方法一样调用远程服务，极大地提升了开发效率。
1.2 Thrift与gRPC定位
|
维度 |
Thrift |
gRPC |
|
诞生背景 |
Facebook内部项目，2007年开源 |
Google内部Stubby系统开源，2015年发布 |
|
设计哲学 |
简单高效，跨语言通信 |
现代化，基于HTTP/2和Protocol Buffers |
|
核心特性 |
多协议支持，代码生成 |
流式处理，强类型接口定义 |
|
生态定位 |
成熟稳定的企业级方案 |
云原生时代的标准方案 |
2. 架构设计对比

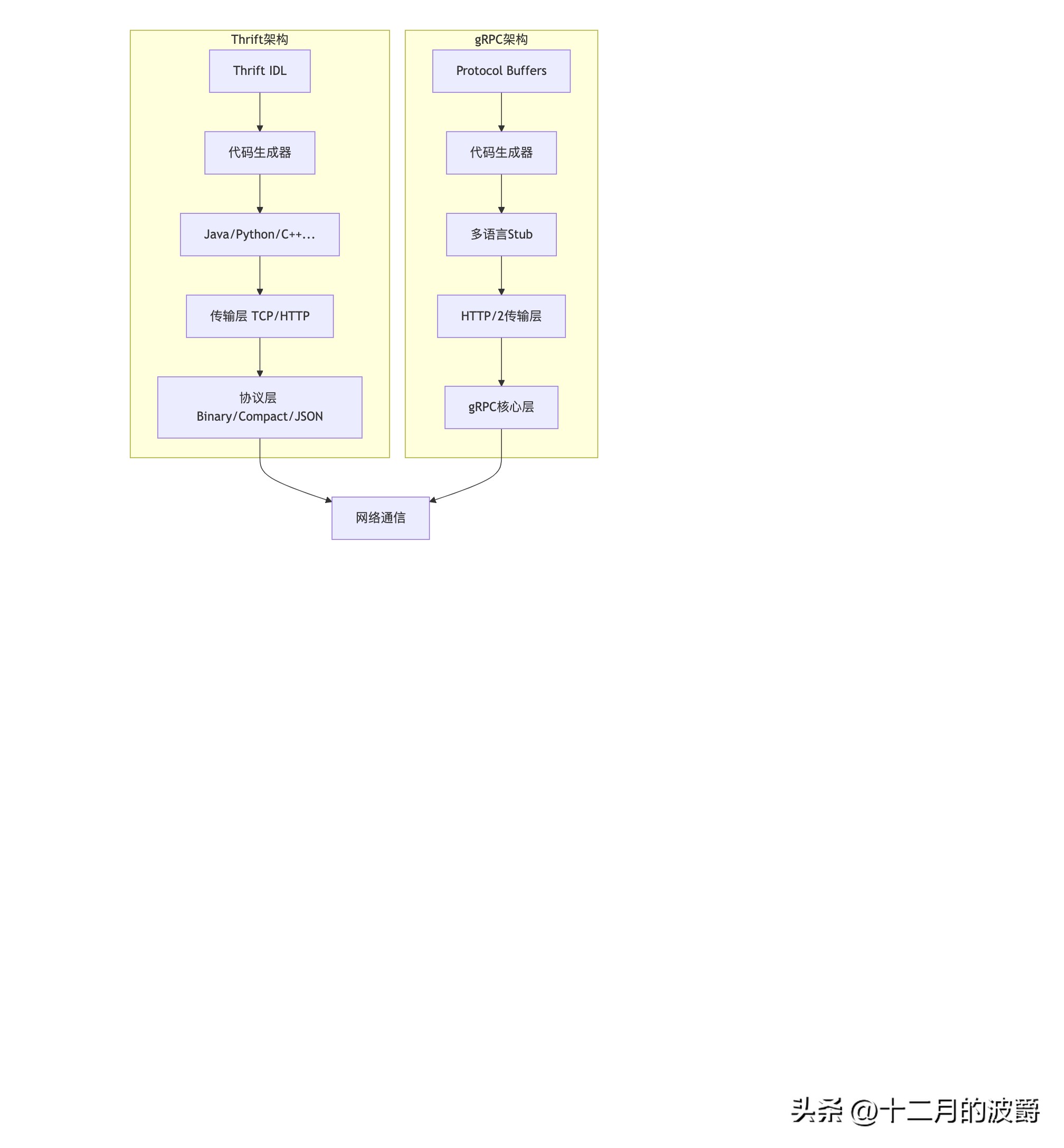

2.1 整体架构对比
2.2 核心组件对比
|
组件 |
Thrift |
gRPC |
|
接口定义语言 |
Thrift IDL |
Protocol Buffers |
|
传输协议 |
TCP/HTTP，自定义协议 |
HTTP/2 |
|
序列化格式 |
Binary/Compact/JSON |
Protocol Buffers二进制 |
|
服务发现 |
需要外部组件 |
内置负载均衡 |
|
流式处理 |
有限支持 |
全面支持(四种模式) |
3. 性能特性深度分析
3.1 序列化性能对比
// 性能测试工具类
@Component
@Slf4j
public class SerializationBenchmark {
private static final int WARMUP_ITERATIONS = 1000;
private static final int TEST_ITERATIONS = 10000;
/**
* Thrift序列化性能测试
*/
public void thriftSerializationBenchmark() {
UserProfile user = createTestUserProfile();
// 预热
for (int i = 0; i < WARMUP_ITERATIONS; i++) {
serializeThrift(user);
}
// 测试
long startTime = System.nanoTime();
for (int i = 0; i < TEST_ITERATIONS; i++) {
serializeThrift(user);
}
long duration = System.nanoTime() - startTime;
log.info("Thrift序列化 {} 次耗时: {} ms", TEST_ITERATIONS, duration / 1_000_000);
}
/**
* gRPC序列化性能测试
*/
public void grpcSerializationBenchmark() {
User user = createTestUser();
// 预热
for (int i = 0; i < WARMUP_ITERATIONS; i++) {
serializeGrpc(user);
}
// 测试
long startTime = System.nanoTime();
for (int i = 0; i < TEST_ITERATIONS; i++) {
serializeGrpc(user);
}
long duration = System.nanoTime() - startTime;
log.info("gRPC序列化 {} 次耗时: {} ms", TEST_ITERATIONS, duration / 1_000_000);
}
private byte[] serializeThrift(UserProfile user) {
try {
TMemoryBuffer transport = new TMemoryBuffer(512);
TBinaryProtocol protocol = new TBinaryProtocol(transport);
user.write(protocol);
return transport.getArray();
} catch (TException e) {
throw new RuntimeException("Thrift序列化失败", e);
}
}
private byte[] serializeGrpc(User user) {
return user.toByteArray();
}
}
3.2 网络传输性能
@Component
@Slf4j
public class NetworkBenchmark {
/**
* RPC调用延迟测试
*/
public void measureLatency(Runnable rpcCall, String framework) {
List<Long> latencies = new ArrayList<>();
for (int i = 0; i < 100; i++) {
long start = System.nanoTime();
rpcCall.run();
long end = System.nanoTime();
latencies.add(end - start);
}
// 统计信息
LongSummaryStatistics stats = latencies.stream()
.mapToLong(Long::longValue)
.summaryStatistics();
log.info("{} 延迟统计 - 平均: {:.2f}μs, 最小: {}μs, 最大: {}μs",
framework,
stats.getAverage() / 1000.0,
stats.getMin() / 1000,
stats.getMax() / 1000);
}
/**
* 吞吐量测试
*/
public void measureThroughput(Runnable rpcCall, String framework, int concurrent)
throws InterruptedException {
CountDownLatch latch = new CountDownLatch(concurrent);
AtomicLong successCount = new AtomicLong(0);
long startTime = System.currentTimeMillis();
for (int i = 0; i < concurrent; i++) {
new Thread(() -> {
try {
for (int j = 0; j < 1000; j++) {
rpcCall.run();
successCount.incrementAndGet();
}
} finally {
latch.countDown();
}
}).start();
}
latch.await();
long endTime = System.currentTimeMillis();
long totalTime = endTime - startTime;
long qps = successCount.get() * 1000 / totalTime;
log.info("{} 吞吐量测试 - 并发: {}, QPS: {}, 总请求: {}",
framework, concurrent, qps, successCount.get());
}
}
4. Thrift实战详解
4.1 环境配置与依赖
Maven依赖配置
<properties>
<thrift.version>0.16.0</thrift.version>
</properties>
<dependencies>
<!-- Thrift核心库 -->
<dependency>
<groupId>org.apache.thrift</groupId>
<artifactId>libthrift</artifactId>
<version>${thrift.version}</version>
</dependency>
<!-- 连接池 -->
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-pool2</artifactId>
<version>2.11.1</version>
</dependency>
<!-- Spring Boot集成 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
<version>2.7.0</version>
</dependency>
</dependencies>
<build>
<plugins>
<!-- Thrift代码生成插件 -->
<plugin>
<groupId>org.apache.thrift.tools</groupId>
<artifactId>maven-thrift-plugin</artifactId>
<version>0.1.11</version>
<configuration>
<thriftExecutable>/usr/local/bin/thrift</thriftExecutable>
<thriftSourceRoot>${project.basedir}/src/main/thrift</thriftSourceRoot>
<outputDirectory>${project.build.directory}/generated-sources/thrift</outputDirectory>
<generator>java:beans,private-members</generator>
</configuration>
<executions>
<execution>
<id>generate-thrift-sources</id>
<phase>generate-sources</phase>
<goals>
<goal>compile</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
4.2 Thrift IDL定义
namespace java com.example.thrift
namespace py example.thrift
// 枚举定义
enum UserStatus {
ACTIVE = 1,
INACTIVE = 2,
SUSPENDED = 3
}
enum Gender {
MALE = 1,
FEMALE = 2,
UNKNOWN = 3
}
// 结构体定义
struct UserProfile {
1: required i64 userId,
2: required string username,
3: optional string email,
4: optional string phone,
5: optional i16 age,
6: optional Gender gender,
7: UserStatus status = UserStatus.ACTIVE,
8: i64 createTime,
9: i64 updateTime
}
struct CreateUserRequest {
1: required string username,
2: required string password,
3: optional string email,
4: optional string phone,
5: optional i16 age,
6: optional Gender gender
}
struct UserResponse {
1: required bool success,
2: optional string message,
3: optional UserProfile user
}
struct PageRequest {
1: required i32 page = 1,
2: required i32 size = 20
}
struct PageResponse {
1: required list<UserProfile> data,
2: required i32 totalPages,
3: required i64 totalElements
}
// 异常定义
exception UserNotFoundException {
1: required i64 userId,
2: optional string message
}
exception ServiceException {
1: required i32 errorCode,
2: required string errorMessage
}
// 服务接口
service UserService {
UserResponse createUser(1: CreateUserRequest request)
throws (1: ServiceException serviceError),
UserResponse getUserById(1: i64 userId)
throws (1: UserNotFoundException notFound,
2: ServiceException serviceError),
PageResponse listUsers(1: PageRequest request),
bool healthCheck()
}
4.3 Thrift服务端实现
@Service
@Slf4j
public class UserServiceThriftImpl implements UserService.Iface {
@Autowired
private UserRepository userRepository;
@Override
public UserResponse createUser(CreateUserRequest request) throws ServiceException {
log.info("Thrift创建用户: {}", request.getUsername());
try {
// 参数验证
if (StringUtils.isBlank(request.getUsername())) {
throw new ServiceException(400, "用户名不能为空");
}
// 业务逻辑
User user = User.builder()
.username(request.getUsername())
.email(request.getEmail())
.phone(request.getPhone())
.age((int) request.getAge())
.createTime(System.currentTimeMillis())
.updateTime(System.currentTimeMillis())
.build();
user = userRepository.save(user);
UserProfile profile = convertToUserProfile(user);
return new UserResponse(true, "创建成功", profile);
} catch (Exception e) {
log.error("创建用户失败", e);
throw new ServiceException(500, "系统异常: " + e.getMessage());
}
}
@Override
public UserResponse getUserById(long userId)
throws UserNotFoundException, ServiceException {
log.debug("Thrift查询用户: {}", userId);
try {
User user = userRepository.findById(userId)
.orElseThrow(() -> new UserNotFoundException(userId, "用户不存在"));
UserProfile profile = convertToUserProfile(user);
return new UserResponse(true, "查询成功", profile);
} catch (UserNotFoundException e) {
throw e;
} catch (Exception e) {
log.error("查询用户失败", e);
throw new ServiceException(500, "系统异常");
}
}
@Override
public PageResponse listUsers(PageRequest request) {
log.debug("Thrift分页查询: page={}, size={}", request.getPage(), request.getSize());
int page = Math.max(0, request.getPage() - 1);
int size = Math.min(100, Math.max(1, request.getSize()));
Pageable pageable = PageRequest.of(page, size);
Page<User> userPage = userRepository.findAll(pageable);
List<UserProfile> profiles = userPage.getContent().stream()
.map(this::convertToUserProfile)
.collect(Collectors.toList());
return new PageResponse(profiles, userPage.getTotalPages(), userPage.getTotalElements());
}
@Override
public boolean healthCheck() {
try {
userRepository.count();
return true;
} catch (Exception e) {
log.error("健康检查失败", e);
return false;
}
}
private UserProfile convertToUserProfile(User user) {
UserProfile profile = new UserProfile();
profile.setUserId(user.getUserId());
profile.setUsername(user.getUsername());
profile.setEmail(user.getEmail());
profile.setPhone(user.getPhone());
profile.setAge((short) user.getAge());
profile.setCreateTime(user.getCreateTime());
profile.setUpdateTime(user.getUpdateTime());
return profile;
}
}
4.4 Thrift服务器配置
@Configuration
@Slf4j
public class ThriftServerConfig {
@Value("${thrift.port:9090}")
private int thriftPort;
@Bean
@ConditionalOnMissingBean
public TProtocolFactory protocolFactory() {
return new TBinaryProtocol.Factory();
}
@Bean
@ConditionalOnMissingBean
public TTransportFactory transportFactory() {
return new TFramedTransport.Factory();
}
@Bean
public UserService.Iface userServiceThriftImpl() {
return new UserServiceThriftImpl();
}
@Bean
public UserService.Processor<UserService.Iface> userServiceProcessor(
UserService.Iface userService) {
return new UserService.Processor<>(userService);
}
@Bean
public TServer thriftServer(UserService.Processor<UserService.Iface> processor) {
try {
TServerTransport serverTransport = new TServerSocket(thriftPort);
TThreadPoolServer.Args args = new TThreadPoolServer.Args(serverTransport)
.processor(processor)
.transportFactory(transportFactory())
.protocolFactory(protocolFactory())
.minWorkerThreads(10)
.maxWorkerThreads(100);
TServer server = new TThreadPoolServer(args);
new Thread(() -> {
log.info("启动Thrift服务器，端口: {}", thriftPort);
server.serve();
}).start();
return server;
} catch (TTransportException e) {
log.error("启动Thrift服务器失败", e);
throw new RuntimeException("Thrift服务器启动失败", e);
}
}
}
5. gRPC实战详解
5.1 环境配置与依赖
Maven依赖配置
<properties>
<grpc.version>1.49.0</grpc.version>
<protobuf.version>3.21.5</protobuf.version>
</properties>
<dependencies>
<!-- gRPC核心库 -->
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-netty-shaded</artifactId>
<version>${grpc.version}</version>
</dependency>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-protobuf</artifactId>
<version>${grpc.version}</version>
</dependency>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-stub</artifactId>
<version>${grpc.version}</version>
</dependency>
<!-- Protocol Buffers -->
<dependency>
<groupId>com.google.protobuf</groupId>
<artifactId>protobuf-java</artifactId>
<version>${protobuf.version}</version>
</dependency>
<!-- 如果需要使用注解 -->
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-services</artifactId>
<version>${grpc.version}</version>
</dependency>
</dependencies>
<build>
<extensions>
<extension>
<groupId>kr.motd.maven</groupId>
<artifactId>os-maven-plugin</artifactId>
<version>1.7.0</version>
</extension>
</extensions>
<plugins>
<!-- Protocol Buffers代码生成 -->
<plugin>
<groupId>org.xolstice.maven.plugins</groupId>
<artifactId>protobuf-maven-plugin</artifactId>
<version>0.6.1</version>
<configuration>
<protocArtifact>com.google.protobuf:protoc:${protobuf.version}:exe:${os.detected.classifier}</protocArtifact>
<pluginId>grpc-java</pluginId>
<pluginArtifact>io.grpc:protoc-gen-grpc-java:${grpc.version}:exe:${os.detected.classifier}</pluginArtifact>
</configuration>
<executions>
<execution>
<goals>
<goal>compile</goal>
<goal>compile-custom</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
5.2 Protocol Buffers定义
syntax = "proto3";
package com.example.grpc;
option java_package = "com.example.grpc";
option java_outer_classname = "UserServiceProto";
option java_multiple_files = true;
// 枚举定义
enum UserStatus {
ACTIVE = 0;
INACTIVE = 1;
SUSPENDED = 2;
}
enum Gender {
MALE = 0;
FEMALE = 1;
UNKNOWN = 2;
}
// 消息定义
message UserProfile {
int64 user_id = 1;
string username = 2;
string email = 3;
string phone = 4;
int32 age = 5;
Gender gender = 6;
UserStatus status = 7;
int64 create_time = 8;
int64 update_time = 9;
}
message CreateUserRequest {
string username = 1;
string password = 2;
string email = 3;
string phone = 4;
int32 age = 5;
Gender gender = 6;
}
message UserResponse {
bool success = 1;
string message = 2;
UserProfile user = 3;
}
message GetUserRequest {
int64 user_id = 1;
}
message PageRequest {
int32 page = 1;
int32 size = 2;
}
message PageResponse {
repeated UserProfile data = 1;
int32 total_pages = 2;
int64 total_elements = 3;
}
message HealthCheckRequest {}
message HealthCheckResponse {
bool healthy = 1;
string message = 2;
}
// 服务定义
service UserService {
rpc CreateUser (CreateUserRequest) returns (UserResponse);
rpc GetUser (GetUserRequest) returns (UserResponse);
rpc ListUsers (PageRequest) returns (PageResponse);
rpc HealthCheck (HealthCheckRequest) returns (HealthCheckResponse);
// 流式RPC示例
rpc CreateUsers (stream CreateUserRequest) returns (stream UserResponse);
rpc StreamUsers (PageRequest) returns (stream UserProfile);
}
5.3 gRPC服务端实现
@Service
@Slf4j
public class UserServiceGrpcImpl extends UserServiceGrpc.UserServiceImplBase {
@Autowired
private UserRepository userRepository;
@Override
public void createUser(CreateUserRequest request,
StreamObserver<UserResponse> responseObserver) {
log.info("gRPC创建用户: {}", request.getUsername());
try {
// 参数验证
if (request.getUsername().isEmpty()) {
UserResponse response = UserResponse.newBuilder()
.setSuccess(false)
.setMessage("用户名不能为空")
.build();
responseObserver.onNext(response);
responseObserver.onCompleted();
return;
}
// 业务逻辑
User user = User.builder()
.username(request.getUsername())
.email(request.getEmail())
.phone(request.getPhone())
.age(request.getAge())
.createTime(System.currentTimeMillis())
.updateTime(System.currentTimeMillis())
.build();
user = userRepository.save(user);
UserProfile profile = convertToUserProfile(user);
UserResponse response = UserResponse.newBuilder()
.setSuccess(true)
.setMessage("创建成功")
.setUser(profile)
.build();
responseObserver.onNext(response);
responseObserver.onCompleted();
} catch (Exception e) {
log.error("创建用户失败", e);
UserResponse response = UserResponse.newBuilder()
.setSuccess(false)
.setMessage("系统异常: " + e.getMessage())
.build();
responseObserver.onNext(response);
responseObserver.onCompleted();
}
}
@Override
public void getUser(GetUserRequest request, StreamObserver<UserResponse> responseObserver) {
log.debug("gRPC查询用户: {}", request.getUserId());
try {
User user = userRepository.findById(request.getUserId())
.orElse(null);
UserResponse.Builder responseBuilder = UserResponse.newBuilder();
if (user != null) {
UserProfile profile = convertToUserProfile(user);
responseBuilder.setSuccess(true)
.setMessage("查询成功")
.setUser(profile);
} else {
responseBuilder.setSuccess(false)
.setMessage("用户不存在");
}
responseObserver.onNext(responseBuilder.build());
responseObserver.onCompleted();
} catch (Exception e) {
log.error("查询用户失败", e);
UserResponse response = UserResponse.newBuilder()
.setSuccess(false)
.setMessage("系统异常")
.build();
responseObserver.onNext(response);
responseObserver.onCompleted();
}
}
@Override
public void listUsers(PageRequest request, StreamObserver<PageResponse> responseObserver) {
log.debug("gRPC分页查询: page={}, size={}", request.getPage(), request.getSize());
try {
int page = Math.max(0, request.getPage() - 1);
int size = Math.min(100, Math.max(1, request.getSize()));
Pageable pageable = PageRequest.of(page, size);
Page<User> userPage = userRepository.findAll(pageable);
List<UserProfile> profiles = userPage.getContent().stream()
.map(this::convertToUserProfile)
.collect(Collectors.toList());
PageResponse response = PageResponse.newBuilder()
.addAllData(profiles)
.setTotalPages(userPage.getTotalPages())
.setTotalElements(userPage.getTotalElements())
.build();
responseObserver.onNext(response);
responseObserver.onCompleted();
} catch (Exception e) {
log.error("分页查询失败", e);
responseObserver.onError(Status.INTERNAL
.withDescription("系统异常")
.withCause(e)
.asRuntimeException());
}
}
@Override
public void createUsers(StreamObserver<CreateUserRequest> requestObserver,
StreamObserver<UserResponse> responseObserver) {
log.info("开始流式创建用户");
try {
requestObserver.setOnCancelHandler(() ->
log.warn("客户端取消了流式创建请求"));
while (true) {
try {
CreateUserRequest request = requestObserver.onNext().get();
if (request == null) {
break; // 流结束
}
// 处理单个用户创建
User user = User.builder()
.username(request.getUsername())
.email(request.getEmail())
.createTime(System.currentTimeMillis())
.updateTime(System.currentTimeMillis())
.build();
user = userRepository.save(user);
UserProfile profile = convertToUserProfile(user);
UserResponse response = UserResponse.newBuilder()
.setSuccess(true)
.setMessage("创建成功")
.setUser(profile)
.build();
responseObserver.onNext(response);
} catch (Exception e) {
log.error("流式创建用户失败", e);
UserResponse response = UserResponse.newBuilder()
.setSuccess(false)
.setMessage("创建失败: " + e.getMessage())
.build();
responseObserver.onNext(response);
}
}
responseObserver.onCompleted();
} catch (Exception e) {
log.error("流式创建用户异常", e);
responseObserver.onError(e);
}
}
@Override
public void streamUsers(PageRequest request, StreamObserver<UserProfile> responseObserver) {
log.info("开始流式返回用户数据");
try {
int page = Math.max(0, request.getPage() - 1);
int size = Math.min(100, Math.max(1, request.getSize()));
Pageable pageable = PageRequest.of(page, size);
Page<User> userPage = userRepository.findAll(pageable);
for (User user : userPage.getContent()) {
UserProfile profile = convertToUserProfile(user);
responseObserver.onNext(profile);
// 模拟处理延迟
try {
Thread.sleep(100);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
break;
}
}
responseObserver.onCompleted();
} catch (Exception e) {
log.error("流式返回用户数据失败", e);
responseObserver.onError(e);
}
}
@Override
public void healthCheck(HealthCheckRequest request,
StreamObserver<HealthCheckResponse> responseObserver) {
try {
userRepository.count();
HealthCheckResponse response = HealthCheckResponse.newBuilder()
.setHealthy(true)
.setMessage("服务正常")
.build();
responseObserver.onNext(response);
responseObserver.onCompleted();
} catch (Exception e) {
HealthCheckResponse response = HealthCheckResponse.newBuilder()
.setHealthy(false)
.setMessage("服务异常: " + e.getMessage())
.build();
responseObserver.onNext(response);
responseObserver.onCompleted();
}
}
private UserProfile convertToUserProfile(User user) {
return UserProfile.newBuilder()
.setUserId(user.getUserId())
.setUsername(user.getUsername())
.setEmail(user.getEmail())
.setPhone(user.getPhone())
.setAge(user.getAge())
.setCreateTime(user.getCreateTime())
.setUpdateTime(user.getUpdateTime())
.build();
}
}
5.4 gRPC服务器配置
@Configuration
@Slf4j
public class GrpcServerConfig {
@Value("${grpc.port:9090}")
private int grpcPort;
@Bean
public Server grpcServer(UserServiceGrpcImpl userService) {
return ServerBuilder.forPort(grpcPort)
.addService(userService)
.intercept(new LoggingInterceptor())
.build();
}
@Bean
@ConditionalOnMissingBean
public UserServiceGrpcImpl userServiceGrpcImpl() {
return new UserServiceGrpcImpl();
}
@EventListener(ApplicationReadyEvent.class)
public void startGrpcServer() throws IOException, InterruptedException {
Server server = grpcServer(userServiceGrpcImpl());
server.start();
log.info("gRPC服务器启动，端口: {}", grpcPort);
// 添加关闭钩子
Runtime.getRuntime().addShutdownHook(new Thread(() -> {
log.info("关闭gRPC服务器");
server.shutdown();
}));
server.awaitTermination();
}
/**
* gRPC日志拦截器
*/
private static class LoggingInterceptor implements ServerInterceptor {
@Override
public <ReqT, RespT> ServerCall.Listener<ReqT> interceptCall(
ServerCall<ReqT, RespT> call,
Metadata headers,
ServerCallHandler<ReqT, RespT> next) {
log.debug("gRPC调用: {}, 方法: {}", call.getMethodDescriptor().getServiceName(),
call.getMethodDescriptor().getBareMethodName());
return next.startCall(call, headers);
}
}
}
6. 客户端实现对比
6.1 Thrift客户端实现
@Service
@Slf4j
public class ThriftUserServiceClient {
@Value("${thrift.server.host:localhost}")
private String serverHost;
@Value("${thrift.server.port:9090}")
private int serverPort;
private final TProtocolFactory protocolFactory = new TBinaryProtocol.Factory();
private final TTransportFactory transportFactory = new TFramedTransport.Factory();
/**
* 创建Thrift客户端
*/
private UserService.Client createClient() throws TTransportException {
TSocket socket = new TSocket(serverHost, serverPort);
socket.setTimeout(5000);
TTransport transport = transportFactory.getTransport(socket);
TProtocol protocol = protocolFactory.getProtocol(transport);
transport.open();
return new UserService.Client(protocol);
}
/**
* 创建用户
*/
public UserResponse createUser(CreateUserRequest request) {
try (UserService.Client client = createClient()) {
return client.createUser(request);
} catch (TException e) {
log.error("Thrift调用失败", e);
return new UserResponse(false, "服务调用失败: " + e.getMessage(), null);
}
}
/**
* 查询用户
*/
public UserResponse getUserById(long userId) {
try (UserService.Client client = createClient()) {
return client.getUserById(userId);
} catch (TException e) {
log.error("Thrift调用失败", e);
return new UserResponse(false, "服务调用失败", null);
}
}
/**
* 带连接池的客户端
*/
@Component
@Slf4j
public static class ThriftClientPool {
private final GenericObjectPool<UserService.Client> clientPool;
public ThriftClientPool(String host, int port) {
ThriftClientFactory factory = new ThriftClientFactory(host, port);
GenericObjectPoolConfig<UserService.Client> config = new GenericObjectPoolConfig<>();
config.setMaxTotal(10);
config.setMaxIdle(5);
config.setMinIdle(2);
config.setTestOnBorrow(true);
this.clientPool = new GenericObjectPool<>(factory, config);
}
public UserService.Client getClient() throws Exception {
return clientPool.borrowObject();
}
public void returnClient(UserService.Client client) {
clientPool.returnObject(client);
}
private static class ThriftClientFactory
extends BasePooledObjectFactory<UserService.Client> {
private final String host;
private final int port;
public ThriftClientFactory(String host, int port) {
this.host = host;
this.port = port;
}
@Override
public UserService.Client create() throws Exception {
TSocket socket = new TSocket(host, port);
TTransport transport = new TFramedTransport(socket);
TProtocol protocol = new TBinaryProtocol(transport);
transport.open();
return new UserService.Client(protocol);
}
@Override
public PooledObject<UserService.Client> wrap(UserService.Client client) {
return new DefaultPooledObject<>(client);
}
@Override
public boolean validateObject(PooledObject<UserService.Client> p) {
UserService.Client client = p.getObject();
return client.getOutputProtocol().getTransport().isOpen();
}
@Override
public void destroyObject(PooledObject<UserService.Client> p) throws Exception {
UserService.Client client = p.getObject();
client.getOutputProtocol().getTransport().close();
}
}
}
}
6.2 gRPC客户端实现
@Service
@Slf4j
public class GrpcUserServiceClient {
@Value("${grpc.server.host:localhost}")
private String serverHost;
@Value("${grpc.server.port:9090}")
private int serverPort;
private ManagedChannel channel;
private UserServiceGrpc.UserServiceBlockingStub blockingStub;
private UserServiceGrpc.UserServiceStub asyncStub;
@PostConstruct
public void init() {
channel = ManagedChannelBuilder.forAddress(serverHost, serverPort)
.usePlaintext() // 生产环境使用TLS
.build();
blockingStub = UserServiceGrpc.newBlockingStub(channel);
asyncStub = UserServiceGrpc.newStub(channel);
}
@PreDestroy
public void shutdown() {
if (channel != null) {
channel.shutdown();
}
}
/**
* 同步调用 - 创建用户
*/
public UserResponse createUser(CreateUserRequest request) {
try {
return blockingStub.createUser(request);
} catch (StatusRuntimeException e) {
log.error("gRPC调用失败", e);
return UserResponse.newBuilder()
.setSuccess(false)
.setMessage("服务调用失败: " + e.getStatus().getDescription())
.build();
}
}
/**
* 同步调用 - 查询用户
*/
public UserResponse getUserById(long userId) {
try {
GetUserRequest request = GetUserRequest.newBuilder()
.setUserId(userId)
.build();
return blockingStub.getUser(request);
} catch (StatusRuntimeException e) {
log.error("gRPC调用失败", e);
return UserResponse.newBuilder()
.setSuccess(false)
.setMessage("服务调用失败")
.build();
}
}
/**
* 异步调用 - 创建用户
*/
public CompletableFuture<UserResponse> createUserAsync(CreateUserRequest request) {
CompletableFuture<UserResponse> future = new CompletableFuture<>();
StreamObserver<UserResponse> responseObserver = new StreamObserver<UserResponse>() {
@Override
public void onNext(UserResponse value) {
future.complete(value);
}
@Override
public void onError(Throwable t) {
log.error("异步调用失败", t);
future.completeExceptionally(t);
}
@Override
public void onCompleted() {
// 流结束，但我们已经收到响应
}
};
asyncStub.createUser(request, responseObserver);
return future;
}
/**
* 流式调用 - 批量创建用户
*/
public List<UserResponse> createUsersBatch(List<CreateUserRequest> requests) {
List<UserResponse> responses = new ArrayList<>();
CountDownLatch latch = new CountDownLatch(1);
StreamObserver<CreateUserRequest> requestObserver =
asyncStub.createUsers(new StreamObserver<UserResponse>() {
@Override
public void onNext(UserResponse value) {
responses.add(value);
}
@Override
public void onError(Throwable t) {
log.error("流式调用失败", t);
latch.countDown();
}
@Override
public void onCompleted() {
latch.countDown();
}
});
// 发送请求
for (CreateUserRequest request : requests) {
requestObserver.onNext(request);
}
requestObserver.onCompleted();
// 等待完成
try {
latch.await(10, TimeUnit.SECONDS);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
return responses;
}
/**
* 服务发现客户端
*/
@Component
@Slf4j
public static class GrpcDiscoveryClient {
@Autowired
private DiscoveryClient discoveryClient;
private final Map<String, ManagedChannel> channelCache = new ConcurrentHashMap<>();
private final Map<String, UserServiceGrpc.UserServiceBlockingStub> stubCache =
new ConcurrentHashMap<>();
public UserServiceGrpc.UserServiceBlockingStub getStub(String serviceName) {
return stubCache.computeIfAbsent(serviceName, name -> {
List<ServiceInstance> instances = discoveryClient.getInstances(name);
if (instances.isEmpty()) {
throw new IllegalStateException("没有可用的服务实例: " + name);
}
// 简单的负载均衡 - 随机选择
ServiceInstance instance = instances.get(
ThreadLocalRandom.current().nextInt(instances.size()));
ManagedChannel channel = channelCache.computeIfAbsent(
instance.getInstanceId(),
id -> ManagedChannelBuilder.forAddress(
instance.getHost(), instance.getPort())
.usePlaintext()
.build()
);
return UserServiceGrpc.newBlockingStub(channel);
});
}
}
}
7. 综合对比与选型指南
7.1 特性对比矩阵
|
特性 |
Thrift |
gRPC |
优势方 |
|
协议支持 |
Binary/Compact/JSON |
Protocol Buffers |
Thrift |
|
传输协议 |
TCP/HTTP |
HTTP/2 |
gRPC |
|
流式处理 |
有限支持 |
全面支持(4种模式) |
gRPC |
|
服务发现 |
需要外部组件 |
内置负载均衡 |
gRPC |
|
多语言支持 |
20+种语言 |
10+种语言 |
Thrift |
|
性能 |
极高 |
很高 |
相当 |
|
生态集成 |
成熟稳定 |
云原生标准 |
gRPC |
|
学习曲线 |
中等 |
中等 |
相当 |
7.2 性能对比数据
@Component
@Slf4j
public class RpcBenchmark {
@Autowired
private ThriftUserServiceClient thriftClient;
@Autowired
private GrpcUserServiceClient grpcClient;
public void runBenchmark() {
log.info("开始RPC框架性能对比测试");
// 序列化性能测试
measureSerializationPerformance();
// RPC调用性能测试
measureRpcPerformance();
// 并发性能测试
measureConcurrentPerformance();
}
private void measureSerializationPerformance() {
// Thrift序列化
UserProfile thriftUser = createThriftUser();
long thriftTime = measureTime(() -> {
for (int i = 0; i < 10000; i++) {
serializeThrift(thriftUser);
}
});
// gRPC序列化
UserProfile grpcUser = createGrpcUser();
long grpcTime = measureTime(() -> {
for (int i = 0; i < 10000; i++) {
serializeGrpc(grpcUser);
}
});
log.info("序列化性能 - Thrift: {}ms, gRPC: {}ms",
thriftTime, grpcTime);
}
private void measureRpcPerformance() {
// Thrift RPC调用
long thriftTime = measureTime(() -> {
for (int i = 0; i < 1000; i++) {
thriftClient.getUserById(1L);
}
});
// gRPC RPC调用
long grpcTime = measureTime(() -> {
for (int i = 0; i < 1000; i++) {
grpcClient.getUserById(1L);
}
});
log.info("RPC调用性能 - Thrift: {}ms, gRPC: {}ms",
thriftTime, grpcTime);
}
private long measureTime(Runnable task) {
long start = System.currentTimeMillis();
task.run();
return System.currentTimeMillis() - start;
}
}

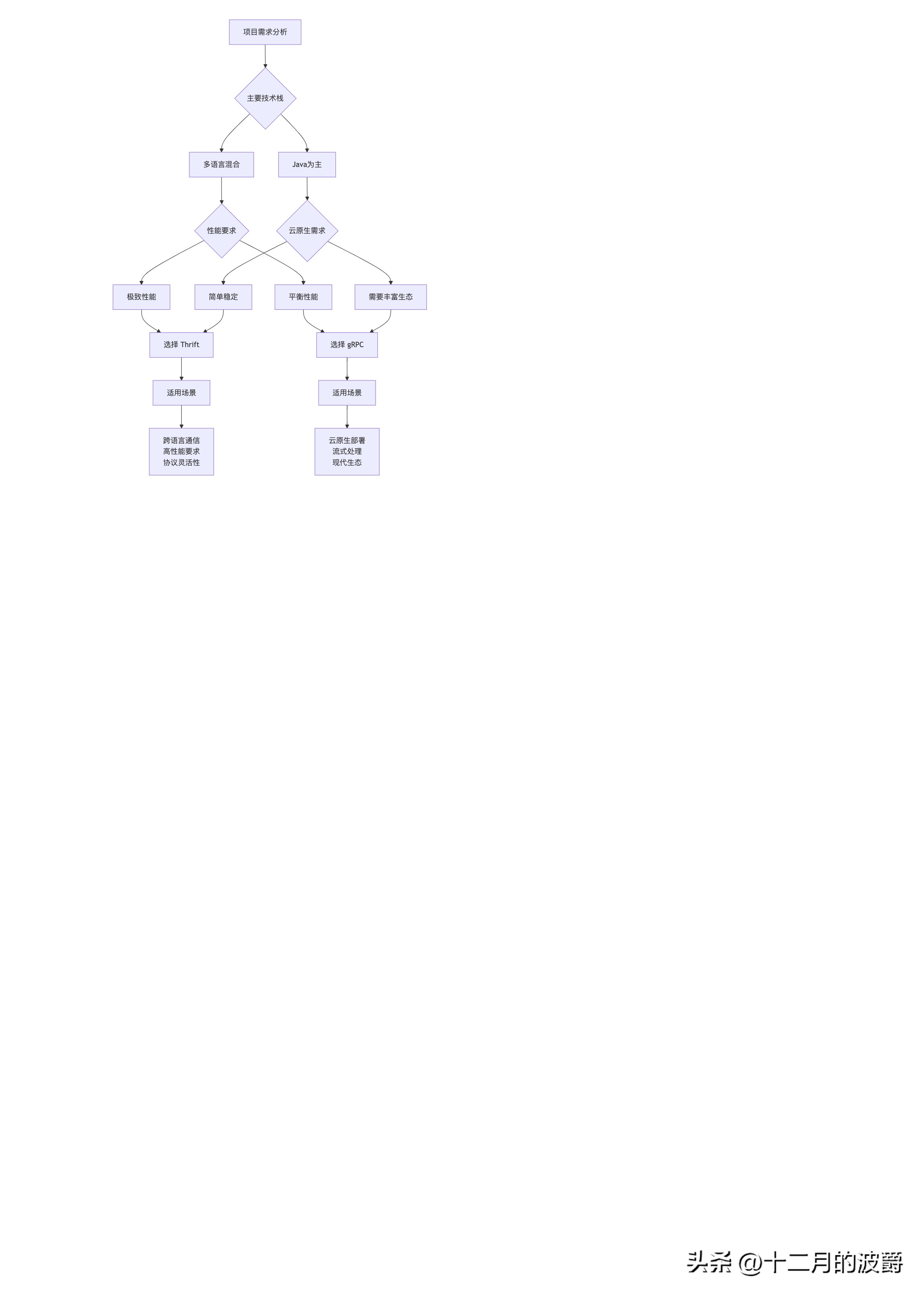

7.3 选型决策指南
7.3.1 选择Thrift的场景
推荐使用Thrift当：
- 需要支持多种编程语言的技术栈
- 对性能有极致要求，特别是序列化性能
- 需要灵活的协议选择（Binary/Compact/JSON）
- 项目技术栈相对稳定，不需要频繁更新
- 已有Thrift技术积累和基础设施
典型案例：
- 大型互联网公司的核心服务间通信
- 跨语言数据交换平台
- 对延迟极其敏感的金融交易系统
7.3.2 选择gRPC的场景
推荐使用gRPC当：
- 项目采用云原生架构和部署方式
- 需要流式处理能力（双向流、客户端流、服务端流）
- 希望获得更好的服务治理和负载均衡支持
- 团队熟悉HTTP/2和现代RPC概念
- 需要与Kubernetes、Istio等云原生工具链集成
典型案例：
- 微服务架构中的内部服务调用
- 实时数据流处理系统
- 需要复杂服务治理的大型分布式系统
8. 生产环境最佳实践
8.1 监控与可观测性
@Component
@Slf4j
public class RpcMonitor {
private final MeterRegistry meterRegistry;
private final Counter thriftRequestCounter;
private final Counter grpcRequestCounter;
private final Timer rpcTimer;
public RpcMonitor(MeterRegistry meterRegistry) {
this.meterRegistry = meterRegistry;
this.thriftRequestCounter = Counter.builder("rpc.requests")
.tag("framework", "thrift")
.register(meterRegistry);
this.grpcRequestCounter = Counter.builder("rpc.requests")
.tag("framework", "gRPC")
.register(meterRegistry);
this.rpcTimer = Timer.builder("rpc.duration")
.publishPercentiles(0.5, 0.95, 0.99)
.register(meterRegistry);
}
public <T> T monitorThriftCall(Supplier<T> supplier, String method) {
thriftRequestCounter.increment();
Timer.Sample sample = Timer.start();
try {
T result = supplier.get();
sample.stop(rpcTimer.tag("framework", "thrift")
.tag("method", method)
.tag("status", "success"));
return result;
} catch (Exception e) {
sample.stop(rpcTimer.tag("framework", "thrift")
.tag("method", method)
.tag("status", "error"));
throw e;
}
}
public <T> T monitorGrpcCall(Supplier<T> supplier, String method) {
grpcRequestCounter.increment();
Timer.Sample sample = Timer.start();
try {
T result = supplier.get();
sample.stop(rpcTimer.tag("framework", "grpc")
.tag("method", method)
.tag("status", "success"));
return result;
} catch (Exception e) {
sample.stop(rpcTimer.tag("framework", "grpc")
.tag("method", method)
.tag("status", "error"));
throw e;
}
}
}
8.2 容错与重试机制
@Configuration
@Slf4j
public class RpcRetryConfig {
@Bean
public RetryTemplate thriftRetryTemplate() {
RetryTemplate template = new RetryTemplate();
// 重试策略
SimpleRetryPolicy retryPolicy = new SimpleRetryPolicy();
retryPolicy.setMaxAttempts(3);
// 退避策略
ExponentialBackOffPolicy backOffPolicy = new ExponentialBackOffPolicy();
backOffPolicy.setInitialInterval(1000);
backOffPolicy.setMultiplier(2.0);
backOffPolicy.setMaxInterval(10000);
template.setRetryPolicy(retryPolicy);
template.setBackOffPolicy(backOffPolicy);
return template;
}
@Bean
public RetryTemplate grpcRetryTemplate() {
RetryTemplate template = new RetryTemplate();
SimpleRetryPolicy retryPolicy = new SimpleRetryPolicy();
retryPolicy.setMaxAttempts(3);
FixedBackOffPolicy backOffPolicy = new FixedBackOffPolicy();
backOffPolicy.setBackOffPeriod(2000);
template.setRetryPolicy(retryPolicy);
template.setBackOffPolicy(backOffPolicy);
return template;
}
}
@Service
@Slf4j
public class ResilientUserServiceClient {
@Autowired
private RetryTemplate thriftRetryTemplate;
@Autowired
private ThriftUserServiceClient thriftClient;
/**
* 带重试的Thrift调用
*/
public UserResponse createUserWithRetry(CreateUserRequest request) {
return thriftRetryTemplate.execute(context -> {
log.info("第 {} 次尝试创建用户", context.getRetryCount() + 1);
return thriftClient.createUser(request);
});
}
/**
* 带熔断的调用
*/
@CircuitBreaker(name = "userService", fallbackMethod = "fallbackCreateUser")
public UserResponse createUserWithCircuitBreaker(CreateUserRequest request) {
return thriftClient.createUser(request);
}
public UserResponse fallbackCreateUser(CreateUserRequest request, Exception e) {
log.warn("服务熔断，使用降级策略", e);
return new UserResponse(false, "服务暂时不可用，请稍后重试", null);
}
}
9. 总结
9.1 核心要点回顾
通过本文的深度对比和实践，我们得出以下关键结论：
- Thrift优势：
- 真正的跨语言支持，协议选择灵活
- 序列化性能极致，特别适合大数据量传输
- 成熟稳定，企业级应用验证
- gRPC优势：
- 现代化设计，基于HTTP/2和Protocol Buffers
- 流式处理能力强大，支持四种通信模式
- 云原生生态完善，与现代基础设施无缝集成
9.2 技术选型建议
选择Thrift当：
✅ 多语言技术栈混合环境 ✅ 对序列化性能有极致要求 ✅ 需要灵活的协议选择 ✅ 技术栈相对稳定，不追求最新生态
选择gRPC当：
✅ 云原生架构和部署环境 ✅ 需要复杂的流式处理能力 ✅ 希望获得完善的服务治理支持 ✅ 团队熟悉现代RPC和HTTP/2概念
9.3 演进趋势
从技术发展趋势来看：
- gRPC 在云原生时代逐渐成为内部服务通信的标准
- Thrift 在特定高性能场景和跨语言通信中仍有不可替代的价值
- 两者都在持续演进，新版本都在改善易用性和性能
9.4 实践建议
无论选择哪种框架，都需要注意：
- 监控先行：建立完善的监控和告警体系
- 容错设计：实现重试、熔断、降级等容错机制
- 性能测试：在生产环境规模下进行充分的性能测试
- 文档完善：维护清晰的接口文档和调用示例
RPC框架选择不是非此即彼的决策，而是基于具体业务需求和技术约束的权衡。理解各自的优势和适用场景，才能做出最适合的技术选型。
扫一扫
992
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
