《服务治理》Dubbo框架深度解析与实践

1. Dubbo框架概述

1.1 什么是Dubbo

Apache Dubbo是一款高性能、轻量级的开源Java RPC框架，它提供了三大核心能力：

• 面向接口的远程方法调用
• 智能容错和负载均衡
• 服务自动注册和发现

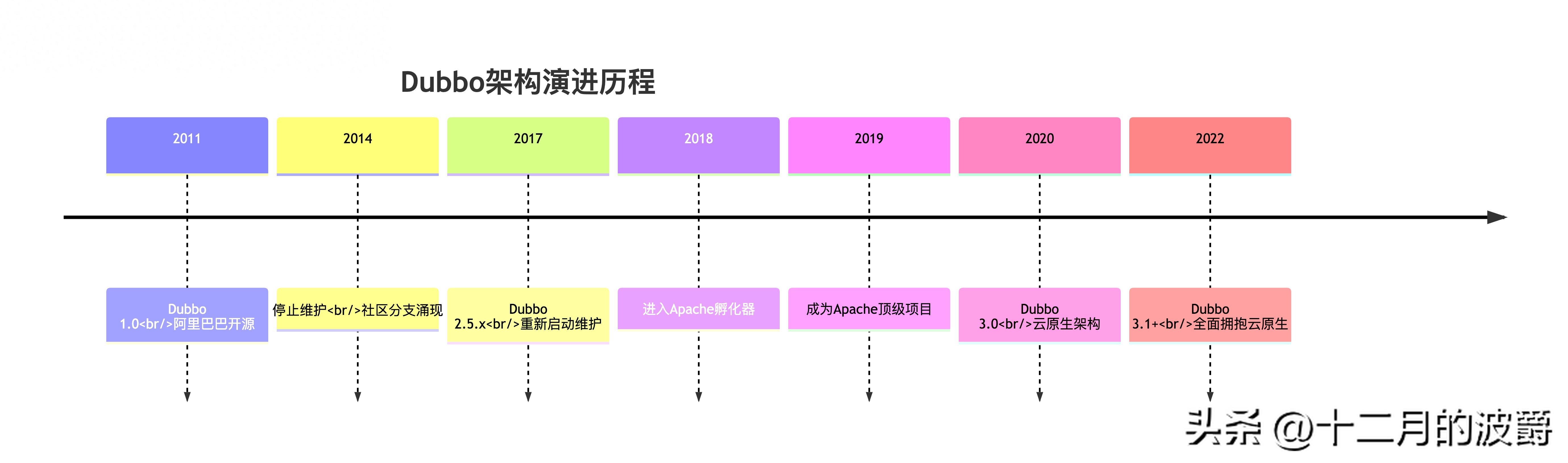

1.2 Dubbo发展历程与架构演进

1.3 Dubbo核心特性对比

特性	Dubbo 2.x	Dubbo 3.x	优势说明
服务发现	接口级发现	应用级发现	更好的K8s集成
协议支持	Dubbo协议	Triple协议(gRPC)	跨语言、HTTP/2
元数据中心	可选	必需	更好的服务治理
配置中心	简单配置	动态配置	实时配置更新
架构模式	SDK模式	云原生	更好的扩展性

2. Dubbo核心架构解析

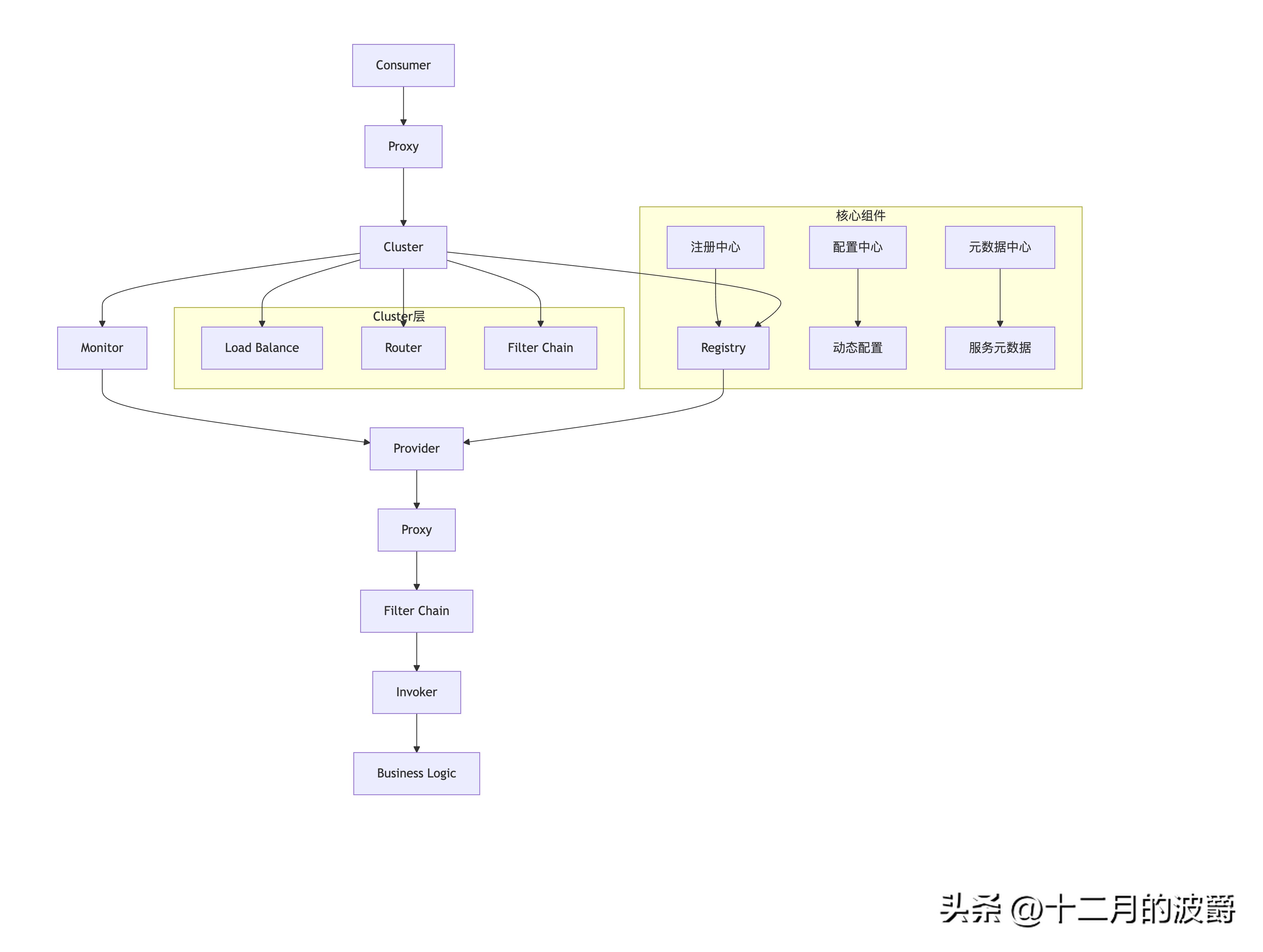

2.1 Dubbo整体架构

2.2 Dubbo分层架构

分层	职责	核心组件
Service层	业务接口定义	Service API
Config层	配置管理	@DubboService, @DubboReference
Proxy层	动态代理	Javassist, JDK Proxy
Registry层	服务注册发现	Nacos, Zookeeper
Cluster层	集群容错	Router, LoadBalance, Cluster
Monitor层	监控统计	Metrics, Tracing
Protocol层	远程调用	Dubbo, Triple, HTTP
Exchange层	信息交换	Request-Response
Transport层	网络传输	Netty, Mina
Serialize层	数据序列化	Hessian, JSON, Protobuf

3. Dubbo 3.x快速开始

3.1 环境准备与依赖配置

Maven依赖管理

<!-- Dubbo Spring Boot Starter -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-spring-boot-starter</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- Dubbo Registry Nacos -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-registry-nacos</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- Dubbo Protocol Triple -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-rpc-triple</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- Nacos Client -->
<dependency>
    <groupId>com.alibaba.nacos</groupId>
    <artifactId>nacos-client</artifactId>
    <version>2.2.0</version>
</dependency>
<!-- 序列化支持 -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-serialization-kryo</artifactId>
    <version>3.2.0</version>
</dependency>
<!-- 服务治理 -->
<dependency>
    <groupId>org.apache.dubbo</groupId>
    <artifactId>dubbo-metadata-report-nacos</artifactId>
    <version>3.2.0</version>
</dependency>

Spring Boot配置

# application.yml
dubbo:
  application:
    name: user-service
    # 元数据配置
    metadata-type: remote
    # QOS配置
    qos-enable: true
    qos-port: 22222
    # 序列化配置
    serialize-check-status: WARN

  # 注册中心配置
  registry:
    address: nacos://127.0.0.1:8848
    parameters:
      namespace: dev
    # 应用级服务发现
    use-as-config-center: true
    use-as-metadata-center: true

  # 协议配置
  protocol:
    name: tri
    port: -1  # 随机端口
    serialization: kryo
    # 线程池配置
    threadpool: cached
    threads: 500

  # 配置中心
  config-center:
    address: nacos://127.0.0.1:8848
    namespace: dev

  # 元数据中心
  metadata-report:
    address: nacos://127.0.0.1:8848
    namespace: dev

  # 消费者配置
  consumer:
    check: false
    timeout: 3000
    retries: 2
    # 负载均衡策略
    loadbalance: roundrobin
    # 集群容错模式
    cluster: failover
    # 启动时检查
    lazy: true

  # 提供者配置
  provider:
    timeout: 5000
    retries: 0
    # 负载均衡
    loadbalance: consistent
    # 连接控制
    connections: 100
    # 令牌验证
    token: true
spring:
  application:
    name: user-service
  profiles:
    active: dev

3.2 服务定义与实现

服务接口定义

// 用户服务接口
public interface UserService {

    /**
     * 根据用户ID查询用户信息
     */
    UserDTO getUserById(Long userId);

    /**
     * 根据用户名查询用户
     */
    UserDTO getUserByUsername(String username);

    /**
     * 创建用户
     */
    UserCreateResult createUser(CreateUserRequest request);

    /**
     * 更新用户信息
     */
    UserUpdateResult updateUser(UpdateUserRequest request);

    /**
     * 批量查询用户信息
     */
    List<UserDTO> batchGetUsers(List<Long> userIds);

    /**
     * 分页查询用户列表
     */
    PageResult<UserDTO> queryUsers(UserQuery query, int page, int size);
}
// 数据传输对象
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class UserDTO implements Serializable {
    private static final long serialVersionUID = 1L;

    private Long userId;
    private String username;
    private String email;
    private String phone;
    private UserStatus status;
    private LocalDateTime createTime;
    private LocalDateTime updateTime;
    private Map<String, String> attributes;
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class CreateUserRequest implements Serializable {
    @NotBlank(message = "用户名不能为空")
    private String username;

    @Email(message = "邮箱格式不正确")
    private String email;

    @Pattern(regexp = "^1[3-9]\\d{9}$", message = "手机号格式不正确")
    private String phone;

    private Map<String, String> attributes;
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class UserCreateResult implements Serializable {
    private boolean success;
    private Long userId;
    private String message;
    private UserDTO user;
}
// 分页结果
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class PageResult<T> implements Serializable {
    private int page;
    private int size;
    private long total;
    private List<T> data;
}

服务提供者实现

// 服务实现类
@Service
@DubboService(
    version = "1.0.0",
    interfaceClass = UserService.class,
    // 服务治理配置
    timeout = 3000,
    retries = 0,
    loadbalance = "roundrobin",
    cluster = "failfast",
    // Filter链配置
    filter = {"exception", "metrics", "auth"},
    // 参数验证
    validation = "true",
    // 令牌验证
    token = "true",
    // 权重配置
    weight = 100,
    // 标签路由
    tag = "v1"
)
@Slf4j
public class UserServiceImpl implements UserService {

    @Autowired
    private UserRepository userRepository;

    @DubboReference(
        version = "1.0.0",
        check = false,
        timeout = 2000,
        retries = 2,
        mock = "com.example.service.AuthServiceMock"
    )
    private AuthService authService;

    @Override
    public UserDTO getUserById(Long userId) {
        log.info("查询用户信息, userId: {}", userId);

        if (userId == null || userId <= 0) {
            throw new IllegalArgumentException("用户ID不合法");
        }

        User user = userRepository.findById(userId)
                .orElseThrow(() -> new UserNotFoundException("用户不存在: " + userId));

        return convertToDTO(user);
    }

    @Override
    public UserDTO getUserByUsername(String username) {
        log.info("根据用户名查询用户, username: {}", username);

        User user = userRepository.findByUsername(username)
                .orElseThrow(() -> new UserNotFoundException("用户不存在: " + username));

        return convertToDTO(user);
    }

    @Override
    public UserCreateResult createUser(CreateUserRequest request) {
        log.info("创建用户, username: {}", request.getUsername());

        try {
            // 参数验证
            validateCreateRequest(request);

            // 检查用户名是否已存在
            if (userRepository.existsByUsername(request.getUsername())) {
                throw new BusinessException("用户名已存在");
            }

            // 创建用户
            User user = buildUser(request);
            user = userRepository.save(user);

            // 创建认证信息
            authService.createAuthInfo(user.getUserId(), request.getUsername());

            log.info("用户创建成功, userId: {}", user.getUserId());

            return UserCreateResult.builder()
                    .success(true)
                    .userId(user.getUserId())
                    .user(convertToDTO(user))
                    .message("用户创建成功")
                    .build();

        } catch (BusinessException e) {
            log.error("创建用户业务异常", e);
            return UserCreateResult.builder()
                    .success(false)
                    .message(e.getMessage())
                    .build();
        } catch (Exception e) {
            log.error("创建用户系统异常", e);
            return UserCreateResult.builder()
                    .success(false)
                    .message("系统异常，请稍后重试")
                    .build();
        }
    }

    @Override
    public UserUpdateResult updateUser(UpdateUserRequest request) {
        log.info("更新用户信息, userId: {}", request.getUserId());

        User user = userRepository.findById(request.getUserId())
                .orElseThrow(() -> new UserNotFoundException("用户不存在"));

        // 更新用户信息
        updateUserFromRequest(user, request);
        user = userRepository.save(user);

        return UserUpdateResult.builder()
                .success(true)
                .user(convertToDTO(user))
                .message("用户信息更新成功")
                .build();
    }

    @Override
    public List<UserDTO> batchGetUsers(List<Long> userIds) {
        log.info("批量查询用户信息, userIds: {}", userIds);

        if (userIds == null || userIds.isEmpty()) {
            return Collections.emptyList();
        }

        // 限制批量查询数量
        if (userIds.size() > 100) {
            throw new BusinessException("批量查询数量不能超过100");
        }

        List<User> users = userRepository.findAllById(userIds);

        return users.stream()
                .map(this::convertToDTO)
                .collect(Collectors.toList());
    }

    @Override
    public PageResult<UserDTO> queryUsers(UserQuery query, int page, int size) {
        log.info("分页查询用户列表, page: {}, size: {}", page, size);

        // 参数校验
        if (page < 0) page = 0;
        if (size <= 0 || size > 100) size = 20;

        Pageable pageable = PageRequest.of(page, size, Sort.by("createTime").descending());
        Page<User> userPage = userRepository.findByQuery(query, pageable);

        List<UserDTO> userDTOs = userPage.getContent().stream()
                .map(this::convertToDTO)
                .collect(Collectors.toList());

        return PageResult.<UserDTO>builder()
                .page(page)
                .size(size)
                .total(userPage.getTotalElements())
                .data(userDTOs)
                .build();
    }

    private UserDTO convertToDTO(User user) {
        return UserDTO.builder()
                .userId(user.getUserId())
                .username(user.getUsername())
                .email(user.getEmail())
                .phone(user.getPhone())
                .status(user.getStatus())
                .createTime(user.getCreateTime())
                .updateTime(user.getUpdateTime())
                .attributes(user.getAttributes())
                .build();
    }

    private User buildUser(CreateUserRequest request) {
        return User.builder()
                .username(request.getUsername())
                .email(request.getEmail())
                .phone(request.getPhone())
                .status(UserStatus.ACTIVE)
                .createTime(LocalDateTime.now())
                .updateTime(LocalDateTime.now())
                .attributes(request.getAttributes() != null ?
                    new HashMap<>(request.getAttributes()) : new HashMap<>())
                .build();
    }

    private void validateCreateRequest(CreateUserRequest request) {
        if (request.getUsername() == null || request.getUsername().trim().isEmpty()) {
            throw new IllegalArgumentException("用户名不能为空");
        }
        if (request.getEmail() == null || request.getEmail().trim().isEmpty()) {
            throw new IllegalArgumentException("邮箱不能为空");
        }
    }
}

服务消费者调用

@RestController
@RequestMapping("/api/users")
@Slf4j
public class UserController {

    @DubboReference(
        version = "1.0.0",
        check = false,
        timeout = 3000,
        retries = 2,
        loadbalance = "roundrobin",
        cluster = "failover",
        mock = "com.example.service.UserServiceMock",
        // 粘滞连接
        sticky = true,
        // 集群可用性检查
        availablecheck = true,
        // 启动时检查
        lazy = true
    )
    private UserService userService;

    @GetMapping("/{userId}")
    public ResponseEntity<UserDTO> getUser(@PathVariable Long userId) {
        log.info("查询用户信息, userId: {}", userId);

        try {
            UserDTO user = userService.getUserById(userId);
            return ResponseEntity.ok(user);
        } catch (UserNotFoundException e) {
            return ResponseEntity.notFound().build();
        } catch (Exception e) {
            log.error("查询用户信息异常", e);
            return ResponseEntity.status(500).build();
        }
    }

    @PostMapping
    public ResponseEntity<UserCreateResult> createUser(
            @RequestBody @Valid CreateUserRequest request) {
        log.info("创建用户, username: {}", request.getUsername());

        UserCreateResult result = userService.createUser(request);

        if (result.isSuccess()) {
            return ResponseEntity.ok(result);
        } else {
            return ResponseEntity.badRequest().body(result);
        }
    }

    @PutMapping("/{userId}")
    public ResponseEntity<UserUpdateResult> updateUser(
            @PathVariable Long userId,
            @RequestBody @Valid UpdateUserRequest request) {

        log.info("更新用户信息, userId: {}", userId);

        request.setUserId(userId);
        UserUpdateResult result = userService.updateUser(request);

        if (result.isSuccess()) {
            return ResponseEntity.ok(result);
        } else {
            return ResponseEntity.badRequest().body(result);
        }
    }

    @GetMapping("/batch")
    public ResponseEntity<List<UserDTO>> batchGetUsers(
            @RequestParam List<Long> userIds) {

        log.info("批量查询用户信息, userIds: {}", userIds);

        try {
            List<UserDTO> users = userService.batchGetUsers(userIds);
            return ResponseEntity.ok(users);
        } catch (Exception e) {
            log.error("批量查询用户信息异常", e);
            return ResponseEntity.status(500).build();
        }
    }

    @GetMapping("/query")
    public ResponseEntity<PageResult<UserDTO>> queryUsers(
            @ModelAttribute UserQuery query,
            @RequestParam(defaultValue = "0") int page,
            @RequestParam(defaultValue = "20") int size) {

        log.info("分页查询用户列表, page: {}, size: {}", page, size);

        try {
            PageResult<UserDTO> result = userService.queryUsers(query, page, size);
            return ResponseEntity.ok(result);
        } catch (Exception e) {
            log.error("分页查询用户列表异常", e);
            return ResponseEntity.status(500).build();
        }
    }
}
// 服务降级Mock实现
@Component
@Slf4j
public class UserServiceMock implements UserService {

    @Override
    public UserDTO getUserById(Long userId) {
        log.warn("UserService降级: getUserById被调用, userId: {}", userId);
        throw new ServiceDegradationException("用户服务暂时不可用");
    }

    @Override
    public UserDTO getUserByUsername(String username) {
        log.warn("UserService降级: getUserByUsername被调用, username: {}", username);
        throw new ServiceDegradationException("用户服务暂时不可用");
    }

    @Override
    public UserCreateResult createUser(CreateUserRequest request) {
        log.warn("UserService降级: createUser被调用");
        return UserCreateResult.builder()
                .success(false)
                .message("用户服务暂时不可用，请稍后重试")
                .build();
    }

    @Override
    public UserUpdateResult updateUser(UpdateUserRequest request) {
        log.warn("UserService降级: updateUser被调用");
        return UserUpdateResult.builder()
                .success(false)
                .message("用户服务暂时不可用")
                .build();
    }

    @Override
    public List<UserDTO> batchGetUsers(List<Long> userIds) {
        log.warn("UserService降级: batchGetUsers被调用");
        return Collections.emptyList();
    }

    @Override
    public PageResult<UserDTO> queryUsers(UserQuery query, int page, int size) {
        log.warn("UserService降级: queryUsers被调用");
        return PageResult.<UserDTO>builder()
                .page(page)
                .size(size)
                .total(0)
                .data(Collections.emptyList())
                .build();
    }
}

4. Dubbo高级特性

4.1 集群容错策略

@Configuration
@Slf4j
public class DubboClusterConfiguration {

    /**
     * 自定义集群容错配置
     */
    @Bean
    public Cluster userServiceCluster() {
        return new FailoverCluster();
    }

    /**
     * 自定义负载均衡策略
     */
    @Bean
    public LoadBalance responseTimeLoadBalance() {
        return new ResponseTimeLoadBalance();
    }
}
/**
 * 基于响应时间的负载均衡策略
 */
@Slf4j
public class ResponseTimeLoadBalance extends AbstractLoadBalance {

    public static final String NAME = "responsetime";

    private final ConcurrentMap<String, ResponseTimeStats> statsMap =
        new ConcurrentHashMap<>();

    @Override
    protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {
        if (invokers.isEmpty()) {
            return null;
        }

        if (invokers.size() == 1) {
            return invokers.get(0);
        }

        // 基于响应时间计算权重
        List<WeightedInvoker<T>> weightedInvokers = new ArrayList<>();
        double totalWeight = 0;

        for (Invoker<T> invoker : invokers) {
            if (!invoker.isAvailable()) {
                continue;
            }

            double weight = calculateWeight(invoker);
            weightedInvokers.add(new WeightedInvoker<>(invoker, weight));
            totalWeight += weight;
        }

        if (weightedInvokers.isEmpty()) {
            return null;
        }

        // 基于权重选择
        double random = ThreadLocalRandom.current().nextDouble(totalWeight);
        for (WeightedInvoker<T> weighted : weightedInvokers) {
            random -= weighted.weight;
            if (random <= 0) {
                return weighted.invoker;
            }
        }

        return weightedInvokers.get(weightedInvokers.size() - 1).invoker;
    }

    private <T> double calculateWeight(Invoker<T> invoker) {
        String address = invoker.getUrl().getAddress();
        ResponseTimeStats stats = statsMap.computeIfAbsent(address,
            k -> new ResponseTimeStats());

        double avgResponseTime = stats.getAverageResponseTime();

        // 响应时间越短，权重越高
        if (avgResponseTime <= 0) {
            return 100.0;
        }

        return Math.max(10, 1000 / avgResponseTime);
    }

    public void recordResponseTime(String address, long responseTime) {
        ResponseTimeStats stats = statsMap.get(address);
        if (stats != null) {
            stats.record(responseTime);
        }
    }

    private static class WeightedInvoker<T> {
        final Invoker<T> invoker;
        final double weight;

        WeightedInvoker(Invoker<T> invoker, double weight) {
            this.invoker = invoker;
            this.weight = weight;
        }
    }

    private static class ResponseTimeStats {
        private final AtomicLong totalTime = new AtomicLong(0);
        private final AtomicInteger count = new AtomicInteger(0);
        private volatile double average = 0;

        public void record(long responseTime) {
            totalTime.addAndGet(responseTime);
            count.incrementAndGet();
            this.average = (double) totalTime.get() / count.get();
        }

        public double getAverageResponseTime() {
            return average;
        }
    }
}

4.2 自定义Filter扩展

/**
 * 监控Filter - 记录RPC调用指标
 */
@Activate(group = {CommonConstants.PROVIDER, CommonConstants.CONSUMER})
@Slf4j
public class MetricsFilter implements Filter {

    @Autowired
    private MeterRegistry meterRegistry;

    private final Counter rpcCallCounter;
    private final Timer rpcCallTimer;

    public MetricsFilter() {
        this.rpcCallCounter = Counter.builder("dubbo.rpc.calls.total")
                .description("Dubbo RPC调用总数")
                .register(Metrics.globalRegistry);

        this.rpcCallTimer = Timer.builder("dubbo.rpc.calls.duration")
                .description("Dubbo RPC调用耗时")
                .publishPercentiles(0.5, 0.95, 0.99)
                .register(Metrics.globalRegistry);
    }

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        String serviceName = invoker.getInterface().getSimpleName();
        String methodName = invocation.getMethodName();
        String side = RpcContext.getContext().isProviderSide() ? "provider" : "consumer";

        rpcCallCounter.increment();

        Timer.Sample sample = Timer.start();
        String status = "success";

        try {
            Result result = invoker.invoke(invocation);

            if (result.hasException()) {
                status = "error";
                recordException(serviceName, methodName, side, result.getException());
            }

            return result;
        } catch (RpcException e) {
            status = "error";
            recordException(serviceName, methodName, side, e);
            throw e;
        } finally {
            sample.stop(rpcCallTimer.tag("service", serviceName)
                    .tag("method", methodName)
                    .tag("side", side)
                    .tag("status", status));

            log.debug("Dubbo RPC调用完成: {}.{}, side: {}, status: {}",
                     serviceName, methodName, side, status);
        }
    }

    private void recordException(String serviceName, String methodName,
                               String side, Throwable exception) {
        Counter.builder("dubbo.rpc.calls.exceptions")
                .tag("service", serviceName)
                .tag("method", methodName)
                .tag("side", side)
                .tag("exception", exception.getClass().getSimpleName())
                .register(Metrics.globalRegistry)
                .increment();
    }
}
/**
 * 认证Filter - RPC调用认证
 */
@Activate(group = CommonConstants.PROVIDER, order = -1000)
@Slf4j
public class AuthFilter implements Filter {

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        RpcContext context = RpcContext.getContext();

        // 获取认证信息
        String token = context.getAttachment("auth-token");
        String appId = context.getAttachment("app-id");

        if (!authenticate(token, appId)) {
            log.warn("Dubbo RPC认证失败, 服务: {}, 方法: {}, appId: {}",
                    invoker.getInterface().getSimpleName(),
                    invocation.getMethodName(), appId);
            throw new RpcException(RpcException.FORBIDDEN_EXCEPTION, "认证失败");
        }

        // 设置用户上下文
        UserContext userContext = parseToken(token);
        UserContextHolder.setContext(userContext);

        try {
            return invoker.invoke(invocation);
        } finally {
            UserContextHolder.clear();
        }
    }

    private boolean authenticate(String token, String appId) {
        // 实现认证逻辑
        return token != null && !token.trim().isEmpty() &&
               appId != null && !appId.trim().isEmpty();
    }

    private UserContext parseToken(String token) {
        // 解析token获取用户信息
        // 这里应该是实际的token解析逻辑
        return UserContext.builder()
                .userId("user-from-token")
                .username("user")
                .roles(Collections.singletonList("USER"))
                .build();
    }
}
/**
 * 异常处理Filter
 */
@Activate(group = CommonConstants.PROVIDER, order = 1000)
@Slf4j
public class ExceptionFilter implements Filter {

    @Override
    public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException {
        try {
            return invoker.invoke(invocation);
        } catch (RuntimeException e) {
            log.error("Dubbo服务调用异常, 服务: {}, 方法: {}",
                     invoker.getInterface().getName(), invocation.getMethodName(), e);

            // 转换业务异常
            if (e instanceof BusinessException) {
                throw new RpcException(RpcException.BIZ_EXCEPTION, e.getMessage());
            }

            // 其他异常转换为系统异常
            throw new RpcException(RpcException.SERVICE_ERROR, "系统异常");
        }
    }
}

4.3 路由规则与标签路由

/**
 * 自定义路由规则
 */
@Component
public class GrayReleaseRouter implements Router {

    private final RouterPriority routerPriority = RouterPriority.FIRST;

    @Override
    public <T> List<Invoker<T>> route(List<Invoker<T>> invokers, URL url,
                                    Invocation invocation) throws RpcException {

        // 获取灰度标签
        String grayTag = RpcContext.getContext().getAttachment("gray-tag");

        if (grayTag == null || grayTag.isEmpty()) {
            return invokers;
        }

        // 根据灰度标签过滤服务提供者
        return invokers.stream()
                .filter(invoker -> matchesGrayTag(invoker, grayTag))
                .collect(Collectors.toList());
    }

    private <T> boolean matchesGrayTag(Invoker<T> invoker, String grayTag) {
        URL providerUrl = invoker.getUrl();
        String providerTag = providerUrl.getParameter("tag", "");

        return grayTag.equals(providerTag);
    }

    @Override
    public int getPriority() {
        return routerPriority.getPriority();
    }

    @Override
    public URL getUrl() {
        return null;
    }
}
// 路由配置
@Configuration
public class RouterConfiguration {

    @Bean
    public GrayReleaseRouter grayReleaseRouter() {
        return new GrayReleaseRouter();
    }
}

5. Dubbo服务治理

5.1 动态配置管理

# dubbo-config.yaml - 动态配置
configVersion: v2.7
scope: application
key: user-service
configs:
  - type: service
    enabled: true
    service: com.example.service.UserService
    parameters:
      timeout: 5000
      retries: 1
      loadbalance: roundrobin

  - type: method
    enabled: true
    service: com.example.service.UserService
    methods:
      - name: getUserById
        parameters:
          timeout: 3000
          retries: 0
      - name: createUser
        parameters:
          timeout: 10000
          retries: 1

  - type: consumer
    enabled: true
    addresses:
      - 127.0.0.1:20880
    parameters:
      timeout: 3000
      retries: 2

5.2 服务监控与治理

/**
 * Dubbo服务监控
 */
@Component
@Slf4j
public class DubboMonitorService {

    @Autowired
    private ApplicationModel applicationModel;

    /**
     * 获取服务提供者状态
     */
    public List<ProviderStatus> getProviderStatus() {
        List<ProviderStatus> statusList = new ArrayList<>();

        Collection<ProviderModel> providers = applicationModel.getProviderModels();
        for (ProviderModel provider : providers) {
            String serviceKey = provider.getServiceKey();
            ServiceMetadata metadata = provider.getServiceMetadata();

            ProviderStatus status = ProviderStatus.builder()
                    .serviceName(serviceKey)
                    .version(metadata.getVersion())
                    .group(metadata.getGroup())
                    .methods(metadata.getMethods().size())
                    .status("ACTIVE")
                    .build();

            statusList.add(status);
        }

        return statusList;
    }

    /**
     * 获取服务消费者状态
     */
    public List<ConsumerStatus> getConsumerStatus() {
        List<ConsumerStatus> statusList = new ArrayList<>();

        Collection<ConsumerModel> consumers = applicationModel.getConsumerModels();
        for (ConsumerModel consumer : consumers) {
            String serviceKey = consumer.getServiceKey();
            ServiceMetadata metadata = consumer.getServiceMetadata();

            ConsumerStatus status = ConsumerStatus.builder()
                    .serviceName(serviceKey)
                    .version(metadata.getVersion())
                    .group(metadata.getGroup())
                    .status("ACTIVE")
                    .build();

            statusList.add(status);
        }

        return statusList;
    }

    /**
     * 动态调整服务参数
     */
    public boolean adjustServiceConfig(String serviceName, Map<String, String> parameters) {
        try {
            // 通过配置中心动态更新配置
            ConfigManager configManager = applicationModel.getApplicationConfigManager();

            // 这里应该是实际的配置更新逻辑
            log.info("动态调整服务配置: {}, parameters: {}", serviceName, parameters);

            return true;
        } catch (Exception e) {
            log.error("动态调整服务配置失败", e);
            return false;
        }
    }
}
// 监控端点
@RestController
@RequestMapping("/admin/dubbo")
@Slf4j
public class DubboAdminController {

    @Autowired
    private DubboMonitorService dubboMonitorService;

    @GetMapping("/providers")
    public ResponseEntity<List<ProviderStatus>> getProviders() {
        List<ProviderStatus> providers = dubboMonitorService.getProviderStatus();
        return ResponseEntity.ok(providers);
    }

    @GetMapping("/consumers")
    public ResponseEntity<List<ConsumerStatus>> getConsumers() {
        List<ConsumerStatus> consumers = dubboMonitorService.getConsumerStatus();
        return ResponseEntity.ok(consumers);
    }

    @PostMapping("/config/{serviceName}")
    public ResponseEntity<String> updateServiceConfig(
            @PathVariable String serviceName,
            @RequestBody Map<String, String> parameters) {

        boolean success = dubboMonitorService.adjustServiceConfig(serviceName, parameters);

        if (success) {
            return ResponseEntity.ok("配置更新成功");
        } else {
            return ResponseEntity.status(500).body("配置更新失败");
        }
    }

    @GetMapping("/qos/{command}")
    public ResponseEntity<String> executeQosCommand(@PathVariable String command) {
        try {
            // 执行QOS命令
            String result = executeDubboQosCommand(command);
            return ResponseEntity.ok(result);
        } catch (Exception e) {
            log.error("执行QOS命令失败", e);
            return ResponseEntity.status(500).body("命令执行失败: " + e.getMessage());
        }
    }

    private String executeDubboQosCommand(String command) {
        // 实现QOS命令执行逻辑
        return "Command executed: " + command;
    }
}

6. 生产环境最佳实践

6.1 性能优化配置

# 生产环境Dubbo优化配置
dubbo:
  application:
    name: ${spring.application.name}
    # 元数据配置
    metadata-type: remote
    # QOS配置
    qos-enable: true
    qos-port: 22222
    # 序列化检查
    serialize-check-status: DISABLE

  # 注册中心配置
  registry:
    address: nacos://nacos-cluster:8848
    parameters:
      namespace: production
      username: nacos
      password: ${NACOS_PASSWORD}
    # 注册和订阅配置
    register: true
    subscribe: true

  # 协议配置
  protocol:
    name: tri
    port: -1  # 随机端口
    serialization: kryo
    # 线程池配置
    threadpool: fixed
    threads: 500
    iothreads: 16
    # 其他参数
    payload: 8388608  # 8MB
    accepts: 1000

  # 配置中心
  config-center:
    address: nacos://nacos-cluster:8848
    namespace: production
    group: DUBBO_GROUP
    timeout: 30000

  # 元数据中心
  metadata-report:
    address: nacos://nacos-cluster:8848
    namespace: production
    timeout: 5000
    cycle-report: true
    retry-times: 10
    retry-period: 1000

  # 消费者配置
  consumer:
    check: false
    timeout: 5000
    retries: 1
    # 负载均衡
    loadbalance: consistent
    # 集群容错
    cluster: failover
    # 连接控制
    connections: 10
    # 粘滞连接
    sticky: true
    # 异步调用
    async: false
    # 启动时检查
    lazy: true
    # 缓存提供者列表
    file: ${user.home}/dubbo-cache/${spring.application.name}.cache

  # 提供者配置
  provider:
    timeout: 8000
    retries: 0
    # 负载均衡
    loadbalance: roundrobin
    # 集群容错
    cluster: failfast
    # 连接控制
    connections: 100
    # 执行器
    dispatcher: message
    # 线程池
    threadpool: fixed
    threads: 500
    # 令牌验证
    token: true
    # 访问日志
    accesslog: true

6.2 故障排查工具

@Component
@Slf4j
public class DubboTroubleshootingTool {

    /**
     * 诊断Dubbo服务状态
     */
    public ServiceDiagnosis diagnoseService(String serviceName) {
        ServiceDiagnosis diagnosis = new ServiceDiagnosis();
        diagnosis.setServiceName(serviceName);
        diagnosis.setTimestamp(LocalDateTime.now());

        try {
            // 检查服务提供者
            diagnosis.setProviders(checkServiceProviders(serviceName));

            // 检查服务消费者
            diagnosis.setConsumers(checkServiceConsumers(serviceName));

            // 检查注册中心
            diagnosis.setRegistryStatus(checkRegistryStatus());

            // 检查配置中心
            diagnosis.setConfigStatus(checkConfigStatus());

            diagnosis.setOverallStatus(calculateOverallStatus(diagnosis));

        } catch (Exception e) {
            log.error("服务诊断失败", e);
            diagnosis.setOverallStatus("ERROR");
            diagnosis.setErrorMessage(e.getMessage());
        }

        return diagnosis;
    }

    /**
     * 获取Dubbo调用链信息
     */
    public InvocationTrace getInvocationTrace(String traceId) {
        InvocationTrace trace = new InvocationTrace();
        trace.setTraceId(traceId);

        // 这里应该是实际的调用链追踪逻辑
        // 可以集成SkyWalking、Zipkin等

        return trace;
    }

    /**
     * 动态调试Dubbo服务
     */
    public DebugResult debugService(String serviceName, String methodName,
                                  Object[] args) {
        DebugResult result = new DebugResult();

        try {
            // 通过反射调用服务方法进行调试
            Object debugResult = invokeServiceMethod(serviceName, methodName, args);

            result.setSuccess(true);
            result.setResult(debugResult);

        } catch (Exception e) {
            log.error("服务调试失败", e);
            result.setSuccess(false);
            result.setErrorMessage(e.getMessage());
        }

        return result;
    }

    private List<ProviderInfo> checkServiceProviders(String serviceName) {
        // 实现服务提供者检查逻辑
        return Collections.emptyList();
    }

    private List<ConsumerInfo> checkServiceConsumers(String serviceName) {
        // 实现服务消费者检查逻辑
        return Collections.emptyList();
    }

    private String checkRegistryStatus() {
        // 实现注册中心状态检查
        return "HEALTHY";
    }

    private String checkConfigStatus() {
        // 实现配置中心状态检查
        return "HEALTHY";
    }

    private String calculateOverallStatus(ServiceDiagnosis diagnosis) {
        // 计算整体状态
        return "HEALTHY";
    }

    private Object invokeServiceMethod(String serviceName, String methodName,
                                     Object[] args) {
        // 实现服务方法调用
        return null;
    }
}
// 故障排查端点
@RestController
@RequestMapping("/admin/troubleshooting")
@Slf4j
public class TroubleshootingController {

    @Autowired
    private DubboTroubleshootingTool troubleshootingTool;

    @GetMapping("/diagnose/{serviceName}")
    public ResponseEntity<ServiceDiagnosis> diagnoseService(
            @PathVariable String serviceName) {

        ServiceDiagnosis diagnosis = troubleshootingTool.diagnoseService(serviceName);
        return ResponseEntity.ok(diagnosis);
    }

    @GetMapping("/trace/{traceId}")
    public ResponseEntity<InvocationTrace> getInvocationTrace(
            @PathVariable String traceId) {

        InvocationTrace trace = troubleshootingTool.getInvocationTrace(traceId);
        return ResponseEntity.ok(trace);
    }

    @PostMapping("/debug/{serviceName}/{methodName}")
    public ResponseEntity<DebugResult> debugService(
            @PathVariable String serviceName,
            @PathVariable String methodName,
            @RequestBody Object[] args) {

        DebugResult result = troubleshootingTool.debugService(serviceName, methodName, args);
        return ResponseEntity.ok(result);
    }
}

7. 总结

7.1 Dubbo核心价值总结

通过本文的深入实践，你应该理解Dubbo在微服务架构中的核心价值：

1. 高性能RPC调用：基于Triple协议的高性能通信
2. 完善的服务治理：内置负载均衡、容错、路由等能力
3. 云原生支持：Dubbo 3.x全面拥抱云原生架构
4. 丰富的扩展机制：Filter、Router、LoadBalance等扩展点

7.2 关键最佳实践

✅ 版本管理：清晰的服务版本划分和演进策略
✅ 容错设计：合理的重试、熔断、降级策略
✅ 性能优化：合适的序列化、线程池、连接数配置
✅ 监控告警：完善的指标收集和故障告警
✅ 安全防护：认证、鉴权、限流等安全措施

7.3 技术演进建议

Dubbo 2.x迁移到3.x的关键点：

• 应用级服务发现替代接口级发现
• Triple协议替代Dubbo协议
• 元数据中心的必需配置
• 配置管理方式的更新

生产环境部署建议：

• 使用集群模式的注册中心
• 配置合理的超时和重试策略
• 启用监控和链路追踪
• 建立完善的运维体系

Dubbo作为成熟的RPC框架，在微服务架构中发挥着重要作用。合理的架构设计和正确的使用方式，能够显著提升系统的性能和稳定性。
