《服务治理》容错机制详解与实践

1. 容错机制概述

1.1 什么是容错

容错（Fault Tolerance）是指系统在部分组件发生故障时，仍然能够继续正常运作的能力。在分布式系统中，容错不是避免故障，而是优雅地处理故障，保证系统的可用性和稳定性。

1.2 容错的业务价值

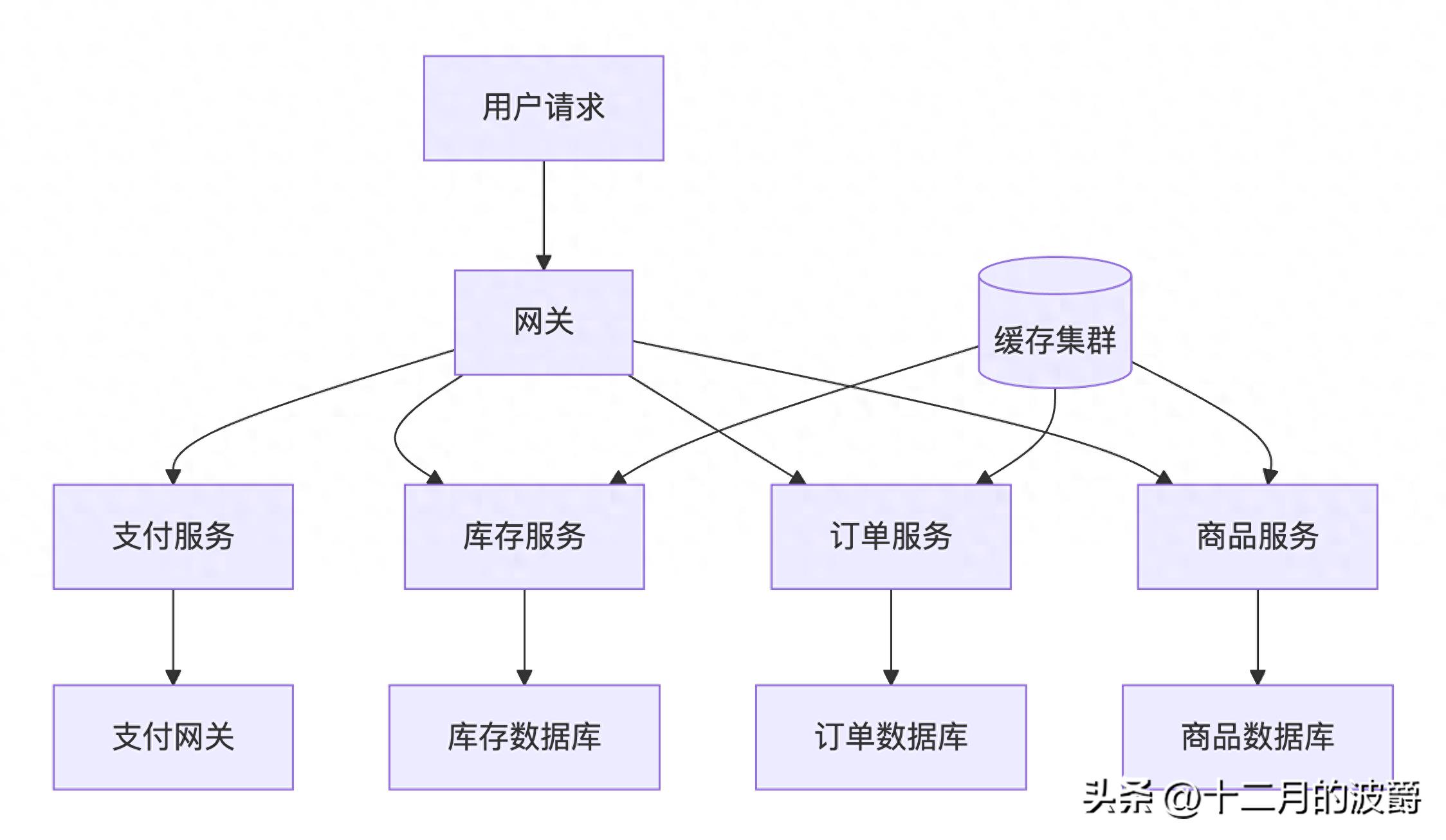

想象一个现代化的电商系统架构：

当某个组件故障时，容错机制能够：

• 维持核心功能：即使非关键服务不可用，核心业务流程仍可继续
• 快速自动恢复：系统能够自动检测故障并尝试恢复
• 防止雪崩效应：避免单个服务的故障扩散到整个系统

2. 容错设计原则

2.1 核心设计理念

2.1.1 故障隔离

@Component
public class BulkheadIsolation {
    // 使用舱壁模式隔离不同服务的资源
    @Autowired
    private BulkheadRegistry bulkheadRegistry;

    public <T> T executeWithIsolation(String serviceName,
                                    Supplier<T> operation) {
        Bulkhead bulkhead = bulkheadRegistry.bulkhead(serviceName);
        return bulkhead.executeSupplier(operation);
    }
}

2.1.2 快速失败

当故障发生时，立即返回错误而不是长时间等待，避免资源耗尽。

2.1.3 优雅降级

提供有损但可用的服务，而不是完全不可用。

2.2 容错模式对比

模式	适用场景	实现方式	优缺点
重试	临时性故障	自动重新执行	✅ 简单有效 ❌ 可能加重负载
熔断	持续性故障	快速失败+自动恢复	✅ 防止雪崩 ❌ 用户体验受影响
降级	资源不足	功能裁剪	✅ 保障核心业务 ❌ 功能完整性受损
超时	慢响应	限制等待时间	✅ 释放资源 ❌ 可能中断正常请求
舱壁	资源隔离	资源池隔离	✅ 故障隔离 ❌ 资源利用率降低

3. Resilience4j 容错实战

3.1 环境准备与配置

Maven依赖

<dependencies>
    <dependency>
        <groupId>io.github.resilience4j</groupId>
        <artifactId>resilience4j-spring-boot2</artifactId>
        <version>2.0.2</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-aop</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-registry-prometheus</artifactId>
    </dependency>
</dependencies>

完整容错配置

resilience4j:
  # 熔断器配置
  circuitbreaker:
    instances:
      orderService:
        failureRateThreshold: 50
        waitDurationInOpenState: 10s
        permittedNumberOfCallsInHalfOpenState: 3
        slidingWindowSize: 10
        minimumNumberOfCalls: 5
        recordExceptions:
          - java.io.IOException
          - java.util.concurrent.TimeoutException
        ignoreExceptions:
          - com.example.BusinessException

  # 重试配置
  retry:
    instances:
      paymentService:
        maxAttempts: 3
        waitDuration: 500ms
        retryExceptions:
          - java.io.IOException
          - org.springframework.web.client.ResourceAccessException

  # 超时配置
  timelimiter:
    instances:
      externalApi:
        timeoutDuration: 5s
        cancelRunningFuture: true

  # 舱壁配置
  bulkhead:
    instances:
      inventoryService:
        maxConcurrentCalls: 20
        maxWaitDuration: 100ms

  # 速率限制器
  ratelimiter:
    instances:
      authService:
        limitForPeriod: 10
        limitRefreshPeriod: 1s
        timeoutDuration: 0
management:
  endpoints:
    web:
      exposure:
        include: health,metrics,circuitbreakers
  endpoint:
    health:
      show-details: always

3.2 综合容错策略实现

订单服务完整容错示例

@Service
@Slf4j
public class OrderServiceWithFaultTolerance {

    @Autowired
    private PaymentServiceClient paymentService;

    @Autowired
    private InventoryServiceClient inventoryService;

    @Autowired
    private NotificationServiceClient notificationService;

    /**
     * 创建订单 - 综合容错策略
     */
    @Retry(name = "orderService", fallbackMethod = "createOrderFallback")
    @CircuitBreaker(name = "orderService", fallbackMethod = "createOrderFallback")
    @TimeLimiter(name = "externalApi", fallbackMethod = "createOrderFallback")
    @Bulkhead(name = "orderService", fallbackMethod = "createOrderFallback")
    @RateLimiter(name = "orderService", fallbackMethod = "createOrderFallback")
    public CompletableFuture<OrderResult> createOrder(OrderRequest request) {
        return CompletableFuture.supplyAsync(() -> {
            log.info("开始处理订单: {}", request.getOrderId());

            // 1. 参数校验（同步，必须成功）
            validateOrderRequest(request);

            // 2. 库存检查（核心业务，重试+熔断）
            checkInventoryWithRetry(request);

            // 3. 支付处理（核心业务，重试+熔断+超时）
            processPaymentWithFaultTolerance(request);

            // 4. 创建订单记录
            Order order = saveOrder(request);

            // 5. 发送通知（非核心，可降级）
            sendNotificationAsync(order);

            log.info("订单处理完成: {}", order.getOrderId());
            return OrderResult.success(order);
        });
    }

    /**
     * 库存检查 - 带重试机制
     */
    @Retry(name = "inventoryService", fallbackMethod = "checkInventoryFallback")
    private void checkInventoryWithRetry(OrderRequest request) {
        InventoryCheckResult result = inventoryService.checkInventory(
            request.getProductId(),
            request.getQuantity()
        );

        if (!result.isAvailable()) {
            throw new InventoryException("库存不足，商品ID: " + request.getProductId());
        }
    }

    /**
     * 支付处理 - 综合容错
     */
    @CircuitBreaker(name = "paymentService", fallbackMethod = "processPaymentFallback")
    @TimeLimiter(name = "paymentService")
    @Retry(name = "paymentService")
    private PaymentResult processPaymentWithFaultTolerance(OrderRequest request) {
        PaymentRequest paymentRequest = buildPaymentRequest(request);
        return paymentService.processPayment(paymentRequest);
    }

    /**
     * 异步发送通知 - 可降级
     */
    @Async
    @CircuitBreaker(name = "notificationService", fallbackMethod = "notificationFallback")
    public void sendNotificationAsync(Order order) {
        try {
            notificationService.sendOrderCreatedNotification(order);
            log.debug("订单通知发送成功: {}", order.getOrderId());
        } catch (Exception e) {
            log.warn("订单通知发送失败，但不会影响主流程: {}", e.getMessage());
            // 非核心服务异常，只记录日志，不抛出异常
        }
    }

    /**
     * 综合降级方法
     */
    private CompletableFuture<OrderResult> createOrderFallback(OrderRequest request, Exception e) {
        log.error("订单创建容错降级, 订单ID: {}, 异常: {}", request.getOrderId(), e.getMessage());

        FaultToleranceContext context = analyzeFaultContext(e);

        switch (context.getSeverity()) {
            case CRITICAL:
                return CompletableFuture.completedFuture(handleCriticalFailure(request, context));
            case HIGH:
                return CompletableFuture.completedFuture(handleHighSeverityFailure(request, context));
            case MEDIUM:
                return CompletableFuture.completedFuture(handleMediumSeverityFailure(request, context));
            default:
                return CompletableFuture.completedFuture(handleLowSeverityFailure(request, context));
        }
    }

    /**
     * 库存检查降级
     */
    private void checkInventoryFallback(OrderRequest request, Exception e) {
        log.warn("库存检查降级, 使用本地缓存数据");

        // 使用本地缓存或最近的成功结果
        LocalInventoryCache cache = inventoryService.getLocalCache(request.getProductId());
        if (cache != null && cache.isValid()) {
            if (cache.getAvailableQuantity() < request.getQuantity()) {
                throw new InventoryException("本地缓存显示库存不足");
            }
            // 继续执行
        } else {
            throw new InventoryException("无法获取库存信息，请稍后重试");
        }
    }

    /**
     * 支付处理降级
     */
    private PaymentResult processPaymentFallback(OrderRequest request, Exception e) {
        log.warn("支付服务降级, 创建待支付订单");

        // 创建待支付订单，引导用户后续完成支付
        return PaymentResult.builder()
                .paymentId("PENDING-" + System.currentTimeMillis())
                .status(PaymentStatus.PENDING)
                .message("支付系统繁忙，订单已创建，请稍后完成支付")
                .build();
    }

    /**
     * 通知服务降级
     */
    private void notificationFallback(Order order, Exception e) {
        log.info("通知服务降级, 订单ID: {}", order.getOrderId());
        // 将通知任务放入重试队列
        notificationRetryQueue.add(order);
    }
}

3.3 容错上下文与决策引擎

容错上下文管理

@Component
@Slf4j
public class FaultToleranceContextManager {

    private final ThreadLocal<FaultToleranceContext> contextHolder = new ThreadLocal<>();

    /**
     * 开始容错上下文
     */
    public void beginContext(String operationName) {
        FaultToleranceContext context = FaultToleranceContext.builder()
                .operationName(operationName)
                .startTime(System.currentTimeMillis())
                .retryCount(0)
                .fallbackTriggered(false)
                .build();
        contextHolder.set(context);
    }

    /**
     * 记录重试事件
     */
    public void recordRetry(Exception exception) {
        FaultToleranceContext context = getCurrentContext();
        if (context != null) {
            context.incrementRetryCount();
            context.addException(exception);
            log.debug("记录重试事件: {}, 重试次数: {}",
                     context.getOperationName(), context.getRetryCount());
        }
    }

    /**
     * 记录降级事件
     */
    public void recordFallback(String fallbackMethod, Exception triggerException) {
        FaultToleranceContext context = getCurrentContext();
        if (context != null) {
            context.setFallbackTriggered(true);
            context.setFallbackMethod(fallbackMethod);
            context.setTriggerException(triggerException);
            context.setEndTime(System.currentTimeMillis());

            log.warn("降级触发: 操作={}, 降级方法={}, 触发异常={}",
                    context.getOperationName(), fallbackMethod, triggerException.getMessage());
        }
    }

    /**
     * 获取当前上下文
     */
    public FaultToleranceContext getCurrentContext() {
        return contextHolder.get();
    }

    /**
     * 结束上下文
     */
    public void endContext() {
        FaultToleranceContext context = contextHolder.get();
        if (context != null) {
            // 记录指标
            recordMetrics(context);
            contextHolder.remove();
        }
    }

    /**
     * 分析故障上下文
     */
    public FaultSeverity analyzeFaultSeverity(FaultToleranceContext context) {
        if (context == null) {
            return FaultSeverity.UNKNOWN;
        }

        List<Exception> exceptions = context.getExceptions();
        if (exceptions.isEmpty()) {
            return FaultSeverity.NONE;
        }

        // 基于异常类型和频率判断严重程度
        long timeoutCount = exceptions.stream()
                .filter(e -> e instanceof TimeoutException)
                .count();

        long circuitBreakerCount = exceptions.stream()
                .filter(e -> e instanceof CallNotPermittedException)
                .count();

        if (circuitBreakerCount > 0) {
            return FaultSeverity.CRITICAL;
        } else if (timeoutCount >= 3) {
            return FaultSeverity.HIGH;
        } else if (context.getRetryCount() >= 2) {
            return FaultSeverity.MEDIUM;
        } else {
            return FaultSeverity.LOW;
        }
    }

    private void recordMetrics(FaultToleranceContext context) {
        // 记录到监控系统
        Metrics.counter("fault_tolerance_operation_total",
                "operation", context.getOperationName(),
                "fallback_triggered", String.valueOf(context.isFallbackTriggered()))
                .increment();

        if (context.isFallbackTriggered()) {
            Metrics.counter("fault_tolerance_fallback_total",
                    "operation", context.getOperationName(),
                    "fallback_method", context.getFallbackMethod())
                    .increment();
        }
    }
}

智能容错决策引擎

@Component
@Slf4j
public class SmartFaultToleranceEngine {

    @Autowired
    private SystemMetricsCollector metricsCollector;

    @Autowired
    private CircuitBreakerRegistry circuitBreakerRegistry;

    @Autowired
    private RetryRegistry retryRegistry;

    /**
     * 动态调整容错策略
     */
    public void adjustFaultToleranceStrategies() {
        SystemMetrics metrics = metricsCollector.getCurrentMetrics();

        // 基于系统负载调整策略
        if (metrics.getCpuUsage() > 80) {
            tightenCircuitBreakerSettings();
            reduceRetryAttempts();
        } else if (metrics.getCpuUsage() < 30) {
            loosenCircuitBreakerSettings();
            increaseRetryAttempts();
        }

        // 基于时间特征调整
        if (isPeakBusinessHours()) {
            enableAggressiveDegradation();
        } else {
            disableAggressiveDegradation();
        }
    }

    /**
     * 收紧熔断器设置
     */
    private void tightenCircuitBreakerSettings() {
        circuitBreakerRegistry.getAllCircuitBreakers().forEach((name, circuitBreaker) -> {
            CircuitBreakerConfig newConfig = CircuitBreakerConfig.from(circuitBreaker.getCircuitBreakerConfig())
                    .failureRateThreshold(40)  // 降低阈值
                    .waitDurationInOpenState(Duration.ofSeconds(15))  // 延长等待时间
                    .build();

            circuitBreaker.getEventPublisher().onStateTransition(event -> {
                log.info("熔断器 {} 状态变更: {} -> {}",
                        name, event.getStateTransition().getFromState(),
                        event.getStateTransition().getToState());
            });
        });
    }

    /**
     * 智能重试策略
     */
    public RetryConfig buildSmartRetryConfig(String serviceName, Exception lastException) {
        RetryConfig.Builder builder = RetryConfig.custom();

        // 基于异常类型设置重试策略
        if (lastException instanceof TimeoutException) {
            builder.maxAttempts(2)
                   .waitDuration(Duration.ofMillis(200));
        } else if (lastException instanceof SocketException) {
            builder.maxAttempts(3)
                   .waitDuration(Duration.ofMillis(500));
        } else if (lastException instanceof ServerErrorException) {
            builder.maxAttempts(1)  // 服务器错误不重试
                   .waitDuration(Duration.ofMillis(100));
        } else {
            builder.maxAttempts(3)
                   .waitDuration(Duration.ofMillis(300));
        }

        // 基于服务重要性调整
        if (isCriticalService(serviceName)) {
            builder.maxAttempts(builder.build().getMaxAttempts() + 1);
        }

        return builder.build();
    }

    private boolean isPeakBusinessHours() {
        LocalTime now = LocalTime.now();
        return (now.isAfter(LocalTime.of(9, 0)) && now.isBefore(LocalTime.of(12, 0))) ||
               (now.isAfter(LocalTime.of(14, 0)) && now.isBefore(LocalTime.of(18, 0)));
    }

    private boolean isCriticalService(String serviceName) {
        return serviceName.contains("payment") ||
               serviceName.contains("order") ||
               serviceName.contains("inventory");
    }
}

4. 容错监控与管理

4.1 综合监控面板

@RestController
@RequestMapping("/fault-tolerance")
@Slf4j
public class FaultToleranceMonitorController {

    @Autowired
    private CircuitBreakerRegistry circuitBreakerRegistry;

    @Autowired
    private RetryRegistry retryRegistry;

    @Autowired
    private BulkheadRegistry bulkheadRegistry;

    @Autowired
    private TimeLimiterRegistry timeLimiterRegistry;

    /**
     * 获取所有容错组件状态
     */
    @GetMapping("/status")
    public Map<String, Object> getFaultToleranceStatus() {
        Map<String, Object> status = new HashMap<>();

        status.put("circuitBreakers", getCircuitBreakerStatus());
        status.put("retries", getRetryStatus());
        status.put("bulkheads", getBulkheadStatus());
        status.put("timeLimiters", getTimeLimiterStatus());
        status.put("systemMetrics", getSystemMetrics());

        return status;
    }

    /**
     * 熔断器状态详情
     */
    @GetMapping("/circuit-breakers/{name}")
    public Map<String, Object> getCircuitBreakerDetail(@PathVariable String name) {
        CircuitBreaker circuitBreaker = circuitBreakerRegistry.circuitBreaker(name);

        Map<String, Object> detail = new HashMap<>();
        detail.put("name", name);
        detail.put("state", circuitBreaker.getState().name());
        detail.put("metrics", buildCircuitBreakerMetrics(circuitBreaker.getMetrics()));
        detail.put("config", buildCircuitBreakerConfig(circuitBreaker.getCircuitBreakerConfig()));

        return detail;
    }

    /**
     * 手动操作熔断器状态
     */
    @PostMapping("/circuit-breakers/{name}/state")
    public ResponseEntity<String> changeCircuitBreakerState(
            @PathVariable String name,
            @RequestParam String state) {

        CircuitBreaker circuitBreaker = circuitBreakerRegistry.circuitBreaker(name);

        try {
            switch (state.toUpperCase()) {
                case "CLOSED":
                    circuitBreaker.transitionToClosedState();
                    break;
                case "OPEN":
                    circuitBreaker.transitionToOpenState();
                    break;
                case "HALF_OPEN":
                    circuitBreaker.transitionToHalfOpenState();
                    break;
                case "FORCED_OPEN":
                    circuitBreaker.transitionToForcedOpenState();
                    break;
                case "DISABLED":
                    circuitBreaker.transitionToDisabledState();
                    break;
                default:
                    return ResponseEntity.badRequest().body("无效的状态: " + state);
            }

            log.info("手动变更熔断器状态: {} -> {}", name, state);
            return ResponseEntity.ok("状态变更成功");

        } catch (Exception e) {
            log.error("变更熔断器状态失败", e);
            return ResponseEntity.status(500).body("状态变更失败: " + e.getMessage());
        }
    }

    /**
     * 重置容错组件
     */
    @PostMapping("/reset/{componentType}/{name}")
    public ResponseEntity<String> resetComponent(
            @PathVariable String componentType,
            @PathVariable String name) {

        try {
            switch (componentType.toLowerCase()) {
                case "circuitbreaker":
                    circuitBreakerRegistry.circuitBreaker(name).reset();
                    break;
                case "retry":
                    retryRegistry.retry(name).reset();
                    break;
                case "bulkhead":
                    bulkheadRegistry.bulkhead(name).reset();
                    break;
                default:
                    return ResponseEntity.badRequest().body("不支持的组件类型: " + componentType);
            }

            log.info("重置容错组件: {}/{}", componentType, name);
            return ResponseEntity.ok("重置成功");

        } catch (Exception e) {
            log.error("重置容错组件失败", e);
            return ResponseEntity.status(500).body("重置失败: " + e.getMessage());
        }
    }

    private Map<String, Object> getCircuitBreakerStatus() {
        Map<String, Object> breakers = new HashMap<>();

        circuitBreakerRegistry.getAllCircuitBreakers().forEach((name, cb) -> {
            Map<String, Object> info = new HashMap<>();
            info.put("state", cb.getState().name());
            info.put("metrics", buildCircuitBreakerMetrics(cb.getMetrics()));
            breakers.put(name, info);
        });

        return breakers;
    }

    private Map<String, Object> buildCircuitBreakerMetrics(CircuitBreaker.Metrics metrics) {
        Map<String, Object> metricsInfo = new HashMap<>();
        metricsInfo.put("failureRate", metrics.getFailureRate());
        metricsInfo.put("bufferedCalls", metrics.getNumberOfBufferedCalls());
        metricsInfo.put("failedCalls", metrics.getNumberOfFailedCalls());
        metricsInfo.put("successfulCalls", metrics.getNumberOfSuccessfulCalls());
        metricsInfo.put("notPermittedCalls", metrics.getNumberOfNotPermittedCalls());
        metricsInfo.put("slowCalls", metrics.getNumberOfSlowCalls());
        metricsInfo.put("slowCallRate", metrics.getSlowCallRate());
        return metricsInfo;
    }
}

4.2 容错事件监听与告警

@Component
@Slf4j
public class FaultToleranceEventListener {

    @Autowired
    private AlertService alertService;

    @Autowired
    private MetricsService metricsService;

    /**
     * 监听熔断器事件
     */
    @EventListener
    public void onCircuitBreakerEvent(CircuitBreakerEvent event) {
        metricsService.recordCircuitBreakerEvent(event);

        switch (event.getEventType()) {
            case STATE_TRANSITION:
                handleStateTransition(event);
                break;
            case ERROR:
                handleError(event);
                break;
            case CALL_NOT_PERMITTED:
                handleCallNotPermitted(event);
                break;
            case SLOW_CALL_RATE_EXCEEDED:
                handleSlowCallRateExceeded(event);
                break;
            case FAILURE_RATE_EXCEEDED:
                handleFailureRateExceeded(event);
                break;
        }
    }

    /**
     * 监听重试事件
     */
    @EventListener
    public void onRetryEvent(RetryEvent event) {
        metricsService.recordRetryEvent(event);

        if (event.getEventType() == RetryEvent.Type.RETRY) {
            log.warn("重试事件: {}, 异常: {}, 重试次数: {}",
                    event.getName(), event.getLastThrowable().getMessage(),
                    event.getNumberOfRetryAttempts());

            // 重试次数过多告警
            if (event.getNumberOfRetryAttempts() >= 3) {
                alertService.sendRetryAlert(event.getName(),
                        event.getNumberOfRetryAttempts(),
                        event.getLastThrowable());
            }
        }
    }

    /**
     * 处理熔断器状态转换
     */
    private void handleStateTransition(CircuitBreakerEvent event) {
        CircuitBreakerOnStateTransitionEvent transitionEvent =
                (CircuitBreakerOnStateTransitionEvent) event;

        String message = String.format("熔断器状态变更: %s [%s -> %s]",
                event.getCircuitBreakerName(),
                transitionEvent.getStateTransition().getFromState(),
                transitionEvent.getStateTransition().getToState());

        log.warn(message);

        // 状态转为OPEN时发送告警
        if (transitionEvent.getStateTransition().getToState() == CircuitBreaker.State.OPEN) {
            alertService.sendCircuitBreakerOpenAlert(event.getCircuitBreakerName(), message);
        }

        // 状态转为CLOSED时发送恢复通知
        if (transitionEvent.getStateTransition().getToState() == CircuitBreaker.State.CLOSED &&
            transitionEvent.getStateTransition().getFromState() == CircuitBreaker.State.OPEN) {
            alertService.sendCircuitBreakerRecoveredAlert(event.getCircuitBreakerName());
        }
    }

    /**
     * 处理调用被拒绝事件
     */
    private void handleCallNotPermitted(CircuitBreakerEvent event) {
        log.warn("调用被熔断器拒绝: {}", event.getCircuitBreakerName());

        // 记录被拒绝的调用，用于容量规划
        metricsService.recordRejectedCall(event.getCircuitBreakerName());

        // 发送业务影响告警
        if (isCriticalService(event.getCircuitBreakerName())) {
            alertService.sendBusinessImpactAlert(event.getCircuitBreakerName(),
                    "熔断器打开，影响业务功能");
        }
    }

    private boolean isCriticalService(String serviceName) {
        return serviceName.contains("payment") ||
               serviceName.contains("order") ||
               serviceName.contains("auth");
    }
}

5. 高级容错模式

5.1 自适应容错策略

@Component
@Slf4j
public class AdaptiveFaultToleranceStrategy {

    @Autowired
    private HistoricalDataAnalyzer historicalDataAnalyzer;

    @Autowired
    private MachineLearningPredictor mlPredictor;

    /**
     * 基于历史数据调整容错参数
     */
    public void adaptFaultToleranceParameters() {
        Map<String, ServiceBehavior> serviceBehaviors =
                historicalDataAnalyzer.analyzeServiceBehavior(Period.ofDays(7));

        serviceBehaviors.forEach((serviceName, behavior) -> {
            AdaptiveConfig config = calculateAdaptiveConfig(behavior);
            applyAdaptiveConfig(serviceName, config);
        });
    }

    /**
     * 预测性容错
     */
    public PredictiveFaultToleranceResult predictFaultToleranceNeeds(String serviceName) {
        ServiceMetrics currentMetrics = metricsService.getCurrentMetrics(serviceName);
        SeasonalPattern pattern = historicalDataAnalyzer.getSeasonalPattern(serviceName);

        // 使用机器学习预测故障概率
        double faultProbability = mlPredictor.predictFaultProbability(
                currentMetrics, pattern);

        return PredictiveFaultToleranceResult.builder()
                .serviceName(serviceName)
                .faultProbability(faultProbability)
                .recommendedAction(getRecommendedAction(faultProbability))
                .confidenceLevel(mlPredictor.getConfidenceLevel())
                .build();
    }

    private AdaptiveConfig calculateAdaptiveConfig(ServiceBehavior behavior) {
        return AdaptiveConfig.builder()
                .circuitBreakerThreshold(calculateOptimalThreshold(behavior))
                .retryAttempts(calculateOptimalRetryAttempts(behavior))
                .timeoutDuration(calculateOptimalTimeout(behavior))
                .bulkheadSize(calculateOptimalBulkheadSize(behavior))
                .build();
    }

    private double calculateOptimalThreshold(ServiceBehavior behavior) {
        // 基于历史故障率计算最优阈值
        double historicalFailureRate = behavior.getAverageFailureRate();
        double variability = behavior.getFailureRateVariability();

        // 故障率波动大时使用更保守的阈值
        if (variability > 0.3) {
            return Math.max(30, historicalFailureRate * 0.8);
        } else {
            return Math.max(40, historicalFailureRate * 1.2);
        }
    }
}

5.2 容错演练框架

@Service
@Slf4j
public class FaultToleranceDrillService {

    @Autowired
    private ChaosEngineeringService chaosService;

    @Autowired
    private FaultToleranceConfigManager configManager;

    /**
     * 执行容错演练
     */
    public DrillResult executeFaultToleranceDrill(DrillPlan drillPlan) {
        log.info("开始容错演练: {}", drillPlan.getName());

        DrillResult result = new DrillResult(drillPlan);

        try {
            // 1. 备份当前配置
            Map<String, Object> backupConfigs = configManager.backupAllConfigs();

            // 2. 应用演练配置
            applyDrillConfigs(drillPlan);

            // 3. 注入故障
            injectFaults(drillPlan.getFaultInjectionScenarios());

            // 4. 执行测试用例
            executeTestScenarios(drillPlan, result);

            // 5. 评估容错效果
            evaluateFaultToleranceEffectiveness(result);

            // 6. 恢复环境
            restoreEnvironment(backupConfigs);

            result.setStatus(DrillStatus.SUCCESS);

        } catch (Exception e) {
            log.error("容错演练执行失败", e);
            result.setStatus(DrillStatus.FAILED);
            result.setErrorMessage(e.getMessage());
        }

        // 7. 生成演练报告
        generateDrillReport(result);

        return result;
    }

    /**
     * 定期容错演练计划
     */
    @Scheduled(cron = "0 0 2 * * SUN") // 每周日凌晨2点执行
    public void scheduleWeeklyDrill() {
        DrillPlan weeklyPlan = buildWeeklyDrillPlan();
        executeFaultToleranceDrill(weeklyPlan);
    }

    /**
     * 大促前专项演练
     */
    public void executePrePromotionDrill() {
        DrillPlan promotionPlan = buildPromotionDrillPlan();
        DrillResult result = executeFaultToleranceDrill(promotionPlan);

        // 基于演练结果优化配置
        if (result.getStatus() == DrillStatus.SUCCESS) {
            optimizeConfigurationsBasedOnDrill(result);
        } else {
            log.error("大促前演练失败，需要人工干预");
            alertService.sendDrillFailureAlert(result);
        }
    }

    private void injectFaults(List<FaultInjectionScenario> scenarios) {
        for (FaultInjectionScenario scenario : scenarios) {
            try {
                switch (scenario.getFaultType()) {
                    case NETWORK_LATENCY:
                        chaosService.injectNetworkLatency(scenario.getTargetService(),
                                scenario.getDuration(), scenario.getParameters());
                        break;
                    case SERVICE_UNAVAILABLE:
                        chaosService.makeServiceUnavailable(scenario.getTargetService(),
                                scenario.getDuration());
                        break;
                    case HIGH_CPU:
                        chaosService.injectHighCpuLoad(scenario.getTargetService(),
                                scenario.getDuration());
                        break;
                    case MEMORY_LEAK:
                        chaosService.injectMemoryLeak(scenario.getTargetService(),
                                scenario.getDuration());
                        break;
                }
                log.info("故障注入成功: {}", scenario.getDescription());
            } catch (Exception e) {
                log.error("故障注入失败: {}", scenario.getDescription(), e);
            }
        }
    }
}

6. 生产环境最佳实践

6.1 容错配置模板

# 核心服务容错配置模板
fault-tolerance:
  templates:
    critical-service:
      circuit-breaker:
        failure-rate-threshold: 40
        wait-duration-in-open-state: 30s
        sliding-window-size: 20
        minimum-number-of-calls: 10
      retry:
        max-attempts: 3
        wait-duration: 1s
      time-limiter:
        timeout-duration: 5s
      bulkhead:
        max-concurrent-calls: 50
        max-wait-duration: 50ms

    normal-service:
      circuit-breaker:
        failure-rate-threshold: 50
        wait-duration-in-open-state: 10s
        sliding-window-size: 10
        minimum-number-of-calls: 5
      retry:
        max-attempts: 2
        wait-duration: 500ms
      time-limiter:
        timeout-duration: 3s
      bulkhead:
        max-concurrent-calls: 100
        max-wait-duration: 100ms
# 服务具体配置
resilience4j:
  circuitbreaker:
    configs:
      critical:
        baseConfig: critical-service
      normal:
        baseConfig: normal-service

  circuitbreaker:
    instances:
      paymentService:
        baseConfig: critical
      orderService:
        baseConfig: critical
      productService:
        baseConfig: normal
      recommendationService:
        baseConfig: normal

6.2 容错检查清单

@Component
@Slf4j
public class FaultToleranceChecklist {

    /**
     * 系统启动时容错配置检查
     */
    @EventListener(ApplicationReadyEvent.class)
    public void checkFaultToleranceConfigurations() {
        log.info("开始容错配置检查...");

        List<CheckItem> checkItems = Arrays.asList(
            checkCircuitBreakerConfigs(),
            checkRetryConfigs(),
            checkBulkheadConfigs(),
            checkTimeLimiterConfigs(),
            checkFallbackMethods(),
            checkMonitoringConfig()
        );

        boolean allPassed = checkItems.stream().allMatch(CheckItem::isPassed);

        if (allPassed) {
            log.info("容错配置检查通过");
        } else {
            log.error("容错配置检查发现以下问题:");
            checkItems.stream()
                    .filter(item -> !item.isPassed())
                    .forEach(item -> log.error(" - {}: {}", item.getName(), item.getMessage()));

            // 发送告警
            alertService.sendConfigurationCheckAlert(checkItems);
        }
    }

    /**
     * 定期健康检查
     */
    @Scheduled(fixedRate = 300000) // 5分钟执行一次
    public void performHealthCheck() {
        FaultToleranceHealth health = checkFaultToleranceHealth();

        if (health.getStatus() == HealthStatus.DEGRADED) {
            log.warn("容错系统健康度下降: {}", health.getMessage());
            alertService.sendHealthDegradationAlert(health);
        }

        if (health.getStatus() == HealthStatus.CRITICAL) {
            log.error("容错系统健康度严重下降: {}", health.getMessage());
            alertService.sendCriticalHealthAlert(health);

            // 尝试自动修复
            attemptAutoRecovery(health);
        }
    }

    private CheckItem checkCircuitBreakerConfigs() {
        try {
            circuitBreakerRegistry.getAllCircuitBreakers().forEach((name, cb) -> {
                CircuitBreakerConfig config = cb.getCircuitBreakerConfig();

                // 检查配置合理性
                if (config.getFailureRateThreshold() < 10) {
                    throw new ConfigurationException("熔断器失败率阈值过低: " + name);
                }

                if (config.getWaitDurationInOpenState().getSeconds() < 5) {
                    throw new ConfigurationException("熔断器等待时间过短: " + name);
                }
            });

            return CheckItem.passed("熔断器配置检查");
        } catch (Exception e) {
            return CheckItem.failed("熔断器配置检查", e.getMessage());
        }
    }
}

7. 总结

7.1 容错机制核心价值

通过本文的深入学习，你应该掌握容错机制在分布式系统中的核心价值：

1. 系统韧性：在故障发生时保持系统部分可用
2. 故障隔离：防止单个故障扩散到整个系统
3. 快速恢复：自动检测和恢复故障组件
4. 用户体验：提供优雅的降级体验而非完全不可用

7.2 关键实践要点

✅ 分层容错设计：不同层级采用不同的容错策略
✅ 智能决策：基于历史数据和实时指标动态调整
✅ 全面监控：实时跟踪容错组件状态和效果
✅ 定期演练：通过混沌工程验证容错有效性
✅ 持续优化：基于实际运行数据不断改进配置

7.3 演进路径建议

对于不同成熟度的团队，容错机制的演进路径：

初级阶段：

• 实现基本的熔断和重试
• 配置合理的超时时间
• 实现简单的降级策略

中级阶段：

• 引入舱壁隔离
• 实现多级降级
• 建立监控告警

高级阶段：

• 自适应容错策略
• 预测性容错
• 自动化容错演练

容错不是一蹴而就的，而是需要根据业务特点和技术架构不断演进的过程。合理的容错设计能够显著提升系统的稳定性和用户体验。
