用 CocosCreator 快速开发推箱子游戏
目录
Creator内组件效果如下：
游戏开始默认显示menuLayer。游戏中，通过控制各个层级的显示和隐藏，实现不同模块的切换。例如开始游戏，点击开始以后，触发回调函数，切换到游戏关卡选择界面。
根节点Canvas挂载脚本gameLayer.js；绑定如下：
首先来处理开始游戏menuLayer的功能
- 开始游戏（menuLayer）

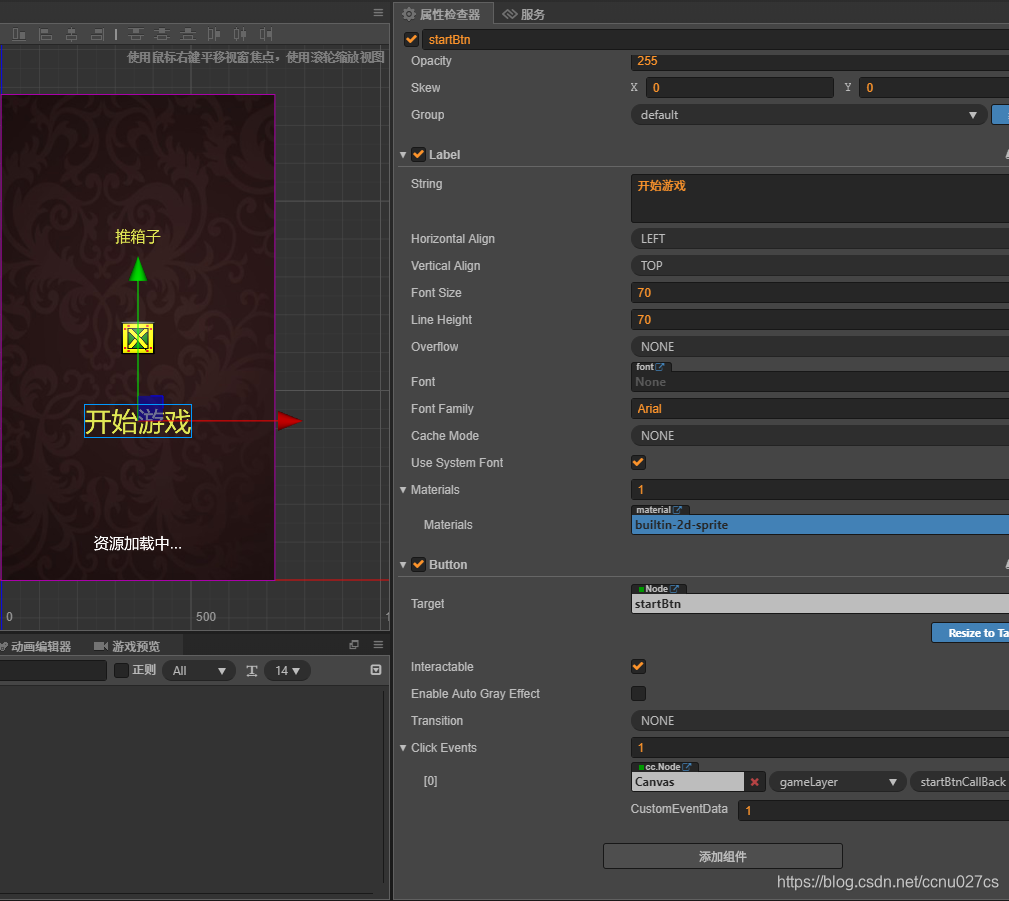

startBtn开始游戏按钮：设计成Node类型，有个缩放特效动画；下面添加Label和Button系统组件，用于添加文字显示个点击响应；如下：
开始按钮动画menuLayerAni
//开始按钮动画
menuLayerAni : function(){
this.startBtn.scale = 1.0;
this.startBtn.runAction(
cc.repeatForever(
cc.sequence(cc.scaleTo(0.6, 1.5), cc.scaleTo(0.6, 1.0))
)
);
},startBtnCallBack开始按钮响应事件的处理
// 开始按钮回调
startBtnCallBack(event, customEventData){
if(this.curLayer == 1)
return;
//关卡UI
this.curLayer = 1;
this.playSound(sound.BUTTON);
//UI切换效果--menuLayer隐藏
this.menuLayer.runAction(cc.sequence(cc.fadeOut(0.1), cc.callFunc(function(){
this.startBtn.stopAllAction();
this.startBtn.scale = 1.0;
this.menuLayer.opacity = 255;
this.menuLayer.active = false;
}, this)));
//UI切换效果--levelLayer激活
this.levelLayer.active = true;
this.levelLayer.opacity = 0;
this.levelLayer.runAction(cc.sequence(cc.delayTime(0.1), cc.fadeIn(0.1), cc.callFunc(function(){
this.updateLevelInfo();
}, this)));
},播放音效 playSound
//播放音效
playSound : function(name){
cc.loader.loadRes(name, cc.AudioClip, function (err, clip) {
var audioID = cc.audioEngine.playEffect(clip, false);
});

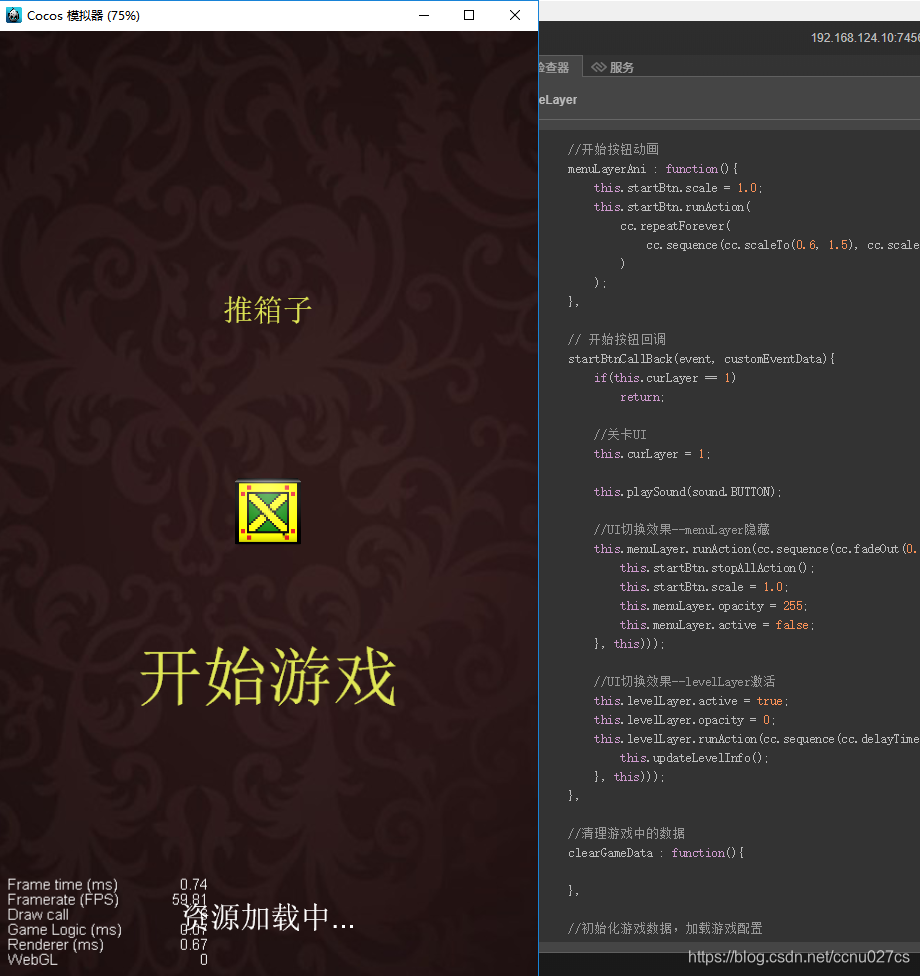

},开始游戏menuLayer的UI如下：
第二步是来实现关卡选择levelLayer的功能：
- 关卡选择（levelLayer）
关卡选择分两步：
第一步，界面显示，通过配置文件，加载预制文件，显示所有关卡；
第二步，根据游戏情况，更新每一关卡信息。
2.1 第一步显示关卡
游戏中所有关卡置于ScrollView控件上，每一个关卡，使用一个预制文件（levelItem），通过读取关卡配置文件，加载所有关卡，加载完成后重新计算ScrollView内容的高度
//2.创建关卡UI界面子元素
createLavelItem : function(){
let callfunc = function(level){
//进入游戏界面
this.selectLevelCallBack(level);
}.bind(this);
for(let i = 0; i < this.allLevelCount; i++){
let node = cc.instantiate(this.levelItemPrefab);
node.parent = this.levelScroll;
let levelItem = node.getComponent("levelItem");
levelItem.levelFunc(callfunc);
this.tabLevel.push(levelItem);
}
//设置容器高度
this.levelContent.height = Math.ceil(this.allLevelCount / 5) * 135 + 20;

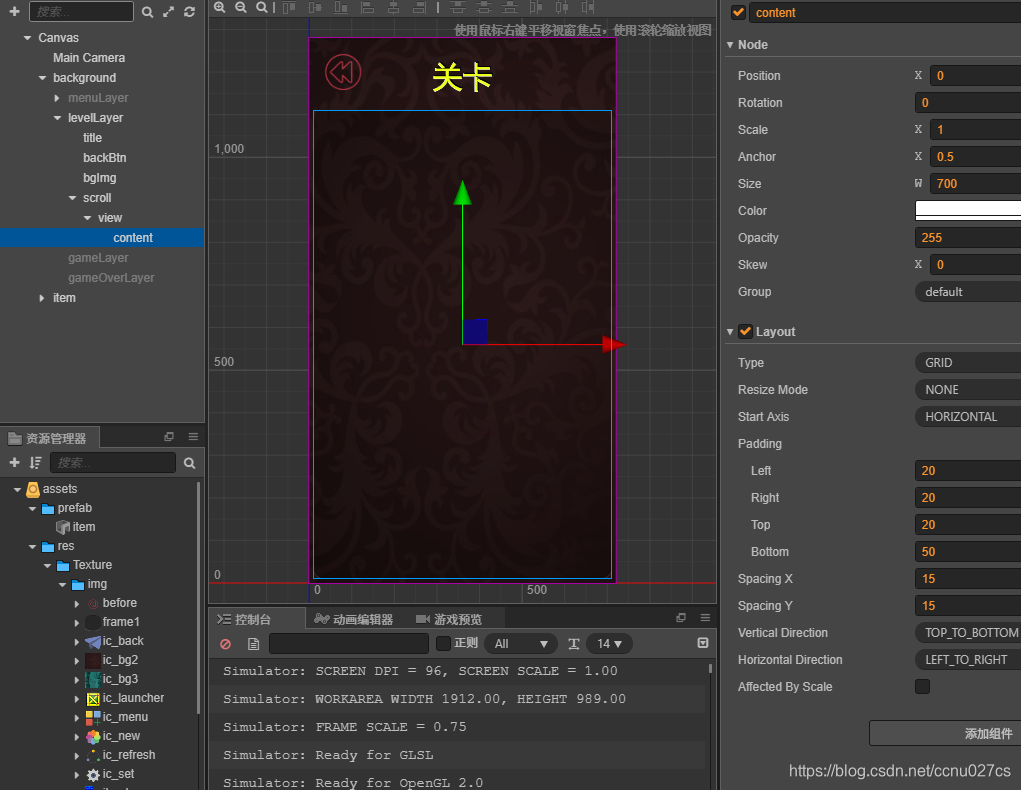

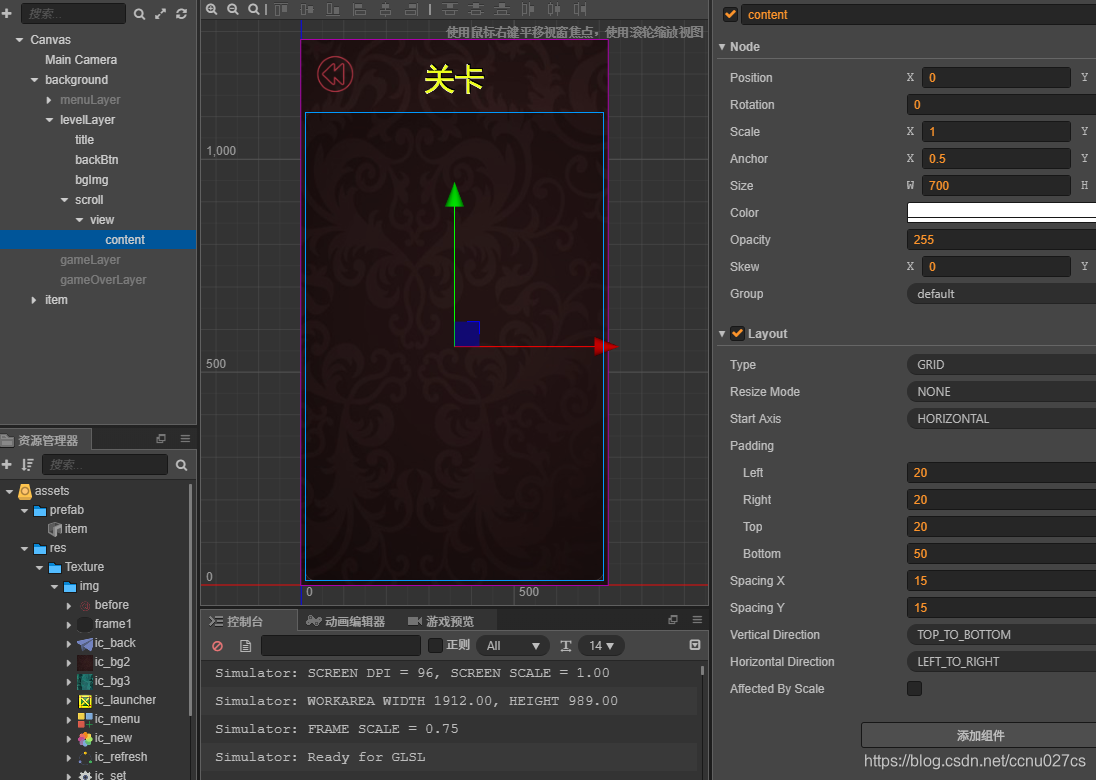

},下图即是所有关卡预制的父节点：

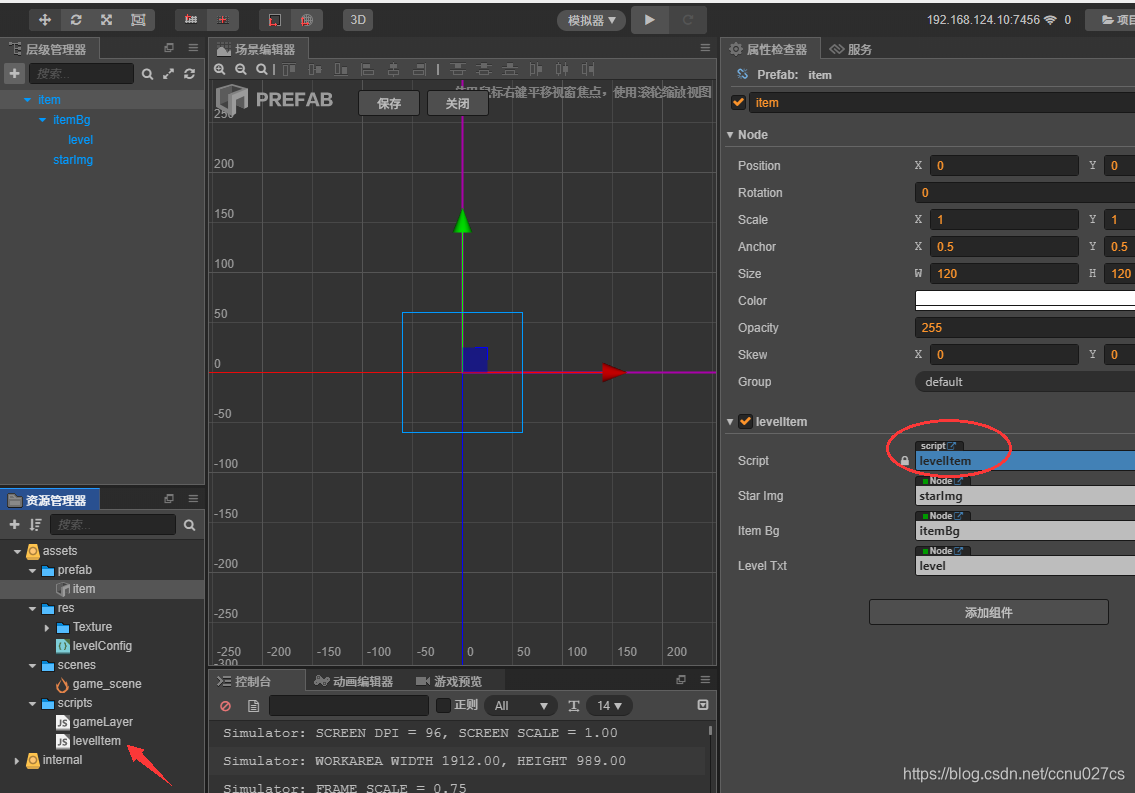

预制体、预制脚本的挂载：
2.2 第二步更新关卡
每一个levelItem预制上挂一个levelItem脚本组件，levelItem脚本组件负责更新信息，主要控制是否可点击、通关星数、关卡等级、点击进入，levelItem脚本组件更新UI
//--------显示星星数量--------
/**
* @description: 显示星星数量
* @param {boolean} isOpen 是否开启
* @param {starCount} 星星数量
* @param {cc.SpriteAtlas} levelImgAtlas 纹理图
* @param {number} level 关卡
* @return:
*/
showStar : function(isOpen, starCount, levelImgAtlas, level){
this.itemBg.attr({"_level_" : level});
if(isOpen){
this.itemBg.getComponent(cc.Sprite).spriteFrame = levelImgAtlas.getSpriteFrame("pass_bg");
this.starImg.active = true;
this.starImg.getComponent(cc.Sprite).spriteFrame = levelImgAtlas.getSpriteFrame("point" + starCount);
this.levelTxt.opacity = 255;
this.itemBg.getComponent(cc.Button).interactable = true;
}else{
this.itemBg.getComponent(cc.Sprite).spriteFrame = levelImgAtlas.getSpriteFrame("lock");
this.starImg.active = false;
this.levelTxt.opacity = 125;
this.itemBg.getComponent(cc.Button).interactable = false;
}
this.levelTxt.getComponent(cc.Label).string = level;
},玩家通过的信息，通过配置存储文件，保存玩家通关信息，分为已通关、刚开启和未开启三种状态
//2.刷新关卡上的信息
updateLevelInfo : function(){
//已完成关卡
let finishLevel = parseInt(cc.sys.localStorage.getItem("finishLevel") || 0);
for(let i = 1; i < this.allLevelCount; i++){
if(i <= finishLevel){ //完成的关卡显示星星个数
let data = parseInt(cc.sys.localStorage.getItem("levelStar" + i) || 0);
this.tabLevel[i - 1].showStar(true, data, this.levelImgAtlas, i);
}else if(i == (finishLevel + 1)){//新开的关卡
this.tabLevel[i - 1].showStar(true, 0, this.levelImgAtlas, i);
}else{ 显示未开启关卡图
this.tabLevel[i - 1].showStar(false, 0, this.levelImgAtlas, i);
}
}

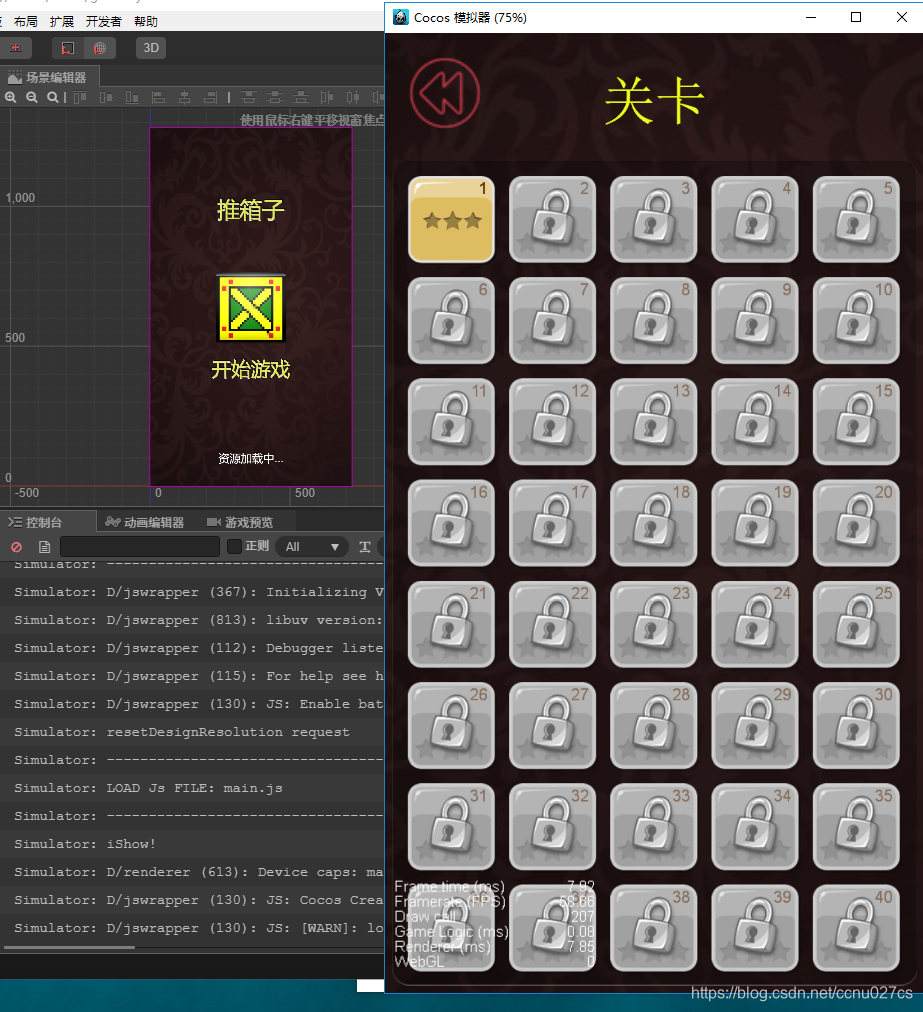

},最终的显示效果如下图：
第三步是来实现游戏界面gameLayer的功能：
- 游戏（gameLayer）
游戏也分为两步：
第一步，显示界面；
第二步，游戏操作判断
3.1 显示界面
游戏内使用levelConfig.json配置每一关卡信息，每个关卡游戏部分由多行多列的方格组成，每一个关卡信息包含content、allRow、allCol、heroRow、heroCol、allBox属性，allRow和allCol记录总共行数和列数，heroRow、heroCol记录英雄所在位置，allBox记录箱子的总数，content是核心，记录每个方格的属性，根据不同的属性显示不同的物体，如墙面、地面、物体、箱子，可以通过修改配置，增加任意关卡。
读取关卡所有数据，并根据每一个位置的属性，显示不同的实物。
根据配置创建关卡信息：
//创建关卡
createLevelLayer : function(level){
this.gameControlLayer.removeAllChildren();
this.setLevel();
this.setCurNum();
this.setBestNum();
let levelContent = this.allLevelConfig[level].content;
this.allRow = this.allLevelConfig[level].allRow;
this.allCol = this.allLevelConfig[level].allCol;
this.heroRow = this.allLevelConfig[level].heroRow;
this.heroCol = this.allLevelConfig[level].heroCol;
//计算方块大小
this.boxW = this.allWidth / this.allCol;
this.boxH = this.boxW;
//计算起始坐标
let sPosX = -(this.allWidth / 2) + (this.boxW / 2);
let sPosY = (this.allWidth / 2) - (this.boxW / 2);
//计算坐标的偏移量，运算规则（宽铺满，设置高的坐标）
let offset = 0;
if(this.allRow > this.allCol){
offset = ((this.allRow - this.allCol) * this.boxH) / 2;
}
else{
offset = ((this.allRow - this.allCol) * this.boxH) / 2;
}
this.landArrays = []; //地图容器
this.palace = []; //初始化地图数据
for(let i = 0; i < this.allRow; i++){
this.landArrays[i] = [];
this.palace[i] = [];
}
for(let i = 0; i < this.allRow; i++){ //每行
for(let j = 0; j < this.allCol; j++){ //每列
let x = sPosX + (this.boxW * j);
let y = sPosY - (this.boxH * i) + offset;
let node = this.createBoxItem(i, j, levelContent[i * this.allCol + j], cc.v2(x, y));
this.landArrays[i][j] = node;
node.width = this.boxW;
node.height = this.boxH;
}
}
//显示人物
this.setLandFrame(this.heroRow, this.heroCol, boxType.HERO);
},根据类型创建元素：
//创建元素
createBoxItem : function(row, col, type, pos){
let node = new cc.Node();
let sprite = node.addComponent(cc.Sprite);
let button = node.addComponent(cc.Button);
sprite.spriteFrame = this.itemImgAtlas.getSpriteFrame("p" + type);
node.parent = this.gameControlLayer;
node.position = pos;
if(type == boxType.WALL){ //墙面，//墙面，命名为wall_row_col
node.name = "wall_" + row + "_" + col;
node.attr({"_type_" : type});
}
else if(type == boxType.NONE){ //空白区域,//墙面，命名为none_row_col
node.name = "none_" + row + "_" + col;
node.attr({"_type_" : type});
}
else{ //游戏界面，命名为land_row_col
node.name = "land_" + row + "_" + col;
node.attr({"_type_" : type});
node.attr({"_row_" : row});
node.attr({"_col_" : col});
button.interactable = true;
button.target = node;
button.node.on('click', this.clickCallBack, this);
if(type == boxType.ENDBOX){ //在目标点上的箱子，直接将完成的箱子数加1
this.finishBoxCount += 1;
}
}
this.palace[row][col] = type;
return node;

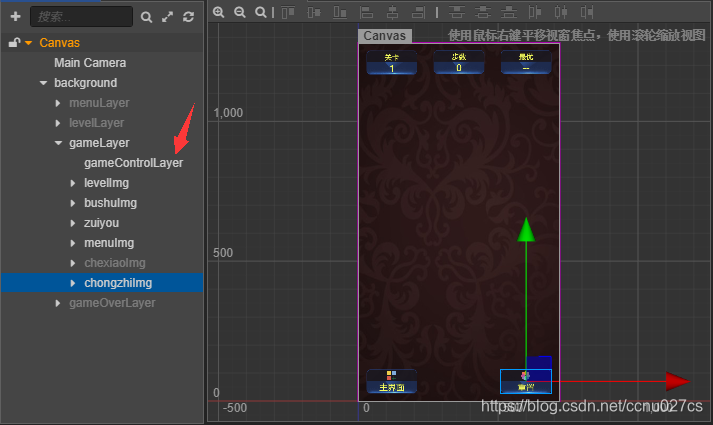

},游戏的所有元素，放置在下图中gameControlLayer的上

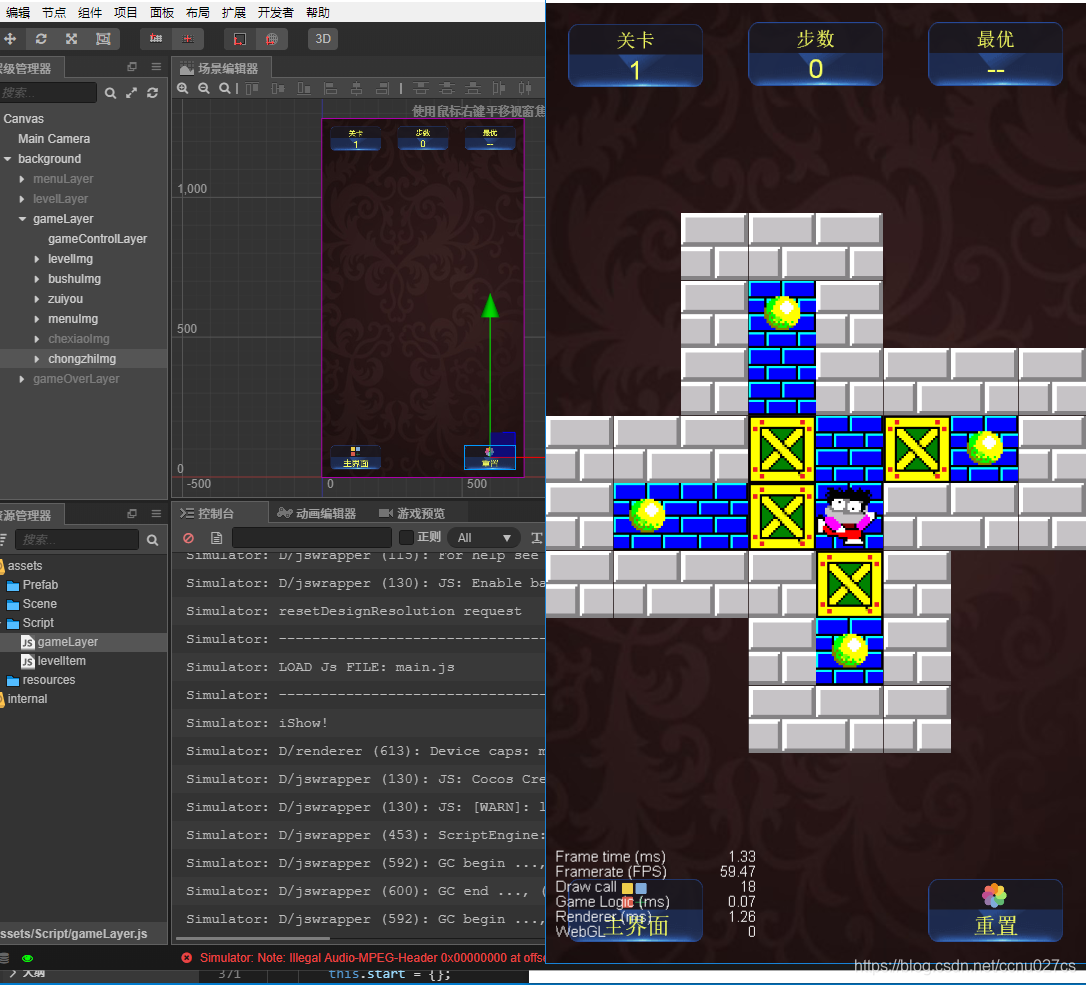

游戏开始后，显示的效果如下（第一关，其他关类似）
3.2 游戏操作判断
路线计算好后，玩家移动，若玩家点击的是箱子区域，先检测箱子前方是否有障碍物，若没有则推动箱子，通过切换地图的图片和修改位置类型达到推动箱子的效果。
点击地图位置，获取最优路径，人物跑到指定点
clickCallBack : function(event, customEventData){
let target = event.target;
//最小路径长度
this.minPath = this.allCol * this.allRow + 1;
//最优路线
this.bestMap = [];
//终点位置
this.end = {};
this.end.row = target._row_;
this.end.col = target._col_;
//起点位置
this.start = {};
this.start.row = this.heroRow;
this.start.col = this.heroCol;
//判断终点类型
let endType = this.palace[this.end.row][this.end.col];
if((endType == boxType.LAND) || (endType == boxType.BODY)){ //是空地或目标点，直接计算运动轨迹
this.getPath(this.start, 0, []);
if(this.minPath <= this.allCol * this.allRow){
cc.log("从起点[", this.start.row, ",", this.start.col, "]到终点[",
this.end.row, ",", this.end.col, "]最短路径长为：", this.minPath, "最短路径为：");
cc.log("[", this.start.row, ",", this.start.col, "]");
for(let i = 0; i< this.bestMap.length;i++){
cc.log("=>[",this.bestMap[i].row,",",this.bestMap[i].col,"]");
}
this.bestMap.unshift(this.start);
this.runHero();
}else{
console.log("找不到路径到达");
}
}
else if((endType == boxType.BOX) || (endType == boxType.ENDBOX)){ //是箱子，判断是否可以推动箱子
//计算箱子和人物的距离
let lr = this.end.row - this.start.row;
let lc = this.end.col - this.start.col;
if((Math.abs(lr) + Math.abs(lc)) == 1){ //箱子在人物的上下左右方位
//计算推动方位是否有障碍物
let nextr = this.end.row + lr;
let nextc = this.end.col + lc;
let t = this.palace[nextr][nextc];
if(t && (t != boxType.WALL) && (t != boxType.BOX) && (t != boxType.ENDBOX)){ //前方不是障碍物，也不是墙壁，推动箱子
this.playSound(sound.PUSHBOX);
//人物位置还原
this.setLandFrame(this.start.row, this.start.col, this.palace[this.start.row][this.start.col]);
//箱子位置类型
let bt = this.palace[this.end.row][this.end.col];
if(bt == boxType.ENDBOX){ //有目标物体的箱子类型，还原成目标点
this.palace[this.end.row][this.end.col] = boxType.BODY;
this.finishBoxCount -= 1;
}
else{
this.palace[this.end.row][this.end.col] = boxType.LAND;
}
//箱子位置变成人物图，但类型保存为空地或目标点
this.setLandFrame(this.end.row, this.end.col, boxType.HERO);
//箱子前面位置变成箱子
let nt = this.palace[nextr][nextc];
if(nt == boxType.BODY){ //有目标点，将箱子类型设置成有目标箱子
this.palace[nextr][nextc] = boxType.ENDBOX;
this.finishBoxCount += 1;
}
else {
this.palace[nextr][nextc] = boxType.BOX;
}
this.setLandFrame(nextr, nextc, this.palace[nextr][nextc]);
this.curStepNum += 1;
//刷新步数
this.setCurNum();
//刷新人物位置
this.heroRow = this.end.row;
this.heroCol = this.end.col;
this.checkGameOver();
}
else{
this.playSound(sound.WRONG);
console.log("前方有障碍物");
}
}
else{ //目标点错误
this.playSound(sound.WRONG);
console.log("目标点错误");
}
}
},
获取最优路径算法：
//curPos记录当前坐标，step记录步数
getPath : function(curPos, step, result){
//判断是否到达终点
if((curPos.row == this.end.row) && (curPos.col == this.end.col)){
if(step < this.minPath){
this.bestMap = [];
for(let i = 0; i < result.length; i++){
this.bestMap.push(result[i]);
}
this.minPath = step; //如果当前抵达步数比最小值小，则修改最小值
result = [];
}
}
//递归
for(let i = (curPos.row - 1); i <= (curPos.row + 1); i++){
for(let j = (curPos.col - 1); j <= (curPos.col + 1); j++){
//越界跳过
if((i < 0) || (i >= this.allRow) || (j < 0) || (j >= this.allCol)){
continue;
}
if((i != curPos.row) && (j != curPos.col)){//忽略斜角
continue;
}
else if(this.palace[i][j] && ((this.palace[i][j] == boxType.LAND) || (this.palace[i][j] == boxType.BODY))){
let tmp = this.palace[i][j];
this.palace[i][j] = boxType.WALL; //标记为不可走
//保存路线
let r = {};
r.row = i;
r.col = j;
result.push(r);
this.getPath(r, step + 1, result);
this.palace[i][j] = tmp; //尝试结束，取消标记
result.pop();
}
}
}
},
第四步是来实现游戏结算界面gameOverLayer的功能：
- 游戏结算（gameOverLayer）
游戏结束后，根据成功推到箱子数，判断游戏是否成功，游戏成功以后，更新关卡信息即可。
判断逻辑如下：
//游戏结束检测
checkGameOver : function(){
let count = this.allLevelConfig[this.curLevel].allBox;
if(this.finishBoxCount == count){ //全部推到了指定位置
this.gameOverLayer.active = true;
this.gameOverLayer.opacity = 1;
this.gameOverLayer.runAction(cc.sequence(cc.delayTime(0.5), cc.fadeIn(0.1)));
//刷新完成的关卡数
let finishLevel = parseInt(cc.sys.localStorage.getItem("finishLevel") || 0); //已完成关卡
if(this.curLevel > finishLevel){
cc.sys.localStorage.setItem("finishLevel", this.curLevel);
}
//刷新星星等级
cc.sys.localStorage.setItem("levelStar" + this.curLevel, 3);
//刷新最优步数
let best = parseInt(cc.sys.localStorage.getItem("levelBest" + this.curLevel) || 0);
if((this.curStepNum < best) || (best == 0)){
cc.sys.localStorage.setItem("levelBest" + this.curLevel, this.curStepNum);
}
this.playSound(sound.GAMEWIN);
this.clearGameData();
}

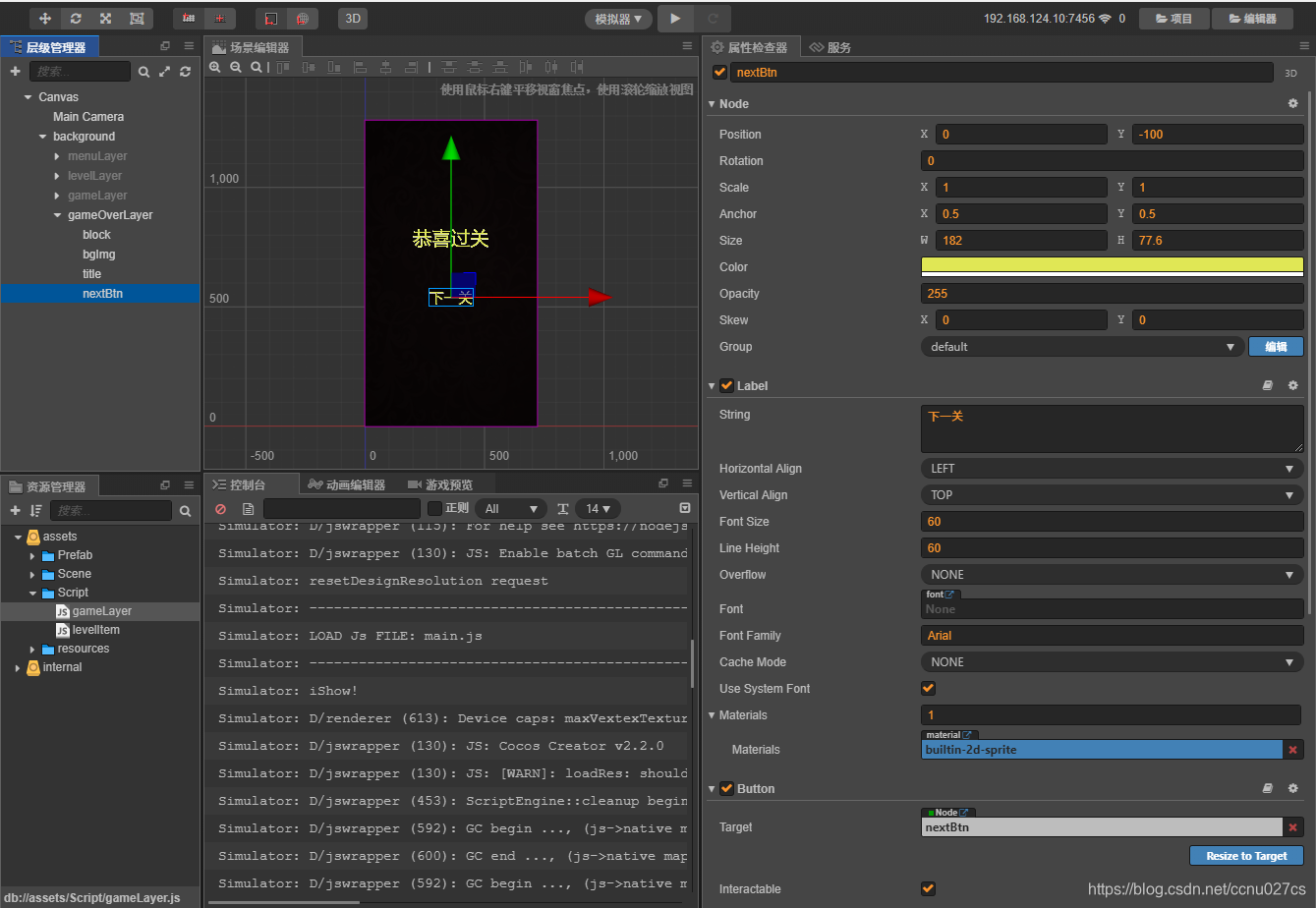

},CC组件布局：
完整代码：
//--------levelItem.js--------
// Learn cc.Class:
// - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/class.html
// - [English] http://docs.cocos2d-x.org/creator/manual/en/scripting/class.html
// Learn Attribute:
// - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
// - [English] http://docs.cocos2d-x.org/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
// - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
// - [English] https://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.html
cc.Class({
extends: cc.Component,
properties: {
starImg : cc.Node,
itemBg : cc.Node,
levelTxt : cc.Node,
},
onLoad : function (){
},
//显示星星数量
showStar : function(isOpen, starCount, levelImgAtlas, level){
this.itemBg.attr({"_level_" : level});
if(isOpen){
this.itemBg.getComponent(cc.Sprite).spriteFrame = levelImgAtlas.getSpriteFrame("pass_bg");
this.starImg.active = true;
this.starImg.getComponent(cc.Sprite).spriteFrame = levelImgAtlas.getSpriteFrame("point" + starCount);
this.levelTxt.opacity = 255;
this.itemBg.getComponent(cc.Button).interactable = true;
}
else{
this.itemBg.getComponent(cc.Sprite).spriteFrame = levelImgAtlas.getSpriteFrame("lock");
this.starImg.active = false;
this.levelTxt.opacity = 125;
this.itemBg.getComponent(cc.Button).interactable = false;
}
this.levelTxt.getComponent(cc.Label).string = level;
},
btnCallBack : function(event, customEventData){
if(this._callfunc){
this._callfunc(this.itemBg._level_);
}
},
levelFunc : function(callfunc){
this._callfunc = callfunc;
}
});
//--------gameLayer.js--------
// Learn cc.Class:
// - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/class.html
// - [English] http://docs.cocos2d-x.org/creator/manual/en/scripting/class.html
// Learn Attribute:
// - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/reference/attributes.html
// - [English] http://docs.cocos2d-x.org/creator/manual/en/scripting/reference/attributes.html
// Learn life-cycle callbacks:
// - [Chinese] https://docs.cocos.com/creator/manual/zh/scripting/life-cycle-callbacks.html
// - [English] https://www.cocos2d-x.org/docs/creator/manual/en/scripting/life-cycle-callbacks.html
//方块类型
let boxType = {
NONE : 0, //无效位置
WALL : 1, //墙面
LAND : 2, //地面
BODY : 3, //物体
BOX : 4, //箱子
ENDBOX : 5, //合体后的箱子
HERO : 6 //人物
}
//音效名称
let sound = {
BUTTON : "Texture/sound/button", //按钮点击音效
GAMEWIN : "Texture/sound/gamewin", //过关音效
MOVE : "Texture/sound/move", //人物移动音效
PUSHBOX : "Texture/sound/pushbox", //推箱子音效
WRONG : "Texture/sound/wrong", //错误音效
}
cc.Class({
extends: cc.Component,
properties: {
bg : cc.Node,
menuLayer : cc.Node, //主界面层
levelLayer : cc.Node, //关卡选择层
gameLayer : cc.Node, //游戏层
gameControlLayer : cc.Node, //游戏操作层
gameOverLayer : cc.Node, //游戏结束层
//主界面元素
startBtn : cc.Node,
titleImg : cc.Node,
iconImg : cc.Node,
loadingTxt : cc.Node,
//关卡界面元素
levelScroll : cc.Node,
levelContent : cc.Node,
//游戏界面元素
levelTxt : cc.Node,
curNum : cc.Node,
bestNum : cc.Node,
//合图
itemImgAtlas: cc.SpriteAtlas,
levelImgAtlas: cc.SpriteAtlas,
levelItemPrefab : cc.Prefab,
},
onLoad : function(){
//记录当前界面
this.curLayer = 0; //0-主界面，1-关卡界面，2-游戏界面
//清理游戏中的数据
this.clearGameData();
//初始化游戏数据，加载游戏配置
this.initData();
//显示游戏主界面
this.menuLayer.active = true;
this.levelLayer.active = false;
this.gameLayer.active = false;
this.gameOverLayer.active = false;
this.loadingTxt.active = true;
this.startBtn.getComponent(cc.Button).interactable = false;
//背景图适配
this.fitNode(this.bg);
this.menuLayerAni();
},
// 适配结点
fitNode: function (obj) {
let canvasSize = cc.view.getCanvasSize();
let canvasScale = canvasSize.width / canvasSize.height;
let designScale = 720 / 1280;
this.bg.height = 1280 * (designScale / canvasScale);
},
initData : function(){
//初始化数据
this.boxWidth = 90;
this.boxHeight = 90;
this.allWidth = 720;
this.allHeight = 1280;
this.allRow = 8;
this.allCol = 8;
this.allLevelCount = 0;
this.allLevelConfig = {};
cc.loader.loadRes('levelConfig.json', function (err, object) {
if (err) {
console.log(err);
return;
}
this.allLevelConfig = object.json.level;
this.allLevelCount = object.json.levelCount;
this.loadingTxt.active = false;
this.startBtn.getComponent(cc.Button).interactable = true;
//加载完配置后，直接创建关卡元素
this.createLavelItem();
}.bind(this));
this.tabLevel = [];
},
//创建关卡界面子元素
createLavelItem : function(){
let callfunc = function(level){
//进入游戏界面
this.selectLevelCallBack(level);
}.bind(this);
for(let i = 0; i < this.allLevelCount; i++){
let node = cc.instantiate(this.levelItemPrefab);
node.parent = this.levelScroll;
let levelItem = node.getComponent("levelItem");
levelItem.levelFunc(callfunc);
this.tabLevel.push(levelItem);
}
//设置容器高度
this.levelContent.height = Math.ceil(this.allLevelCount / 5) * 135 + 20;
},
//刷新关卡上的信息
updateLevelInfo : function(){
let finishLevel = parseInt(cc.sys.localStorage.getItem("finishLevel") || 0); //已完成关卡
for(let i = 1; i <= this.allLevelCount; i++){
if(i <= finishLevel){ //完成的关卡显示星星个数
let data = parseInt(cc.sys.localStorage.getItem("levelStar" + i) || 0);
this.tabLevel[i - 1].showStar(true, data, this.levelImgAtlas, i);
}
else if(i == (finishLevel + 1)){
this.tabLevel[i - 1].showStar(true, 0, this.levelImgAtlas, i);
}
else{ //显示未开启关卡图
this.tabLevel[i - 1].showStar(false, 0, this.levelImgAtlas, i);
}
}
},
//主界面动画
menuLayerAni : function(){
this.startBtn.scale = 1.0;
this.startBtn.runAction(cc.repeatForever(cc.sequence(cc.scaleTo(0.6, 1.5), cc.scaleTo(0.6, 1.0))));
},
//开始按钮回调
startBtnCallBack : function(event, customEventData){
if(this.curLayer == 1){
return;
}
this.playSound(sound.BUTTON);
this.curLayer = 1;
this.menuLayer.runAction(cc.sequence(cc.fadeOut(0.1), cc.callFunc(function () {
this.startBtn.stopAllActions();
this.startBtn.scale = 1.0;
this.menuLayer.opacity = 255;
this.menuLayer.active = false;
}, this)));
this.levelLayer.active = true;
this.levelLayer.opacity = 0;
this.levelLayer.runAction(cc.sequence(cc.delayTime(0.1), cc.fadeIn(0.1), cc.callFunc(function () {
this.updateLevelInfo();
}, this)));
},
//关卡界面返回回调
levelBackCallBack : function(event, customEventData){
if(this.curLayer == 0){
return;
}
this.playSound(sound.BUTTON);
this.curLayer = 0;
this.levelLayer.runAction(cc.sequence(cc.fadeOut(0.1), cc.callFunc(function () {
this.levelLayer.opacity = 255;
this.levelLayer.active = false;
}, this)));
this.menuLayer.active = true;
this.menuLayer.opacity = 0;
this.menuLayer.runAction(cc.sequence(cc.delayTime(0.1), cc.fadeIn(0.1)));
this.menuLayerAni();
},
//关卡选择回调
selectLevelCallBack : function(level){
this.curLevel = level;
if(this.curLayer == 2){
return;
}
this.playSound(sound.BUTTON);
this.curLayer = 2;
this.levelLayer.runAction(cc.sequence(cc.fadeOut(0.1), cc.callFunc(function () {
this.levelLayer.opacity = 255;
this.levelLayer.active = false;
}, this)));
this.gameLayer.active = true;
this.gameLayer.opacity = 0;
this.gameLayer.runAction(cc.sequence(cc.delayTime(0.1), cc.callFunc(function(){
this.createLevelLayer(level);
}, this), cc.fadeIn(0.1)));
},
//游戏中返回关卡界面回调
backLevelCallBack : function(event, customEventData){
this.clearGameData();
if(this.curLayer == 1){
return;
}
this.playSound(sound.BUTTON);
this.curLayer = 1;
this.gameLayer.runAction(cc.sequence(cc.fadeOut(0.1), cc.callFunc(function () {
this.gameLayer.opacity = 255;
this.gameLayer.active = false;
}, this)));
this.levelLayer.active = true;
this.levelLayer.opacity = 0;
this.levelLayer.runAction(cc.sequence(cc.fadeIn(0.1), cc.callFunc(function () {
this.updateLevelInfo();
}, this)));
},
//下一关按钮回调
nextLevelCallBack(event, customEventData){
this.playSound(sound.BUTTON);
//隐藏结算界面
this.gameOverLayer.active = false;
this.curLevel = this.curLevel + 1;
if(this.curLevel > this.allLevelCount){
//已通关，返回关卡界面
this.backLevelCallBack();
}
else{
//创建新关卡
this.createLevelLayer(this.curLevel);
}
},
//重置按钮回调
refreshCallBack : function(event, customEventData){
this.playSound(sound.BUTTON);
//停止人运动动作
this.gameLayer.stopAllActions();
this.clearGameData();
this.createLevelLayer(this.curLevel);
},
//撤销按钮回调
revokeCallBack : function(event, customEventData){
//暂时没做
},
//创建关卡
createLevelLayer : function(level){
this.gameControlLayer.removeAllChildren();
this.setLevel();
this.setCurNum();
this.setBestNum();
let levelContent = this.allLevelConfig[level].content;
this.allRow = this.allLevelConfig[level].allRow;
this.allCol = this.allLevelConfig[level].allCol;
this.heroRow = this.allLevelConfig[level].heroRow;
this.heroCol = this.allLevelConfig[level].heroCol;
//计算方块大小
this.boxW = this.allWidth / this.allCol;
this.boxH = this.boxW;
//计算起始坐标
let sPosX = -(this.allWidth / 2) + (this.boxW / 2);
let sPosY = (this.allWidth / 2) - (this.boxW / 2);
//计算坐标的偏移量，运算规则（宽铺满，设置高的坐标）
let offset = 0;
if(this.allRow > this.allCol){
offset = ((this.allRow - this.allCol) * this.boxH) / 2;
}
else{
offset = ((this.allRow - this.allCol) * this.boxH) / 2;
}
this.landArrays = []; //地图容器
this.palace = []; //初始化地图数据
for(let i = 0; i < this.allRow; i++){
this.landArrays[i] = [];
this.palace[i] = [];
}
for(let i = 0; i < this.allRow; i++){ //每行
for(let j = 0; j < this.allCol; j++){ //每列
let x = sPosX + (this.boxW * j);
let y = sPosY - (this.boxH * i) + offset;
let node = this.createBoxItem(i, j, levelContent[i * this.allCol + j], cc.v2(x, y));
this.landArrays[i][j] = node;
node.width = this.boxW;
node.height = this.boxH;
}
}
//显示人物
this.setLandFrame(this.heroRow, this.heroCol, boxType.HERO);
},
//创建元素
createBoxItem : function(row, col, type, pos){
let node = new cc.Node();
let sprite = node.addComponent(cc.Sprite);
let button = node.addComponent(cc.Button);
sprite.spriteFrame = this.itemImgAtlas.getSpriteFrame("p" + type);
node.parent = this.gameControlLayer;
node.position = pos;
if(type == boxType.WALL){ //墙面，//墙面，命名为wall_row_col
node.name = "wall_" + row + "_" + col;
node.attr({"_type_" : type});
}
else if(type == boxType.NONE){ //空白区域,//墙面，命名为none_row_col
node.name = "none_" + row + "_" + col;
node.attr({"_type_" : type});
}
else{ //游戏界面，命名为land_row_col
node.name = "land_" + row + "_" + col;
node.attr({"_type_" : type});
node.attr({"_row_" : row});
node.attr({"_col_" : col});
button.interactable = true;
button.target = node;
button.node.on('click', this.clickCallBack, this);
if(type == boxType.ENDBOX){ //在目标点上的箱子，直接将完成的箱子数加1
this.finishBoxCount += 1;
}
}
this.palace[row][col] = type;
return node;
},
clickCallBack : function(event, customEventData){
let target = event.target;
//最小路径长度
this.minPath = this.allCol * this.allRow + 1;
//最优路线
this.bestMap = [];
//终点位置
this.end = {};
this.end.row = target._row_;
this.end.col = target._col_;
//起点位置
this.start = {};
this.start.row = this.heroRow;
this.start.col = this.heroCol;
//判断终点类型
let endType = this.palace[this.end.row][this.end.col];
if((endType == boxType.LAND) || (endType == boxType.BODY)){ //是空地或目标点，直接计算运动轨迹
this.getPath(this.start, 0, []);
if(this.minPath <= this.allCol * this.allRow){
cc.log("从起点[", this.start.row, ",", this.start.col, "]到终点[",
this.end.row, ",", this.end.col, "]最短路径长为：", this.minPath, "最短路径为：");
cc.log("[", this.start.row, ",", this.start.col, "]");
for(let i = 0; i< this.bestMap.length;i++){
cc.log("=>[",this.bestMap[i].row,",",this.bestMap[i].col,"]");
}
this.bestMap.unshift(this.start);
this.runHero();
}else{
console.log("找不到路径到达");
}
}
else if((endType == boxType.BOX) || (endType == boxType.ENDBOX)){ //是箱子，判断是否可以推动箱子
//计算箱子和人物的距离
let lr = this.end.row - this.start.row;
let lc = this.end.col - this.start.col;
if((Math.abs(lr) + Math.abs(lc)) == 1){ //箱子在人物的上下左右方位
//计算推动方位是否有障碍物
let nextr = this.end.row + lr;
let nextc = this.end.col + lc;
let t = this.palace[nextr][nextc];
if(t && (t != boxType.WALL) && (t != boxType.BOX) && (t != boxType.ENDBOX)){ //前方不是障碍物，也不是墙壁，推动箱子
this.playSound(sound.PUSHBOX);
//人物位置还原
this.setLandFrame(this.start.row, this.start.col, this.palace[this.start.row][this.start.col]);
//箱子位置类型
let bt = this.palace[this.end.row][this.end.col];
if(bt == boxType.ENDBOX){ //有目标物体的箱子类型，还原成目标点
this.palace[this.end.row][this.end.col] = boxType.BODY;
this.finishBoxCount -= 1;
}
else{
this.palace[this.end.row][this.end.col] = boxType.LAND;
}
//箱子位置变成人物图，但类型保存为空地或目标点
this.setLandFrame(this.end.row, this.end.col, boxType.HERO);
//箱子前面位置变成箱子
let nt = this.palace[nextr][nextc];
if(nt == boxType.BODY){ //有目标点，将箱子类型设置成有目标箱子
this.palace[nextr][nextc] = boxType.ENDBOX;
this.finishBoxCount += 1;
}
else {
this.palace[nextr][nextc] = boxType.BOX;
}
this.setLandFrame(nextr, nextc, this.palace[nextr][nextc]);
this.curStepNum += 1;
//刷新步数
this.setCurNum();
//刷新人物位置
this.heroRow = this.end.row;
this.heroCol = this.end.col;
this.checkGameOver();
}
else{
this.playSound(sound.WRONG);
console.log("前方有障碍物");
}
}
else{ //目标点错误
this.playSound(sound.WRONG);
console.log("目标点错误");
}
}
},
//curPos记录当前坐标，step记录步数
getPath : function(curPos, step, result){
//判断是否到达终点
if((curPos.row == this.end.row) && (curPos.col == this.end.col)){
if(step < this.minPath){
this.bestMap = [];
for(let i = 0; i < result.length; i++){
this.bestMap.push(result[i]);
}
this.minPath = step; //如果当前抵达步数比最小值小，则修改最小值
result = [];
}
}
//递归
for(let i = (curPos.row - 1); i <= (curPos.row + 1); i++){
for(let j = (curPos.col - 1); j <= (curPos.col + 1); j++){
//越界跳过
if((i < 0) || (i >= this.allRow) || (j < 0) || (j >= this.allCol)){
continue;
}
if((i != curPos.row) && (j != curPos.col)){//忽略斜角
continue;
}
else if(this.palace[i][j] && ((this.palace[i][j] == boxType.LAND) || (this.palace[i][j] == boxType.BODY))){
let tmp = this.palace[i][j];
this.palace[i][j] = boxType.WALL; //标记为不可走
//保存路线
let r = {};
r.row = i;
r.col = j;
result.push(r);
this.getPath(r, step + 1, result);
this.palace[i][j] = tmp; //尝试结束，取消标记
result.pop();
}
}
}
},
//人物运动
runHero : function(){
this.setLandEnable(false);
let array = [];
for(let i = 1; i < this.bestMap.length; i++){
array.push(cc.delayTime(0.1));
array.push(cc.callFunc(function(){
let pos = this.bestMap[i];
this.setLandFrame(pos.row, pos.col, boxType.HERO);
let lastPos = this.bestMap[i - 1];
this.setLandFrame(lastPos.row, lastPos.col, this.palace[lastPos.row][lastPos.col]);
this.curStepNum += 1;
this.playSound(sound.MOVE);
//刷新步数
this.setCurNum();
}, this));
}
array.push(cc.callFunc(function(){
//刷新人物所在位置
this.heroRow = this.end.row;
this.heroCol = this.end.col;
//设置地图是否可点击
this.setLandEnable(true);
}, this));
if(array.length >= 2){ //避免出错
this.gameLayer.runAction(cc.sequence(array));
}
else{
this.setLandEnable(true);
}
},
//设置地图不可点
setLandEnable : function(isEnable){
for(let i = 0; i < this.allRow; i++){
for(let j = 0; j < this.allCol; j++){
let land = this.landArrays[i][j];
if(land){
land.getComponent(cc.Button).interactable = isEnable;
}
}
}
},
//设置地板图片
setLandFrame : function(row, col, type){
let land = this.landArrays[row][col];
if(land){
land.getComponent(cc.Sprite).spriteFrame = this.itemImgAtlas.getSpriteFrame("p" + type);
land.width = this.boxW;
land.height = this.boxH;
}
},
//游戏结束检测
checkGameOver : function(){
let count = this.allLevelConfig[this.curLevel].allBox;
if(this.finishBoxCount == count){ //全部推到了指定位置
this.gameOverLayer.active = true;
this.gameOverLayer.opacity = 1;
this.gameOverLayer.runAction(cc.sequence(cc.delayTime(0.5), cc.fadeIn(0.1)));
//刷新完成的关卡数
let finishLevel = parseInt(cc.sys.localStorage.getItem("finishLevel") || 0); //已完成关卡
if(this.curLevel > finishLevel){
cc.sys.localStorage.setItem("finishLevel", this.curLevel);
}
//刷新星星等级
cc.sys.localStorage.setItem("levelStar" + this.curLevel, 3);
//刷新最优步数
let best = parseInt(cc.sys.localStorage.getItem("levelBest" + this.curLevel) || 0);
if((this.curStepNum < best) || (best == 0)){
cc.sys.localStorage.setItem("levelBest" + this.curLevel, this.curStepNum);
}
this.playSound(sound.GAMEWIN);
this.clearGameData();
}
},
//显示关卡等级
setLevel : function(){
this.levelTxt.getComponent(cc.Label).string = this.curLevel;
},
//显示当前步数
setCurNum : function(){
this.curNum.getComponent(cc.Label).string = this.curStepNum;
},
//显示最优步数
setBestNum : function(){
let bestNum = cc.sys.localStorage.getItem("levelBest" + this.curLevel) || "--";
this.bestNum.getComponent(cc.Label).string = bestNum;
},
//清理游戏中数据
clearGameData : function(){
this.finishBoxCount = 0;
this.curStepNum = 0;
this.curStepNum = 0;
},
//播放音效
playSound : function(name){
cc.loader.loadRes(name, cc.AudioClip, function (err, clip) {
var audioID = cc.audioEngine.playEffect(clip, false);
});
},
start () {
},
});感谢：
本文转载自 https://mp.weixin.qq.com/s/EweeEdsspFl2_Vcq_Ih7DA 这篇文章，这里感谢原作者对于技术的分享。
下载：
扫一扫
385
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
