AndroidStudio2020打Arr包给Unity2020使用

Android studio部分

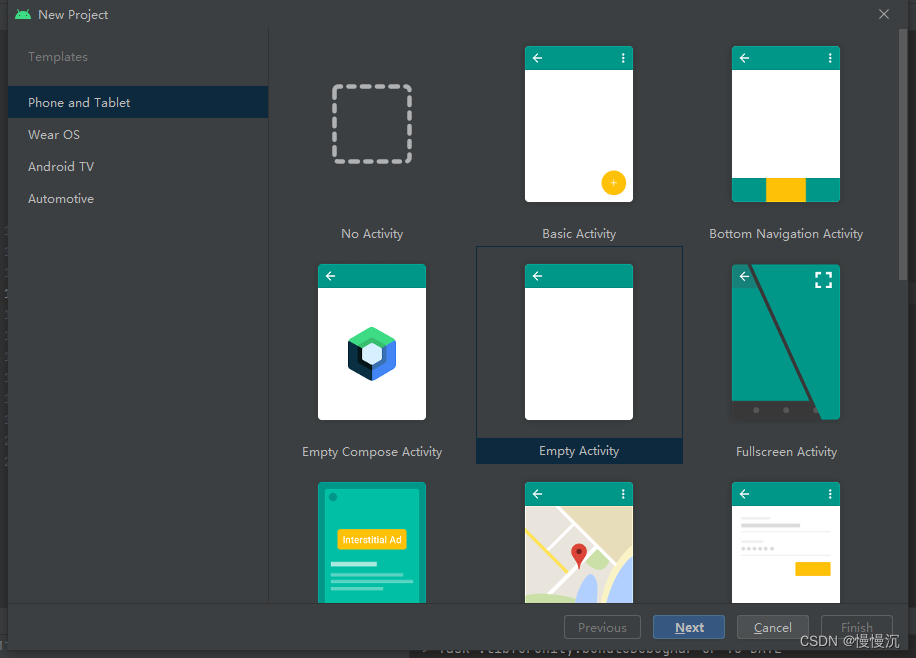

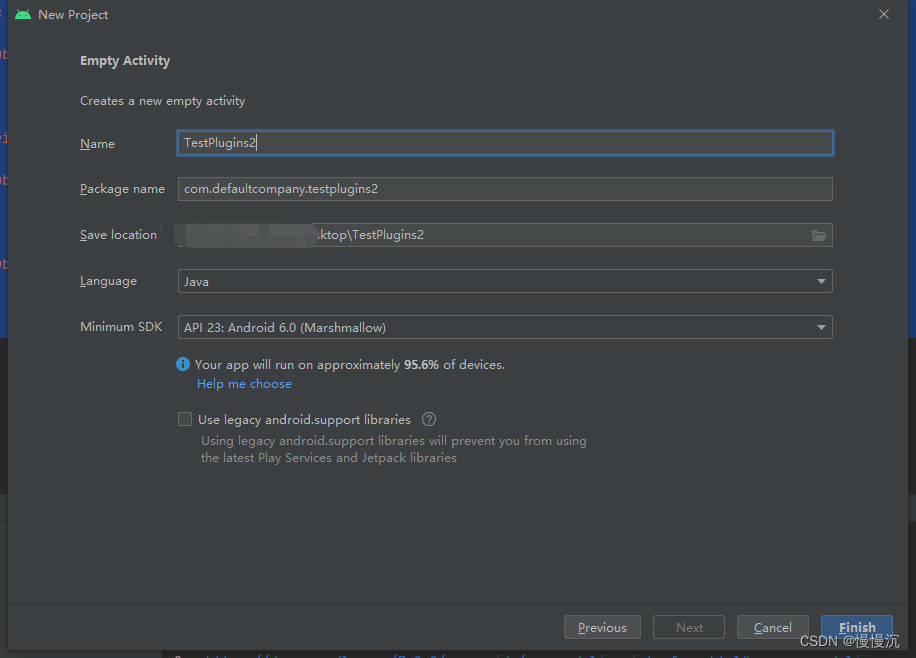

创建一个Android工程

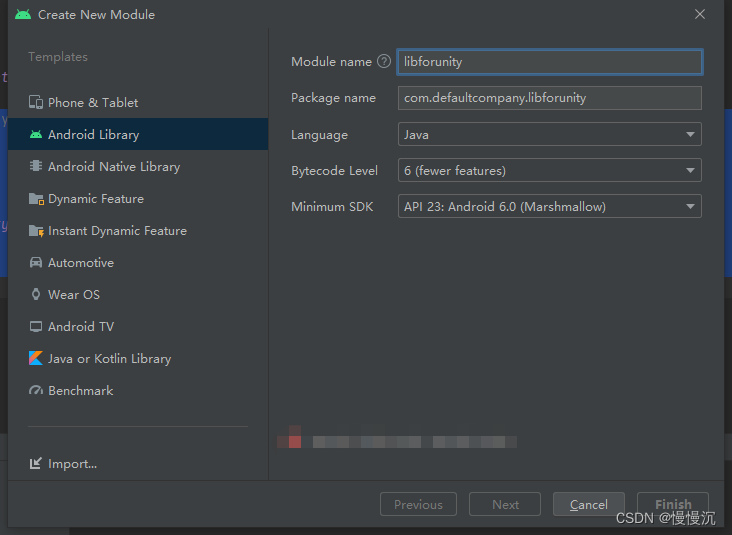

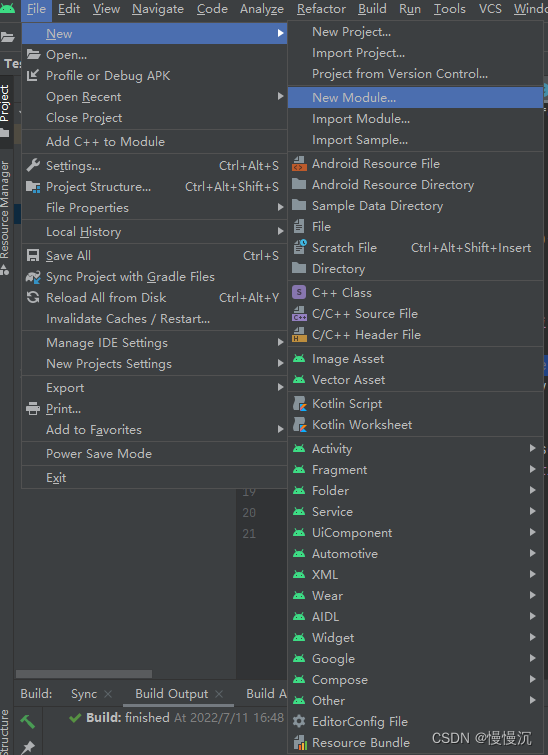

  创建一个lib模块

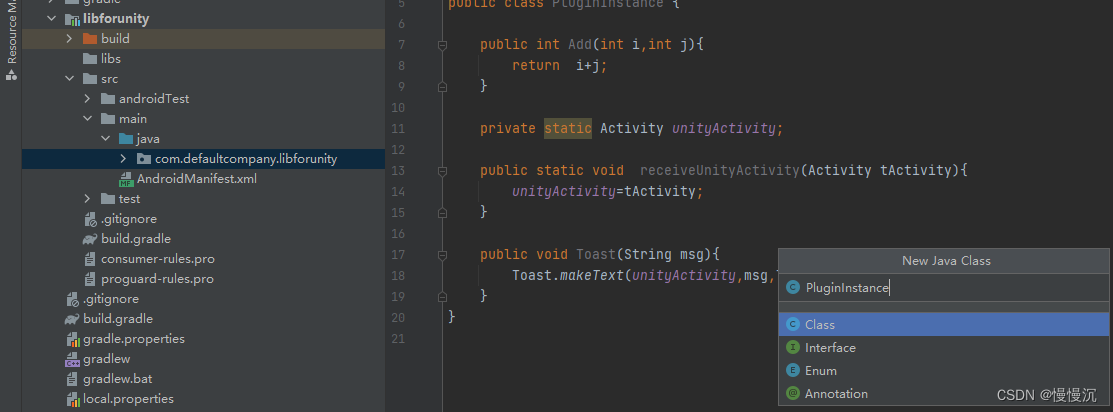

创建一个java类

将以下代码copy到java类中

package com.defaultcompany.libforunity;
import android.app.Activity;
import  android.widget.Toast;

public class PluginInstance {

    public int Add(int i,int j){
        return  i+j;
    }

    private static Activity unityActivity;

    public static void  receiveUnityActivity(Activity tActivity){
        unityActivity=tActivity;
    }

    public void Toast(String msg){
        Toast.makeText(unityActivity,msg,Toast.LENGTH_SHORT).show();
    }
}

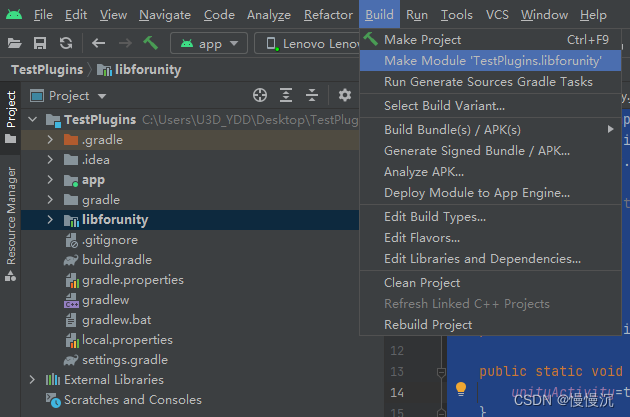

build module

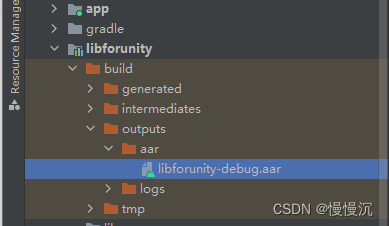

build 成功之后在libforunity下的build-output-aar中找到对应的aar包，准备导入unity；



 Unity部分

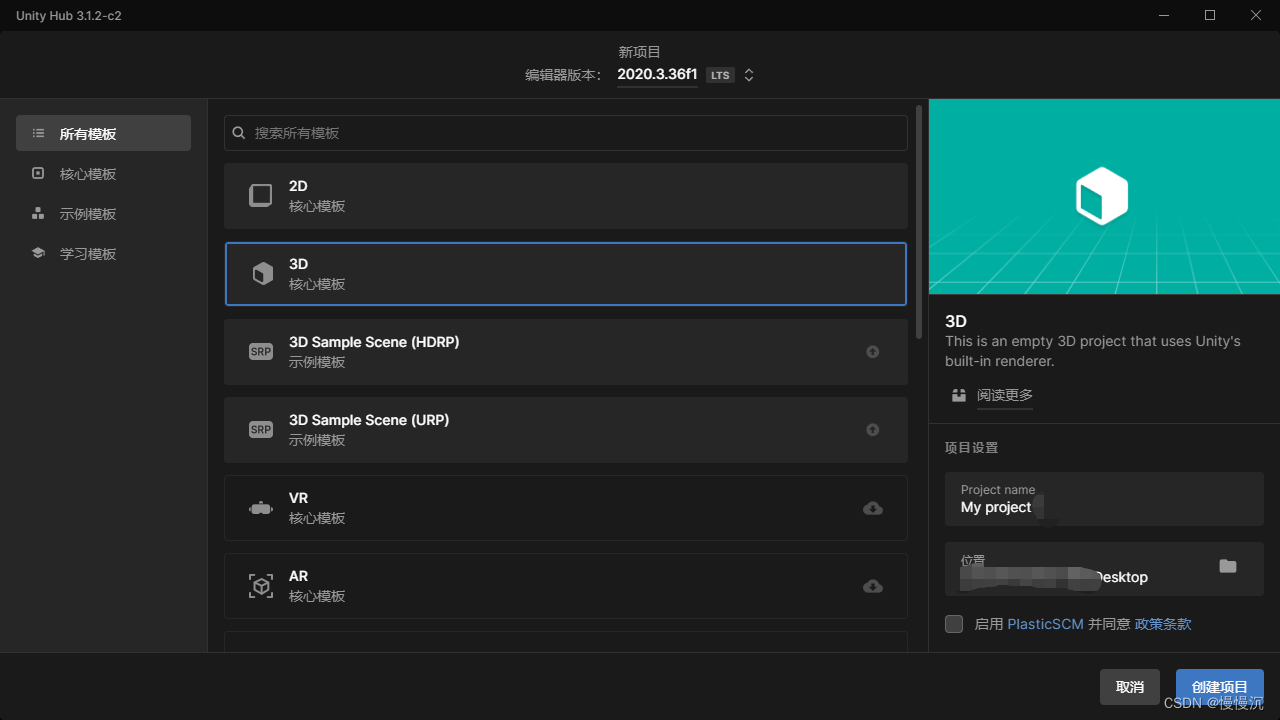

创建unity工程

创建一个测试脚本TestP.cs

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class TestP : MonoBehaviour
{
    public Text t;

    AndroidJavaClass unityClass;
    AndroidJavaObject unityActivity;
    AndroidJavaObject _pluginInstance;
    // Start is called before the first frame update
    void Start()
    {
        InitalizePlugin("com.defaultcompany.libforunity.PluginInstance");
    }

    // Update is called once per frame
    void Update()
    {

    }
    void InitalizePlugin(string pluginName)
    {
        unityClass = new AndroidJavaClass("com.unity3d.player.UnityPlayer");
        unityActivity = unityClass.GetStatic<AndroidJavaObject>("currentActivity");
        _pluginInstance = new AndroidJavaObject(pluginName);
        if (_pluginInstance ==null)
        {
            Debug.Log("Plugin Instance Error");
        }
        _pluginInstance.CallStatic("receiveUnityActivity", unityActivity);
    }

    public void Add()
    {
        if (_pluginInstance !=null)
        {
            var result = _pluginInstance.Call<int>("Add", 5, 6);
            //Debug.Log("Add Result from Unity:" + result);
            t.text = "Add Result from Unity:" + result;
        }
    }

    public void Toast()
    {
        if (_pluginInstance!=null)
        {
            _pluginInstance.Call("Toast","Hi from Unity");
        }
    }
}

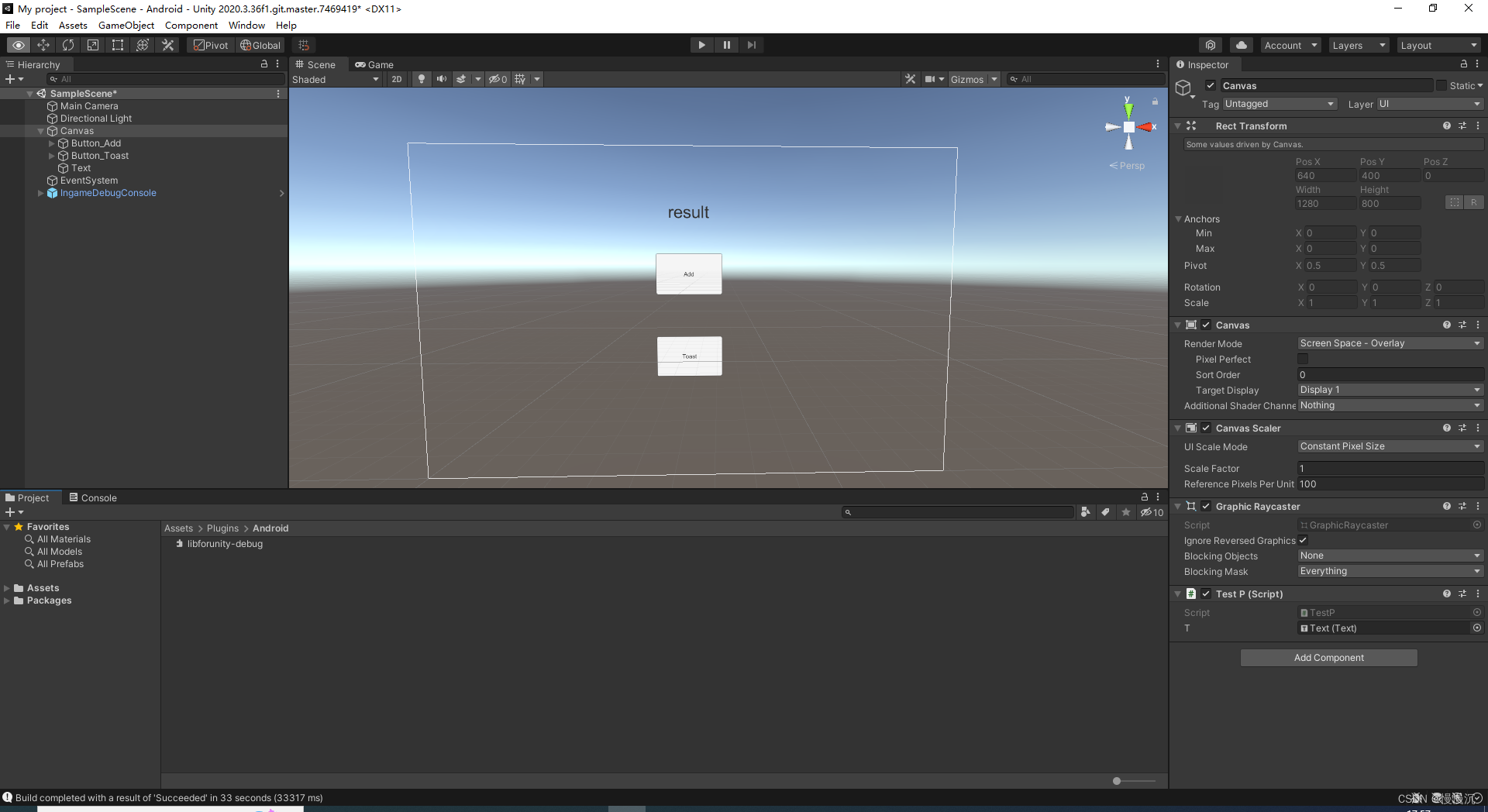

场景中创建两个button ，一个text，并将button事件与脚本绑定，text也绑定给脚本

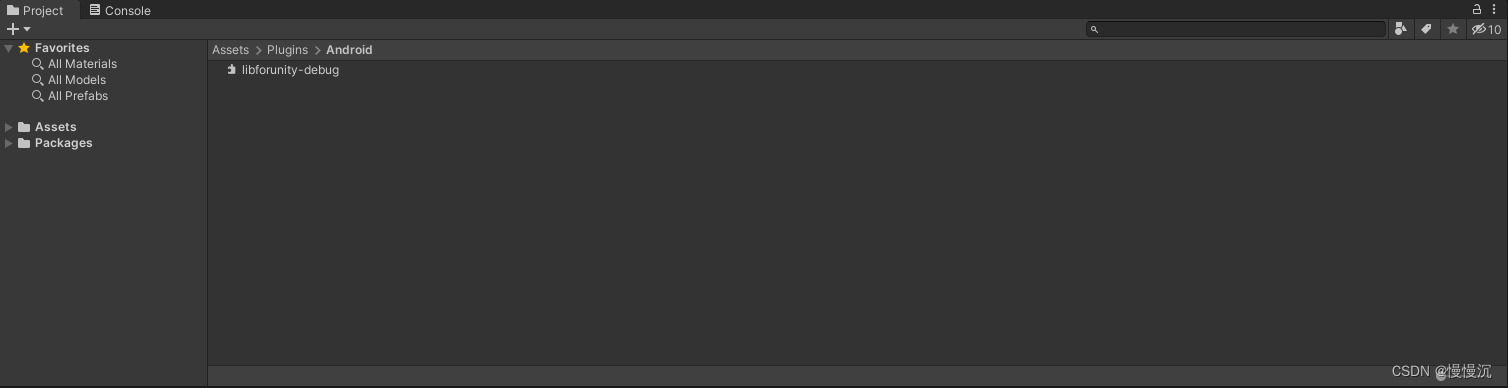

 将Androidstudio的aar包导入到unity

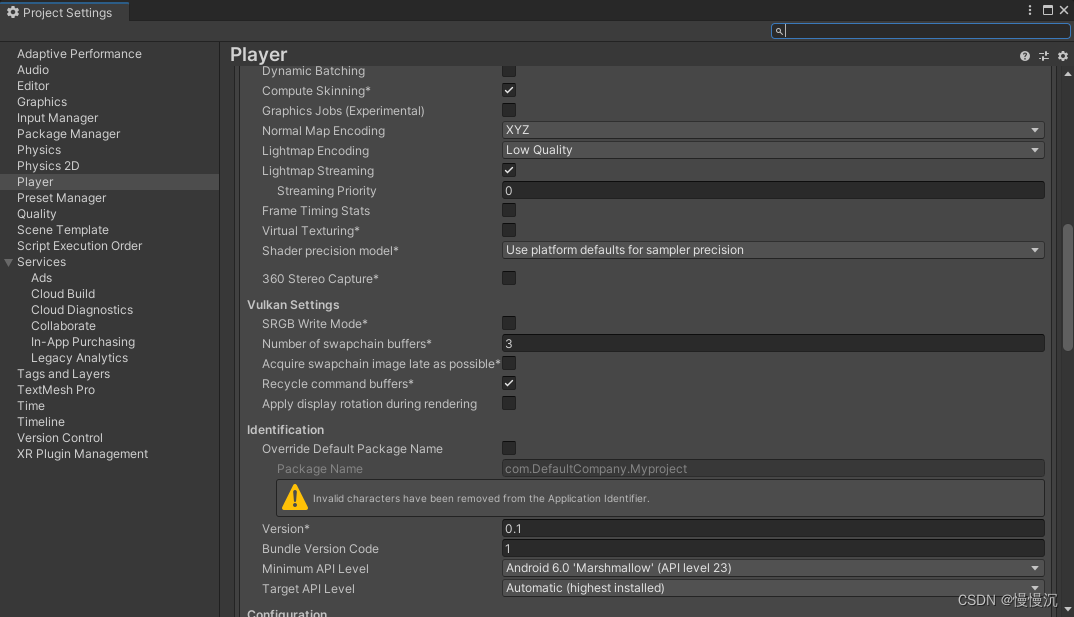

 上面创建lib库用的minSDK为23，所以将unity的minSDK也改的要不小于23



build and run
