前言

transmission_interface ^{1 2}提供了一个基类和一些插件的实现，这些插件可以被自定义硬件组件集成和加载。它们不会被任何硬件组件或 gazebo 插件自动加载，每个硬件组件负责加载适当的传动接口，将执行器读数映射为关节读数。

正文

目前已经实现的变换接口有下边3类：

• SimpleTransmission: 一个简单的传动，具有恒定的减速比且没有额外的动力学
• DifferentialTransmission: 一个具有两个执行器和两个关节的差动传动
• FourBarLinkageTransmission: 一个具有两个执行器和两个关节的四连杆传动

SimpleTransmission 简单传动

简单传动主要有两种，皮带轮和齿轮，传动比与半径直接相关，但是皮带轮方向与执行器方向一致，齿轮与传动轮顺逆时针相反。

配置

完整配置文件 /ros2_control_demo_example_8/description/ros2_control/rrbot_transmissions_system_position_only.ros2_control.xacro

<?xml version="1.0"?>
<robot xmlns:xacro="http://www.ros.org/wiki/xacro">

  <xacro:macro name="rrbot_transmissions_system_position_only" params="name prefix slowdown:=2.0">

    <ros2_control name="${name}" type="system">

      <hardware>
        <plugin>ros2_control_demo_example_8/RRBotTransmissionsSystemPositionOnlyHardware</plugin>
        <param name="actuator_slowdown">${slowdown}</param>
      </hardware>

      <joint name="${prefix}joint1">
        <command_interface name="position">
          <param name="min">-1</param>
          <param name="max">1</param>
        </command_interface>
        <state_interface name="position"/>
      </joint>

      <joint name="${prefix}joint2">
        <command_interface name="position">
          <param name="min">-1</param>
          <param name="max">1</param>
        </command_interface>
        <state_interface name="position"/>
      </joint>

      <transmission name="transmission1">
        <plugin>transmission_interface/SimpleTransmission</plugin>
        <actuator name="actuator1" role="actuator1"/>
        <joint name="joint1" role="joint1">
          <mechanical_reduction>2.0</mechanical_reduction>
          <offset>0.0</offset>
        </joint>
      </transmission>

      <transmission name="transmission2">
        <plugin>transmission_interface/SimpleTransmission</plugin>
        <actuator name="actuator2" role="actuator2"/>
        <joint name="joint2" role="joint2">
          <mechanical_reduction>4.0</mechanical_reduction>
          <offset>0.0</offset>
        </joint>
      </transmission>
    </ros2_control>

  </xacro:macro>

</robot>

其中actuator1和joint1的传动关系描述如下

  <transmission name="transmission1">
    <plugin>transmission_interface/SimpleTransmission</plugin>
    <actuator name="actuator1" role="actuator1"/>
    <joint name="joint1" role="joint1">
      <mechanical_reduction>2.0</mechanical_reduction>
      <offset>0.0</offset>
    </joint>
  </transmission>

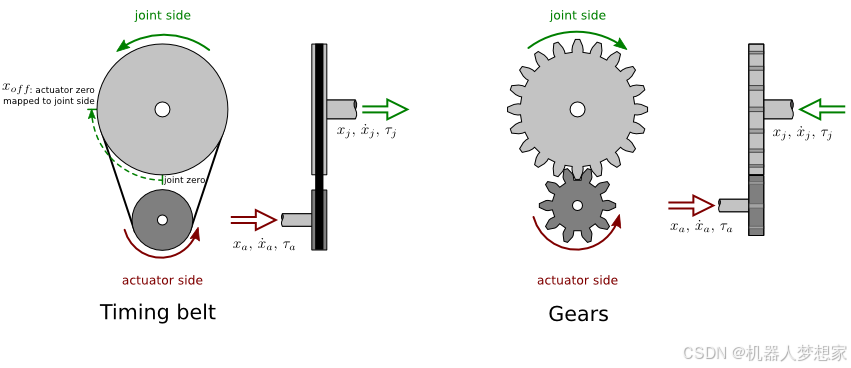

图示

DifferentialTransmission 差速传动

配置

<?xml version="1.0"?>
<robot name="robot" xmlns="http://www.ros.org">
  <ros2_control name="FullSpec" type="system">
    <joint name="joint1">
      <command_interface name="velocity">
        <param name="min">-0.5</param>
        <param name="max">0.5</param>
      </command_interface>
      <state_interface name="velocity"/>
    </joint>
    <joint name="joint2">
      <command_interface name="position">
        <param name="min">-1</param>
        <param name="max">1</param>
      </command_interface>
      <state_interface name="position"/>
    </joint>
    <transmission name="transmission1">
      <plugin>transmission_interface/DifferentialTransmission</plugin>
      <actuator name="joint1_motor" role="actuator1">
        <mechanical_reduction>50</mechanical_reduction>
      </actuator>
      <actuator name="joint2_motor" role="actuator2">
        <mechanical_reduction>-50</mechanical_reduction>
      </actuator>
      <joint name="joint1" role="joint1">
        <offset>0.5</offset>
        <mechanical_reduction>2.0</mechanical_reduction>
      </joint>
      <joint name="joint2" role="joint2">
        <offset>-0.5</offset>
        <mechanical_reduction>-2.0</mechanical_reduction>
      </joint>
    </transmission>
  </ros2_control>
</robot>

其中actuator1、joint1、actuator2、joint2的传动关系描述如下

    <transmission name="transmission1">
      <plugin>transmission_interface/DifferentialTransmission</plugin>
      <actuator name="joint1_motor" role="actuator1">
        <mechanical_reduction>50</mechanical_reduction>
      </actuator>
      <actuator name="joint2_motor" role="actuator2">
        <mechanical_reduction>-50</mechanical_reduction>
      </actuator>
      <joint name="joint1" role="joint1">
        <offset>0.5</offset>
        <mechanical_reduction>2.0</mechanical_reduction>
      </joint>
      <joint name="joint2" role="joint2">
        <offset>-0.5</offset>
        <mechanical_reduction>-2.0</mechanical_reduction>
      </joint>
    </transmission>

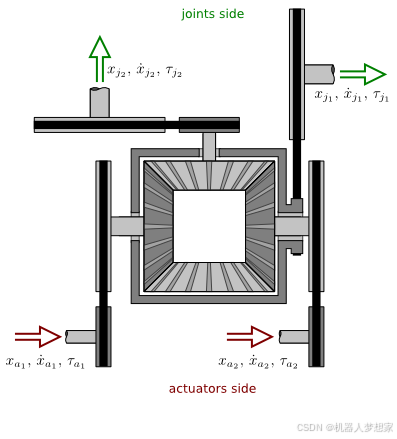

图示

FourBarLinkageTransmission 四连杆传动

配置

<?xml version="1.0"?>
<robot name="robot" xmlns="http://www.ros.org">
  <ros2_control name="FullSpec" type="system">
    <joint name="joint1">
      <command_interface name="velocity">
        <param name="min">-0.5</param>
        <param name="max">0.5</param>
      </command_interface>
      <state_interface name="velocity"/>
    </joint>
    <joint name="joint2">
      <command_interface name="position">
        <param name="min">-1</param>
        <param name="max">1</param>
      </command_interface>
      <state_interface name="position"/>
    </joint>
    <transmission name="transmission1">
      <plugin>transmission_interface/FourBarLinkageTransmission</plugin>
      <actuator name="joint1_motor" role="actuator1">
        <mechanical_reduction>50</mechanical_reduction>
      </actuator>
      <actuator name="joint2_motor" role="actuator2">
        <mechanical_reduction>-50</mechanical_reduction>
      </actuator>
      <joint name="joint1" role="joint1">
        <offset>0.5</offset>
        <mechanical_reduction>2.0</mechanical_reduction>
      </joint>
      <joint name="joint2" role="joint2">
        <offset>-0.5</offset>
        <mechanical_reduction>-2.0</mechanical_reduction>
      </joint>
    </transmission>
  </ros2_control>
</robot>

其中actuator1、joint1、actuator2、joint2的传动关系描述如下

    <transmission name="transmission1">
      <plugin>transmission_interface/FourBarLinkageTransmission</plugin>
      <actuator name="joint1_motor" role="actuator1">
        <mechanical_reduction>50</mechanical_reduction>
      </actuator>
      <actuator name="joint2_motor" role="actuator2">
        <mechanical_reduction>-50</mechanical_reduction>
      </actuator>
      <joint name="joint1" role="joint1">
        <offset>0.5</offset>
        <mechanical_reduction>2.0</mechanical_reduction>
      </joint>
      <joint name="joint2" role="joint2">
        <offset>-0.5</offset>
        <mechanical_reduction>-2.0</mechanical_reduction>
      </joint>
    </transmission>

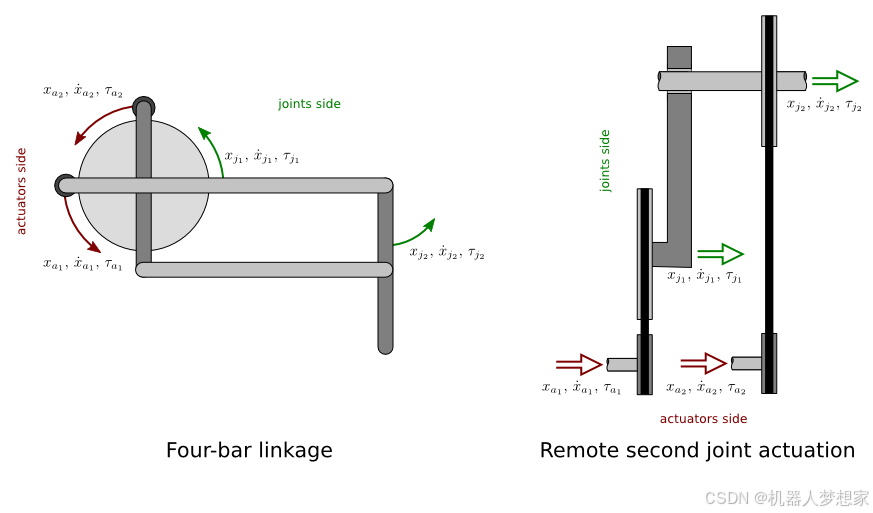

图示

总结

目前没有在中文论坛搜到完整对于这一部分的说明，所以对外网资料做了一下梳理，具体测试效果待后续完成后再写一篇文章。

---
