read_image (Image, 'C:/Users/Administrator/Desktop/00E44F7A04D08126D796D371124A0F91.bmp')
dev_set_draw ('margin')
dev_set_line_width (3)
dev_set_color ('pink')
dev_get_window (WindowHandle)
get_image_size (Image, Width, Height)
gen_rectangle2 (Rectangle, 400, 1200, rad(0), 300, 50)
gen_measure_rectangle2 (400, 1200, rad(0), 300, 50, Width, Height, 'nearest_neighbor', MeasureHandle)
n:=3
for Index := 1 to n by 1
    measure_pairs (Image, MeasureHandle, 2, 30, 'all', 'all', RowEdgeFirst, ColumnEdgeFirst, AmplitudeFirst, RowEdgeSecond, ColumnEdgeSecond, AmplitudeSecond, IntraDistance, InterDistance)
endfor
stop()
disp_line (WindowHandle, RowEdgeFirst, ColumnEdgeFirst, RowEdgeSecond, ColumnEdgeSecond)
avgdistance:=sum(InterDistance)/|InterDistance|

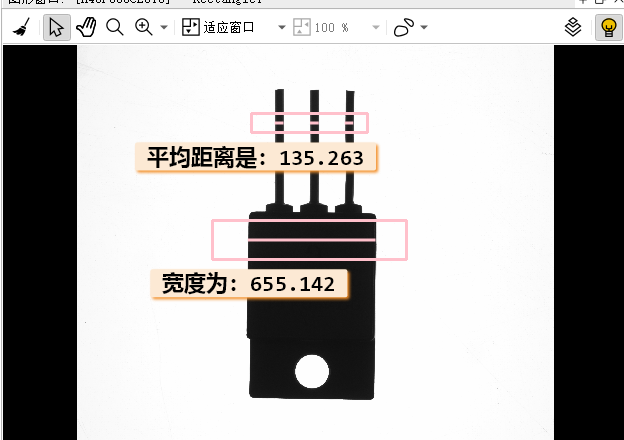

disp_message (WindowHandle, '平均距离是：'+avgdistance, 'image', 500, 300, 'black', 'true')
gen_rectangle2 (Rectangle1, 1000, 1200, rad(0), 500, 100)
gen_measure_rectangle2 (1000, 1200, rad(0), 500, 100, Width, Height, 'nearest_neighbor', MeasureHandle1)
measure_pairs (Image, MeasureHandle1, 2, 30, 'all', 'all', RowEdgeFirst1, ColumnEdgeFirst1, AmplitudeFirst1, RowEdgeSecond1, ColumnEdgeSecond1, AmplitudeSecond1, IntraDistance1, InterDistance1)
stop()
disp_line (WindowHandle, RowEdgeFirst1, ColumnEdgeFirst1, RowEdgeSecond1, ColumnEdgeSecond1)
disp_message (WindowHandle, '宽度为：'+IntraDistance1, 'image', RowEdgeFirst1+150, ColumnEdgeFirst1-500, 'black', 'true')
set_display_font (WindowHandle, 20, 'mono', 'true', 'false')
