一般在uboot里除了可以使用默认的env变量,还可以使用存自定义的env并且存储在外部存储介质(如flash)中,然后使能从存储介质读取加载env,当uboot加载env时候会检测env driver,若能成功读取存储介质的env分区并且crc校验成功后就会将env加载到uboot中。但是使用linux的mkenvimage生成的env镜像依旧是以明文形式存在flash中,若自定义了一些对于系统非常重要的env变量(如开机密码、一些key或者重要信息等),很容易从env窃取到重要的启动信息或其他内容。

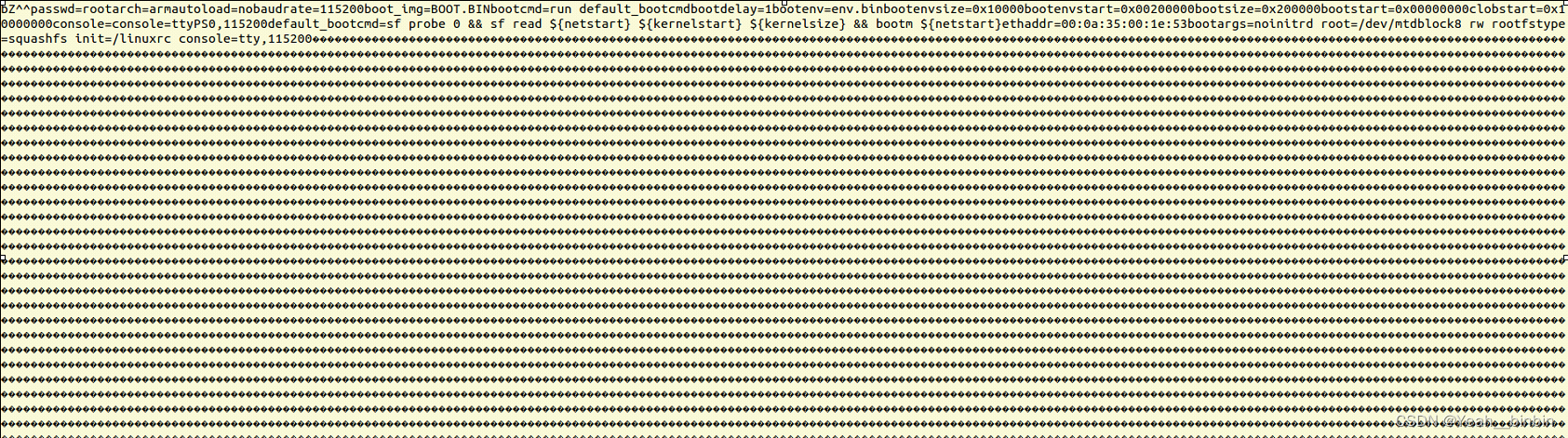

下图是使用mkenvimage生成并写入flash的env镜像。cat进入查看内容仍可以看到全部的明文信息,保密性不强。
因此这里实现一种对mkenvimage生成的env镜像加密并且在uboot读取env镜像后先进行解密再进行校验加载。综合考虑后使用AES对称加密,AES加密安全性高且uboot有相关的AES的接口。
简要提一下uboot里env的初始化大概流程:
board_init_r→init_sequence_r→initr_env→env_relocate→env_load(若没有使能了外部存储加载env则使用env_default.h默认的env)→找到对应存储介质的env driver→调用env driver→load→调用spi_flash_read根据ENV_SIZE和ENV_OFFSET读取flash的env镜像到内存buf->最后env_import将buf进行crc检验,检验成功后拷贝到uboot的env映射表中。

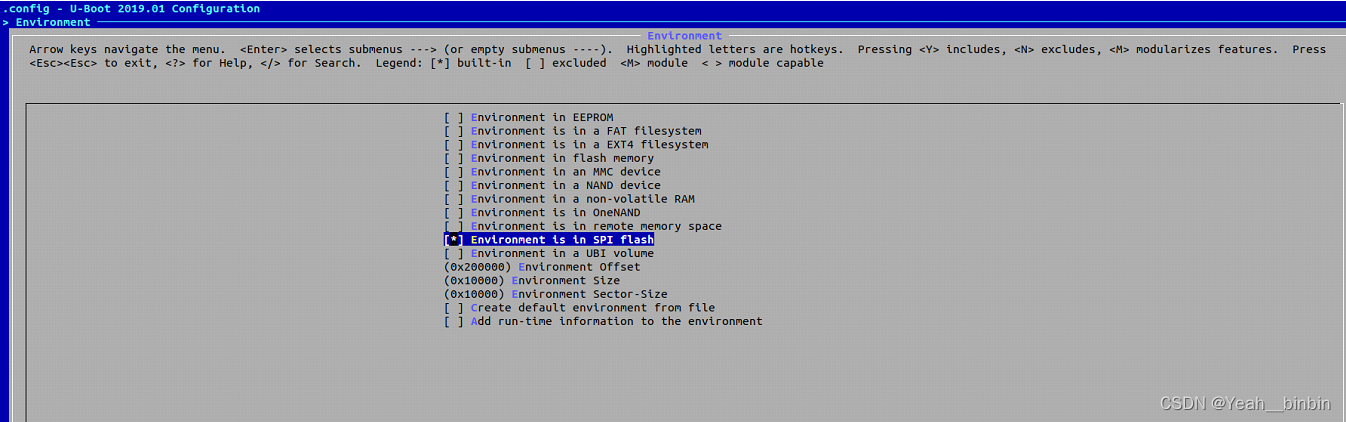

下图使能了从spi flash加载env
在PC上编写AES加密程序:
int main(int argc,char**argv)
{
u8 commkey[] = {
//128bits key,自行定义
0x12, 0x34, 0x56, 0x78,
0x27, 0x7E, 0x1B, 0xFD,
0xEE, 0x0A, 0x45, 0x50,
0x41, 0X83, 0X22, 0xF1};
if(argc!=3)
{
printf("[./env_encrypt] [src_file] [dst_file]\n");
return -1;
}
u32 size=0;
int i;
if (access(argv[1], F_OK)!=0) //加密的源文件
{
printf("%s not found!\n",argv[1]);
return -1;
}
FILE *fp_src=fopen(argv[1],"r+");
FILE *fp_dst=fopen(argv[2],"w+");
if(fp_src==NULL||fp_dst==NULL)
{
printf("fp =NULL\n");
return -1;
}
struct stat file_info;
stat(argv[1] ,&file_info);
size=file_info.st_size; //获得源文件大小
printf("src_file size=%d\n",size);
char buf[size];
char encrypt_data[size];
char decrypt_data[size];
memset(buf,0,size);
memset(encrypt_data,0,size);
int pos=0;
fread(buf,1,size,fp_src);
fclose(fp_src);
u8 tin[16];
u8 tout[16];
u8 expand_key[256];
memset(expand_key,0x00,256*sizeof(u8));
aes_expand_key(commkey, expand_key);//初始化和拓展aes key
for(i=0;i<size;i=i+16)
{
memset(tin,0x00,16);
memset(tout,0x00,16);
memcpy(tin,(char *)buf+i,16);
aes_encrypt(tin,expand_key,tout); //分组加密
memcpy(encrypt_data+i,tout,16);
}
fwrite(encrypt_data,1,size,fp_dst);
printf("encrypt ok\n");
fclose(fp_dst);
return 0;
}
在uboot->env->sf.c->env_sf_load(使用的是qspi flash,若不同的flash找到对应的驱动文件)添加AES解密步骤:
static int env_sf_load(void)
{
int ret;
char *buf = NULL;
buf = (char *)memalign(ARCH_DMA_MINALIGN, CONFIG_ENV_SIZE);
if (!buf) {
set_default_env("malloc() failed", 0);
return -EIO;
}
ret = setup_flash_device();
if (ret)
goto out;
ret = spi_flash_read(env_flash,
CONFIG_ENV_OFFSET, CONFIG_ENV_SIZE, buf); //从spi flash的偏移读取env镜像,在上图设置了CONFIG_ENV_OFFSET=0x200000 CONFIG_ENV_SIZE=0x10000
if (ret) {
set_default_env("spi_flash_read() failed", 0);
goto err_read;
}
#if defined MY_ENVENCRYPT
puts("decrypting env\n");
int i;
u8 tin[16];
u8 tout[16];
u8 commkey[] = {
//128bits key,自行定义,跟加密的key一样
0x12, 0x34, 0x56, 0x78,
0x27, 0x7E, 0x1B, 0xFD,
0xEE, 0x0A, 0x45, 0x50,
0x41, 0X83, 0X22, 0xF1};
u8 *expand_key = NULL;
expand_key = (u8 *)malloc(sizeof(u8)*256);
memset(expand_key,0x00,sizeof(u8)*256);
aes_expand_key(commkey, expand_key);
for(i=0;i<CONFIG_ENV_SIZE;i=i+16){
memset(tin,0x00,16);
memset(tout,0x00,16);
memcpy(tin,(char *)buf+i,16);
aes_decrypt(tin, expand_key, tout);//分组解密
memcpy(buf+i,tout,16);
}
free(expand_key);
printf("decrypting env ok \n");
#endif
ret = env_import(buf, 1);//该接口将解密得到的buf传入env映射表
if (!ret)
gd->env_valid = ENV_VALID;//设置全局变量gd的标志表示env加载成功
err_read:
spi_flash_free(env_flash);
env_flash = NULL;
out:
free(buf);
return ret;
}

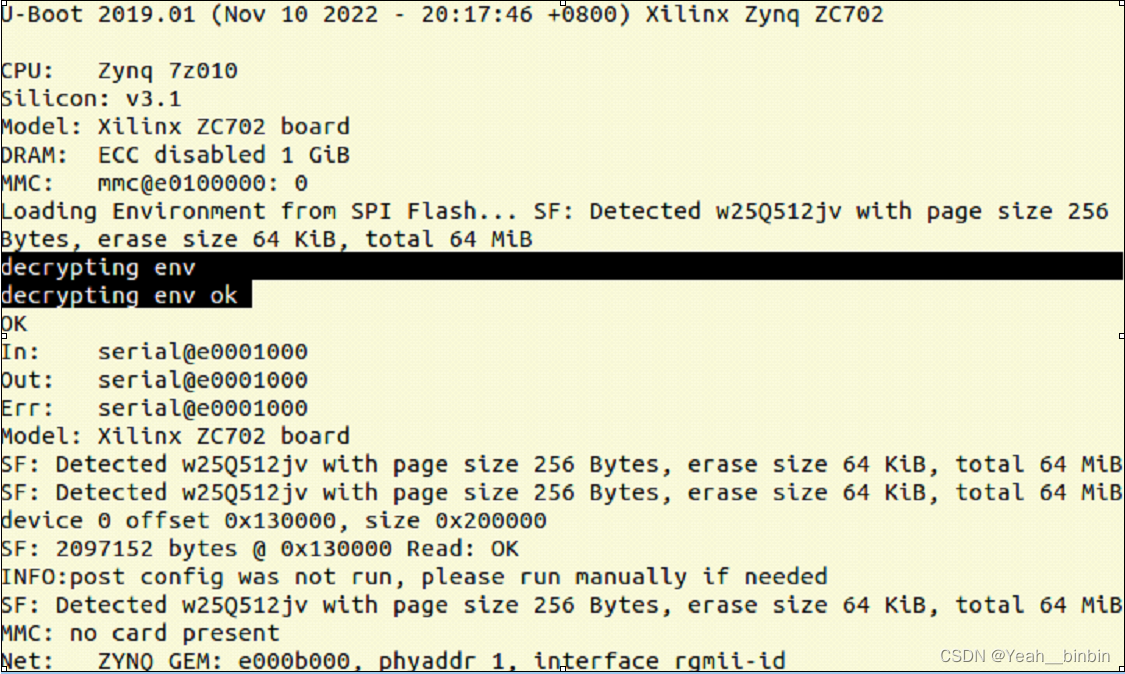

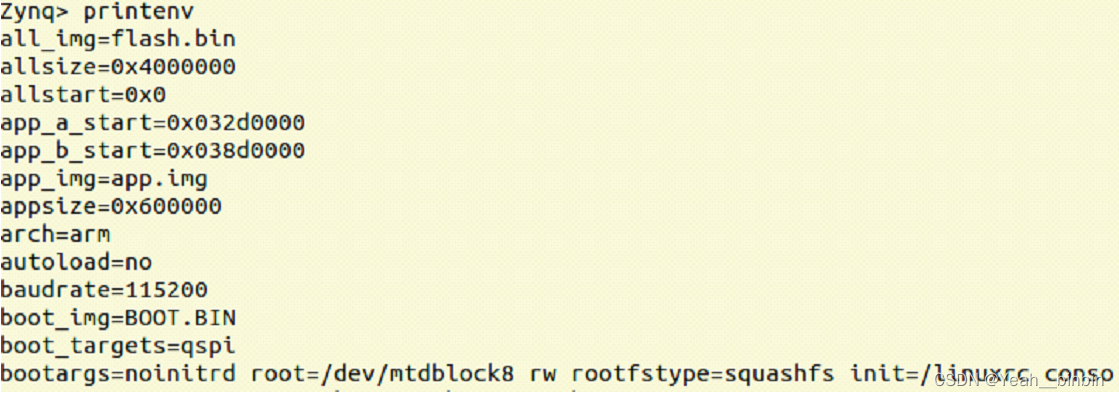

最后重新编译uboot,烧录uboot和加密后的env镜像到flash后重新启动uboot能正常加密和加载env,通过uboot命令行能查看到自定义变量。
举一反三,也可以用这种思路去加密kernel和rootfs,如果想进一步提高安全性,可以将秘钥写入CPU的硬件逻辑区域(前提是CPU支持,这里使用的xilinx zynq-7010是支持写入AES秘钥到可信硬件区域的EFUSE寄存器上(熔丝,只能写一次),然后加密二进制系统镜像并且在启动的时候使能硬解密引擎,解密后将镜像加载到内存实现安全启动的)。
附在uboot/lib/aes.c下有aes加解密源码
