paddledetection C++端半自动标注（mask rcnn）
paddle下通过已经训练的模型对图片进行预测，保存成labelme的json文件（C++端）
c++端mask掩膜的输出
#include <sstream>
// for setprecision
#include <iomanip>
#include "include/object_detector.h"
using namespace cv;
using namespace std;
namespace PaddleDetection {
// Load Model and create model predictor
void ObjectDetector::LoadModel(const std::string& model_dir,
bool use_gpu,
const int min_subgraph_size,
const int batch_size,
const std::string& run_mode,
const int gpu_id) {
paddle::AnalysisConfig config;
std::string prog_file = model_dir + OS_PATH_SEP + "__model__";
std::string params_file = model_dir + OS_PATH_SEP + "__params__";
config.SetModel(prog_file, params_file);
if (use_gpu) {
config.EnableUseGpu(100, gpu_id);
if (run_mode != "fluid") {
auto precision = paddle::AnalysisConfig::Precision::kFloat32;
if (run_mode == "trt_fp16") {
precision = paddle::AnalysisConfig::Precision::kHalf;
} else if (run_mode == "trt_int8") {
printf("TensorRT int8 mode is not supported now, "
"please use 'trt_fp32' or 'trt_fp16' instead");
} else {
if (run_mode != "trt_fp32") {
printf("run_mode should be 'fluid', 'trt_fp32' or 'trt_fp16'");
}
}
config.EnableTensorRtEngine(
1 << 10,
batch_size,
min_subgraph_size,
precision,
false,
false);
}
} else {
config.DisableGpu();
}
config.SwitchUseFeedFetchOps(false);
config.SwitchSpecifyInputNames(true);
config.DisableGlogInfo();
// Memory optimization
config.EnableMemoryOptim();
predictor_ = std::move(CreatePaddlePredictor(config));
}
// Visualiztion MaskDetector results
cv::Mat VisualizeResult(const cv::Mat& img,
const std::vector<ObjectResult>& results,
const std::vector<std::string>& lable_list,
const std::vector<int>& colormap) {
cv::Mat vis_img = img.clone();
for (int i = 0; i < results.size(); ++i) {
int w = results[i].rect[1] - results[i].rect[0];
int h = results[i].rect[3] - results[i].rect[2];
cv::Rect roi = cv::Rect(results[i].rect[0], results[i].rect[2], w, h);
// Configure color and text size
std::ostringstream oss;
oss << std::setiosflags(std::ios::fixed) << std::setprecision(4);
oss << lable_list[results[i].class_id] << " ";
oss << results[i].confidence;
std::string text = oss.str();
int c1 = colormap[3 * results[i].class_id + 0];
int c2 = colormap[3 * results[i].class_id + 1];
int c3 = colormap[3 * results[i].class_id + 2];
cv::Scalar roi_color = cv::Scalar(c1, c2, c3);
int font_face = cv::FONT_HERSHEY_COMPLEX_SMALL;
double font_scale = 0.5f;
float thickness = 0.5;
cv::Size text_size = cv::getTextSize(text,
font_face,
font_scale,
thickness,
nullptr);
cv::Point origin;
origin.x = roi.x;
origin.y = roi.y;
// Configure text background
cv::Rect text_back = cv::Rect(results[i].rect[0],
results[i].rect[2] - text_size.height,
text_size.width,
text_size.height);
// Draw roi object, text, and background
cv::rectangle(vis_img, roi, roi_color, 2);
cv::rectangle(vis_img, text_back, roi_color, -1);
cv::putText(vis_img,
text,
origin,
font_face,
font_scale,
cv::Scalar(255, 255, 255),
thickness);
}
return vis_img;
}
void ObjectDetector::Preprocess(const cv::Mat& ori_im) {
// Clone the image : keep the original mat for postprocess
cv::Mat im = ori_im.clone();
cv::cvtColor(im, im, cv::COLOR_BGR2RGB);
preprocessor_.Run(&im, &inputs_);
}
void ObjectDetector::Postprocess( const cv::Mat& raw_mat,std::vector<ObjectResult>* result)
{
result->clear();
int rh = 1;
int rw = 1;
if (config_.arch_ == "SSD" || config_.arch_ == "Face") {
rh = raw_mat.rows;
rw = raw_mat.cols;
}
int total_size = output_data_.size() / 6;
auto label_lists = GetLabelList();
int n_class = label_lists.size();
for (int j = 0; j < total_size; ++j) {
// Class id
int class_id = static_cast<int>(round(output_data_[0 + j * 6]));
// Confidence score
float score = output_data_[1 + j * 6];
int xmin = (output_data_[2 + j * 6] * rw);
int ymin = (output_data_[3 + j * 6] * rh);
int xmax = (output_data_[4 + j * 6] * rw);
int ymax = (output_data_[5 + j * 6] * rh);
int wd = xmax - xmin;
int hd = ymax - ymin;
//int mask_begin = j * 14 * 14 * 12 + class_id * 14 * 14;
//int mask_end = mask_begin + 14 * 14;
int mask_begin = j * mask_shape[2] * mask_shape[3] * mask_shape[1] + class_id * mask_shape[2] * mask_shape[3];
int mask_end = mask_begin + mask_shape[2] * mask_shape[3];
if (score > 0.8 && class_id > -1) { //threshold_
ObjectResult result_item;
result_item.rect = {xmin, xmax, ymin, ymax};
result_item.class_id = class_id;
result_item.confidence = score;
//输出掩膜代码
double num = 0;
std::vector<float>mask_temp = std::vector<float>(mask_data_.begin() + mask_begin, mask_data_.begin() + mask_end);
/* for (std::vector<float>::iterator iter = mask_data_.begin(); iter != mask_data_.end(); iter++)
{
std::cout << *iter << " ";
num++;
}*/
//cv::Mat mask(14, 14, CV_8UC1);
cv::Mat mask(mask_shape[2], mask_shape[3], CV_8UC1);
for (int j = 0; j < mask_shape[2]; j++)
{
for (int k = 0; k < mask_shape[3]; k++)
{
mask.at<uchar>(j, k) = mask_temp[j * mask_shape[2] + k] * 255; //掩膜
}
}
cv::Mat re_mask; //
cv::resize(mask, re_mask, cv::Size(wd, hd)); //映射回原圖尺寸
cv::threshold(re_mask, mask, 124, 255, cv::THRESH_BINARY); //二值化輸出是mask
mask.copyTo(result_item.mask);
//可視化代碼
vector<vector<Point>> contours;
vector<Vec4i> hierarcy;
findContours(mask, contours, hierarcy, CV_RETR_EXTERNAL, CV_CHAIN_APPROX_NONE);
vector<Rect> boundRect(contours.size()); //定义外接矩形集合
vector<RotatedRect> box(contours.size()); //定义最小外接矩形集合
Point2f rect1[4];
for (int i = 0; i < contours.size(); i++)
{
box[i] = minAreaRect(Mat(contours[i])); //计算每个轮廓最小外接矩形
boundRect[i] = boundingRect(Mat(contours[i]));
//circle(dstImg, Point(box[i].center.x, box[i].center.y), 5, Scalar(0, 255, 0), -1, 8); //绘制最小外接矩形的中心点
box[i].points(result_item.rect_me); //把最小外接矩形四个端点复制给rect数组
box[i].points(rect1);
// std::cout << rect1[0] << " " << rect1[1] << " " << rect1[2] << " " << rect1[2] << " " << endl;
for (int j = 0; j < 4; j++)
{
// line(dstImg, rect[j], rect[(j + 1) % 4], Scalar(0, 0, 255), 2, 8); //绘制最小外接矩形每条边
}
}
result->push_back(result_item);
}
}
}
void ObjectDetector::Predict(const cv::Mat& im,
const double threshold,
const int warmup,
const int repeats,
const bool run_benchmark,
std::vector<ObjectResult>* result) {
// Preprocess image
Preprocess(im);
// Prepare input tensor
auto input_names = predictor_->GetInputNames();
for (const auto& tensor_name : input_names) {
auto in_tensor = predictor_->GetInputTensor(tensor_name);
if (tensor_name == "image") {
int rh = inputs_.eval_im_size_f_[0];
int rw = inputs_.eval_im_size_f_[1];
in_tensor->Reshape({1, 3, rh, rw});
in_tensor->copy_from_cpu(inputs_.im_data_.data());
} else if (tensor_name == "im_size") {
in_tensor->Reshape({1, 2});
in_tensor->copy_from_cpu(inputs_.ori_im_size_.data());
} else if (tensor_name == "im_info") {
in_tensor->Reshape({1, 3});
in_tensor->copy_from_cpu(inputs_.eval_im_size_f_.data());
} else if (tensor_name == "im_shape") {
in_tensor->Reshape({1, 3});
in_tensor->copy_from_cpu(inputs_.ori_im_size_f_.data());
} else if (tensor_name == "scale_factor") {
in_tensor->Reshape({1, 4});
in_tensor->copy_from_cpu(inputs_.scale_factor_f_.data());
}
}
// Run predictor
for (int i = 0; i < warmup; i++)
{
predictor_->ZeroCopyRun();
// Get output tensor
auto output_names = predictor_->GetOutputNames();
auto out_tensor = predictor_->GetOutputTensor(output_names[0]);
auto mask_tensor = predictor_->GetOutputTensor(output_names[1]);
std::vector<int> output_shape = out_tensor->shape();
std::vector<int> mask_shape = mask_tensor->shape();
//std::cout << "In warmup mask shape:" <<mask_shape.size()<< std::endl;
// Calculate output length
int output_size = 1;
for (int j = 0; j < output_shape.size(); ++j) {
output_size *= output_shape[j];
}
if (output_size < 6) {
std::cerr << "[WARNING] No object detected." << std::endl;
}
output_data_.resize(output_size);
out_tensor->copy_to_cpu(output_data_.data());
}
std::clock_t start = clock();
for (int i = 0; i < repeats; i++)
{
predictor_->ZeroCopyRun();
// Get output tensor
auto output_names = predictor_->GetOutputNames();
auto out_tensor = predictor_->GetOutputTensor(output_names[0]);
auto mask_tensor = predictor_->GetOutputTensor(output_names[1]);
std::vector<int> output_shape = out_tensor->shape();
mask_shape = mask_tensor->shape();//std::vector<int>
for (std::vector<int>::iterator iter = mask_shape.begin(); iter != mask_shape.end(); iter++)
{
std::cout << *iter << " ";
}
cout << mask_shape[0] << mask_shape[1] << mask_shape[2] << mask_shape[3] << endl;
// Calculate output length
int output_size = 1;
for (int j = 0; j < output_shape.size(); ++j) {
output_size *= output_shape[j];
}
int mask_size = 1;
for (int j = 0; j < mask_shape.size(); ++j) {
mask_size *= mask_shape[j];
}
if (output_size < 6) {
std::cerr << "[WARNING] No object detected." << std::endl;
}
output_data_.resize(output_size);
mask_data_.resize(mask_size);
out_tensor->copy_to_cpu(output_data_.data());
mask_tensor->copy_to_cpu(mask_data_.data());
} //
std::clock_t end = clock();
float ms = static_cast<float>(end - start) / CLOCKS_PER_SEC / repeats * 1000.;
printf("Inference: %f ms per batch image\n", ms);
// Postprocessing result
if(!run_benchmark) {
Postprocess(im, result);
}
}
std::vector<int> GenerateColorMap(int num_class) {
auto colormap = std::vector<int>(3 * num_class, 0);
for (int i = 0; i < num_class; ++i) {
int j = 0;
int lab = i;
while (lab) {
colormap[i * 3] |= (((lab >> 0) & 1) << (7 - j));
colormap[i * 3 + 1] |= (((lab >> 1) & 1) << (7 - j));
colormap[i * 3 + 2] |= (((lab >> 2) & 1) << (7 - j));
++j;
lab >>= 3;
}
}
return colormap;
}
} // namespace PaddleDetection

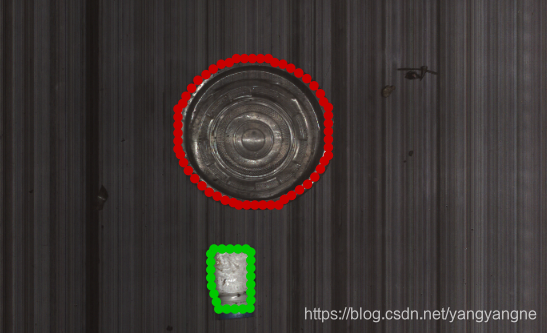

掩膜取轮廓再做处理
vector<Point> mask_vector(Mat srcImg) { //输入为单个目标掩膜，多边形逼近法
vector<vector<Point>> contours;
vector<Vec4i> hierarcy;
findContours(srcImg, contours, hierarcy, CV_RETR_EXTERNAL, CV_CHAIN_APPROX_NONE);
vector<vector<Point>> contours_poly(contours.size());
vector<Point>point_vector;
approxPolyDP(Mat(contours[0]), point_vector, 1, true);//true曲线封闭，反之不封闭
return point_vector;
}
vector<Point> mask_vector_(Mat srcImg) { //点距加长法
vector<vector<Point>> contours;
vector<Vec4i> hierarcy;
findContours(srcImg, contours, hierarcy, CV_RETR_EXTERNAL, CV_CHAIN_APPROX_NONE);
vector<vector<Point>> contours_poly(contours.size());
vector<Point>point_vector;
for (const auto& pin : contours[0])
{
static int num = 0;
num++;
if (num >= 10)
{
point_vector.push_back(pin);
num = 0;
}
}
return point_vector;
}

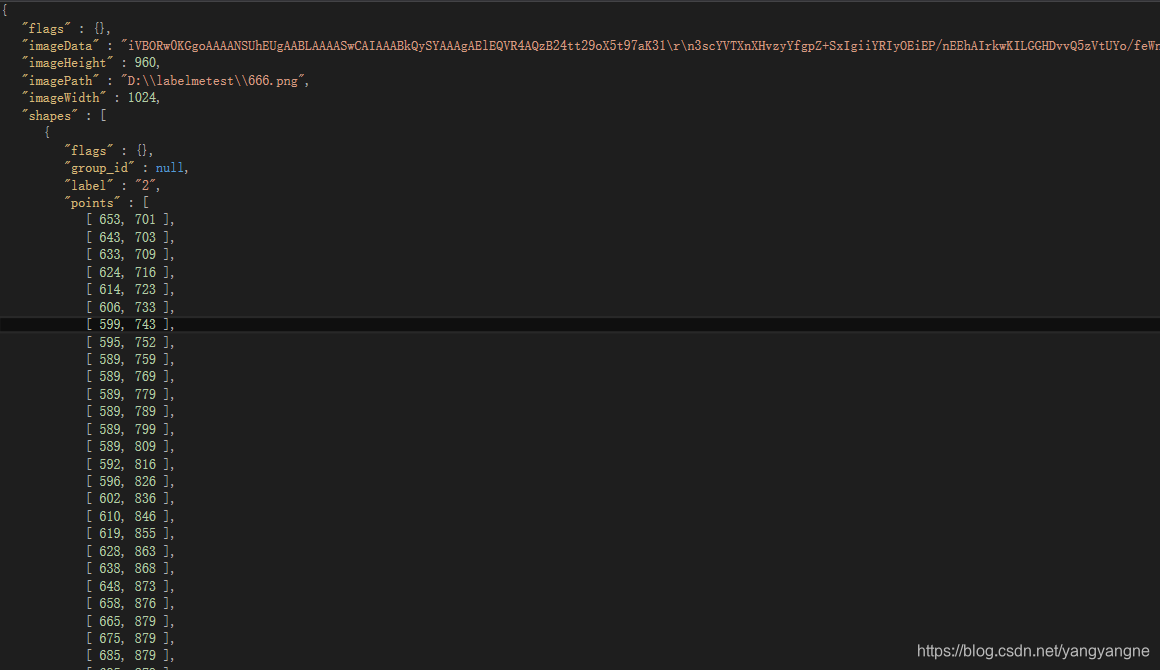

写入json文件
void writeFileJson(vector<PaddleDetection::ObjectResult> result) //
{
Mat img = imread(image_path);
vector<uchar> vecImg; //Mat 图片数据转换为vector<uchar>
vector<int> vecCompression_params;
vecCompression_params.push_back(CV_IMWRITE_JPEG_QUALITY);
vecCompression_params.push_back(90);
imencode(".png", img, vecImg, vecCompression_params);
ZBase64 base64;
string imgbase64 = base64.Encode(vecImg.data(), vecImg.size()); //实现图片的base64编码
// cout << imgbase64 << endl;
///////////////////////////以上为labelme的imagadata的输出，不要也可
std::string labellist[13] = {"1","2","3","4", "5","6","7" ,"8","9","10" ,"11","12","13" };
std::string filePath = "D:\\labelmetest\\666.json";
std::ofstream fout;
fout.open(filePath.c_str());
assert(fout.is_open());
//根节点
Json::Value root;
//根节点属性
root["version"] = Json::Value("4.5.6");
root["flags"] = Json::Value(Json::objectValue);
root["imagePath"] = Json::Value(image_path);
root["imageData"] = Json::Value(imgbase64);
root["imageHeight"] = Json::Value(960);
root["imageWidth"] = Json::Value(1024);
Json::Value shapes(Json::arrayValue);
//每个目标一个信息
for (const auto& item : result) {
Json::Value point_arry(Json::arrayValue);
vector<Point>mask_temp = mask_vector(item.mask); //多边形点集
for (const auto& temp : mask_temp) //int i = 0; i <sizeof(mask_temp); i++
{
Json::Value point_temp(Json::arrayValue);
point_temp.append((temp.x+ item.rect[0]));
point_temp.append(temp.y + item.rect[2]);
point_arry.append(point_temp);
}
//一个目标的信息
Json::Value ifo_one;
ifo_one["label"] = Json::Value(labellist[item.class_id]);
ifo_one["points"] = Json::Value(point_arry); //点的集合挂在point
ifo_one["group_id"] = Json::Value();
ifo_one["shape_type"] = Json::Value("polygon");
ifo_one["flags"] = Json::Value(Json::objectValue);
shapes.append(ifo_one); //每个物体的点添加进去
}
root["shapes"] = Json::Value(shapes);
std::string out = root.toStyledString();
std::cout << out << std::endl;
fout << out << std::endl;
}
jison文件的imagedata，图片转base64编码
#include "ZBase64.h"
string ZBase64::Encode(const unsigned char* Data, int DataByte)
{
//编码表
const char EncodeTable[] = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/";
//返回值
string strEncode;
unsigned char Tmp[4] = { 0 };
int LineLength = 0;
for (int i = 0; i < (int)(DataByte / 3); i++)
{
Tmp[1] = *Data++;
Tmp[2] = *Data++;
Tmp[3] = *Data++;
strEncode += EncodeTable[Tmp[1] >> 2];
strEncode += EncodeTable[((Tmp[1] << 4) | (Tmp[2] >> 4)) & 0x3F];
strEncode += EncodeTable[((Tmp[2] << 2) | (Tmp[3] >> 6)) & 0x3F];
strEncode += EncodeTable[Tmp[3] & 0x3F];
if (LineLength += 4, LineLength == 76) { strEncode += "\r\n"; LineLength = 0; }
}
//对剩余数据进行编码
int Mod = DataByte % 3;
if (Mod == 1)
{
Tmp[1] = *Data++;
strEncode += EncodeTable[(Tmp[1] & 0xFC) >> 2];
strEncode += EncodeTable[((Tmp[1] & 0x03) << 4)];
strEncode += "==";
}
else if (Mod == 2)
{
Tmp[1] = *Data++;
Tmp[2] = *Data++;
strEncode += EncodeTable[(Tmp[1] & 0xFC) >> 2];
strEncode += EncodeTable[((Tmp[1] & 0x03) << 4) | ((Tmp[2] & 0xF0) >> 4)];
strEncode += EncodeTable[((Tmp[2] & 0x0F) << 2)];
strEncode += "=";
}
return strEncode;
}
string ZBase64::Decode(const char* Data, int DataByte, int& OutByte)
{
//解码表
const char DecodeTable[] =
{
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
62, // '+'
0, 0, 0,
63, // '/'
52, 53, 54, 55, 56, 57, 58, 59, 60, 61, // '0'-'9'
0, 0, 0, 0, 0, 0, 0,
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, // 'A'-'Z'
0, 0, 0, 0, 0, 0,
26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38,
39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, // 'a'-'z'
};
//返回值
string strDecode;
int nValue;
int i = 0;
while (i < DataByte)
{
if (*Data != '\r' && *Data != '\n')
{
nValue = DecodeTable[*Data++] << 18;
nValue += DecodeTable[*Data++] << 12;
strDecode += (nValue & 0x00FF0000) >> 16;
OutByte++;
if (*Data != '=')
{
nValue += DecodeTable[*Data++] << 6;
strDecode += (nValue & 0x0000FF00) >> 8;
OutByte++;
if (*Data != '=')
{
nValue += DecodeTable[*Data++];
strDecode += nValue & 0x000000FF;
OutByte++;
}
}
i += 4;
}
else// 回车换行,跳过
{
Data++;
i++;
}
}
return strDecode;
}
最后效果
扫一扫
2076
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
