Synopsys system veriolog Lab学习(3)

Lab3

该实验在Lab2的基础上增加了Monitor和checker，检测接口输出的数据包和验证和发送的数据一致。

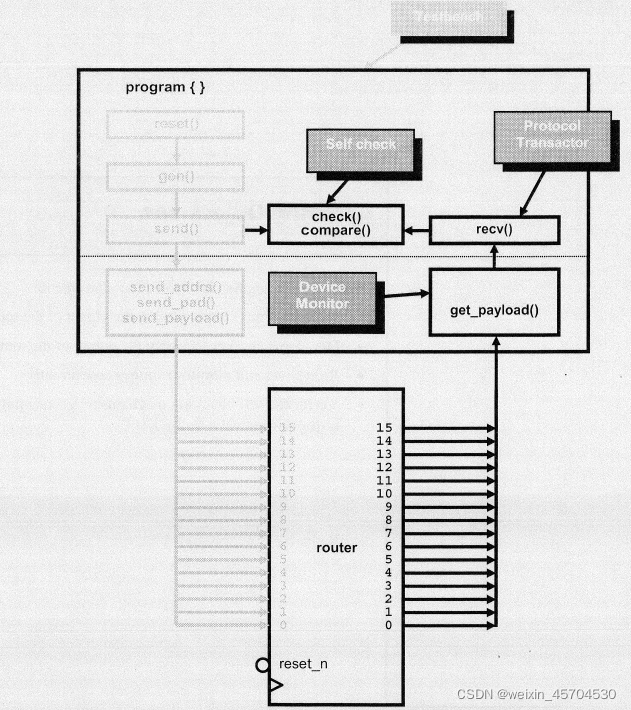

测试平台框图如下：

捕获接口输出数据的任务定义如下：

  //Lab 3 - Task 3, Step 3
  //
  //Declare the get_payload() task
  //ToDo
  task get_payload();

    //Lab 3 - Task 3, Step 4
    //
    //In get_payload() delete content of pkt2cmp_payload[$]
    //ToDo
    pkt2cmp_payload.delete();

    //Lab 3 - Task 3, Step 5
    //
    //Continuing in get_payload() wait for falling edge of output frame signal
	//Implement a watchdog timer of 1000 clocks
    //ToDo
    fork
      begin: wd_timer_fork
      fork: frameo_wd_timer
        @(negedge rtr_io.cb.frameo_n[da]); //this is a thread by itself
        begin                              //this is another thread
          repeat(1000) @(rtr_io.cb);
      	$display("\n%m\n[ERROR]%t Frame signal timed out!\n", $realtime);
          $finish;
        end
      join_any: frameo_wd_timer
      disable fork;
      end: wd_timer_fork
    join

    //Lab 3 - Task 3, Step 6
    //
    //Continuing in get_payload() sample output of the router:
    //Loop until end of frame is detected.
    //Within the loop, assemble a byte of data at a time(8 clocks)
    //Store each byte in pkt2cmp_payload[$]
    //ToDo
    forever begin
      logic[7:0] datum;
      for(int i=0; i<8; i=i)  begin //i=i prevents VCS warning messages
        if(!rtr_io.cb.valido_n[da])
          datum[i++] = rtr_io.cb.dout[da];
        if(rtr_io.cb.frameo_n[da])
          if(i==8) begin //byte alligned
      	  pkt2cmp_payload.push_back(datum);
      	  return;      //done with payload
      	end

          //Lab 3 - Task 3, Step 7
          //
          //If payload is not byte aligned, print message and end simulation
          //ToDo
      	else begin
      	  $display("\n%m\n[ERROR]%t Packet payload not byte aligned!\n", $realtime);
      	  $finish;
      	end
        @(rtr_io.cb);
      end
      pkt2cmp_payload.push_back(datum);
    end
  endtask: get_payload
