Faster RCNN源码解读（1）anchors的生成

前言

这阶段我们开始Faster RCNN源码的学习，首先我们附上源码地址https://github.com/endernewton/tf-faster-rcnn，众所周知，Faster RCNN的核心思想就是anchors，一种类似穷举法的做法，现在我们先简单介绍一下anchors的组成。

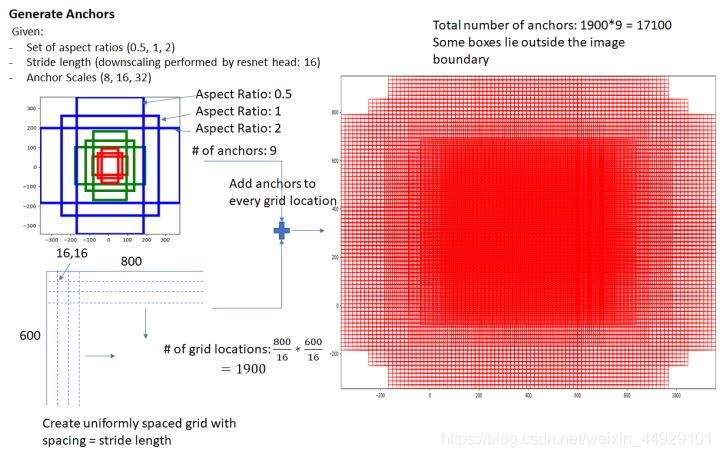

anchors

形状：矩形
坐标形式：左上坐标，右下坐标
数量9*N(N为尺寸规范化后的像素点数），9是因为一共有9个尺寸。也就是说为每个像素点都配备9个anchors。

generate_anchors（）

# --------------------------------------------------------
# Faster R-CNN
# Copyright (c) 2015 Microsoft
# Licensed under The MIT License [see LICENSE for details]
# Written by Ross Girshick and Sean Bell
# --------------------------------------------------------
from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import numpy as np


# Verify that we compute the same anchors as Shaoqing's matlab implementation:
#
#    >> load output/rpn_cachedir/faster_rcnn_VOC2007_ZF_stage1_rpn/anchors.mat
#    >> anchors
#
#    anchors =
#
#       -83   -39   100    56
#      -175   -87   192   104
#      -359  -183   376   200
#       -55   -55    72    72
#      -119  -119   136   136
#      -247  -247   264   264
#       -35   -79    52    96
#       -79  -167    96   184
#      -167  -343   184   360

# array([[ -83.,  -39.,  100.,   56.],
#       [-175.,  -87.,  192.,  104.],
#       [-359., -183.,  376.,  200.],
#       [ -55.,  -55.,   72.,   72.],
#       [-119., -119.,  136.,  136.],
#       [-247., -247.,  264.,  264.],
#       [ -35.,  -79.,   52.,   96.],
#       [ -79., -167.,   96.,  184.],
#       [-167., -343.,  184.,  360.]])

def generate_anchors(base_size=16, ratios=[0.5, 1, 2],
                     scales=2 ** np.arange(3, 6)):
  """
  Generate anchor (reference) windows by enumerating aspect ratios X
  scales wrt a reference (0, 0, 15, 15) window.
  """

  base_anchor = np.array([1, 1, base_size, base_size]) - 1
  ratio_anchors = _ratio_enum(base_anchor, ratios)
  anchors = np.vstack([_scale_enum(ratio_anchors[i, :], scales)
                       for i in range(ratio_anchors.shape[0])])
  return anchors


def _whctrs(anchor):
  """
  Return width, height, x center, and y center for an anchor (window).
  """

  w = anchor[2] - anchor[0] + 1
  h = anchor[3] - anchor[1] + 1
  x_ctr = anchor[0] + 0.5 * (w - 1)
  y_ctr = anchor[1] + 0.5 * (h - 1)
  return w, h, x_ctr, y_ctr


def _mkanchors(ws, hs, x_ctr, y_ctr):
  """
  Given a vector of widths (ws) and heights (hs) around a center
  (x_ctr, y_ctr), output a set of anchors (windows).
  """

  ws = ws[:, np.newaxis]
  hs = hs[:, np.newaxis]
  anchors = np.hstack((x_ctr - 0.5 * (ws - 1),
                       y_ctr - 0.5 * (hs - 1),
                       x_ctr + 0.5 * (ws - 1),
                       y_ctr + 0.5 * (hs - 1)))
  return anchors


def _ratio_enum(anchor, ratios):
  """
  Enumerate a set of anchors for each aspect ratio wrt an anchor.
  """

  w, h, x_ctr, y_ctr = _whctrs(anchor)
  size = w * h
  size_ratios = size / ratios
  ws = np.round(np.sqrt(size_ratios))
  hs = np.round(ws * ratios)
  anchors = _mkanchors(ws, hs, x_ctr, y_ctr)
  return anchors


def _scale_enum(anchor, scales):
  """
  Enumerate a set of anchors for each scale wrt an anchor.
  """

  w, h, x_ctr, y_ctr = _whctrs(anchor)
  ws = w * scales
  hs = h * scales
  anchors = _mkanchors(ws, hs, x_ctr, y_ctr)
  return anchors


if __name__ == '__main__':
  import time

  t = time.time()
  a = generate_anchors()
  print(time.time() - t)
  print(a)
  from IPython import embed;

  embed()

这里就不必详细解释了，因为作用很简单，就是生成9个anchors，生成以后形式这样的：

    anchors =

     -83   -39   100    56
     -175   -87   192   104
     -359  -183   376   200
     -55   -55    72    72
     -119  -119   136   136
     -247  -247   264   264
     -35   -79    52    96
     -79  -167    96   184
     -167  -343   184   360

现在看生成所有anchors的代码，这里有看两个。

generate_anchors_pre（）

def generate_anchors_pre(height, width, feat_stride, anchor_scales=(8,16,32), anchor_ratios=(0.5,1,2)):
  """ A wrapper function to generate anchors given different scales
    Also return the number of anchors in variable 'length'
  """
  anchors = generate_anchors(ratios=np.array(anchor_ratios), scales=np.array(anchor_scales))
  A = anchors.shape[0]
  shift_x = np.arange(0, width) * feat_stride
  shift_y = np.arange(0, height) * feat_stride
  shift_x, shift_y = np.meshgrid(shift_x, shift_y)
  shifts = np.vstack((shift_x.ravel(), shift_y.ravel(), shift_x.ravel(), shift_y.ravel())).transpose()
  K = shifts.shape[0]
  # width changes faster, so here it is H, W, C
  anchors = anchors.reshape((1, A, 4)) + shifts.reshape((1, K, 4)).transpose((1, 0, 2))
  anchors = anchors.reshape((K * A, 4)).astype(np.float32, copy=False)
  length = np.int32(anchors.shape[0])

  return anchors, length

anchors = generate_anchors(ratios=np.array(anchor_ratios), scales=np.array(anchor_scales))

根据所给的比例和尺寸生成9个anchors，注意这里的尺寸是特征提取后的比例。
然后获得anchors的数量存为A，也就是让A=9，然后得到原图的宽高，np.meshgrid（x,y）的作用是制造一个x*y维的矩阵，np.vstack作用是在竖直方向上堆叠，相当于构建两个坐标的矩阵。然后所谓的K就是像素点的数量。

anchors = anchors.reshape((1, A, 4)) + shifts.reshape((1, K, 4)).transpose((1, 0, 2))
anchors = anchors.reshape((K * A, 4)).astype(np.float32, copy=False)


这两句是把两种尺度叠加起来，最后reshape一下就完成了所有anchors的构造。
最后返回一下尺度。

generate_anchors_pre_tf（）

def generate_anchors_pre_tf(height, width, feat_stride=16, anchor_scales=(8, 16, 32), anchor_ratios=(0.5, 1, 2)):
  shift_x = tf.range(width) * feat_stride # width
  shift_y = tf.range(height) * feat_stride # height
  shift_x, shift_y = tf.meshgrid(shift_x, shift_y)
  sx = tf.reshape(shift_x, shape=(-1,))
  sy = tf.reshape(shift_y, shape=(-1,))
  shifts = tf.transpose(tf.stack([sx, sy, sx, sy]))
  K = tf.multiply(width, height)
  shifts = tf.transpose(tf.reshape(shifts, shape=[1, K, 4]), perm=(1, 0, 2))

  anchors = generate_anchors(ratios=np.array(anchor_ratios), scales=np.array(anchor_scales))
  A = anchors.shape[0]
  anchor_constant = tf.constant(anchors.reshape((1, A, 4)), dtype=tf.int32)

  length = K * A
  anchors_tf = tf.reshape(tf.add(anchor_constant, shifts), shape=(length, 4))

  return tf.cast(anchors_tf, dtype=tf.float32), length

底下的代码总的来说和上面一样这不过流程有点不同，首先恢复原图尺寸，然后构建新的尺寸矩阵。tf.transpose这里要说一下，他完成的是矩阵的转置，然后同样做一下叠加，将生成的shifts的通道调换一下，生成基础9个anchors，最后以同样的叠加方法创造出所有的anchors。

最后

这里就是所有anchors的生成，这里比较简单，就不做过多解释，如有错误望请指出，在这里对各位前辈致以诚挚敬意。
