编程实现误差逆传播算法（BP算法）

掌握误差逆传播算法（BP算法）的工作流程

编码实现标准BP算法和累积BP算法，在西瓜数据集3.0上分别用这两个算法训练一个单隐层网络，并进行比较

import pandas as pd
import numpy as np
from sklearn.preprocessing import LabelEncoder
from sklearn.preprocessing import StandardScaler
import matplotlib.pyplot as plt
seed = 2020
import random
np.random.seed(seed)  # Numpy module.
random.seed(seed)  # Python random module.
plt.rcParams['font.sans-serif'] = ['SimHei'] #用来正常显示中文标签
plt.rcParams['axes.unicode_minus'] = False #用来正常显示负号
plt.close('all')

#数据预处理
def preprocess(data):
    #将非数映射数字
    for title in data.columns:
        if data[title].dtype=='object':
            encoder = LabelEncoder()
            data[title] = encoder.fit_transform(data[title])
    #去均值和方差归一化
    ss = StandardScaler()
    X = data.drop('好瓜',axis=1)
    Y = data['好瓜']
    X = ss.fit_transform(X)
    x,y = np.array(X),np.array(Y).reshape(Y.shape[0],1)
    return x,y
#定义Sigmoid
def sigmoid(x):
    return 1/(1+np.exp(-x))
#求导
def d_sigmoid(x):
    return x*(1-x)


#累积BP算法

def accumulate_BP(x,y,dim=10,eta=0.8,max_iter=500):
    n_samples = x.shape[0]
    w1 = np.zeros((x.shape[1],dim))
    b1 = np.zeros((n_samples,dim))
    w2 = np.zeros((dim,1))
    b2 = np.zeros((n_samples,1))
    losslist = []
    for ite in range(max_iter):
        ##前向传播
        u1 = np.dot(x,w1)+b1
        out1 = sigmoid(u1)
        u2 = np.dot(out1,w2)+b2
        out2 = sigmoid(u2)
        loss = np.mean(np.square(y - out2))/2
        losslist.append(loss)
        print('iter:%d  loss:%.4f'%(ite,loss))
 ##更新

        d_out2 = -(y - out2)
        d_u2 = d_out2*d_sigmoid(out2)
        d_w2 = np.dot(np.transpose(out1),d_u2)
        d_b2 = d_u2
        d_out1 = np.dot(d_u2,np.transpose(w2))
        d_u1 = d_out1*d_sigmoid(out1)
        d_w1 = np.dot(np.transpose(x),d_u1)
        d_b1 = d_u1

        w1 = w1 - eta*d_w1
        w2 = w2 - eta*d_w2
        b1 = b1 - eta*d_b1
        b2 = b2 - eta*d_b2

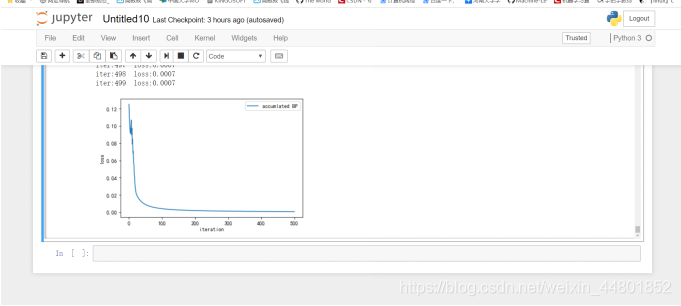

    ##补充Loss可视化代码
    plt.figure()
    plt.plot([i+1 for i in range(max_iter)],losslist)
    plt.legend(['accumlated BP'])
    plt.xlabel('iteration')
    plt.ylabel('loss')
    plt.show()
    return w1,w2,b1,b2

#标准BP算法
def standard_BP(x,y,dim=10,eta=0.8,max_iter=500):
    n_samples = 1
    w1 = np.zeros((x.shape[1],dim))
    b1 = np.zeros((n_samples,dim))
    w2 = np.zeros((dim,1))
    b2 = np.zeros((n_samples,1))
    losslist = []
#补充标准BP算法代码

    for ite in range(max_iter):
        loss_per_ite = []
        for m in range(x.shape[0]):
            xi,yi = x[m,:],y[m,:]
            xi,yi = xi.reshape(1,xi.shape[0]),yi.reshape(1,yi.shape[0])
            #前向传播
            u1 = np.dot(xi,w1)+b1
            out1 = sigmoid(u1)
            u2 = np.dot(out1,w2)+b2
            out2 = sigmoid(u2)
            loss = np.square(yi - out2)/2
            loss_per_ite.append(loss)
            print('iter:%d  loss:%.4f'%(ite,loss))
             #反向传播
            d_out2 = -(yi - out2)
            d_u2 = d_out2*d_sigmoid(out2)
            d_w2 = np.dot(np.transpose(out1),d_u2)
            d_b2 = d_u2
            d_out1 = np.dot(d_u2,np.transpose(w2))
            d_u1 = d_out1*d_sigmoid(out1)
            d_w1 = np.dot(np.transpose(xi),d_u1)
            d_b1 = d_u1

            w1 = w1 - eta*d_w1
            w2 = w2 - eta*d_w2
            b1 = b1 - eta*d_b1
            b2 = b2 - eta*d_b2
        losslist.append(np.mean(loss_per_ite))

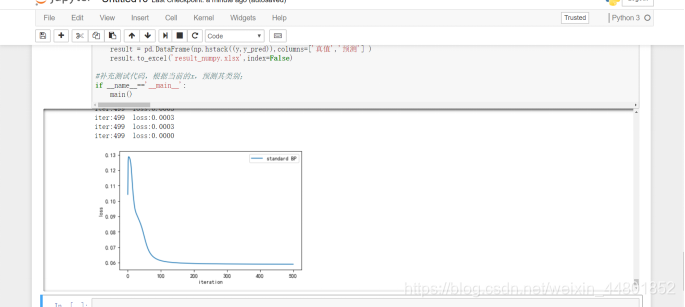

#补充Loss可视化代码
    plt.figure()
    plt.plot([i+1 for i in range(max_iter)],losslist)
    plt.legend(['standard BP'])
    plt.xlabel('iteration')
    plt.ylabel('loss')
    plt.show()

    return w1,w2,b1,b2

#测试

def main():
    data = pd.read_table('C:/Users/Desktop/watermelon30.txt',delimiter=',')#换成自己的数据集
    data.drop('编号',axis=1,inplace=True)
    x,y = preprocess(data)
    dim = 10
    w1,w2,b1,b2 = standard_BP(x,y,dim)
    # w1,w2,b1,b2 = accumulate_BP(x,y,dim)

    u1 = np.dot(x,w1)+b1
    out1 = sigmoid(u1)
    u2 = np.dot(out1,w2)+b2
    out2 = sigmoid(u2)
    y_pred = np.round(out2)

    result = pd.DataFrame(np.hstack((y,y_pred)),columns=['真值','预测'] )
    result.to_excel('result_numpy.xlsx',index=False)

#补充测试代码，根据当前的x，预测其类别；
if __name__=='__main__':
    main()

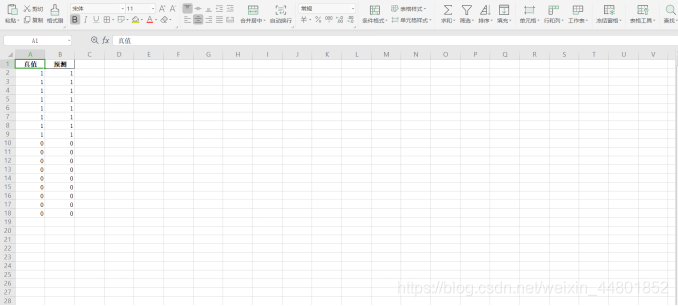

导出的预测表

数据记录：

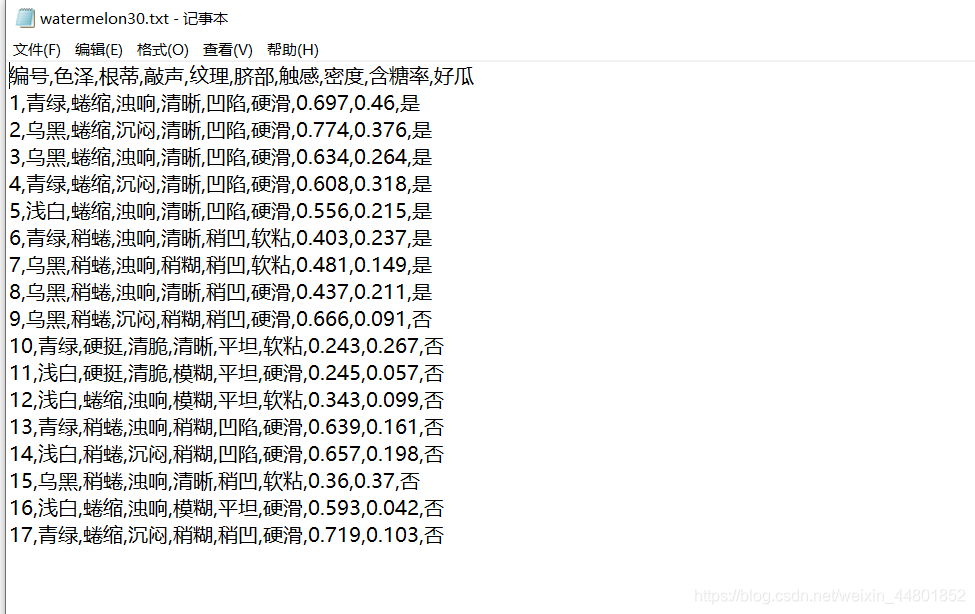

本人用的西瓜数据集

编号,色泽,根蒂,敲声,纹理,脐部,触感,密度,含糖率,好瓜
1,青绿,蜷缩,浊响,清晰,凹陷,硬滑,0.697,0.46,是
2,乌黑,蜷缩,沉闷,清晰,凹陷,硬滑,0.774,0.376,是
3,乌黑,蜷缩,浊响,清晰,凹陷,硬滑,0.634,0.264,是
4,青绿,蜷缩,沉闷,清晰,凹陷,硬滑,0.608,0.318,是
5,浅白,蜷缩,浊响,清晰,凹陷,硬滑,0.556,0.215,是
6,青绿,稍蜷,浊响,清晰,稍凹,软粘,0.403,0.237,是
7,乌黑,稍蜷,浊响,稍糊,稍凹,软粘,0.481,0.149,是
8,乌黑,稍蜷,浊响,清晰,稍凹,硬滑,0.437,0.211,是
9,乌黑,稍蜷,沉闷,稍糊,稍凹,硬滑,0.666,0.091,否
10,青绿,硬挺,清脆,清晰,平坦,软粘,0.243,0.267,否
11,浅白,硬挺,清脆,模糊,平坦,硬滑,0.245,0.057,否
12,浅白,蜷缩,浊响,模糊,平坦,软粘,0.343,0.099,否
13,青绿,稍蜷,浊响,稍糊,凹陷,硬滑,0.639,0.161,否
14,浅白,稍蜷,沉闷,稍糊,凹陷,硬滑,0.657,0.198,否
15,乌黑,稍蜷,浊响,清晰,稍凹,软粘,0.36,0.37,否
16,浅白,蜷缩,浊响,模糊,平坦,硬滑,0.593,0.042,否
17,青绿,蜷缩,沉闷,稍糊,稍凹,硬滑,0.719,0.103,否
