Qlib使用

Qlib https://github.com/microsoft/qlib

将csv文件转化为Qlib的数据格式：https://qlib.readthedocs.io/en/latest/component/data.html#converting-csv-format-into-qlib-format
注意每支股票都要保存成单独一个文档，且文档名字与股票代号一致。
其中factor 也就是 https://crm.htsc.com.cn/doc/2020/10750101/d287ebf2-7f3f-4382-bf3f-cfabd4b90161.pdf中提到的复权。

youbube 教程 https://www.youtube.com/watch?v=z6a4mQTkMwg

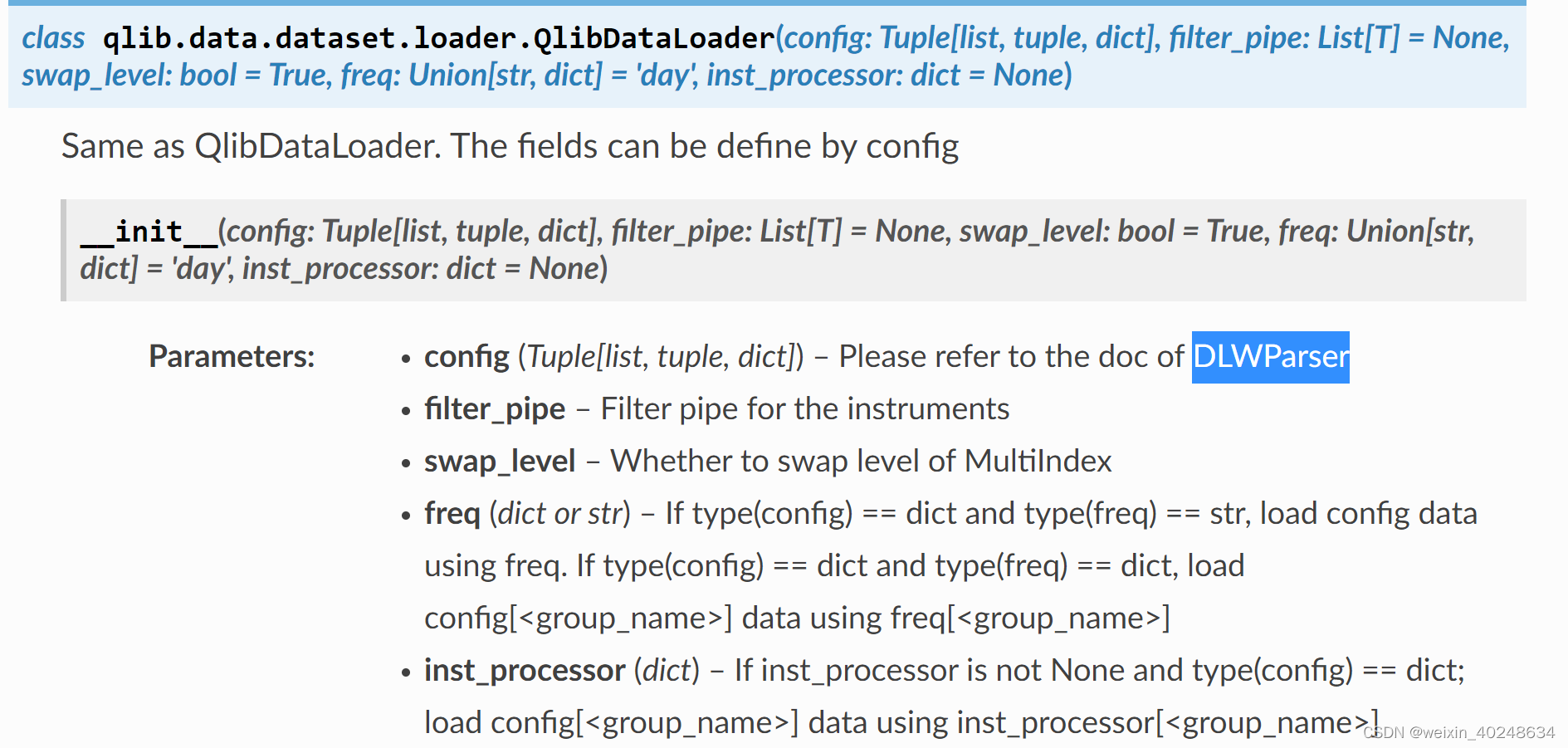

from qlib.data.dataset.loader import QlibDataLoader

MACD_EXP = '(EMA($close, 12) - EMA($close, 26))/$close - EMA((EMA($close, 12) - EMA($close, 26))/$close, 9)/$close'

fields = [MACD_EXP,'$close']  # MACD

names = ['MACD','收盘价']

labels = ['Ref($close, -2)/Ref($close, -1) - 1']  # label

label_names = ['LABEL']

data_loader_config = {

"feature": (fields, names),

"label": (labels, label_names)

  }

data_loader = QlibDataLoader(config=data_loader_config)

df = data_loader.load(instruments='all', start_time='2010-01-01', end_time='2017-12-31')

 print(df)

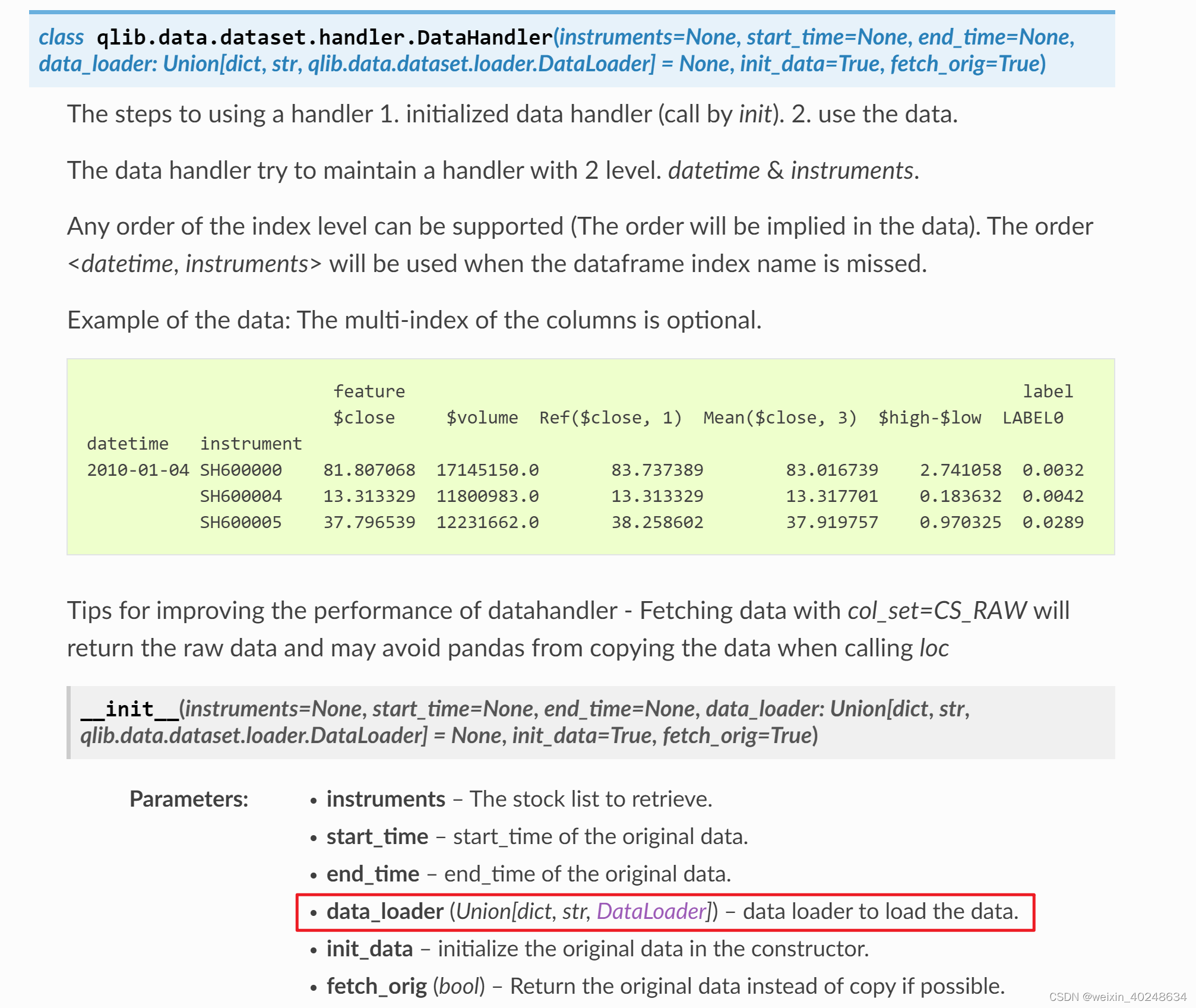

使用Qlib时候直接使用 Data Handler， 是上面 QlibDataLoader 的封装，所以Data Handler 也自然可以使用"label"的设置。

一个完整的例子：

from qlib.data.dataset import DatasetH
# 实例化Data Loader
market = 'sh000300' # 沪深300股票池代码，在instruments文件夹下有对应的sh000300.txt
close_ma = ['EMA($close, 10)', 'EMA($close, 30)'] # EMA($close, 10)表示计算close的10日指数加权均线
ma_names = ['EMA10', 'EMA30']
ret = ["Ref($close, -1)/$close-1"] # 下一日收益率, Ref($close, -1)表示下一日收盘价
ret_name = ['next_ret']
qdl_ma_gp = QlibDataLoader(config={'feature':(close_ma, ma_names), 'label': (ret, ret_name)})

# 实例化Data Handler
shared_processors = [DropnaProcessor()]
learn_processors = [CSZScoreNorm()]
infer_processors = [ZScoreNorm(fit_start_time='20190101', fit_end_time='20211231')]

dh_pr_test = DataHandlerLP(instruments='sh000300',
                           start_time='20190101',
                           end_time='20211231',
                           process_type=DataHandlerLP.PTYPE_I,
                           learn_processors=learn_processors,
                           shared_processors=shared_processors,
                           infer_processors=infer_processors,
                           data_loader=qdl_ma_gp)

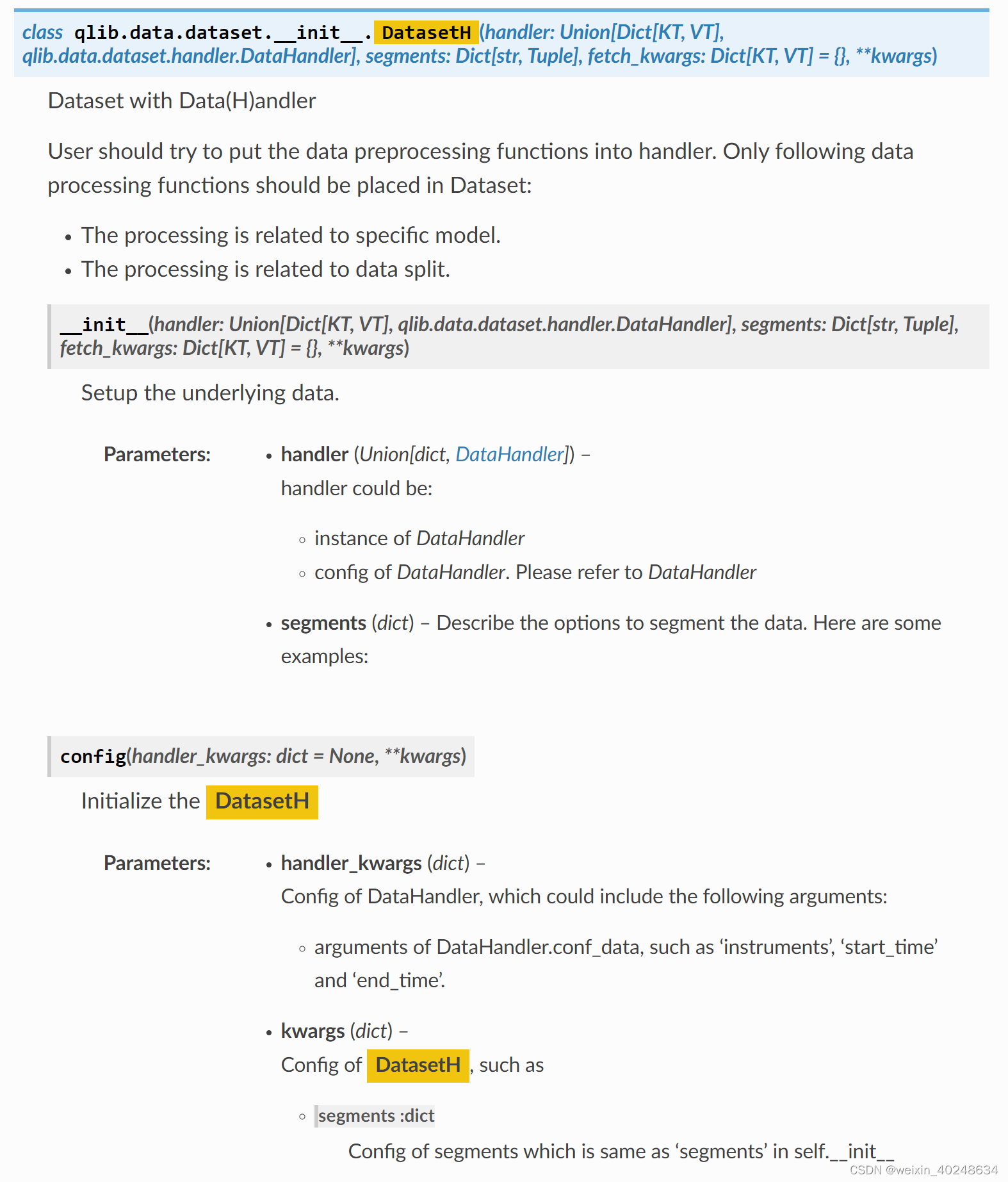

ds = DatasetH(dh_pr_test, segments={"train": ('20190101', '20201231'), "test": ('20210101', '20211231')})

from qlib.data.dataset import DatasetH
from qlib.data.dataset.handler import DataHandlerLP

自定义 https://blog.youkuaiyun.com/qq_37373209/article/details/125224210

所以 最后其实是可以直接用 DatasetH 来设置的

Alpha360:

其data_loader 是指定了feature的，不可改变； 但是label 是可以从kwargs里边导入的。所以想要用自己的alpha 因子得从data_loader 开始写起，而不能直接使用这个类

class Alpha360(DataHandlerLP):
    def __init__(
        self,
        instruments="csi500",
        start_time=None,
        end_time=None,
        freq="day",
        infer_processors=_DEFAULT_INFER_PROCESSORS,
        learn_processors=_DEFAULT_LEARN_PROCESSORS,
        fit_start_time=None,
        fit_end_time=None,
        filter_pipe=None,
        inst_processor=None,
        **kwargs
    ):
        infer_processors = check_transform_proc(infer_processors, fit_start_time, fit_end_time)
        learn_processors = check_transform_proc(learn_processors, fit_start_time, fit_end_time)

    data_loader = {
            "class": "QlibDataLoader",
            "kwargs": {
                "config": {
                    "feature": self.get_feature_config(), ## 这里是特征
                    "label": kwargs.pop("label", self.get_label_config()), # 这里为标签
                },
                "filter_pipe": filter_pipe,
                "freq": freq,
                "inst_processor": inst_processor,
            },
        }
            super().__init__(
            instruments=instruments,
            start_time=start_time,
            end_time=end_time,
            data_loader=data_loader,
            learn_processors=learn_processors,
            infer_processors=infer_processors,
            **kwargs
        )
 def get_feature_config(): # 可以拿来直接使用
        # NOTE:
        # Alpha360 tries to provide a dataset with original price data
        # the original price data includes the prices and volume in the last 60 days.
        # To make it easier to learn models from this dataset, all the prices and volume
        # are normalized by the latest price and volume data ( dividing by $close, $volume)
        # So the latest normalized $close will be 1 (with name CLOSE0), the latest normalized $volume will be 1 (with name VOLUME0)
        # If further normalization are executed (e.g. centralization),  CLOSE0 and VOLUME0 will be 0.
        fields = []
        names = []

        for i in range(59, 0, -1):
            fields += ["Ref($close, %d)/$close" % i]
            names += ["CLOSE%d" % i]
        fields += ["$close/$close"]
        names += ["CLOSE0"]
        for i in range(59, 0, -1):
            fields += ["Ref($open, %d)/$close" % i]
            names += ["OPEN%d" % i]
        fields += ["$open/$close"]
        names += ["OPEN0"]
        for i in range(59, 0, -1):
            fields += ["Ref($high, %d)/$close" % i]
            names += ["HIGH%d" % i]
        fields += ["$high/$close"]
        names += ["HIGH0"]
        for i in range(59, 0, -1):
            fields += ["Ref($low, %d)/$close" % i]
            names += ["LOW%d" % i]
        fields += ["$low/$close"]
        names += ["LOW0"]
        for i in range(59, 0, -1):
            fields += ["Ref($vwap, %d)/$close" % i]
            names += ["VWAP%d" % i]
        fields += ["$vwap/$close"]
        names += ["VWAP0"]
        for i in range(59, 0, -1):
            fields += ["Ref($volume, %d)/($volume+1e-12)" % i]
            names += ["VOLUME%d" % i]
        fields += ["$volume/($volume+1e-12)"]
        names += ["VOLUME0"]

        return fields, names

使用Alpha360的代码为：

from qlib.data.dataset import DatasetH
from qlib.data.dataset.handler import DataHandlerLP

start_time = datetime.datetime.strptime(args.train_start_date, '%Y-%m-%d')
end_time = datetime.datetime.strptime(args.test_end_date, '%Y-%m-%d')
train_end_time = datetime.datetime.strptime(args.train_end_date, '%Y-%m-%d')

hanlder = {'class': 'Alpha360', 'module_path': 'qlib.contrib.data.handler', 'kwargs': {'start_time': start_time, 'end_time': end_time, 'fit_start_time': start_time, 'fit_end_time': train_end_time, 'instruments': args.data_set,
                                                                                         'infer_processors': [{'class': 'RobustZScoreNorm',
                                                                                                                 'kwargs': {'fields_group': 'feature', 'clip_outlier': True}},
                                                                                                                 {'class': 'Fillna', 'kwargs': {'fields_group': 'feature'}}],
                                                                                             'learn_processors': [{'class': 'DropnaLabel'},
                                                                                                                  {'class': 'CSRankNorm',
                                                                                                                    'kwargs': {'fields_group': 'label'}}],
                                                                                               'label': ['Ref($close, -1) / $close - 1']}
                                                                                               }
segments =  { 'train': (args.train_start_date, args.train_end_date), 'valid': (args.valid_start_date, args.valid_end_date), 'test': (args.test_start_date, args.test_end_date)}
dataset = DatasetH(hanlder,segments)

df_train, df_valid, df_test = dataset.prepare( ["train", "valid", "test"], col_set=["feature", "label"], data_key=DataHandlerLP.DK_L,)

>> x = np.arange(10)  # x例子
array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9])

>> np.roll(x, 2)  # axis为None，则会先进行扁平化，然后再向水平滚动2个位置
array([8, 9, 0, 1, 2, 3, 4, 5, 6, 7])

https://blog.youkuaiyun.com/qq_37373209/article/details/125224210
