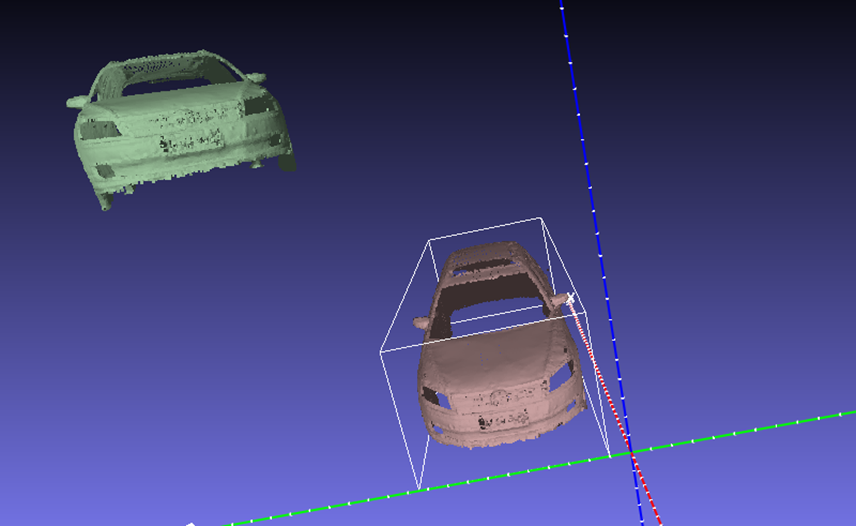

使用Meshlab进行三维点云匹配

本文介绍了在MeshLab中进行点云配准的操作。先导入两个点云文件,通过Align按钮进行初始配准,手动选择匹配点。初始配准后进行ICP配准,可根据点云情况修改默认参数,如采样点数目、最小起始距离等,还提及变换矩阵与结果验证及点云规模不一致时的实验。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

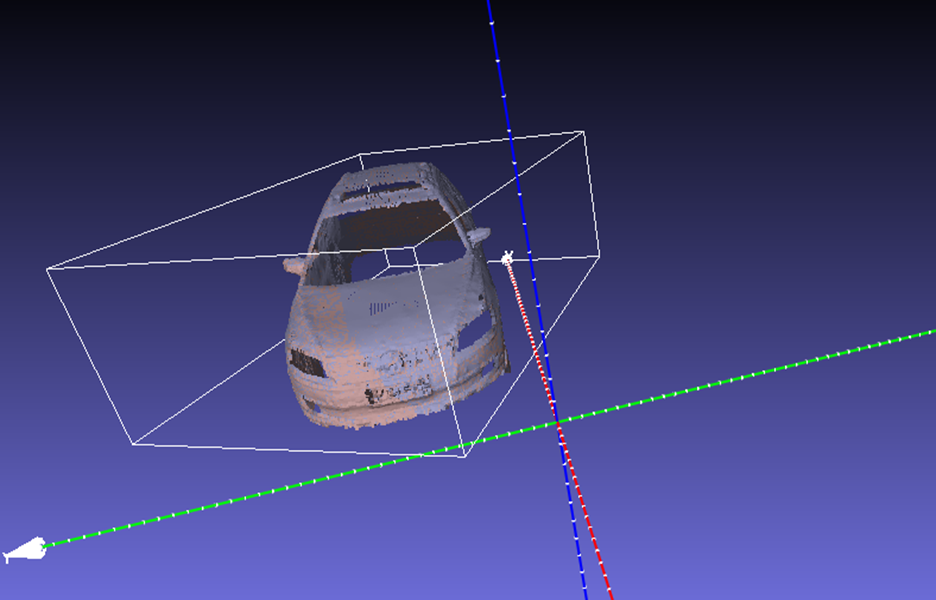

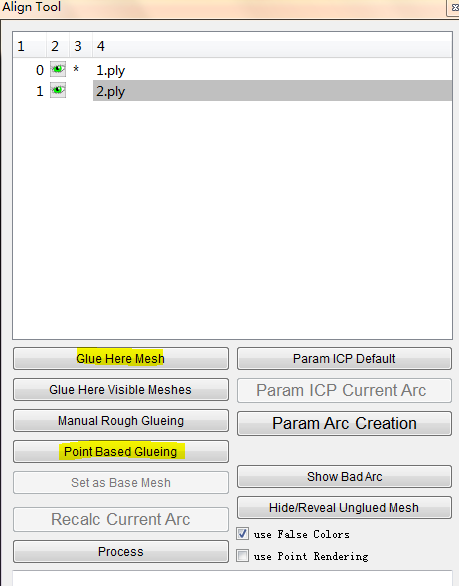

1. 在MeshLab中导入两个点云文件,位置有差异。点击工具栏上的Align按钮进行配准,这时会出现一个Align Tool的对话框。首先选择参考点云,然后点击Glue Here Mesh,作为参考的点云会出现一个框,选择好之后点云名字前面会出现一个星号。如下图所示:

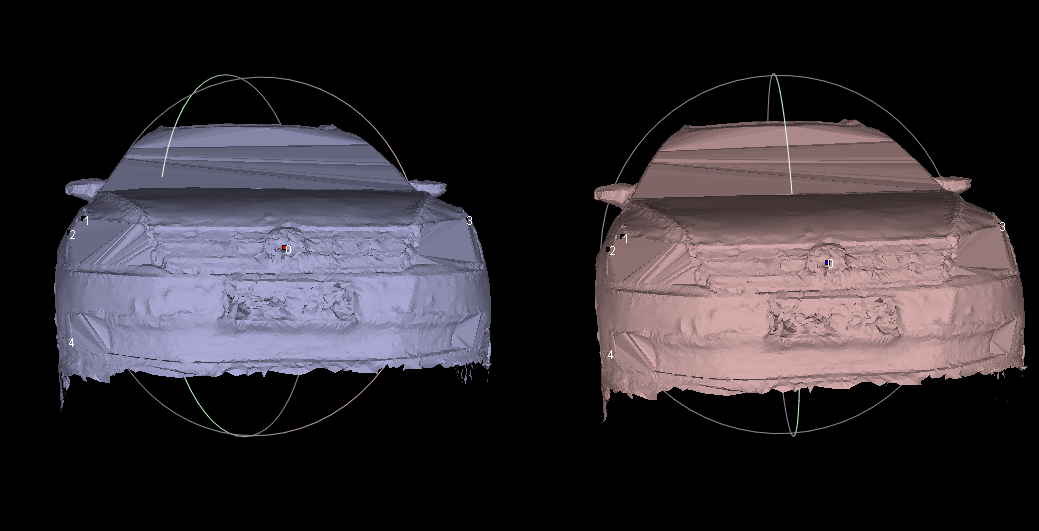

2. 选择另一块点云,点击Point Based Glueing,在两块点云上手动选择匹配点,至少选4对点之后点击OK确认。双击鼠标左键进行选择,按住Ctrl双击左键消除选择。

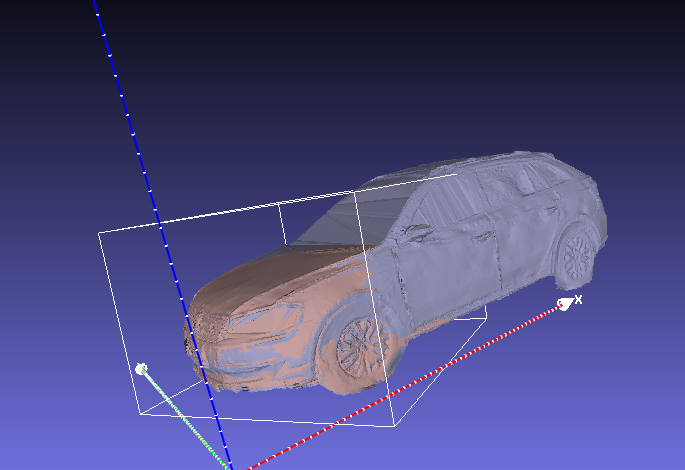

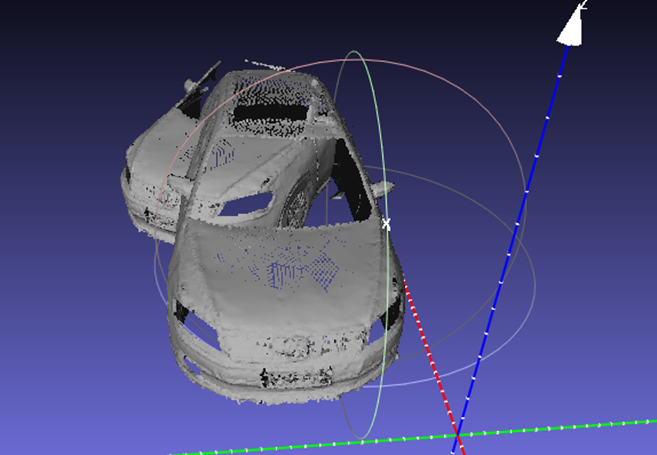

3. 运行之后,两块点云基本上重合在了一起,并且第二块点云名字前也出现了一个星号。如下图所示:(粉色点云和紫色点云重合)

4. 初始配准之后,将进行ICP配准,注意Param ICP Default中的默认参数,根据需要进行修改。如果我们的两块点云大小相同,那么就要勾选Rigid matching选型。如果我们不勾选,那最终的变换矩阵中将会有一个缩放因子。点击Process之后软件开始自动计算

  • 采样点数目(Sample Number):this is the number of samples it pulls from each mesh to compare to the other meshes. You do not want to make this number too big. A small sample typically works quiet well. 1,000 to 5,000 is usually plenty.
  • Minimal starting distance:this ignores any samples that are outside of this range. Typically for a manually aligned object you want this to be large enough to encompass your 'point picking' error. A value of 5 or 10 (in millimeters) is usually a good start. Once the initial alignements are complete, drop it down to 1mm to 'fine tune'
  • Target distance(相当于均方误差mse):an average alignment error value that the software will try to obtain from the process
  • 最大迭代次数(Max iteration number):the maximum number of iterations that the software will perform。

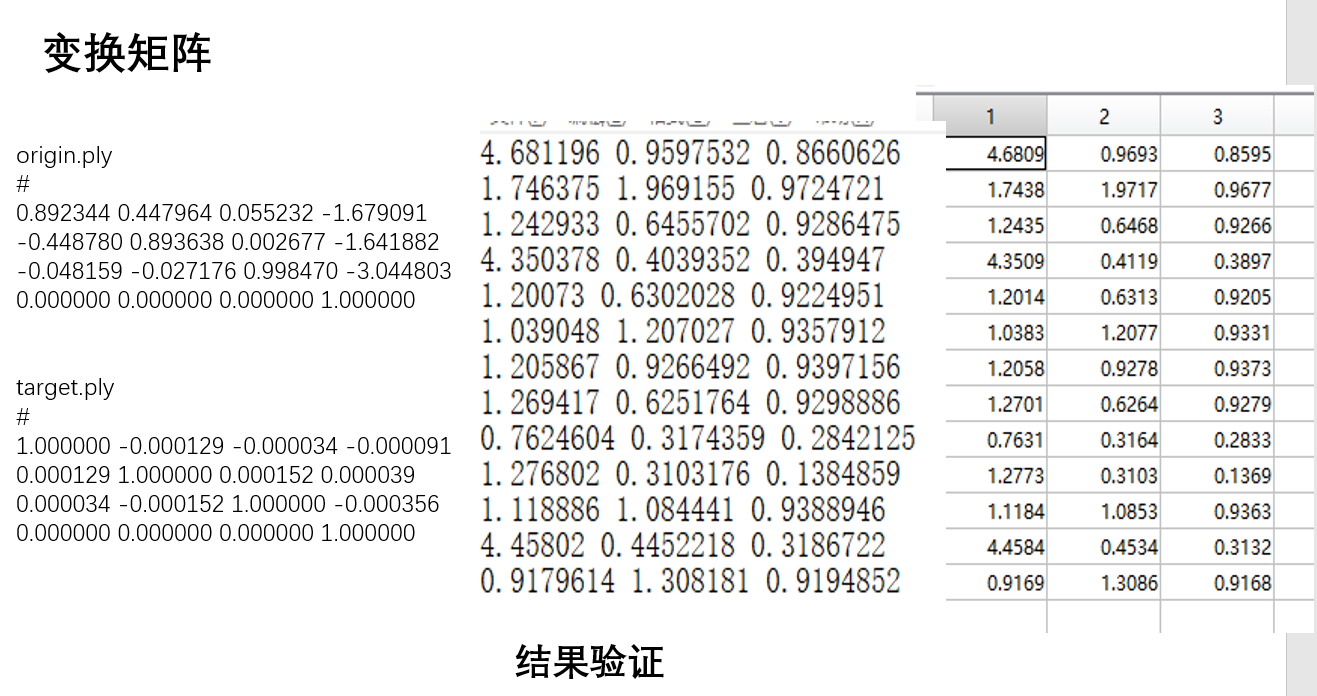

5. 变换矩阵与结果验证

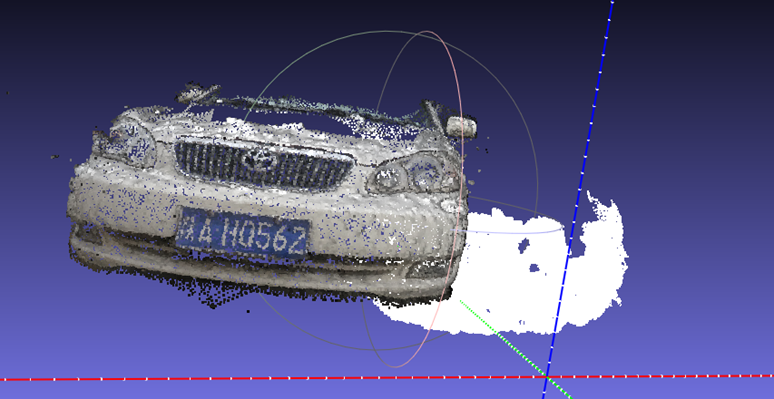

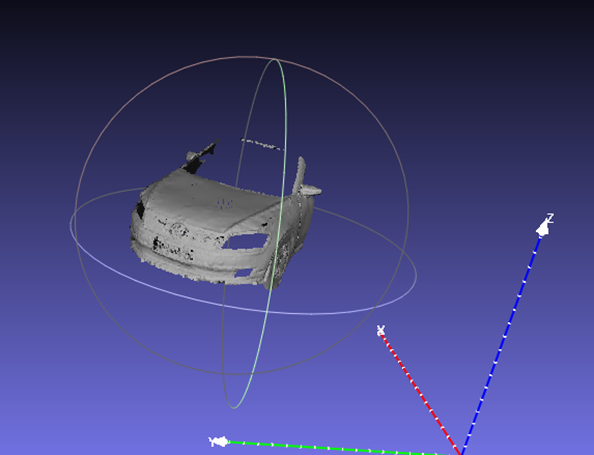

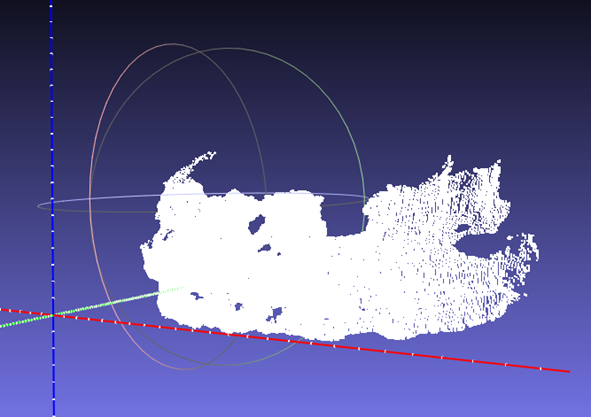

6. 点云规模不一致情况下实验

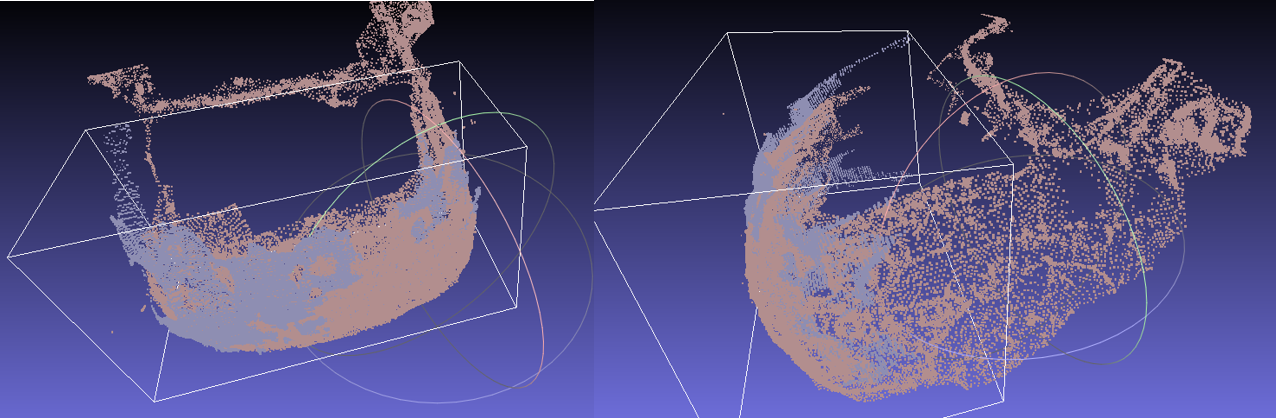

(1)

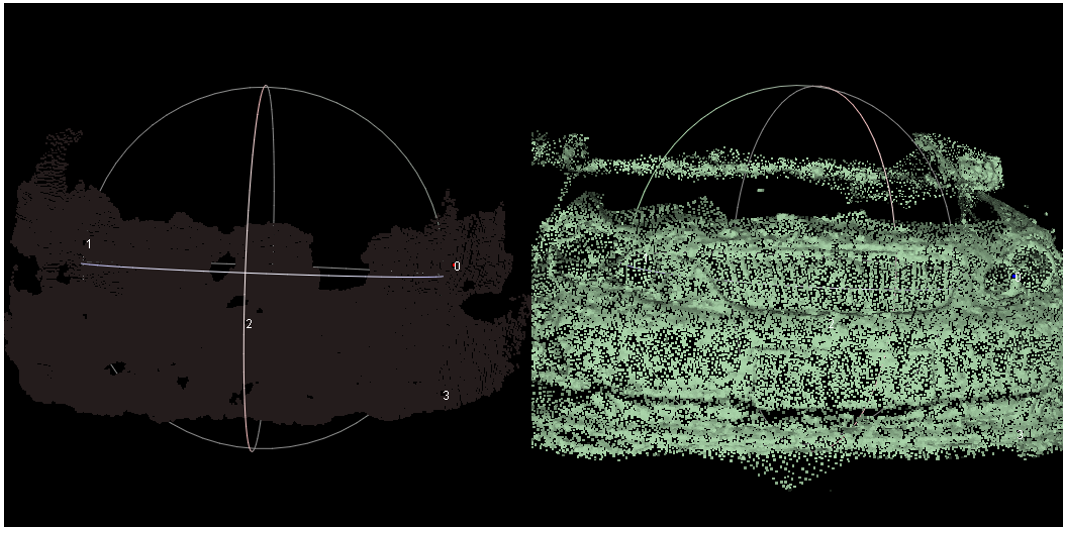

(2)



参考:https://blog.youkuaiyun.com/eric_e/article/details/80664042
