circlize包可绘制的几个图形示例

最新推荐文章于 2025-04-25 13:50:45 发布

原创最新推荐文章于 2025-04-25 13:50:45 发布 · 1.2k 阅读

CC 4.0 BY-SA版权

以下是circlize包绘制的几个图形示例。

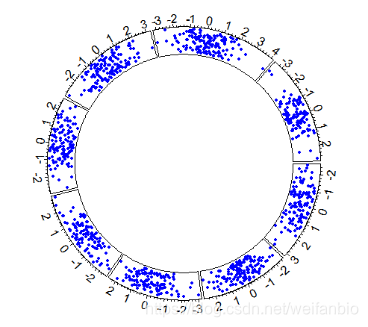

circular scatterplot

library(circlize)

# 模拟数据集
data = data.frame(
  factor = sample(letters[1:8], 1000, replace = TRUE),
  x = rnorm(1000),
  y = runif(1000)
)
circos.initialize( factors=data$factor, x=data$x )

# 创建区域
circos.trackPlotRegion(factors = data$factor, y = data$y, panel.fun = function(x, y) {
  circos.axis()
})

# 添加散点
circos.trackPoints(data$factor, data$x, data$y, col = "blue", pch = 16, cex = 0.5)

在这里插入图片描述

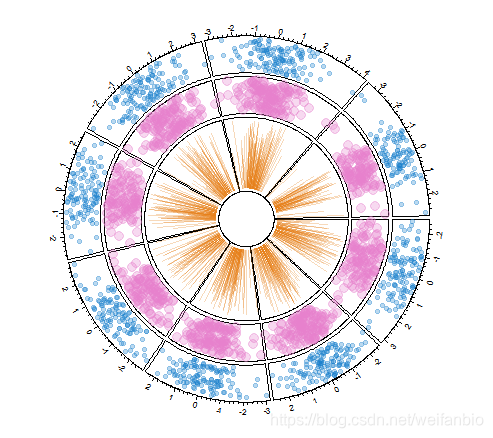

library(circlize)
circos.clear()

#模拟数据集
data = data.frame(
  factor = sample(letters[1:8], 1000, replace = TRUE),
  x = rnorm(1000),
  y = runif(1000)
)


par(mar = c(1, 1, 1, 1) )
circos.initialize(factors = data$factor, x = data$x )


# # 创建第一圈轨道区域
circos.trackPlotRegion(factors = data$factor, y=data$y, panel.fun = function(x, y) {
  circos.axis(labels.cex=0.5, labels.font=1, lwd=0.8)
})
# 添加散点
circos.trackPoints(data$factor, data$x, data$y, col = rgb(0.1,0.5,0.8,0.3), pch=20)


# # 创建第二圈轨道区域
circlize::circos.trackPlotRegion(factors = data$factor, y=data$y, panel.fun = function(x, y) {
  circos.axis(labels=FALSE, major.tick=FALSE)
})
#添加散点
circos.trackPoints(data$factor, data$x, data$y, col = rgb(0.9,0.5,0.8,0.3), pch=20, cex=2)


# # 创建第三圈轨道区域
circos.par("track.height" = 0.4)
circos.trackPlotRegion(factors = data$factor, y=data$y, panel.fun = function(x, y) {
  circos.axis(labels=FALSE, major.tick=FALSE)
})
circos.trackLines(data$factor, data$x, data$y, col = rgb(0.9,0.5,0.1,0.3), pch=20, cex=2, type="h")

在这里插入图片描述

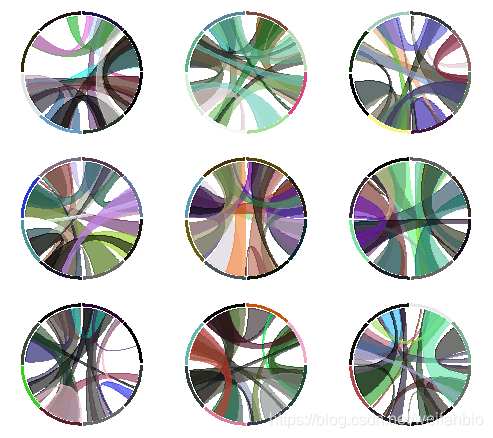

chord diagram

library(circlize)
# 布局
layout(matrix(1:9, 3, 3))

# 绘图
for(i in 1:9) {
  par(mar = c(0.5, 0.5, 0.5, 0.5), bg=rgb(1,1,1,0.1) )
  factors = 1:8
  circos.par(cell.padding = c(0, 0, 0, 0))
  circos.initialize(factors, xlim = c(0, 1))
  circos.trackPlotRegion(ylim = c(0, 1), track.height = 0.05, bg.col = rand_color(8), bg.border = NA )

  # add links
  for(i in 1:20) {
    se = sample(1:8, 2)
    circos.link(se[1], runif(2), se[2], runif(2), col = rand_color(1, transparency = 0.4))

  }
  circos.clear()
}
