Unity对接ModbusTCP

测试版本：unity2019.4.1和Unity2021.3.4均无问题

1、测试工具和dll文件链接：

链接：https://pan.baidu.com/s/1kLPesjtCJQOlT9Fq7qDEYA
提取码：rmug

2、导入NModbus4.dll文件到Unity的Plugins文件夹中

3、测试工具的使用

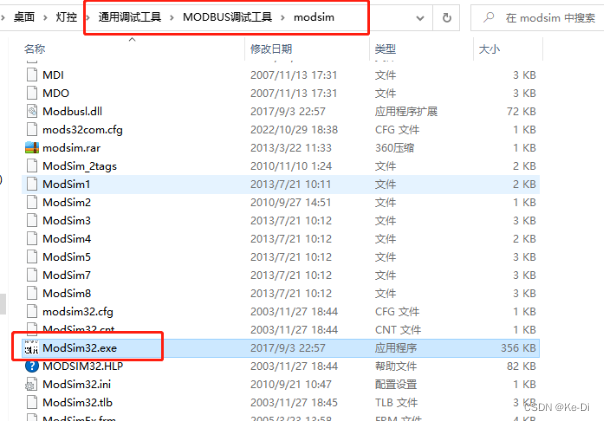

找到文件夹内ModSim32.exe程序，双击运行

弹出警告，点击确定

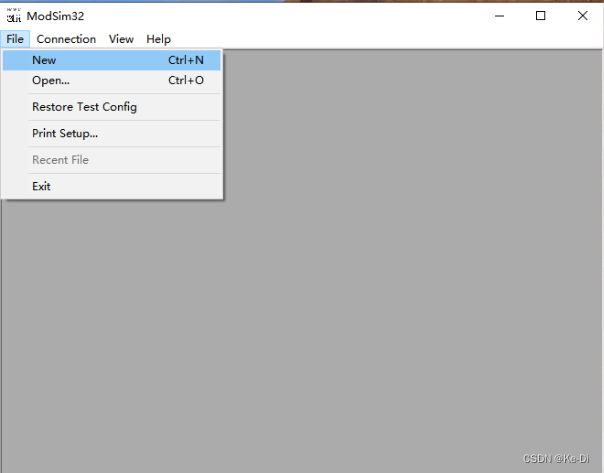

进入主界面点击File→New新建一个ModSim

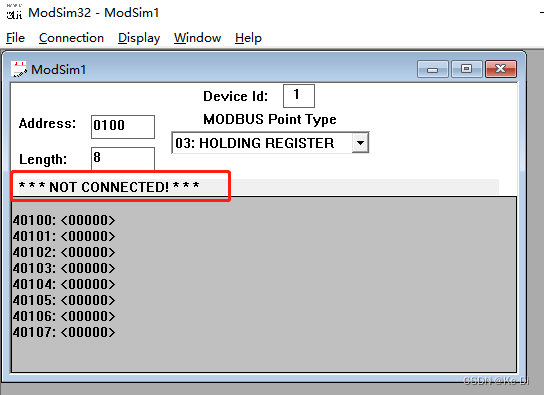

当前未连接，所以会有NOT CONNECTEDI警告

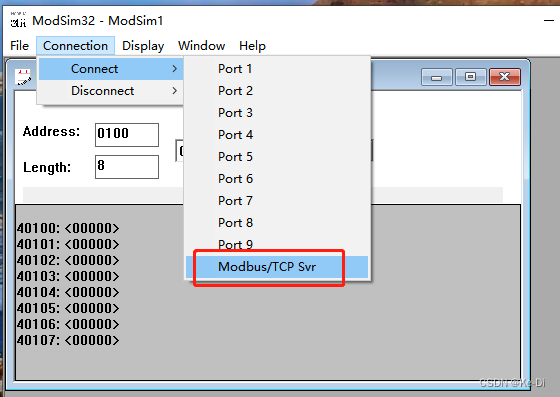

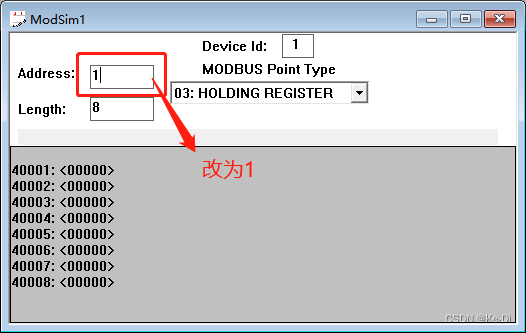

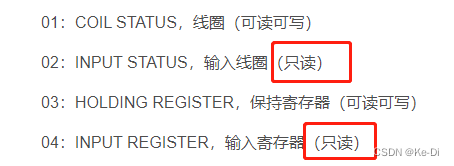

根据需求选择对应连接模式

4、脚本

对应不同模式，使用不同方法

//using LitJson;
using Modbus.Device;
using System;
using System.Collections;
using System.IO;
using System.Net;
using System.Net.Sockets;
using System.Threading;
using UnityEngine;
using UnityEngine.Networking;
using UnityEngine.UI;
/// <summary>
/// Modbus Tcp/IP
/// </summary>
public class Concent_ : MonoBehaviour
{
    public ModbusMaster modbusIpMaster;
    public TcpClient tcpClient;
    IPAddress Address = new IPAddress(new byte[] { 127, 0, 0, 1 });
    public int Port = 502;
    public bool Conen = false;
    public bool Reda_White;
    private ushort[] Udata = new ushort[] { 0x03 };
    private ushort star = 1;
    Thread mythread;
    public bool isconect = false;

    ushort[] AoData11;
    string ip;
    private void Awake()
    {
        instance = this;
        StartCoroutine(GetData());
    }
    void Start()
    {
        //Ip_.text = "127.0.0.1";//192.168.1.140
        //Port_.text = "502";
 OpenConnect_("127.0.0.1", 502);

        //OpenConnect_(ip, 502);
    }

  //  IEnumerator GetData()
 //   {
    //    var uri = new System.Uri(Path.Combine(Application.streamingAssetsPath, "IP.json"));
    //    UnityWebRequest www = UnityWebRequest.Get(uri);
    //    yield return www.SendWebRequest();

     //   if (www.isNetworkError || www.isHttpError)
    //    {
     //       Debug.Log(www.error);
      //  }
      //  else
     //   {
            // Debug.Log(www.downloadHandler.text);
       //     string jsonStr = www.downloadHandler.text;
       //     IPTest ques = JsonMapper.ToObject<IPTest>(jsonStr);
        //    ip = ques.ip;
        //    Debug.Log(ip);
       // }
   // }
    public void OpenConnect_(string ip, int port)
    {

        if (Connect(ip, port))
        {
            Debug.Log("连接成功");
        }
        else
        {
            Debug.Log("连接失败");        }
    }
    public bool Connect(string ip, int port)
    {
        try
        {
            tcpClient = new TcpClient(ip, port);

            tcpClient.SendTimeout = 1;
            modbusIpMaster = ModbusIpMaster.CreateIp(tcpClient);

            mythread = new Thread(WriteMessageFromClient);

            mythread.Start();
            Conen = true;
            return true;
        }
        catch (Exception ex)
        {
            tcpClient.Close();
            Debug.LogError(ex.Message);
            return false;
        }
    }
    public void WriteMessageFromClient()
    {
        while (Conen)
        {
            try
            {
                if (Reda_White)
                {
                    Write_jiChunQi(star, Udata);
                    Debug.Log("发送成功");
                }
                if (kuse)
                {
                    Debug.Log("a");
                    //READ HOLDING REGISTER
                    //    要从中读取值的设备地址(ModSim  id)  开始阅读的地址(1~125)  要读取的保存寄存器的数目
                    ushort[] msg = modbusIpMaster.ReadHoldingRegisters(0x01, 0x01, 0x02);
                }
            }
            catch
            {
                break;
            }
        }
        tcpClient.Close();
    }
    public void Write_jiChunQi(ushort star, ushort[] data)
    {
        modbusIpMaster.WriteMultipleRegisters(1, star, data);
    }
    private byte GetHex(string msg)
    {
        byte hex = Convert.ToByte(msg);
        return hex;
    }
    public int GetDexx(string msg)
    {
        int res = Convert.ToInt32(msg, 16);
        return res;
    }
    private void OnApplicationQuit()
    {
        tcpClient.Close();
    }
    public bool kuse = false;
    bool[] aa = new bool[] { true, false, true };


    bool[] bool_coilstatus;
    public ushort[] HoldingRegister;
    public void BtnOnClick()
    {
        modbusIpMaster.WriteSingleCoil(0x01, 0, !zongkaiguan);
    }
    void FixedUpdate()
    {
        //if (Input.GetKeyDown(KeyCode.Alpha1))//第一个发送
        //{
        //    modbusIpMaster.WriteSingleCoil(0x01, 0, false);//发送单个
        //    //modbusIpMaster.WriteMultipleCoils(0x01, 0, aa);//发送数组
        //    Debug.Log("发送成功");
        //}
        //if (Input.GetKeyDown(KeyCode.Alpha2))//第三个发送
        //{
        //    //modbusIpMaster.WriteSingleRegister(0x01, 0, 7);//发送单个
        //    modbusIpMaster.WriteMultipleRegisters(0x01, 0, new ushort[] { 10, 2, 2 });//发送数组
        //    Debug.Log("发送成功");
        //}



        //if (Input.GetKeyDown(KeyCode.Alpha5))//第一个
        //{
        //    bool_coilstatus = modbusIpMaster.ReadCoils(0x01, 0, 0x1);
        //    zongkaiguan = bool_coilstatus[0];
        //    foreach (var item in bool_coilstatus)
        //    {
        //        Debug.Log("读取到的数据:" + item);
        //    }
        //}
        //if (Input.GetKeyDown(KeyCode.Alpha6))//第二个
        //{
        //    // modbusIpMaster.ReadInputRegistersAsync(0x01, 0, 0x5);
        //    //modbusIpMaster.ReadInputsAsync(0x01, 0, 0x5);
        //    s = modbusIpMaster.ReadInputs(0x01, 0, 0xe);
        //    foreach (var item in s)
        //    {
        //        Debug.Log("读取到的数据:" + item);
        //    }
        //}
        //if (Input.GetKeyDown(KeyCode.Alpha7))//第三个
        //{
        //    HoldingRegister = modbusIpMaster.ReadHoldingRegisters(0x01, 0, 0x03);

        //    //string str = AoData.ToString();
        //    //Debug.Log(AoData.Length);
        //    foreach (var item in HoldingRegister)
        //    {
        //        Debug.Log("读取到的数据:" + item);
        //    }
        //}
        //if (Input.GetKeyDown(KeyCode.Alpha8))//第四个
        //{
        //    ushort[] msg = modbusIpMaster.ReadInputRegisters(0x01, 0, 0x01);
        //    foreach (var item in msg)
        //    {
        //        Debug.Log(item);
        //    }
        //}
    }
}

public class IPTest
{
    public string ip;
}
