Unity实现类似于苹果视频播放器视频播放进度条及声音进度条拖拽功能

最新推荐文章于 2025-12-18 13:49:49 发布

原创最新推荐文章于 2025-12-18 13:49:49 发布 · 104 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#unity #音视频 #游戏引擎

本文介绍如何在Unity中实现视频播放的控制，包括进度条控制播放进度、音量调节等功能，并提供详细步骤及代码示例。

实现步骤

1.编写视频播放脚本，脚本代码如下所示： `using System.Collections; using System.Collections.Generic; using UnityEngine; using UnityEngine.Video; using UnityEngine.UI;

namespace MoviePlay { public class PlayVideo : MonoBehaviour {

    #region 参数
    //定义参数获取video组件和RawImage组件
    public VideoPlayer videoPlayer;

    public RawImage rawImage;

    public string[] movieUrl;

    internal bool isPlay = false;
    //声音播放组件
    public AudioSource thisAudioSource;
    //是否静音
    bool isMute = false;
    //游戏管理类
    //ThisGameManager gameManager;
    //控制按钮上的文字
    //public Text bofangText;
    //按钮图片
    public Image bofangButtonImage;
    //按钮图片精灵数组
    public Sprite[] thisSprite;
    //Slider
    public Slider videoTimeSlider;
    //音量控制Slider
    public Slider yinSlider;

    #endregion

    #region 基本方法
    // Use this for initialization
    void Start()
    {
        BeginString();
    }

    // Update is called once per frame
    void Update()
    {
        PlayMovie();
    }

    #endregion

    #region 私有方法
    /// <summary>
    /// 初始化数据
    /// </summary>
    void BeginString()
    {
        //videoPlayer = GameObject.Find("moviePlayManager").GetComponent<VideoPlayer>();
        //thisAudioSource = GameObject.Find("moviePlayManager").GetComponent<AudioSource>();
        //gameManager = GameObject.Find("Canvas").GetComponent<ThisGameManager>();
        //movieUrl[0] = Application.streamingAssetsPath + "/视频/0.mp4";
        isPlay = false;
    }

    /// <summary>
    /// 播放视频函数
    /// </summary>
    void PlayMovie()
    {
        //如果videoPlayer没有对应的视频texture，则返回
        if (videoPlayer.texture == null)
        {
            return;
        }
        //把VideoPlay的视频渲染到UGUI的RawImage上
        rawImage.texture = videoPlayer.texture;
        videoTimeSlider.value = (float)(videoPlayer.time / videoPlayer.clip.length);
        //videoTimeSlider.value = (float)(videoPlayer.time);
        if (isPlay)
        {
            if (videoPlayer.frame == (long)videoPlayer.frameCount)
            {
                //gameManager.ToMovieEnd();
            }
        }
    }

    /// <summary>
    /// 播放视频0逻辑
    /// </summary>
    public void ToPlayThis0()
    {
        //videoPlayer.url = movieUrl[0];
        StartCoroutine(ToPlay0());
    }

    /// <summary>
    /// 播放视频0的协程
    /// </summary>
    /// <returns></returns>
    IEnumerator ToPlay0()
    {
        yield return new WaitForSeconds(0.1f);
        BeginPlay();
    }

    /// <summary>
    /// 重播
    /// </summary>
    public void ToReStartVideo()
    {
        videoPlayer.Play();
        isPlay = true;
    }

    /// <summary>
    /// 开始播放视频
    /// </summary>
    void BeginPlay()
    {
        if (!isPlay)
        {
            videoPlayer.Play();
            isPlay = true;
        }
    }

    /// <summary>
    /// 停止播放视频
    /// </summary>
    public void StopPlay()
    {
        if (isPlay)
        {
            videoPlayer.Stop();
            isPlay = false;
        }
    }

    /// <summary>
    /// 暂停播放视频逻辑
    /// </summary>
    public void PauseThis()
    {
        if (isPlay)
        {
            videoPlayer.Pause();
            isPlay = false;
            //bofangText.text = "播放";
            bofangButtonImage.sprite = thisSprite[1];
            //Debug.Log("123");
        }
        else
        {
            videoPlayer.Play();
            isPlay = true;
            //bofangText.text = "暂停";
            bofangButtonImage.sprite = thisSprite[0];
        }
    }

    /// <summary>
    /// 增加音量逻辑
    /// </summary>
    public void AddVolume()
    {
        thisAudioSource.volume += 0.1f;
    }

    /// <summary>
    /// 减小音量逻辑
    /// </summary>
    public void DecreaseVolume()
    {
        thisAudioSource.volume -= 0.1f;
    }

    /// <summary>
    /// 使用Slider改变音量
    /// </summary>
    public void ToChaneMute()
    {
        thisAudioSource.volume = yinSlider.value;
    }

    /// <summary>
    /// 静音功能
    /// </summary>
    public void MuteVolume()
    {
        if (!isMute)
        {
            thisAudioSource.mute = true;
            isMute = true;
        }
        else
        {
            thisAudioSource.mute = false;
            isMute = false;
        }
    }

    public void ToAddVideo()
    {
        videoPlayer.time += 0.01f * videoPlayer.clip.length;
        //Debug.Log(videoPlayer.time.ToString());
    }
    public void ToDelVideo()
    {
        videoPlayer.time -= 0.01f * videoPlayer.clip.length;
        //Debug.Log(videoPlayer.time.ToString());
    }

    #endregion
}

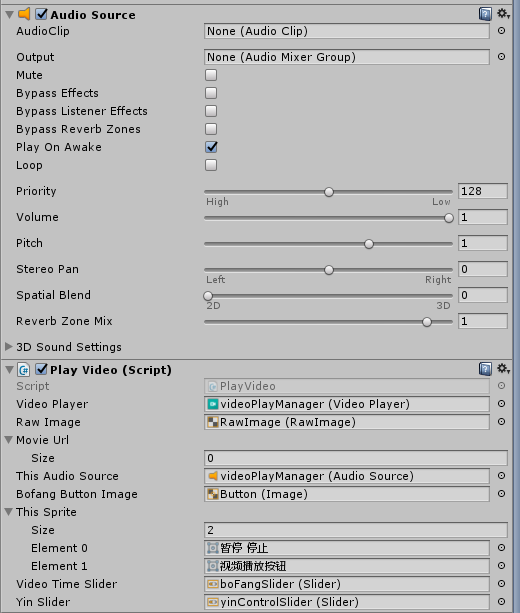

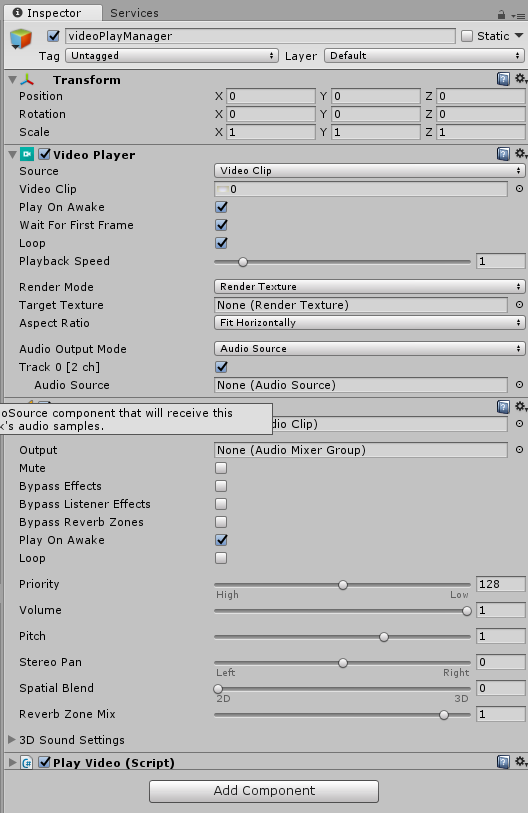

} ` 2.在场景中创建一个空物体，将videoPlayer等组件挂载到上面，并且将PlayVideo脚本挂载到该物体上(特别提示：videoPlayer视频的加载一定要选择VideoClip，不能使用URL，否则使用进度条控制时会报错)，如下图所示：

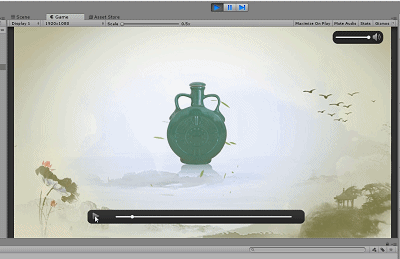

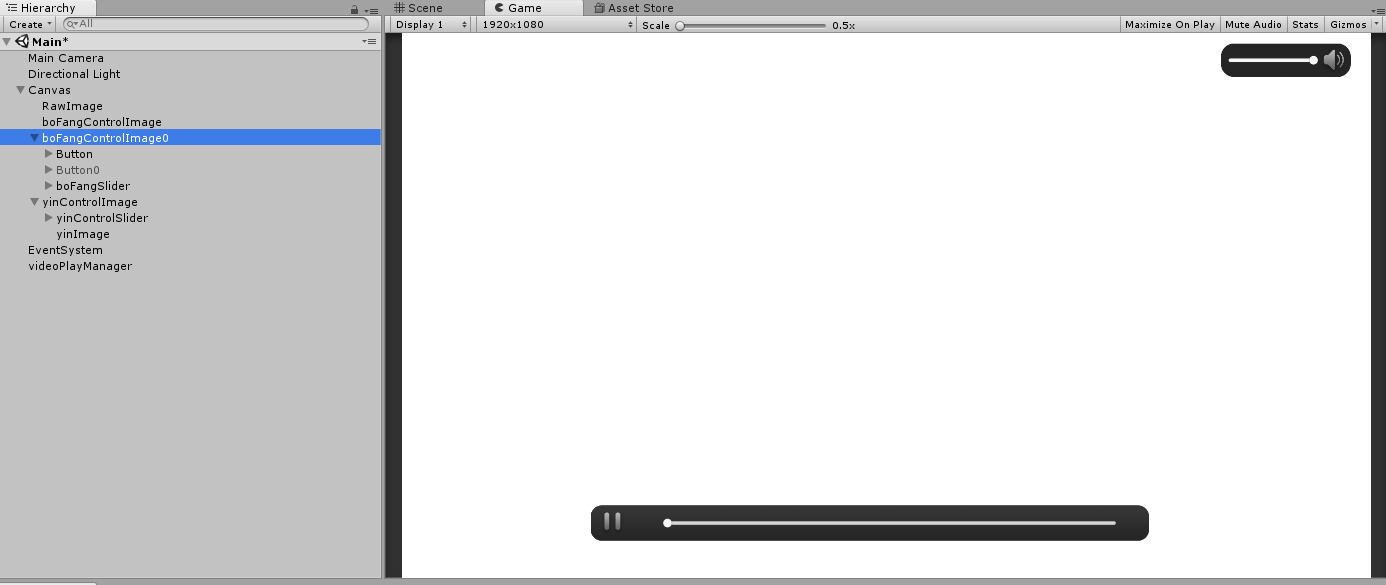

3.搭建如下所示UI，用于实现进度条控制视频的前进和后退以及音量的控制等，UI搭建如下图所示：

4.创建UIInfo0.cs脚本，该脚本的功能是实现类似于苹果播放器中那种点击到进度条进度条才显示的功能，脚本代码如下图所示： `using System.Collections; using System.Collections.Generic; using UnityEngine; using UnityEngine.EventSystems;

namespace UIManager { public class UIInfo0 : MonoBehaviour, IPointerEnterHandler, IPointerExitHandler { //播放控制面板 public GameObject boFangImage;

    /// <summary>
    /// 鼠标进入逻辑
    /// </summary>
    /// <param name="eventData"></param>
    public void OnPointerEnter(PointerEventData eventData)
    {

    }

    /// <summary>
    /// 鼠标出逻辑
    /// </summary>
    /// <param name="eventData"></param>
    public void OnPointerExit(PointerEventData eventData)
    {
        boFangImage.SetActive(false);
    }
}

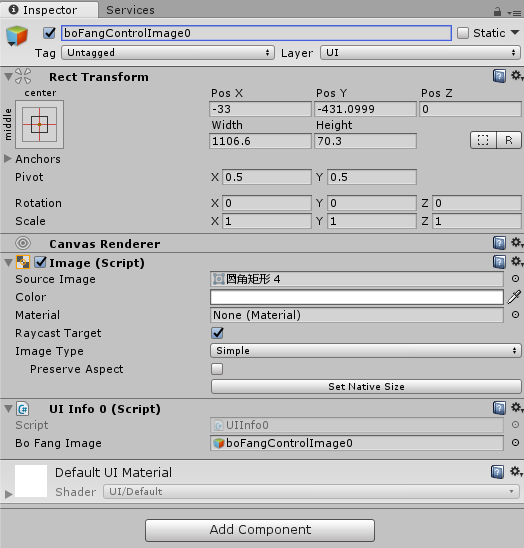

} ` 5.将UIInfo0.cs脚本挂载到场景中的boFangControlImage0物体上，并且将自身赋值到脚本上，如下图所示：

6.创建UIInfo.cs脚本，该脚本的作用同上，也是控制进度条物体显隐的，脚本代码如下图所示： `using System.Collections; using System.Collections.Generic; using UnityEngine; using UnityEngine.EventSystems;

namespace UIManager { public class UIInfo : MonoBehaviour,IPointerEnterHandler,IPointerExitHandler { //播放控制面板 public GameObject boFangImage;

    /// <summary>
    /// 鼠标进入逻辑
    /// </summary>
    /// <param name="eventData"></param>
    public void OnPointerEnter(PointerEventData eventData)
    {
        boFangImage.SetActive(true);
        //Debug.Log("123");
    }

    /// <summary>
    /// 鼠标出逻辑
    /// </summary>
    /// <param name="eventData"></param>
    public void OnPointerExit(PointerEventData eventData)
    {

    }
}

}

` 7.将UIInfo.cs脚本挂载到场景中的boFangControlImage物体上，同时将boFangControlImage0物体赋值到该物体上，如下图所示：

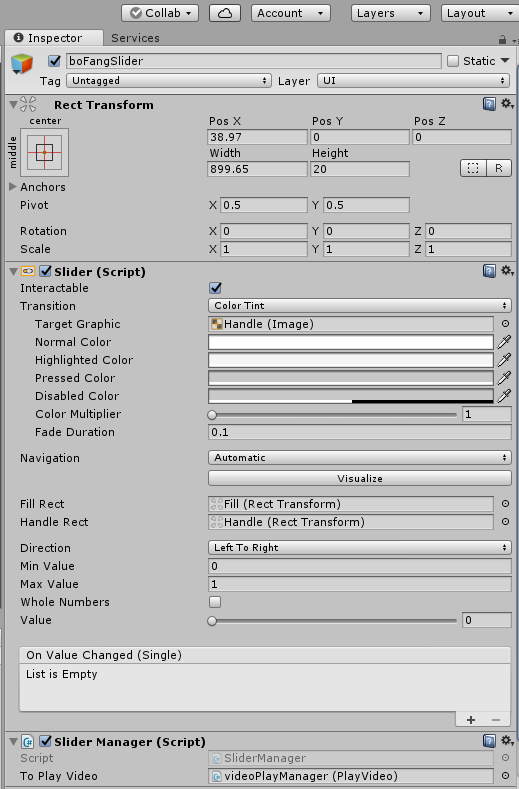

8.创建SliderManager.cs脚本，该脚本的作用是实现拖拽进度条控制播放进度的功能，代码如下所示： `using MoviePlay; using System.Collections; using UnityEngine; using UnityEngine.EventSystems; /// <summary> /// 继承拖拽接口 /// </summary> public class SliderManager : MonoBehaviour, IDragHandler, IEndDragHandler { [SerializeField] public PlayVideo toPlayVideo; // 视频播放的脚本

// Use this for initialization
void Start()
{

}

// Update is called once per frame
void Update()
{

}

/// <summary>
/// 给 Slider 添加开始拖拽事件
/// </summary>
/// <param name="eventData"></param>
public void OnDrag(PointerEventData eventData)
{
    toPlayVideo.videoPlayer.Pause();
    SetVideoTimeValueChange();
}

/// <summary>
/// 当前的 Slider 比例值转换为当前的视频播放时间
/// </summary>
private void SetVideoTimeValueChange()
{
    toPlayVideo.videoPlayer.time = toPlayVideo.videoTimeSlider.value * toPlayVideo.videoPlayer.clip.length;
    //toPlayVideo.videoPlayer.time = toPlayVideo.videoTimeSlider.value;
}

/// <summary>
/// 给 Slider 添加结束拖拽事件
/// </summary>
/// <param name="eventData"></param>
public void OnEndDrag(PointerEventData eventData)
{
    toPlayVideo.videoPlayer.Play();
}
