HDLbits之Mt2015 muxdff

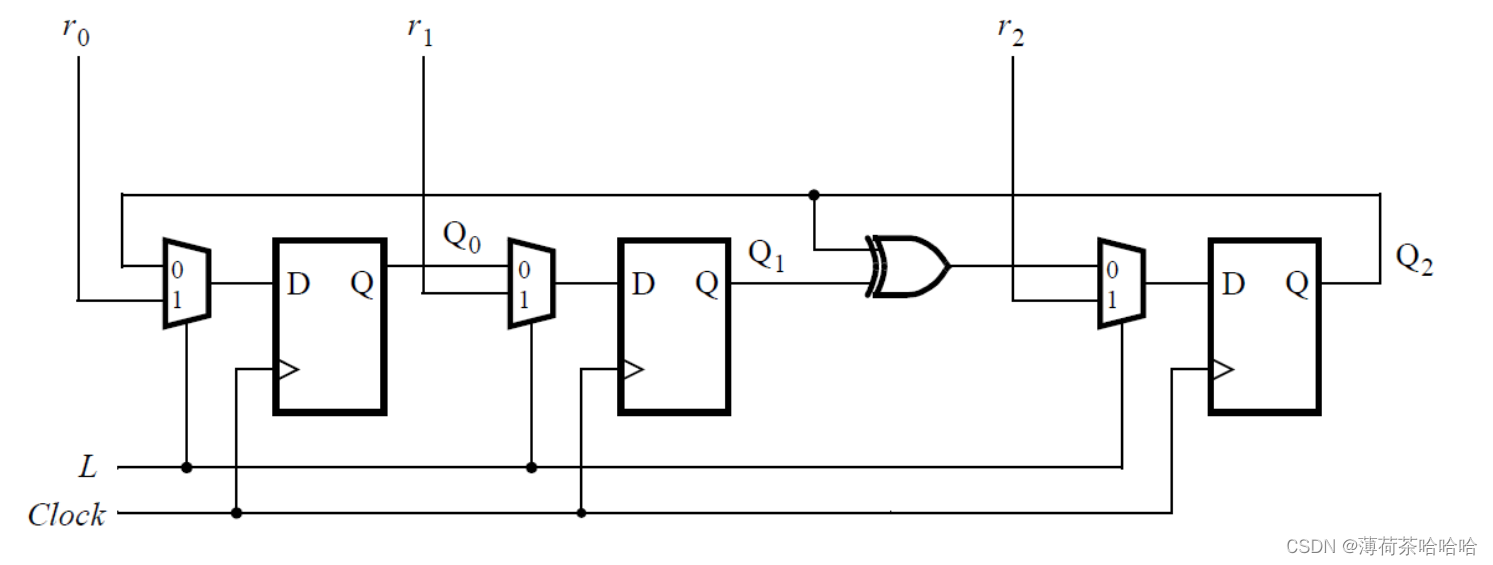

Assume that you want to implement hierarchical Verilog code for this circuit, using three instantiations of a submodule that has a flip-flop and multiplexer in it. Write a Verilog module (containing one flip-flop and multiplexer) named top_module for this submodule.

写一个多路复用和D触发的小模块

代码:

module top_module (
    input clk,
    input L,
    input r_in,
    input q_in,
    output reg Q);
    wire temp;
    assign temp=L?r_in:q_in;
    always@(posedge clk)begin
        Q=temp;
    end
 endmodule
