【UCOS-III】自我学习笔记→第35讲→软件定时器实验

前言

无，仅作记录，不具有参考价值，所用开发板为STM32F411RET6nucleo开发板。

实验步骤

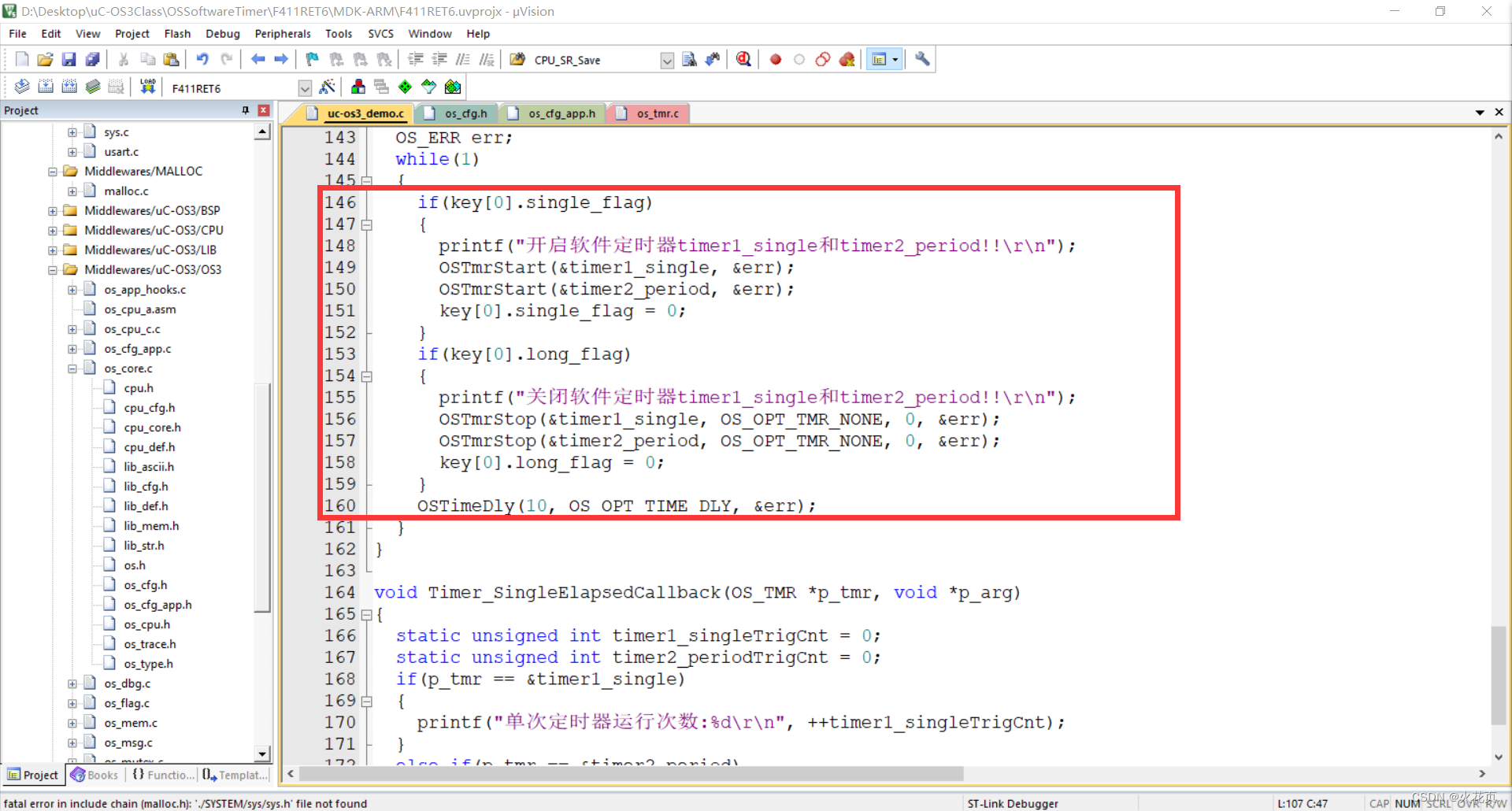

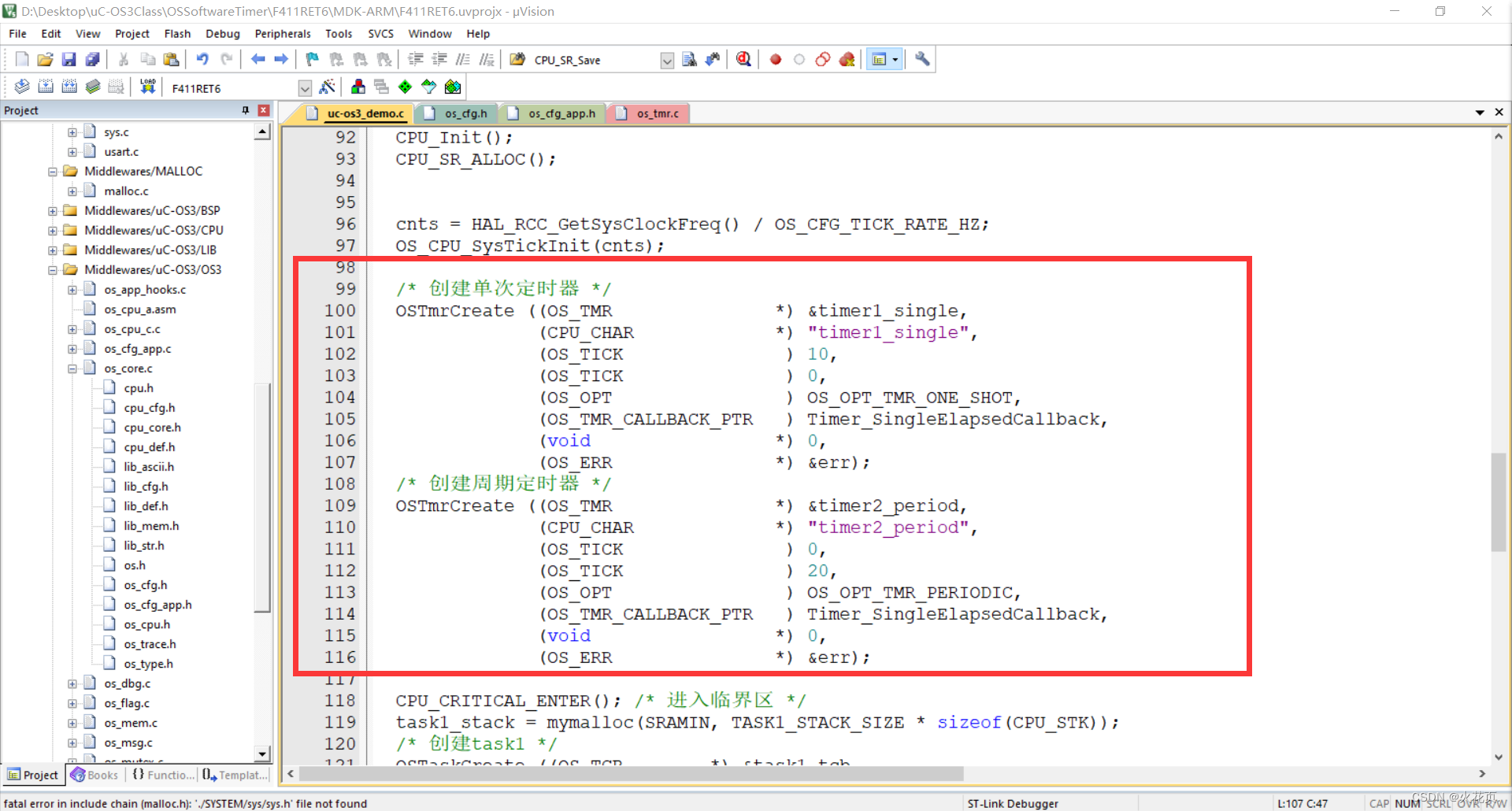

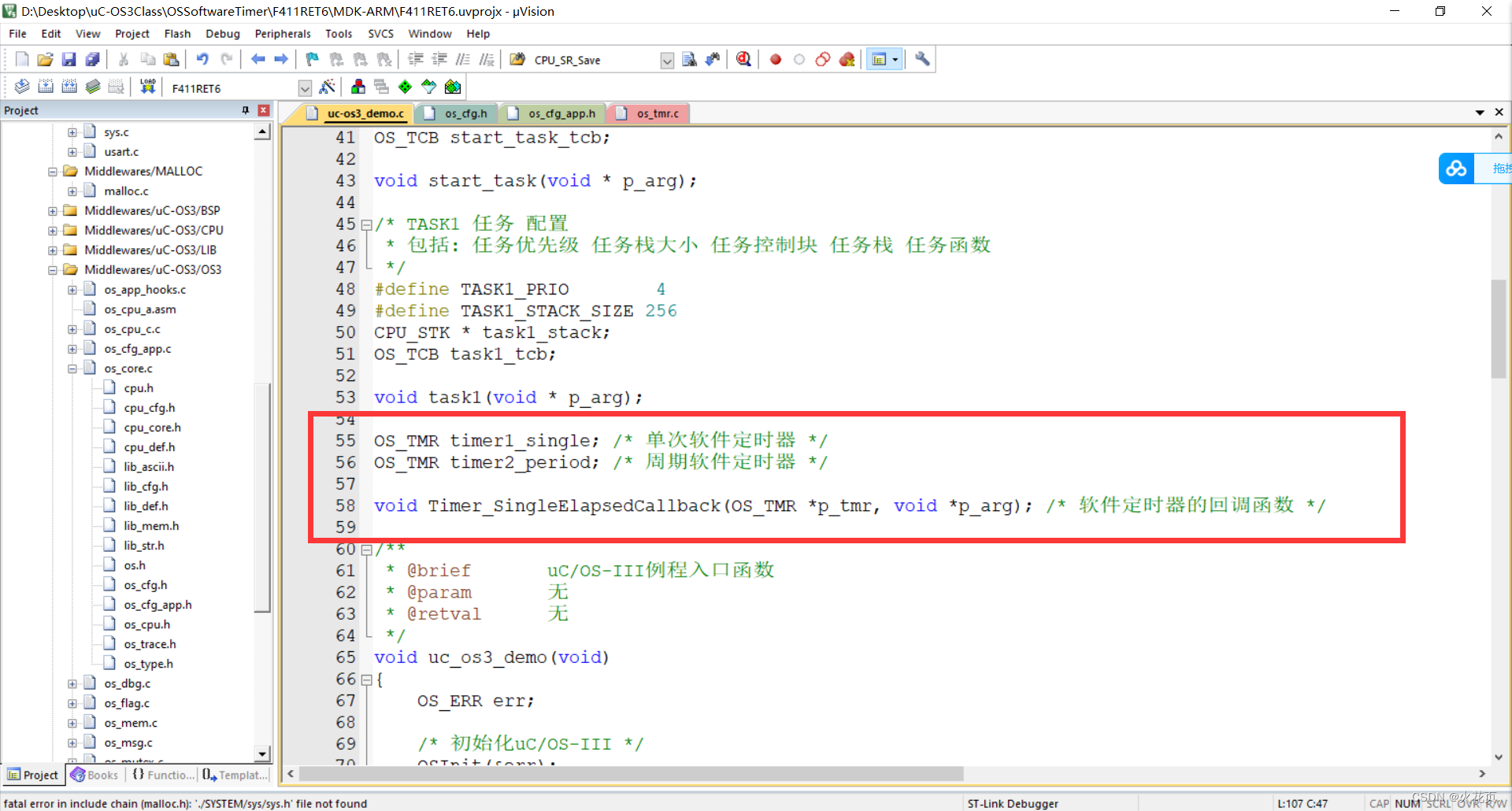

1.复制消息队列工程，并创建单次定时器和周期定时器，并删除task3及其相关内容

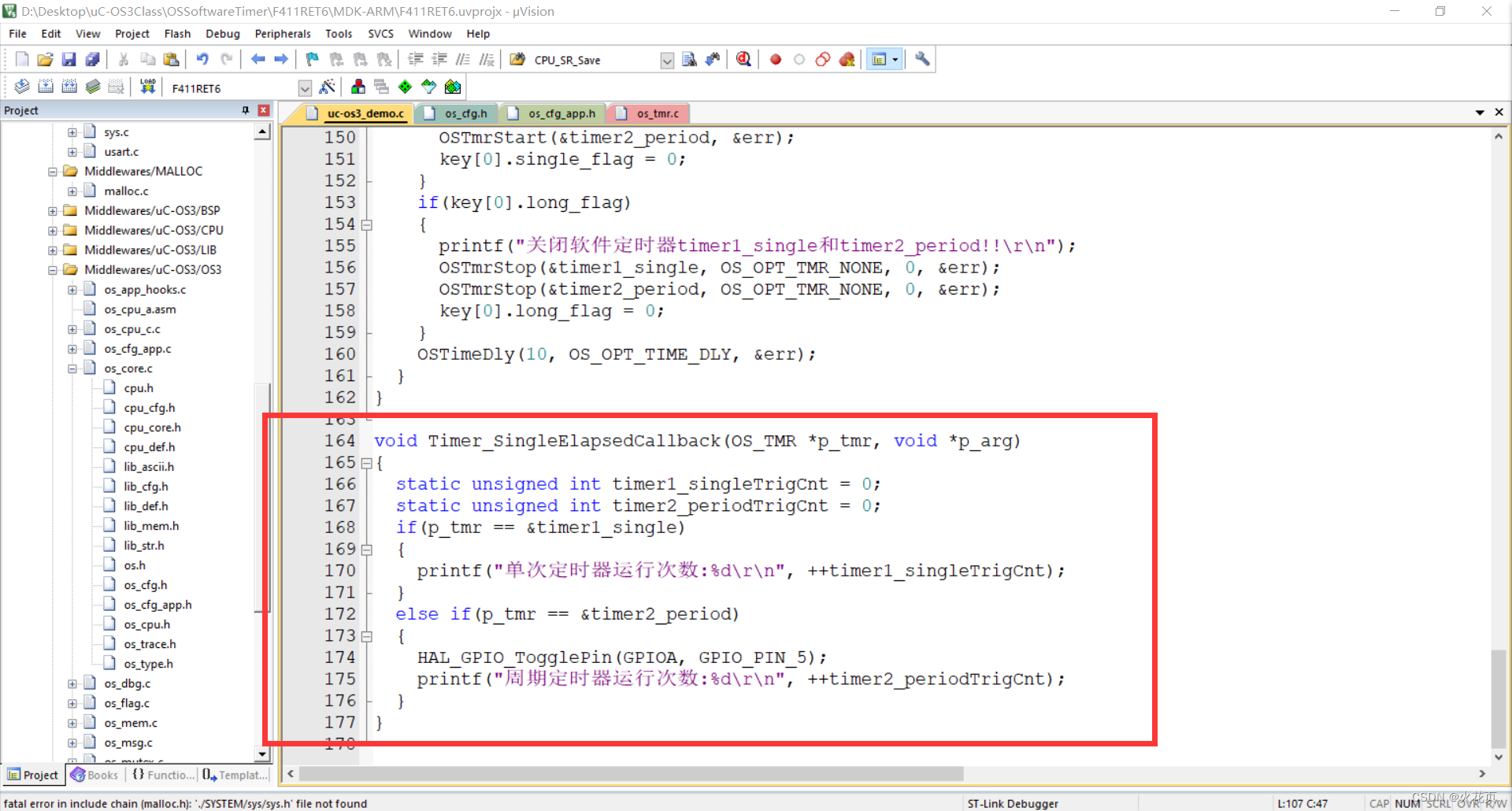

2.添加task1按键处理和软件定时器超时函数

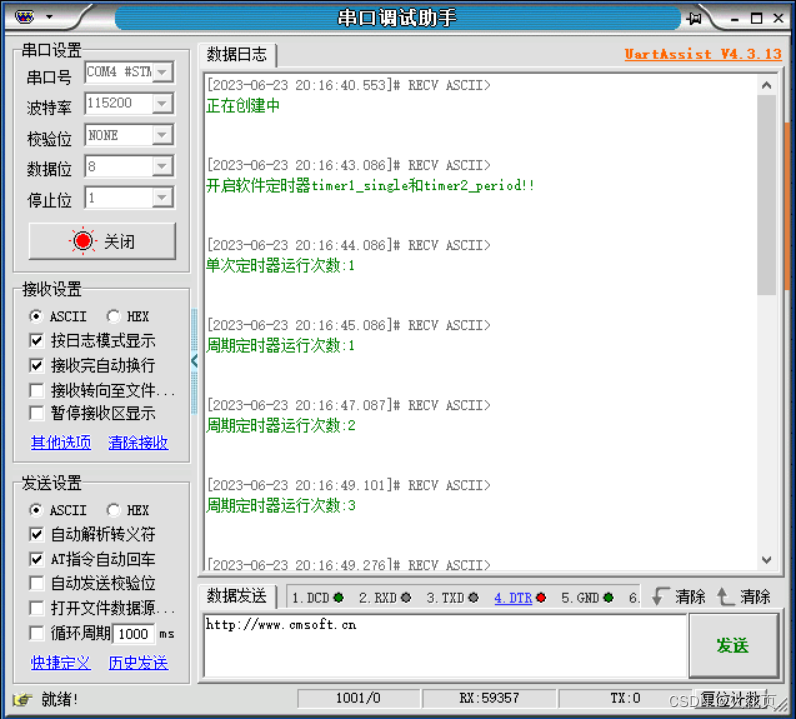

3.查看串口现象

测试代码

us-os3_demo.c:

/**
 ****************************************************************************************************
 * @file        uc-os3_demo.c
 * @author      ÕýµãÔ­×ÓÍŶÓ(ALIENTEK)
 * @version     V1.0
 * @date        2022-04-13
 * @brief       uC/OS-III ÒÆֲʵÑé
 * @license     Copyright (c) 2020-2032, ¹ãÖÝÊÐÐÇÒíµç×ӿƼ¼ÓÐÏÞ¹«Ë¾
 ****************************************************************************************************
 * @attention
 *
 * ʵÑéƽ̨:ÕýµãÔ­×Ó Ì½Ë÷Õß F407¿ª·¢°å
 * ÔÚÏßÊÓƵ:www.yuanzige.com
 * ¼¼ÊõÂÛ̳:www.openedv.com
 * ¹«Ë¾ÍøÖ·:www.alientek.com
 * ¹ºÂòµØÖ·:openedv.taobao.com
 *
 ****************************************************************************************************
 */

#include "uc-os3_demo.h"
#include "./MALLOC/malloc.h"
/*uC/OS-III*********************************************************************************************/
#include "os.h"
#include "cpu.h"
#include "main.h"
#include "key.h"
#include "stdio.h"
#include "interrupt.h"

extern struct keys key[4];
/******************************************************************************************************/
/*uC/OS-IIIÅäÖÃ*/

/* START_TASK ÈÎÎñ ÅäÖÃ
 * °üÀ¨: ÈÎÎñÓÅÏȼ¶ ÈÎÎñÕ»´óС ÈÎÎñ¿ØÖÆ¿é ÈÎÎñÕ» ÈÎÎñº¯Êý
 */
#define START_TASK_PRIO				5
#define START_TASK_STACK_SIZE 256
CPU_STK start_task_stack[START_TASK_STACK_SIZE];
OS_TCB start_task_tcb;

void start_task(void * p_arg);

/* TASK1 ÈÎÎñ ÅäÖÃ
 * °üÀ¨: ÈÎÎñÓÅÏȼ¶ ÈÎÎñÕ»´óС ÈÎÎñ¿ØÖÆ¿é ÈÎÎñÕ» ÈÎÎñº¯Êý
 */
#define TASK1_PRIO				4
#define TASK1_STACK_SIZE 256
CPU_STK * task1_stack;
OS_TCB task1_tcb;

void task1(void * p_arg);

OS_TMR timer1_single; /* µ¥´ÎÈí¼þ¶¨Ê±Æ÷ */
OS_TMR timer2_period; /* ÖÜÆÚÈí¼þ¶¨Ê±Æ÷ */

void Timer_SingleElapsedCallback(OS_TMR *p_tmr, void *p_arg); /* Èí¼þ¶¨Ê±Æ÷µÄ»Øµ÷º¯Êý */

/**
 * @brief       uC/OS-IIIÀý³ÌÈë¿Úº¯Êý
 * @param       ÎÞ
 * @retval      ÎÞ
 */
void uc_os3_demo(void)
{
    OS_ERR err;

    /* ³õʼ»¯uC/OS-III */
    OSInit(&err);
    OSTaskCreate (  (OS_TCB        *) &start_task_tcb,
                    (CPU_CHAR      *) "start_task",
                    (OS_TASK_PTR    ) start_task,
                    (void          *) 0,
                    (OS_PRIO        ) START_TASK_PRIO,
                    (CPU_STK       *) start_task_stack,
                    (CPU_STK_SIZE   ) START_TASK_STACK_SIZE / 10,
                    (CPU_STK_SIZE   ) START_TASK_STACK_SIZE,
                    (OS_MSG_QTY     ) 0,
                    (OS_TICK        ) 0,
                    (void          *) 0,
                    (OS_OPT         ) (OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *) &err);
    /* ¿ªÊ¼ÈÎÎñµ÷¶È */
    OSStart(&err);
}

void start_task(void * p_arg)
{
	OS_ERR err;
	CPU_INT32U cnts = 0;
	CPU_Init();
	CPU_SR_ALLOC();


	cnts = HAL_RCC_GetSysClockFreq() / OS_CFG_TICK_RATE_HZ;
	OS_CPU_SysTickInit(cnts);

	/* ´´½¨µ¥´Î¶¨Ê±Æ÷ */
	OSTmrCreate ((OS_TMR               *) &timer1_single,
               (CPU_CHAR             *) "timer1_single",
               (OS_TICK               ) 10,
               (OS_TICK               ) 0,
               (OS_OPT                ) OS_OPT_TMR_ONE_SHOT,
               (OS_TMR_CALLBACK_PTR   ) Timer_SingleElapsedCallback,
               (void                 *) 0,
               (OS_ERR               *) &err);
 	/* ´´½¨ÖÜÆÚ¶¨Ê±Æ÷ */
	OSTmrCreate ((OS_TMR               *) &timer2_period,
               (CPU_CHAR             *) "timer2_period",
               (OS_TICK               ) 0,
               (OS_TICK               ) 20,
               (OS_OPT                ) OS_OPT_TMR_PERIODIC,
               (OS_TMR_CALLBACK_PTR   ) Timer_SingleElapsedCallback,
               (void                 *) 0,
               (OS_ERR               *) &err);

	CPU_CRITICAL_ENTER(); /* ½øÈëÁÙ½çÇø */
	task1_stack = mymalloc(SRAMIN, TASK1_STACK_SIZE * sizeof(CPU_STK));
	/* ´´½¨task1 */
	OSTaskCreate ((OS_TCB        *) &task1_tcb,
								(CPU_CHAR      *) "task1",
								(OS_TASK_PTR    ) task1,
								(void          *) 0,
								(OS_PRIO        ) TASK1_PRIO,
								(CPU_STK       *) task1_stack,
								(CPU_STK_SIZE   ) TASK1_STACK_SIZE / 10,
								(CPU_STK_SIZE   ) TASK1_STACK_SIZE,
								(OS_MSG_QTY     ) 0,
								(OS_TICK        ) 0,
								(void          *) 0,
								(OS_OPT         ) (OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
								(OS_ERR        *) &err);

		CPU_CRITICAL_EXIT(); /* Í˳öÁÙ½çÇø */
		printf("ÕýÔÚ´´½¨ÖÐ\r\n");
		OSTaskDel((OS_TCB*)0, &err); //±ðÍüÁËɾ³ýÈÎÎñStart
}

/* °´¼üÅжϣ¬¶Ì°´¿ªÆô¶¨Ê±Æ÷£¬³¤°´¹Ø±Õ¶¨Ê±Æ÷ */
void task1(void * p_arg)
{
	OS_ERR err;
	while(1)
	{
		if(key[0].single_flag)
		{
			printf("¿ªÆôÈí¼þ¶¨Ê±Æ÷timer1_singleºÍtimer2_period!!\r\n");
			OSTmrStart(&timer1_single, &err);
			OSTmrStart(&timer2_period, &err);
			key[0].single_flag = 0;
		}
		if(key[0].long_flag)
		{
			printf("¹Ø±ÕÈí¼þ¶¨Ê±Æ÷timer1_singleºÍtimer2_period!!\r\n");
			OSTmrStop(&timer1_single, OS_OPT_TMR_NONE, 0, &err);
			OSTmrStop(&timer2_period, OS_OPT_TMR_NONE, 0, &err);
			key[0].long_flag = 0;
		}
		OSTimeDly(10, OS_OPT_TIME_DLY, &err);
	}
}

void Timer_SingleElapsedCallback(OS_TMR *p_tmr, void *p_arg)
{
	static unsigned int timer1_singleTrigCnt = 0;
	static unsigned int timer2_periodTrigCnt = 0;
	if(p_tmr == &timer1_single)
	{
		printf("µ¥´Î¶¨Ê±Æ÷ÔËÐдÎÊý:%d\r\n", ++timer1_singleTrigCnt);
	}
	else if(p_tmr == &timer2_period)
	{
		HAL_GPIO_TogglePin(GPIOA, GPIO_PIN_5);
		printf("ÖÜÆÚ¶¨Ê±Æ÷ÔËÐдÎÊý:%d\r\n", ++timer2_periodTrigCnt);
	}
}

工程文件

软件定时器实验

总结

【正点原子】手把手教你学UCOS-III实时操作系统第35讲软件定时器实验
