【STM32G431RBTx】备战蓝桥杯嵌入式→省赛试题→第十四届

已于 2024-04-12 15:20:01 修改
阅读量672 收藏 14
点赞数 5
文章标签： stm32 蓝桥杯 嵌入式硬件
于 2024-04-11 22:06:39 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/qq_66792436/article/details/137654380
版权

文章目录

前言

无

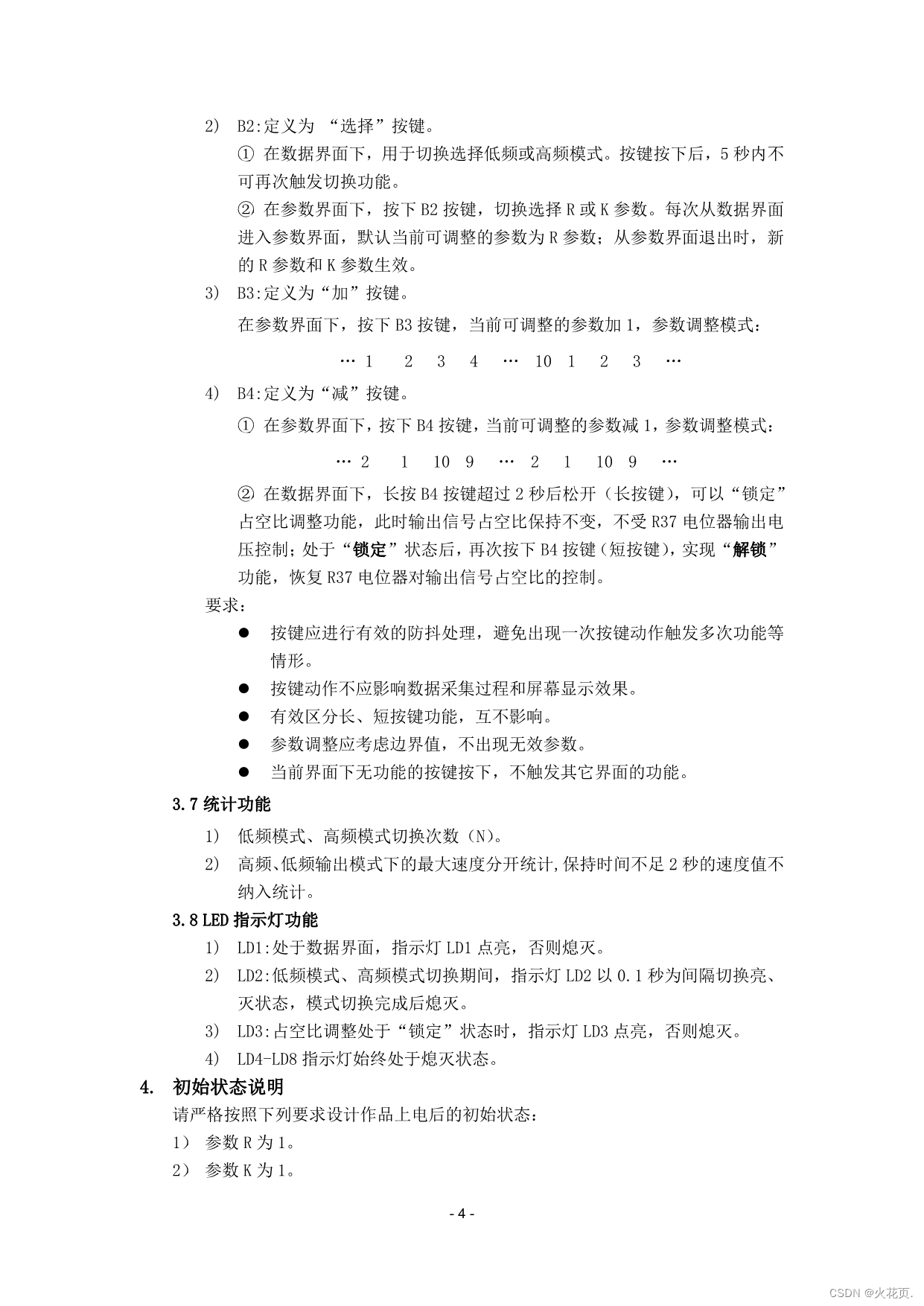

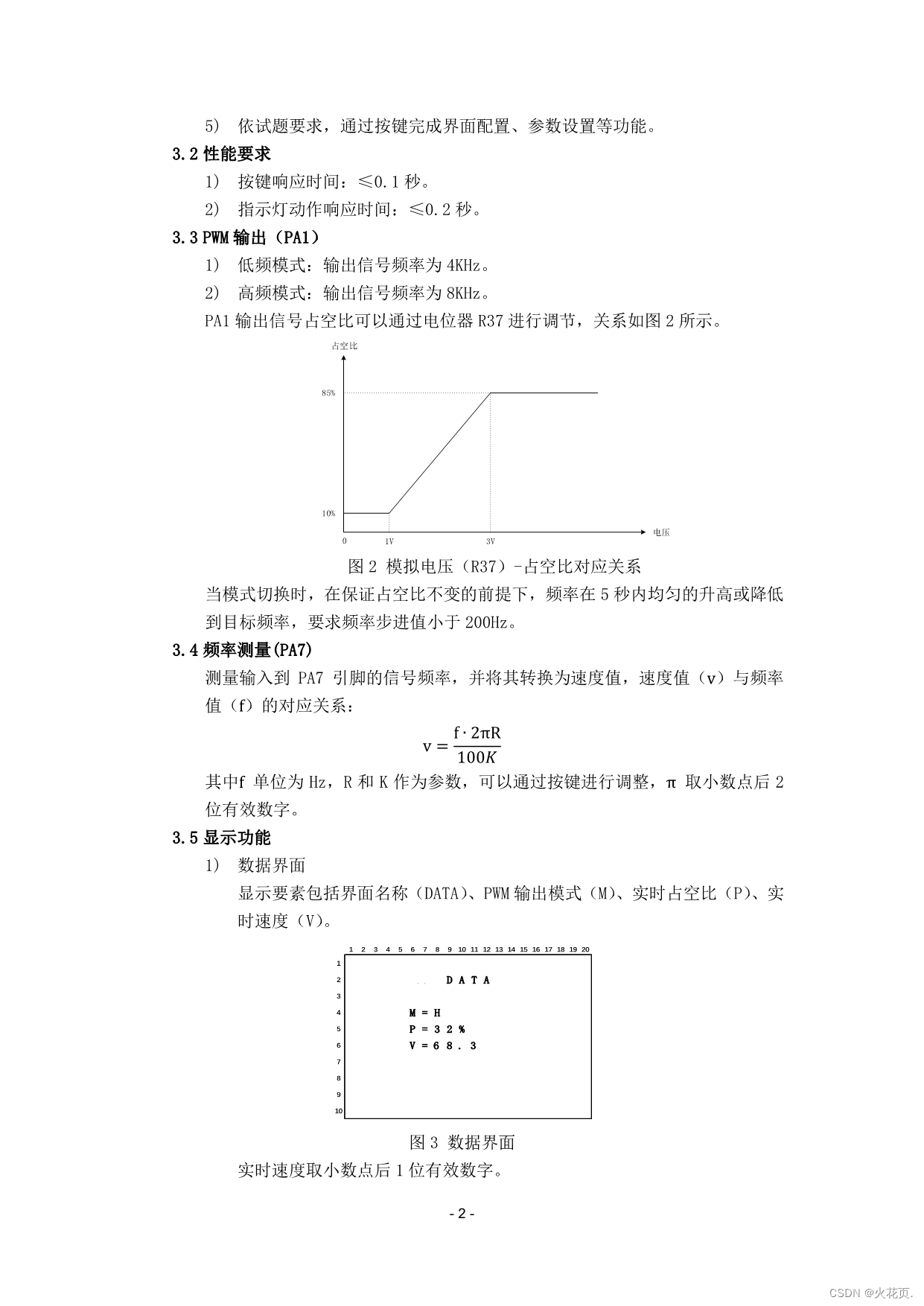

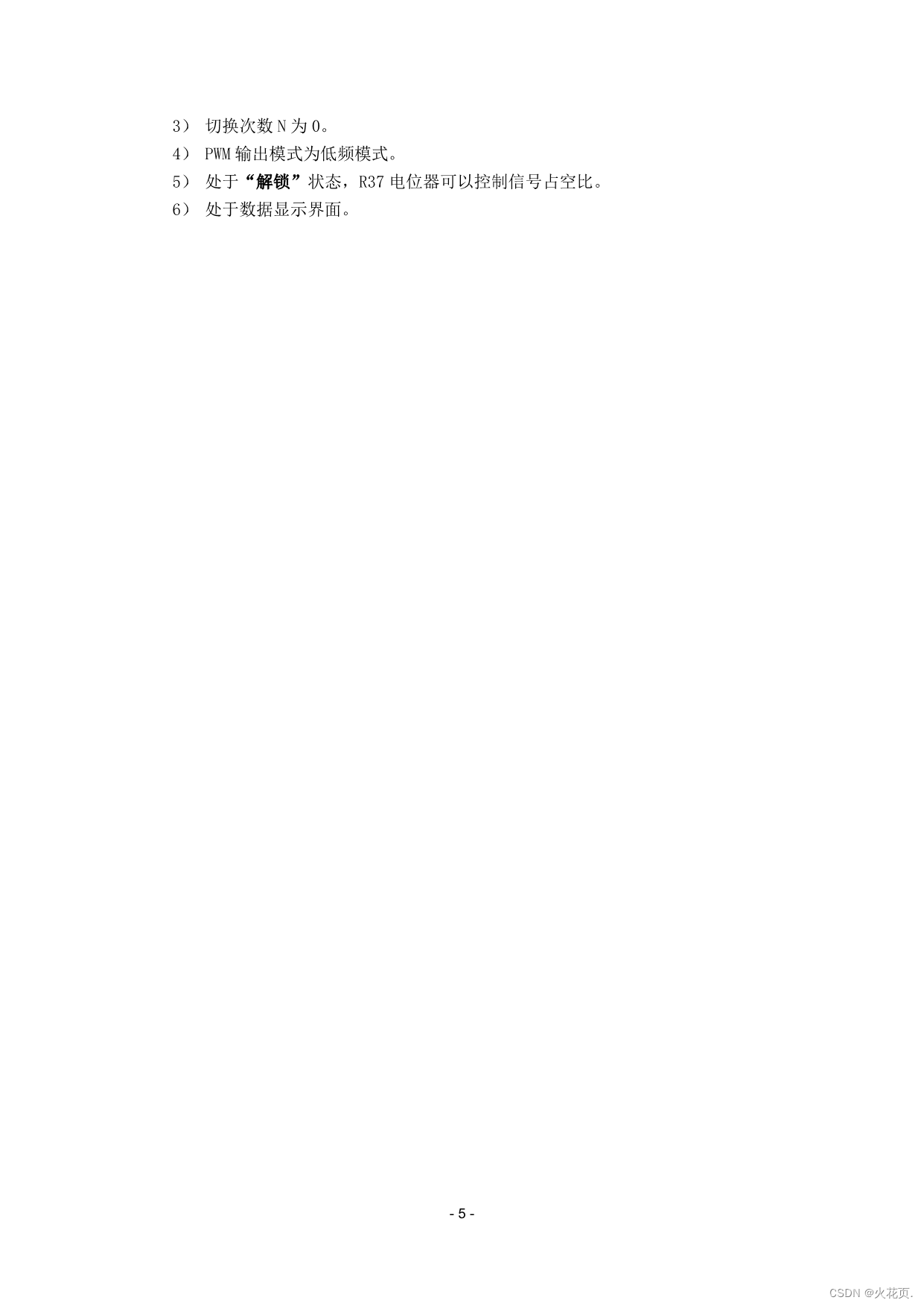

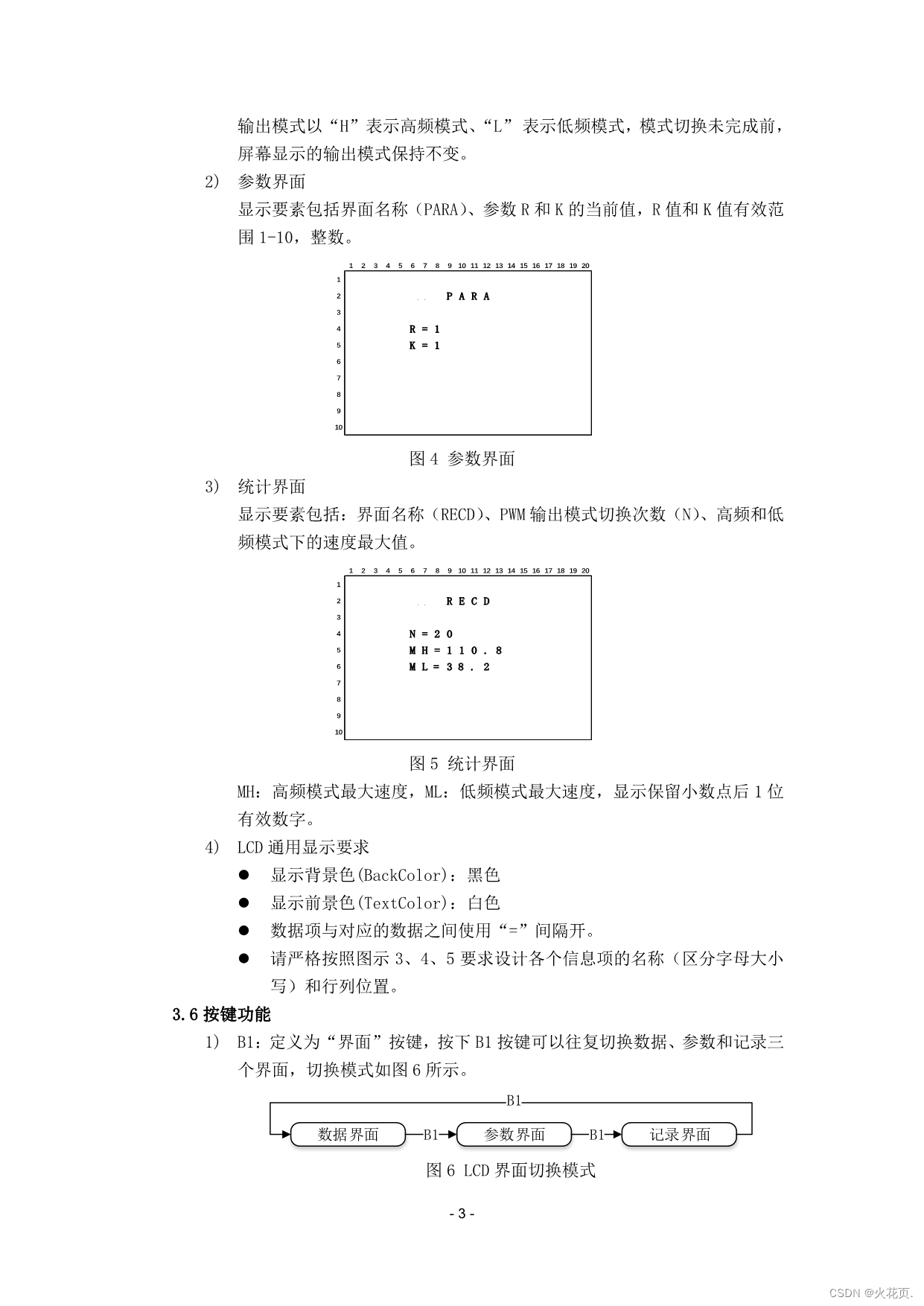

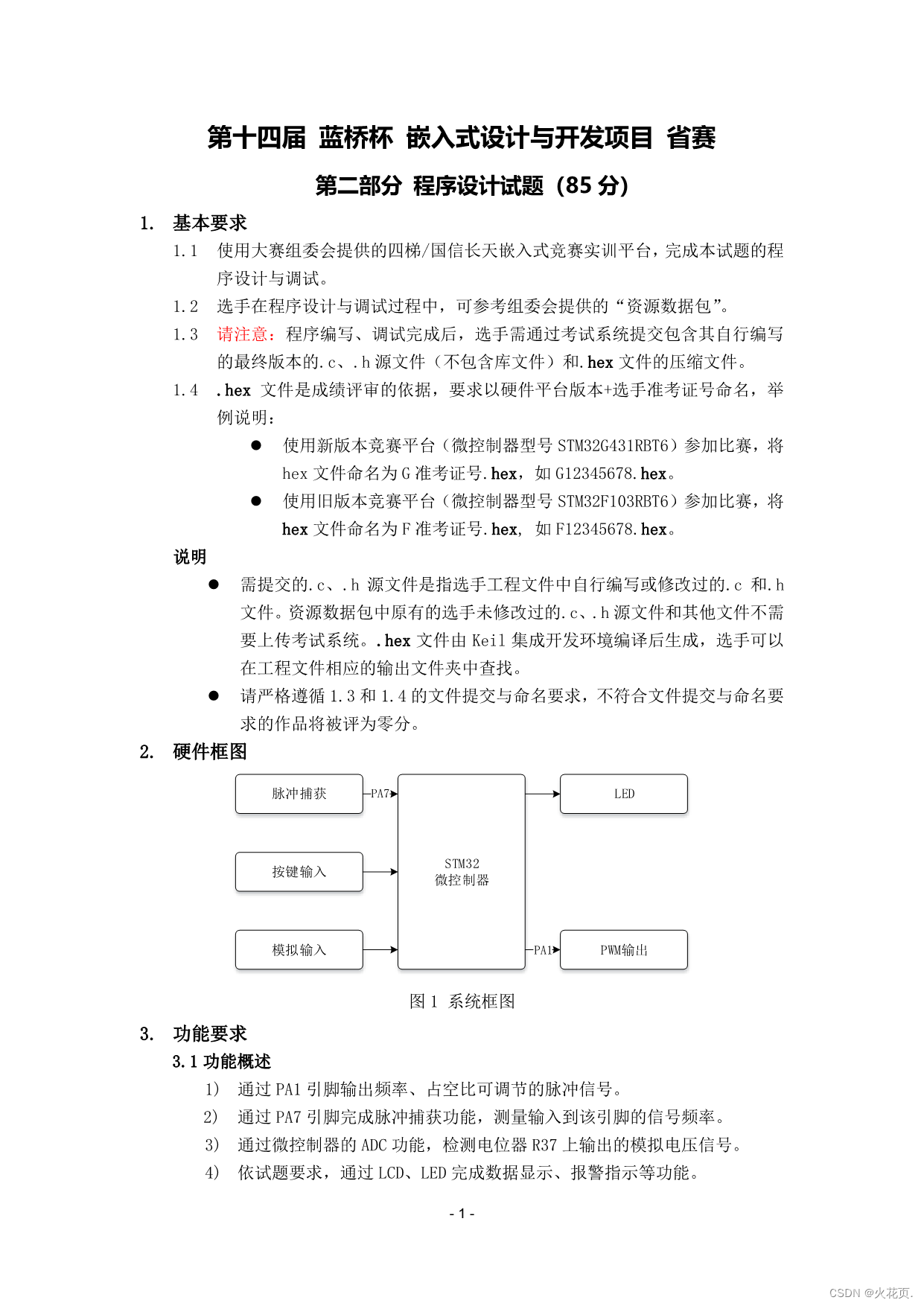

一、题目

请添加图片描述
请添加图片描述
请添加图片描述
请添加图片描述
请添加图片描述

二、模块初始化

1.LCD这里不用配置，直接使用提供的资源包就行
2.KEY, 四个按键IO口都要配置，分别是PB0, PB1,PB2,PA0依次是B0,B1,B2,B3不要弄错了
3.LED:开启PC8,PC9,PC10,PD2输出模式就行了。
4.定时器:TIM3(按键消抖定时器):PSC:80-1,ARR:10000-1,TIM2CH2(PA1PWM占空比以及频率):PSC:100-1,ARR:200-1,TIM4(低高频转换时间控制，LED闪烁控制，统计数据时间控制):PSC:80-1,ARR:9999,TIM17输入捕获采集。

三、代码实现

bsp组中共有:
在这里插入图片描述

interrupt.h:

#ifndef __INTERRUPT_H__
#define __INTERRUPT_H__

#include "main.h"
#include "stdbool.h"

struct keys
{
	bool key_sta;
	unsigned char judge_sta;
	unsigned int key_time;
	bool single_flag;
	bool long_flag;
};

#endif

interrupt.c:

#include "interrupt.h"
#include "tim.h"

struct keys key[4] = {0, 0, 0, 0, 0};

extern unsigned char PA1changingFlag;
extern unsigned int PA1changingTick;
extern unsigned int PA1Fre;
extern unsigned char PA1OutputMode;
extern unsigned int N;
extern float V;
float VHregister = 0.0;
unsigned int VHcompareTick = 0;
float VLregister = 0.0;
unsigned int VLcompareTick = 0;
extern float MH;
extern float ML;
extern unsigned char LED;

void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef * htim)
{
	if(htim->Instance == TIM3)
	{
		key[0].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_0);
		key[1].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_1);
		key[2].key_sta = HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_2);
		key[3].key_sta = HAL_GPIO_ReadPin(GPIOA, GPIO_PIN_0);
		for(unsigned char i = 0; i < 4; i++)
		{
			switch(key[i].judge_sta)
			{
				case 0:
				{
					if(key[i].key_sta == 0)
					{
						key[i].judge_sta = 1;
						key[i].key_time = 0;
					}
					break;
				}
				case 1:
				{
					if(key[i].key_sta == 0)
					{
						key[i].judge_sta = 2;
					}
					else
					{
						key[i].judge_sta = 0;
					}
					break;
				}
				case 2:
				{
					if(key[i].key_sta == 1)
					{
						key[i].judge_sta = 0;
						if(key[i].key_time <= 200)
						{
							key[i].single_flag = 1;
						}
						else if(key[i].key_time > 200)
						{
							key[i].long_flag = 1;
						}
					}
					else
					{
						key[i].key_time++;
					}
					break;
				}
			}
		}
	}
	if(htim->Instance ==TIM4)
	{
		if(PA1changingFlag == 1)
		{
			if(PA1OutputMode == LOWFRE)
			{
				PA1changingTick++;
				if(PA1changingTick % 10 == 0)
					LED ^= 0x02;
				PA1Fre += 8;
				__HAL_TIM_SET_PRESCALER(&htim2, (80000000 / 200 / PA1Fre) - 1);
				if(PA1changingTick >= 500)
				{
					PA1changingTick = 0;
					PA1changingFlag = 0;
					PA1OutputMode = HIGHFRE;
					LED &= ~(0x02);
					N++;
				}
			}
			else if(PA1OutputMode == HIGHFRE)
			{
				PA1changingTick++;
				if(PA1changingTick % 10 == 0)
					LED ^= 0x02;
				PA1Fre -= 8;
				__HAL_TIM_SET_PRESCALER(&htim2, (80000000 / 200 / PA1Fre) - 1);
				if(PA1changingTick >= 500)
				{
					PA1changingTick = 0;
					PA1changingFlag = 0;
					PA1OutputMode = LOWFRE;
					LED &= ~(0x02);
					N++;
				}
			}
		}
		if(PA1OutputMode == HIGHFRE)
		{
			if(VHcompareTick >= 200)
			{
				if((unsigned int)(VHregister * 10) == (unsigned int)(V * 10))
				{
					MH = VHregister;
					VHcompareTick = 0;
				}
			}
			else
			{
				VHcompareTick++;
				if((unsigned int)(VHregister * 10) != (unsigned int)(V * 10))
				{
					VHcompareTick = 0;
				}
			}
			VHregister = V;
		}
		else if(PA1OutputMode == LOWFRE)
		{
			if(VLcompareTick >= 200)
			{
				if((unsigned int)(VLregister * 10) == (unsigned int)(V * 10))
				{
					ML = VLregister;
					VLcompareTick = 0;
				}
			}
			else
			{
				VLcompareTick++;
				if((unsigned int)(VLregister * 10) != (unsigned int)(V * 10))
				{
					VLcompareTick = 0;
				}
			}
			VLregister = V;
		}
	}
}

/* Captured Values */
uint32_t uwIC1Value1_T17CH1 = 0;
uint32_t uwIC1Value2_T17CH1 = 0;
uint32_t uwHighCapture_T17CH1 = 0;
uint32_t uwLowCapture_T17CH1 = 0;

/* Capture index */
uint16_t uhCaptureIndex_T17CH1 = 0;

/* Frequency Value */
uint32_t uwFrequency_T17CH1 = 0;
float uwDuty_T17CH1 = 0;

void HAL_TIM_IC_CaptureCallback(TIM_HandleTypeDef *htim)
{
  if (htim->Channel == HAL_TIM_ACTIVE_CHANNEL_1)
  {
    if(uhCaptureIndex_T17CH1 == 0)
    {
      /* Get the 1st Input Capture value */
      uwIC1Value1_T17CH1 = HAL_TIM_ReadCapturedValue(htim, TIM_CHANNEL_1);
			__HAL_TIM_SET_CAPTUREPOLARITY(htim, TIM_CHANNEL_1, TIM_INPUTCHANNELPOLARITY_FALLING);
      uhCaptureIndex_T17CH1 = 1;
    }
    else if(uhCaptureIndex_T17CH1 == 1)
    {
      /* Get the 2nd Input Capture value */
      uwIC1Value2_T17CH1 = HAL_TIM_ReadCapturedValue(htim, TIM_CHANNEL_1);
			__HAL_TIM_SET_CAPTUREPOLARITY(htim, TIM_CHANNEL_1, TIM_INPUTCHANNELPOLARITY_RISING);
      /* Capture computation */
      if (uwIC1Value2_T17CH1 > uwIC1Value1_T17CH1)
      {
        uwHighCapture_T17CH1 = (uwIC1Value2_T17CH1 - uwIC1Value1_T17CH1);
      }
      else if (uwIC1Value2_T17CH1 < uwIC1Value1_T17CH1)
      {
        /* 0xFFFF is max TIM1_CCRx value */
        uwHighCapture_T17CH1 = ((0xFFFF - uwIC1Value1_T17CH1) + uwIC1Value2_T17CH1) + 1;
      }
      else
      {
        /* If capture values are equal, we have reached the limit of frequency
           measures */
        Error_Handler();
      }
			uhCaptureIndex_T17CH1 = 2;
			uwIC1Value1_T17CH1 = uwIC1Value2_T17CH1;
      /* Frequency computation: for this example TIMx (TIM1) is clocked by
         APB2Clk */
//      uwFrequency_T17CH1 = 1000000 / uwDiffCapture_T17CH1;
//      uhCaptureIndex_T17CH1 = 0;
    }
		else if(uhCaptureIndex_T17CH1 == 2)
    {
			uwIC1Value2_T17CH1 = HAL_TIM_ReadCapturedValue(htim, TIM_CHANNEL_1);
			/* Capture computation */
      if (uwIC1Value2_T17CH1 > uwIC1Value1_T17CH1)
      {
        uwLowCapture_T17CH1 = (uwIC1Value2_T17CH1 - uwIC1Value1_T17CH1);
      }
      else if (uwIC1Value2_T17CH1 < uwIC1Value1_T17CH1)
      {
        /* 0xFFFF is max TIM1_CCRx value */
        uwLowCapture_T17CH1 = ((0xFFFF - uwIC1Value1_T17CH1) + uwIC1Value2_T17CH1) + 1;
      }
      else
      {
        /* If capture values are equal, we have reached the limit of frequency
           measures */
        Error_Handler();
      }
      uwFrequency_T17CH1 = 1000000 / (uwHighCapture_T17CH1 + uwLowCapture_T17CH1);
			uwDuty_T17CH1 = uwHighCapture_T17CH1 * 100.0 / (uwLowCapture_T17CH1 + uwHighCapture_T17CH1);
      uhCaptureIndex_T17CH1 = 0;
		}
  }
}

main.h:

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.h
  * @brief          : Header for main.c file.
  *                   This file contains the common defines of the application.
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2024 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */

/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef __MAIN_H
#define __MAIN_H

#ifdef __cplusplus
extern "C" {
#endif

/* Includes ------------------------------------------------------------------*/
#include "stm32g4xx_hal.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

/* USER CODE END Includes */

/* Exported types ------------------------------------------------------------*/
/* USER CODE BEGIN ET */

/* USER CODE END ET */

/* Exported constants --------------------------------------------------------*/
/* USER CODE BEGIN EC */

/* USER CODE END EC */

/* Exported macro ------------------------------------------------------------*/
/* USER CODE BEGIN EM */

/* USER CODE END EM */

/* Exported functions prototypes ---------------------------------------------*/
void Error_Handler(void);

/* USER CODE BEGIN EFP */

/* USER CODE END EFP */

/* Private defines -----------------------------------------------------------*/

/* USER CODE BEGIN Private defines */
#define KA ((85.0 - 10.0)/(3.0 - 1.0))
#define DATA 0
#define PARA 1
#define RECD 2
#define LOWFRE 0
#define HIGHFRE 1
/* USER CODE END Private defines */

#ifdef __cplusplus
}
#endif

#endif /* __MAIN_H */

main.c:

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2024 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "adc.h"
#include "tim.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "lcd.h"
#include "interrupt.h"
#include "stdio.h"
#include "badc.h"
#include "led.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */
extern uint32_t uwFrequency_T17CH1;
extern float uwDuty_T17CH1;
char text[30];
extern struct keys key[4];
float R37Volt;
float PA1Duty;//(0.0%, 100.0%)
unsigned int PA1Fre = 4000; //8hz / 10ms
unsigned char PA1changingFlag;
unsigned int PA1changingTick;
unsigned char PA1OutputMode;
unsigned char DisplayMode;
unsigned int R = 1;
unsigned int K = 1;
unsigned int Rtemp = 1, Ktemp = 1;
unsigned int N = 0;
float V = 0;
float MH;
float ML;
unsigned char SettingRKIndex;
unsigned char PA1DutyLock;
unsigned char LED;
/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
void LCD_Disp(void);
void DisposeKey(void);
float DutyReturn(float R37Volt);
/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_ADC2_Init();
  MX_TIM2_Init();
  MX_TIM17_Init();
  MX_TIM3_Init();
  MX_TIM4_Init();
  /* USER CODE BEGIN 2 */
	LCD_Init();
	LCD_Clear(Black);
	LCD_SetBackColor(Black);
	LCD_SetTextColor(White);
	HAL_TIM_IC_Start_IT(&htim17, TIM_CHANNEL_1);
	HAL_TIM_Base_Start_IT(&htim3);
	HAL_TIM_Base_Start_IT(&htim4);
	getADC(&hadc2);
	R37Volt = getADC(&hadc2) * 3.3 / 4096;
	PA1Duty = DutyReturn(R37Volt);
	__HAL_TIM_SET_COMPARE(&htim2, TIM_CHANNEL_2, (unsigned int)(PA1Duty * 2));
	HAL_TIM_PWM_Start(&htim2, TIM_CHANNEL_2);
	LED_Disp(0x00);
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
		R37Volt = getADC(&hadc2) * 3.3 / 4096;
		PA1Duty = DutyReturn(R37Volt);
		V = uwFrequency_T17CH1 * 2 * 3.14 * R / (100.0 * K);
		if(PA1DutyLock == 0)
		{
			__HAL_TIM_SET_COMPARE(&htim2, TIM_CHANNEL_2, (unsigned int)(PA1Duty * 2));
		}
		DisposeKey();
		if(DisplayMode == DATA)
		{
			LED |= 0x01;
		}
		else
		{
			LED &= ~0x01;
		}
		if(PA1DutyLock == 1)
		{
			LED |= (0x01 << 2);
		}
		else
		{
			LED &= ~(0x01 << 2);
		}
		LED_Disp(LED);
		LCD_Disp();
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  HAL_PWREx_ControlVoltageScaling(PWR_REGULATOR_VOLTAGE_SCALE1);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLM = RCC_PLLM_DIV3;
  RCC_OscInitStruct.PLL.PLLN = 20;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
  RCC_OscInitStruct.PLL.PLLQ = RCC_PLLQ_DIV2;
  RCC_OscInitStruct.PLL.PLLR = RCC_PLLR_DIV2;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */
void DisposeKey(void)
{
	if(key[0].single_flag)
	{
		DisplayMode++;
		if(DisplayMode == RECD)
		{
			R = Rtemp;
			K = Ktemp;
		}
		else if(DisplayMode == PARA)
		{
			SettingRKIndex = 0;
		}
		DisplayMode %= 3;
		LCD_Clear(Black);
		key[0].single_flag = 0;
	}
	if(key[1].single_flag)
	{
		if(DisplayMode == DATA)
		{
			if(PA1changingFlag == 0)
			{
				PA1changingFlag = 1;
				PA1changingTick = 0;
			}
		}
		else if(DisplayMode == PARA)
		{
			SettingRKIndex = !SettingRKIndex;
		}
		key[1].single_flag = 0;
	}
	if(key[2].single_flag)
	{
		if(DisplayMode == PARA)
		{
			if(SettingRKIndex == 0)
			{
				Rtemp++;
				if(Rtemp == 11)
					Rtemp = 1;
			}
			else if(SettingRKIndex == 1)
			{
				Ktemp++;
				if(Ktemp == 11)
					Ktemp = 1;
			}
		}
		key[2].single_flag = 0;
	}
	if(key[3].single_flag)
	{
		if(DisplayMode == PARA)
		{
			if(SettingRKIndex == 0)
			{
				Rtemp--;
				if(Rtemp == 0)
					Rtemp = 10;
			}
			else if(SettingRKIndex == 1)
			{
				Ktemp--;
				if(Ktemp == 0)
					Ktemp = 10;
			}
		}
		else if(DisplayMode == DATA)
		{
			if(PA1DutyLock)
			{
				PA1DutyLock = 0;
			}
		}
		key[3].single_flag = 0;
	}
	if(key[3].long_flag)
	{
		if(DisplayMode == DATA)
		{
			PA1DutyLock = 1;
		}
		key[3].long_flag = 0;
	}
}

void LCD_Disp(void)
{
	if(DisplayMode == DATA)
	{
		LCD_DisplayStringLine(Line1, "        DATA");
		if(PA1OutputMode == HIGHFRE)
		{
			LCD_DisplayStringLine(Line3, "     M=H");
		}
		else if(PA1OutputMode == LOWFRE)
		{
			LCD_DisplayStringLine(Line3, "     M=L");
		}
		sprintf(text, "     P=%02d%%", (unsigned char)(uwDuty_T17CH1 + 0.5)); //ËÄÉáÎåÈë
		LCD_DisplayStringLine(Line4, text);
		sprintf(text, "     V=%.1f    ", V);
		LCD_DisplayStringLine(Line5, text);
	}
	else if(DisplayMode == PARA)
	{
		LCD_DisplayStringLine(Line1, "        PARA");
		sprintf(text, "     R=%d  ", Rtemp);
		LCD_DisplayStringLine(Line3, text);
		sprintf(text, "     K=%d  ", Ktemp);
		LCD_DisplayStringLine(Line4, text);
	}
	else if(DisplayMode == RECD)
	{
		LCD_DisplayStringLine(Line1, "        RECD");
		sprintf(text, "     N=%d   ", N);
		LCD_DisplayStringLine(Line3, text);
		sprintf(text, "     MH=%.1f    ", MH);
		LCD_DisplayStringLine(Line4, text);
		sprintf(text, "     ML=%.1f    ", ML);
		LCD_DisplayStringLine(Line5, text);
	}
}

float DutyReturn(float R37Volt)
{
	float Duty = 0;
	if(R37Volt < 1.0)
	{
		Duty = 10.0;
	}
	else if(R37Volt >= 1.0 && R37Volt < 3.0)
	{
		Duty = KA * (R37Volt - 1) + 10.0;
	}
	else if(R37Volt >= 3.0)
	{
		Duty = 85.0;
	}
	return Duty;
}
/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

四、完成效果

蓝桥杯嵌入式第十四届省赛试题实现效果

五、总结

其实说本篇文章只是为了存放我的代码，所以看不懂很正常。
十四届省赛代码

火花页.
关注
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
