ROS话题与服务编程：控制小乌龟画圆，并且通过代码订阅小乌龟的实时位置并在终端打印

一、创建画圆发送程序

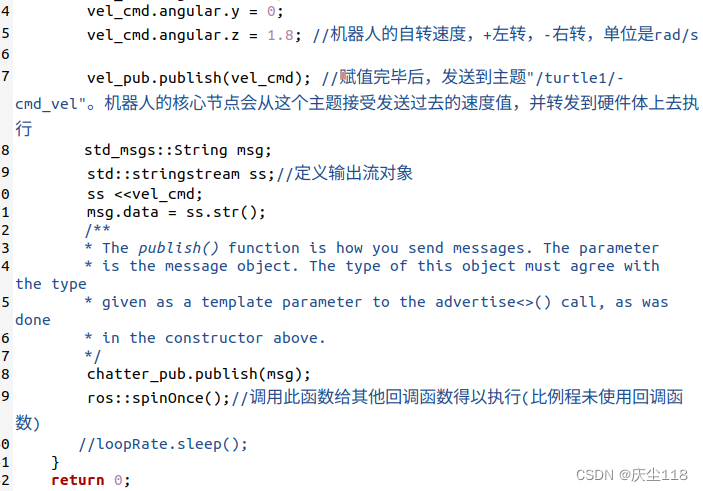

在catkin_ws/src/my_turtle_package/src新建文件yuan.cpp

#include "ros/ros.h"
#include "std_msgs/String.h"
#include<geometry_msgs/Twist.h> //运动速度结构体类型  geometry_msgs::Twist的定义文件

int main(int argc, char *argv[])
{
    ros::init(argc, argv, "vel_ctrl");  //对该节点进行初始化操作
    ros::NodeHandle n;         //申明一个NodeHandle对象n，并用n生成一个广播对象vel_pub
    ros::Publisher vel_pub = n.advertise<geometry_msgs::Twist>("/turtle1/cmd_vel", 10);
    ros::Publisher chatter_pub = n.advertise<std_msgs::String>("chatter", 1000);
    ros::Rate loop_rate(10);
    //vel_pub会在主题"/turtle1/cmd_vel"(机器人速度控制主题)里广播geometry_msgs::Twist类型的数据
    //ros::Rate loopRate(2);
    ROS_INFO("draw_circle start...");//输出显示信息
    while(ros::ok())
    {
        geometry_msgs::Twist vel_cmd; //声明一个geometry_msgs::Twist 类型的对象vel_cmd，并将速度的值赋值到这个对象里面
​
        vel_cmd.linear.x = 2.0;//前后（+-） m/s
        vel_cmd.linear.y = 0.0;  //左右（+-） m/s
        vel_cmd.linear.z = 0.0;

        vel_cmd.angular.x = 0;
        vel_cmd.angular.y = 0;
        vel_cmd.angular.z = 1.8; //机器人的自转速度，+左转，-右转，单位是rad/s
​
        vel_pub.publish(vel_cmd); //赋值完毕后，发送到主题"/turtle1/cmd_vel"。机器人的核心节点会从这个主题接受发送过去的速度值，并转发到硬件体上去执行
    std_msgs::String msg;
        std::stringstream ss;//定义输出流对象
        ss <<vel_cmd;
        msg.data = ss.str();
        /**
        * The publish() function is how you send messages. The parameter
        * is the message object. The type of this object must agree with the type
        * given as a template parameter to the advertise<>() call, as was done
        * in the constructor above.
        */
        chatter_pub.publish(msg);
        ros::spinOnce();//调用此函数给其他回调函数得以执行(比例程未使用回调函数)
       //loopRate.sleep();
    }
    return 0;
}

二、创建画圆接收程序

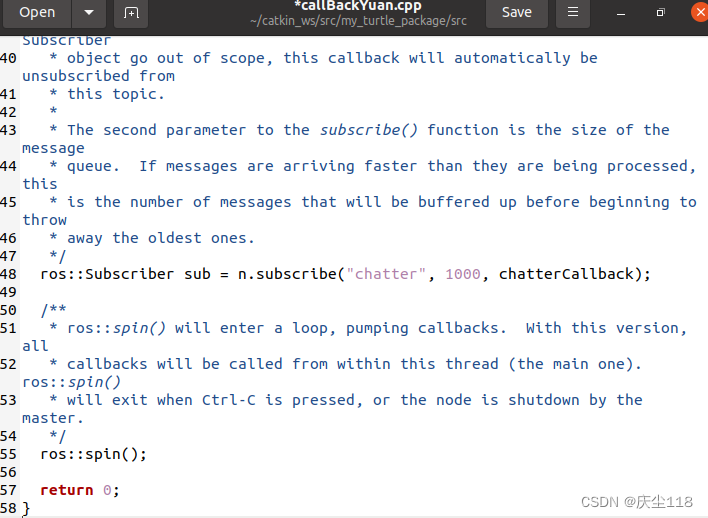

还是在该目录下创建callBackYuan.cpp文件

#include "ros/ros.h"
#include "std_msgs/String.h"

/**
 * This tutorial demonstrates simple receipt of messages over the ROS system.
 */
void chatterCallback(const std_msgs::String::ConstPtr& msg)
{
  ROS_INFO("it is location: [%s]", msg->data.c_str());
}

int main(int argc, char **argv)
{
  /**
   * The ros::init() function needs to see argc and argv so that it can perform
   * any ROS arguments and name remapping that were provided at the command line. For programmatic
   * remappings you can use a different version of init() which takes remappings
   * directly, but for most command-line programs, passing argc and argv is the easiest
   * way to do it.  The third argument to init() is the name of the node.
   *
   * You must call one of the versions of ros::init() before using any other
   * part of the ROS system.
   */
  ros::init(argc, argv, "yuan");

  /**
   * NodeHandle is the main access point to communications with the ROS system.
   * The first NodeHandle constructed will fully initialize this node, and the last
   * NodeHandle destructed will close down the node.
   */
  ros::NodeHandle n;

  /**
   * The subscribe() call is how you tell ROS that you want to receive messages
   * on a given topic.  This invokes a call to the ROS
   * master node, which keeps a registry of who is publishing and who
   * is subscribing.  Messages are passed to a callback function, here
   * called chatterCallback.  subscribe() returns a Subscriber object that you
   * must hold on to until you want to unsubscribe.  When all copies of the Subscriber
   * object go out of scope, this callback will automatically be unsubscribed from
   * this topic.
   *
   * The second parameter to the subscribe() function is the size of the message
   * queue.  If messages are arriving faster than they are being processed, this
   * is the number of messages that will be buffered up before beginning to throw
   * away the oldest ones.
   */
  ros::Subscriber sub = n.subscribe("chatter", 1000, chatterCallback);

  /**
   * ros::spin() will enter a loop, pumping callbacks.  With this version, all
   * callbacks will be called from within this thread (the main one).  ros::spin()
   * will exit when Ctrl-C is pressed, or the node is shutdown by the master.
   */
  ros::spin();

  return 0;
}

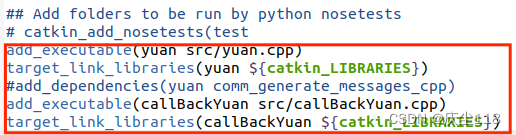

三、修改CMakeLists.txt

在CMakeLists.txt文件末尾添加如下代码

add_executable(yuan src/yuan.cpp)
target_link_libraries(yuan ${catkin_LIBRARIES})
#add_dependencies(yuan comm_generate_messages_cpp)
add_executable(callBackYuan src/callBackYuan.cpp)
target_link_libraries(callBackYuan ${catkin_LIBRARIES})

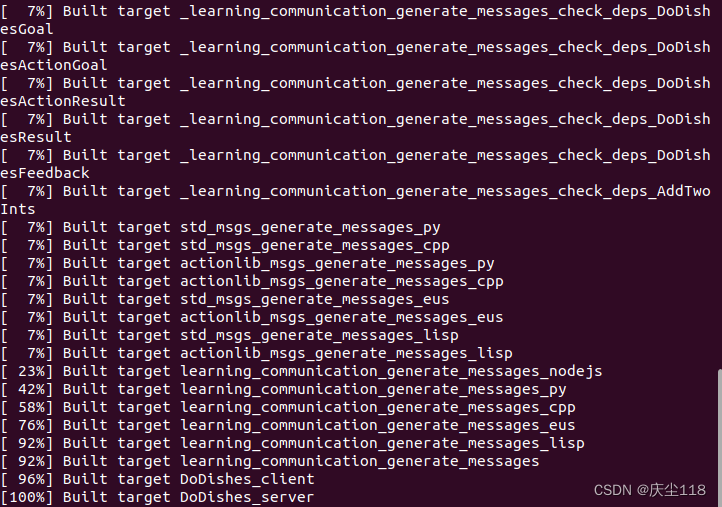

四、编译程序

catkin_make

五、运行程序

终端1

cd ~/catkin_ws
source ./devel/setup.bash

终端2

roscore

终端3

cd ~/catkin_ws
source ./devel/setup.bash
rosrun comm callBackYuan

终端4

rosrun turtlesim turtlesim_node

再在终端1运行画圆程序

rosrun comm yuan

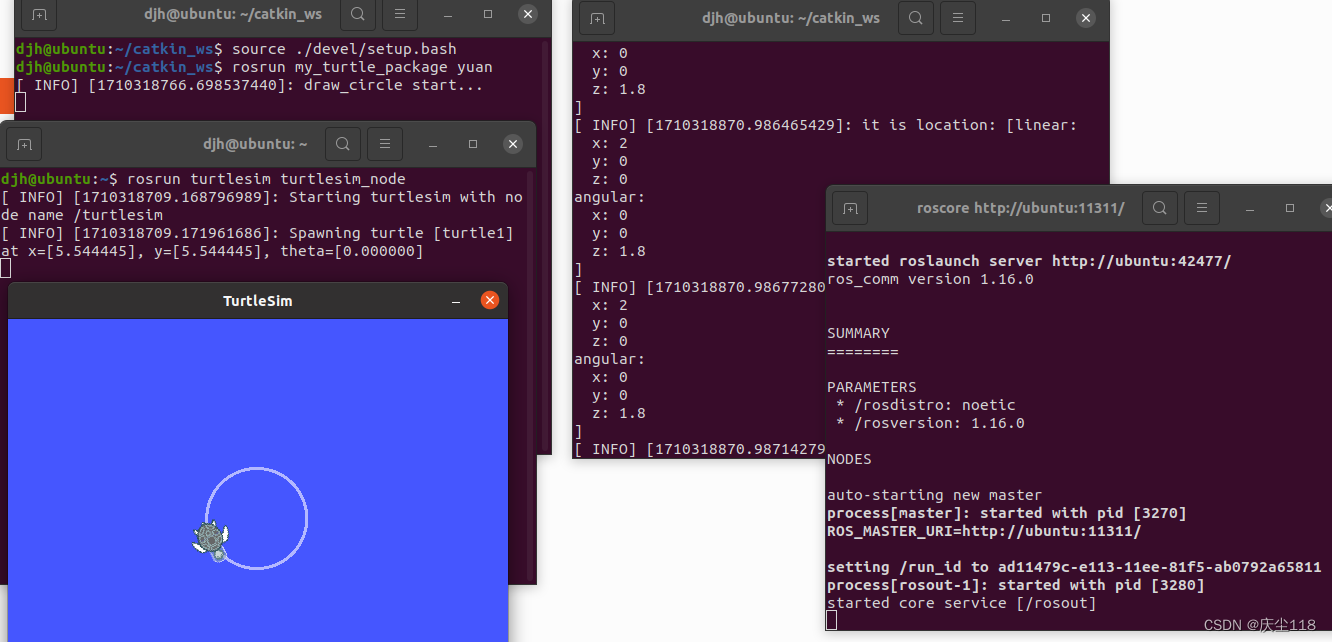

如图所示
